XO's Single Zone wine cooler enables you to store and serve up to 34 bottles of your favorite vintages at just the right temperature. The full overlay panel door blends perfectly with surrounding cabinetry and the fully telescoping racks limit vibration to protect your wine.
XO's Single Zone wine cooler enables you to store and serve up to 34 bottles of your favorite vintages at just the right temperature. The overlay door saves energy and blocks damaging UV light to protect your wine while the fully telescoping racks limit vibration.
STANDOUT FEATURES- Telescoping Wire Racks Absorb Vibration And Extend Fully

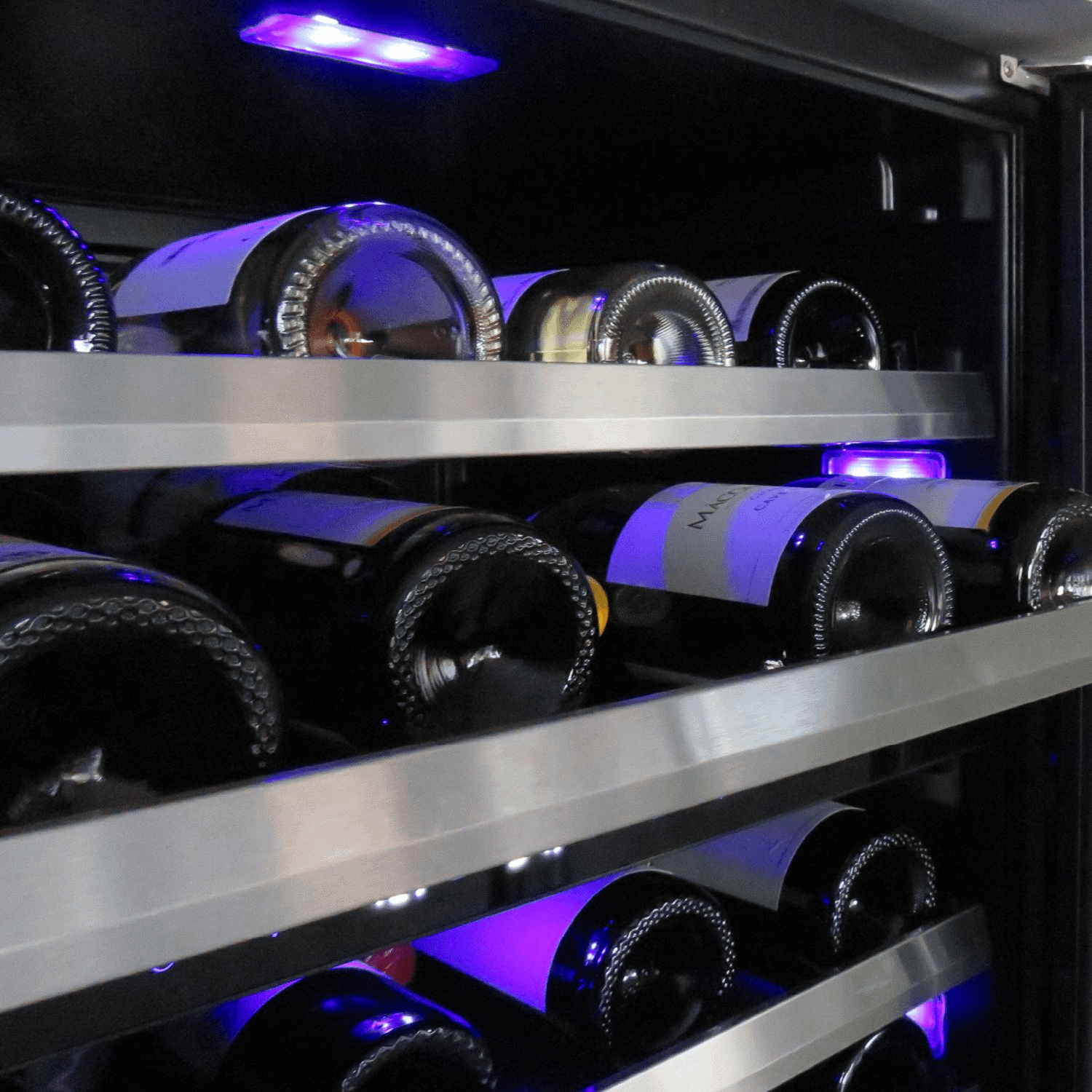

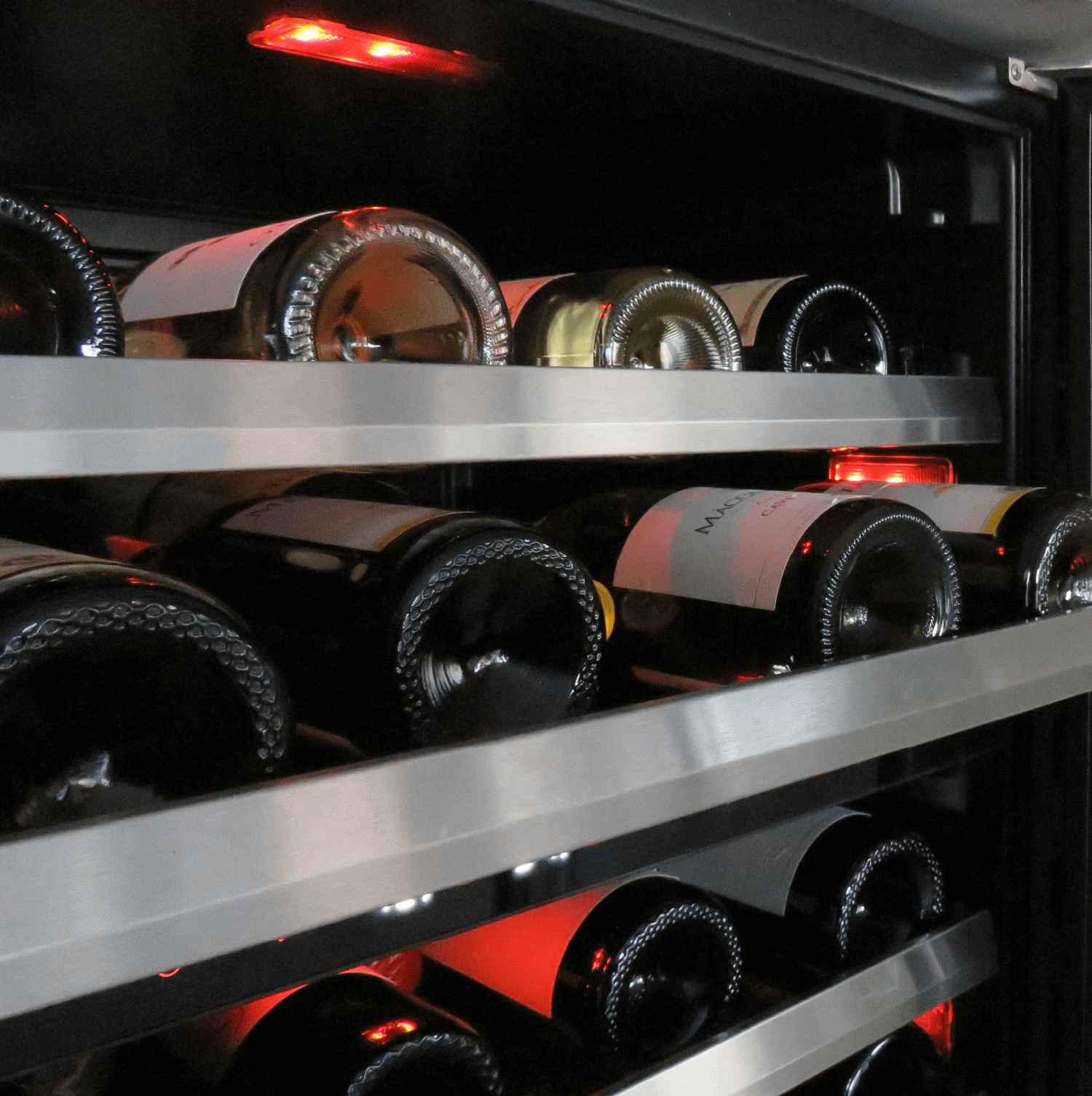

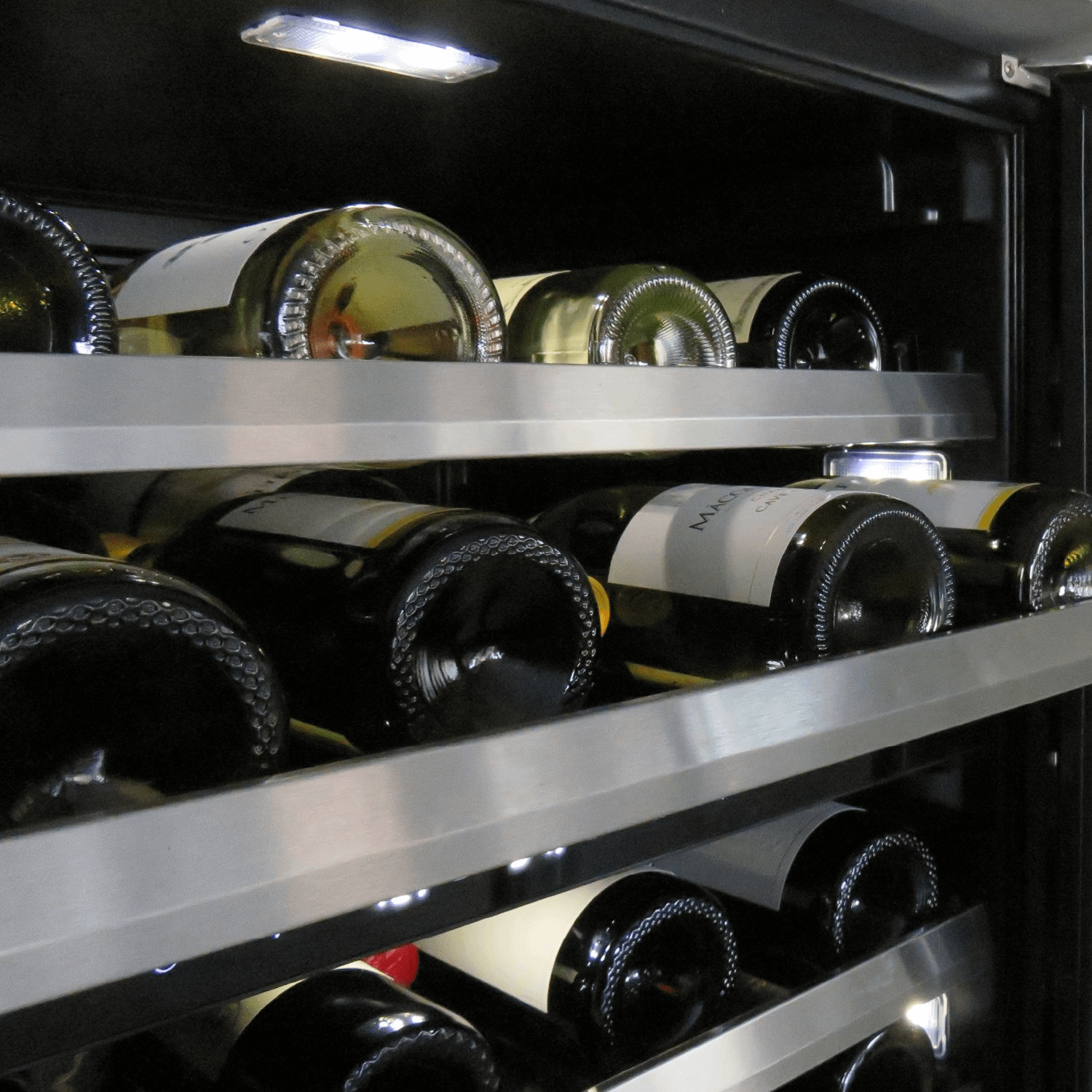

- Tri-Color Led Lighting

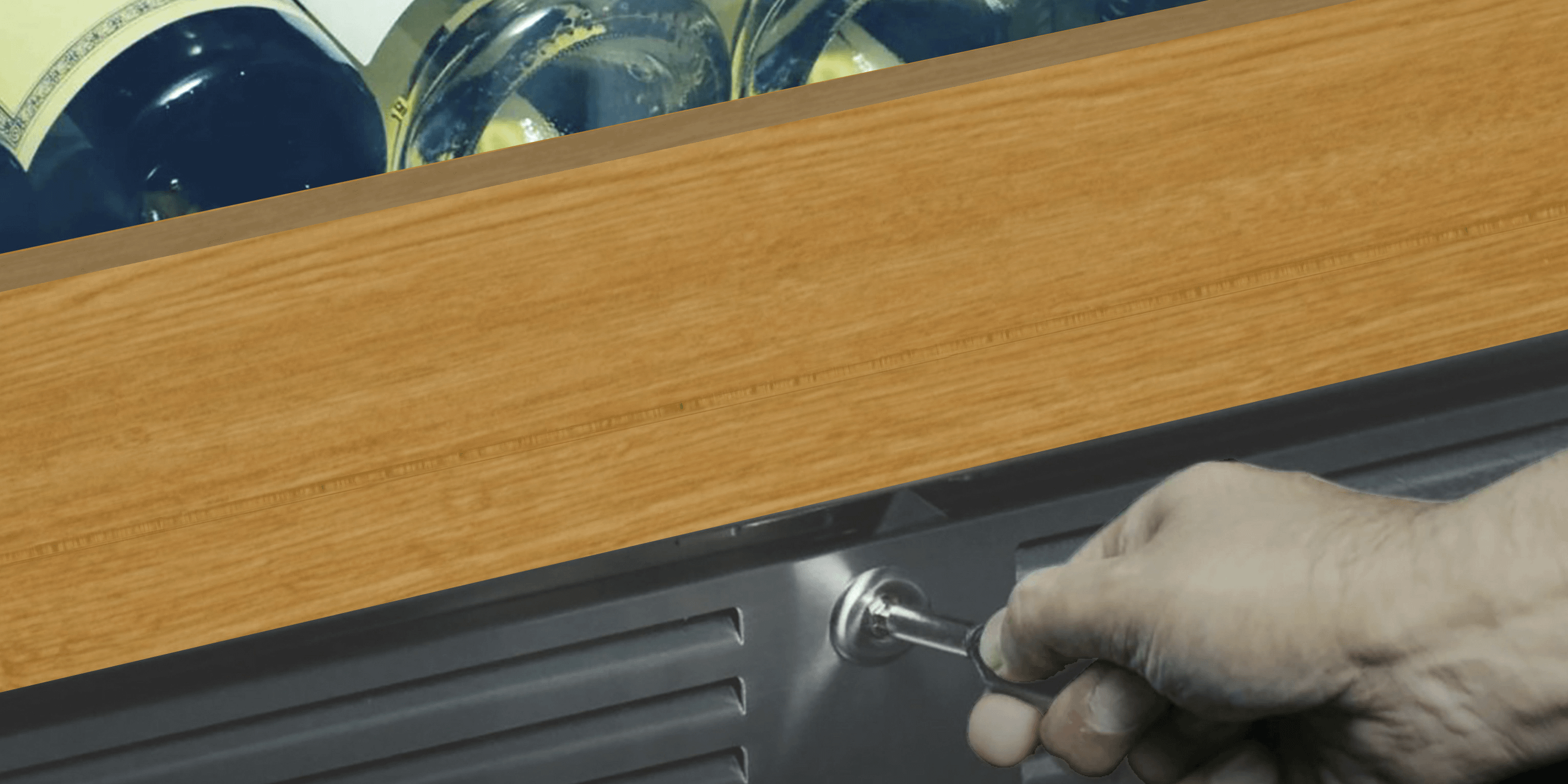

- Secure Door Lock
- Single Zone To Store And Serve

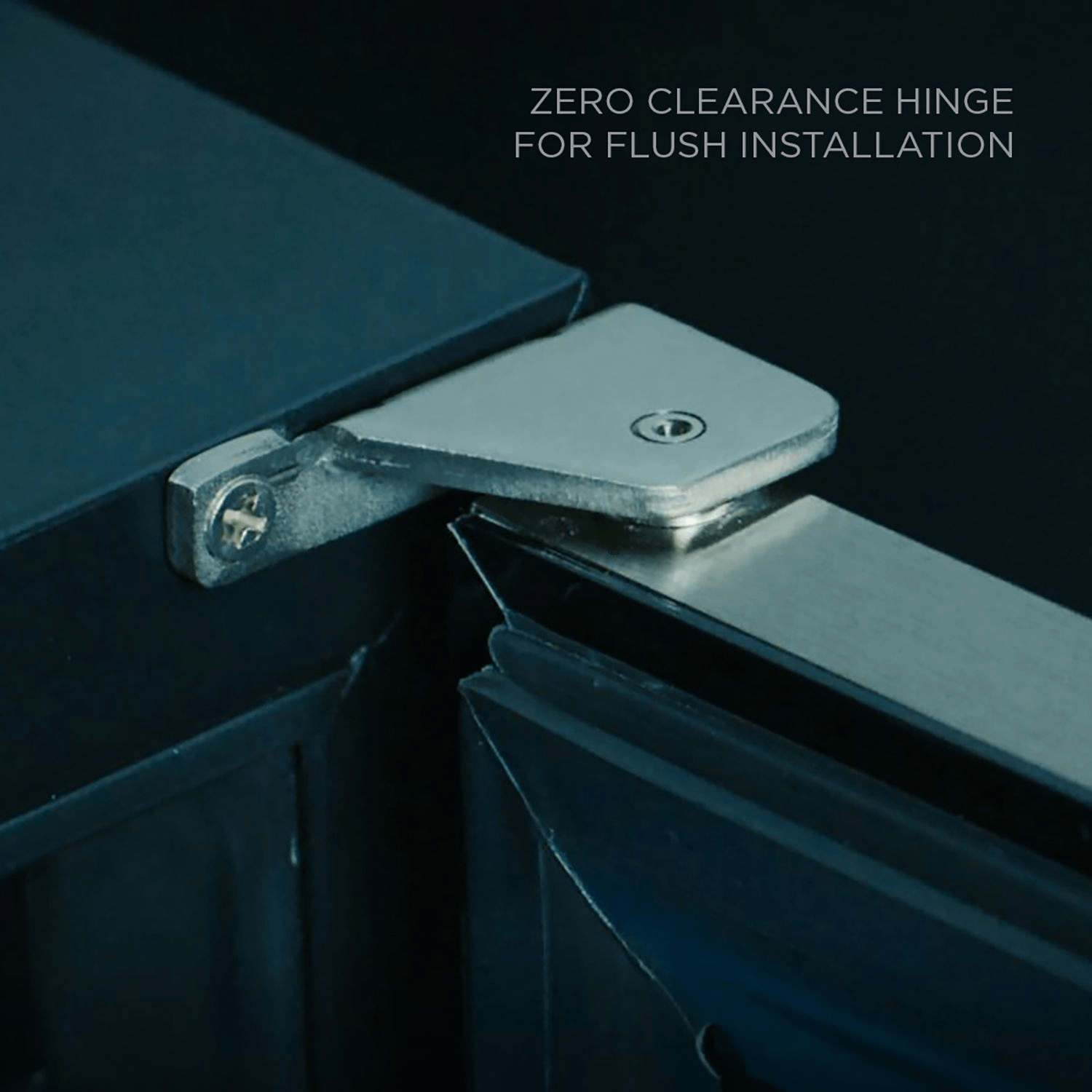

- Flush Under-Counter Installation Design
- Intuitive Electronic Controls
- Two Handle Options Included
- Xactive Circulation Ensures Uniform Temperature
- Quiet Operation 39 Dba
- Energy Star Certified Residential
Origin | China |
UPC | 814830011743 |
Height | 34 1/8" |
Width | 14 15/16" |
Depth | 23 3/4" |
Cut-Out Depth (in.) | 24" |
Cut-Out Height (in.) | 34 1/4" |
Cut-Out Width (in.) | 15 3/16"" |
Depth (Excluding Handles) | 23 3/4" |
Depth (Including Handles) | 25" |
Depth (Less Door) | 21 7/8" |
Depth With Door Open 90 Degrees (In) | 37 5/16" |
Height to Top of Door Hinge (in.) | 34 1/8" |
Dimensions D x W x H | 23 3/4" x 14 15/16" x 34 1/8" |
Product Weight | 87 |
Warranty 1 Explained | 90 Day Love It Or Leave It |
Warranty 2 Explained | 2 year limited parts and labor warranty for the original owner |
Warranty 3 Explained | 5 year limited compressor parts only warranty for the original owner |
ADA Compatible | No |
Certification | CSA |
Prop 65 | Yes |
Shipping Weight | 87 |
Carton Height | 36" |
Carton Width | 17" |
Carton Depth | 27" |
Shipping Method | LTL |
Amperage | 1.2 amps |
Electrical | 115V-60Hz-1.2 Amps |
Frequency (Hz) | 60Hz |
Voltage (volts) | 115V |
Wattage (watts) | 138 watts |
Ambient Temperature | 60 to 90 degrees F |
Appliance Type | Wine Cooler (1 Zone) |
Bottle Storage Capacity | 34 (750ml) |
Color of Handle | None |
Color/Finish | Panel Ready |
Commerical/Residential | Residential |
Control Type | Intuitive Touch Digital Controls |
Cooling Unit Type | Air Cooled Compressor |
Cubic Foot Capacity | 3.3 cu ft |
Defrost Type | Automatic Defrost |

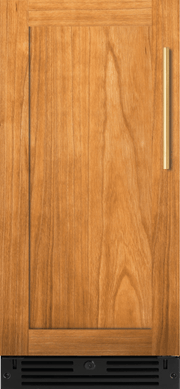

Door Features | Panel Ready |
Door Lock | Yes |
Door Swing | Left Hand Hinge |
Filter Type | Activated carbon air filter |
Install Type | Fully Integrated Undercounter |
Installation Type | Fully Integrated Undercounter |
Interior Finish Type | Molded ABS |
Interior Lighting | Tri-Color LED Interior Illumination |
Leveling Legs | Included |
LIght Colors | Midnight Blue, Theater White, Honey Amber |
Lighting Features | Three lighting modes |
Max Temperature Zone 1 | 64 degrees F |
Min Temperature Zone 1 | 41 degrees F |
Number of Doors | 1 |
Number of Temperature Zones | 1 |
Number of Wine Racks | 6 |
Open Door Alarm | Yes |
Operational Features | Energy Saver Mode |

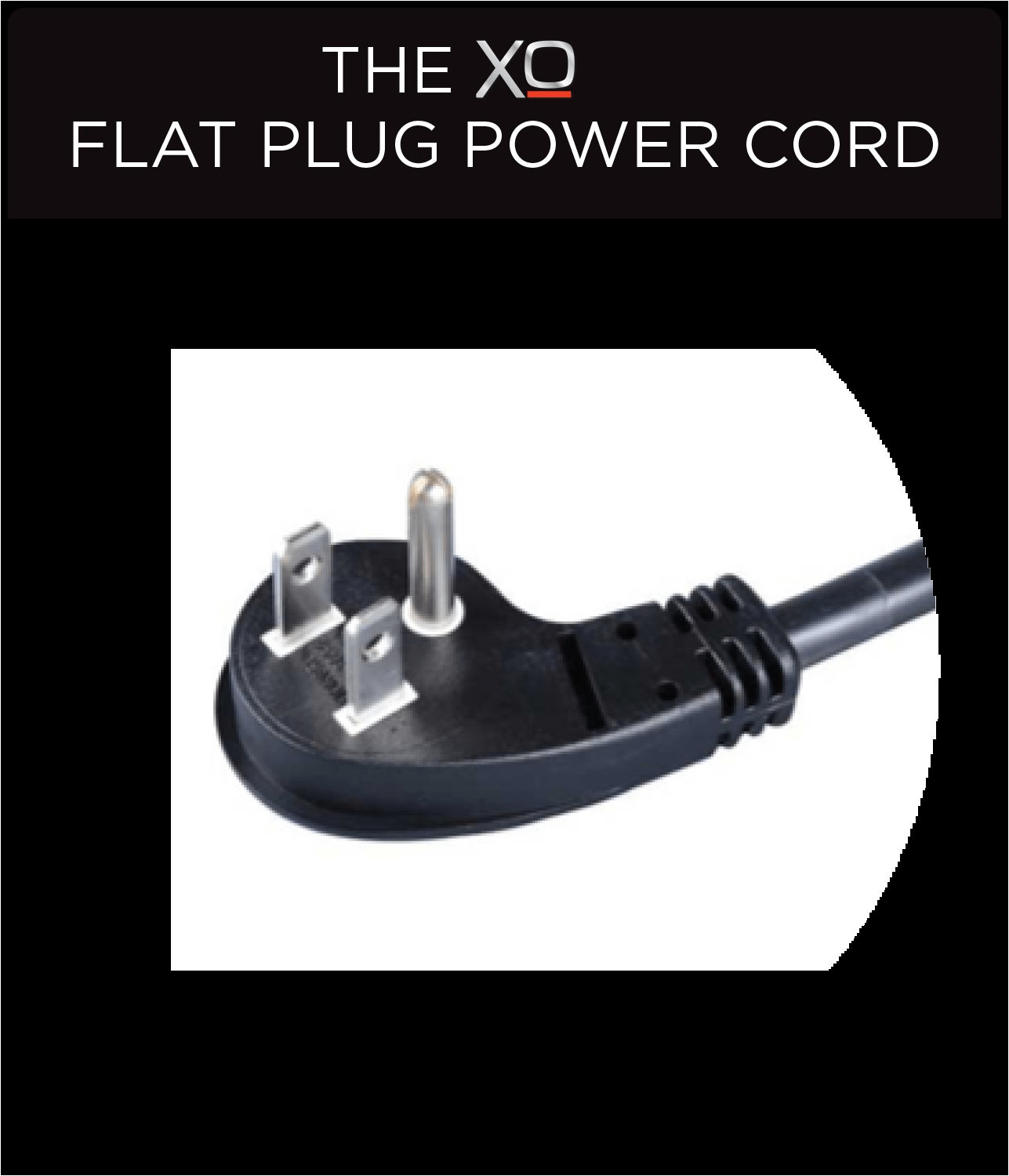

Power Cord Included | 6' with Flat Plug |
Programmed Features | Power, Lighting & Alarms |
Required Plug Type | 5-15P Plug Type |
Returnable | No |
Sabbath Mode | Yes |
Side Clearance Door Open 90 Degrees | 1 3/4" |
Storage Features | Vibration Dampened Full Extension, Fully Loaded |
Toe Kick Color | Black |
Vent Location | Bottom Front |
Wine Rack Material Type | Steel |
Wireless Compatibility | No |
Control Lighting | Backlit LCD |
Controls | Electronic Touch |
Location | Indoor |
Refrigerant | R600a |
Sound Level | 37 dBA |
