Overview & Specifications
Overview & Specifications

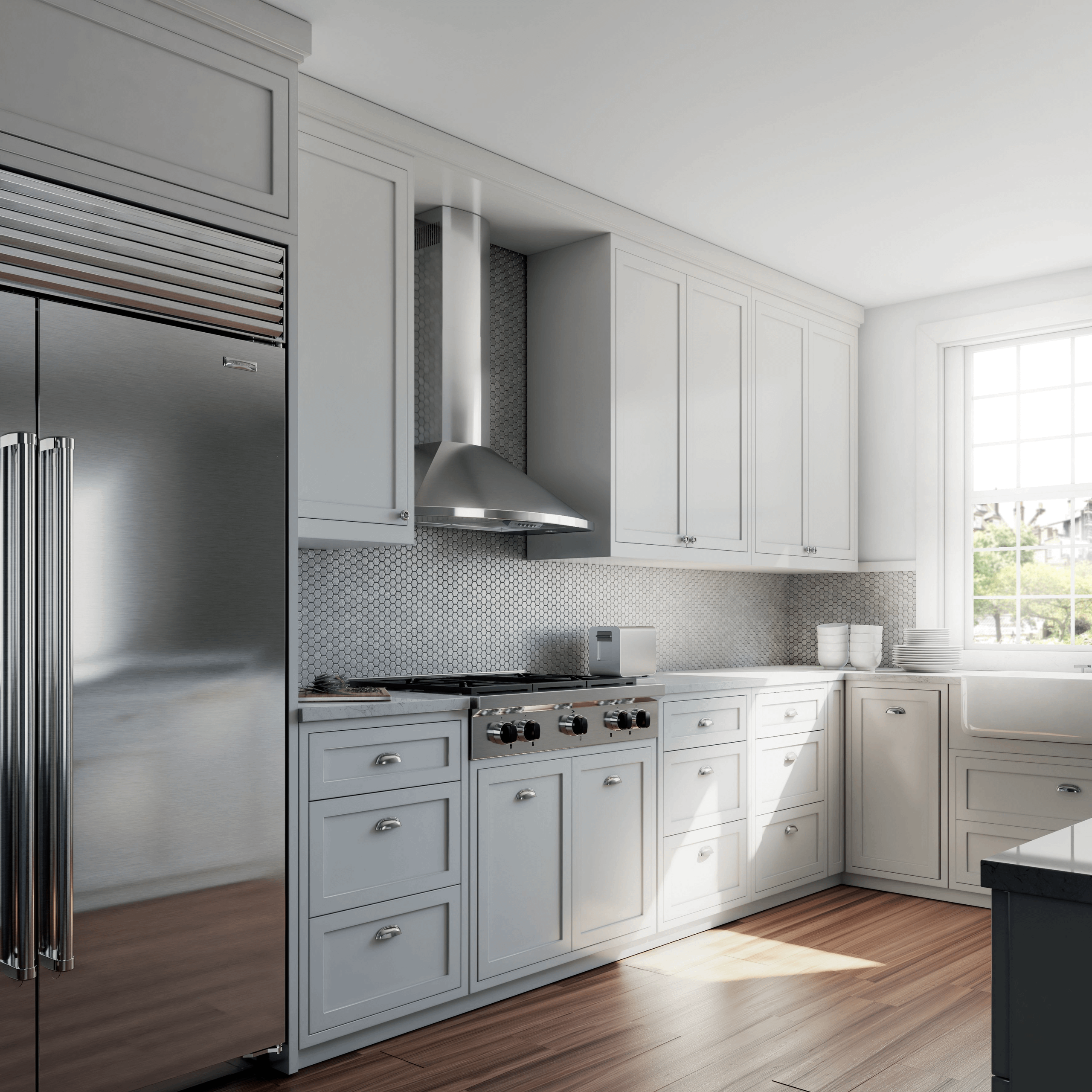

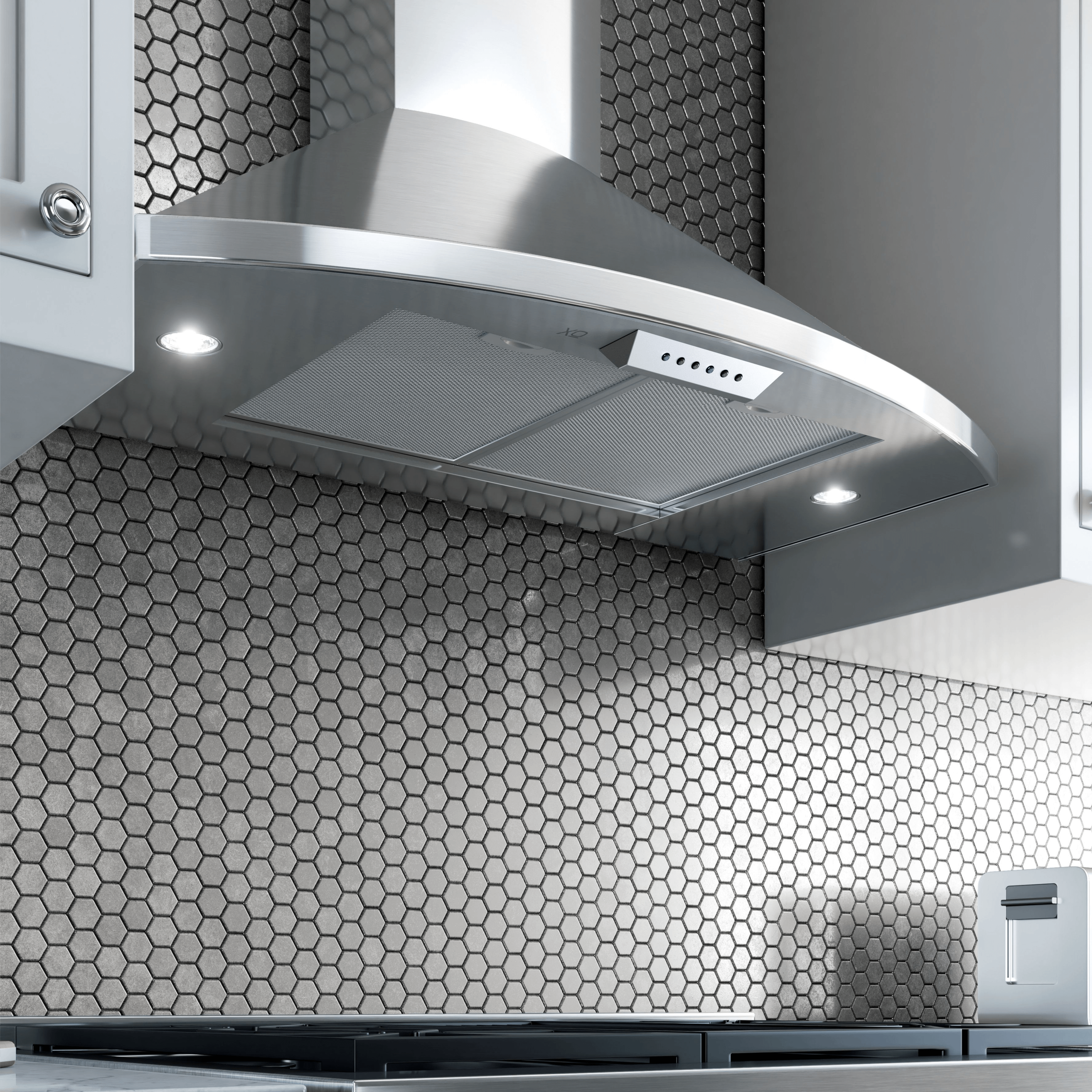

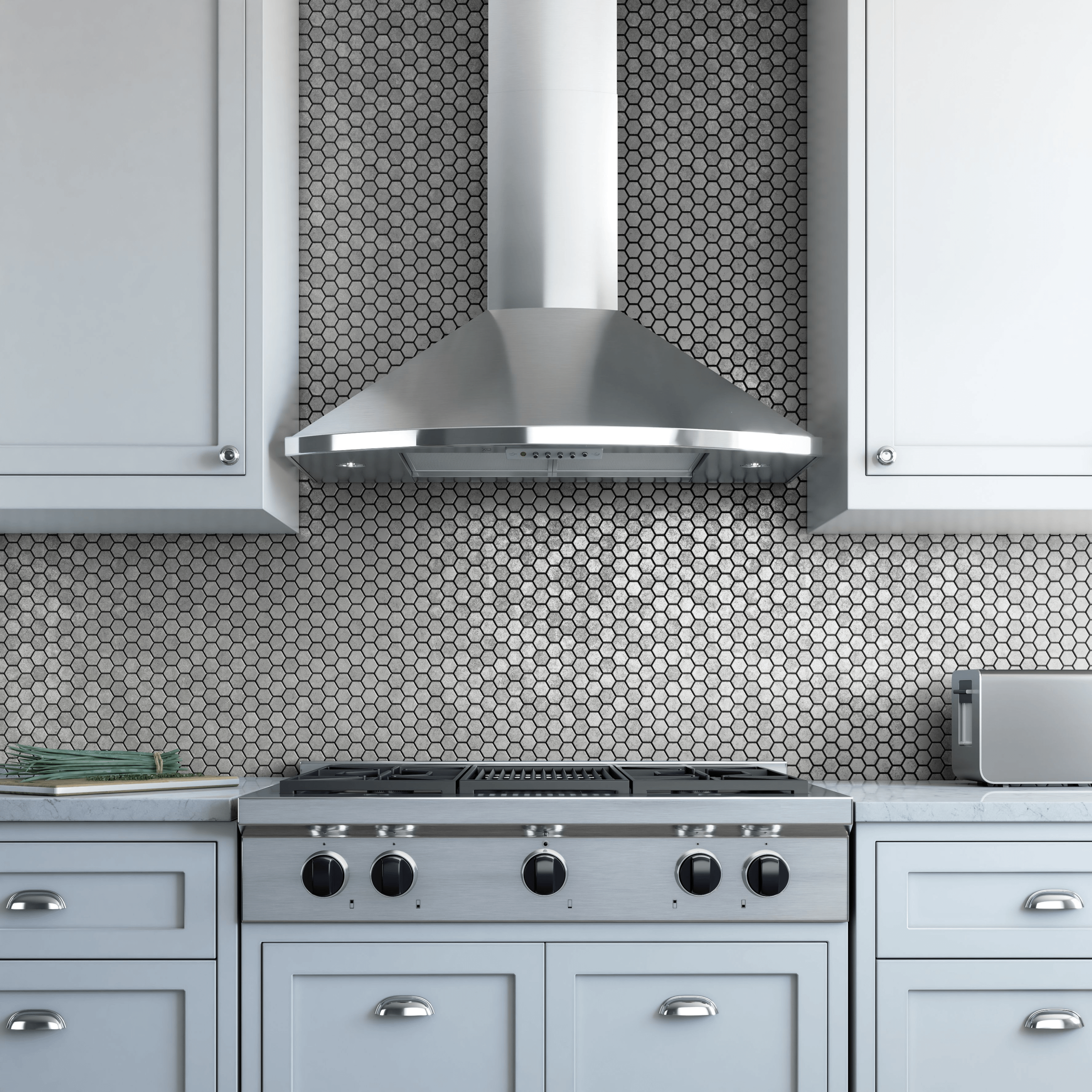

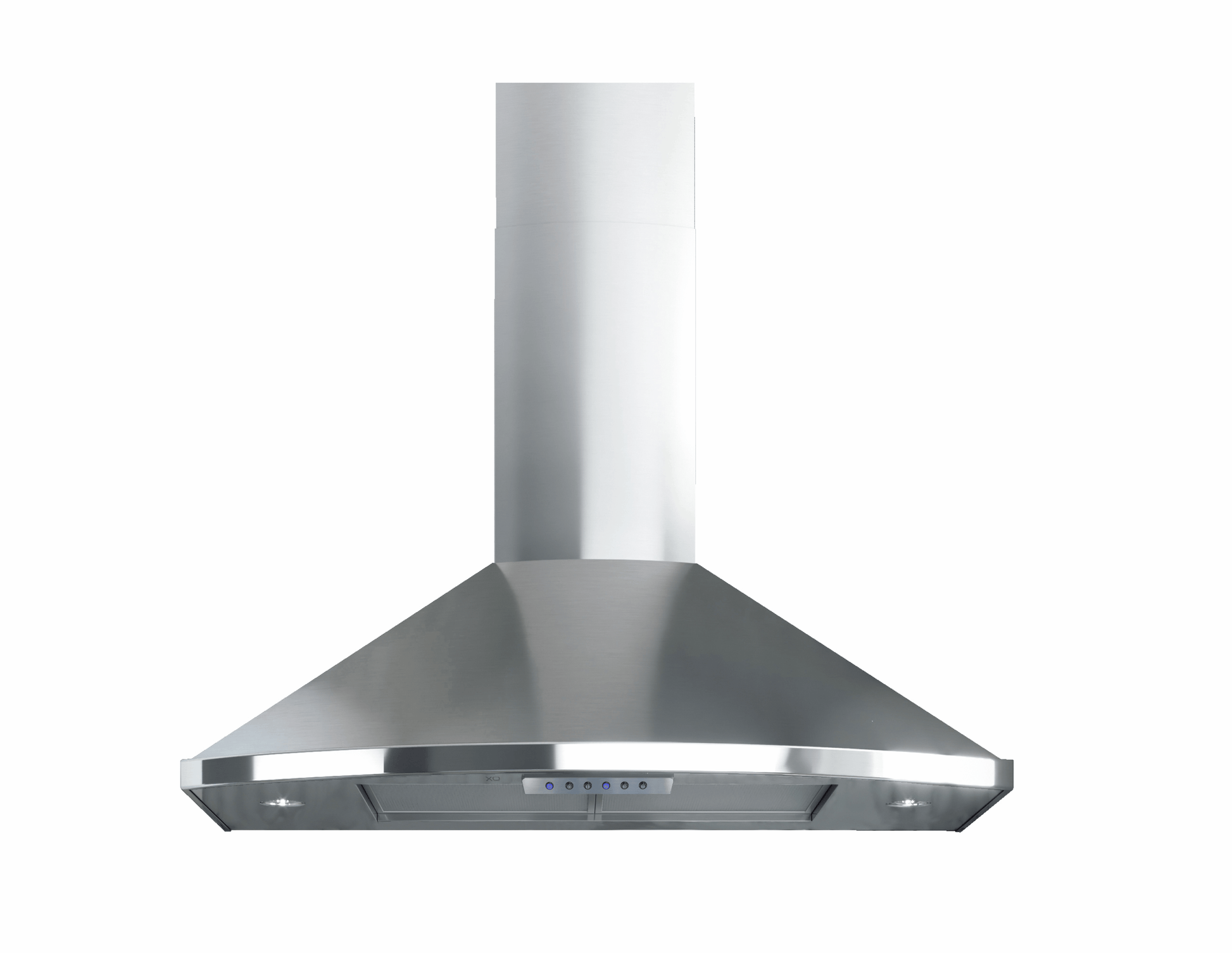

The XOS is a perfect example of Italian design and quality. Beautifully curved front with soft angles make this design a perfect choice without compromising performance. Now equipped with our advanced Code Compliance Control.
The XOS is a perfect example of Italian design and quality. Beautifully curved front with soft angles make this design a perfect choice without compromising performance.
STANDOUT FEATURES- Electronic Speed Control + Power Boost
- CCC Code Compliance Control - 395 or 600 CFM*
- High-Efficiency 3000k LED Lights (x2)
- Standard Chimney fits ceilings up to 9' tall
- Dishwasher Safe Aluminum Mesh Filter
- 6" Vertical Duct or Recirculating (Kit Sold Separately)
- (Recirculated air must be returned to the living space)
- 5 Minute Delay Shutoff Timer
- Made In Italy
*NOTE: When CCC™ is enabled the number of fan speeds will be reduced to maximum 3 speeds
Collection | Fabriano Collection |
Origin | Italy |
UPC | 814830013020 |
Height | 28 3/4" to 44" |
Width | 30" |
Depth | 19 11/16" |
Dimensions D x W x H | 19 11/16" x 30" x 28 3/4" to 44" |
Product Weight | 27 |
Warranty 1 Explained | 90 Day Love It Or Leave It |
Warranty 2 Explained | 2 Year Limited Material And Workmanship for the original owner |
Certification | UL |
Prop 65 | Yes |
Freight Class | 85 |
Shipping Weight | 30 |
Carton Height | 28" |
Carton Width | 40" |
Carton Depth | 28" |
Shipping Method | LTL |
Amperage | 3.6 Amps |
Electrical | 120V - 60Hz - 3.6 Amps |
Frequency (Hz) | 60 Hz |
Voltage (volts) | 120 VAC |
Wattage (watts) | 430 watts |
Appliance Type | Range Hoods |
CCC Code Compliance Control | Yes |
CFM @ Speed 1 | 160 |
CFM @ Speed 2 | 250 |
CFM @ Speed 3 | 395 |
CFM @ Speed 4 | 600 |
Color/Finish | Stainless |
Commerical/Residential | Residential |
Control Type | Backlit LED |
Cooktop Lights | Twin LED Lights |
Duct Size | 6" Dia. |
Ductless Convertible | Ducted or Convertible |
Filter Type | Dishwasher Safe Mesh Filters |
Install Type | Wall chimney mount |
Installation Type | Wall chimney mount |
LIght Colors | White |
Light Type | Twin LED Lights |
Lighting Features | 3000K LED |
Maximum Air Flow Capacity CFM) | 600/395 |
Minimum Air Flow Capacity (CFM) | 160 |
Mounting Height Above Cooktop | 27" - 32" |
Number of Light Bulbs | 2 |
Number of Speeds | 4 |
Returnable | No |
Sones @ Speed 1 | 1 |
Sones @ Speed 2 | 2.5 |
Sones @ Speed 3 | 4 |
Sones @ Speed 4 | 6.5 |
Vent Location | Top |
Vent Material | Metal |
Wireless Compatibility | No |
Control Lighting | Blue Backlit |
Controls | Code Compliance Electronic Controls |
Location | Indoor |
Sound Level | 1.0-6.5 Sones |
Assembled Depth (in.) | No |
