Overview & Specifications
Overview & Specifications

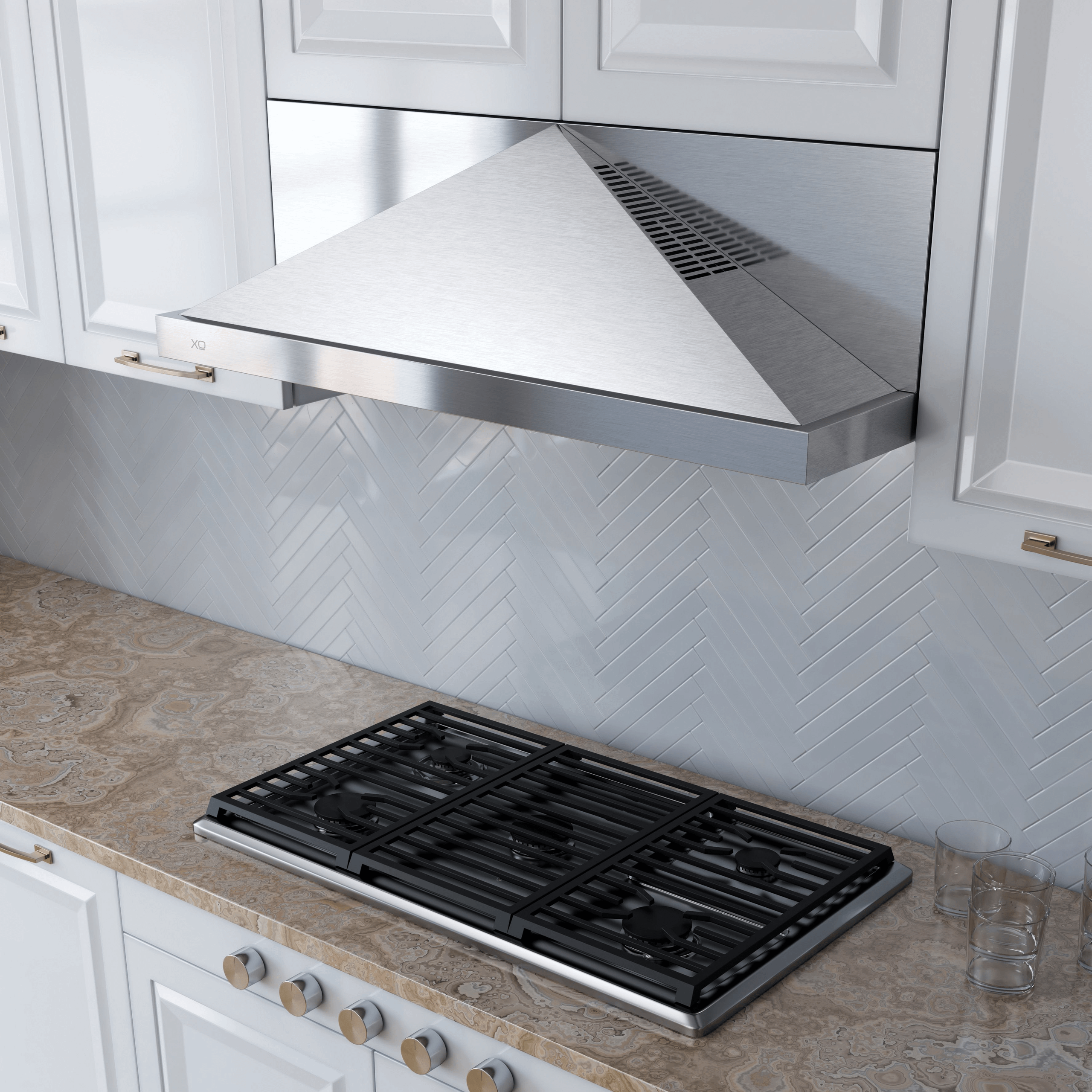

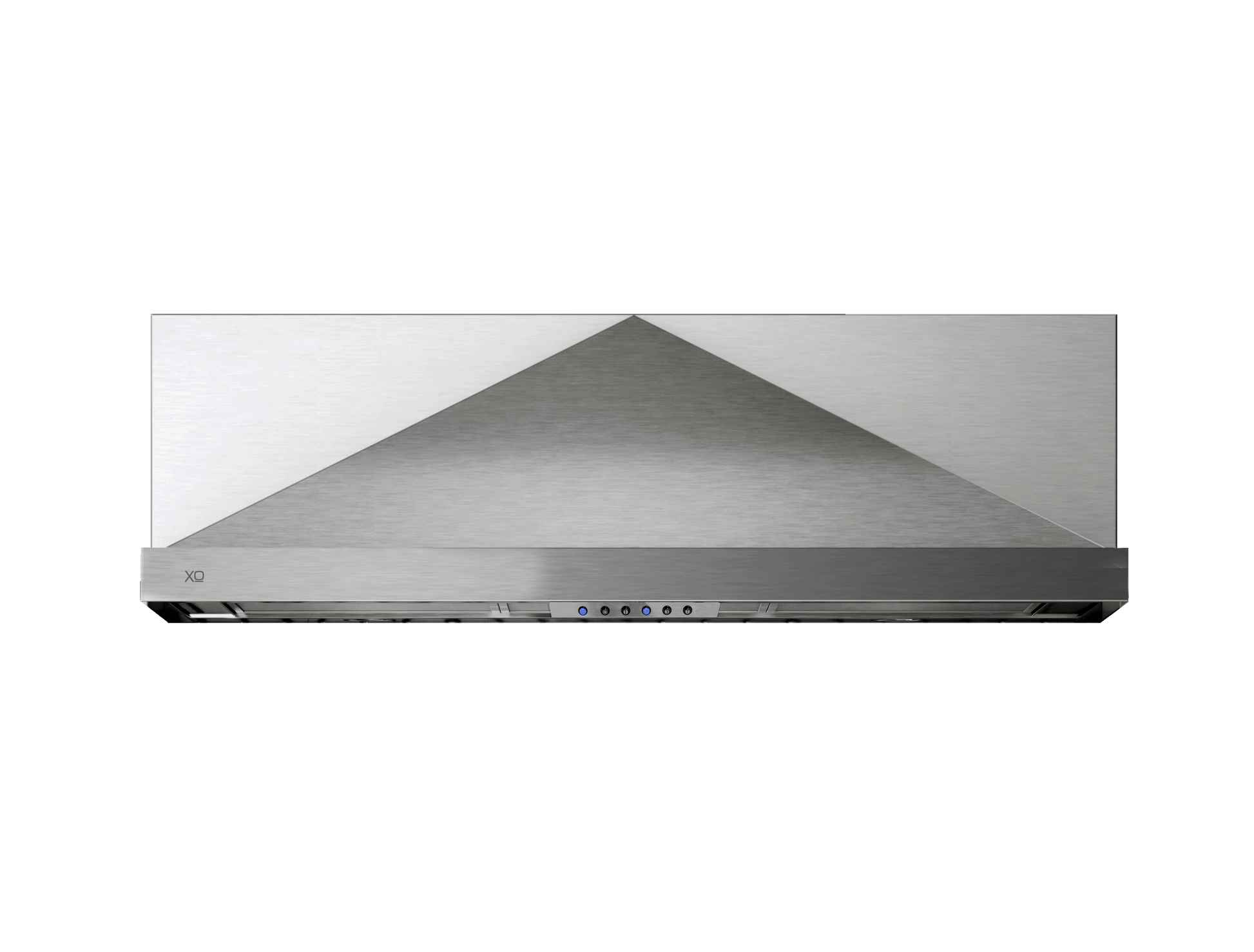

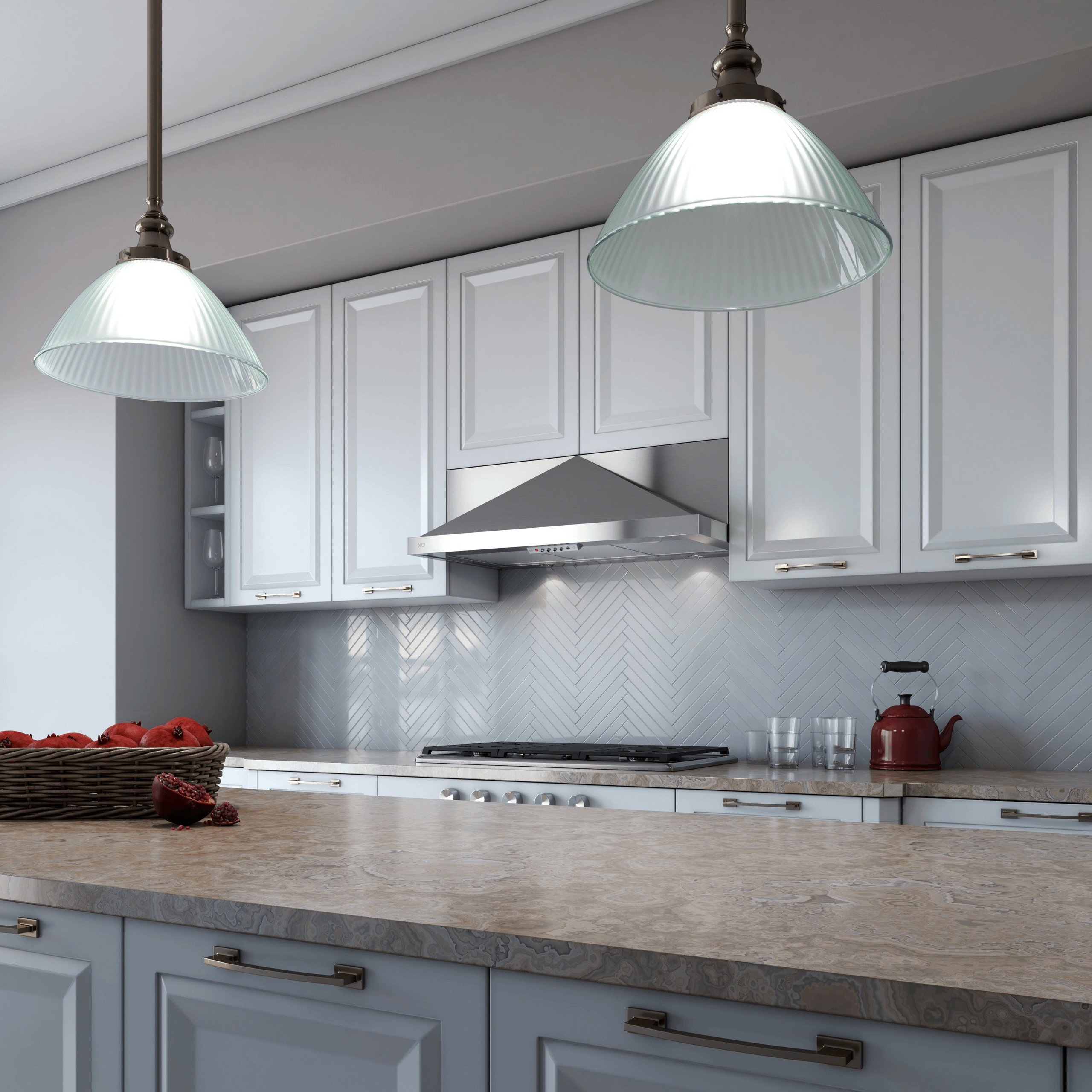

The XOP pyramid creates a striking architectural impression with bold angles and smoothly finished edges. Now equipped with our advanced Code Compliance Control. Great design allows venting from the rear, top or recirculating.
The XOP Pyramid creates a striking architectural impression with bold angles and smoothly finished edges. Don't let its good looks fool you; it's packed with power to handle even the most skilled cooking tasks. Great design allows venting from the rear, top or recirculating.
STANDOUT FEATURES- Electronic 3 Speed Control + Power Boost
- CCC Code Compliance Control - 395 or 600 CFM*
- High Efficiency 3000K LED Lights (x2)
- High Velocity Blower optimally removes Smoke, Grease and Odors
- Dishwasher Safe Aluminum Mesh Filter
- 6" Top or Rear Duct or Recirculating (Kit Sold Separately)
- 5 Minute Delay Shutoff Timer
- Made In Italy
*NOTE: When CCC™ is enabled the number of fan speeds will be reduced to maximum 3 speeds
Collection | Fabriano Collection |
Origin | Italy |
UPC | 814830012924 |
Height | 11" |
Width | 30" |
Depth | 20" |
Dimensions D x W x H | 20" x 30" x 11" |
Product Weight | 27 |
Warranty 1 Explained | 90 Day Love It Or Leave It |
Warranty 2 Explained | 2 Year Limited Material And Workmanship for the original owner |
ADA Compatible | No |
Certification | UL |
Prop 65 | Yes |
Freight Class | 85 |
Shipping Weight | 30 |
Carton Height | 18" |
Carton Width | 40" |
Carton Depth | 24" |
Shipping Method | LTL |
Amperage | 3.6 Amps |
Electrical | 120V - 60Hz - 3.6 Amps |
Frequency (Hz) | 60 Hz |
Voltage (volts) | 120 VAC |
Wattage (watts) | 430 watts |
Appliance Type | Range Hoods |
CCC Code Compliance Control | Yes |
CFM @ Speed 1 | 160 |
CFM @ Speed 2 | 250 |
CFM @ Speed 3 | 395 |
CFM @ Speed 4 | 600 |
Color/Finish | Stainless |
Commerical/Residential | Residential |
Control Type | Backlit LED |
Cooktop Lights | Twin LED Lights |
Duct Size | 6" Dia. |
Ductless Convertible | Ducted or Convertible |
Filter Type | Dishwasher Safe Mesh Filters |
Install Type | Undercabinet |
Installation Type | Undercabinet |
LIght Colors | White |
Light Type | Twin LED Lights |
Lighting Features | 3000K LED |
Maximum Air Flow Capacity CFM) | 600/395 |
Minimum Air Flow Capacity (CFM) | 160 |
Mounting Height Above Cooktop | 27" - 32" |
Number of Light Bulbs | 2 |
Number of Speeds | 4 |
Returnable | No |
Sones @ Speed 1 | 1 |
Sones @ Speed 2 | 2.5 |
Sones @ Speed 3 | 4 |
Sones @ Speed 4 | 6.5 |
Vent Location | Top or Rear |
Vent Material | Metal |
Wireless Compatibility | No |
Control Lighting | Blue Backlit |
Controls | Code Compliance Electronic Controls |
Location | Indoor |
Sound Level | 1.0-6.5 Sones |
Assembled Depth (in.) | No |
