XO XOIL4822KSE
$1,749.00
$2,190.00
Unit price
/
Unavailable
Overview & Specifications
Overview & Specifications

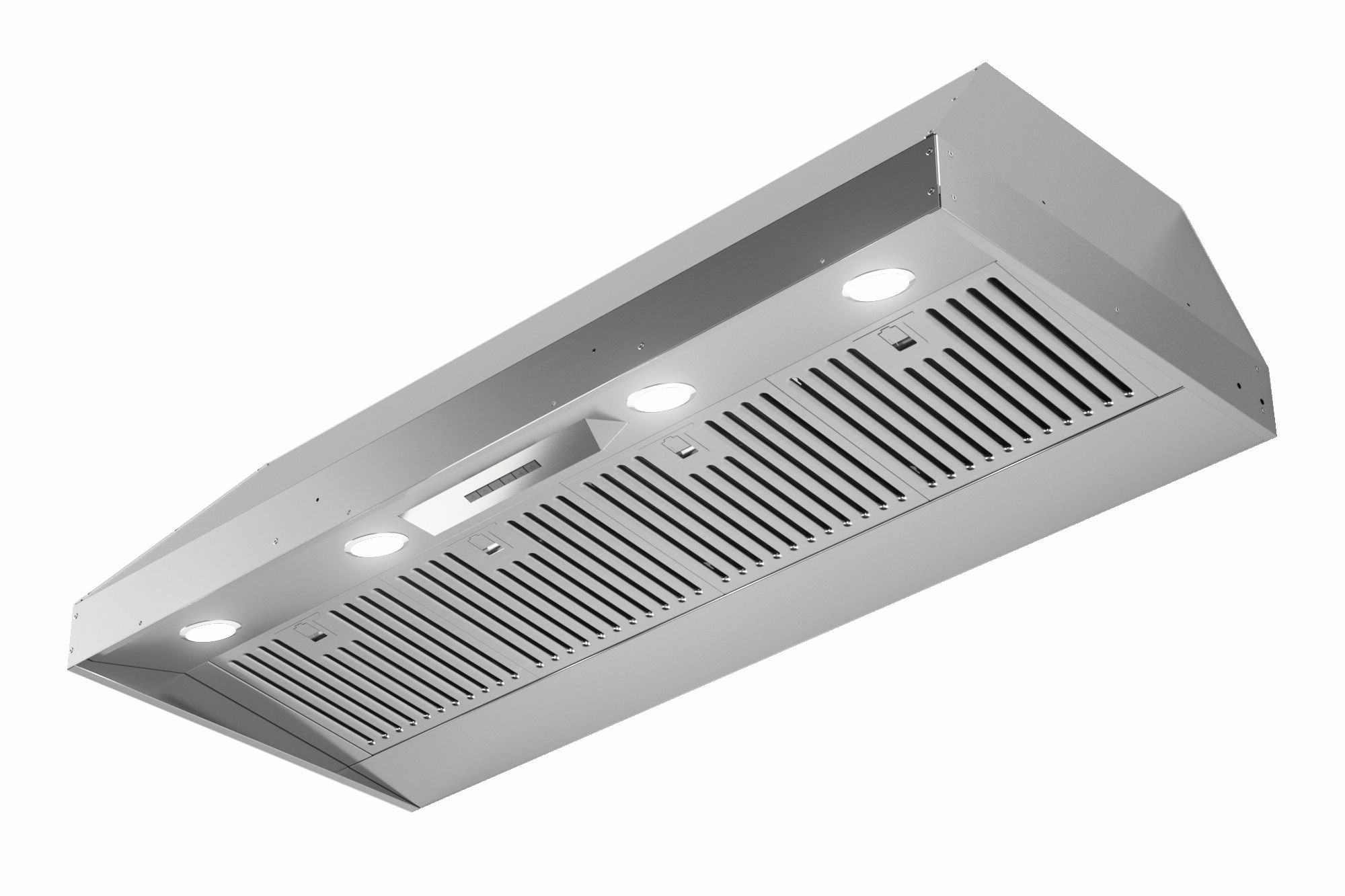

48" wide, 22" Deep combination 1000 CFM Blower and Stainless Steel liner. The High-Velocity Blower quickly handles fumes and odors. Incomparable Handcrafted Italian Finish. Backlit 3 speed electronic controls. 5 Minute delay function. LED Lights
The XOIL series are designed as all-in-one blower/liner combination units for easy installation into custom hoods. Each XOIL model is designed and crafted in Italy to incorporate a multi-speed blower, controls, filtration, LED Lamps, and backflow damper. The XOIL is everything you need in one easy to install package.

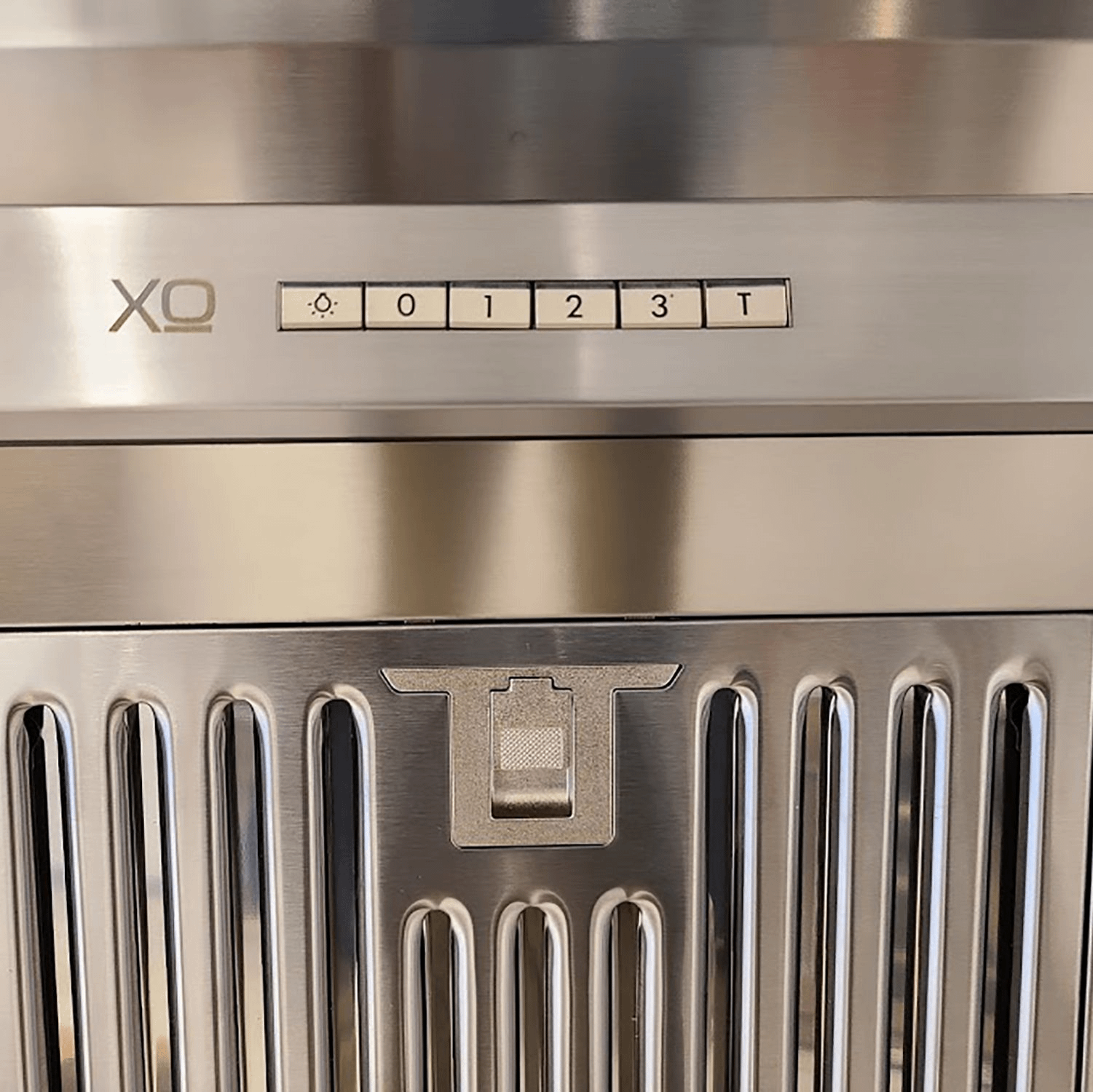

STANDOUT FEATURES- Electronic 3 Speed Control + Power Boost
- CCC Code Compliance Control (395 or 600 CFM)*
- Combination Blower and SS Liner in One
- Optional ADA Compatible Remote

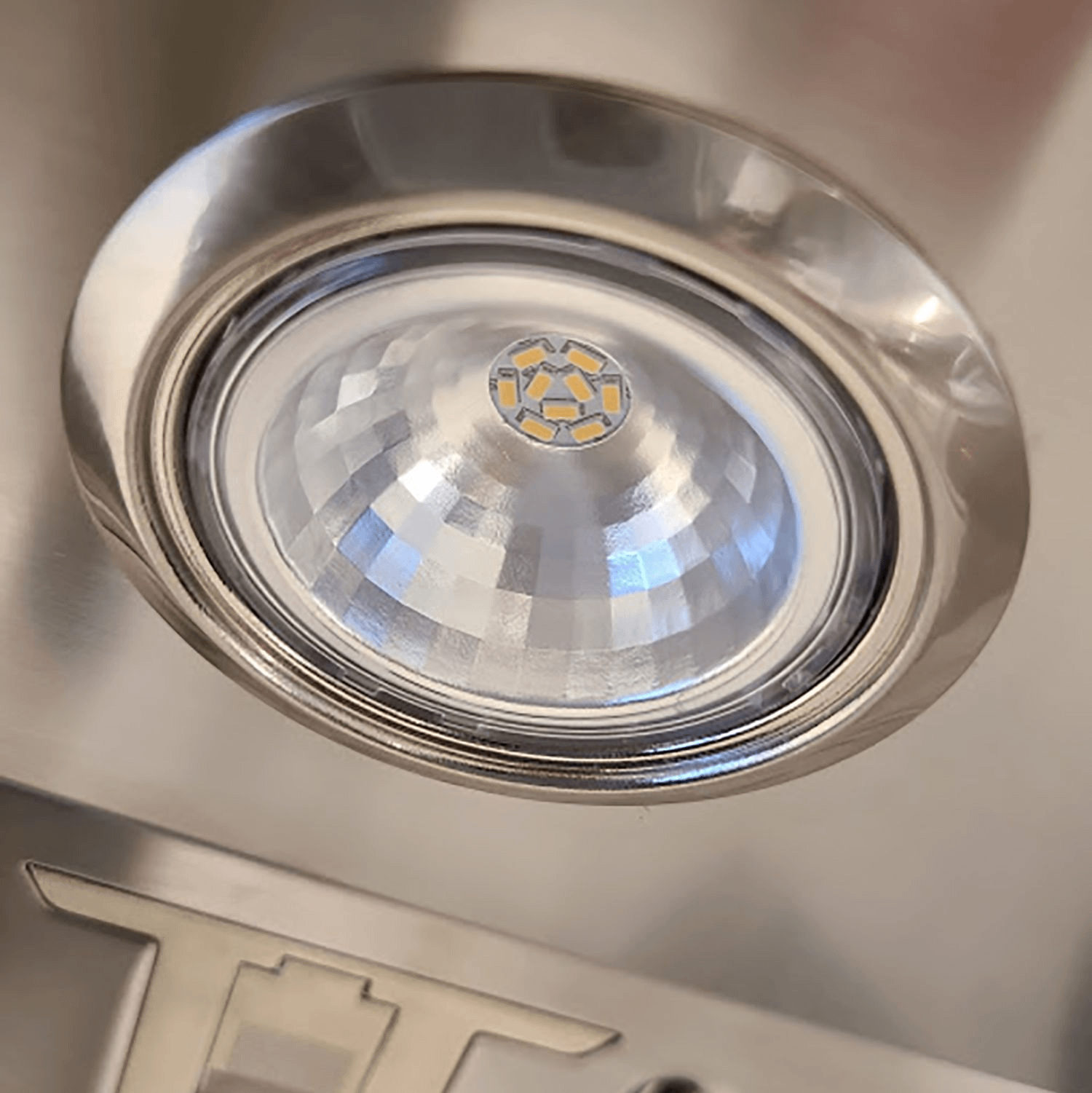

- High efficiency dimmable 3000K LED (x2)

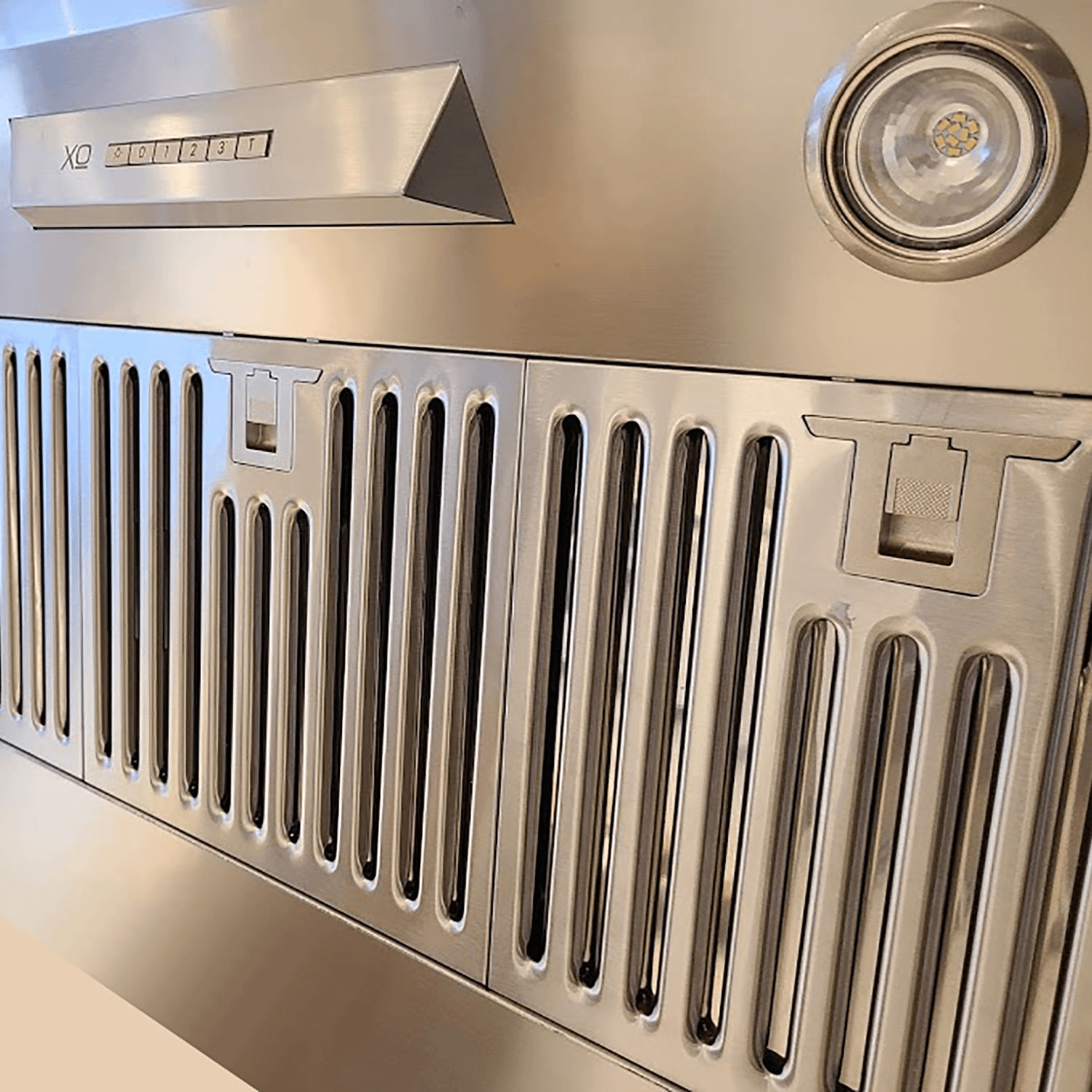

- Dishwasher safe SS PRO Baffle filters
- 6" Vertical, Rear or Recirculating (Kit Sold Separately)(Filtered, recirculated air must be returned to the living space)
- Made In Italy
*NOTE: When CCC™ is enabled the number of fan speeds will be reduced to maximum 3 speeds
| Collection | Fabriano Collection |
| Origin | Italy |
| UPC | 814830013662 |
| Height | 12" |
| Width | 46 3/8" |
| Depth | 22 1/2" |
| Cut-Out Depth (in.) | 22 11/16" |
| Cut-Out Height (in.) | 12-1/4" |
| Cut-Out Width (in.) | 46 1/2" |
| Dimensions D x W x H | 22 1/2" x 46-3/8" x 12" |
| Warranty 1 Explained | 90 Day Love It Or Leave It |
| Warranty 2 Explained | 2 Year Limited Material And Workmanship for the original owner |
| ADA Compatible | No |
| Certification | UL |
| Prop 65 | Yes |
| Amperage | 6.2 Amps |
| Electrical | 120V - 60Hz - 6.2 Amps |
| Frequency (Hz) | 60 Hz |
| Voltage (volts) | 120 VAC |
| Wattage (watts) | 744 watts |
| Appliance Type | Range Hoods |
| CCC Code Compliance Control | No |
| CFM @ Speed 1 | 200 |
| CFM @ Speed 2 | 590 |
| CFM @ Speed 3 | 1000 |
| Color/Finish | Stainless |
| Commerical/Residential | Residential |
| Control Type | Backlit LED |
| Cooktop Lights | Twin LED Lights |
| Duct Size | 8" Dia. |
| Ductless Convertible | Ducted |
| Filter Type | Dishwasher Safe Pro Stainless Steel Baffles |
| Install Type | Insert - Liner combination |
| Installation Type | Insert - Liner combination |
| LIght Colors | White |
| Light Type | Twin LED Lights |
| Lighting Features | 3 Level Lighting |
| Maximum Air Flow Capacity CFM) | 1000 |
| Minimum Air Flow Capacity (CFM) | 200 |
| Mounting Height Above Cooktop | 27" - 32" |
| Number of Light Bulbs | 4 |
| Number of Speeds | 3 |
| Returnable | No |
| Sones @ Speed 1 | 2 |
| Sones @ Speed 2 | 6.4 |
| Sones @ Speed 3 | 8 |
| Vent Location | Top |
| Vent Material | Metal |
| Wireless Compatibility | No |
| Control Lighting | none |
| Controls | Electronic Controls |
| Location | Indoor |
| Sound Level | 2.0 -8.0 Sones |
| Assembled Depth (in.) | No |
| Force Multiples | 1 |
