XO XOIL3019SC
$1,049.00
$1,315.00
Unit price
/
Unavailable
Overview & Specifications
Overview & Specifications

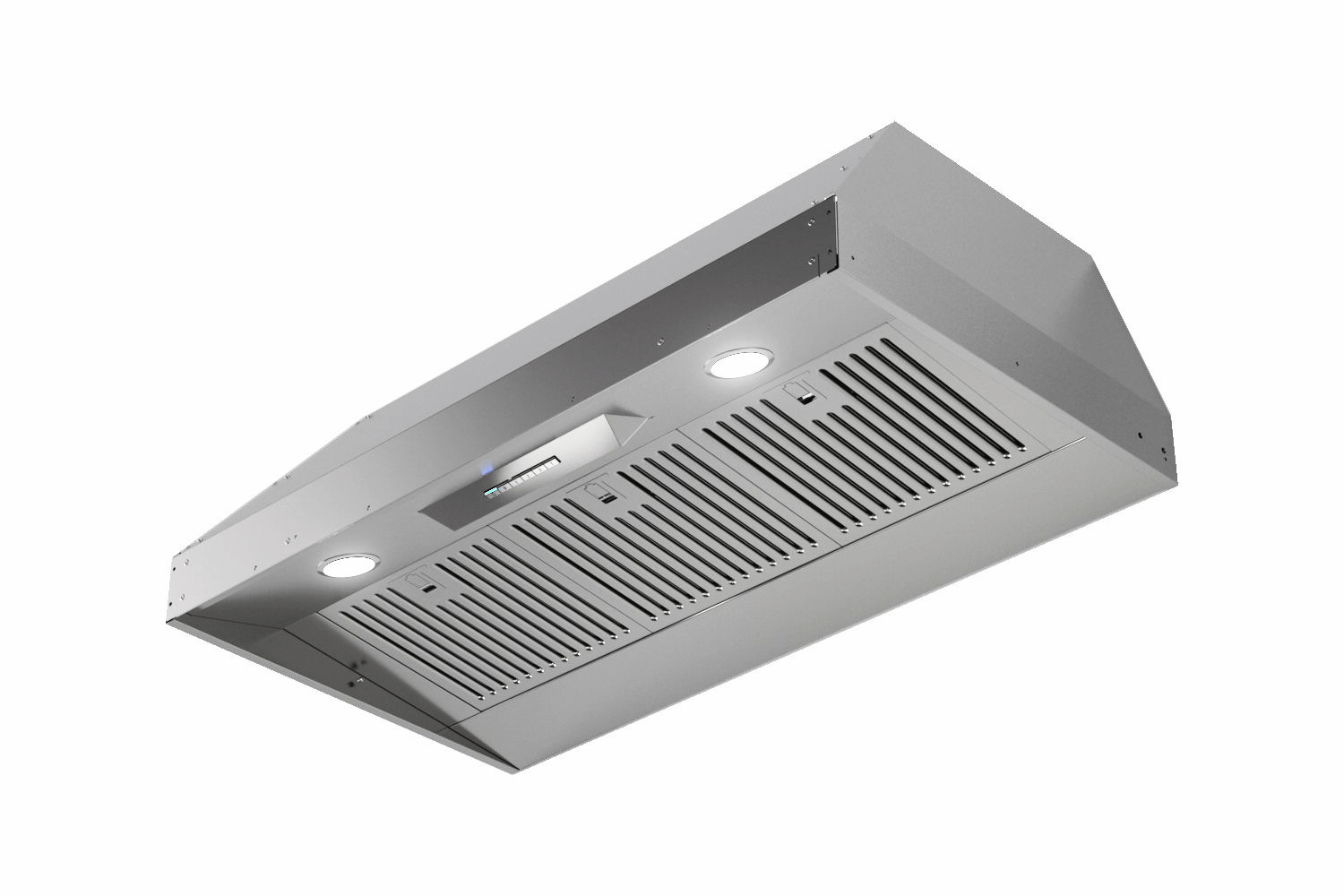

The XOIL series integrates a powerful XO Blower with a factory prefabricated liner for quick easy assembly. Made in Italy, these units employ our advanced Code Compliance Control, multi-level LED lighting and have an optional remote.
The XOIL series are designed as all-in-one blower/liner combination units for easy installation into custom hoods. Each XOIL model is designed and crafted in Italy to incorporate a multi-speed blower, controls, filtration, LED Lamps, and backflow damper. The XOIL is everything you need in one easy to install package.

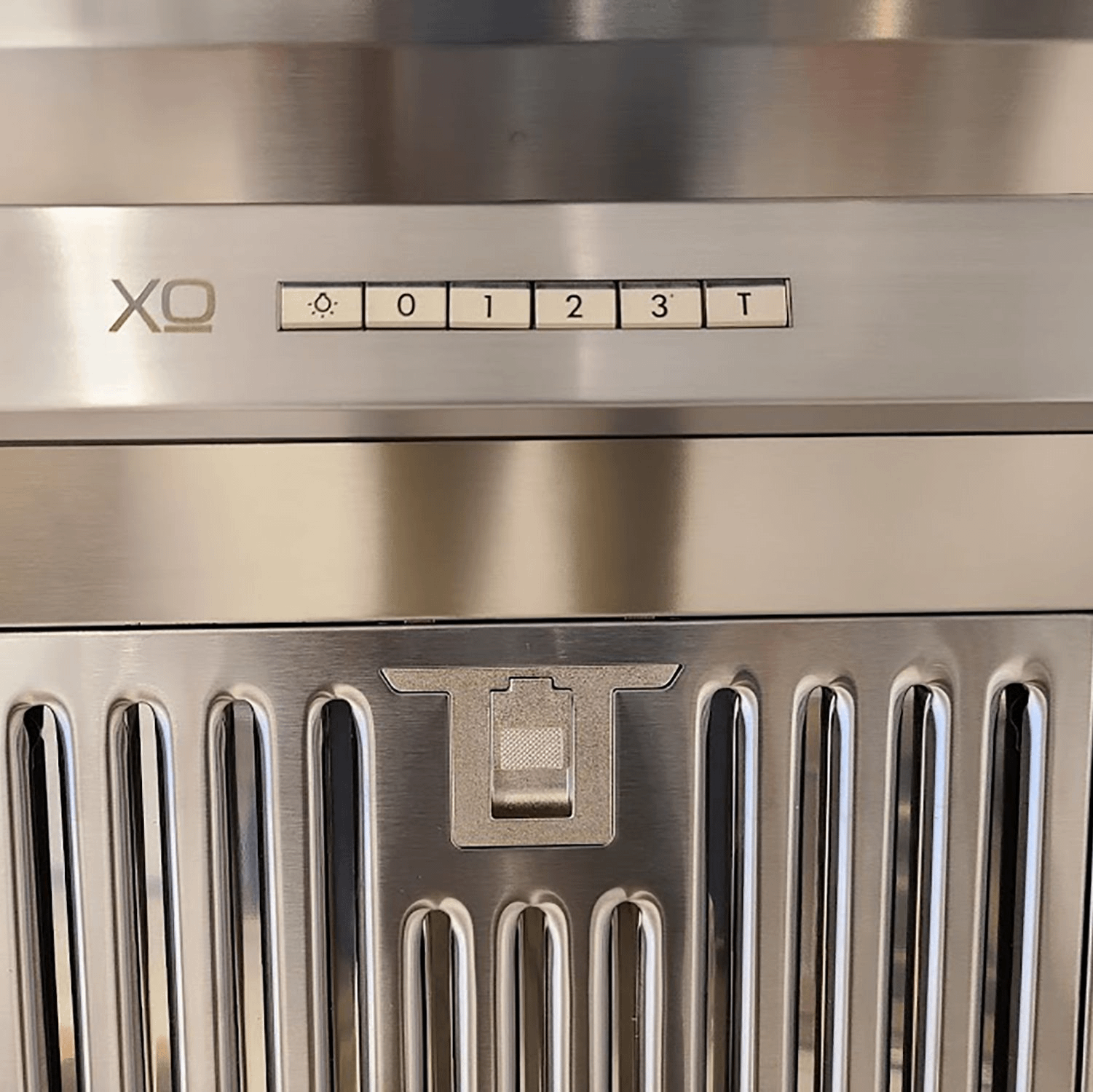

STANDOUT FEATURES- Electronic 3 Speed Control + Power Boost
- CCC Code Compliance Control (395 or 600 CFM)*
- Combination Blower and SS Liner in One
- Optional ADA Compatible Remote

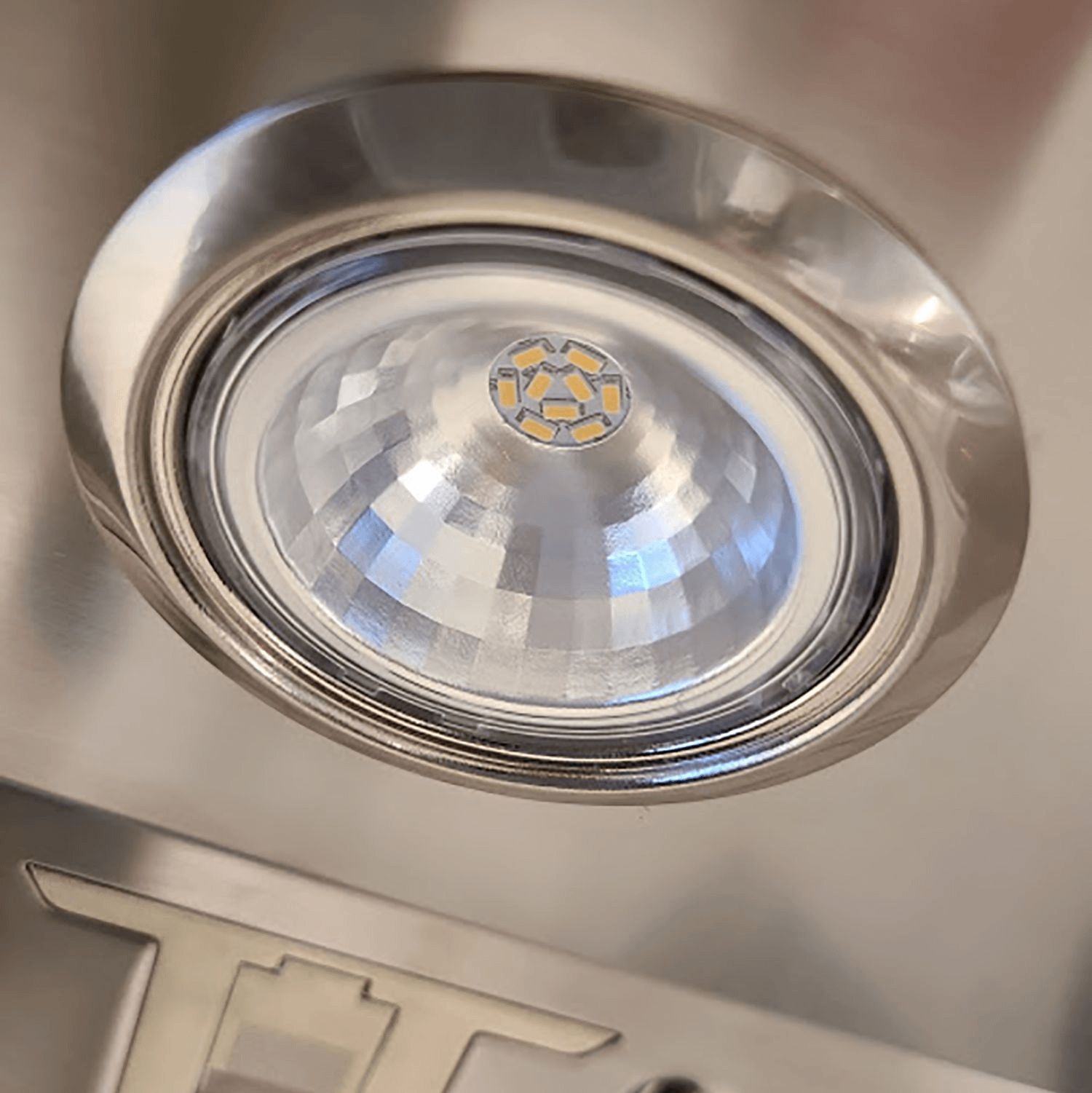

- High efficiency dimmable 3000K LED (x2)

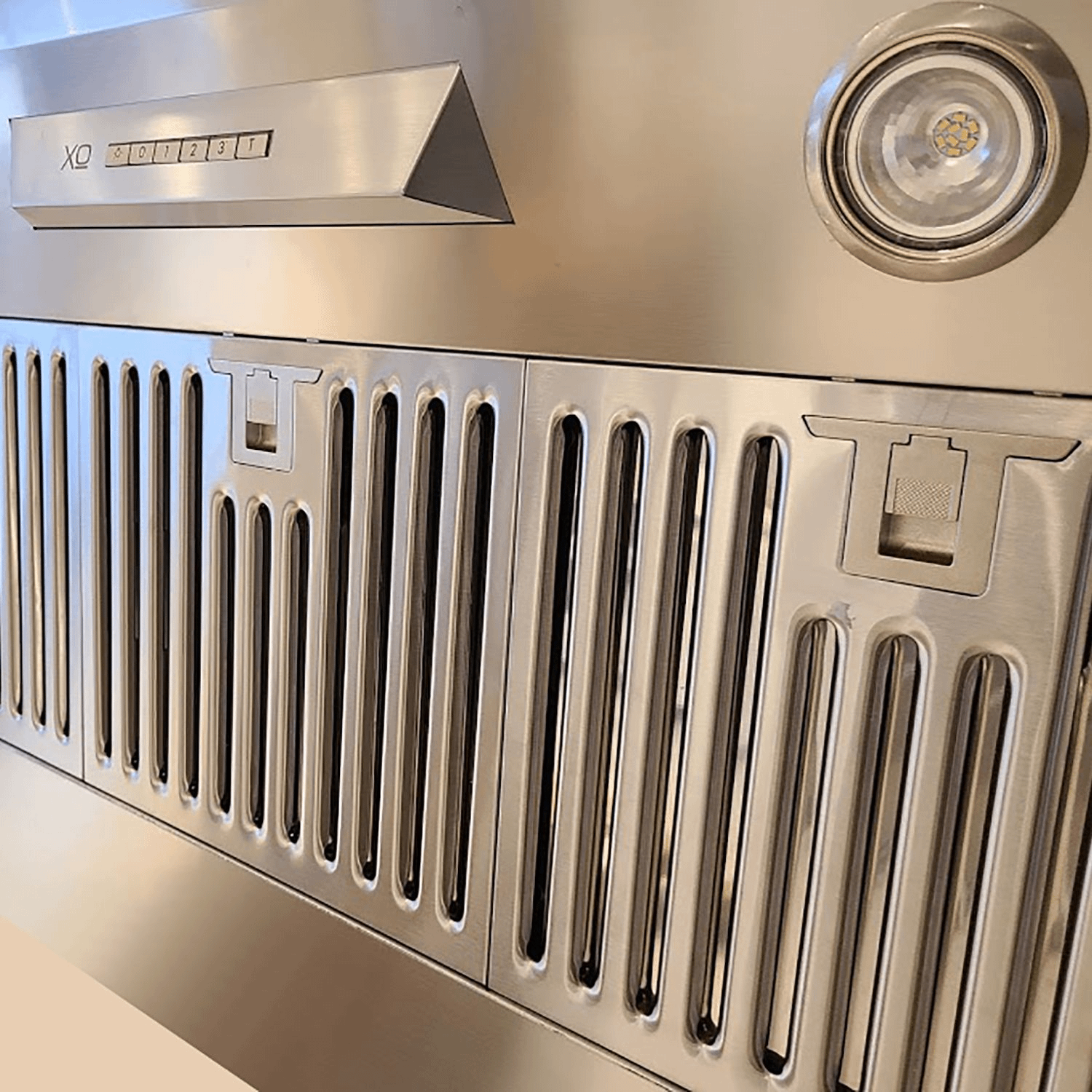

- Dishwasher safe SS PRO Baffle filters
- 6" Vertical, Rear or Recirculating (Kit Sold Separately)(Filtered, recirculated air must be returned to the living space)
- Made In Italy
*NOTE: When CCC™ is enabled the number of fan speeds will be reduced to maximum 3 speeds
| Collection | Fabriano Collection |
| Origin | Italy |
| UPC | 814830012818 |
| Height | 12" |
| Width | 28-3/8" |
| Depth | 19-1/4" |
| Cut-Out Depth (in.) | 19-7/16" |
| Cut-Out Height (in.) | 12 1/4" |
| Cut-Out Width (in.) | 28-1/2" |
| Dimensions D x W x H | 19-1/4" x 28-3/8" x 12" |
| Product Weight | 35 |
| Warranty 1 Explained | 90 Day Love It Or Leave It |
| Warranty 2 Explained | 2 Year Limited Material And Workmanship for the original owner |
| ADA Compatible | Yes |
| Certification | UL |
| Prop 65 | Yes |
| Freight Class | 85 |
| Shipping Weight | 40 |
| Carton Height | 18" |
| Carton Width | 33" |
| Carton Depth | 24" |
| Shipping Method | LTL |
| Amperage | 3.6 Amps |
| Electrical | 120V - 60Hz - 3.6 Amps |
| Frequency (Hz) | 60 Hz |
| Voltage (volts) | 120 VAC |
| Wattage (watts) | 430 watts |
| Appliance Type | Range Hoods |
| CCC Code Compliance Control | Yes |
| CFM @ Speed 1 | 160 |
| CFM @ Speed 2 | 250 |
| CFM @ Speed 3 | 395 |
| CFM @ Speed 4 | 600 |
| Color/Finish | Stainless |
| Commerical/Residential | Residential |
| Control Type | Backlit LED |
| Cooktop Lights | Twin LED Lights |
| Duct Size | 6" Dia. |
| Ductless Convertible | Ducted or Convertible |
| Filter Type | Dishwasher Safe Pro Stainless Steel Baffles |
| Install Type | Insert - Liner combination |
| Installation Type | Insert - Liner combination |
| LIght Colors | White |
| Light Type | Twin LED Lights |
| Lighting Features | 3 Level Lighting |
| Maximum Air Flow Capacity CFM) | 600/395 |
| Minimum Air Flow Capacity (CFM) | 160 |
| Mounting Height Above Cooktop | 27" - 32" |
| Number of Light Bulbs | 2 |
| Number of Speeds | 4 |
| Returnable | No |
| Sones @ Speed 1 | 1 |
| Sones @ Speed 2 | 2.5 |
| Sones @ Speed 3 | 4 |
| Sones @ Speed 4 | 6.5 |
| Vent Location | Top |
| Vent Material | Metal |
| Wireless Compatibility | No |
| Control Lighting | Blue Backlit |
| Controls | Code Compliance Electronic Controls |
| Location | Indoor |
| Sound Level | 1.0-6.5 Sones |
| Assembled Depth (in.) | No |
