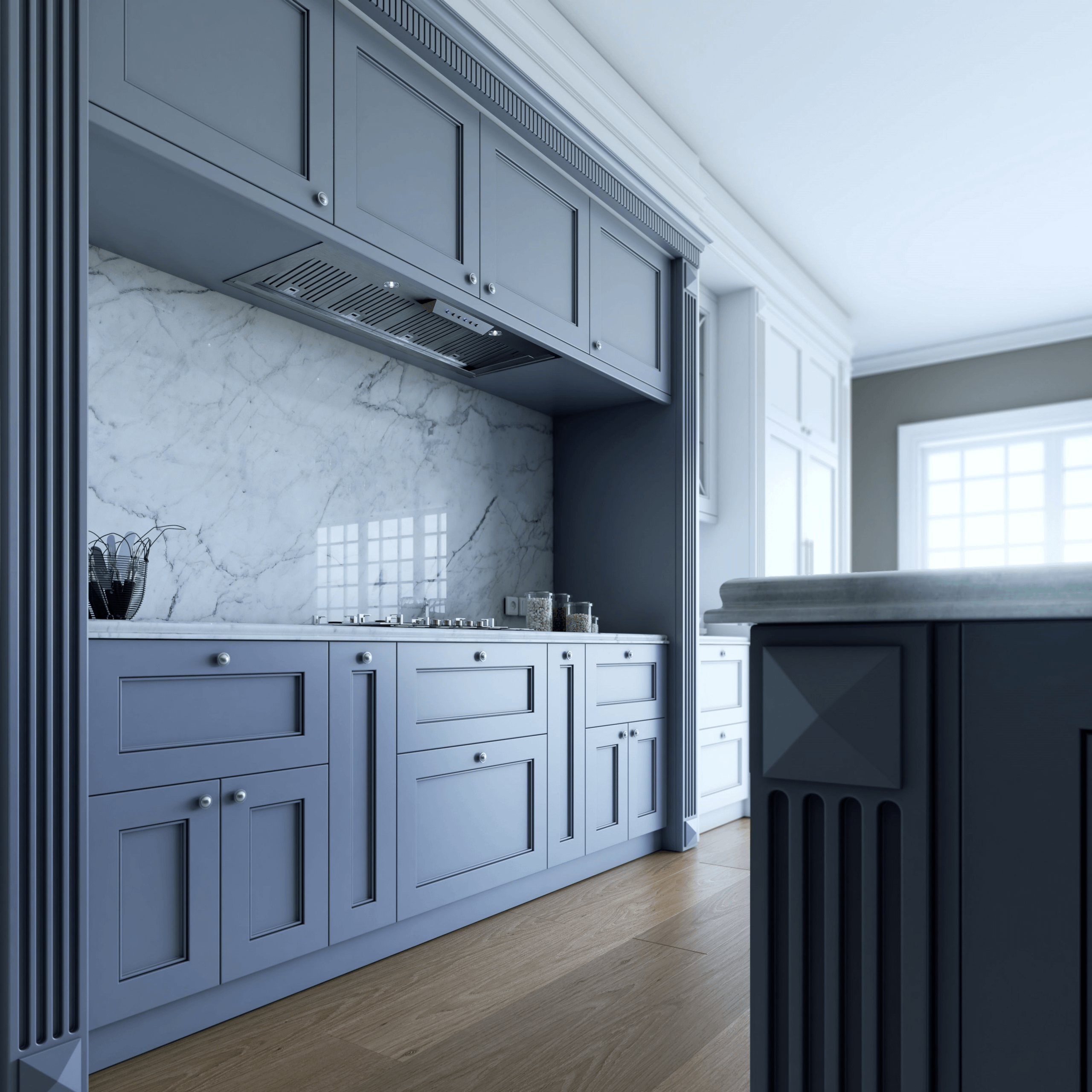

The 15" deep version of our popular XOI45, the same quality and construction in a slimmer configuration. Great for mantle built ins.

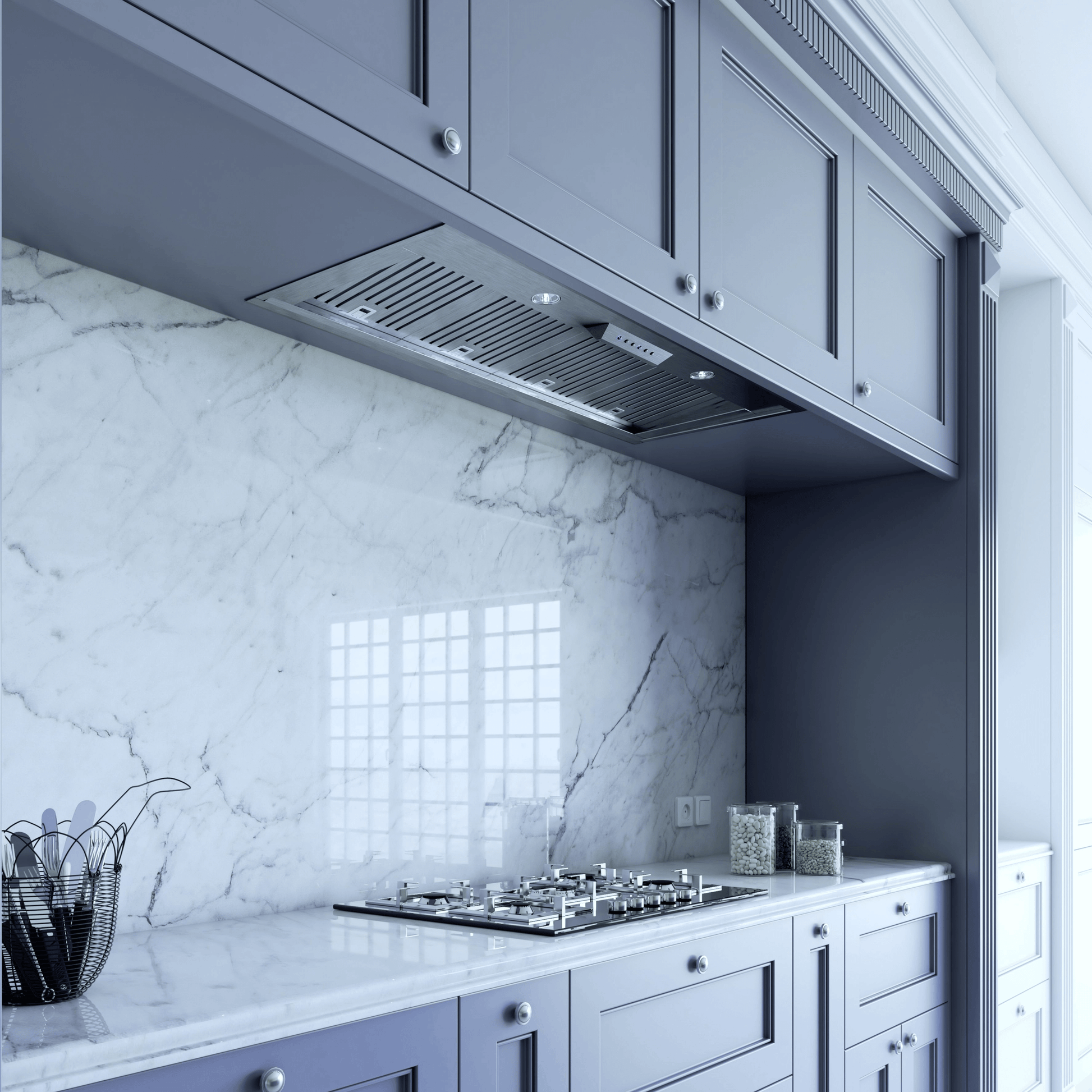

The XOI33/45KSE insert is a 1000CFM integrated blower that allows you to match your custom hood to your kitchen. This simple and affordable design is easy to install. Designed and crafted in Italy for the ultimate in fit and finish.
STANDOUT FEATURES- Intuitive Push button Controls
- High Efficiency 3000K LED Lights
- Powerful, Precision Balanced Blower
- Dishwasher Safe SS PRO Baffle Filters
- 8" Vertical Duct
- Made in Italy
Collection | Fabriano Collection |
Origin | Italy |
UPC | 814830012795 |
Height | 11 1/2" |
Width | 45 3/4" |
Depth | 15" |
Cut-Out Depth (in.) | 13 1/8" |
Cut-Out Height (in.) | 16 9/16" |
Cut-Out Width (in.) | 44 1/2" |
Dimensions D x W x H | 15" x 45 3/4" x 11 1/2" |
Product Weight | 32 |
Warranty 1 Explained | 90 Day Love It Or Leave It |
Warranty 2 Explained | 2 Year Limited Material And Workmanship for the original owner |
ADA Compatible | No |
Certification | UL |
Prop 65 | Yes |
Freight Class | 85 |
Shipping Weight | 35 |
Carton Height | 12" |
Carton Width | 49" |
Carton Depth | 18" |
Shipping Method | LTL |
Amperage | 6.2 Amps |
Electrical | 120V - 60Hz - 6.2 Amps |
Frequency (Hz) | 60 Hz |
Voltage (volts) | 120 VAC |
Wattage (watts) | 744 watts |
Appliance Type | Range Hoods |
CCC Code Compliance Control | No |
CFM @ Speed 1 | 200 |
CFM @ Speed 2 | 590 |
CFM @ Speed 3 | 1000 |
Color/Finish | Stainless |
Commerical/Residential | Residential |
Control Type | Backlit LED |
Cooktop Lights | Twin LED Lights |
Duct Size | 8" Dia. |
Ductless Convertible | Ducted Only |
Filter Type | Dishwasher Safe Pro Stainless Steel Baffles |
Install Type | Insert |
Installation Type | Insert |
LIght Colors | White |
Light Type | Twin LED Lights |
Lighting Features | 3000K LED |
Maximum Air Flow Capacity CFM) | 1000 |
Minimum Air Flow Capacity (CFM) | 200 |
Mounting Height Above Cooktop | 27" - 32" |
Number of Light Bulbs | 2 |
Number of Speeds | 3 |
Returnable | No |
Sones @ Speed 1 | 2 |
Sones @ Speed 2 | 6.4 |
Sones @ Speed 3 | 8 |
Vent Location | Top |
Vent Material | Metal |
Wireless Compatibility | No |
Control Lighting | none |
Controls | Electronic Controls |
Location | Indoor |
Sound Level | 2.0 -8.0 Sones |
Assembled Depth (in.) | No |
