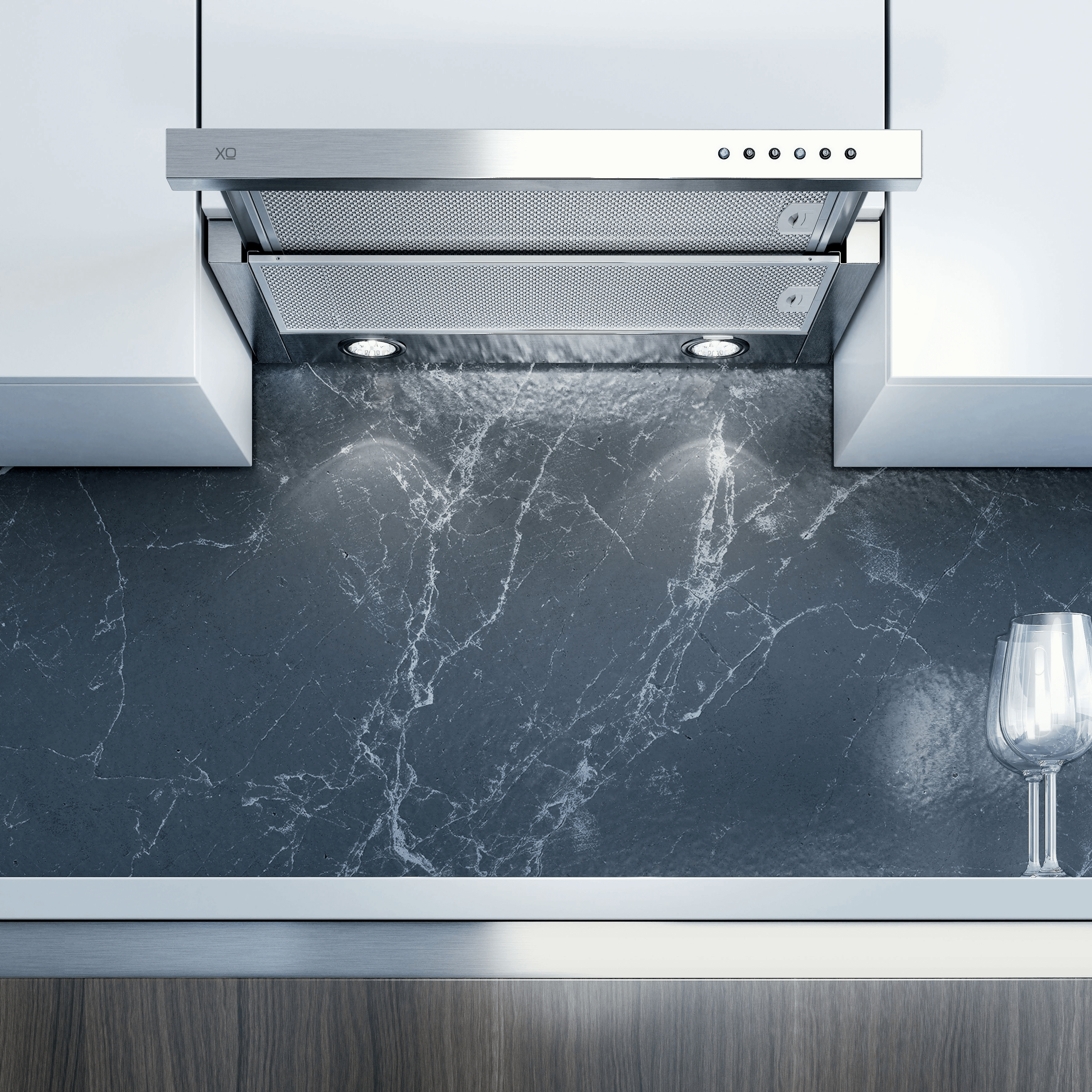

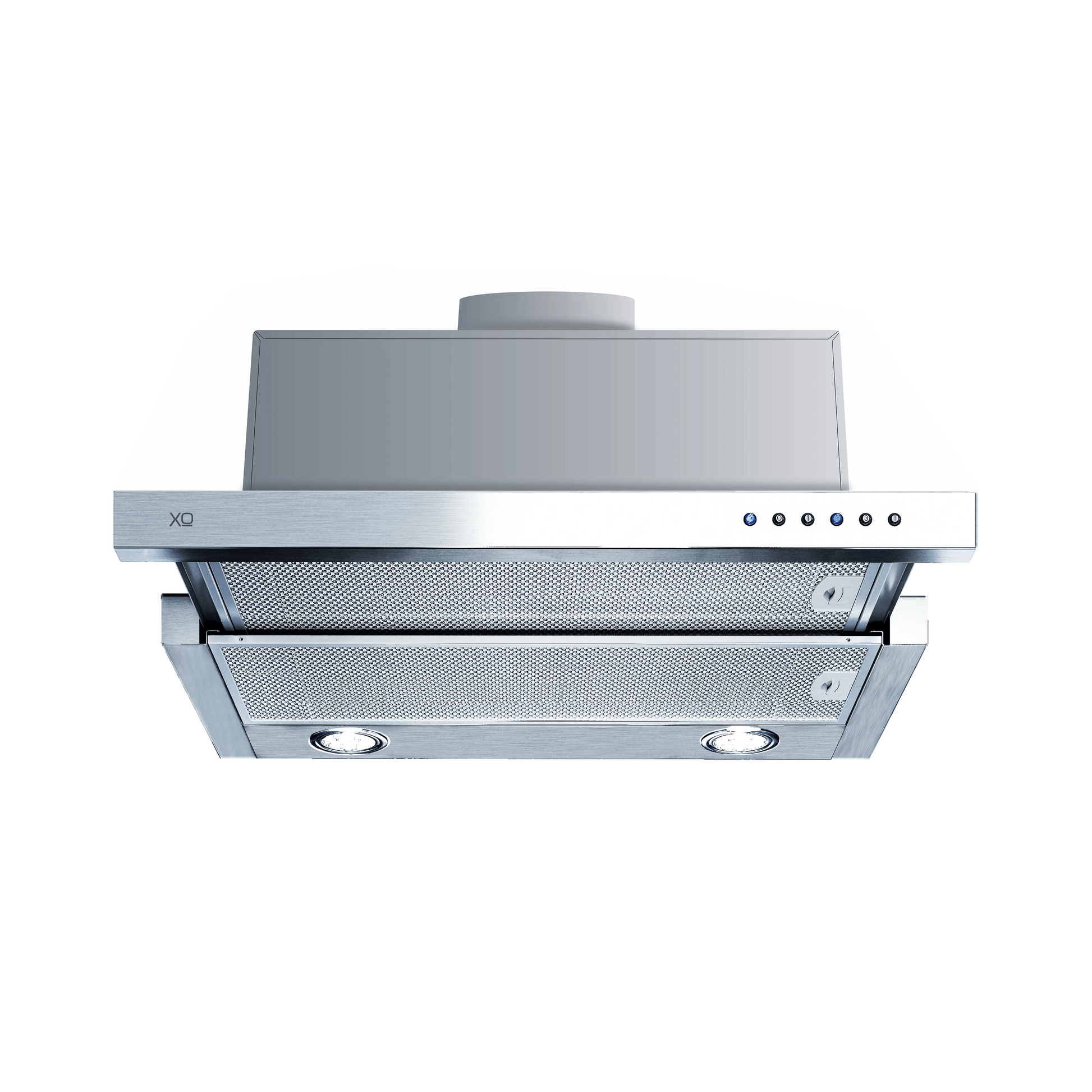

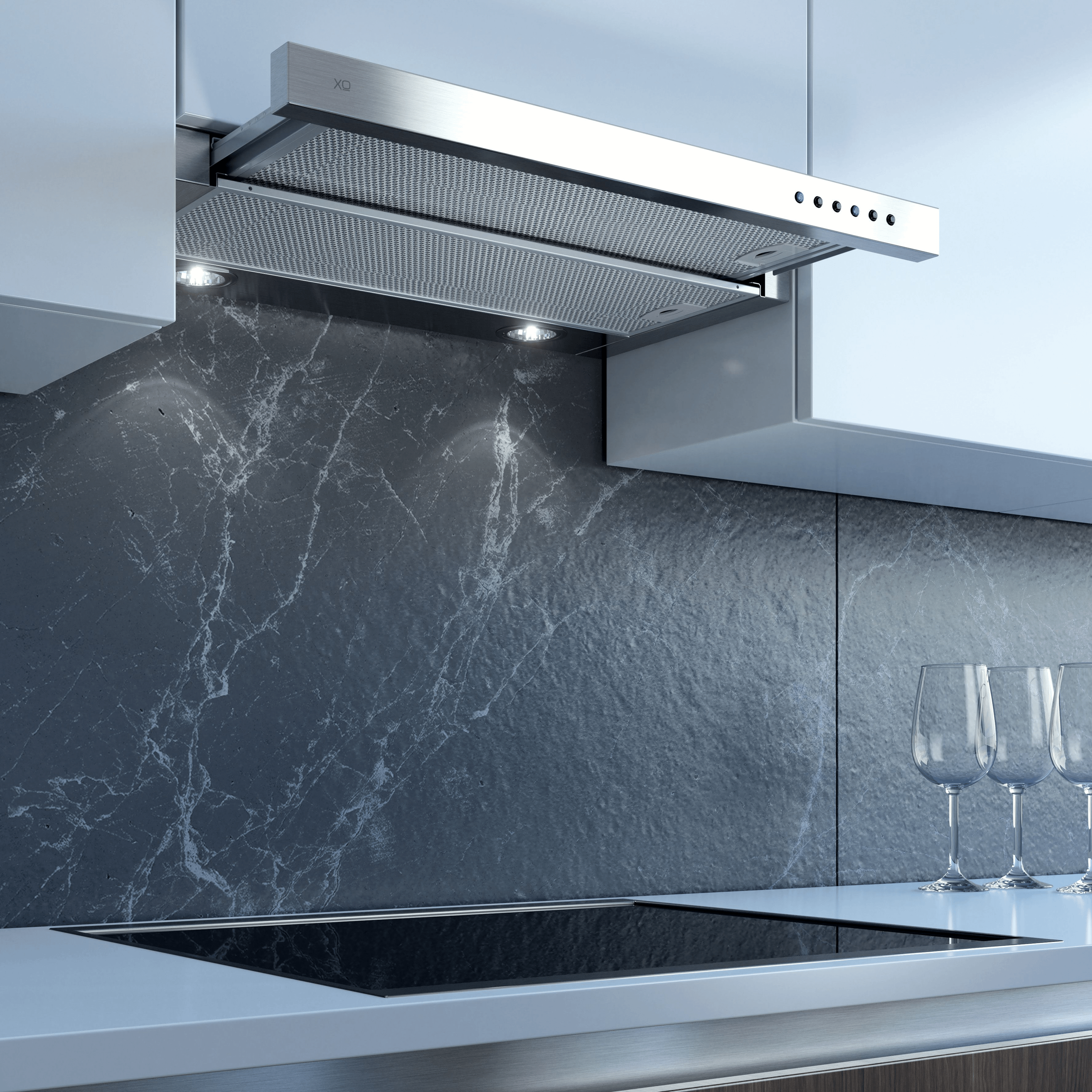

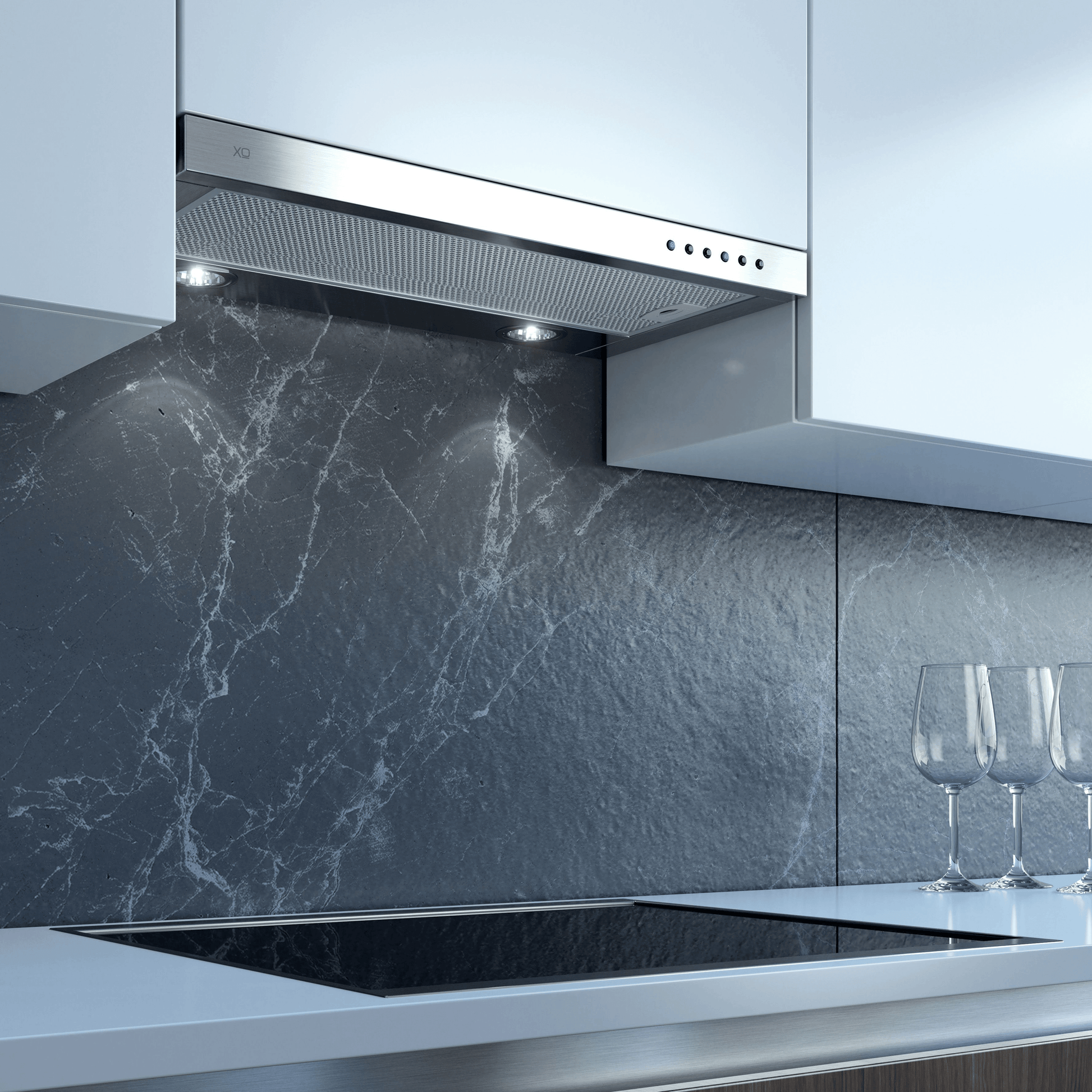

The XOC performs a vanishing act when not in use, the glide out filter closes to expose just a thin profile of stainless steel. Unlike other similar looking units - both the lights and blower operate when the glide is open or closed. Now equipped with our advanced Code Compliance Control.
The XOC may look like other minimal profile range hoods but that is where the similarity ends. This powerful, versatile unit glides flush with your cabinets to reveal only a thin stainless steel band when closed but unlike other systems, the blower and lighting are fully functional with the filter visor open or shut.
STANDOUT FEATURES- Electronic 3 Speed Control + Power Boost
- CCC Code Compliance Control - 395 or 600 CFM*
- Incomparable handcrafted Italian finish
- High Efficiency 3000K LED Lights (x2)
- High Velocity Blower optimally removes Smoke, Grease and Odors
- Blower & Lights operate with visor open or closed
- Dishwasher Safe Aluminum Mesh Filter
- 5 Minute Delay Shutoff Timer
- Made In Italy
*NOTE: When CCC™ is enabled the number of fan speeds will be reduced to maximum 3 speeds
Collection | Fabriano Collection |
Origin | Italy |
UPC | 814830012634 |
Height | 10 9/16" |
Width | 24" |
Depth | 12 1/8" |
Cut-Out Depth (in.) | 11 1/4" |
Cut-Out Height (in.) | 9 1/8" |
Cut-Out Width (in.) | 19 15/16" |
Dimensions D x W x H | 12 1/8" x 24" x 10 9/16" |
Product Weight | 27 |
Warranty 1 Explained | 90 Day Love It Or Leave It |
Warranty 2 Explained | 2 Year Limited Material And Workmanship for the original owner |
ADA Compatible | No |
Certification | UL |
Prop 65 | Yes |
Freight Class | 85 |
Shipping Weight | 30 |
Carton Height | 18" |
Carton Width | 28" |
Carton Depth | 24" |
Shipping Method | LTL |
Amperage | 3.6 Amps |
Electrical | 120V - 60Hz - 3.6 Amps |
Frequency (Hz) | 60 Hz |
Voltage (volts) | 120 VAC |
Wattage (watts) | 430 watts |
Appliance Type | Range Hoods |
CCC Code Compliance Control | Yes |
CFM @ Speed 1 | 160 |
CFM @ Speed 2 | 250 |
CFM @ Speed 3 | 395 |
CFM @ Speed 4 | 600 |
Color/Finish | Stainless |
Commerical/Residential | Residential |
Control Type | Backlit LED |
Cooktop Lights | Twin LED Lights |
Duct Size | 6" Dia. |
Ductless Convertible | Ducted or Convertible |
Filter Type | Dishwasher Safe Mesh Filters |
Install Type | Glide out visor |
Installation Type | Glide out visor |
LIght Colors | White |
Light Type | Twin LED Lights |
Lighting Features | 3000K LED |
Maximum Air Flow Capacity CFM) | 600/395 |
Minimum Air Flow Capacity (CFM) | 160 |
Mounting Height Above Cooktop | 27" - 32" |
Number of Light Bulbs | 2 |
Number of Speeds | 4 |
Returnable | No |
Sones @ Speed 1 | 1 |
Sones @ Speed 2 | 2.5 |
Sones @ Speed 3 | 4 |
Sones @ Speed 4 | 6.5 |
Vent Location | Top |
Vent Material | Metal |
Wireless Compatibility | No |
Control Lighting | Blue Backlit |
Controls | Code Compliance Electronic Controls |
Location | Indoor |
Sound Level | 1.0 - 6.5 Sones |
Assembled Depth (in.) | No |
