Overview & Specifications
Overview & Specifications

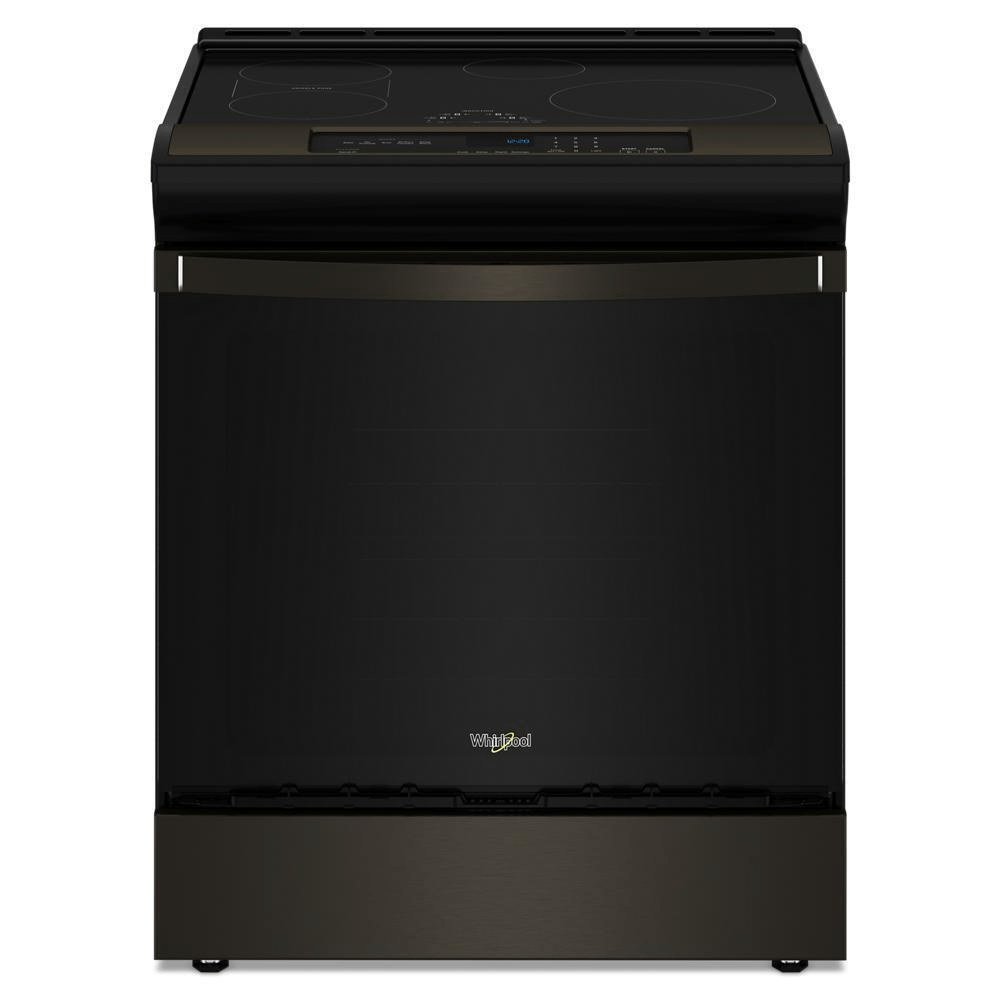

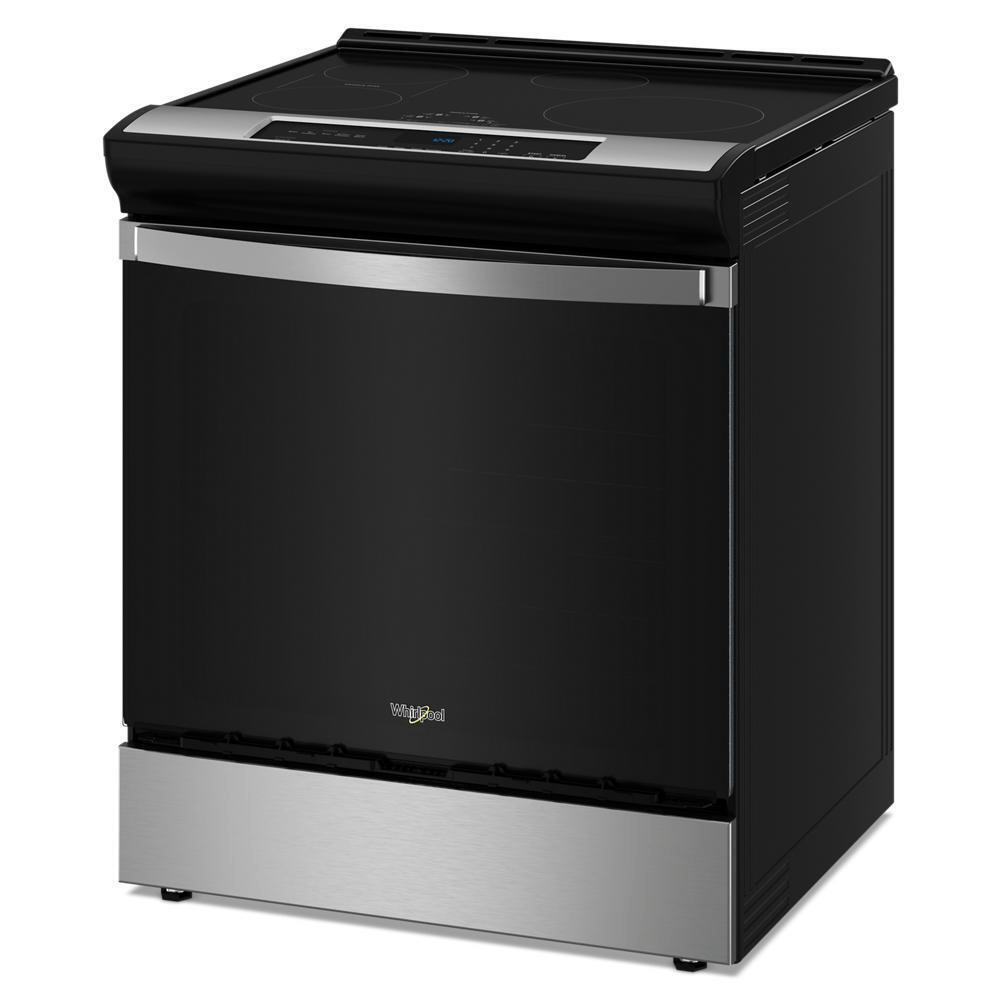

Get dinner on the table fast with the Whirlpool Induction Range. Its Induction Technology generates heat directly within cookware to heat and boil quickly, and it keeps the cooktop surrounding the elements cool, helping prevent baked-on messes for quick cleaning. It features a large Griddle Zone that allows you to connect two separate heating elements into one so you can cook more food at once. The range makes without the wait thanks to No Preheat Air Fry and Air Cooking Technology modes like Air Baking, Air Roast, and Air Broil. It's also ENERGY STAR® Certified to help save money on your utility bills
- 6.4 Cu. Ft. Capacity
- Easily cook a whole meal with 6.4 Cu. Ft. capacity.
- ADA Compliant
- This range meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.

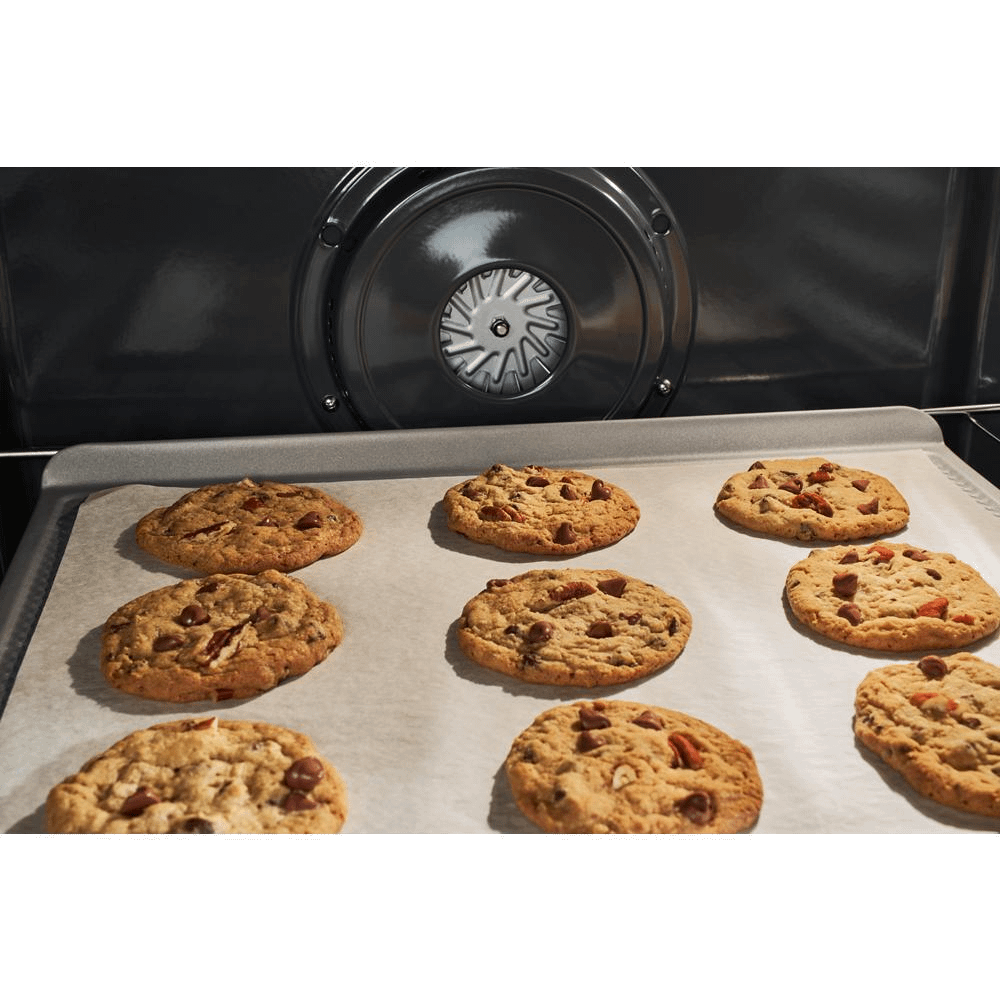

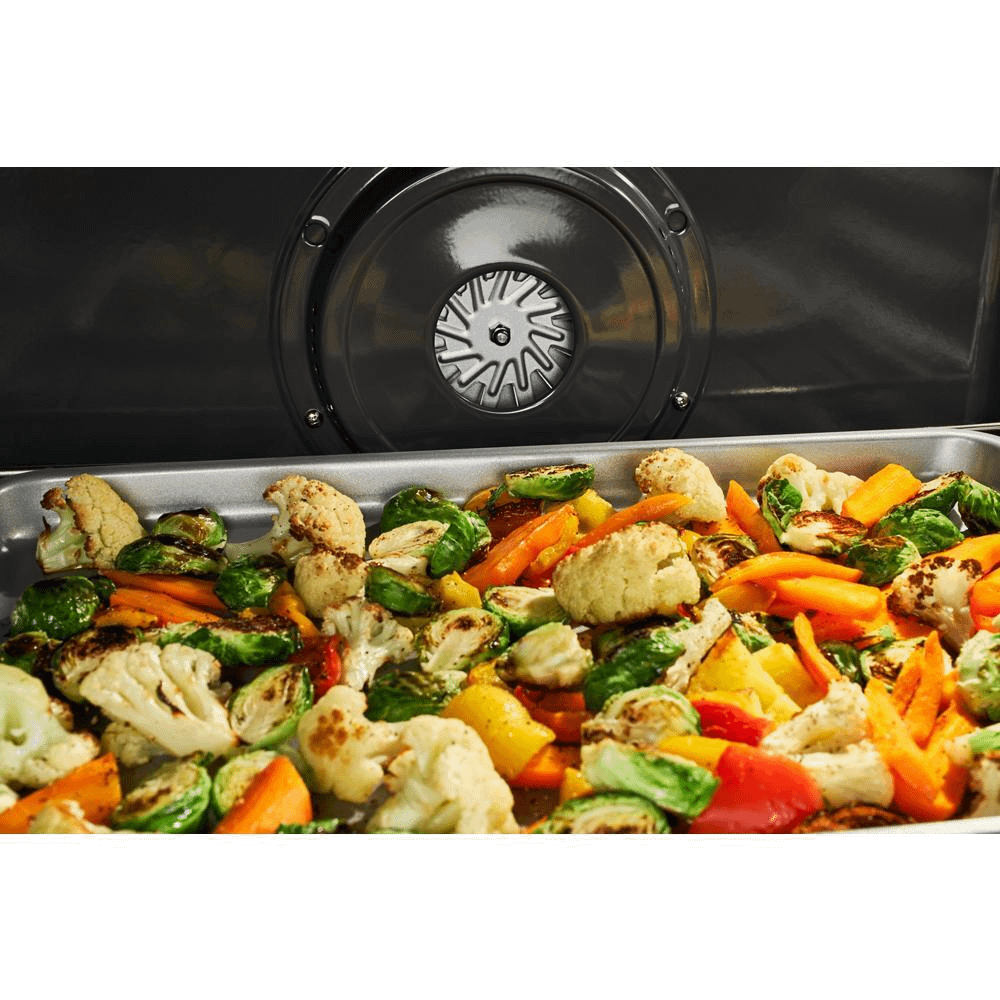

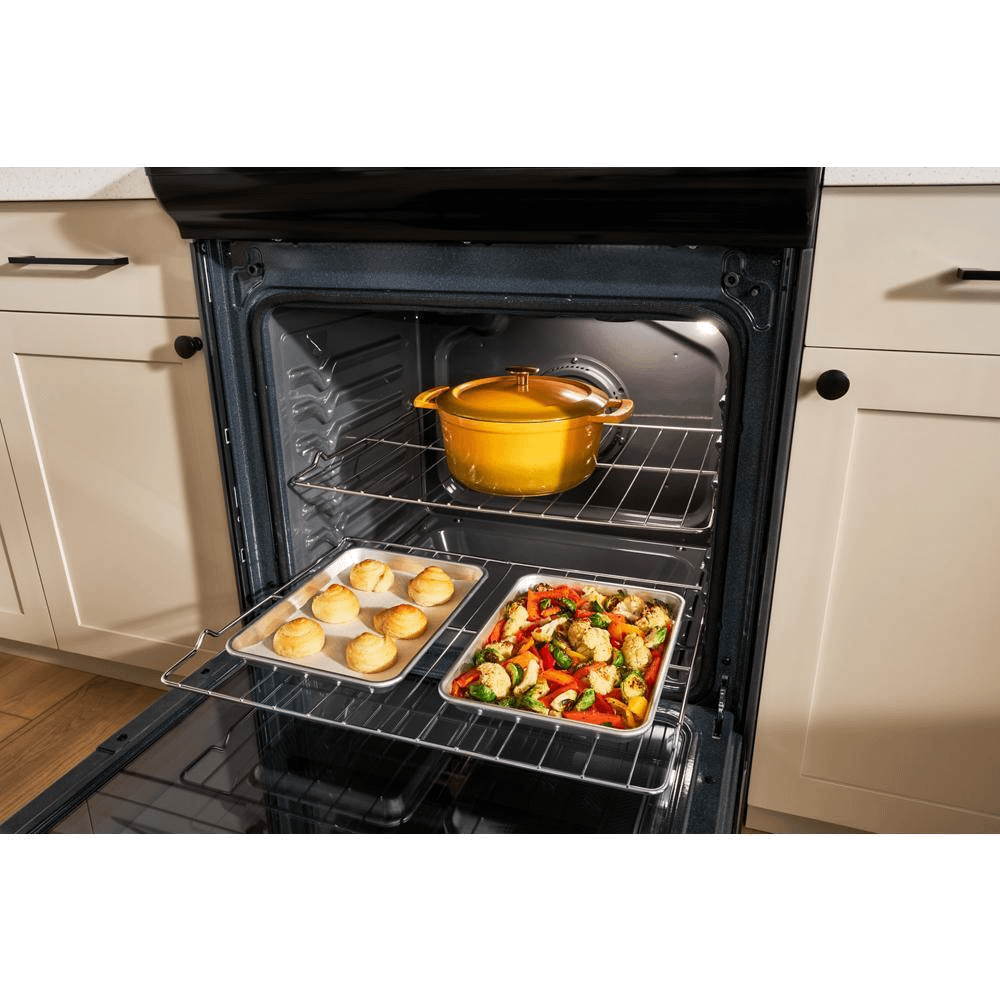

- Air Baking
- Heat food fast with Air Baking. The oven fan circulates hot air from three heating elements around the oven so you can cook foods fast and don t have to move dishes around as you cook
- Air Cooking Technology
- Go beyond Air Fry with All In One Air Cooking Technology including Air Baking, Air Roast, and Air Broil for fast, delicious cooking.

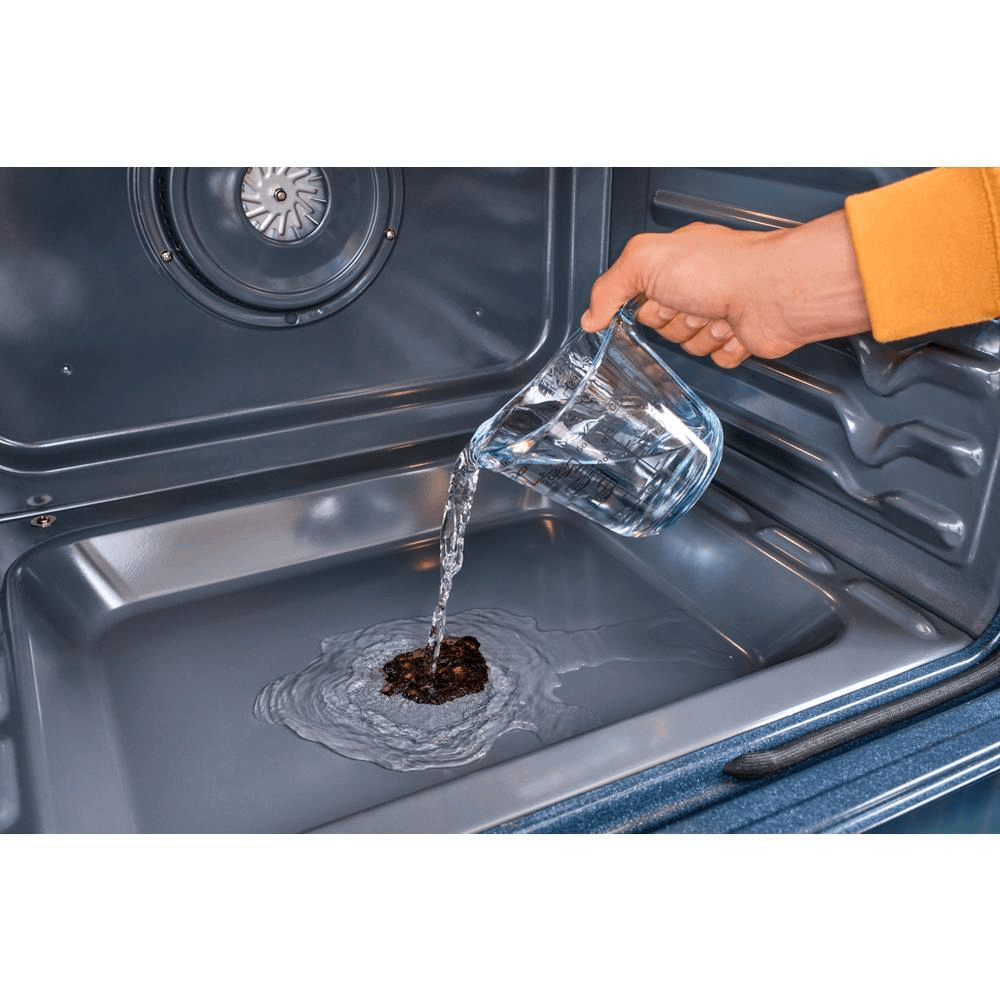

- AquaLift(R) Self-Cleaning Technology
- Clean your oven without harsh chemicals in only 40 minutes with AquaLift(R) Self-Cleaning Technology. Add water, run the cycle and then wipe away any remaining soils once the cycle is done.

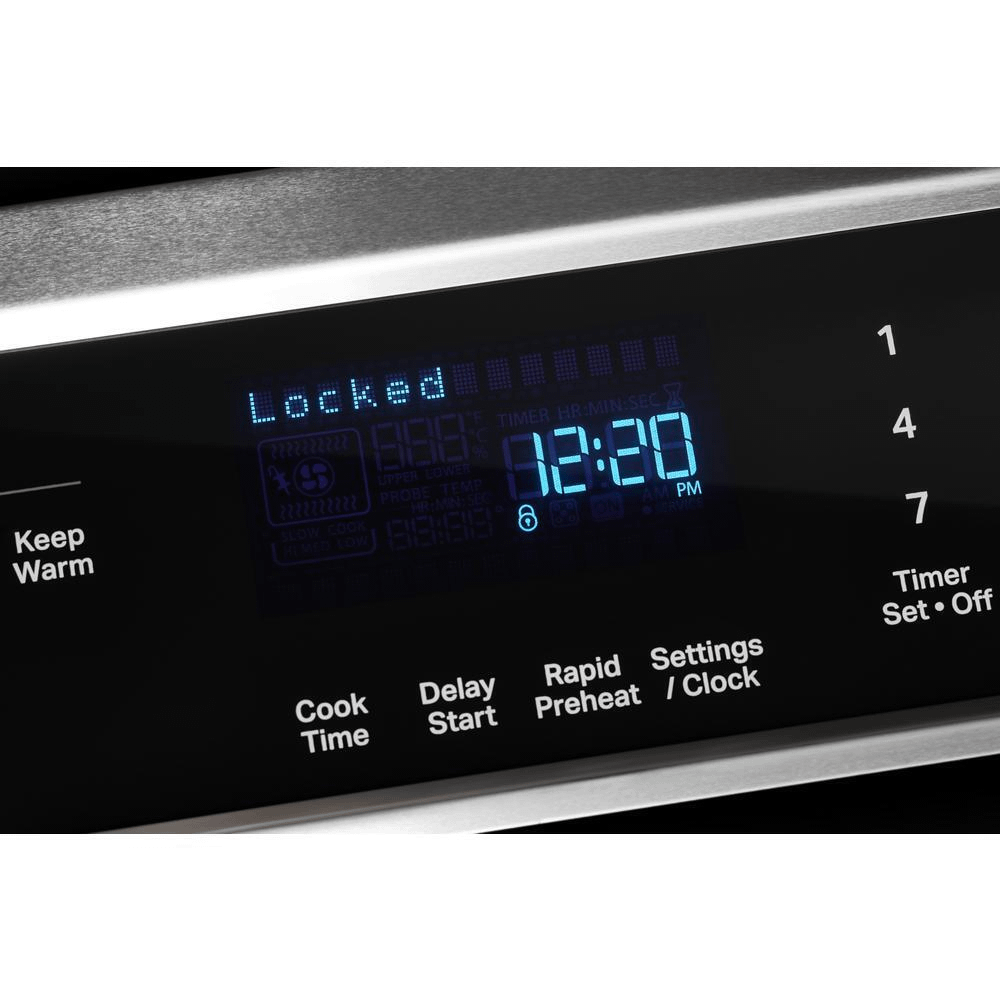

*Unlike the traditional Adjustable Self-Clean Cycle which burns off soils, when using AquaLift(R) Self-Cleaning Technology, add water, run the cycle and then manually remove the water and soils with a wet sponge when the cycle is finished. - Control Lock Mode
- Disable the control panel to avoid unintended use and easily clean controls.

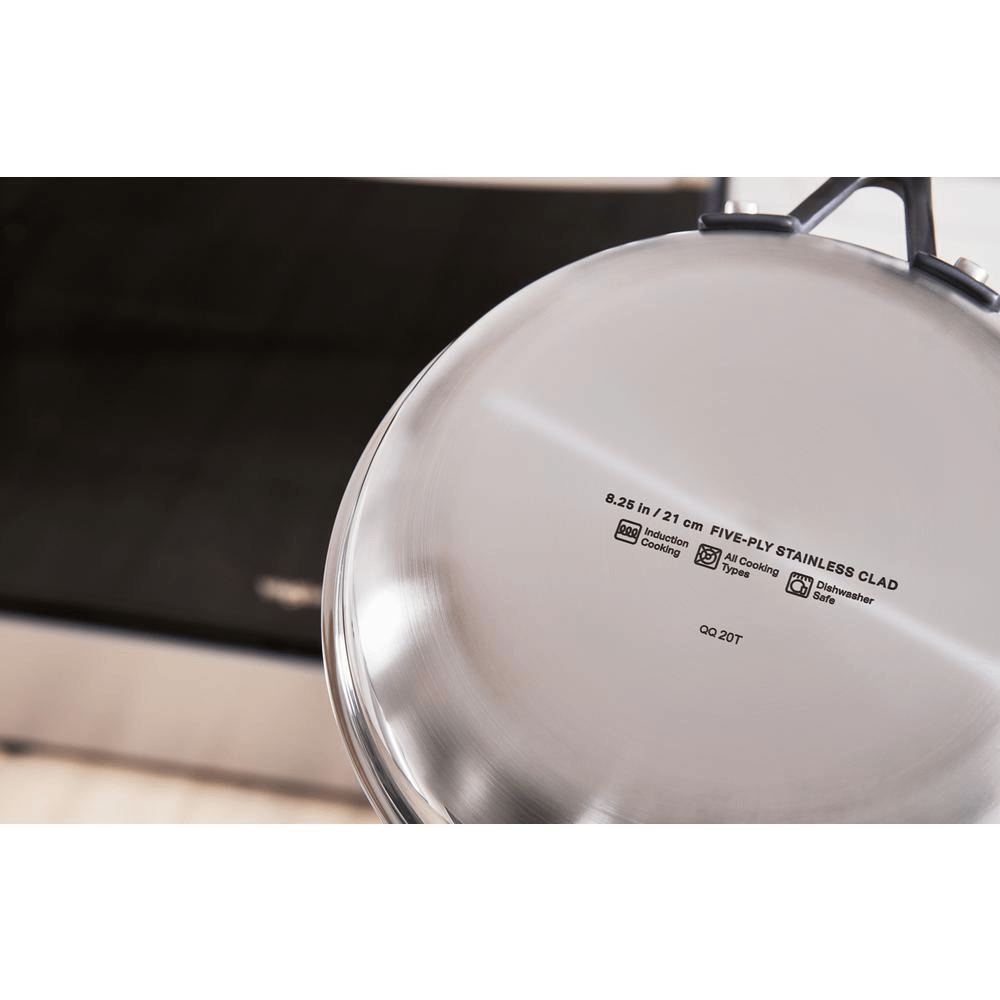

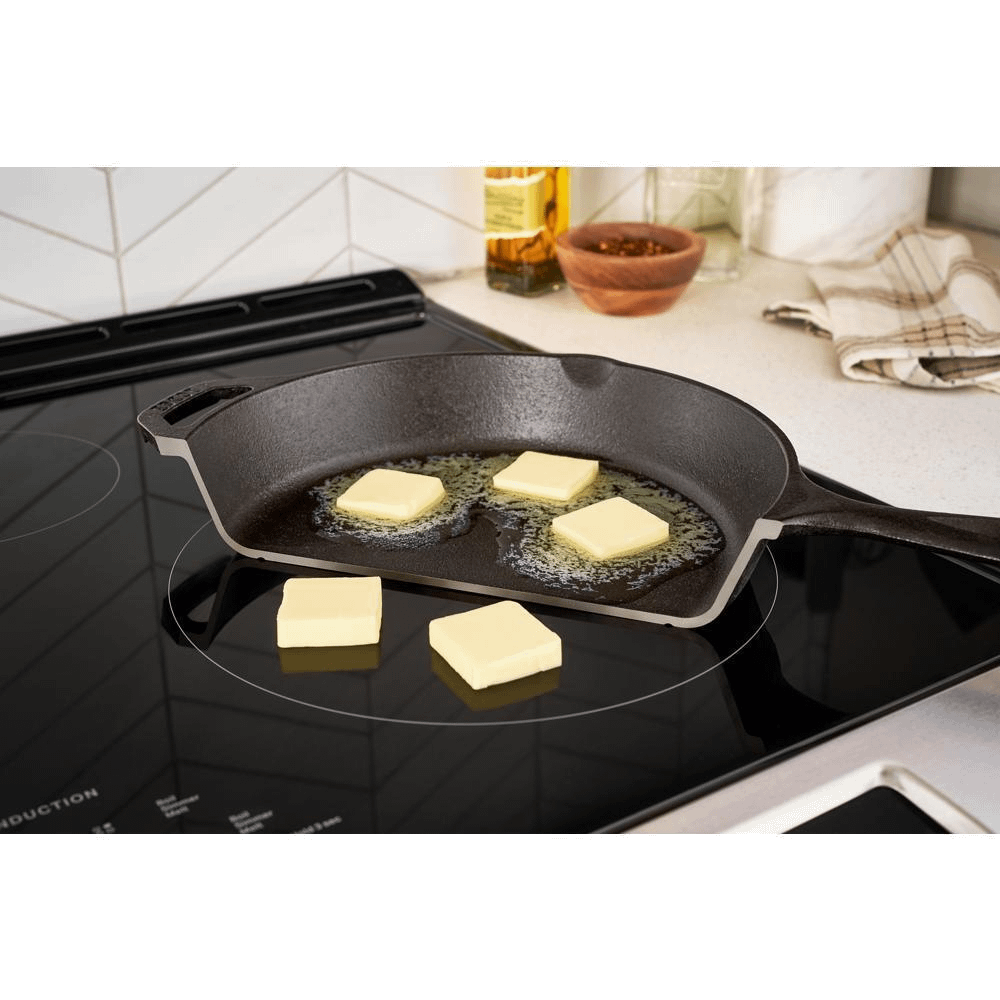

- Cookware Compatible
- Compatible with cookware that is multi-ply stainless steel, enamelled steel or cast iron. Use pans marked "Works with Induction" or test to see if a magnet will stick to the bottom.
- Dishwasher Safe Air Fry basket (Sold Separately)
- For easy cleaning, put the Dishwasher-Safe Air Fry Basket (Sold Separately) right in the dishwasher when it gets messy. Part number W11692811.
- ENERGY STAR(R) Certified
- ENERGY STAR(R) Certified models exceed government standards to help save money on your utility bills.
- Fingerprint Resistant
- Available in a stainless finish that s easy to clean and resists fingerprints and smudges.
- Griddle Zone
- Griddle Zone delivers new cooking capabilities by connecting two individual heating elements to form one larger one, making it easy to cook different foods at once.

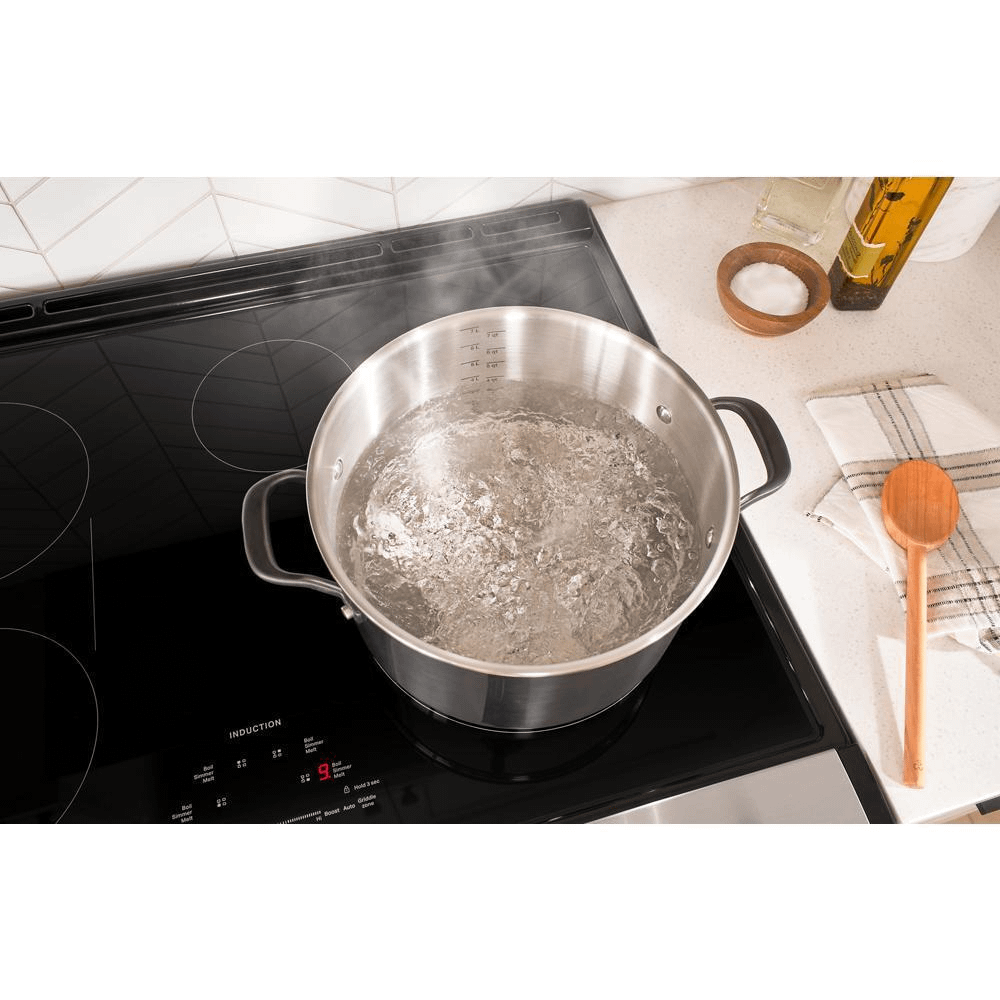

- Induction Technology
- Induction Technology makes cooking and cleaning fast by transferring heat to the pot, not the cooking surface. This makes cooking and cleaning spills simple.

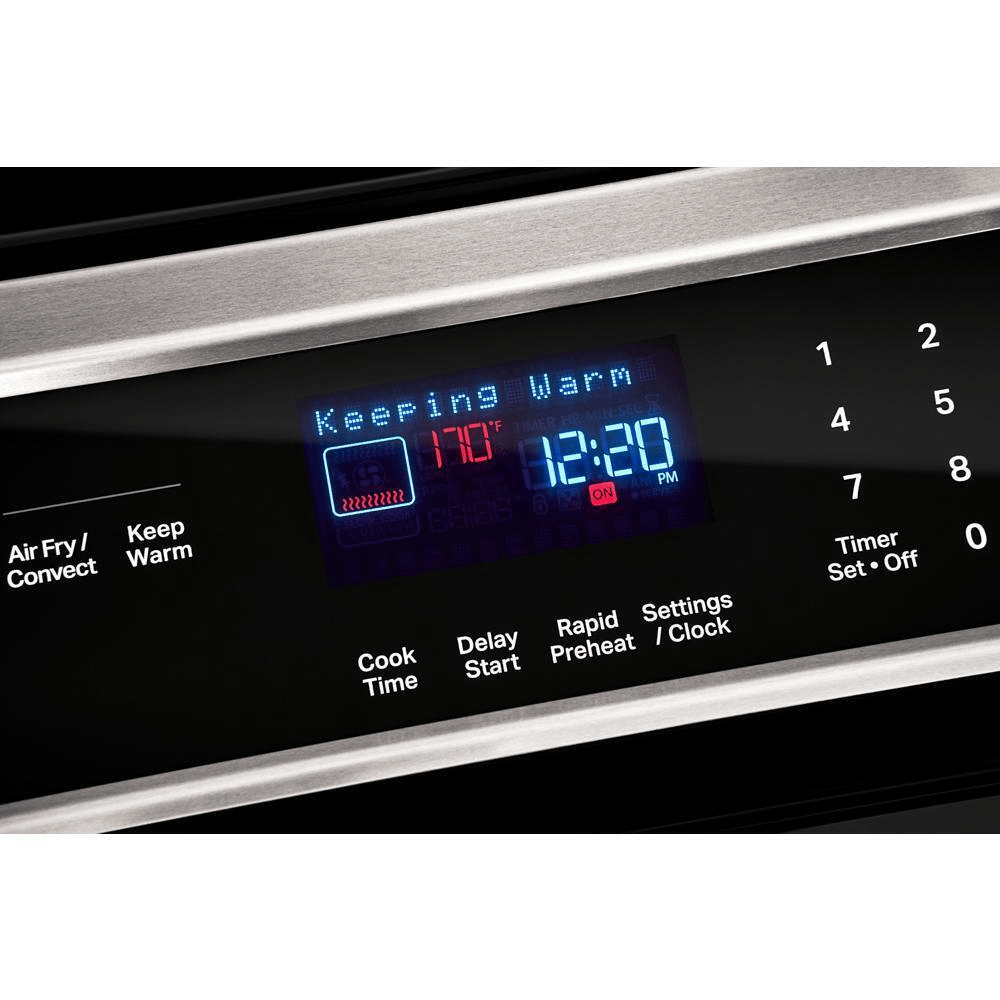

- Keep Warm Setting
- Use the Keep Warm setting in the oven to help your dishes stay warm until your family is ready to dig in.

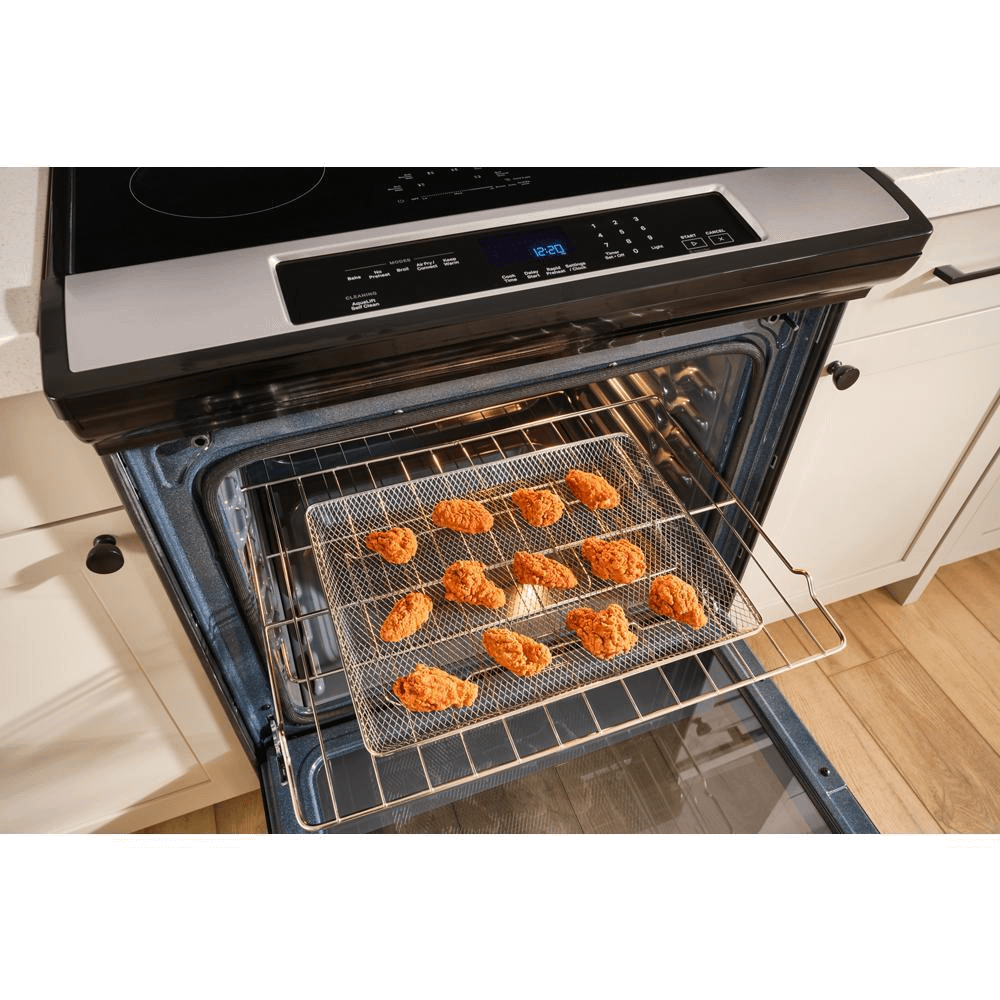

- No Preheat Air Fry
- Start air frying without the wait with No Preheat Air Fry.

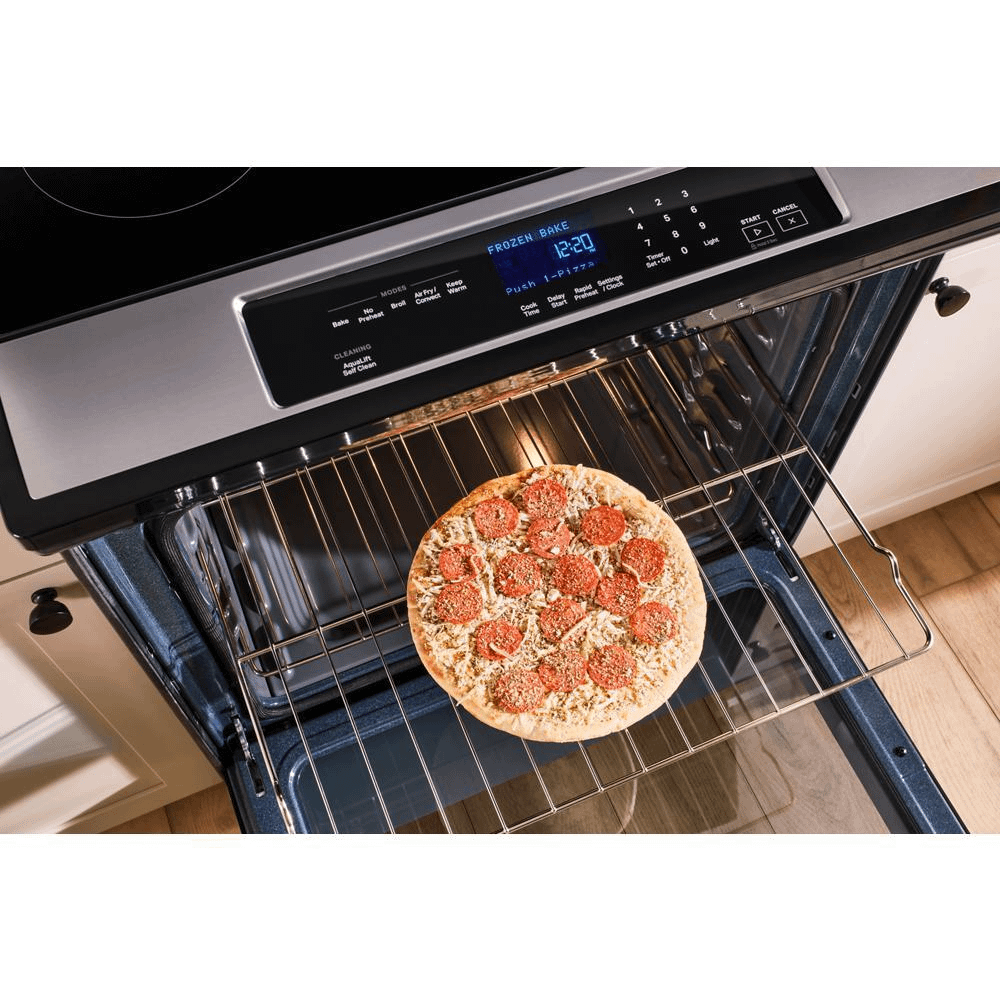

- No Preheat Mode
- Take preheating off your plate with No Preheat Mode. Simply place your food in the oven and start baking. The oven will adjust the cook time for frozen pizzas and more.

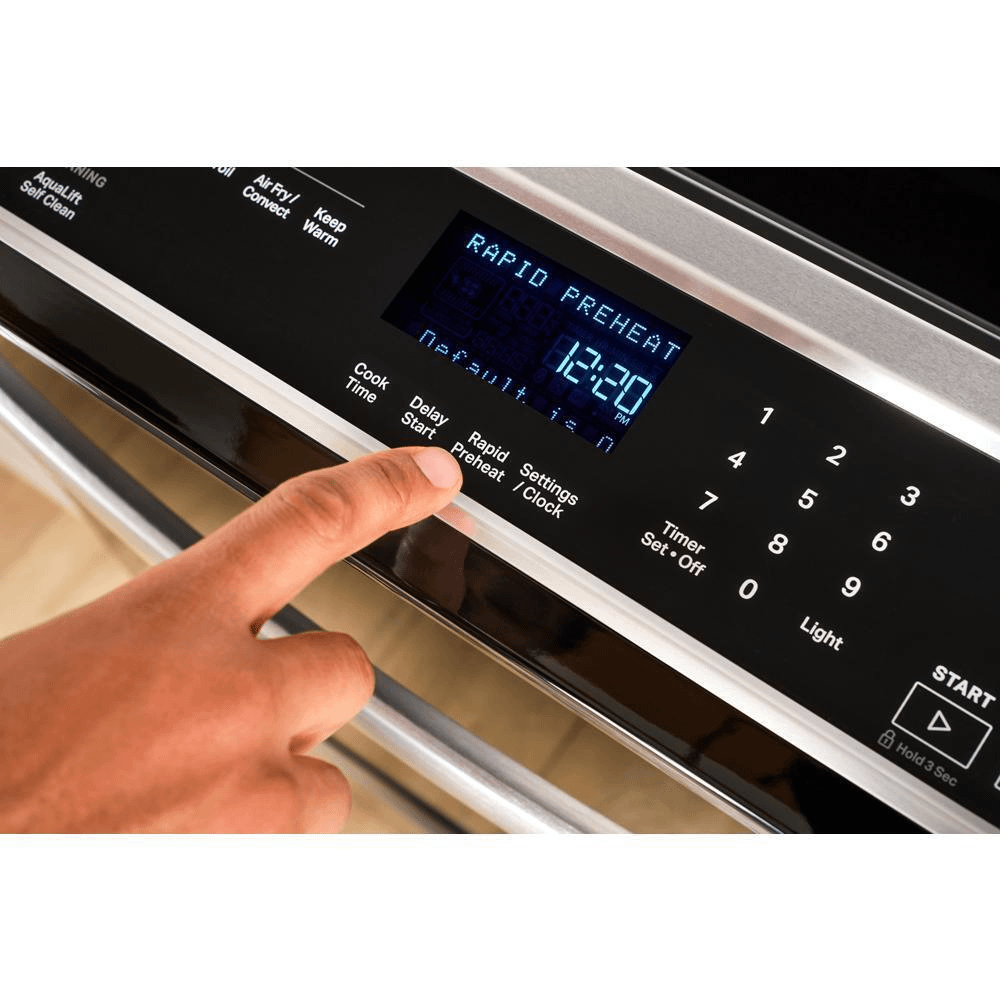

- Rapid Preheat
- Rapid Preheat helps you save time with a fast preheating mode. A rear fan combined with the use of all of the elements helps heat the oven quickly.
Certifications | |
Ada Compliant | Yes |
Cul | Yes |
Prop65 | Standard |
Ul | Yes |

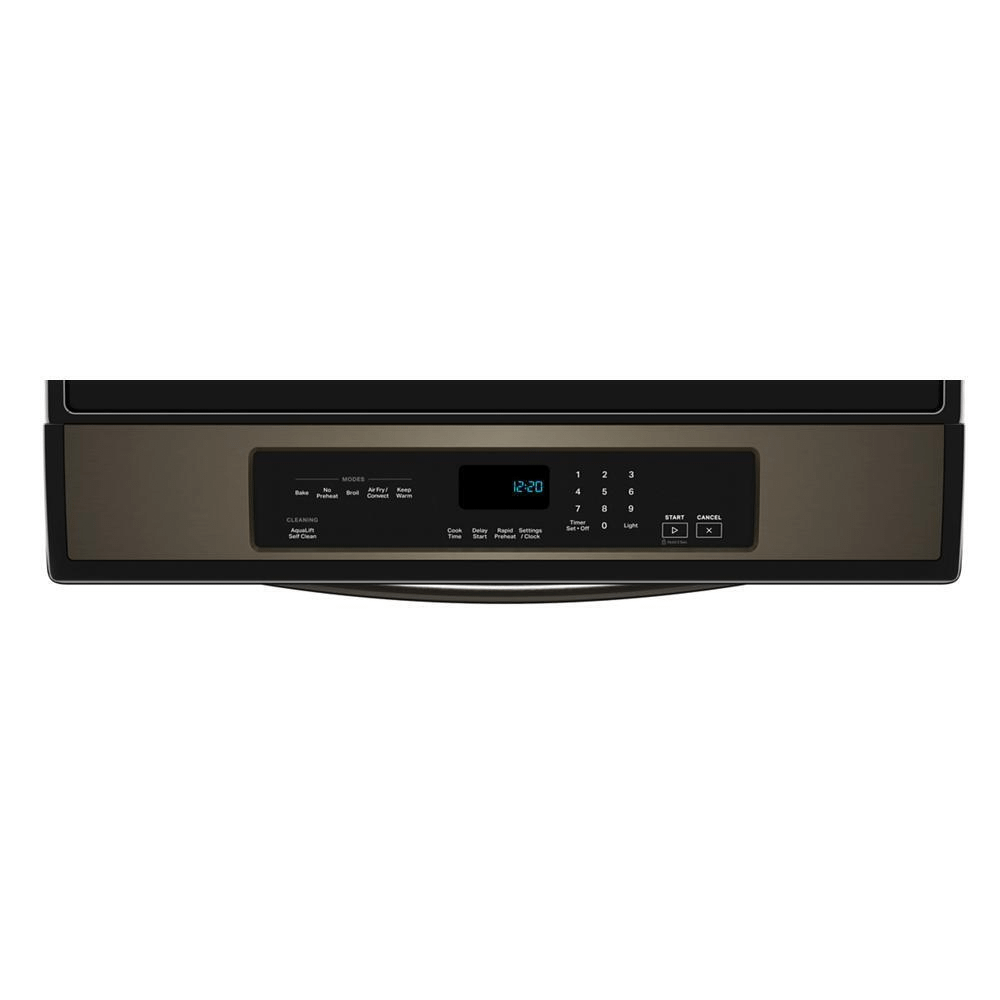

Controls | |
Display Color | Blue |
Electronic Display Type | LED |
Cooktop Details | |
Cooktop Control Location | Front |
Cooktop Control Type | Electronic Touch |
Cooktop Surface Color | Black |
Cooktop Surface Material | Glass |
Griddle Included | No |
Heating Element On Indicator Light | Yes |
Hot Surface Indicator Light | Yes |
Details | |
Air Fry | Yes |
Automatic Convection Conversion Temperature Adjust | Yes |
Cooktop Configuration | All Burners |
Fuel Type | Electric |
Installation Configuration | Freestanding |
Oven Automatic Shut-off | Yes |
Oven Light Switch Location | Top of Console |
Oven Selections | Air Fry; Audible Signal; Bake; Bake-No Preheat; Broil; Cancel/Off; Clock; Control Lock; Convect Modes; Cook Time Indicator; Delay Start; Frozen Bake; Keep Warm Setting; No Preheat - Frozen Lasagna; No Preheat - Frozen Pizza; Rapid Preheat; Sabbath Mode; St |
Power On Indicator Light | Yes |
Power Outage Compatible | No |
Range Configuration | Slide-In |

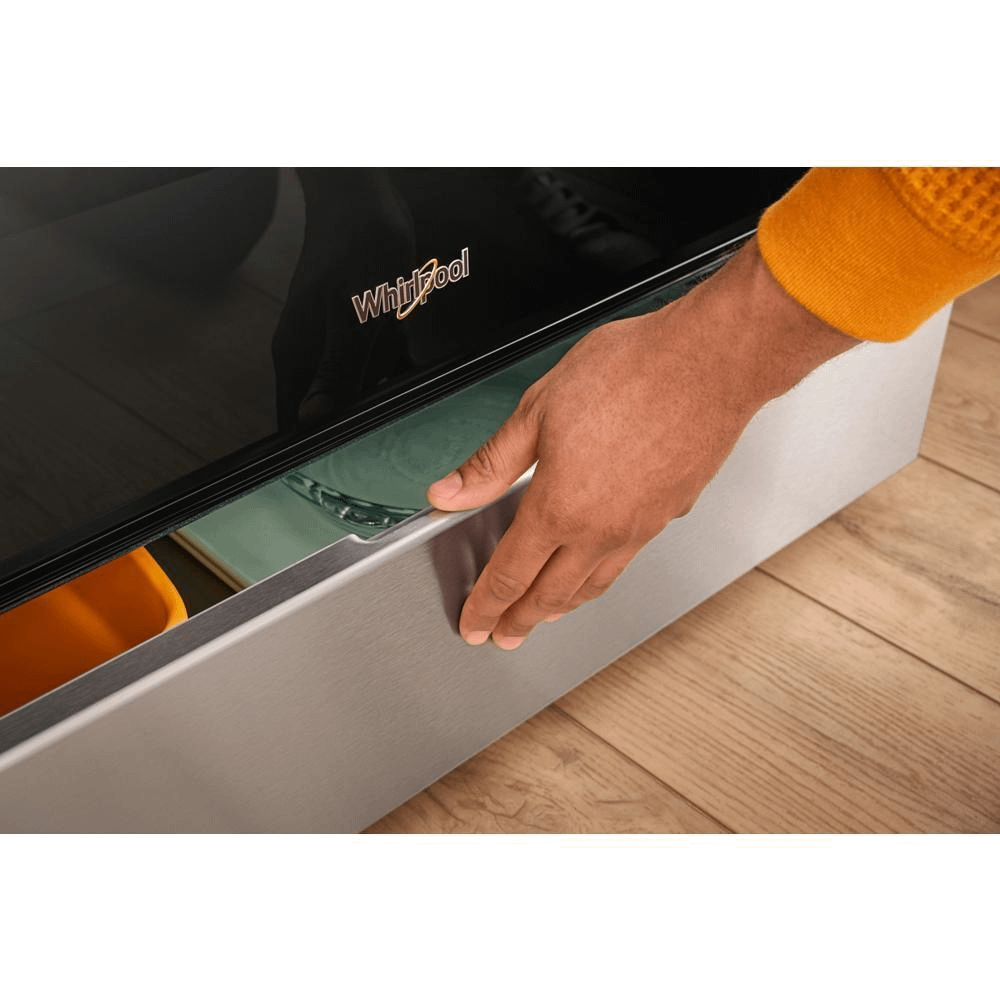

Range Drawer Type | Storage Drawer |
Range Type | Slide-in |

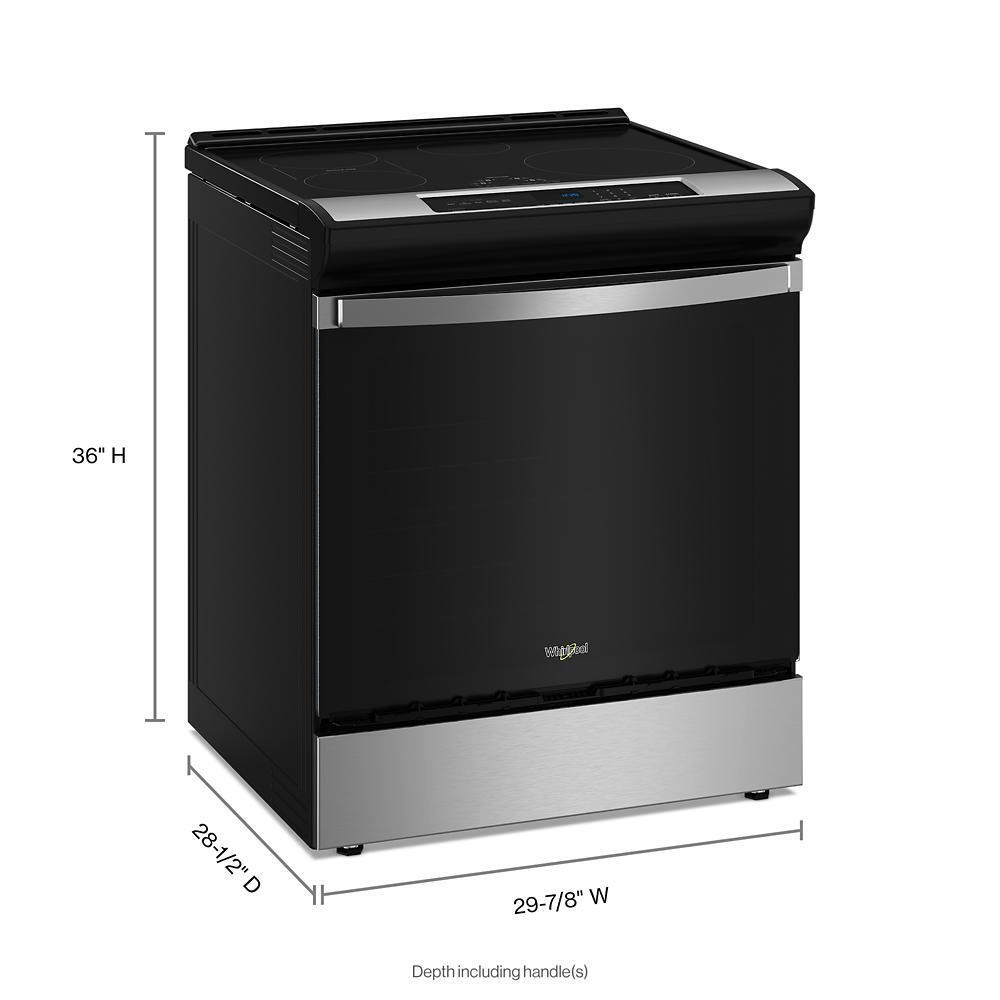

Dimensions | |
Product Height | 36.0 |
Carton Height | 43 |
Gross Weight | 229 |
Oven Interior Height | 22.125 |
Carton Width | 32 |
Product Depth | 28.5 |
Oven Interior Depth | 20.625 |
Depth With Door Open 90 Degree | 48.5 |
Cutout Depth | 24 |
Cutout Height | 36 |
Depth Closed Excluding Handles | 27.875 |
Depth Closed Including Handles | 28.875 |
Carton Depth | 31 |
Cutout Width | 30 |
Oven Interior Width | 24.125 |
Net Weight | 211 |
Product Width | 29.875 |
Electrical | |
Power Cord Included | Yes |
Element/burner Details | |
Cooktop Element Style | Induction |
Left Front Element-burner Power | 3,000W |
Left Front Element-burner Size | 7in. |
Left Front Element-burner Type | Induction Bridge |
Left Rear Element-burner Power | 3000W/1400W |
Left Rear Element-burner Size | 7in. |
Left Rear Element-burner Type | Induction Bridge |
Number of Cooking Element-burners | 4 |
Right Front Element-burner Power | 3700W |
Right Front Element-burner Size | 10in. |
Right Front Element-burner Type | Power |
Right Rear Element-burner Power | 2200W |
Right Rear Element-burner Size | 5 1/2 in. |
Right Rear Element-burner Type | Standard |
Exterior Details | |
Door Type | Glass |
Handle Color | Black Stainless |
Handle Material | Metal |
Handle Type | Reach Through Handle |
Oven Control Location | Front |
Oven Control Type | Electronic Touch |
Oven Window Size | Extra Large |
General | |
Console Language | English |
Energy Rating(s) (kwh/year) | 195 (US), 377 (Canada - oven portion only) |
Energy Ratings (kwh/year) | 195 (US), 377 (Canada - oven portion only) |
Literature Language | English |
Oven Details | |
Bake Element Power | 3,600 W |
Broiler Element Power | 4,000 W |
Broiler Location | Top of Oven |
Convection Element Power | 925 |
Convection Element Type | True Bow Tie |
Convection Functions | Air Fry; Bake; Broil |
Door Removable | Yes |
Hidden Bake Element | Yes |
Interior Color | Grey |
Number of Oven Lights | 1 |
Number of Oven Racks | 2 |
Number of Rack Guides | 7 |
Oven Cleaning Type | AquaLift® Self Clean |
Oven Cooking System | True Convection |
Oven Light Type | Incandescent |
Oven Rack Guide Type | Molded |
Oven Rack Type | 2 Standard |
Smart Compatibility | |
Connectivity | No |
Works With | No |
