Take on every meal with a self-cleaning wall oven that cleans without chemicals using the Adjustable Self-Clean Cycle. Use the oven Steam Clean Option to clean up everyday spills. Get meals to the table easily with this fast preheat oven and features like Electronic Touch Controls and an oven control lock.
- 3-in-1 Wall Oven
- Cook however you want with three cooking modes in one wall oven: Keep Warm, Broil and Bake. Get the flexibility to cook your favorite dishes by combining multiple cooking modes into one wall oven.

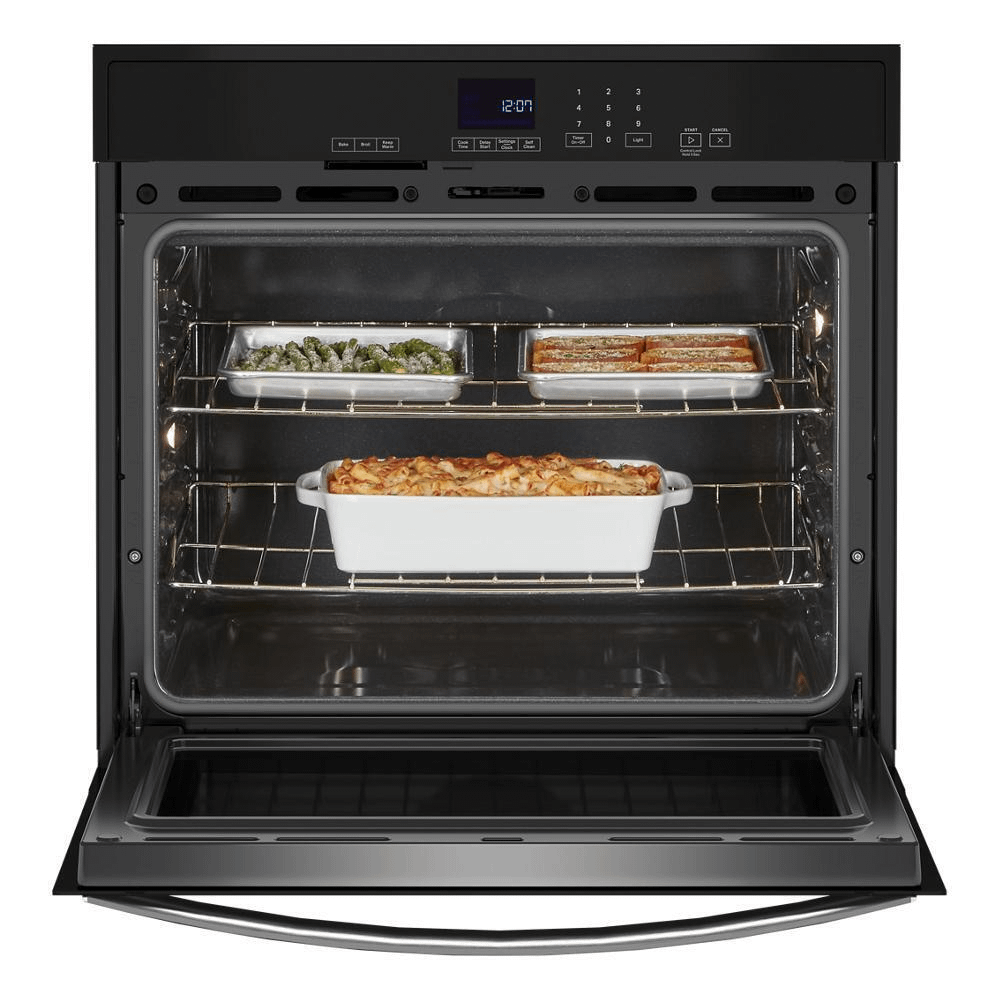

- 5.0 Cu. Ft. Oven Capacity
- Easily cook large meals with 5.0 Cu. Ft. Oven Capacity.
- ADA Compliant
- This wall oven meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.
- Adjustable Self-Clean Cycle
- Clean without harsh chemicals using the high temperature self-clean cycle. Adjust the cycle for various soil levels to keep your oven looking clean.
- An American Company for Over 100 Years
- Whirlpool Corporation started in 1911 as a small company in Benton Harbor, Michigan. Today we are a global home appliance business selling products around the world. We are proud of our American heritage and ingenuity that have driven innovation for over 100 years.
- An American company for over 100 years
- Whirlpool Corporation started in 1911 as a small company in Benton Harbor, Michigan. Today we are a global home appliance business selling products around the world. We are proud of our American heritage and ingenuity that have driven innovation for over 100 years.
- Bake
- Cook your favorite treats like cookies, pies, cakes or muffins with the Bake setting that uses hot air to cook food inside the oven.

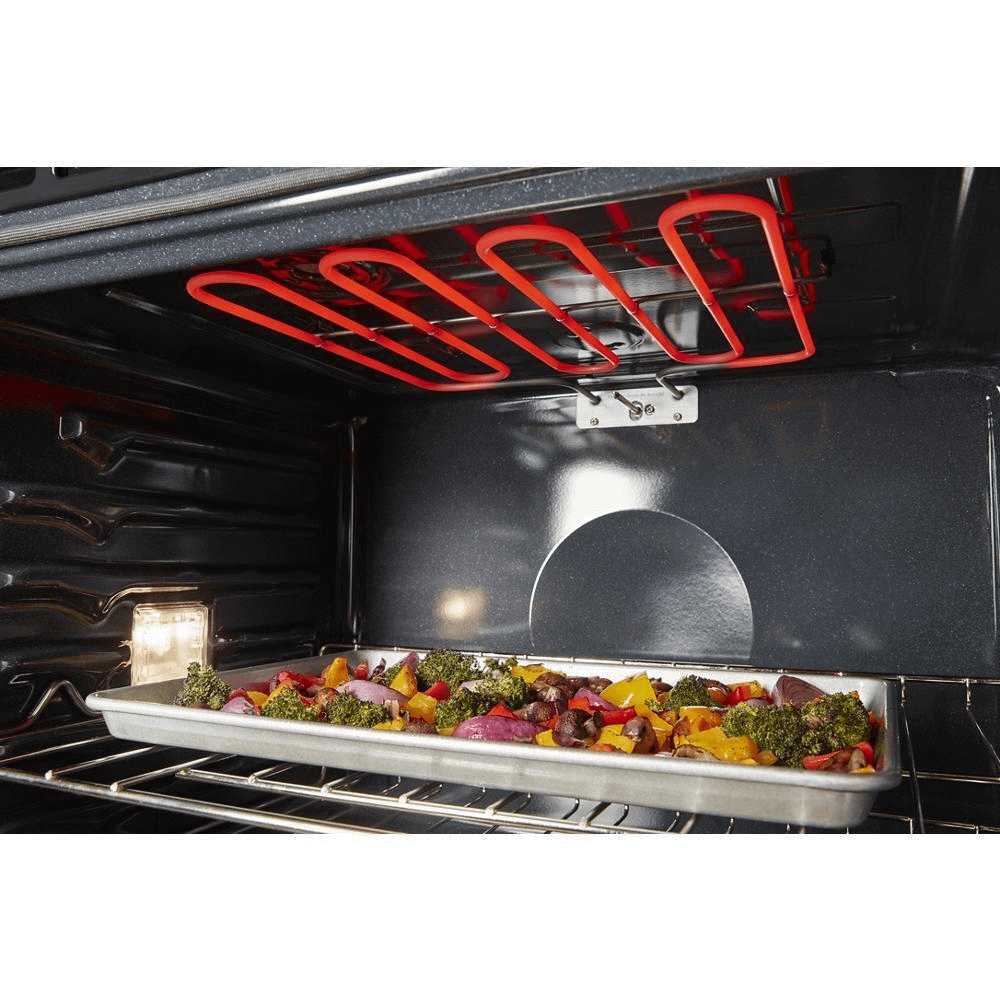

- Broil
- Evenly brown lasagna or pizza toppings and caramelize glazes and sauces when you place food close to the oven's top heating element using the Broil setting.
- Control Lock Mode
- Disable the control panel to avoid unintended use and easily clean controls.
- Delay Start
- Program the oven to start baking at a future time so you can move onto other things, and still get dinner to the table on time.

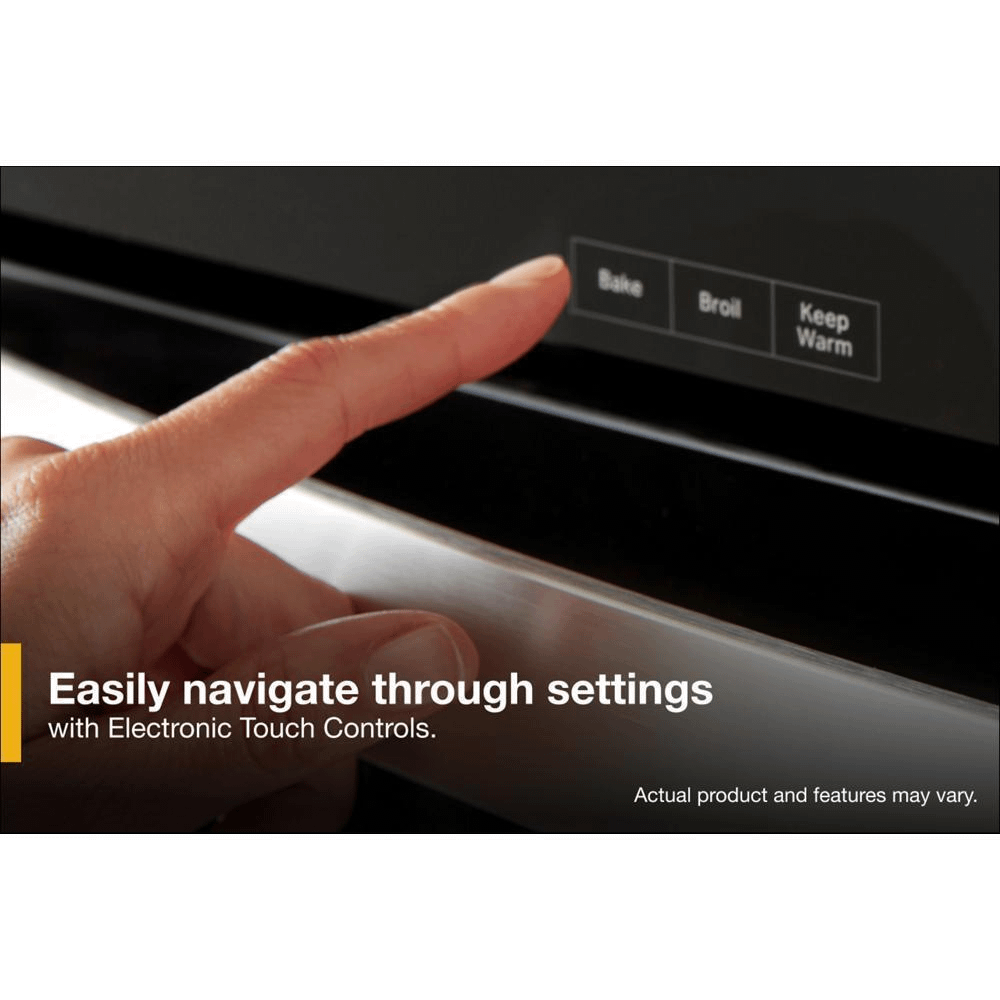

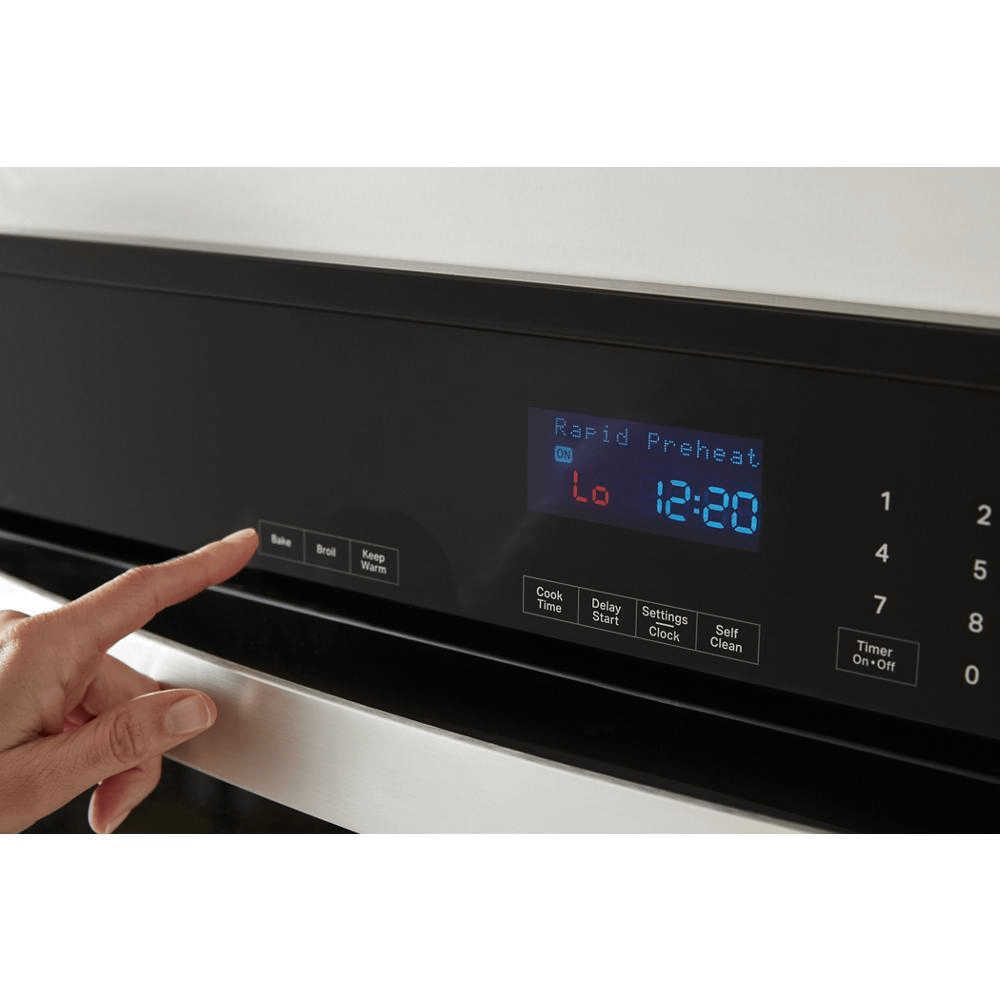

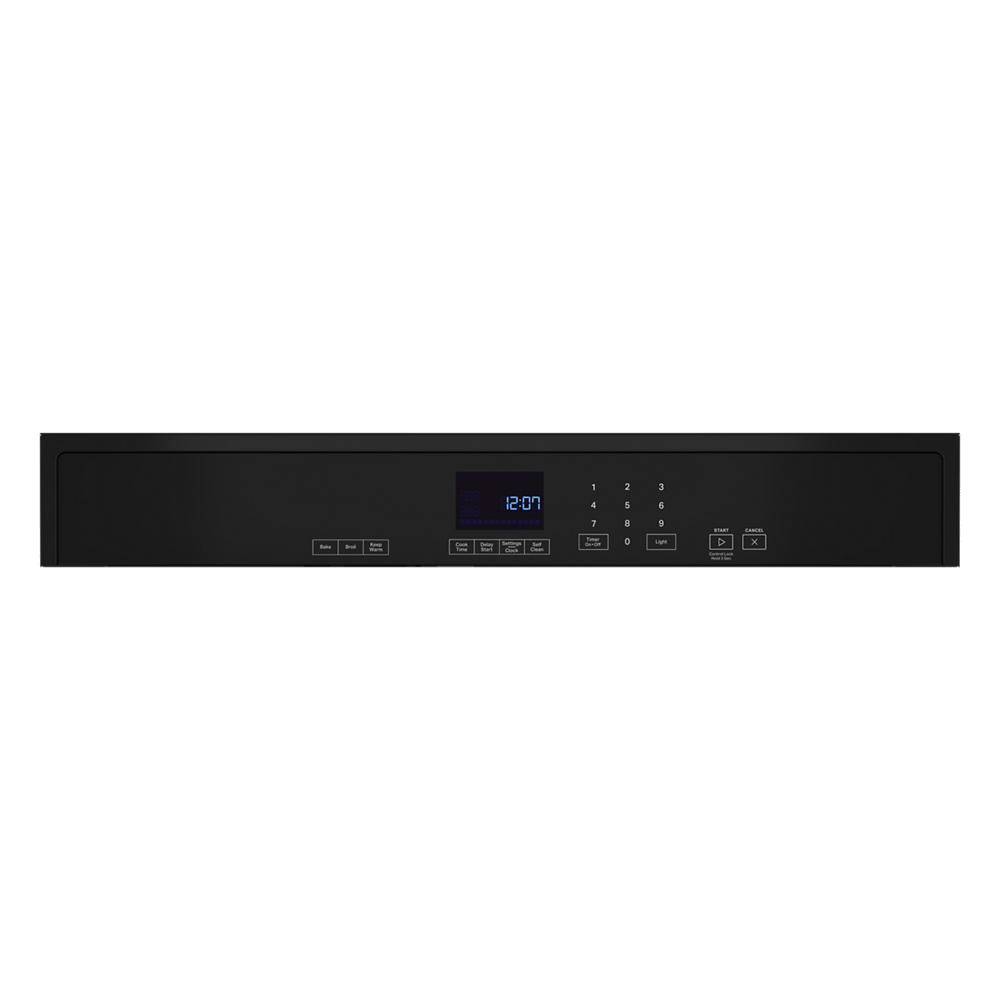

- Electronic Touch Controls
- Navigate through cooking modes and options with controls that are as easy to use as they are to clean.

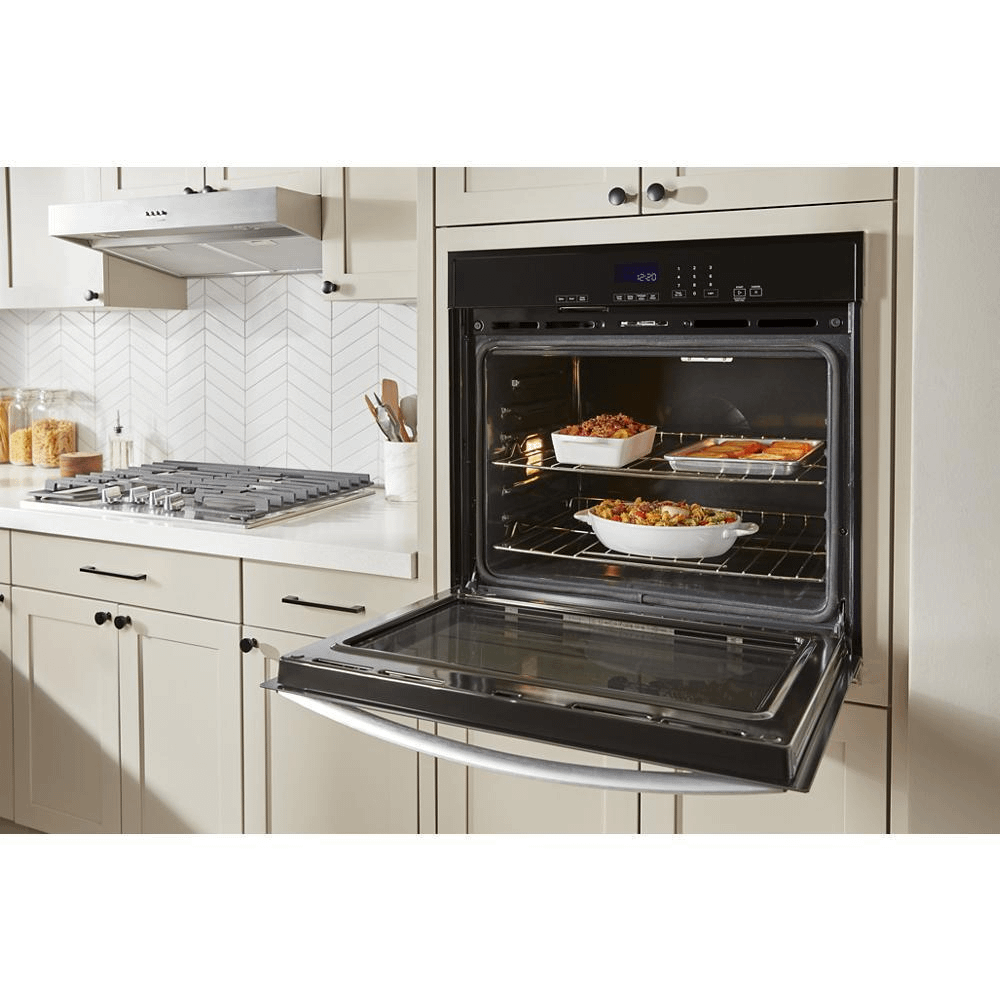

- Extra-Large Oven Window
- Keep an eye on your meal through the Extra-Large Oven Window.
- FIT System Limited Guarantee
- The FIT System Limited Guarantee ensures your new Whirlpool(R) Wall Oven will fit or get up to $300 toward cabinet modification.
Fit System Limited Guarantee: On 27"" and 30"" Whirlpool(R) Wall Ovens. Excludes new cabinet installations. Offer valid for qualified models of a compatible width and dates specified. Visit www.whirlpool.com/fit-guarantee.html for complete details. - Hidden Bake Element
- A concealed bake element placed under the floor of the oven creates a smooth surface at the bottom of the oven for easy cleaning.
- Keep Warm Setting
- Keep dishes from getting cold with this setting that delivers low heat to the oven while you finish preparing your meal.
- Keep Warm(TM) setting
- Keep hot food hot without having to keep cooking. By maintaining the oven's lowest temperature at a steady 175 F, you can be confident knowing that you can serve everything at once.

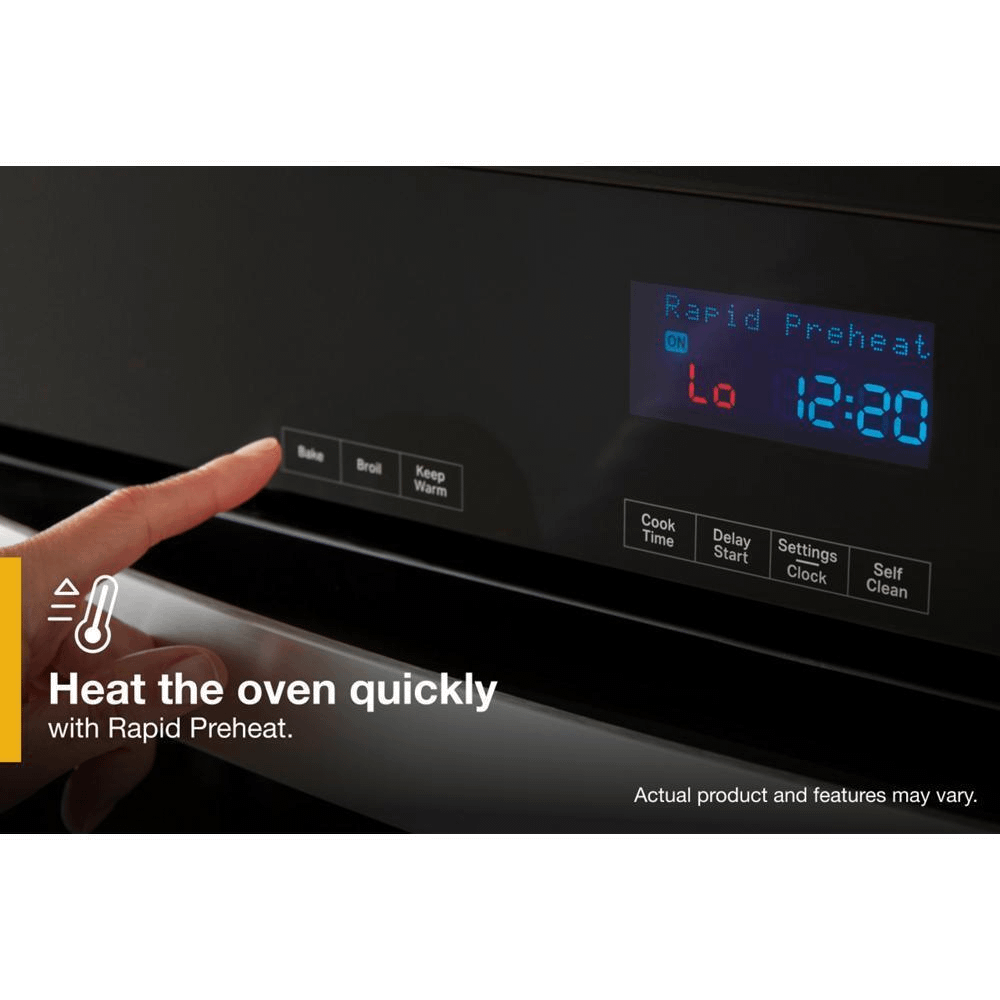

- Rapid Preheat
- Save time with faster preheating.* The oven uses both the bake and broil elements to help heat the oven quickly.

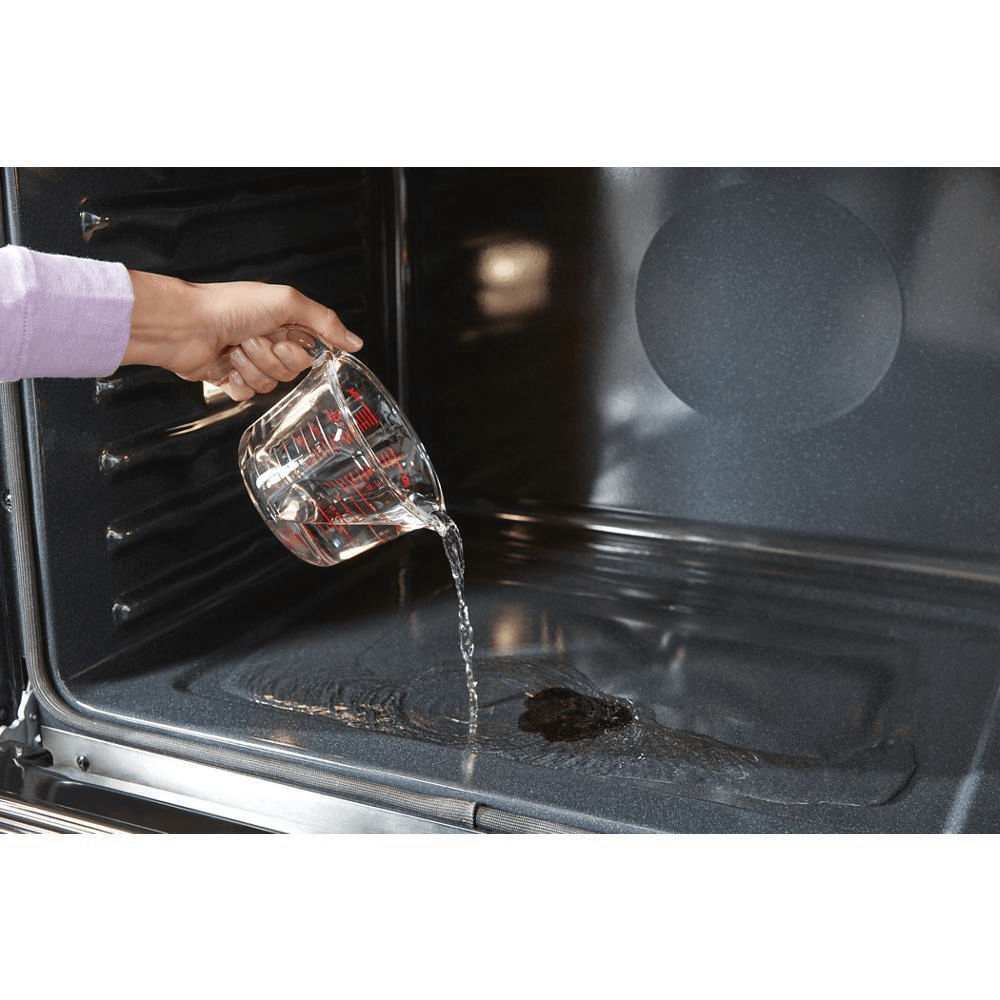

*Single-rack baking with Rapid Preheat option versus two-rack without option. - Steam Clean Option
- Clean up after everyday light spills using only heat and 1-1/4 cups of water-no harsh chemicals or cleaners needed. Used periodically to clean light spills on the bottom of the oven, it keeps the oven clean and reduces the need for frequent self-clean cycles.
Certifications | |
Ada Compliant | Yes |
Cul | Yes |
Energy Rating | 369 |
Energy Rating (kwh/year) | 369 |
Prop65 | Standard |
Star K Certified | Star K Certified |
Ul | Yes |
Controls | |
Control Type | Electronic Touch |
Display Color | Blue |
Electronic Display Type | Digital |
Details | |
Cooktop Combinations | G7CE3034; G7CE3055; G7CE3635; G9CE3065; G9CE3675; UCIG245KBL; W5CE1522; W5CE3024; W5CE3625; WCC31430; WCE55US0; WCE55US4; WCE55US6; WCE77US0; WCE97US0; WCE97US6; WCG51US; WCG51US6; WCG52424; WCG55US0; WCG55US6; WCG75US; WCG77US0; WCG97US0H; WCG97US6; WCGK5 |
Delay Clean | Yes |
Flush Installation Approved | Yes |
Fuel Type | Electric |
Light Control | Oven Light Touch Pad |
Lp Convertible | No |
Oven Automatic Shut-off | Yes |
Oven Type | Single |
Power On Indicator Light | Yes |
Temperature Conversion | No |

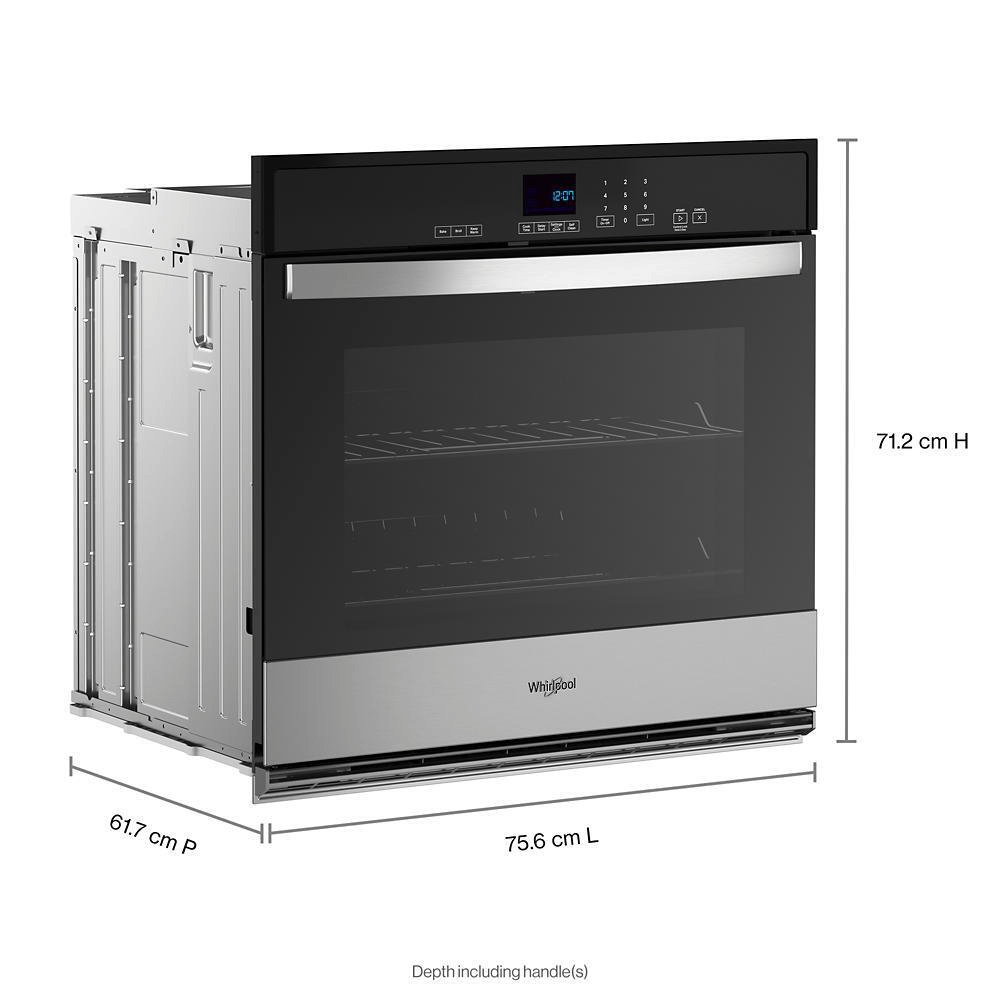

Dimensions | |
Product Height | 26.0 |
Carton Height | 31 |
Gross Weight | 142 |
Oven Interior Height | 18 |
Carton Width | 35 |
Product Depth | 26.4375 |
Oven Interior Depth | 19 |
Depth With Door Open 90 Degree | 46.188 |
Cutout Depth | 24 |
Cutout Height | 28 |
Depth Closed Excluding Handles | 24.438 |
Depth Closed Including Handles | 26.438 |
Carton Depth | 31 |
Cutout Width | 28.5 |
Oven Interior Width | 25 |
Net Weight | 137 |
Product Width | 29.75 |
Electrical | |
Power Cord Included | No |
Exterior Details | |
Door Type | Metal & Glass |
Handle Color | Stainless Steel |
Handle Material | Metal |
Oven Window Size | Extra Large |
Microwave Details | |
Language Conversion | English/French/Spanish |
Oven Details | |
Bake Element Power | 2,800 W/2,427W |
Broiler Element Power | 3,000 W |
Broiler Location | Top of Oven |
Convection Functions | No |
Door Broil Position | Closed |
Door Lock | Yes |
Door Removable | Yes |
Hidden Bake Element | Yes |
Installable Under Cooktop | Yes |
Installable Under Oven | Yes |
Interior Coating | Porcelain |
Interior Color | Grey |
Light Type | Halogen |
Number of Bake Elements | 1 |
Number of Broil Elements | 1 |
Number of Oven Lights | 2 |
Number of Oven Racks | 2 |
Number of Rack Guides | 6 |
Oven Cleaning Type | Self-Cleaning |
Oven Cooking System | Thermal |
Self-cleaning Oven Racks | No |
Smart Compatibility | |
Connectivity | No |
Works With | No |
