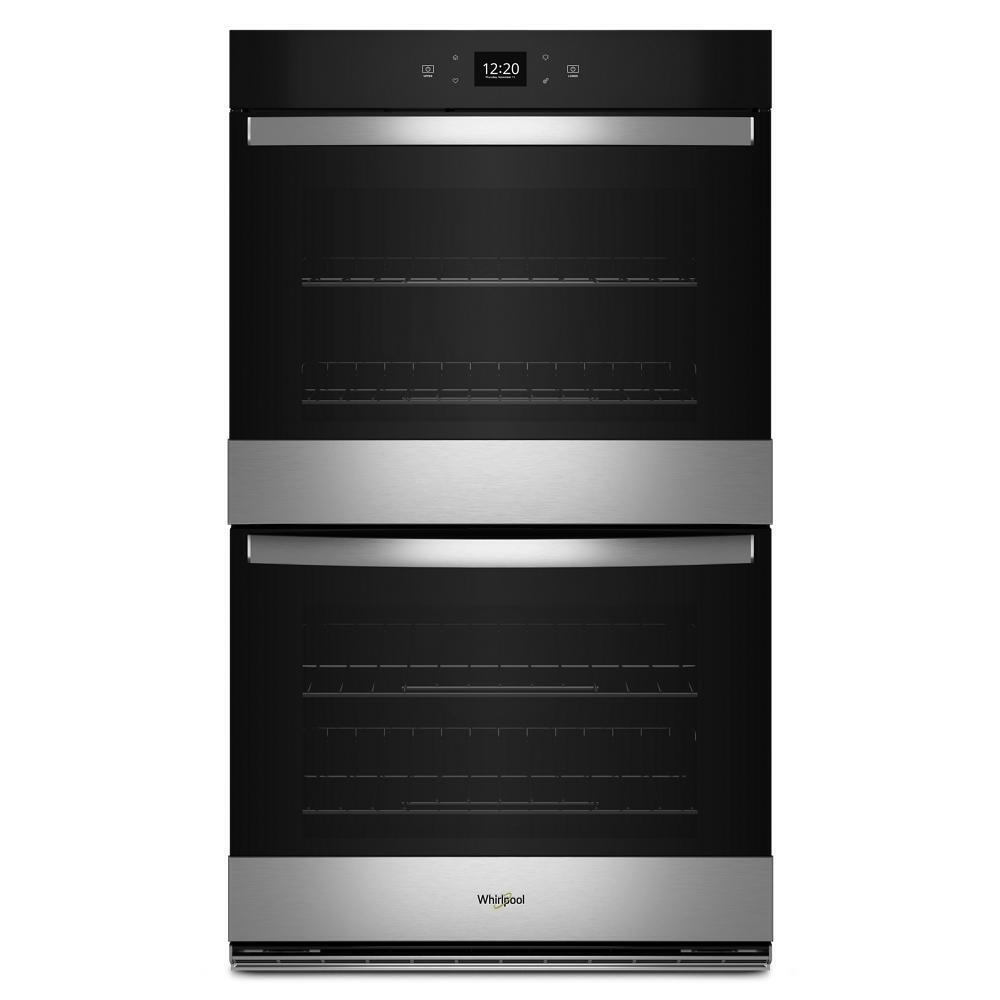

Whirlpool WOED5030LZ 10.0 Total Cu. Ft. Double Wall Oven with Air Fry When Connected

$2,399.00 $2,999.00

Save $600

Or $199.91/mo suggested payments with 12-month special financing. More financing options available.

Overview & Specifications

Take on every meal with a smart double wall oven with air fry built for multitasking. Get crispy results in this double wall oven with Air Fry Mode (available via Automatic Feature Updates* when appliance is connected), while Fan Convection Cooking and Frozen Bake™ Technology let you get meals to the table easily. Clean everyday spills with the Steam Clean Option.

  • 10.0 Cu. Ft. Total Capacity
  • Make large family meals by cooking your main course, side dishes and dessert in this 10.0 Cu. Ft. Total Capacity double wall oven.
  • 6-in-1 Wall Oven with Fan Convection
  • Cook however you want with 6 cooking modes in one wall oven: Frozen Bake(TM) Technology, Keep Warm, Broil, Convect Broil, Bake and Convect Bake. For even more cycles like Air Fry connect your appliance to receive Automatic Feature Updates.
  • Adjustable Self-Clean Cycle
  • Clean without harsh chemicals using the high temperature self-clean cycle. Adjust the cycle for various soil levels to keep your oven looking clean.
  • Air Fry Mode When Connected
  • Air fry chicken nuggets, wings, fries and more to get crispy results right in your oven when your appliance is connected.*Air Fry Mode circulates hot air around the air fry basket to cook fried food in a healthy way, with less oil than traditional frying.
  • An American Company for Over 100 Years
  • As a long-standing American company, we pack over a century of knowledge, experience and dependability into every product.
  • Whirlpool Corporation started in 1911 as a small company in Benton Harbor, Michigan. Today we are a global home appliance business selling products around the world. We are proud of our American heritage and ingenuity that have driven innovation for over 100 years.
  • Assisted Cooking
  • Assisted Cooking cycles calculate and set the ideal cooking time and temperature for common foods like casseroles, meat, fish, vegetables, pizza and some baked goods.

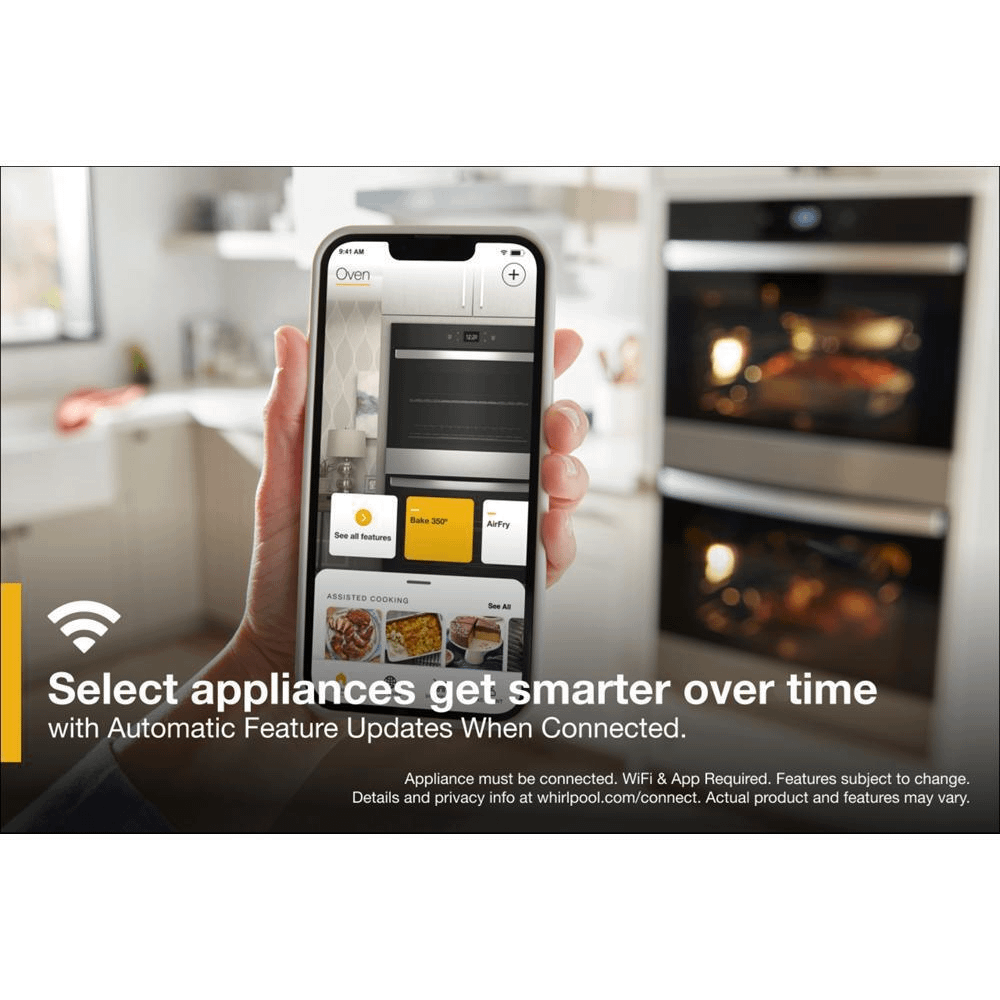

  • Automatic Feature Updates When Connected
  • Select Whirlpool(R) Smart Appliances get smarter over time with new cycles like Air Fry Mode and automatic updates* to enhance performance. Once your appliance is connected, it downloads updates and adds new cycles as they re released.

    Appliance must be connected. WiFi & App Required. Features subject to change. Details and privacyinfo at whirlpool.com/connect.
  • Bake
  • Cook your favorite treats like cookies, pies, cakes or muffins with the Bake setting that uses hot air to cook food inside the oven.
  • Broil
  • When you place food close to the oven s top heating element using the Broil Setting, you can quickly sear meat, char vegetables, brown lasagna, caramelize the top of a casserole and more.
  • Connects to Yummly(R) Smart Thermometer
  • The Yummly(R) Smart Thermometer helps eliminate guesswork in the kitchen by helping you cook meat exactly how you like it. Paired with your Whirlpool(R) Smart Thermometer Smart Oven, it allows you to set the oven temperature and monitor progress from your phone. When the meat is finished cooking, you'll get a notification and your oven witll automatically turn off.
    Yummly(R) Smart Thermometer sold separately.
  • Control Lock Mode
  • Disable the control panel to avoid unintended use and easily clean controls.

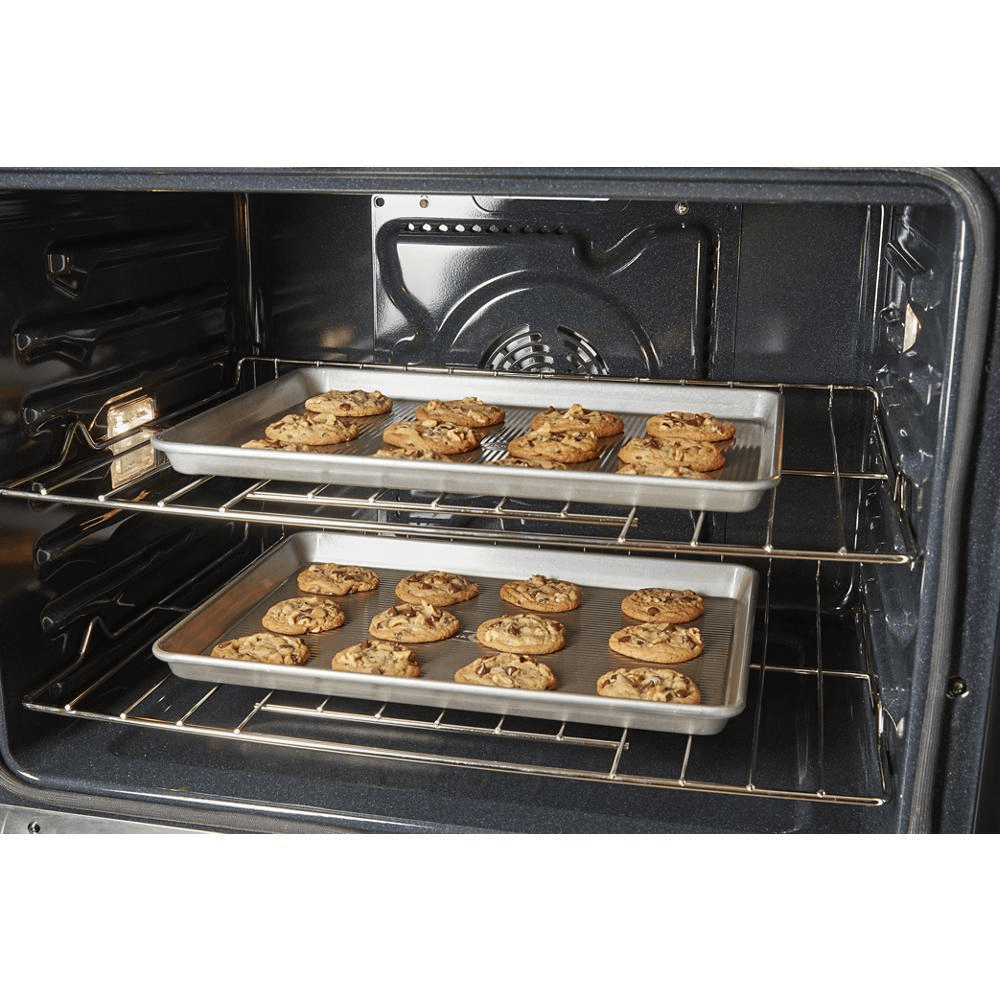

  • Convect Bake
  • Convect Bake uses the bake and broil heating elements and a fan to achieve more even heating when cooking on multiple racks.*

    *Compared to a traditional thermal-bake cycle on the same model.

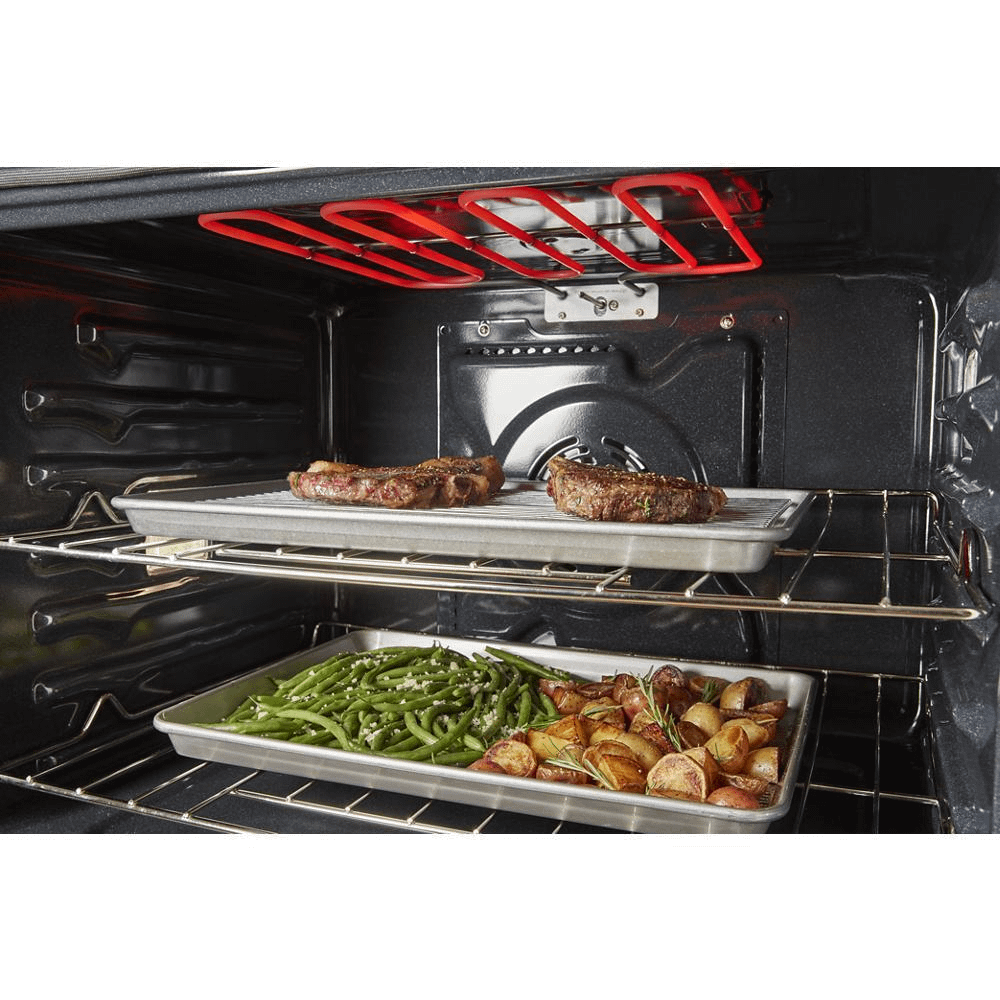

  • Convect Broil
  • When cooking thicker cuts of meat like bone-in chicken or steaks over an inch thick, use the Convect Broil setting to brown the top while still keeping the hot air circulating around the food in the oven to cook your food.
  • Delay Start
  • Program the oven to start baking at a future time so you can move onto other things, and still get dinner to the table on time.
  • Run your load on your schedule. This feature allows you to delay the start of your cycle for up to 12 hours.
  • Dishwasher-Safe Air Fry Basket (Sold Separately)
  • For easy cleaning, put the Dishwasher-Safe Air Fry Basket (Sold Separately) right in the dishwasher when it gets messy.
  • Extra-Large Oven Window
  • Keep an eye on your meal through the Extra-Large Oven Window.
  • FIT System Limited Guarantee
  • The FIT System Limited Guarantee ensures your new Whirlpool(R) Wall Oven will fit or get up to $300 toward cabinet modification.*

    *Fit System Limited Guarantee: On 27"" and 30"" Whirlpool(R) Wall Ovens. Excludes new cabinet installations. Offer valid for qualified models of a compatible width and dates specified. Visit www.whirlpool.com/fit-guarantee.html for complete details.

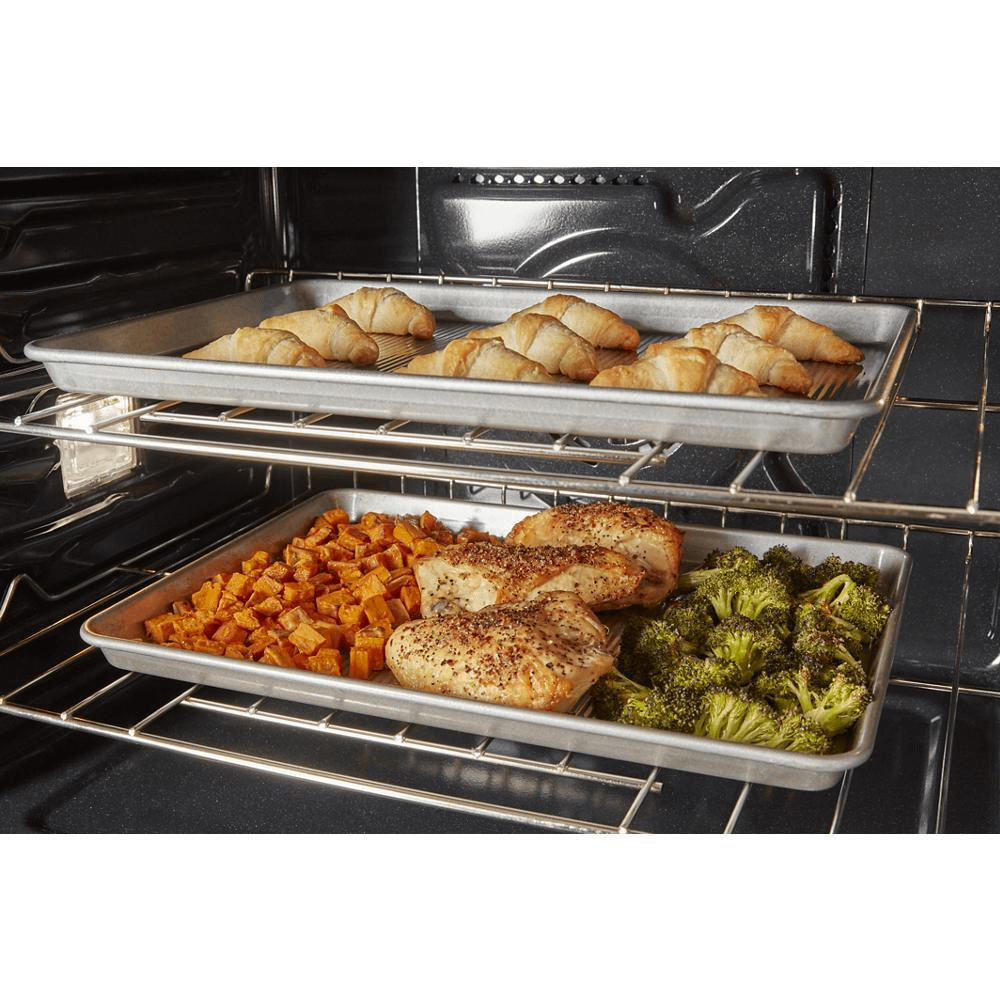

  • Fan Convection Cooking
  • Cook meals with a fan in the back of the oven that distributes hot air more evenly than traditional baking, so you can bake on multiple racks at once.
  • Favorites
  • Make your favorite cooking settings easy to access by creating and saving them right in the Whirlpool(R) App or directly on your appliance.*

    *Appliance must be set to remote enable. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.com/connect.
  • Fingerprint Resistant
  • Available in a black stainless steel finish, easy-to-clean steel resists fingerprints and smudges.

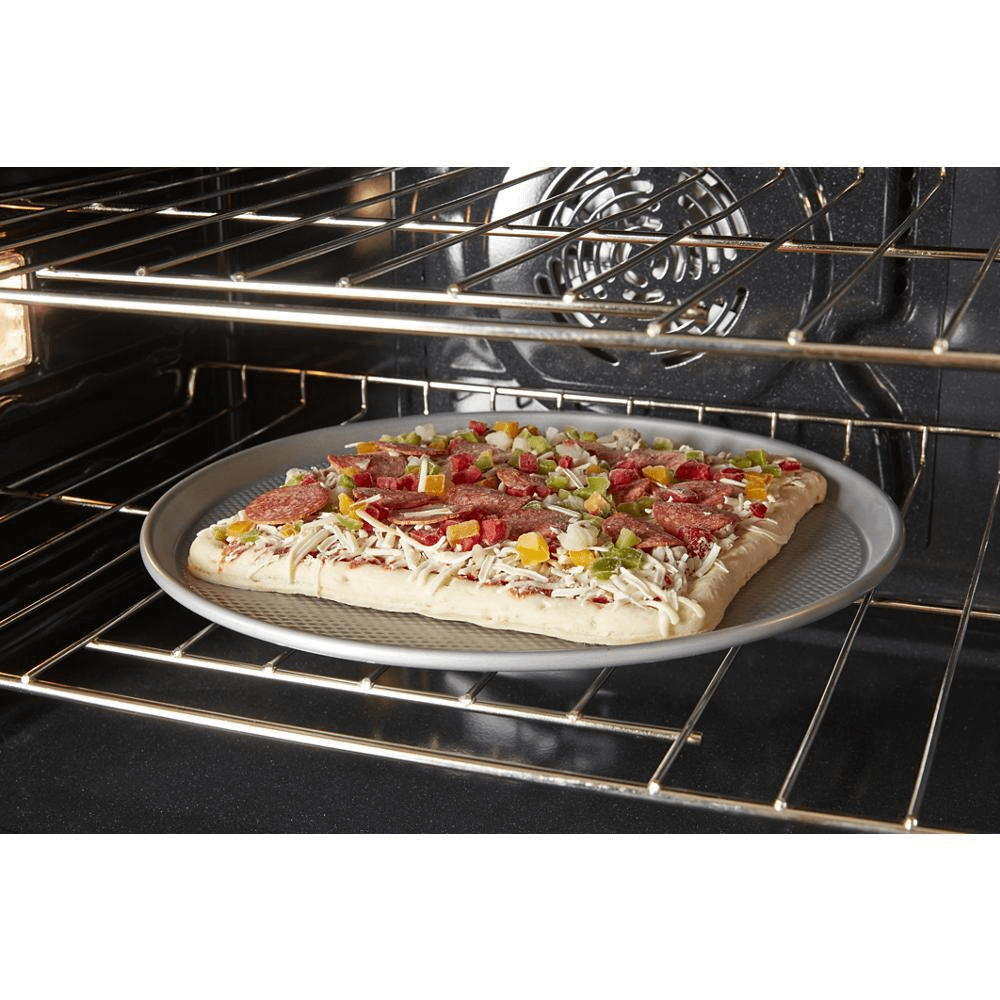

  • Frozen Bake(TM) Technology
  • Skip preheating and cook frozen favorites like pizza in fewer steps with preprogrammed settings that automatically adjust cooking times for you.
  • Hidden Bake Element
  • A concealed bake element placed under the floor of the oven creates a smooth surface at the bottom of the oven for easy cleaning.
  • Keep Warm Setting
  • Keep dishes from getting cold with this setting that delivers low heat to the oven.
  • Multi-Step Cooking
  • Make multi-step meals more simple. Use your smartphone or tablet to send multiple cooking instructions to the oven all at once. The temperature automatically adjusts based on the recipe you enter for great results without having to monitor your meal.
  • Rapid Preheat
  • The Rapid Preheat option preheats the oven 25% faster and saves time and energy. Using all of the range elements and a fan, the oven heats up more quickly and creates the ideal temperature for single rack baking. Now cutting preheat time for your next batch of chocolate chip cookies or apple crisps is easy.
  • Remote Start
  • When set to remote enable, use your smartphone or tablet to remotely turn your cooking appliance on so it s heated up and ready to cook meals when you are.
  • Sabbath Mode
  • Use Sabbath mode to keep the oven on the "Bake" setting at a constant temperature until it's turned off. When this mode is enabled, displays, tones and all other cooking and cleaning cycles are disabled.
  • Scan-to-Connect Technology*

    *U.S. only.
  • You don t need to be a tech expert to connect your new appliance. Simply open the Whirlpool(R) App, add your appliance and follow the guided experience to get up and running quickly.*
  • Smart Wall Oven
  • When you re busy elsewhere, use your smartphone to get dinner started by remotely preheating the oven. Or, when your hands are full, use your compatible voice-enabled device to adjust the cook time or temperature with a voice command.
  • Steam Clean Option
  • Clean up after everyday light spills using only heat and 1-1/4 cups of water-no harsh chemicals or cleaners needed. Used periodically to clean light spills on the bottom of the oven, it keeps the oven clean and reduces the need for frequent self-clean cycles.

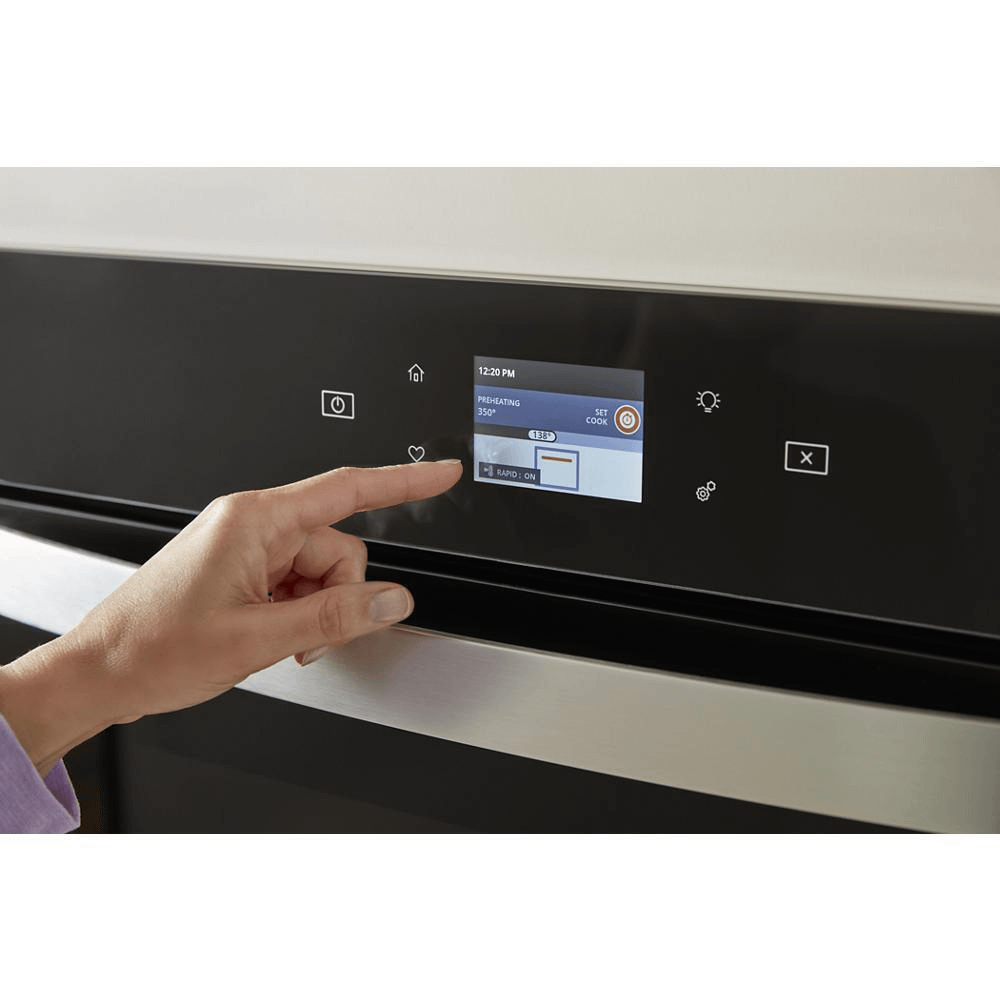

  • Touchscreen
  • Get instant access to the settings you use most with a full-color Touchscreen display.
  • Voice control with a compatible voice-enabled device (US only)
  • Control your kitchen no matter what you ve got on your hands with simple voice commands using the Google Assistant or an Alexa-enabled device.
  • Yummly(R) Guided Cooking*

    *U.S. only.
  • Yummly(R) Guided Cooking makes meal prep easier by helping you answer the question what s for dinner? before it s even asked. Recipes with the Connected Fork icon in the Yummly(R) app include step-by-step video tutorials that provide the extra assistance you need on busy days. Prompts in the app even send cooking instructions straight to your Whirlpool(R) smart wall oven at the right times, so dinner s ready when your family s hungry.

Certifications
Ada Compliant No
Cul Yes
Energy Rating 352
Energy Rating (kwh/year) 352
Prop65 Standard
Star K Certified Star K Certified
Ul Yes
Controls
Control Type Glass Touch Digital Display
Display Color Full Color
Electronic Display Type Full Color LCD
Details
Delay Clean Yes
Flush Installation Approved Yes
Fuel Type Electric
Light Control Oven Light Touch Pad
Oven Automatic Shut-off Yes
Oven Selections Air Fry
Oven Type Double
Power On Indicator Light Yes
Temperature Conversion Yes
Dimensions
Product Height 50.8125
Carton Height 54
Gross Weight 264
Carton Width 35
Lower Oven Interior Height 18
Upper Oven Interior Width 25
Product Depth 26.4375
Depth With Door Open 90 Degree 46.188
Lower Oven Interior Width 25
Cutout Depth 24
Cutout Height 50.25
Depth Closed Excluding Handles 24.438
Depth Closed Including Handles 26.438
Upper Oven Interior Depth 19
Carton Depth 31
Cutout Width 28.5
Upper Oven Interior Height 18
Net Weight 259
Product Width 29.75
Lower Oven Interior Depth 19
Electrical
Power Cord Included No
Exterior Details
Door Type Metal & Glass
Handle Color Stainless Steel
Handle Material Metal
Oven Window Size Extra Large
Microwave Details
Language Conversion English/French/Spanish
Oven Details
Bake Element Power 2,800 W/2,427W
Broiler Element Power 3600 W/3120 W
Broiler Location Top of Oven
Convection Element Power 2500 W/2167 W
Convection Element Type Single Fan
Convection Functions Bake; Broil; Convection Conversion
Door Broil Position Closed
Door Lock Yes
Door Removable Yes
Hidden Bake Element Yes
Installable Under Cooktop No
Interior Coating Porcelain
Interior Color Grey
Light Type Halogen
Lower Oven Number of Oven Lights 2
Number of Bake Elements 1
Number of Broil Elements 1
Number of Lower Oven Racks 2
Number of Lower Rack Guides 6
Number of Upper Oven Racks 2
Number of Upper Rack Guides 6
Oven Cleaning Type Self-Cleaning
Self-cleaning Oven Racks No
Upper Oven Number of Oven Lights 2
Smart Compatibility
Connectivity Amazon Alexa; Android; Google Assistant; iOS
Smart Appliance Yes
Works With App; Remote Access; Voice Controlled; WiFi
