Overview & Specifications
Overview & Specifications

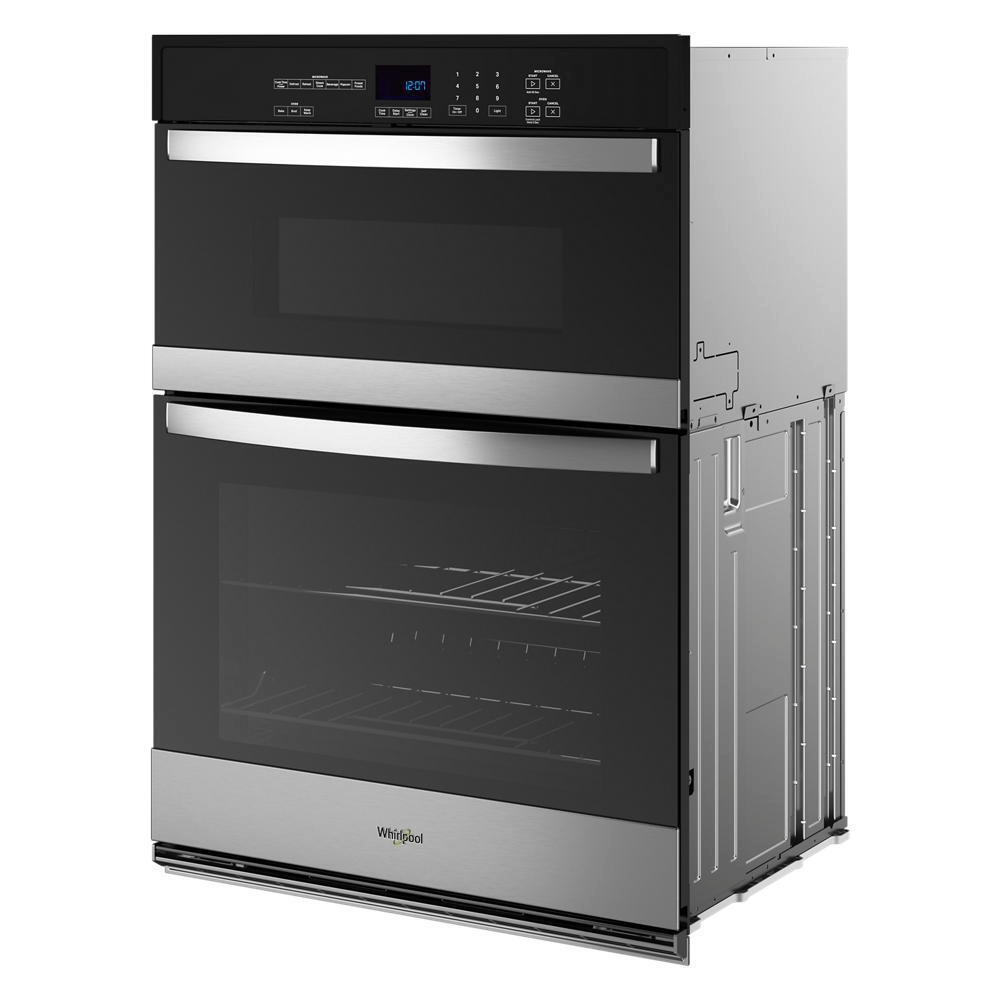

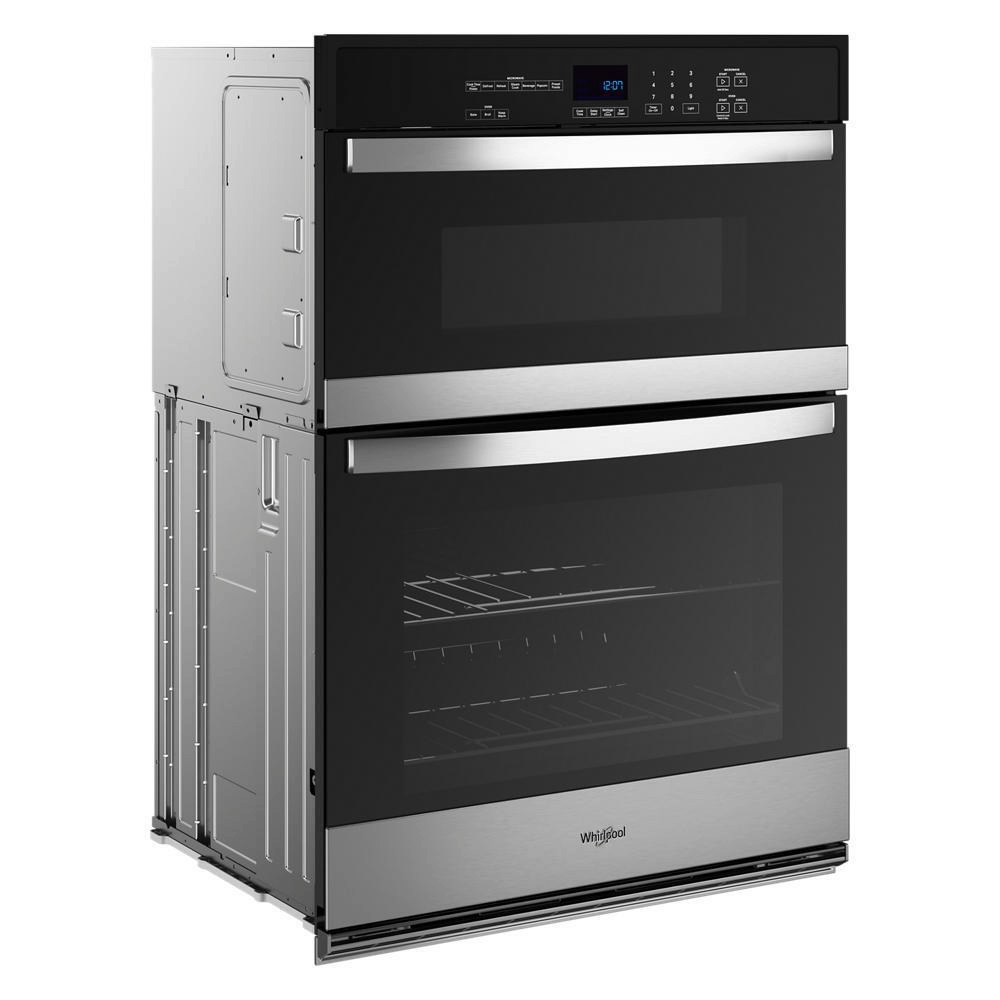

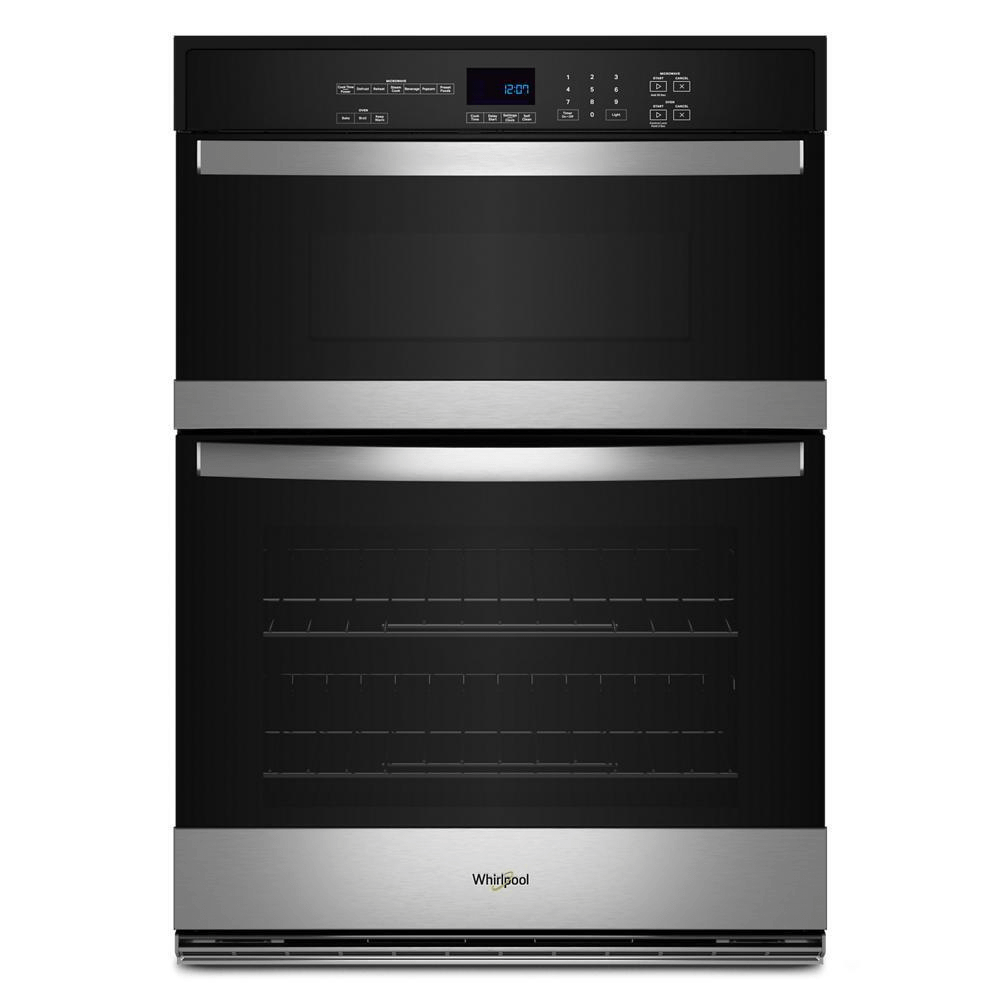

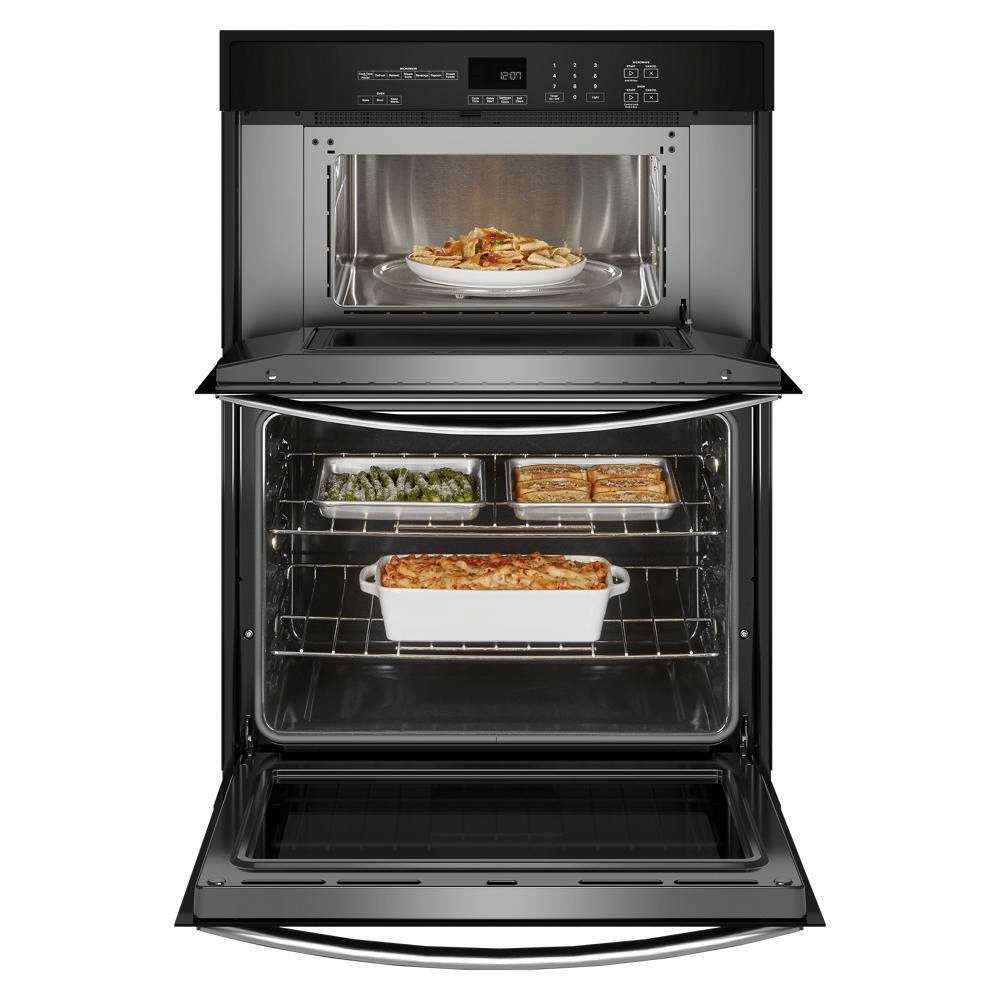

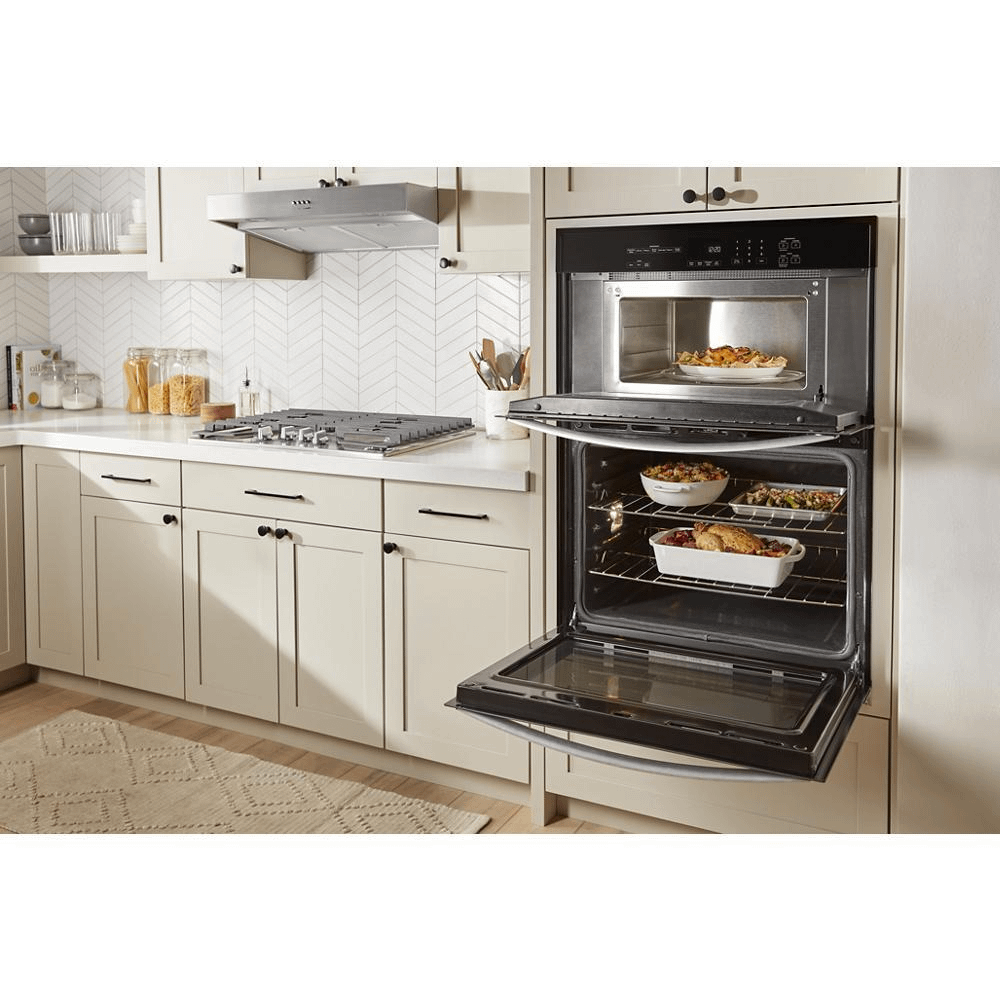

Take on every meal with a combination microwave and wall oven that cleans without chemicals using the Adjustable Self-Clean Cycle. Use the Steam Clean Option to clean up everyday spills. Get meals to the table easily with features like Electronic Touch Controls, Control Lock Mode and Rapid Preheat.

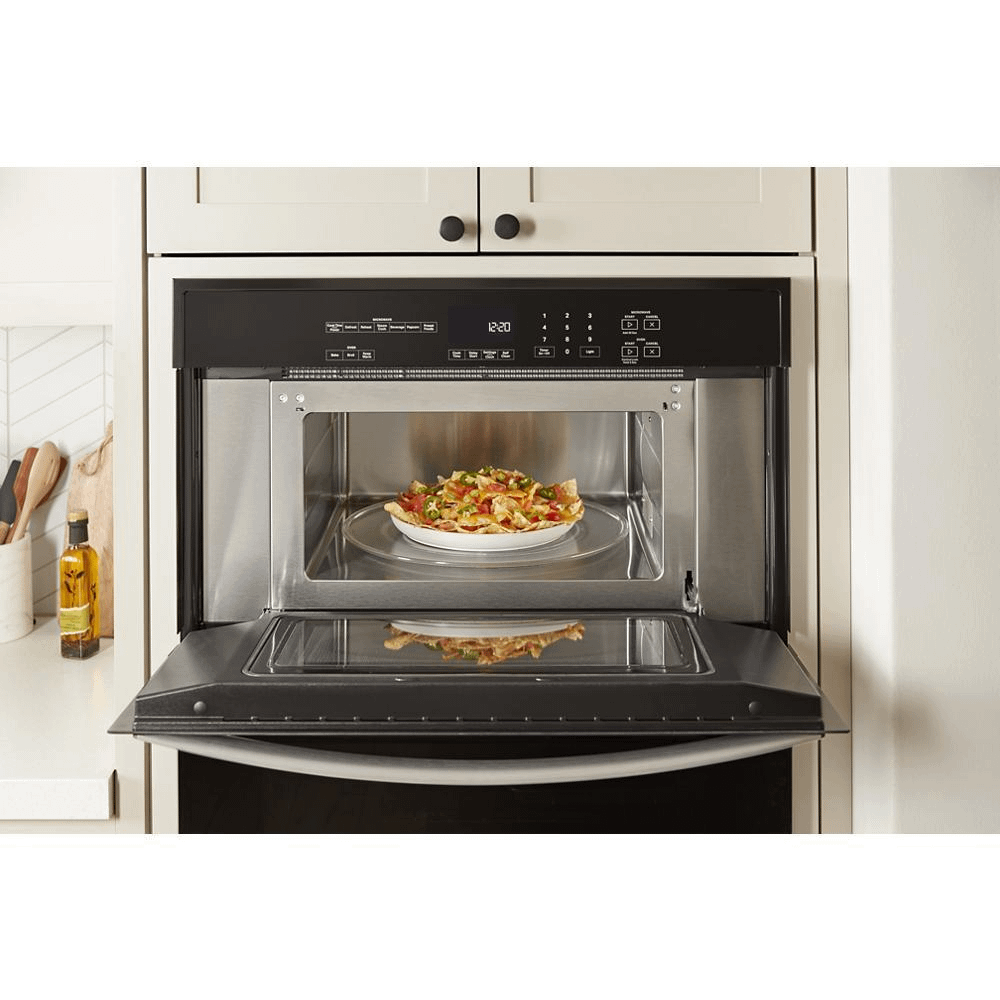

- 1.4 Cu. Ft. Microwave Capacity
- Explore your options. There s room for whatever you re craving.
- Fit most dishes for your family meals with 1.4 Cu. Ft. Microwave Capacity.
- 3-in-1 Wall Oven
- Cook however you want with three cooking modes in one wall oven: Keep Warm, Broil and Bake. Get the flexibility to cook your favorite dishes by combining multiple cooking modes into one wall oven.
- 5.0 Cu. Ft. Oven Capacity
- Easily cook large meals with 5.0 Cu. Ft. Oven Capacity.
- 6.4 Cu. Ft. Total Capacity
- Easily cook a whole meal with 6.4 Cu. Ft. Total Capacity.
- 900-Watt Cooking Power
- Get quick cooking with 900 watts of cooking power in the microwave.
- Add 30 Seconds Option
- Quickly set the microwave timer to 30 seconds or add it to already in-progress cooking time with the touch of a button.
- Adjustable Self-Clean Cycle
- Clean without harsh chemicals using the high temperature self-clean cycle. Adjust the cycle for various soil levels to keep your oven looking clean.
- An American Company for Over 100 Years
- Whirlpool Corporation started in 1911 as a small company in Benton Harbor, Michigan. Today we are a global home appliance business selling products around the world. We are proud of our American heritage and ingenuity that have driven innovation for over 100 years.
- Bake
- Cook your favorite treats like cookies, pies, cakes or muffins with the Bake setting that uses hot air to cook food inside the oven.

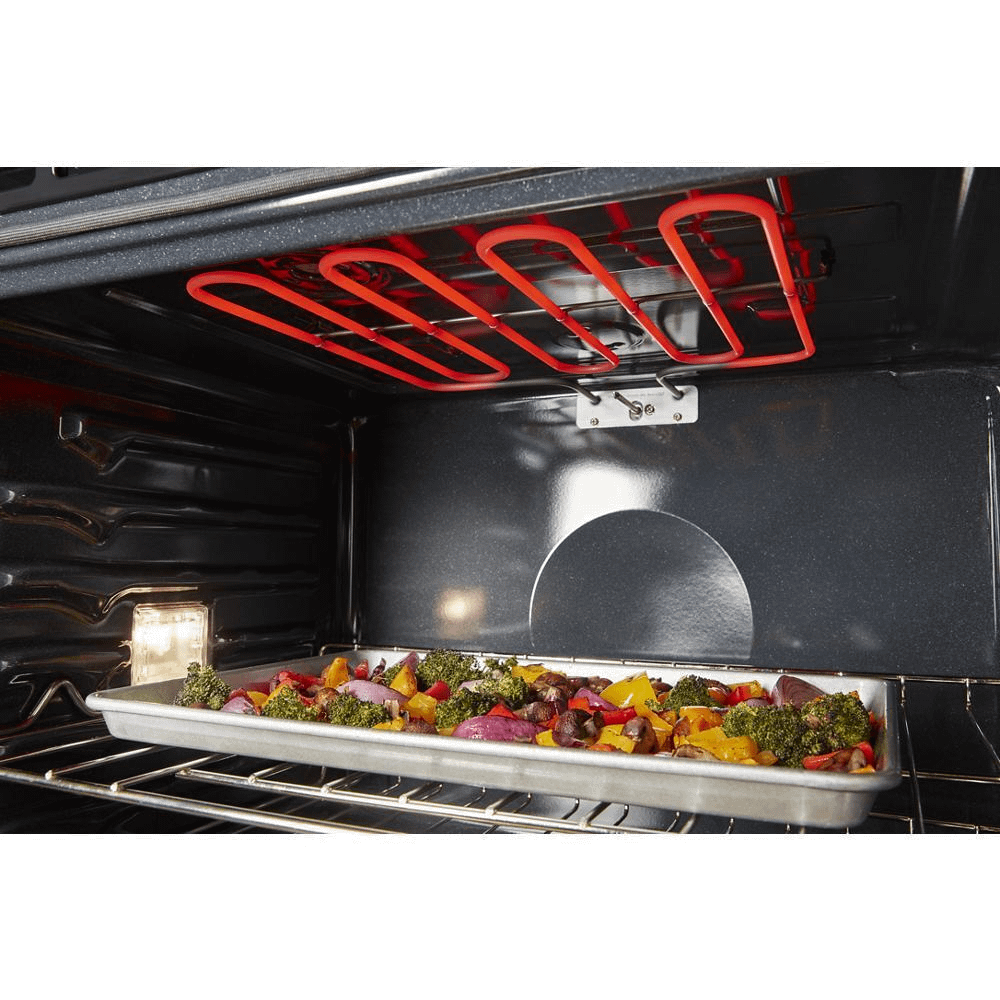

- Broil
- Evenly brown lasagna or pizza toppings and caramelize glazes and sauces when you place food close to the oven's top heating element using the Broil setting.

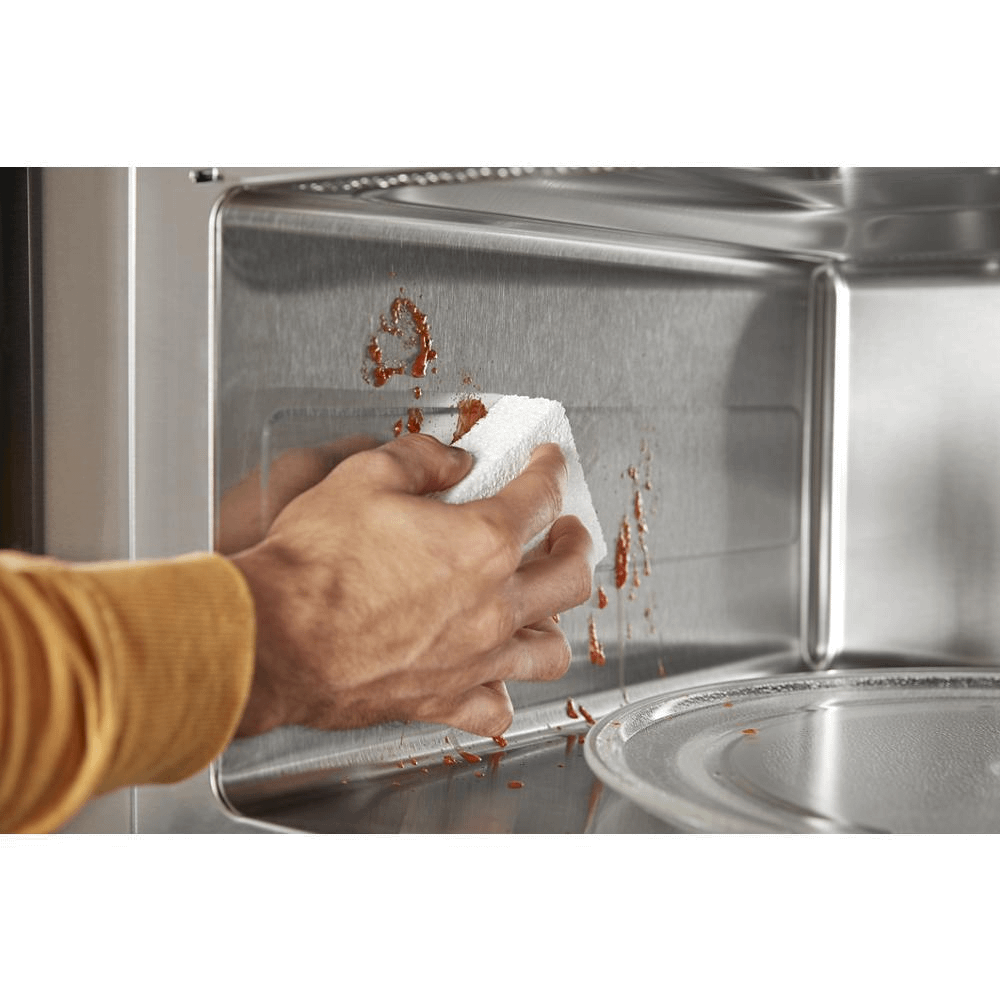

- CleanRelease(R) Non-Stick Interior
- Help prevent spills from sticking in the microwave with the CleanRelease(R) Non-Stick Interior, which lets you easily clean up with the simple wipe of a damp cloth.
- Control Lock Mode
- Disable the control panel to avoid unintended use and easily clean controls.
- Delay Start
- Program the oven to start baking at a future time so you can move onto other things, and still get dinner to the table on time.

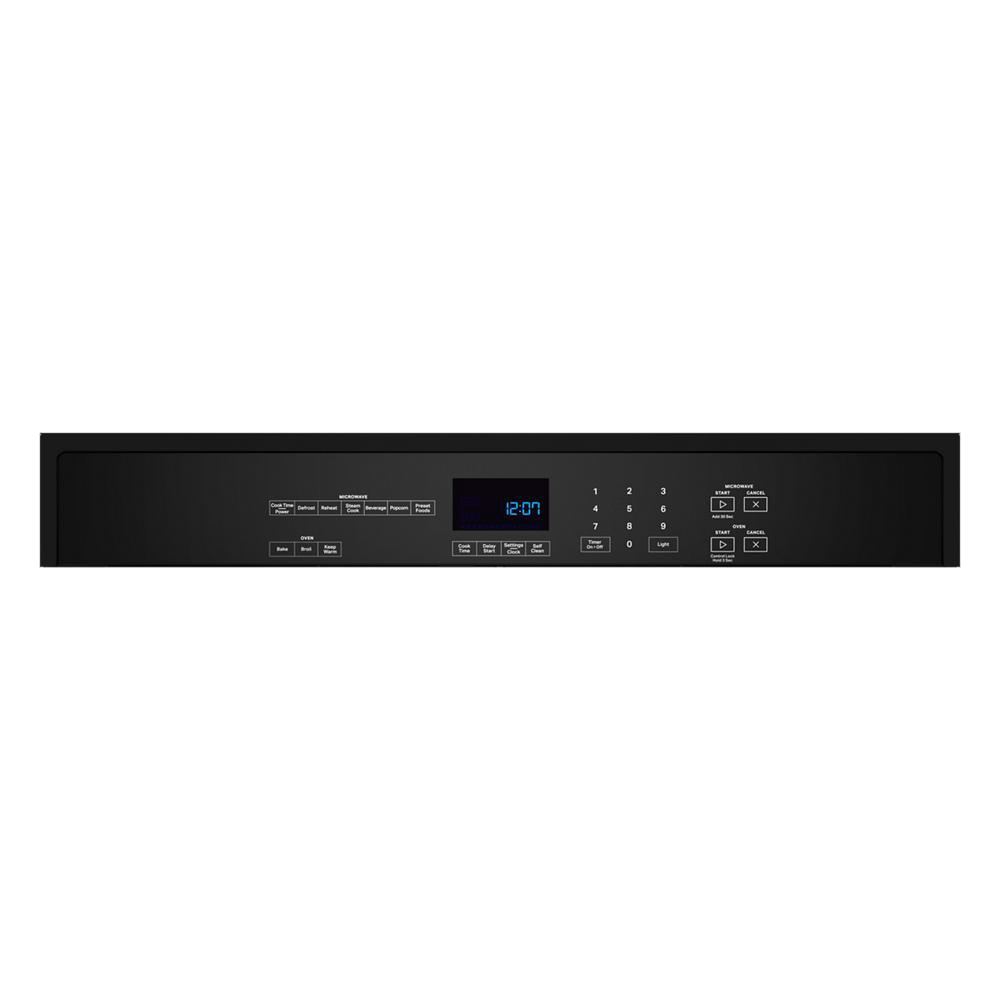

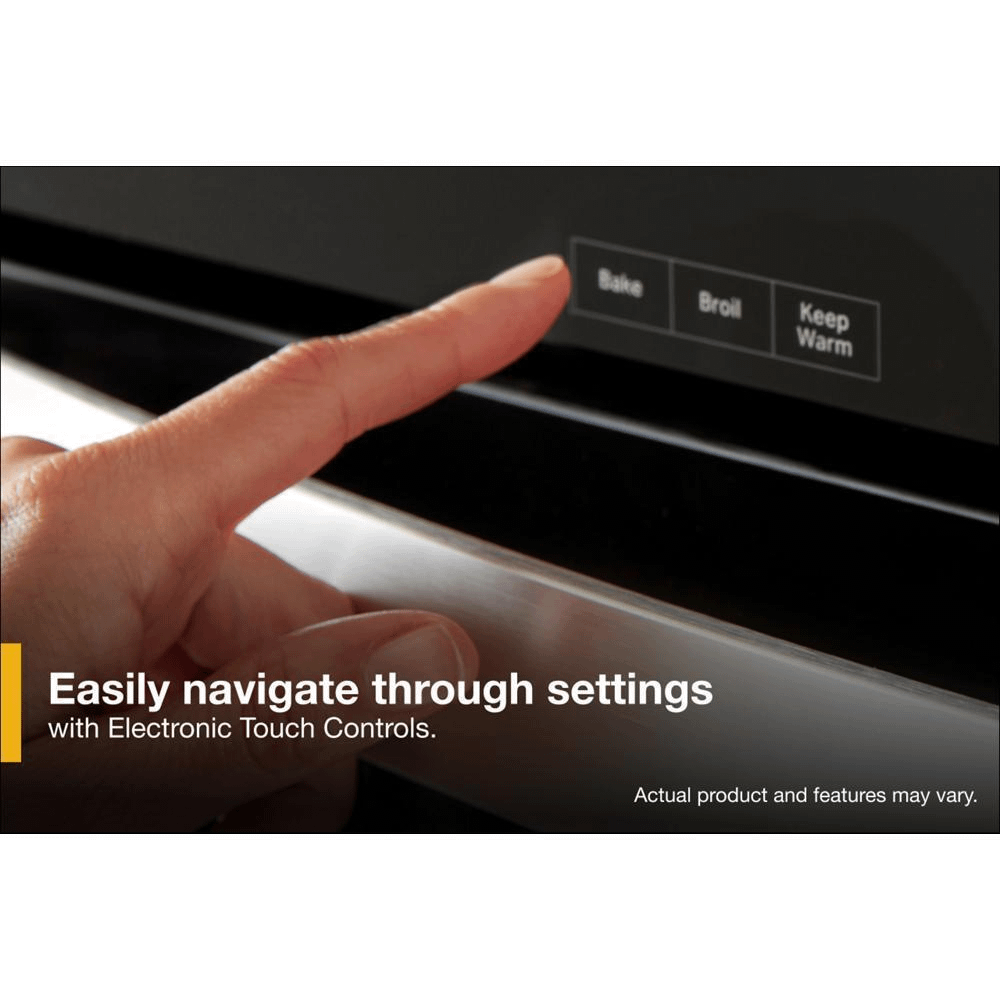

- Electronic Touch Controls
- Navigate through cooking modes and options with controls that are as easy to use as they are to clean.
- Extra-Large Oven Window
- Keep an eye on your meal through the Extra-Large Oven Window.
- FIT System Limited Guarantee
- The FIT System Limited Guarantee ensures your new Whirlpool(R) Wall Oven will fit or get up to $300 toward cabinet modification.*
*Fit System Limited Guarantee: On 27"" and 30"" Whirlpool(R) Wall Ovens. Excludes new cabinet installations. Offer valid for qualified models of a compatible width and dates specified. Visit www.whirlpool.com/fit-guarantee.html for complete details. - Hidden Bake Element
- A concealed bake element placed under the floor of the oven creates a smooth surface at the bottom of the oven for easy cleaning.
- Keep Warm Setting
- Keep dishes from getting cold with this setting that delivers low heat to the oven while you finish preparing your meal.
- Keep Warm(TM) setting
- Keep hot food hot without having to keep cooking. By maintaining the oven's lowest temperature at a steady 175 F, you can be confident knowing that you can serve everything at once.

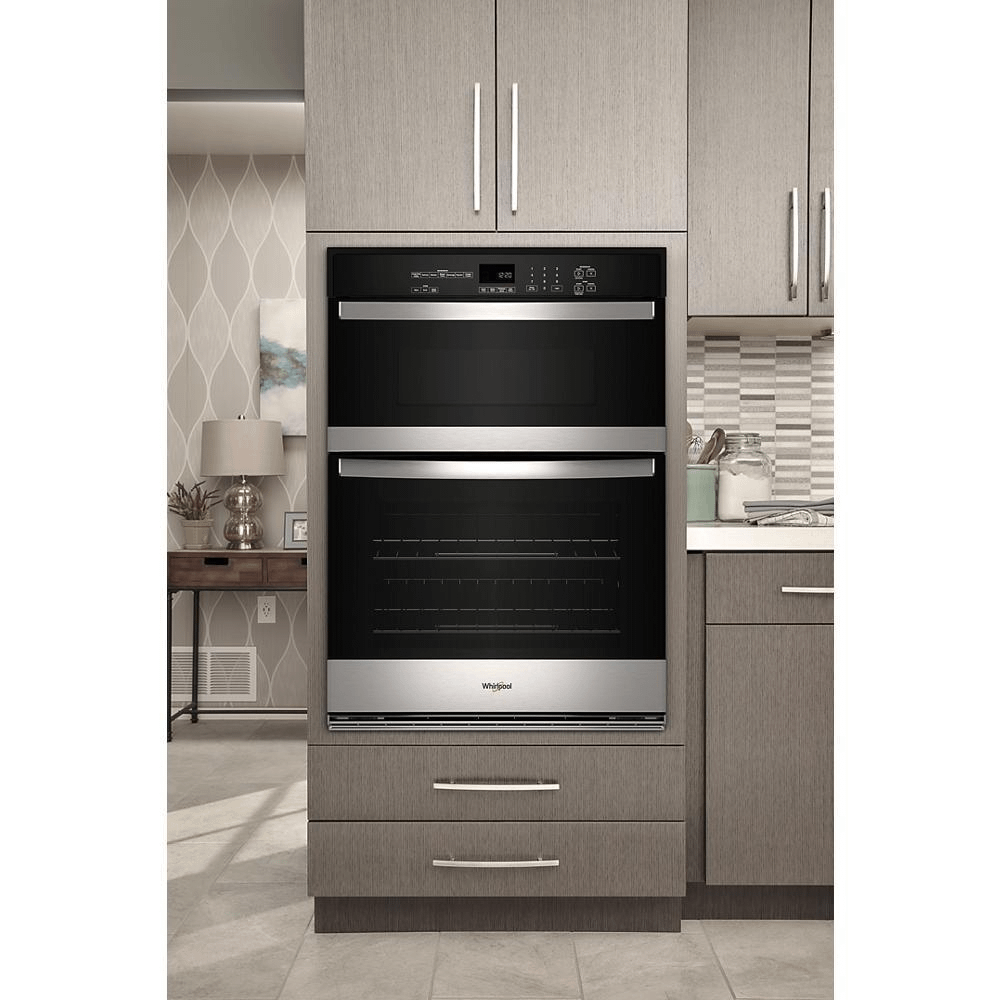

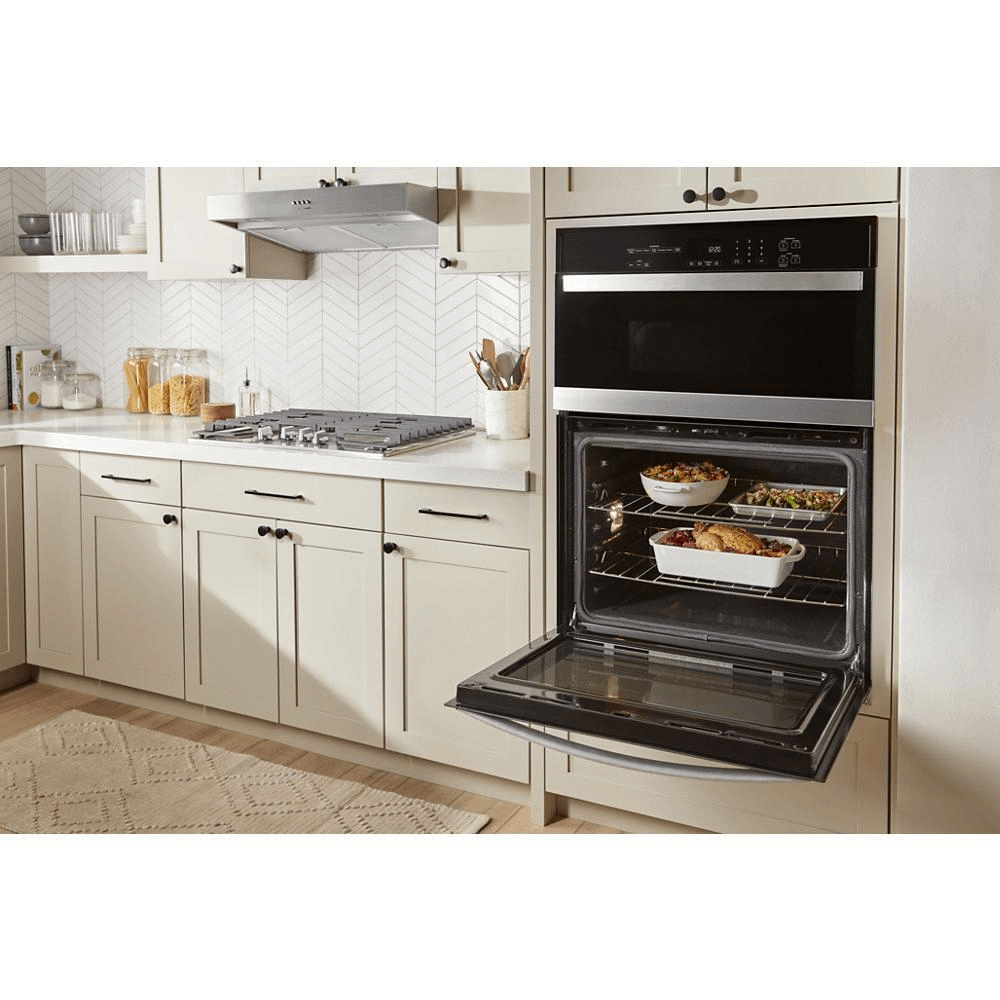

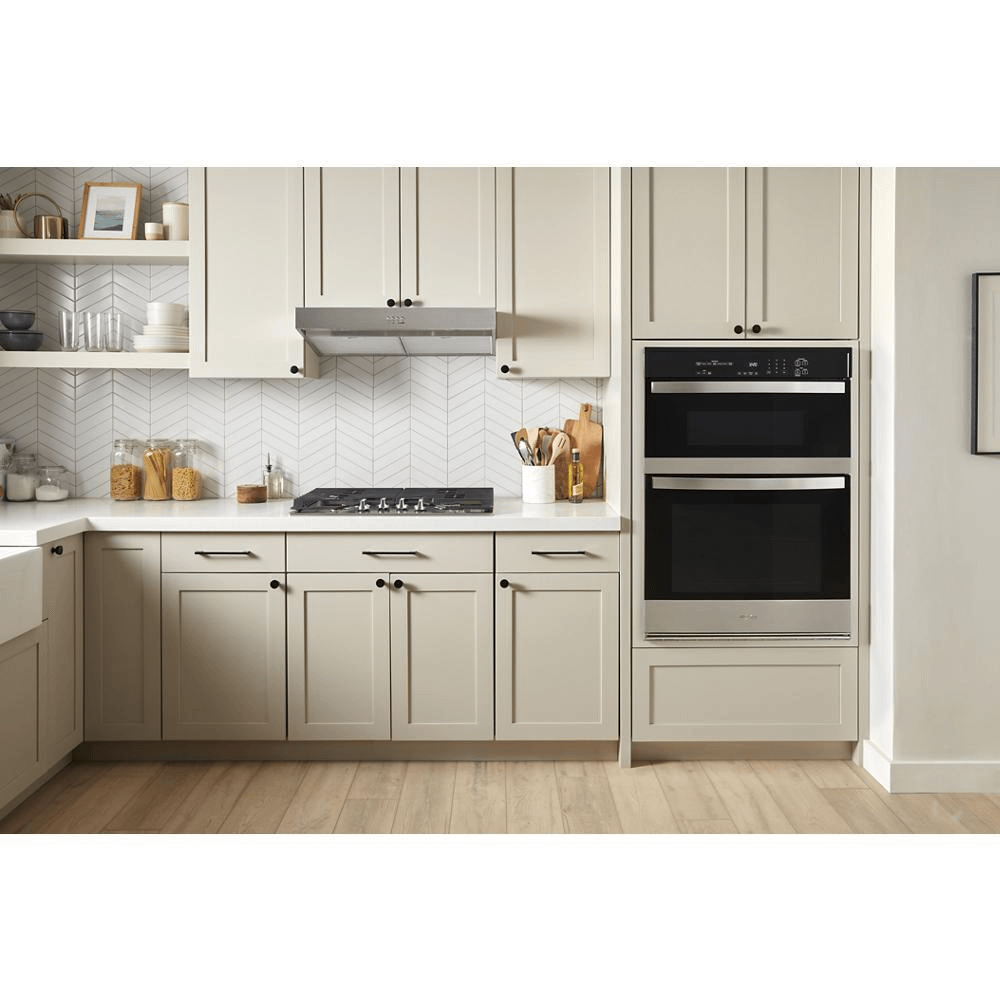

- No Flush Kit Required for Flush Install
- These wall ovens can be installed flush, creating a seamless visual line with cabinetry, without a separate accessory flush kit.

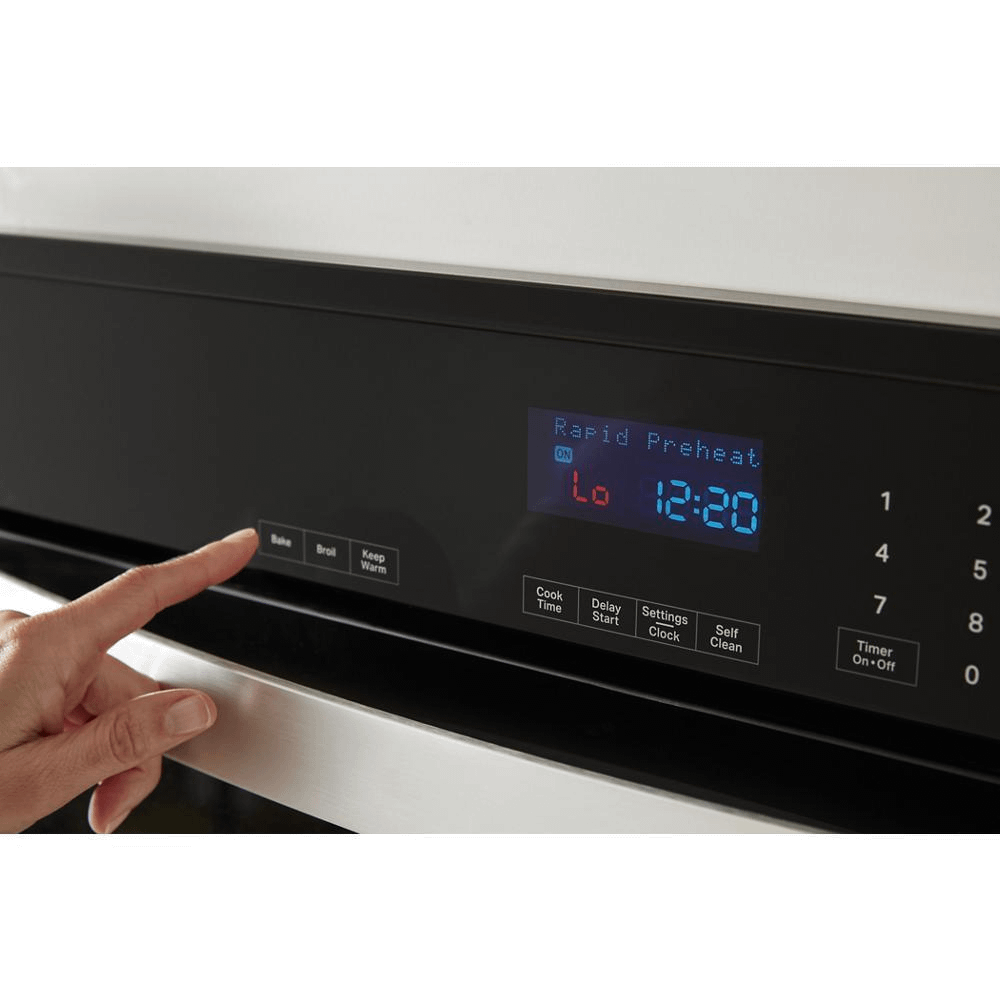

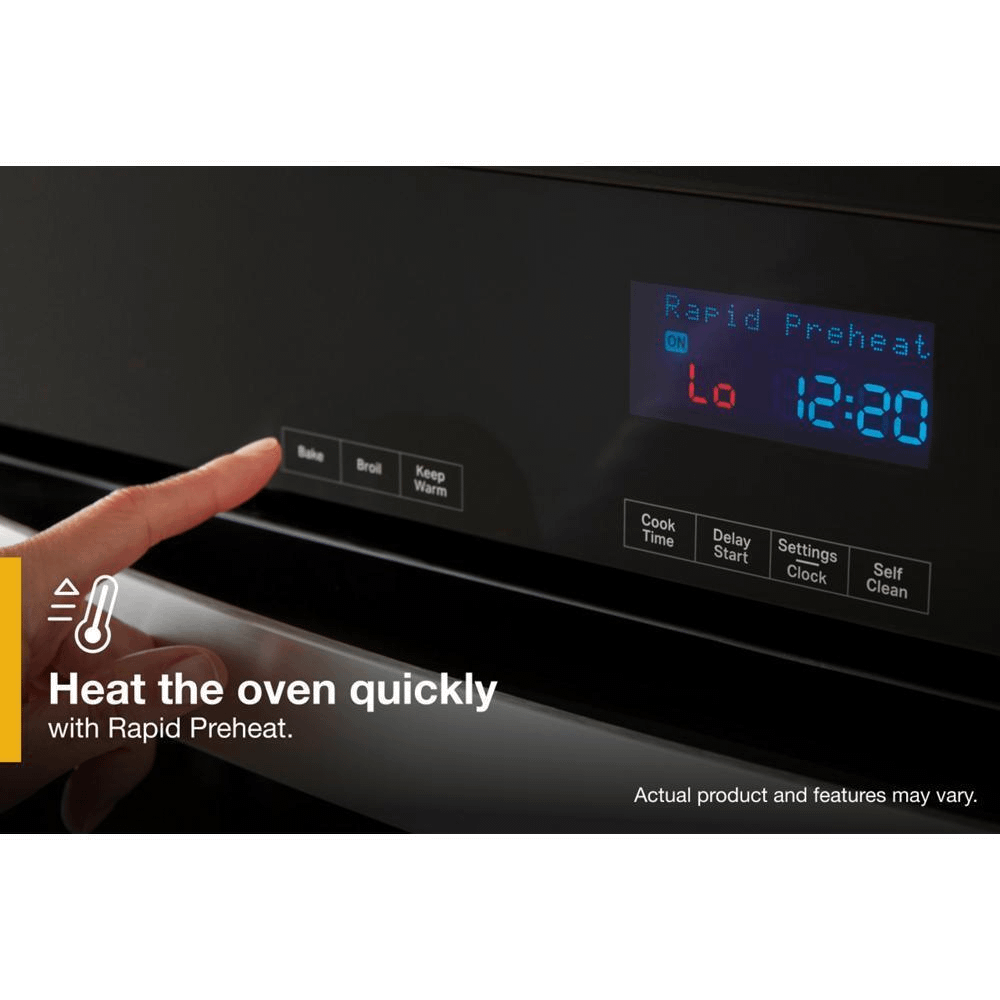

- Rapid Preheat
- Save time with faster preheating.* The oven uses both the bake and broil elements to help heat the oven quickly.
*Single-rack baking with Rapid Preheat option versus two-rack without option. - Sensor Cooking
- Take out the guesswork with sensors that track the cooking progress of your food in the microwave and automatically adjust cook times.

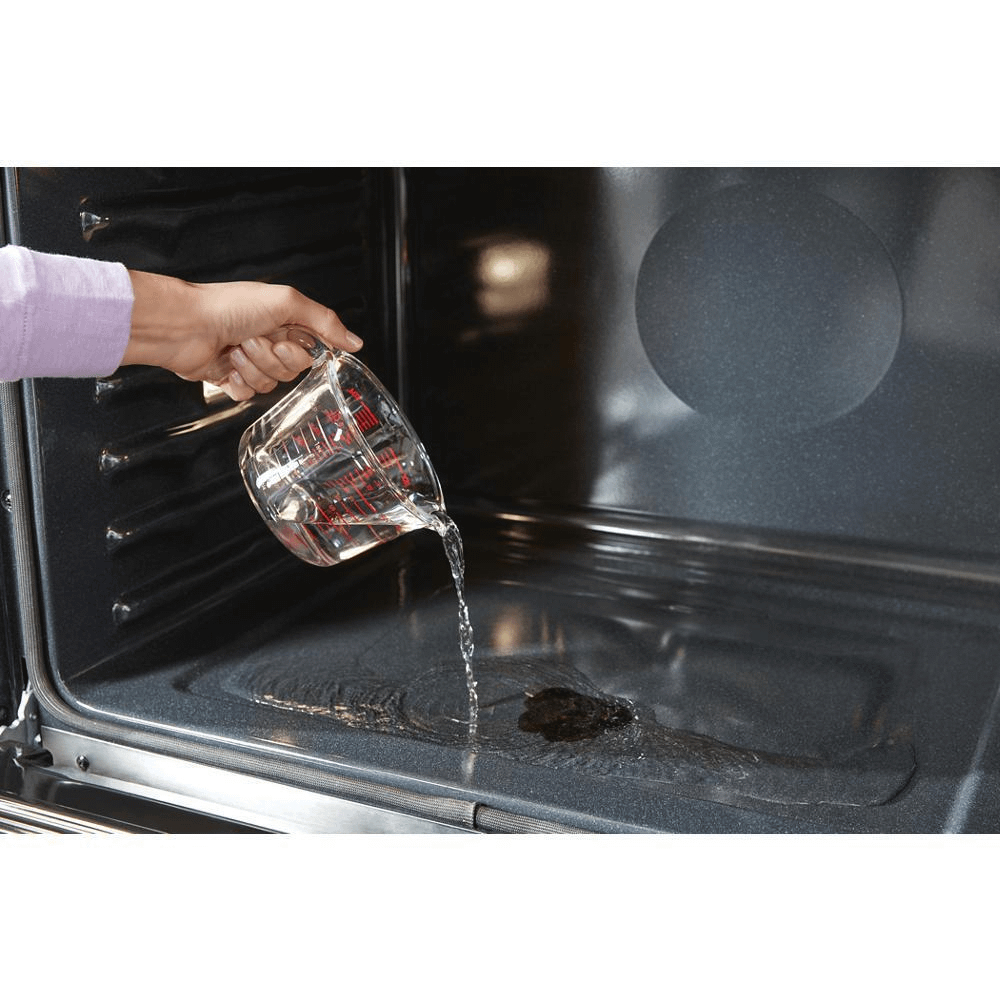

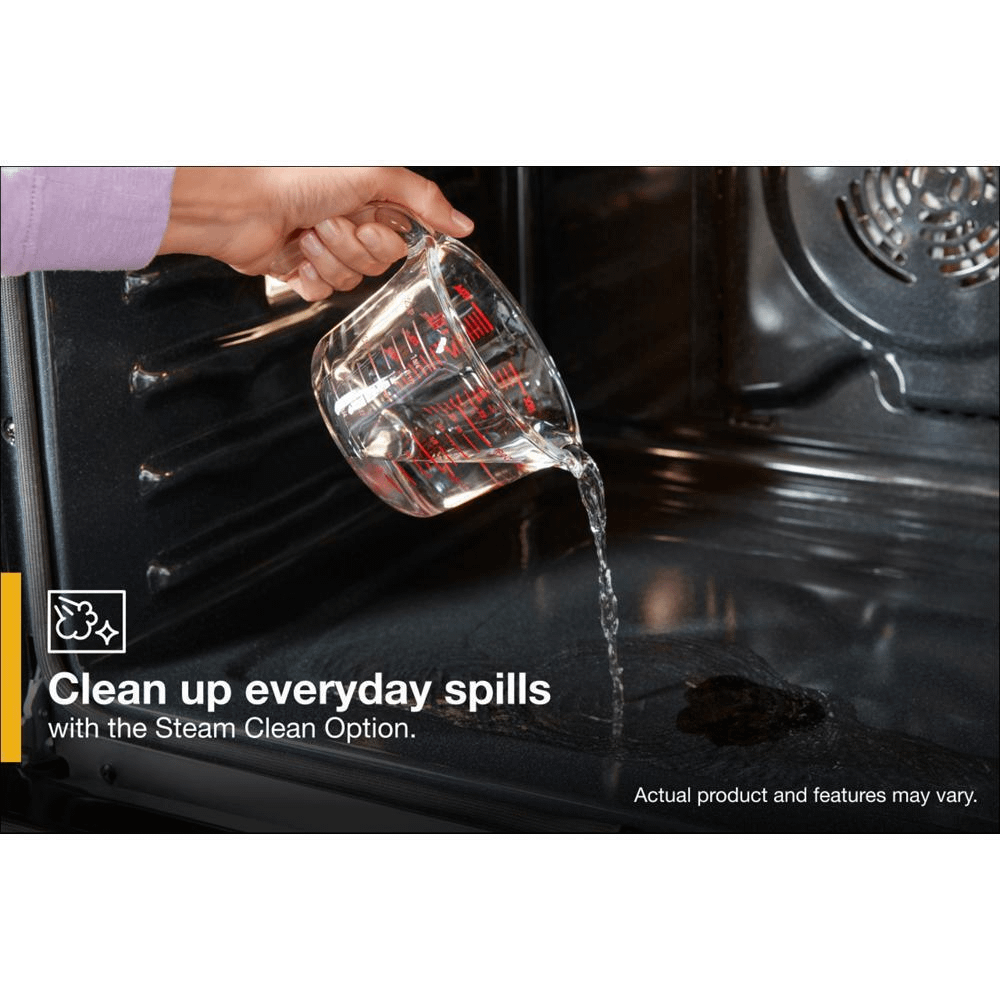

- Steam Clean Option
- Clean up after everyday light spills using only heat and 1-1/4 cups of water-no harsh chemicals or cleaners needed. Used periodically to clean light spills on the bottom of the oven, it keeps the oven clean and reduces the need for frequent self-clean cycles.
- Steam Cooking
*Accessory sold separately - Clear up cooktop space by steaming foods like vegetables and fish right in the microwave. Steam accessory available separately.
- Turntable On/Off Option
- Choose whether the microwave turntable rotates or not to accommodate a wide range of dish sizes.
Certifications | |
Ada Compliant | No |
Cul | Yes |
Energy Rating | 369 |
Prop65 | Standard |
Star K Certified | Kosher Consumer Friendly |
Ul | Yes |
Controls | |
Control Type | Electronic Touch |
Display Color | Blue |
Electronic Display Type | Digital |
Microwave Selections | Add 30 Seconds; Beverage; Control Lock; Cook Power; Cook Time; Cook/Start; Defrost; Dinner Plate; End of Cycle Signal; Fresh Vegetable; Frozen Vegetable; Keep Warm; Off/Cancel; Pizza; Potato; Reheat; Soften/Melt; Sound On/Off; Soup; Steam; Time Cook; Timer |
Details | |
Flush Installation Approved | Yes |
Fuel Type | Electric |
Grill | No |
Oven Automatic Shut-off | Yes |
Oven Selections | Audible Signal; Bake; Broil; Cancel/Off; Clock; Control Lock; Cook Time Indicator; Delay Start; Keep Warm/Warm Hold; Rapid Preheat; Sabbath Mode; Stop Time; Timer |
Oven Type | Combination |
Turntable | Yes |

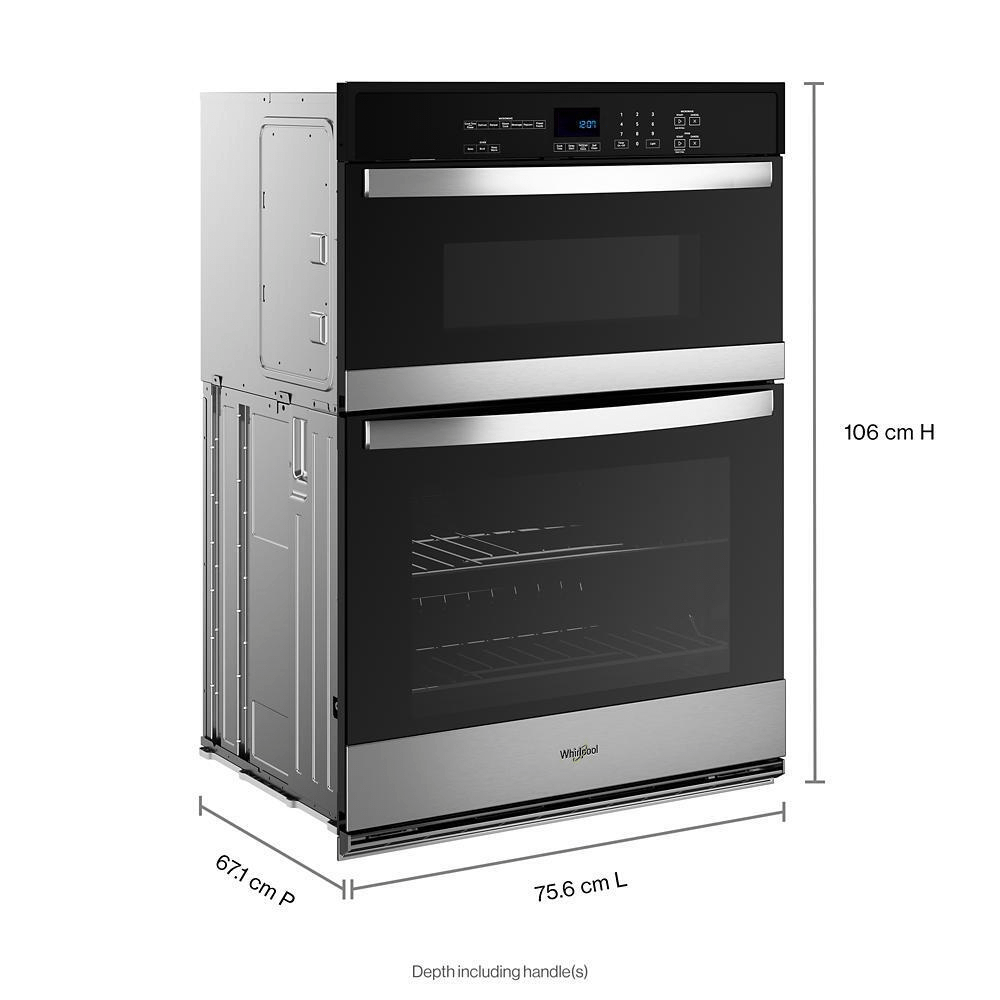

Dimensions | |
Product Height | 41.75 |
Carton Height | 45 |
Gross Weight | 228 |
Oven Interior Height | 18 |
Carton Width | 35 |
Product Depth | 26.4375 |
Oven Interior Depth | 19 |
Depth With Door Open 90 Degree | 46.188 |
Cutout Depth | 24 |
Cutout Height | 41.313 |
Depth Closed Excluding Handles | 24.438 |
Depth Closed Including Handles | 26.438 |
Carton Depth | 31 |
Cutout Width | 28.5 |
Oven Capacity | 5 |
Oven Interior Width | 25 |
Net Weight | 223 |
Product Width | 29.75 |
Electrical | |
Power Cord Included | No |
Exterior Details | |
Door Type | Metal & Glass |
Handle Color | Stainless Steel |
Handle Material | Metal |
General | |
Microwave Door Swing | Drop Down |
Microwave Interior Depth | 16.5 |
Microwave Interior Height | 8.25 |
Microwave Interior Light | Halogen |
Microwave Interior Width | 17.625 |
Microwave Details | |
Language Conversion | English/French |
Microwave Capacity | 1.4 |
Number of Microwave Racks | 0 |
Sensor Cooking | Yes - Microwave |
Turntable Diameter Size | 14.125 |
Oven Details | |
Bake Element Power | 2,800 W/2,427W |
Broiler Element Power | 3600 W/3120 W |
Broiler Location | Top of Oven |
Convection | No |
Convection Element Type | None |
Convection Functions | No |
Cooking Power | 900 |
Door Broil Position | Closed |
Door Lock | Yes |
Hidden Bake Element | Yes |
Interior Coating | Porcelain |
Number of Oven Lights | 2 |
Number of Oven Racks | 2 |
Number of Rack Guides | 6 |
Oven Cleaning Type | Self-Cleaning |
Oven Cooking System | Thermal |
Oven Light Type | Halogen |
Oven Rack Type | 2 Standard |
Self-cleaning Oven Racks | No |
Smart Compatibility | |
Connectivity | No |
Works With | No |
