Overview & Specifications
Overview & Specifications

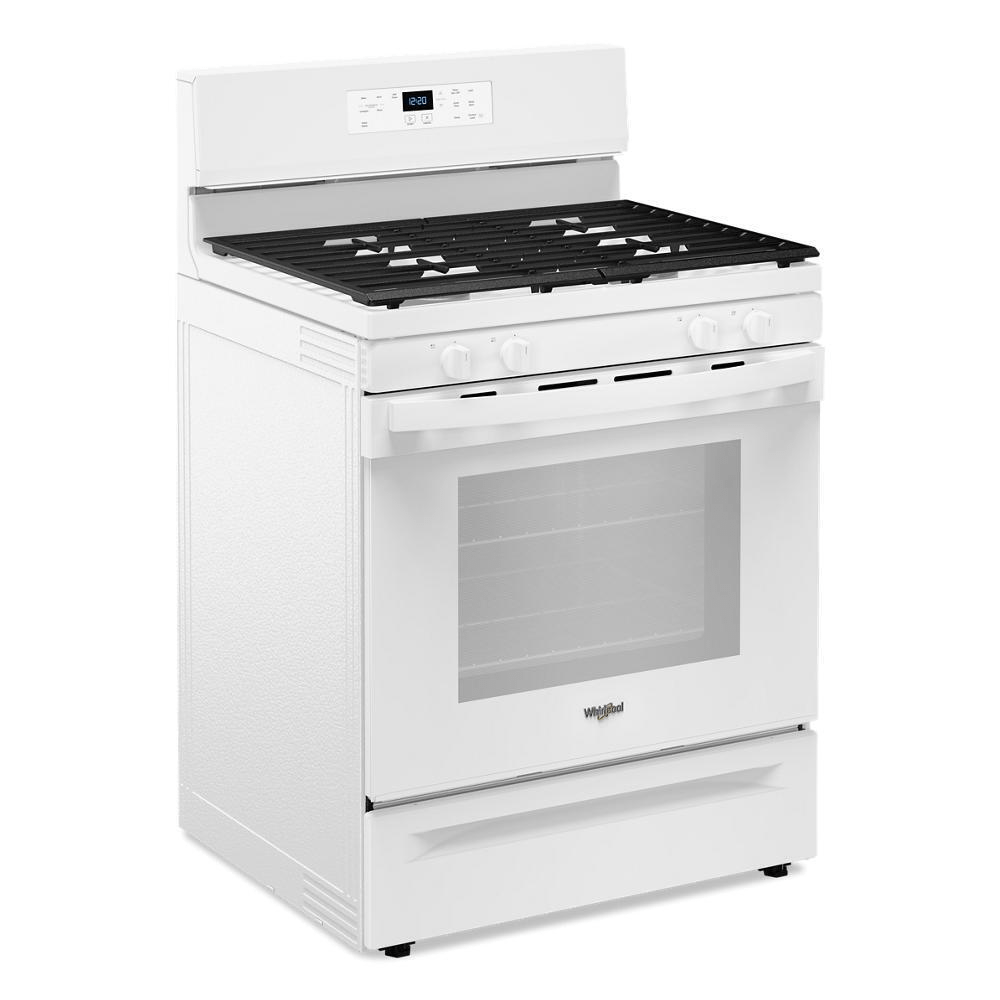

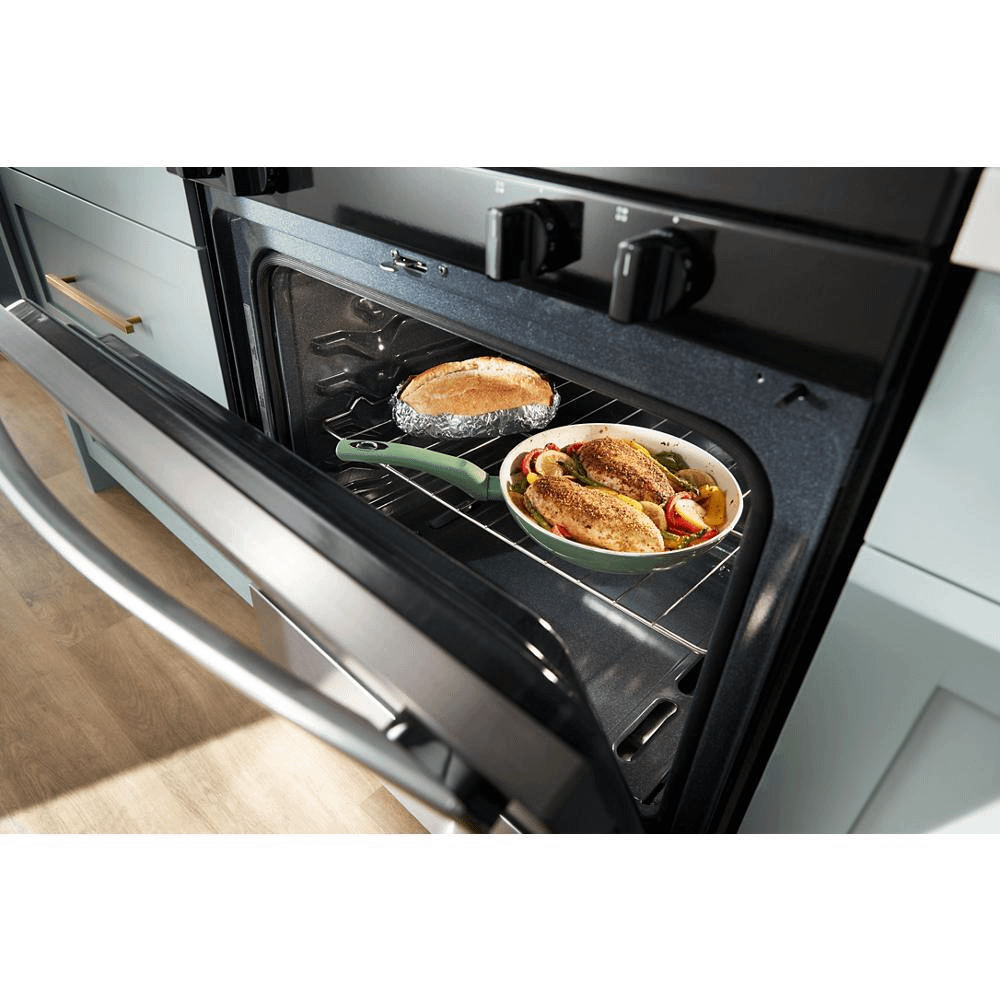

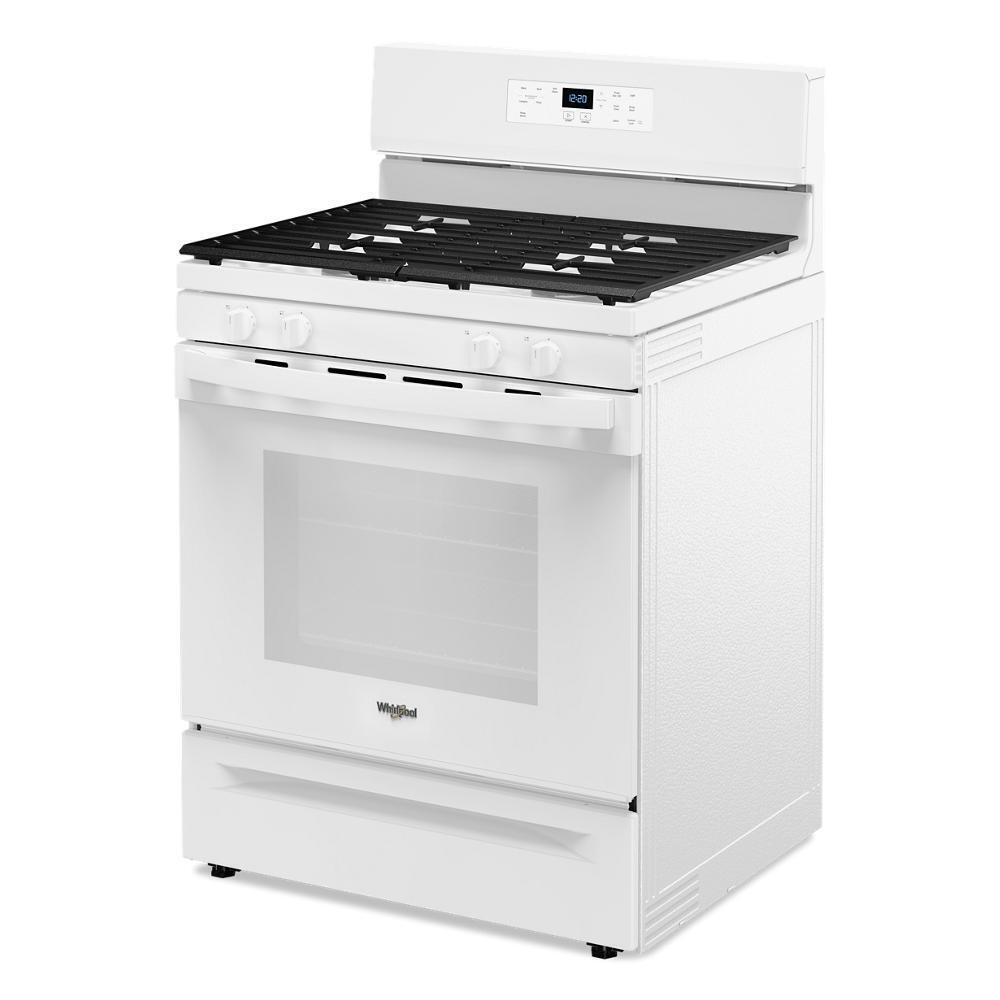

Make the most of your time in the kitchen with the Whirlpool 30 inch gas range, a self cleaning oven featuring high heat burners and No Preheat Mode. This 5.0 cu ft gas oven with Broil helps you add a toasty twist or melty magic to family classics, and features a built-in temperature sensor to help the oven Bake evenly. Plus, boil 20% faster* with two SpeedHeat high btu burners. *Compared to 9.5K burner on the same model.

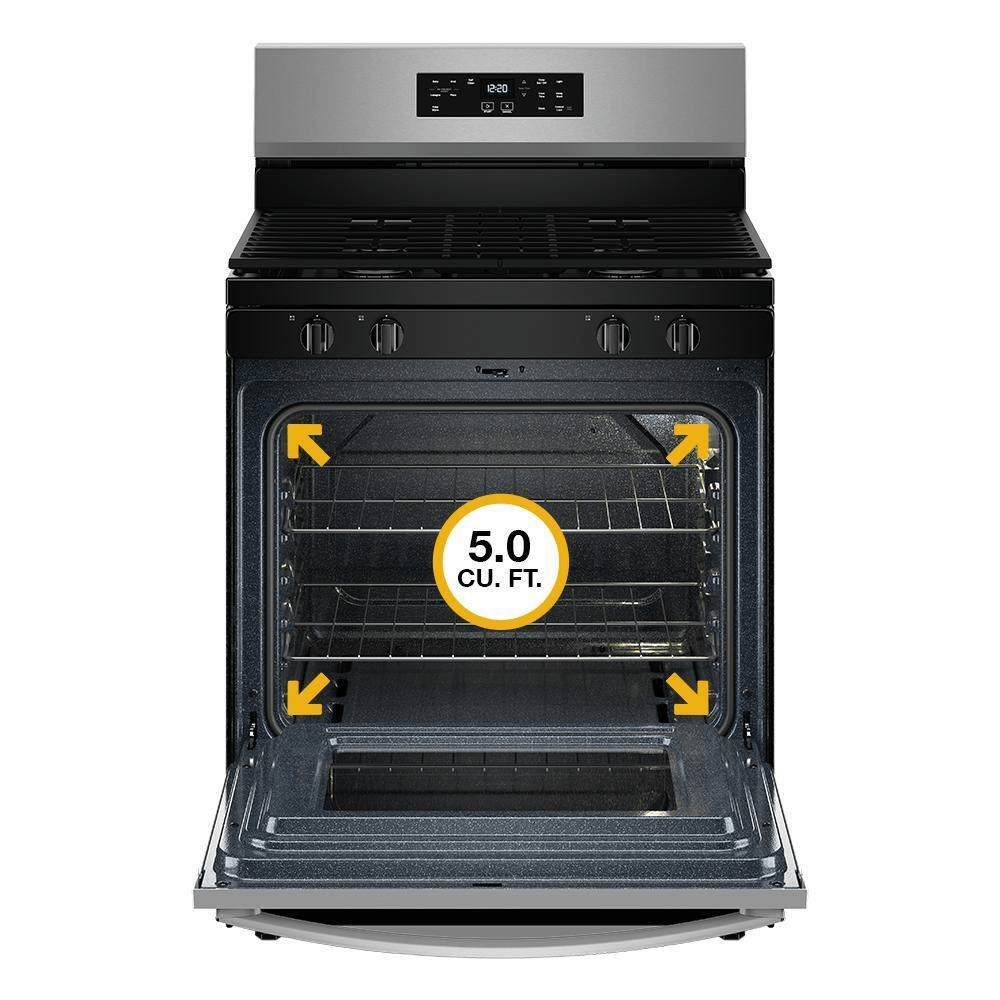

- 5.0 CuFt Capacity
- Cook for a crowd and fit large dishes, like a full-sized turkey, into the spacious 5.0 Cu. Ft. Capacity.

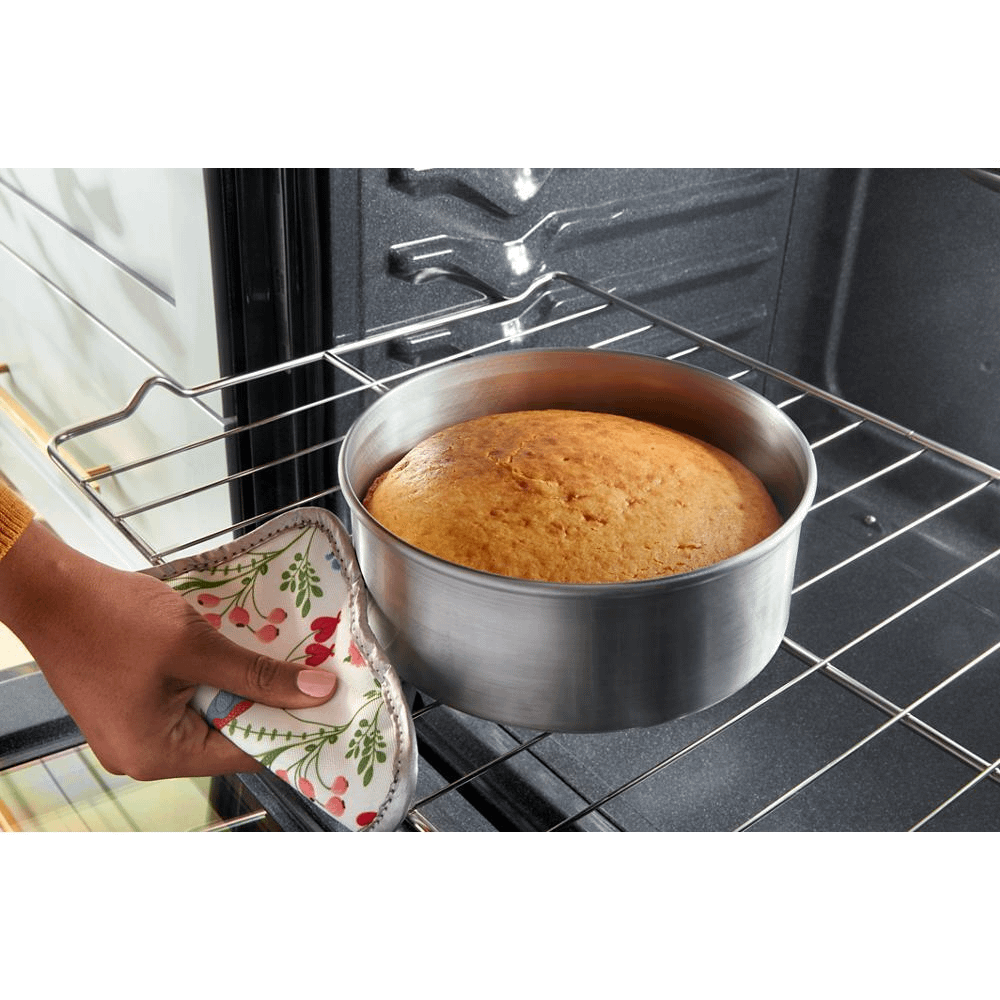

- Bake
- Spend less time monitoring with a built-in temperature sensor to help Bake evenly. This sensor manages oven temperature for delicious results every time.

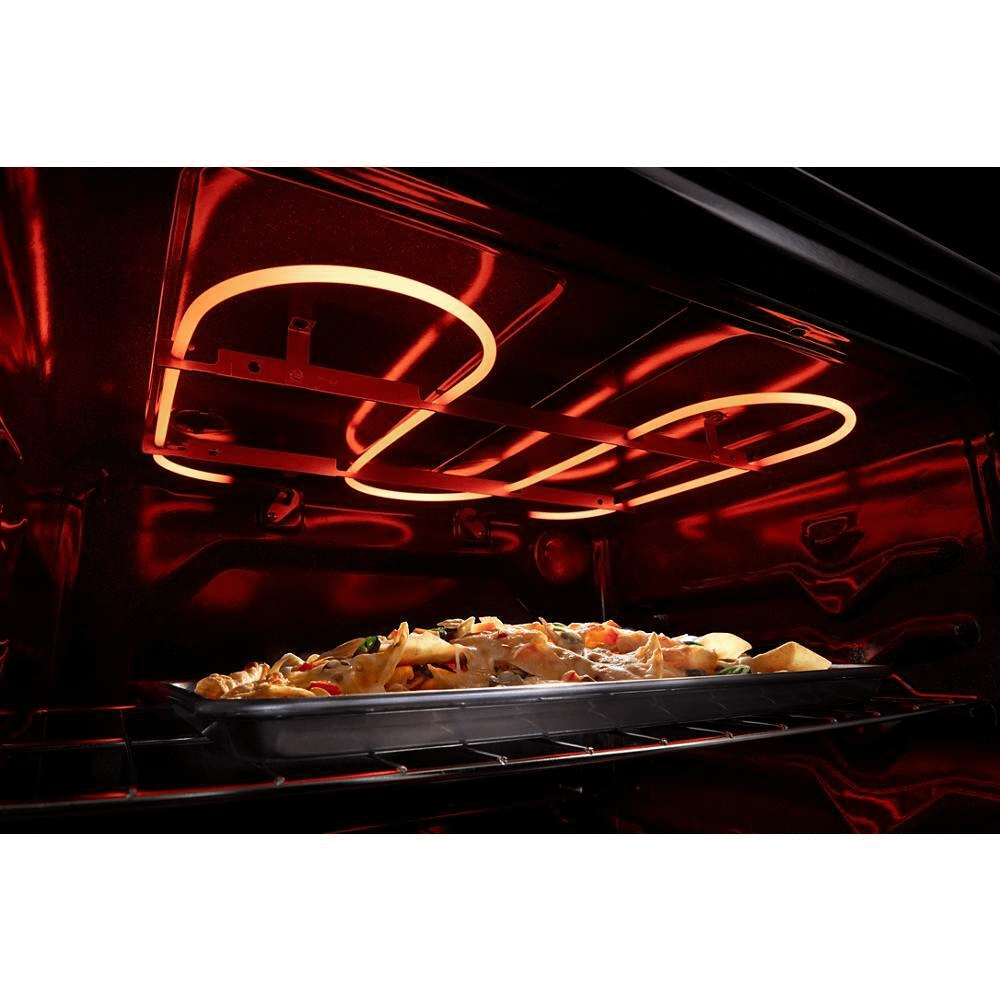

- Broil
- Redefine mealtime with Broil to make crispy-melty nachos, juicy-seared meat, toasty grilled cheese and more.

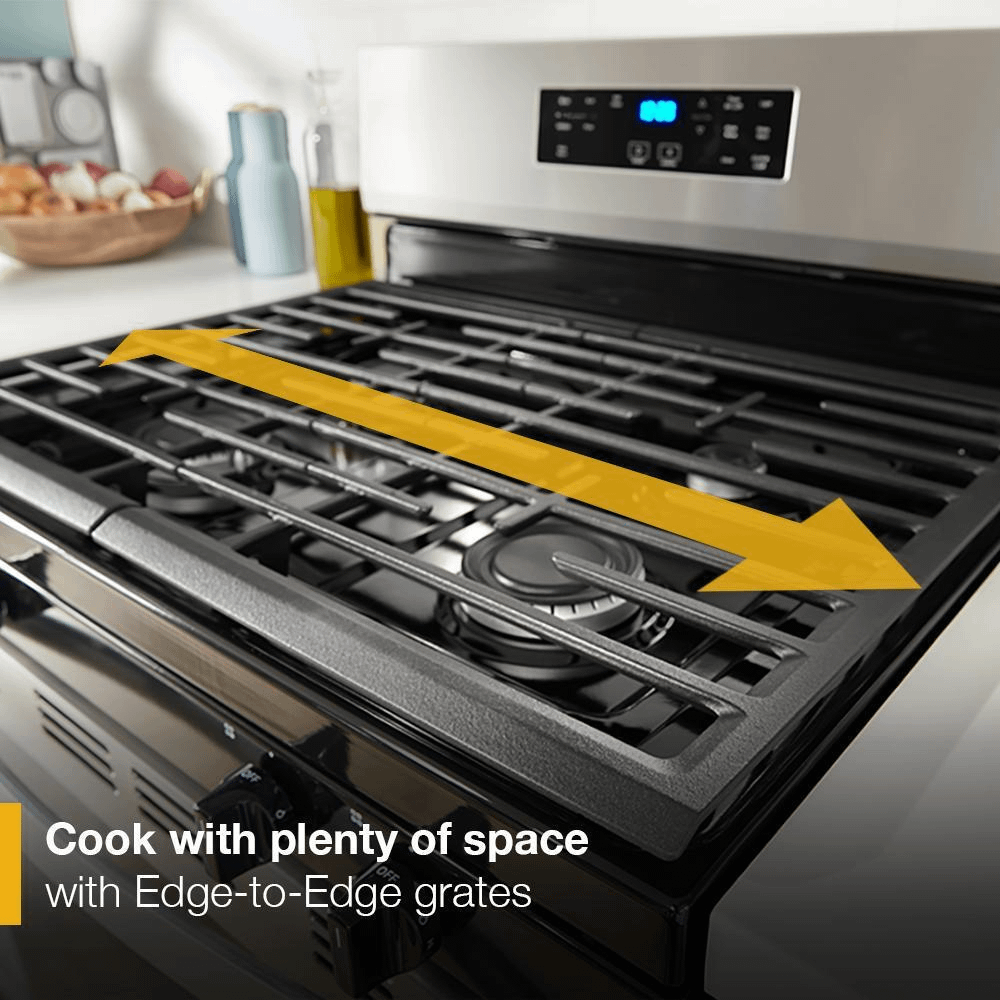

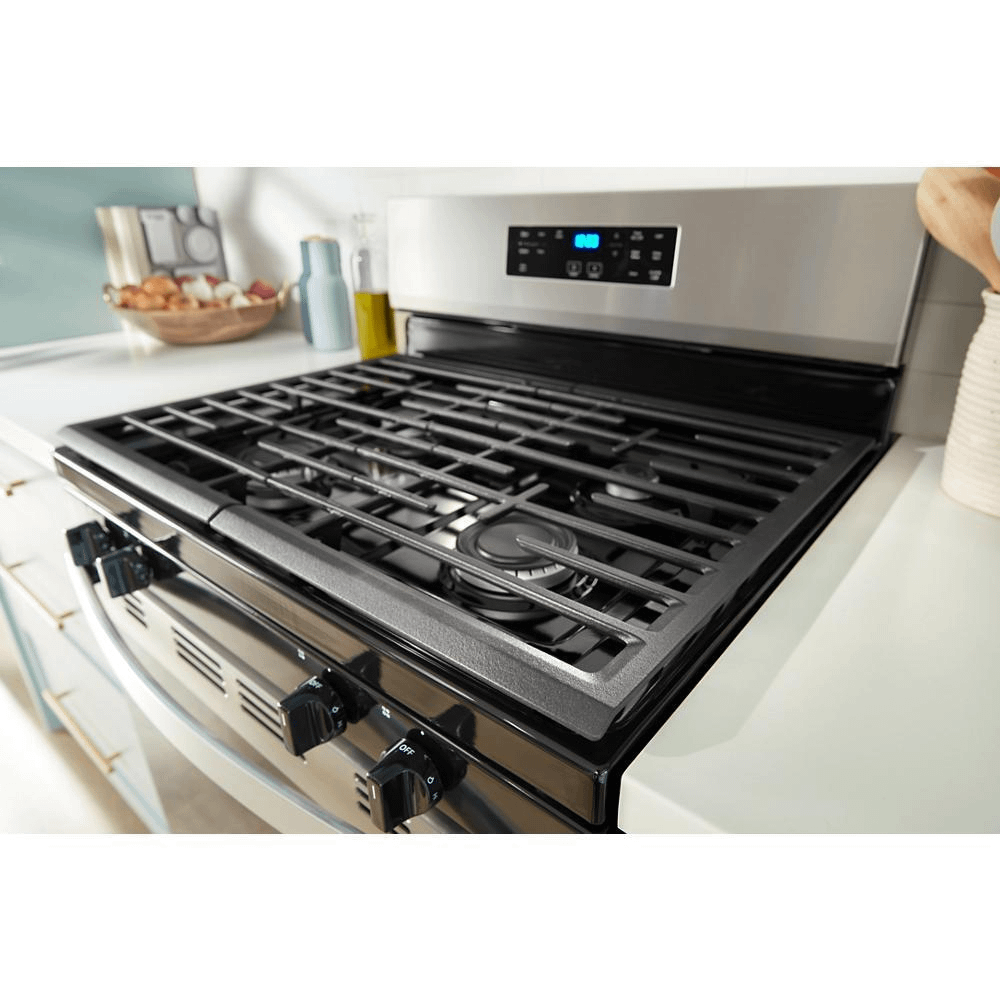

- Edge-to-Edge Cast-Iron Grates
- Enjoy plenty of space to saute , boil and simmer with Edge-to-Edge Cast-Iron Grates, and the flexibility of a cooktop with a range of burner sizes and power levels.
- Keep Warm
- Use the Keep Warm Setting in the oven to help your dishes stay warm until your family is ready to dig in.
- No Preheat Mode
- Take Preheating off your plate with No Preheat Mode. Simply place your food in the oven and start baking. The oven will adjust the cook time for frozen pizzas and more.
- Self-Clean Cycle
- Easily clean your oven with the adjustable Self-Clean Cycle that can be customized based on the amount of spills and splatters.

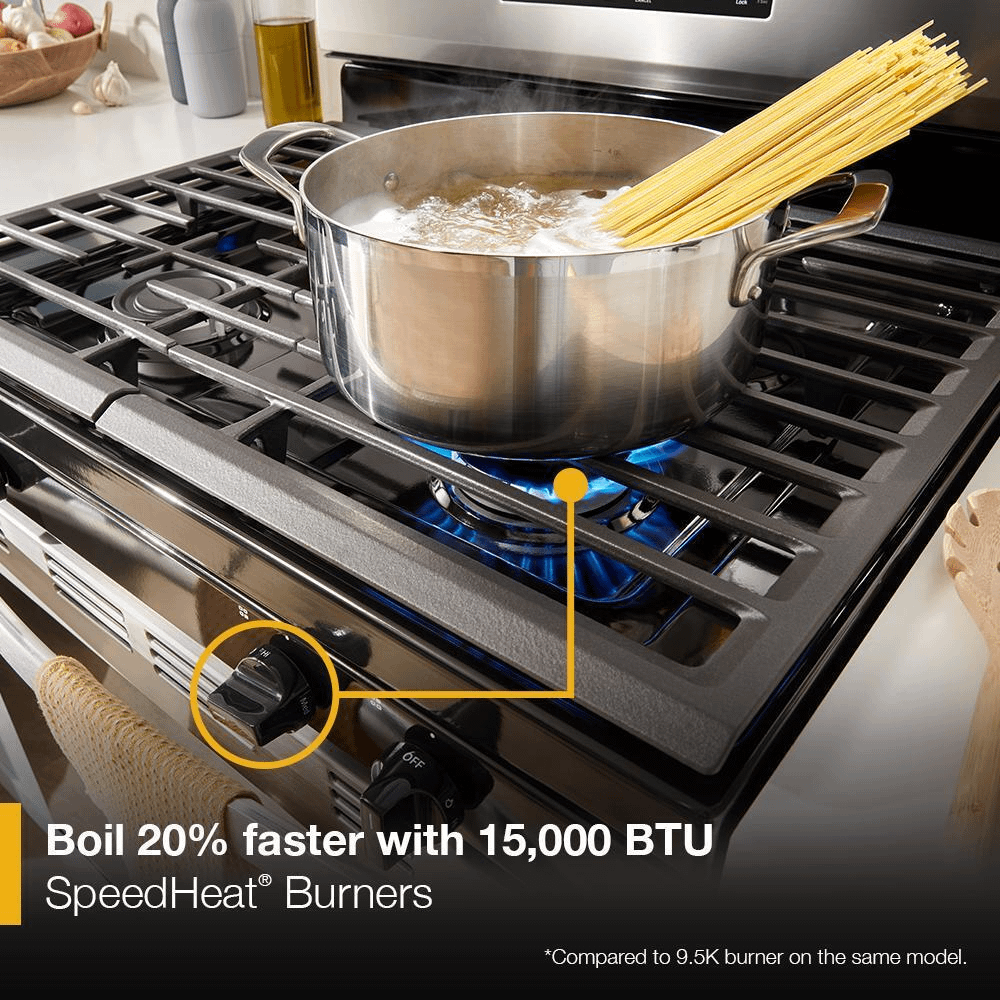

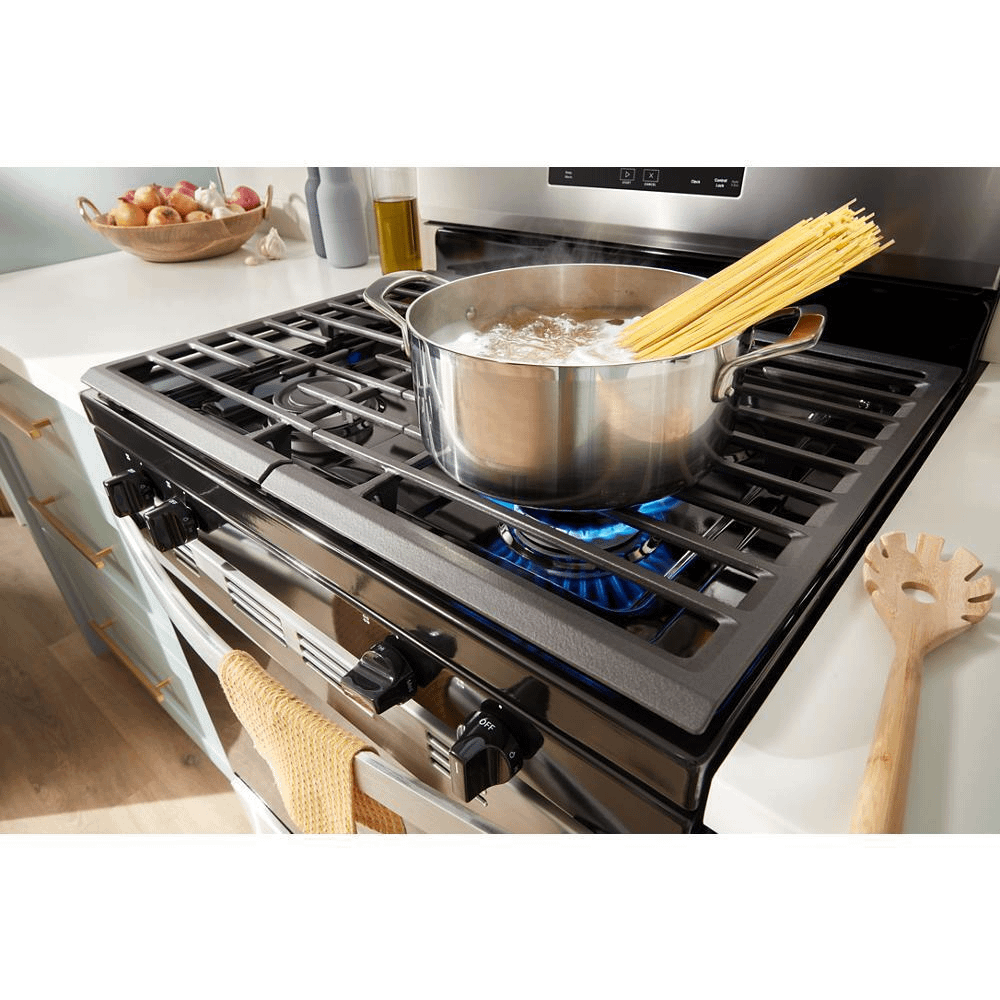

- SpeedHeat(TM) Burner
- Use the SpeedHeat(TM) Burner to boil 20% faster* with high heat, so you can get dinner to the table quickly. *Compared to 9.5K burner on the same model.

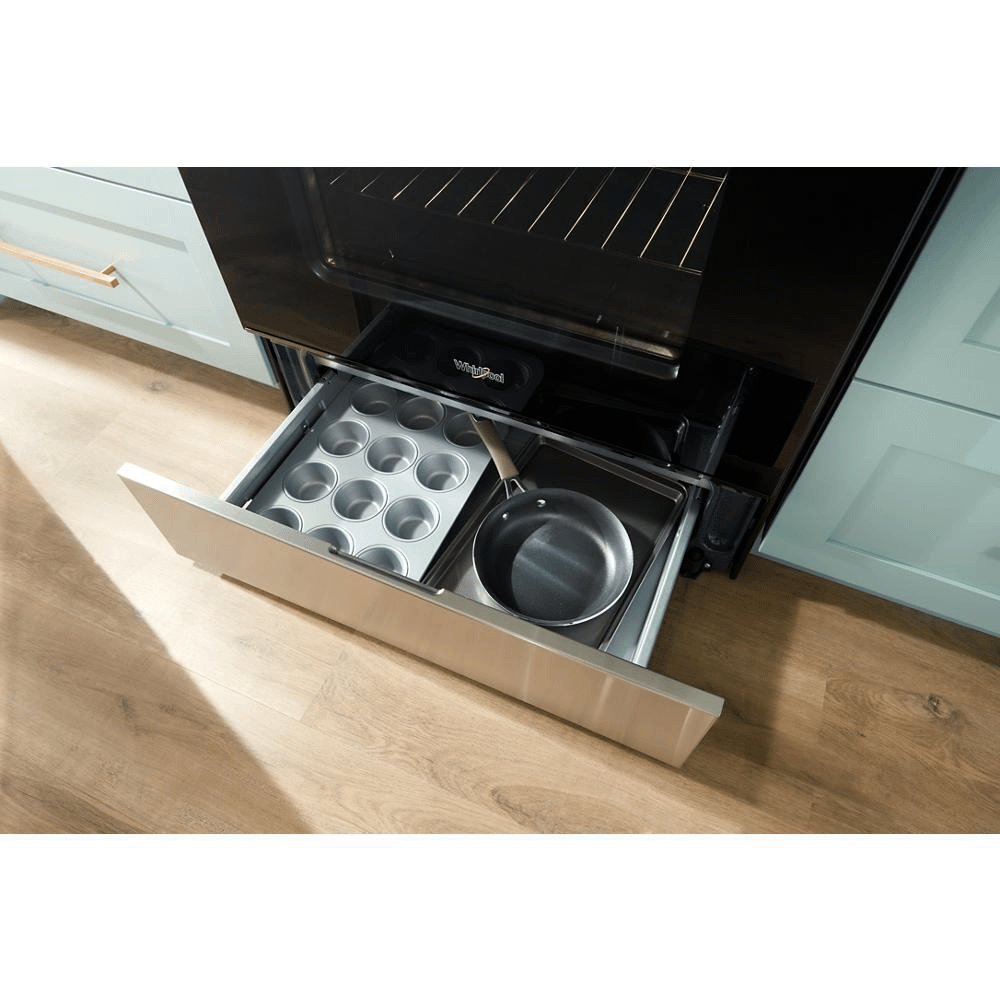

- Storage Drawer
- Easily store kitchen items from baking sheets to cooking pans in the Storage Drawer.
Certifications | |
Ada Compliant | No |
Cul | Yes |
Prop65 | Standard |
Ul | Yes |
Controls | |
Display Color | Blue |
Electronic Display Type | LED |
Cooktop Details | |
Auto Re-ignition | No |

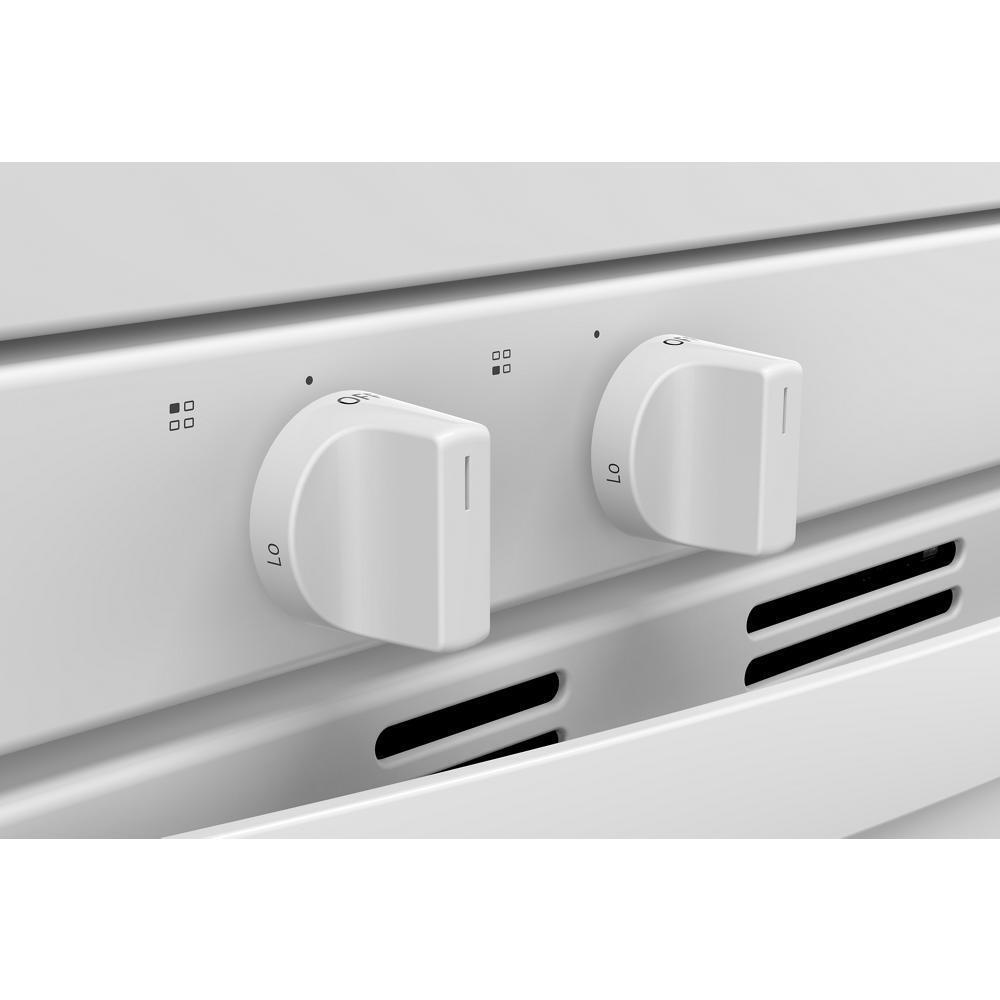

Cooktop Control Knob Color | White |
Cooktop Control Knob Type | Plastic |
Cooktop Control Location | Front |
Cooktop Control Type | Knobs |
Cooktop Surface Color | Black |
Cooktop Surface Material | Stainless/Porcelain Coated Steel |
Griddle Included | Optional Accessory |
Heating Element On Indicator Light | Yes |
Hot Surface Indicator Light | Yes |
Ignition Type | Direct Spark Ignition |
Total Gas BTUs - Cooktop | 44,500 |
Details | |
Automatic Convection Conversion Temperature Adjust | No |
Cooktop Configuration | All Burners |
Fuel Type | Gas |
Installation Configuration | Freestanding |
Lp Convertible | Yes - Kit Included |
Oven Automatic Shut-off | No |
Oven Configuration | Single Oven |
Oven Light Switch Location | Oven Control |
Oven Selections | Audible Signal; Bake; Broil; Cancel/Off; Clock; Control Lock; Cook Time Indicator; Delay Start; Keep Warm Setting; No Preheat - Frozen Lasagna; No Preheat - Frozen Pizza; Oven Light; Sabbath Mode; Start Time; Stop Time; Timer |
Power On Indicator Light | Yes |
Power Outage Compatible | Yes |
Range Configuration | Freestanding |
Range Drawer Type | Storage Drawer |
Range Type | Freestanding |

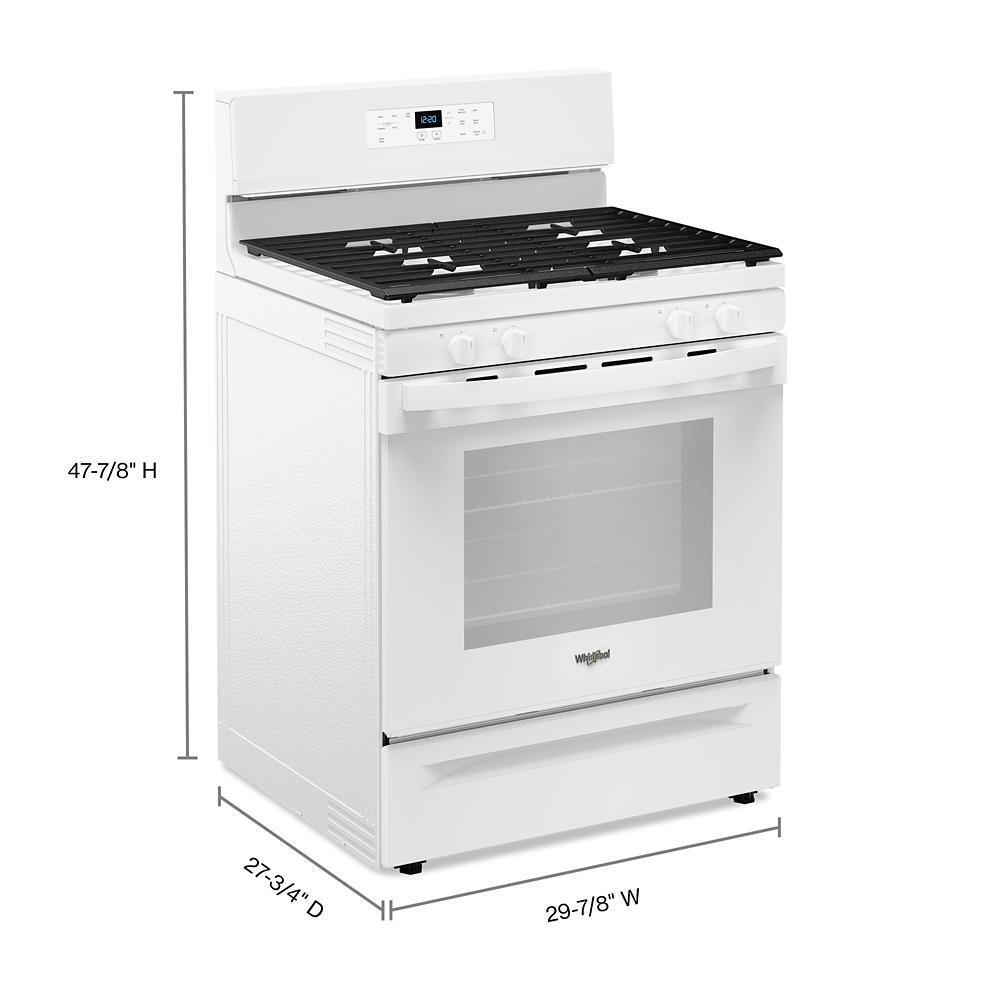

Dimensions | |
Product Height | 47.875 |
Carton Height | 49 |
Gross Weight | 173 |
Oven Interior Height | 18.875 |
Carton Width | 32 |
Product Depth | 27.875 |
Oven Interior Depth | 18.5 |
Depth With Door Open 90 Degree | 46.688 |
Cutout Depth | 24 |
Cutout Height | 36 |
Depth Closed Excluding Handles | 25.313 |
Depth Closed Including Handles | 28 |
Carton Depth | 29 |
Cutout Width | 30 |
Oven Interior Width | 24.5 |
Net Weight | 157 |
Product Width | 29.875 |
Electrical | |
Power Cord Included | Yes |
Element/burner Details | |
Cooktop Element Style | Sealed Burners |
Left Front Element-burner Power | 15,000 BTU |
Left Front Element-burner Size | 4in. |
Left Front Element-burner Type | Standard |
Left Rear Element-burner Power | 9,500 BTU |
Left Rear Element-burner Size | 4in. |
Left Rear Element-burner Type | Standard |
Number of Cooking Element-burners | 4 |
Right Front Element-burner Power | 15,000 BTU |
Right Front Element-burner Size | 4in. |
Right Front Element-burner Type | Standard |
Right Rear Element-burner Power | 5,000 BTU |
Right Rear Element-burner Size | 4in. |
Right Rear Element-burner Type | Simmer |
Exterior Details | |
Door Type | Glass Window |
Handle Color | White |
Handle Material | Metal |
Handle Type | Reach Through Handle |
Knob Color | White |
Knob Type | Plastic |
Oven Control Knob Type | Plastic |
Oven Control Location | Backguard |
Oven Control Type | Electronic Touch |
Oven Window Size | Extra Large |
General | |
Console Language | English |
Literature Language | English; French; Spanish |
Grate Details | |
Grate Details | Continuous; Dishwasher Safe; Matte Finish; Porcelain Coated Cast Grates |
Number of Grates | 2 |
Oven Details | |
Broiler Element Power | 1,300 W Electric Broil |
Broiler Location | Top Center |
Convection Element Type | None |
Door Removable | Yes |
Hidden Bake Element | Yes |
Interior Color | Grey |
Natural Gas Convertible | Yes |
Number of Oven Lights | 1 |
Number of Oven Racks | 2 |
Number of Rack Guides | 5 |
Oven Cleaning Type | Self-Cleaning |
Oven Cooking System | Thermal |
Oven Light Type | Incandescent |
Oven Rack Front Material | Metal |
Oven Rack Guide Type | Molded |
Oven Rack Type | Standard (Both) |
Total Gas BTUs - Ovens | 26,500 |
