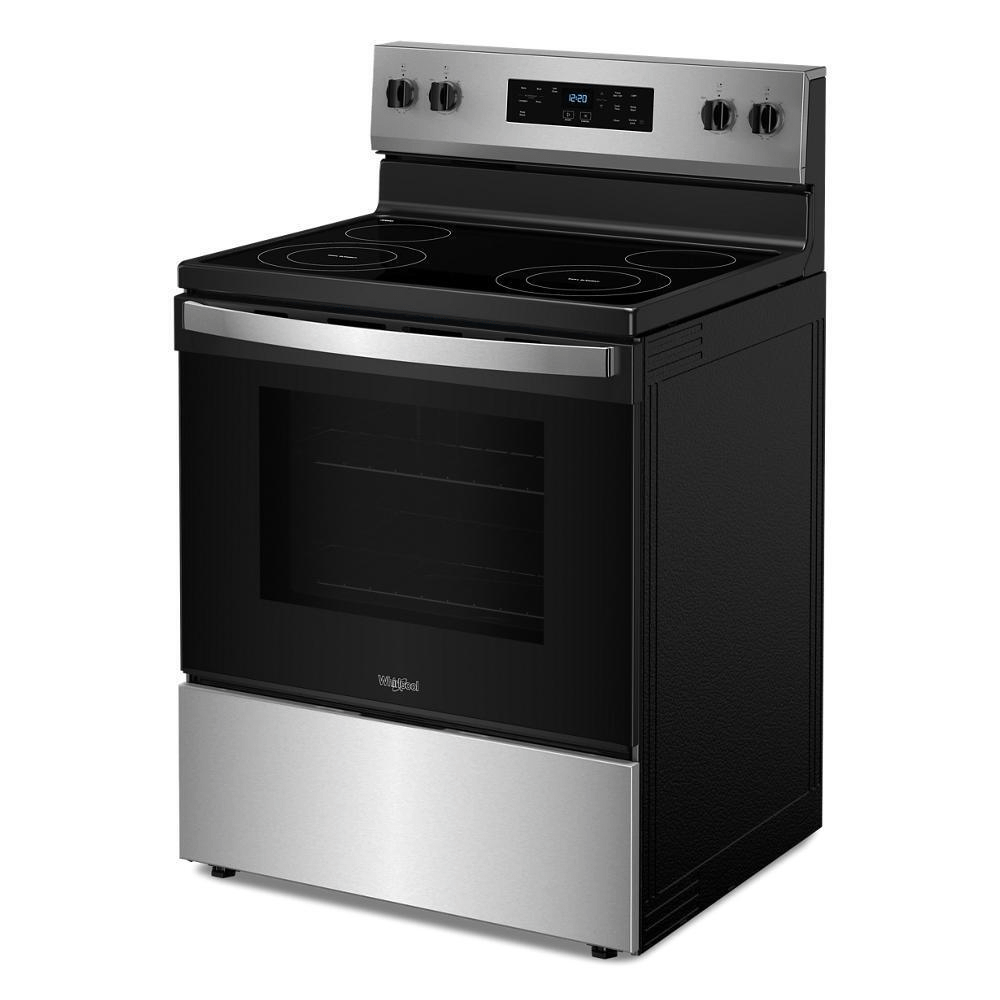

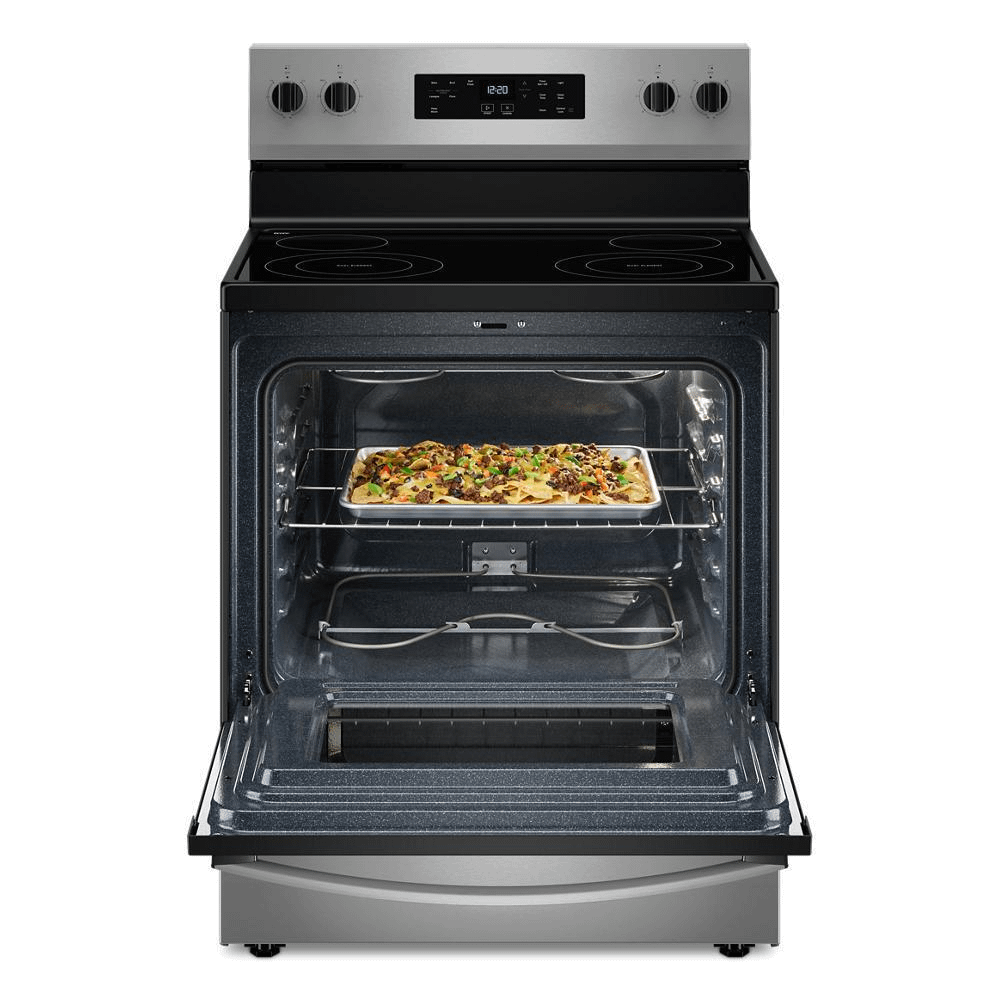

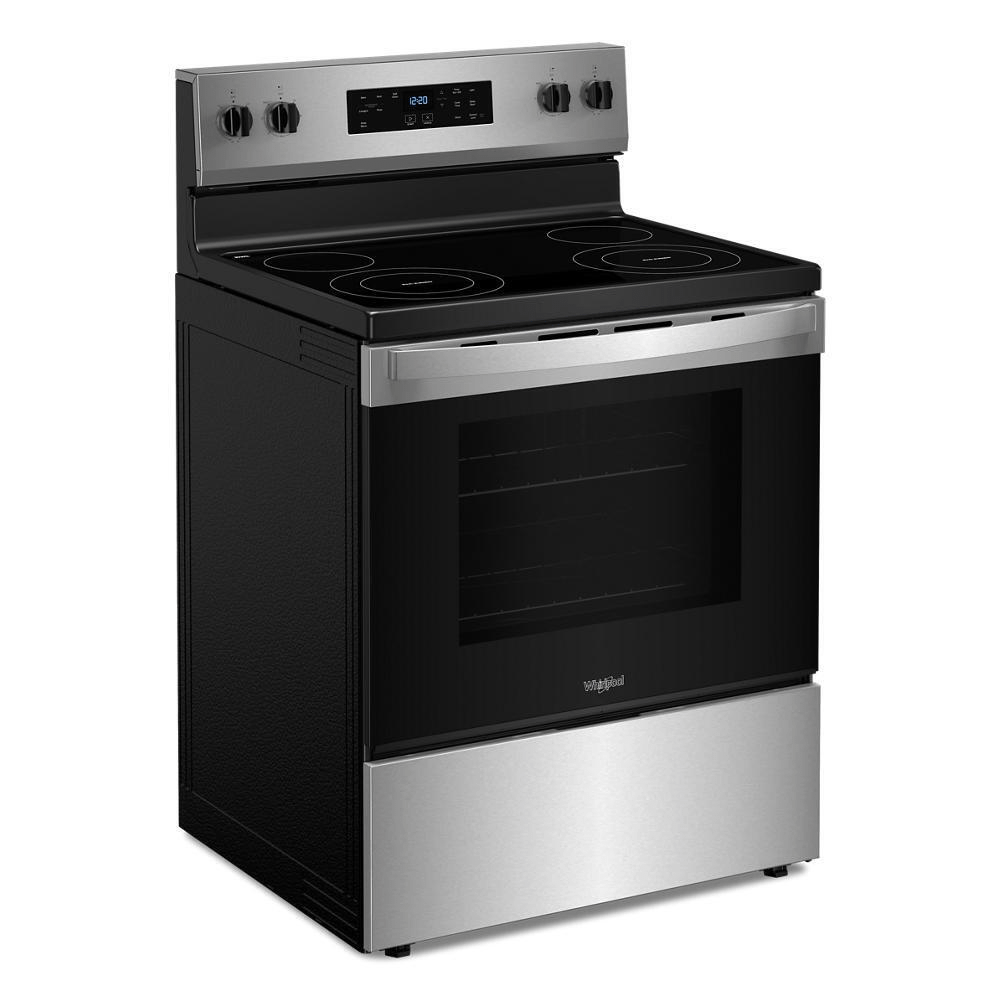

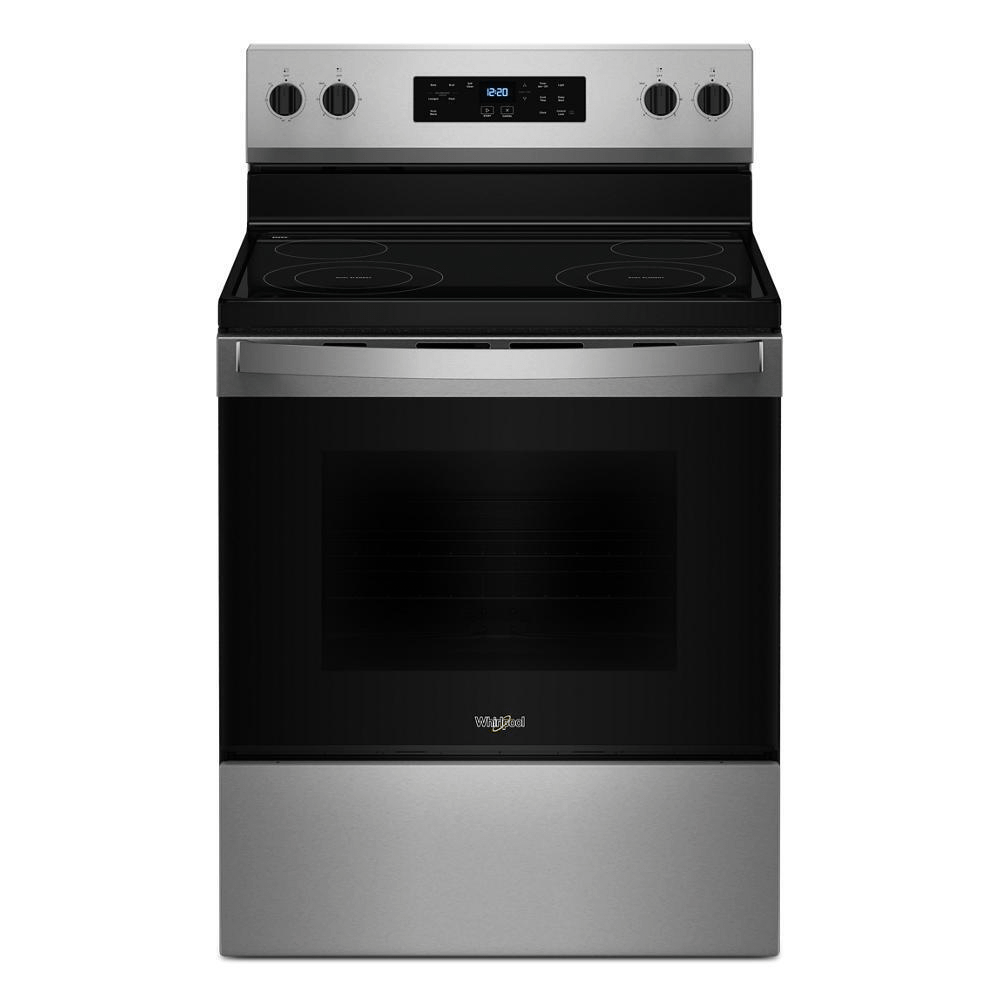

Make the most of your time in the kitchen with the Whirlpool 30 inch electric range, a self cleaning oven featuring dual electric elements and No Preheat Mode. This 5.3 cu ft conventional oven with Broil helps you add a toasty twist or melty magic to family classics, and features a built-in temperature sensor to help the oven Bake evenly. Plus, boil 40% faster* with two FlexHeat™ Dual Radiant Elements. *When comparing the 9" element to the 6" element on the same unit.

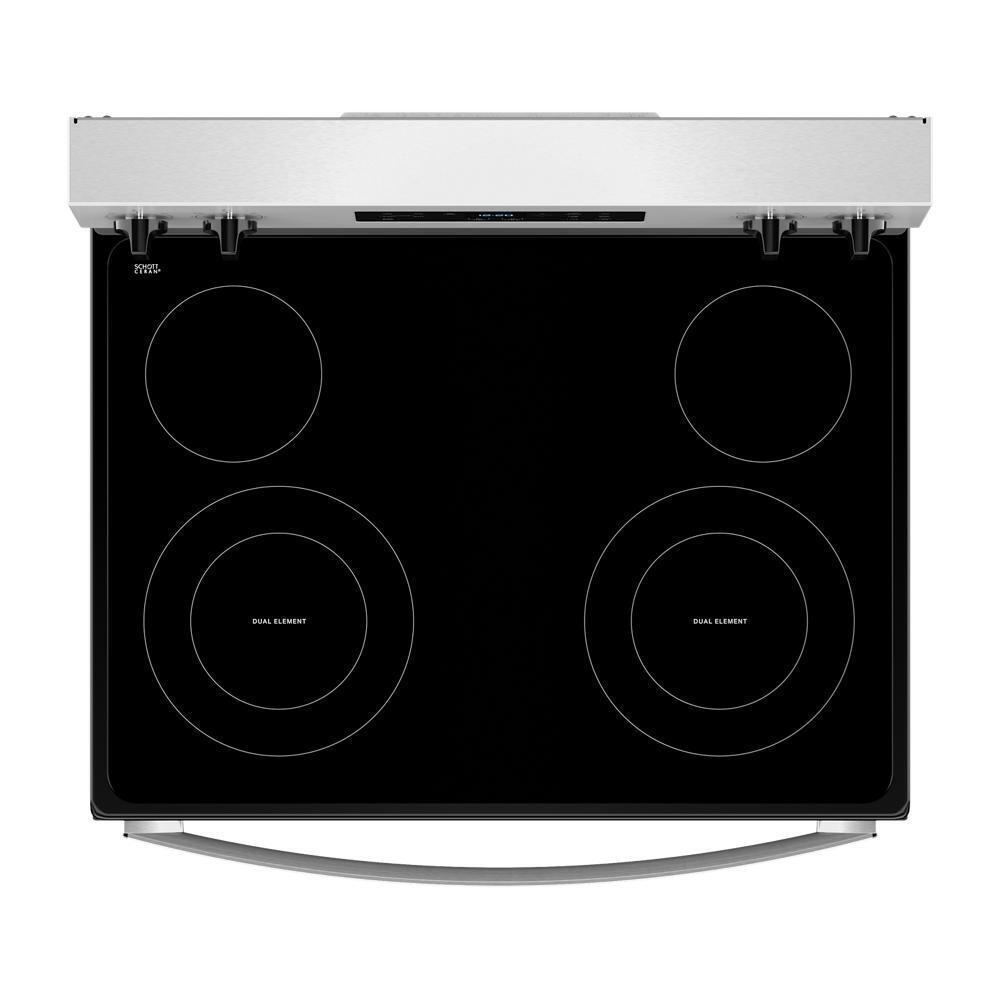

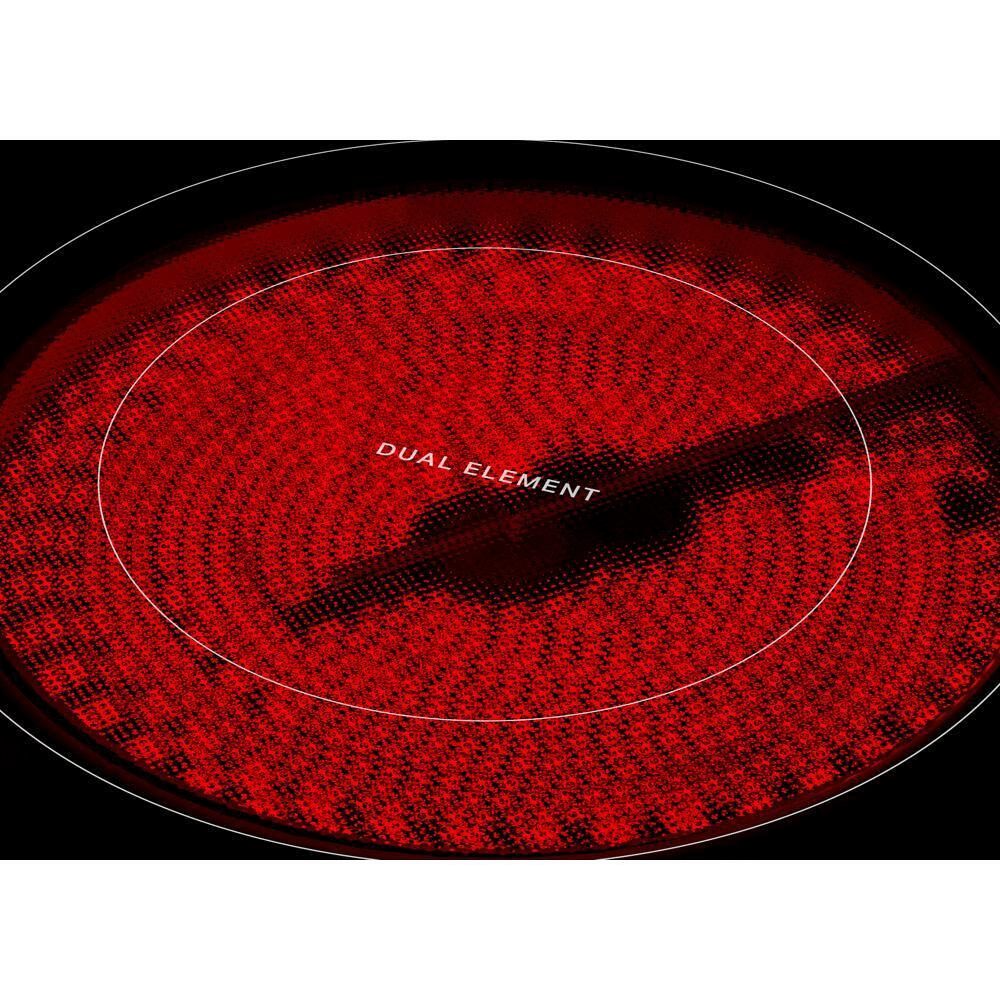

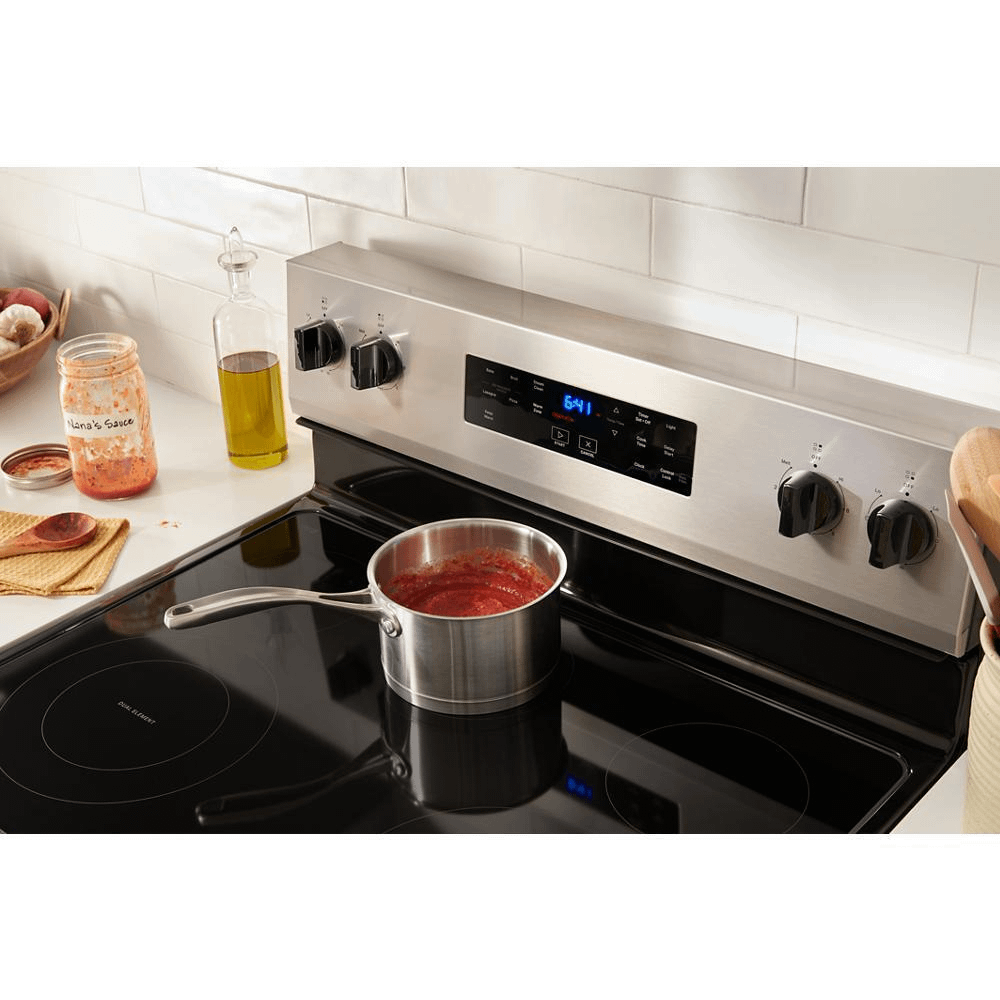

- 2 FlexHeat(TM) Dual Radiant Elements
- Customize your element size for large or small cookware and boil 40% faster* with two FlexHeat(TM) Dual Radiant Elements, designed with a 6" inner ring and 9" expandable outer ring. *When comparing the 9" element to the standard 6" element on the same unit.

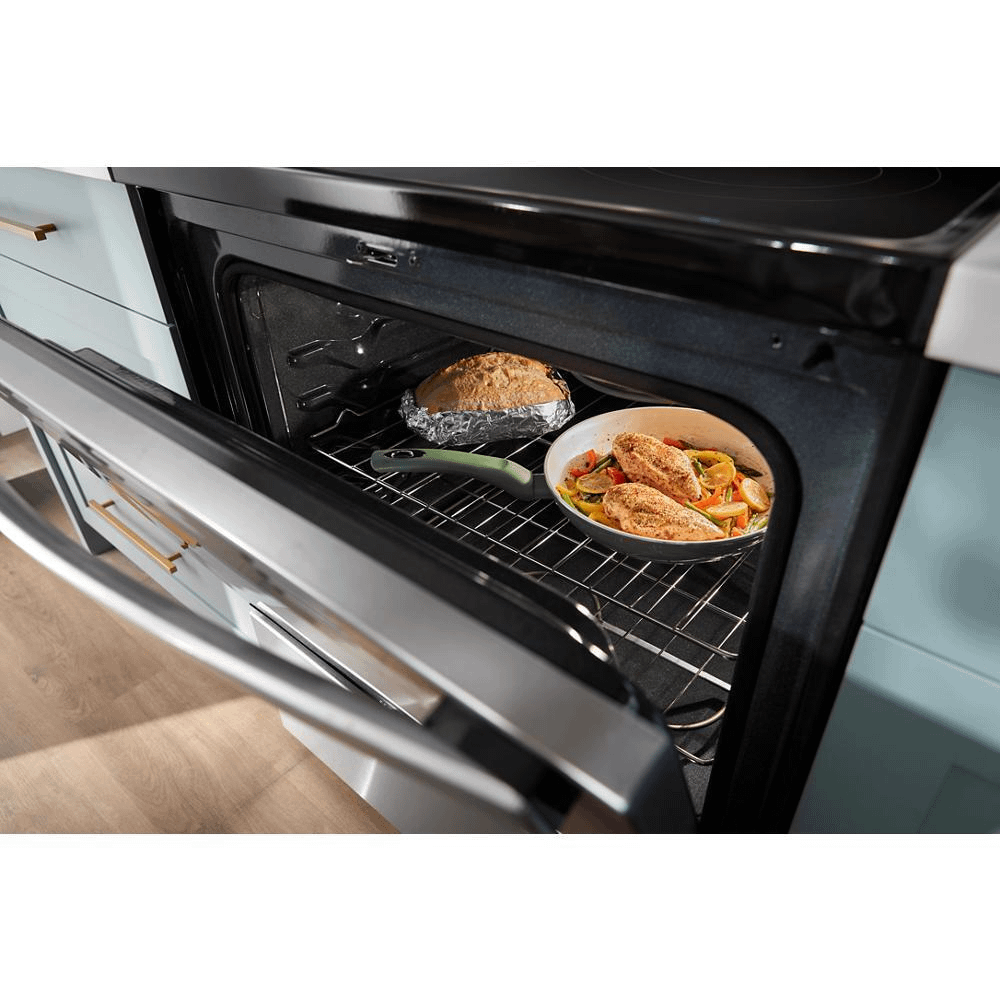

- 5.3 CuFt Capacity
- Cook for a crowd and fit large dishes, like a full-sized turkey, into the spacious 5.3 Cu. Ft. Capacity.
- Bake
- Spend less time monitoring with a built-in temperature sensor to help Bake evenly. This sensor manages oven temperature for delicious results every time.

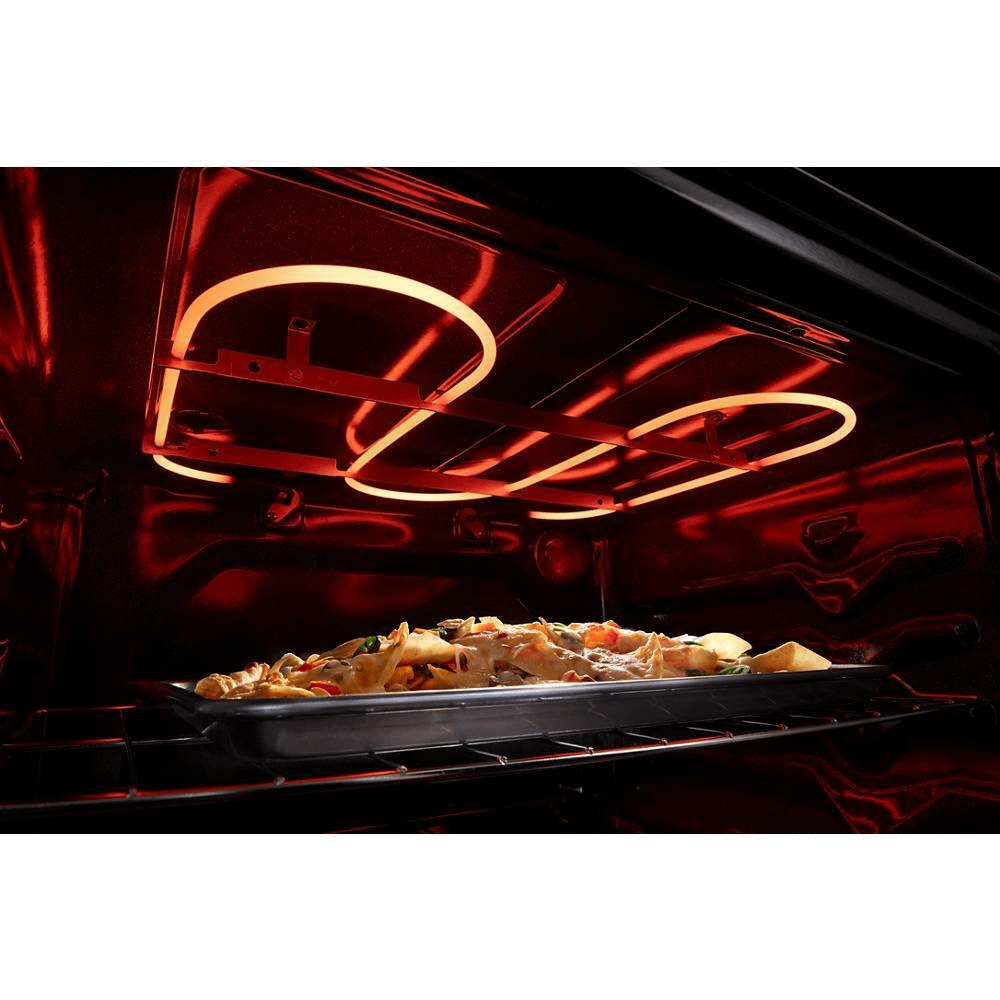

- Broil
- Redefine mealtime with Broil to make crispy-melty nachos, juicy-seared meat, toasty grilled cheese and more.
- Cooktop Flexibility
- Easily cook multiple dishes at once with a Flexible Cooktop that offers a range of element sizes and power levels.
- Keep Warm Setting
- Use the Keep Warm Setting in the oven to help your dishes stay warm until your family is ready to dig in.

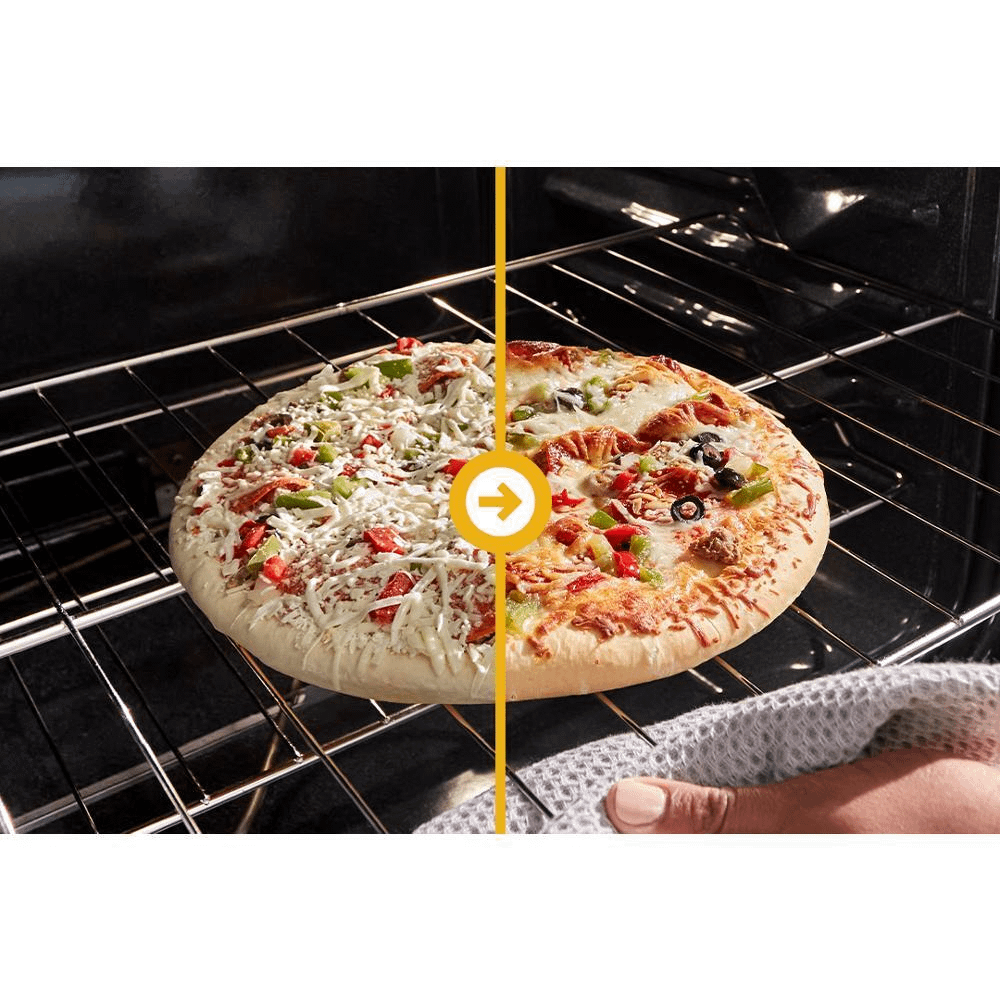

- No Preheat Mode
- Take preheating off your plate with No Preheat Mode. Simply place your food in the oven and start baking. The oven will adjust the cook time for frozen pizzas and more.
- Self-Clean Cycle
- Easily clean your oven with the adjustable Self-Clean Cycle that can be customized based on the amount of spills and splatters.

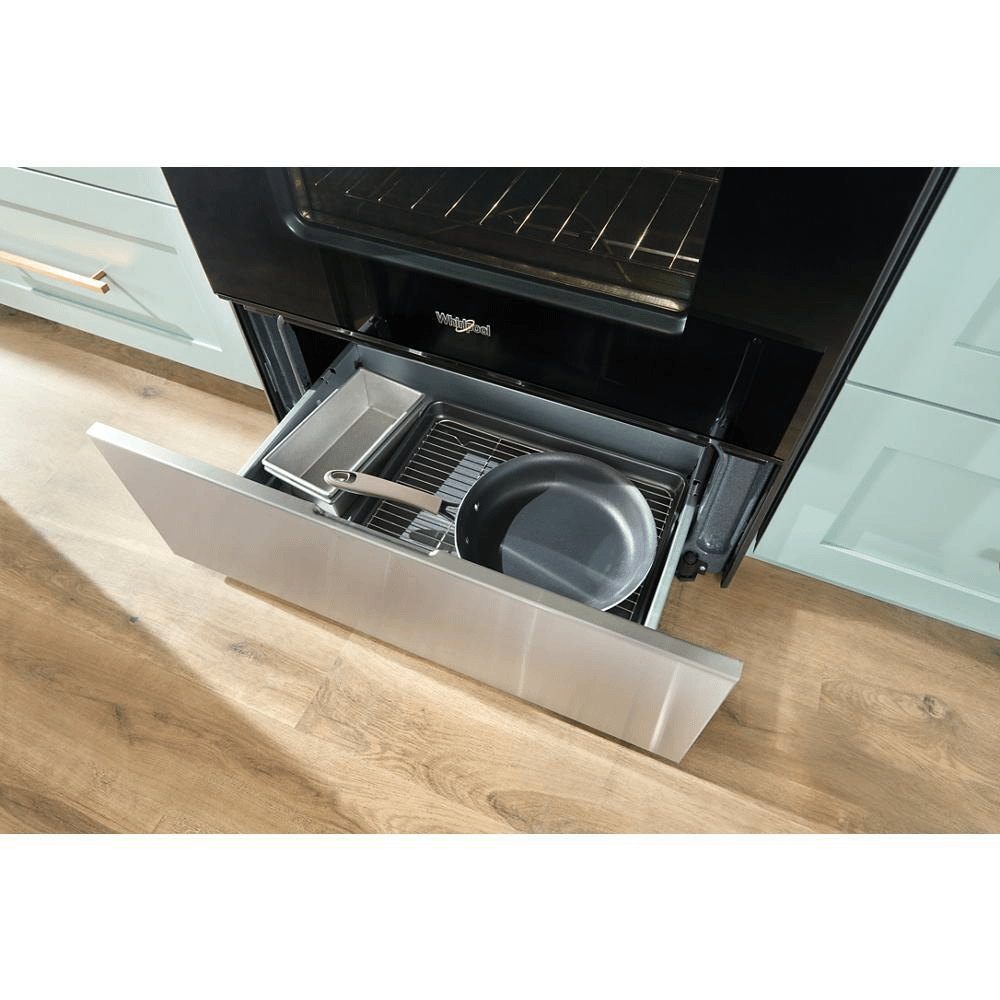

- Storage Drawer
- Easily store kitchen items, from baking sheets to cooking pans, in the Storage Drawer.
- Warm Zone
- Use the designated Warm Zone to keep your food warm on the cooktop as you prep the rest of your meal.
Certifications | |
Ada Compliant | No |
Cul | No |
Prop65 | Standard |
Ul | Yes |
Controls | |
Display Color | Blue |
Electronic Display Type | LED |
Cooktop Details | |
Cooktop Control Knob Color | Black |
Cooktop Control Knob Type | Plastic |

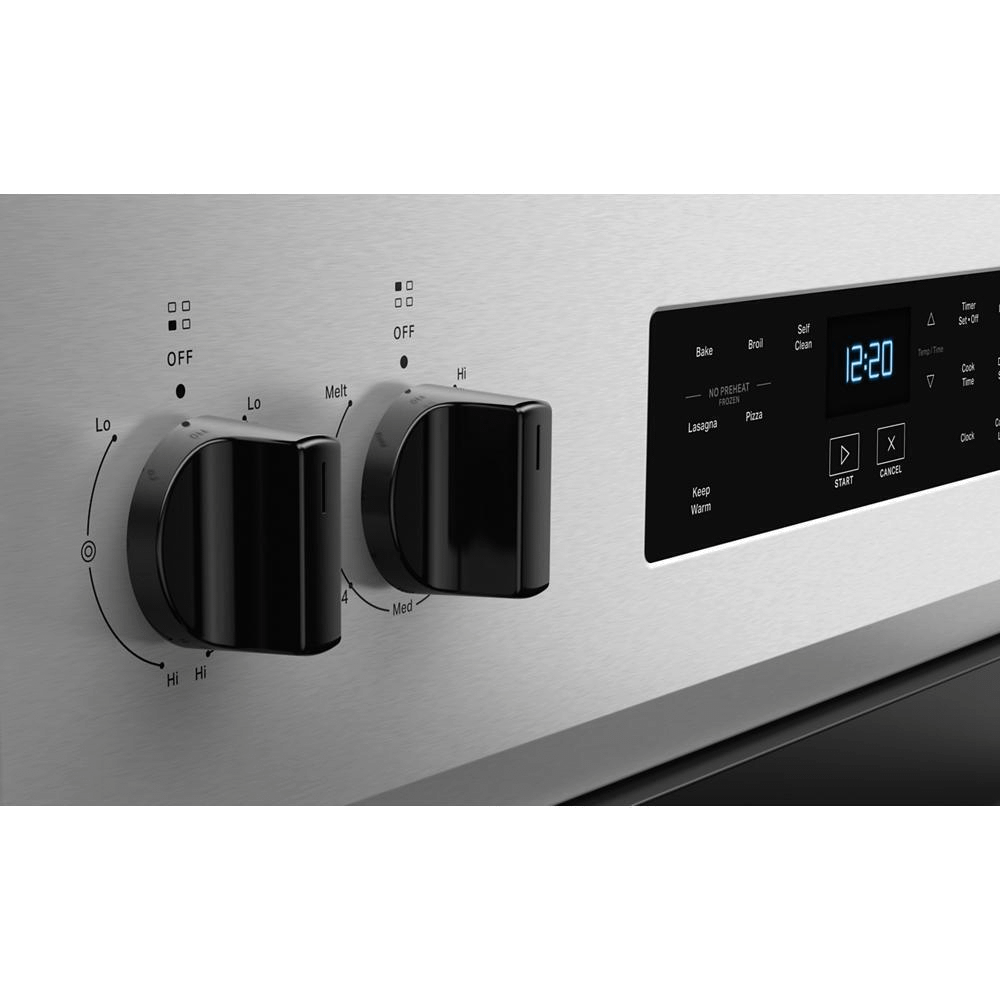

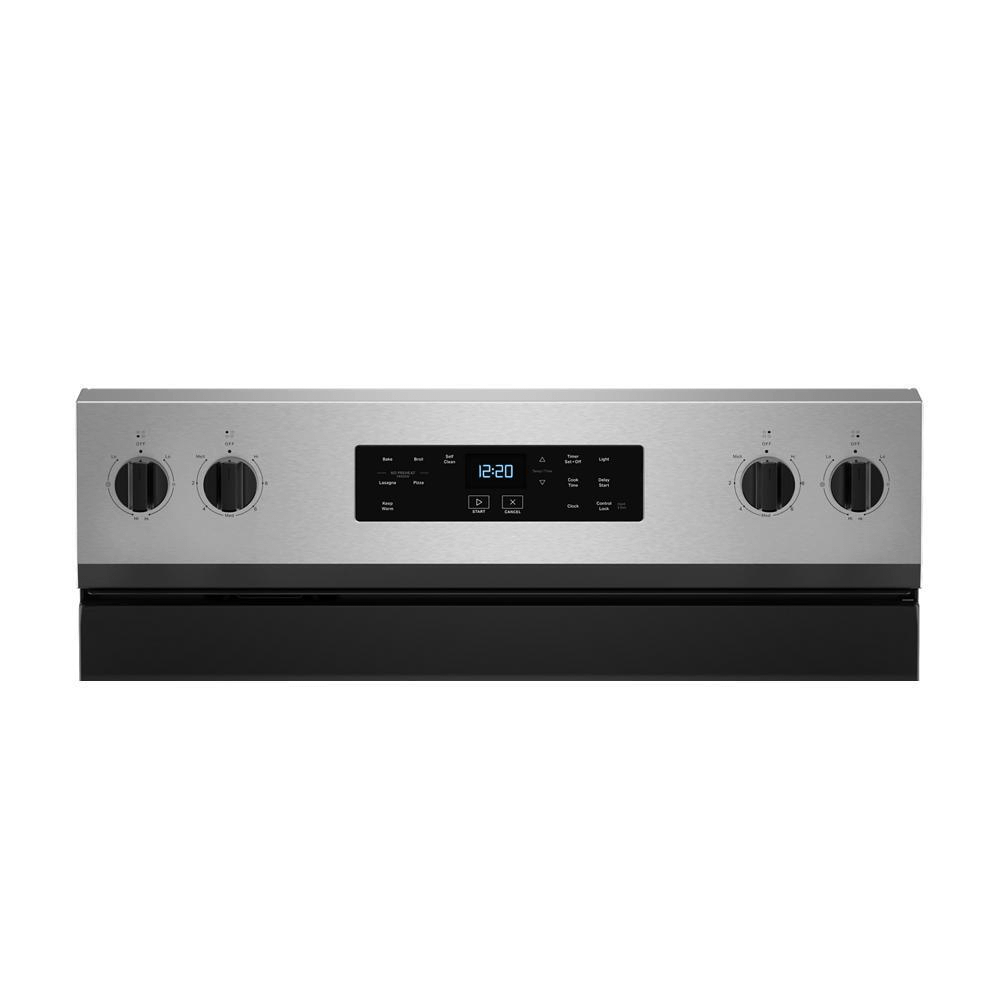

Cooktop Control Location | Backguard |
Cooktop Control Type | Knobs |
Cooktop Surface Color | Black |
Cooktop Surface Material | Glass |
Griddle Included | N/A |
Heating Element On Indicator Light | Yes |
Hot Surface Indicator Light | Yes |
Details | |
Automatic Convection Conversion Temperature Adjust | No |
Fuel Type | Electric |
Installation Configuration | Freestanding |
Oven Automatic Shut-off | Yes |
Oven Configuration | Single Oven |
Oven Light Switch Location | Oven Control |
Oven Selections | Audible Signal; Bake; Broil; Cancel/Off; Clock; Control Lock; Cook Time Indicator; Delay Start; Keep Warm Setting; No Preheat - Frozen Lasagna; No Preheat - Frozen Pizza; Oven Light; Sabbath Mode; Start Time; Stop Time; Timer |
Power On Indicator Light | Yes |
Power Outage Compatible | No |
Range Configuration | Freestanding |
Range Drawer Type | Storage Drawer |
Range Type | Freestanding |
Dimensions | |

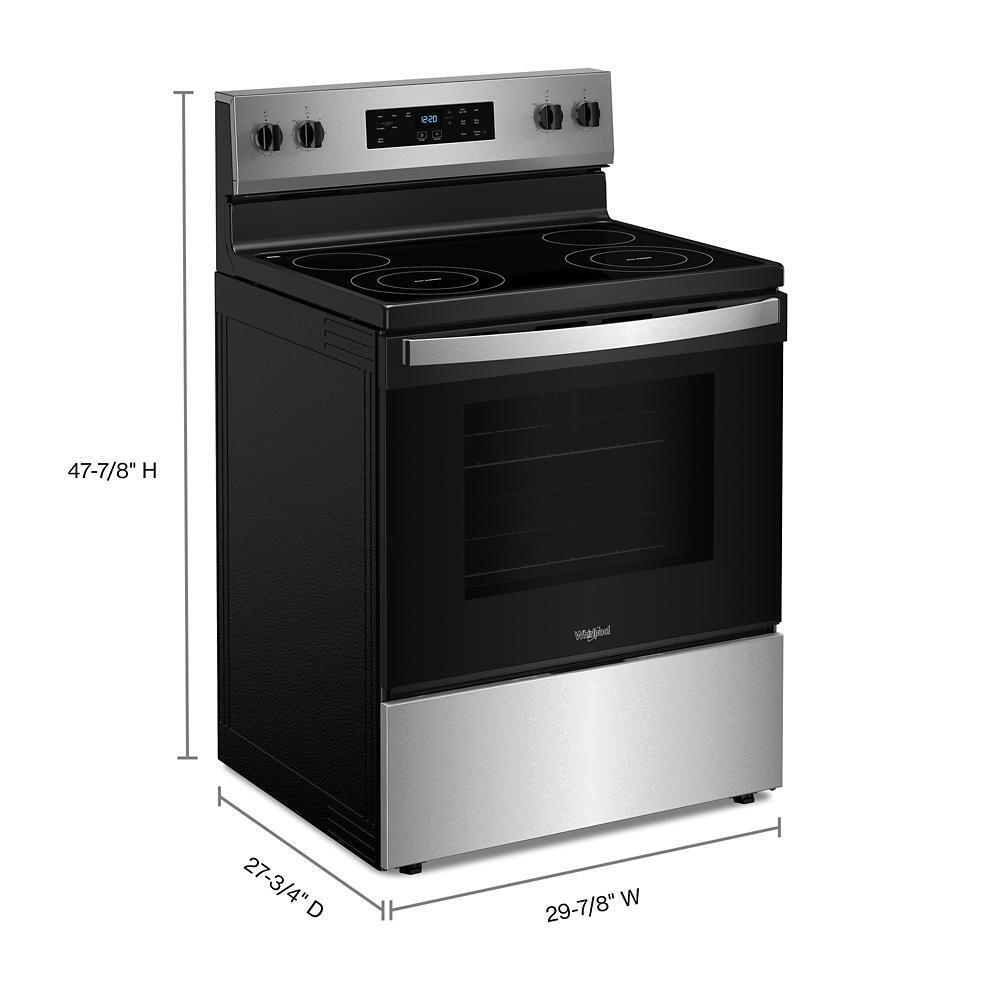

Product Height | 47.875 |
Carton Height | 49 |
Gross Weight | 160 |
Oven Interior Height | 18.13 |
Carton Width | 32 |
Product Depth | 27.75 |
Oven Interior Depth | 18.5 |
Depth With Door Open 90 Degree | 46.69 |
Cutout Depth | 24 |
Cutout Height | 36 |
Depth Closed Excluding Handles | 25.31 |
Depth Closed Including Handles | 28 |
Carton Depth | 29 |
Cutout Width | 30 |
Oven Interior Width | 24.5 |
Net Weight | 144 |
Product Width | 29.88 |
Electrical | |
Power Cord Included | No |
Element/burner Details | |
Cooktop Element Style | Radiant |

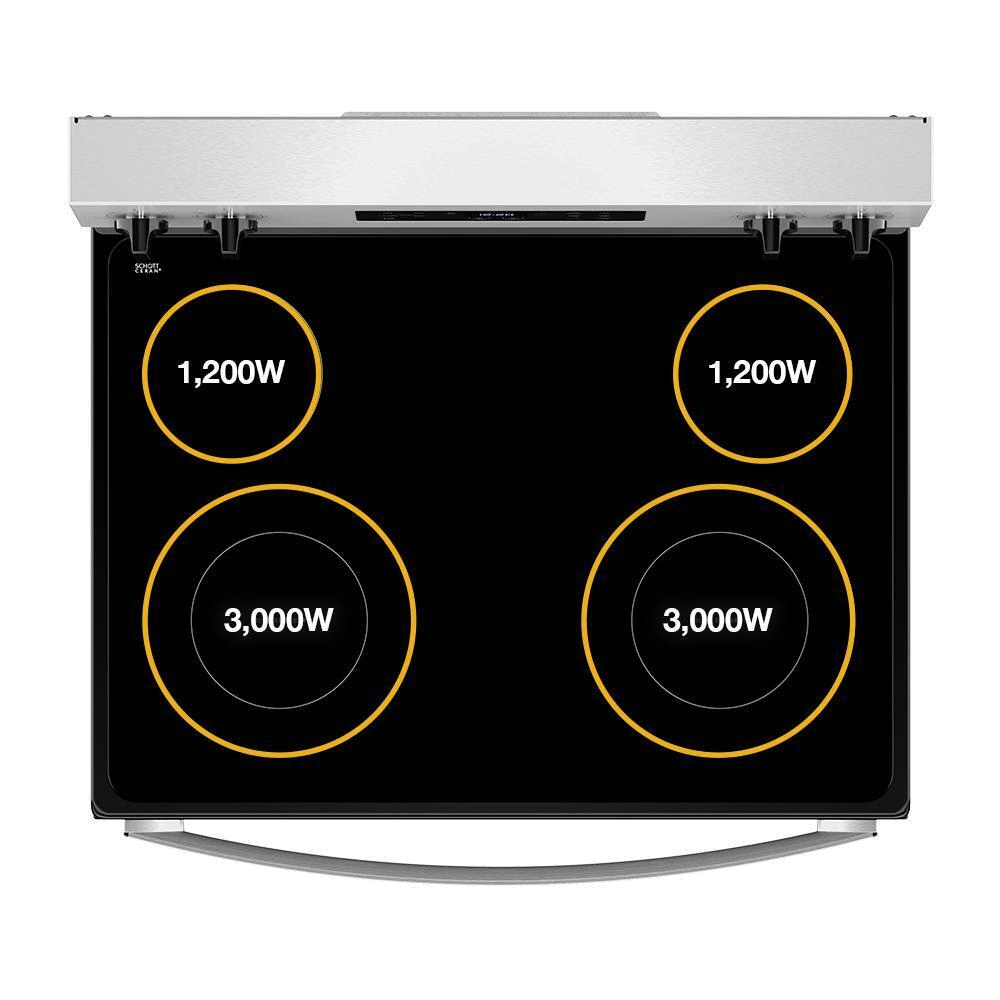

Left Front Element-burner Power | 3,000W |
Left Front Element-burner Size | 9in./6in. |
Left Front Element-burner Type | Dual |
Left Rear Element-burner Power | 1,200W |
Left Rear Element-burner Size | 6in. |
Left Rear Element-burner Type | Standard |
Number of Cooking Element-burners | 4 |
Right Front Element-burner Power | 3,000W |
Right Front Element-burner Size | 9in./6in. |
Right Front Element-burner Type | Dual |
Right Rear Element-burner Power | 1,200W |
Right Rear Element-burner Size | 6in. |
Right Rear Element-burner Type | Standard |
Exterior Details | |
Door Type | Glass |
Handle Color | Stainless Steel |
Handle Material | Metal |
Handle Type | Reach Through Handle |
Knob Color | Black |
Knob Type | Plastic |
Oven Control Knob Type | Plastic |
Oven Control Location | Backguard |
Oven Control Type | Electronic Touch |
Oven Window Size | Extra Large |
General | |
Console Language | English |
Literature Language | English; French; Spanish |
Oven Details | |
Bake Element Power | 2,400 W |
Broiler Element Power | 3,400 W |
Broiler Location | Top Center |
Door Removable | Yes |
Hidden Bake Element | No |
Interior Color | Grey |
Number of Oven Lights | 1 |
Number of Oven Racks | 2 |
Number of Rack Guides | 5 |
Oven Cleaning Type | Self-Cleaning |
Oven Cooking System | Thermal |
Oven Light Type | Incandescent |
Oven Rack Front Material | Metal |
Oven Rack Guide Type | Molded |
Oven Rack Type | Standard (Both) |
