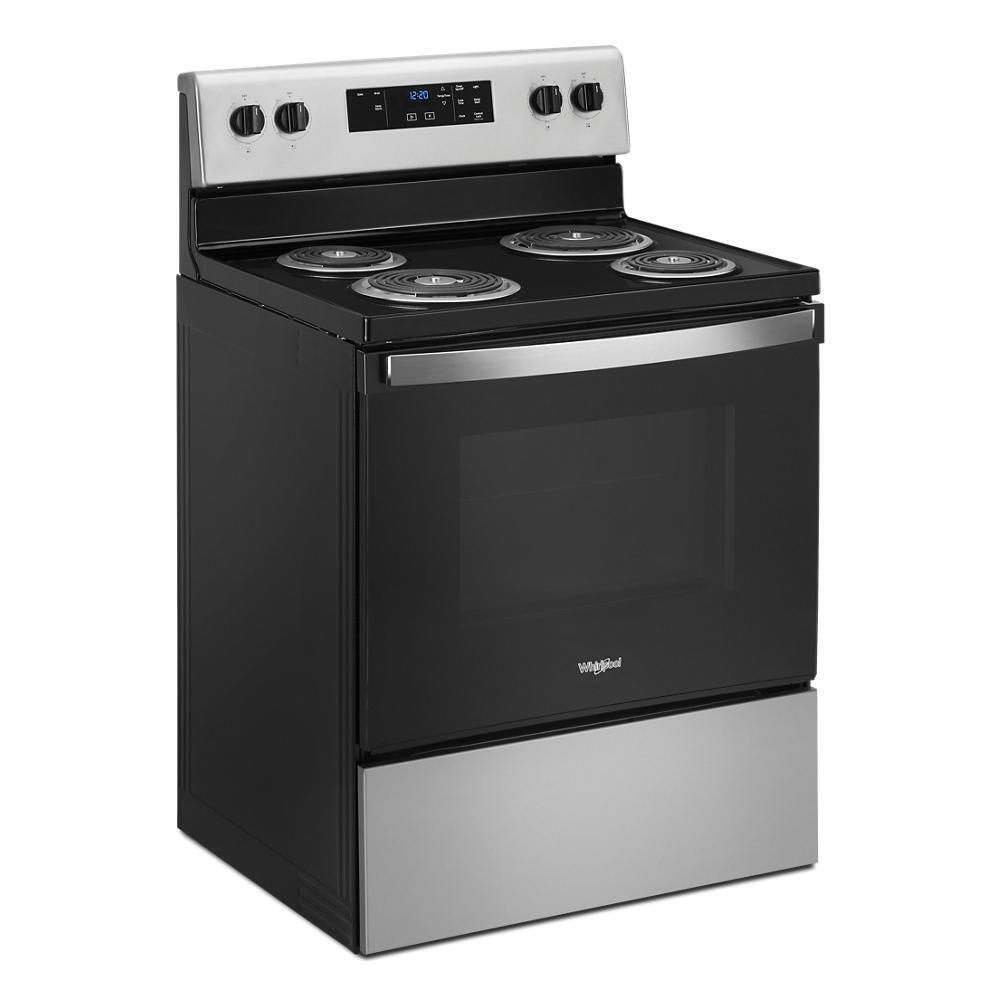

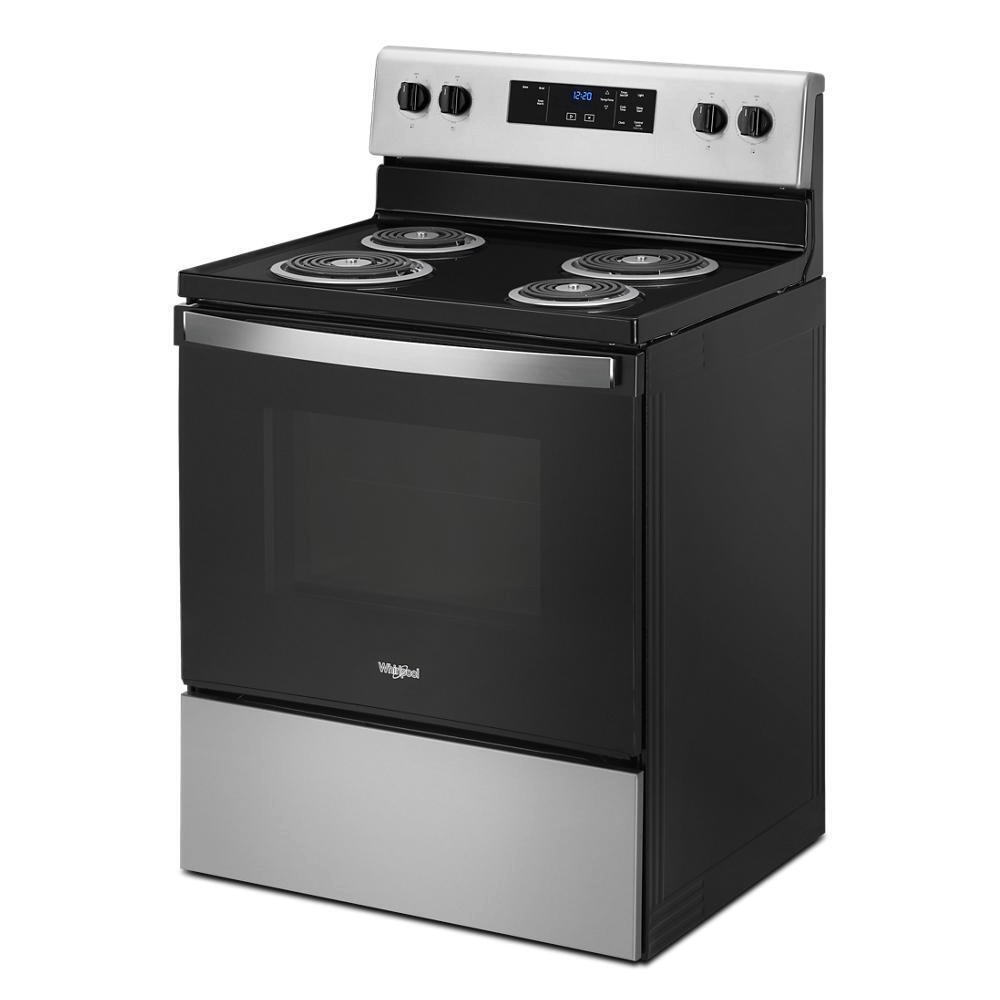

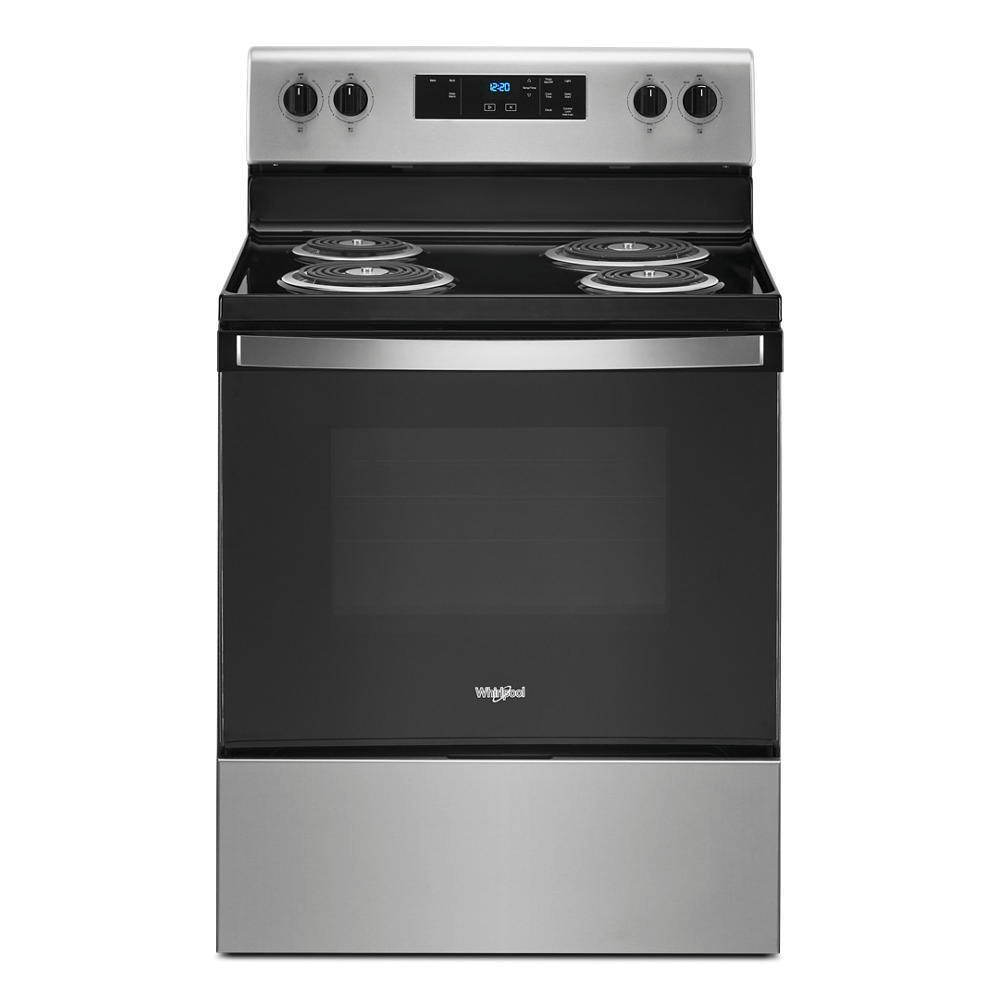

This Whirlpool® Electric Range helps you get dinner to the table, even on a hectic schedule. The Keep Warm setting prevents dinner from getting cold. Closed door broiling helps keep the kitchen comfortable. You can also avoid unintended use with an oven control lock.

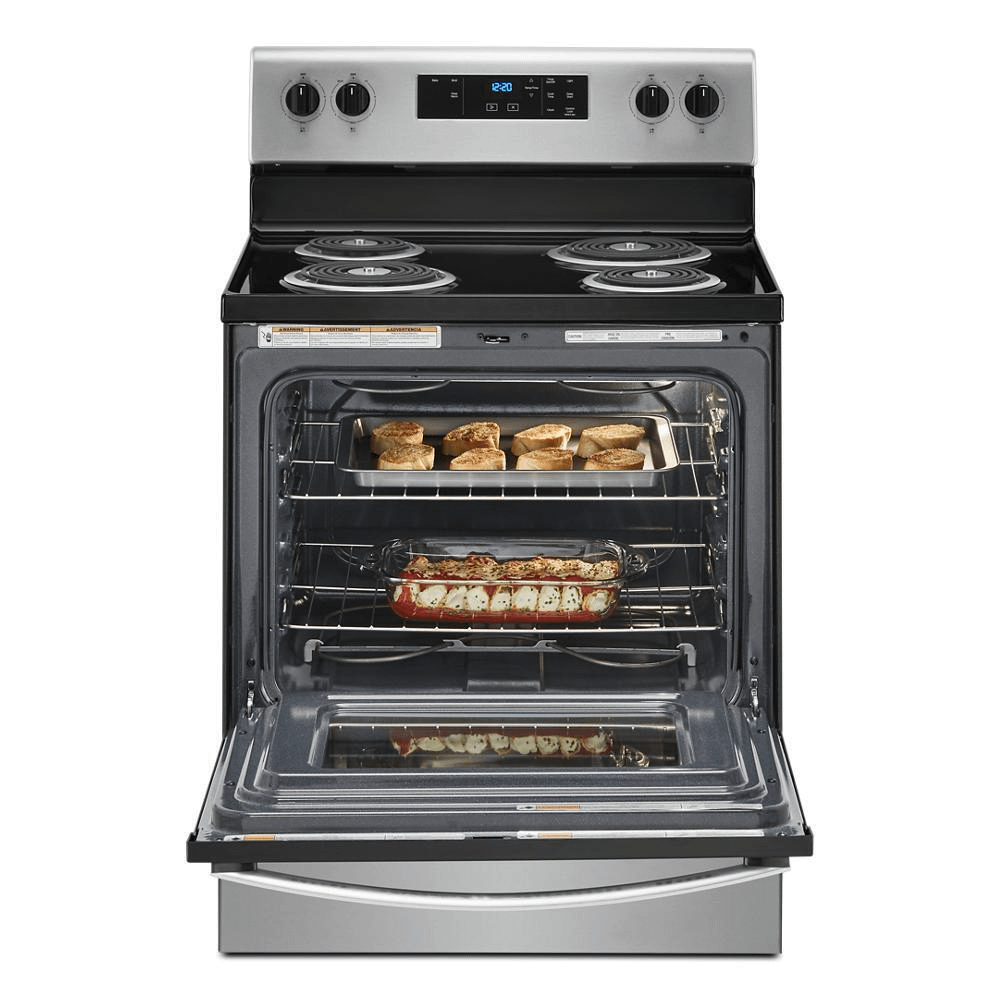

- 4.8 Cu. Ft. Capacity
- Easily cook large meals with 4.8 cu. ft. capacity.
- An American company for over 100 years
- Whirlpool Corporation started in 1911 as a small company in Benton Harbor, Michigan. Today we are a global home appliance business selling products around the world. We are proud of our American heritage and ingenuity that have driven innovation for over 100 years.
- Whirlpool Corporation started in 1911 in Benton Harbor, Michigan. Today we are a global home appliance business selling products around the world. We are proud of our American heritage and ingenuity that have driven innovation for over 100 years.
- Closed Door Broiling
- Maintain the optimal broiling temperature for food while still keeping the kitchen comfortable using this broiling temperature management system.
- Control Lock Mode
- Disable the control panel to avoid unintended use and easily clean controls.

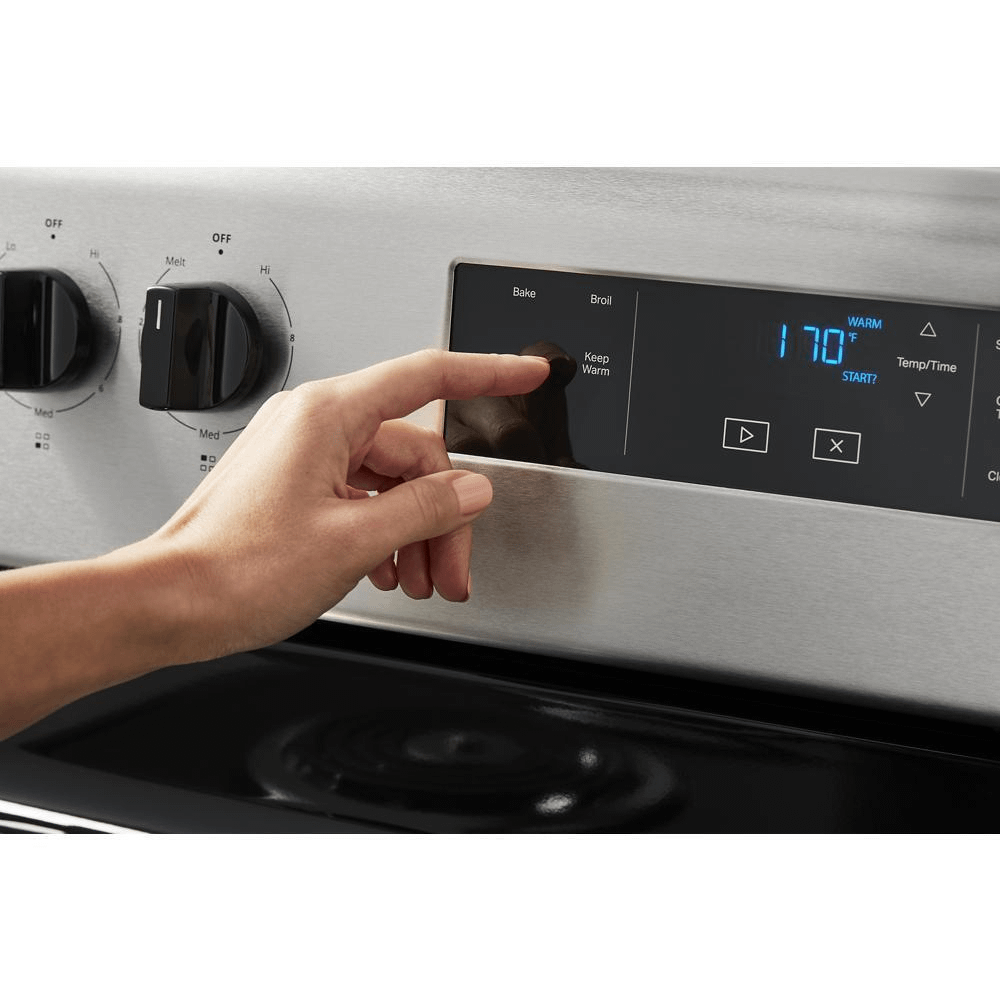

- Keep Warm setting
- Keep dishes from getting cold with a setting that delivers low heat to the oven, so your meal is ready when you are.

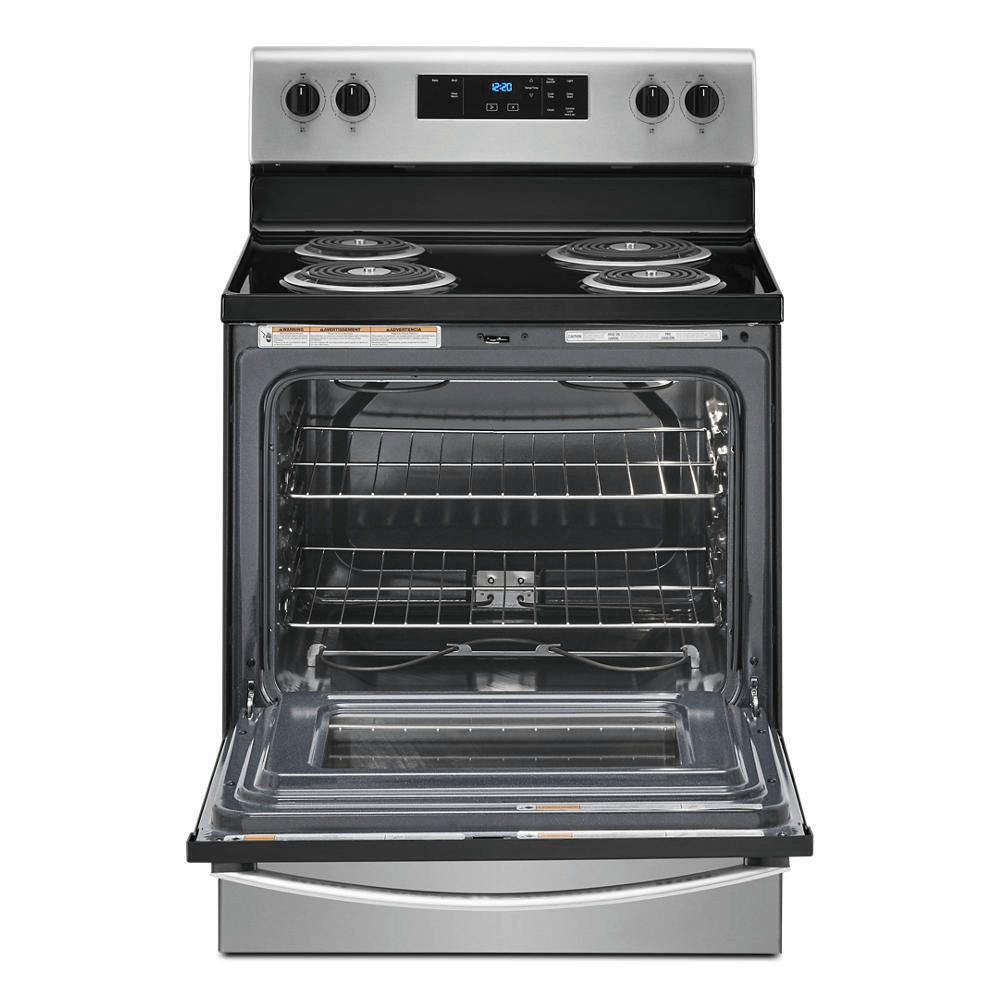

- Large Oven Window
- Keep an eye on your meal and track cooking progress through the Large Oven Window.
- Upswept SpillGuard(TM) Cooktop
- Clean up faster with a cooktop that has raised edges to help contain spills.
Certifications | |
Ada Compliant | No |
Cul | No |
Prop65 | Standard |
Ul | Yes |

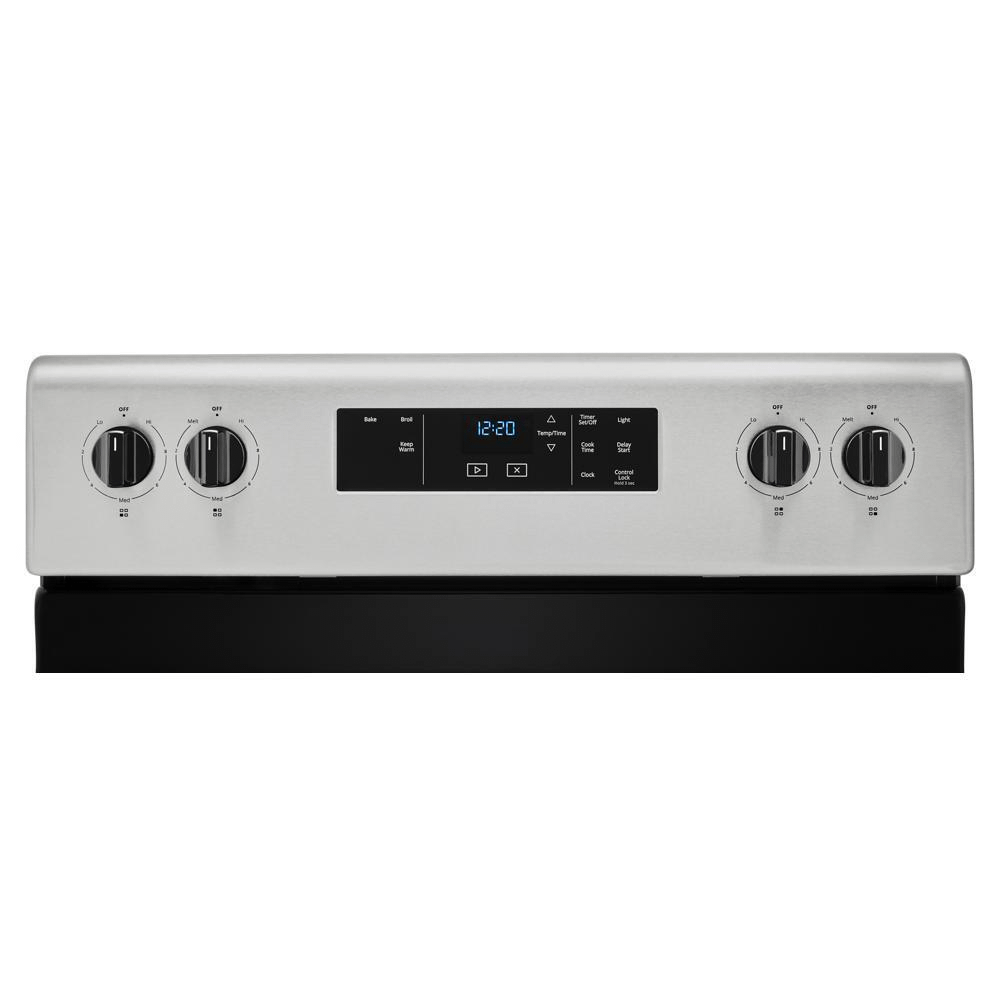

Controls | |
Display Color | Blue |
Electronic Display Type | LED |
Cooktop Details | |

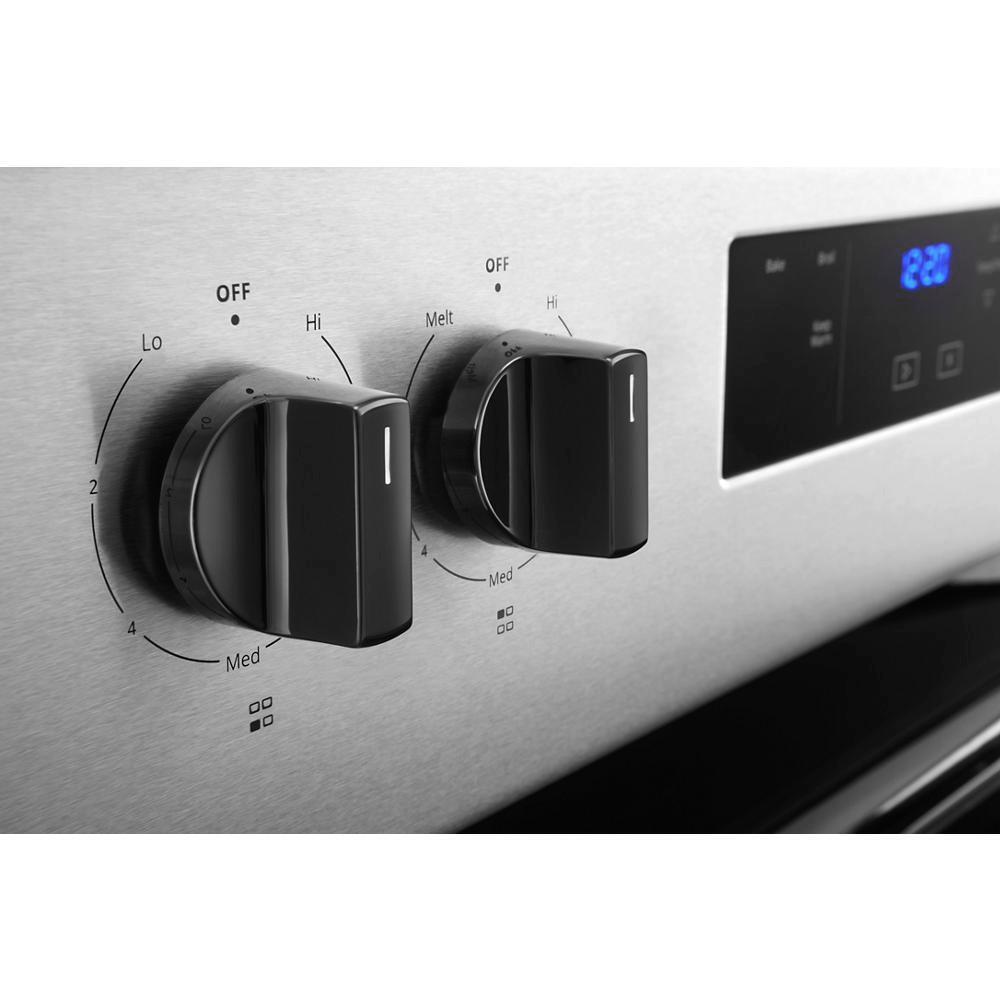

Cooktop Control Knob Color | Black |
Cooktop Control Knob Type | Plastic |
Cooktop Control Location | Backguard |
Cooktop Control Type | Knobs |
Cooktop Surface Color | Black |
Cooktop Surface Material | Porcelain Coated Steel |
Griddle Included | N/A |
Heating Element On Indicator Light | Yes |
Hot Surface Indicator Light | Yes |
Details | |
Automatic Convection Conversion Temperature Adjust | No |
Cooktop Configuration | All Burners |
Fuel Type | Electric |
Oven Automatic Shut-off | No |
Oven Configuration | Single Oven |
Oven Light Switch Location | Oven Control |
Oven Selections | Audible Signal; Bake; Broil; Cancel/Off; Clock; Control Lock; Cook Time Indicator; Delay Start; Keep Warm Setting; Sabbath Mode; Start Time; Stop Time; Timer; Warm Hold |
Power On Indicator Light | Yes |
Power Outage Compatible | No |
Range Configuration | Freestanding |
Range Drawer Type | Storage Drawer |
Range Type | Freestanding |

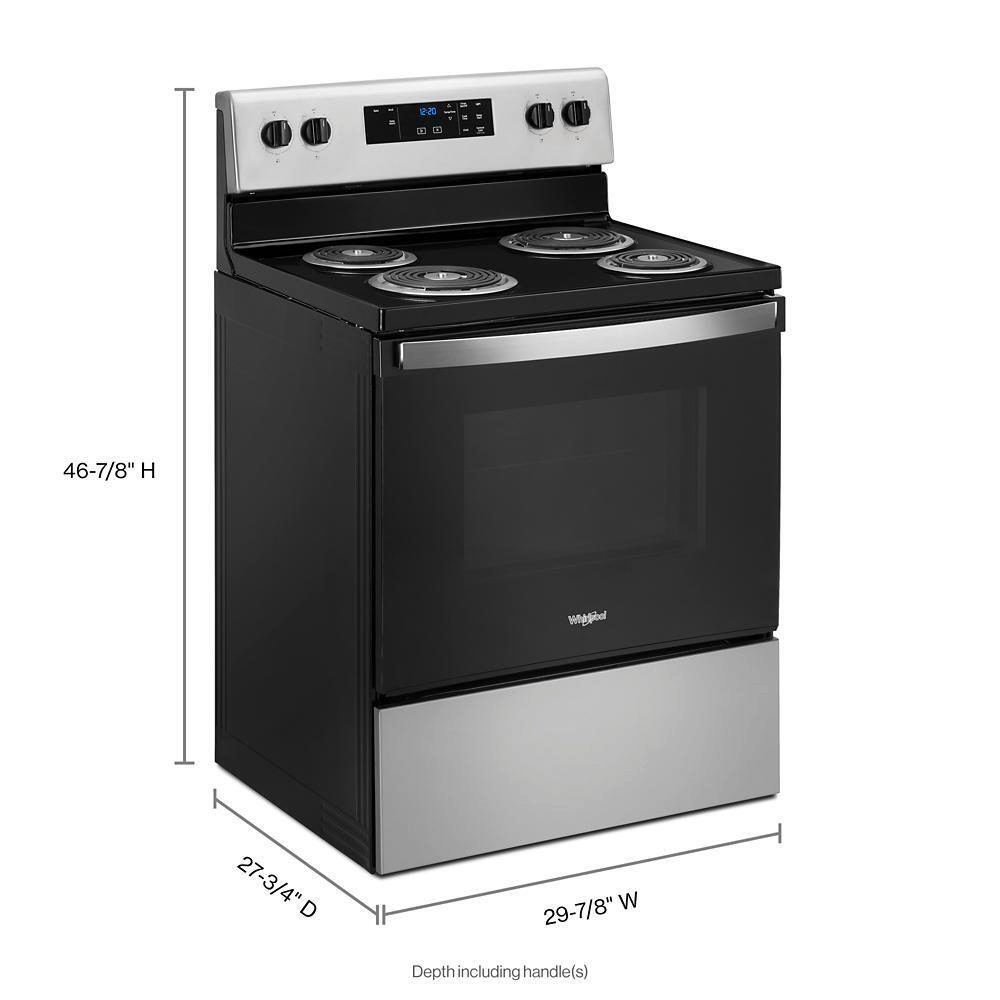

Dimensions | |
Product Height | 47.875 |
Carton Height | 48.75 |
Gross Weight | 148 |
Oven Interior Height | 18.125 |
Carton Width | 32 |
Product Depth | 28.0 |
Oven Interior Depth | 18.5 |
Depth With Door Open 90 Degree | 46.688 |
Cutout Depth | 24 |
Cutout Height | 36 |
Depth Closed Excluding Handles | 25.313 |
Depth Closed Including Handles | 28 |
Carton Depth | 29 |
Cutout Width | 30 |
Oven Interior Width | 24.5 |
Net Weight | 143 |
Product Width | 29.875 |
Electrical | |
Power Cord Included | No |
Element/burner Details | |

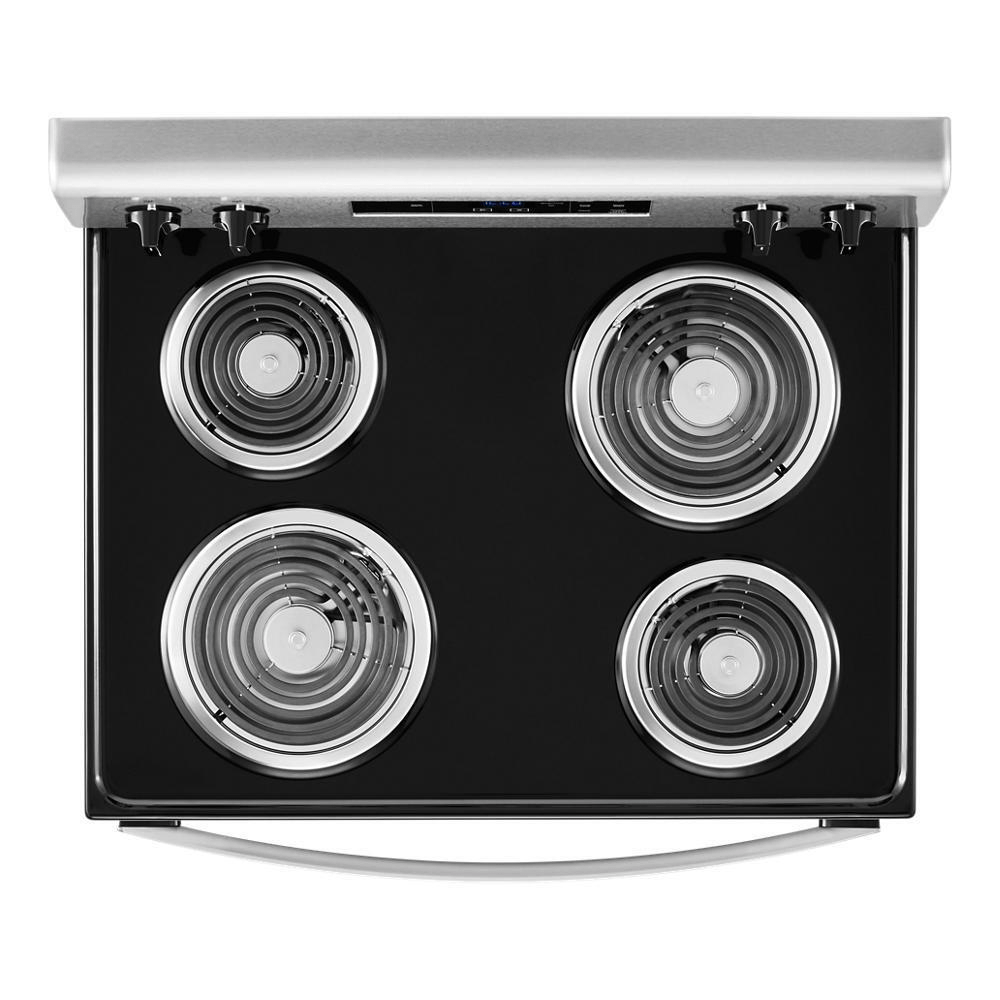

Cooktop Element Style | Coil |
Left Front Element-burner Power | 2,400W |
Left Front Element-burner Size | 8in. |
Left Front Element-burner Type | Standard |
Left Rear Element-burner Power | 1,500W |
Left Rear Element-burner Size | 6in. |
Left Rear Element-burner Type | Standard |
Number of Cooking Element-burners | 4 |
Right Front Element-burner Power | 1,500W |
Right Front Element-burner Size | 6in. |
Right Front Element-burner Type | Standard |
Right Rear Element-burner Power | 2,400W |
Right Rear Element-burner Size | 8in. |
Right Rear Element-burner Type | Standard |
Exterior Details | |
Door Type | Glass Window |
Handle Color | Stainless Steel |
Handle Material | Metal |
Handle Type | Reach Through Handle |
Oven Control Knob Color | Black |
Oven Control Knob Type | Plastic |
Oven Control Location | Backguard |
Oven Control Type | Electronic Touch |
Oven Window Size | Extra Large |
Oven Details | |
Bake Element Power | 2,400 W |
Broiler Element Power | 3,400 W |
Broiler Location | Top Center |
Door Removable | Yes |
Hidden Bake Element | No |
Interior Color | Black |
Number of Oven Lights | 1 |
Number of Oven Racks | 2 |
Number of Rack Guides | 5 |
Oven Cleaning Type | Manual Clean |
Oven Cooking System | Thermal |
Oven Light Type | Incandescent |
Oven Rack Type | Standard (Both) |
