Overview & Specifications
Overview & Specifications

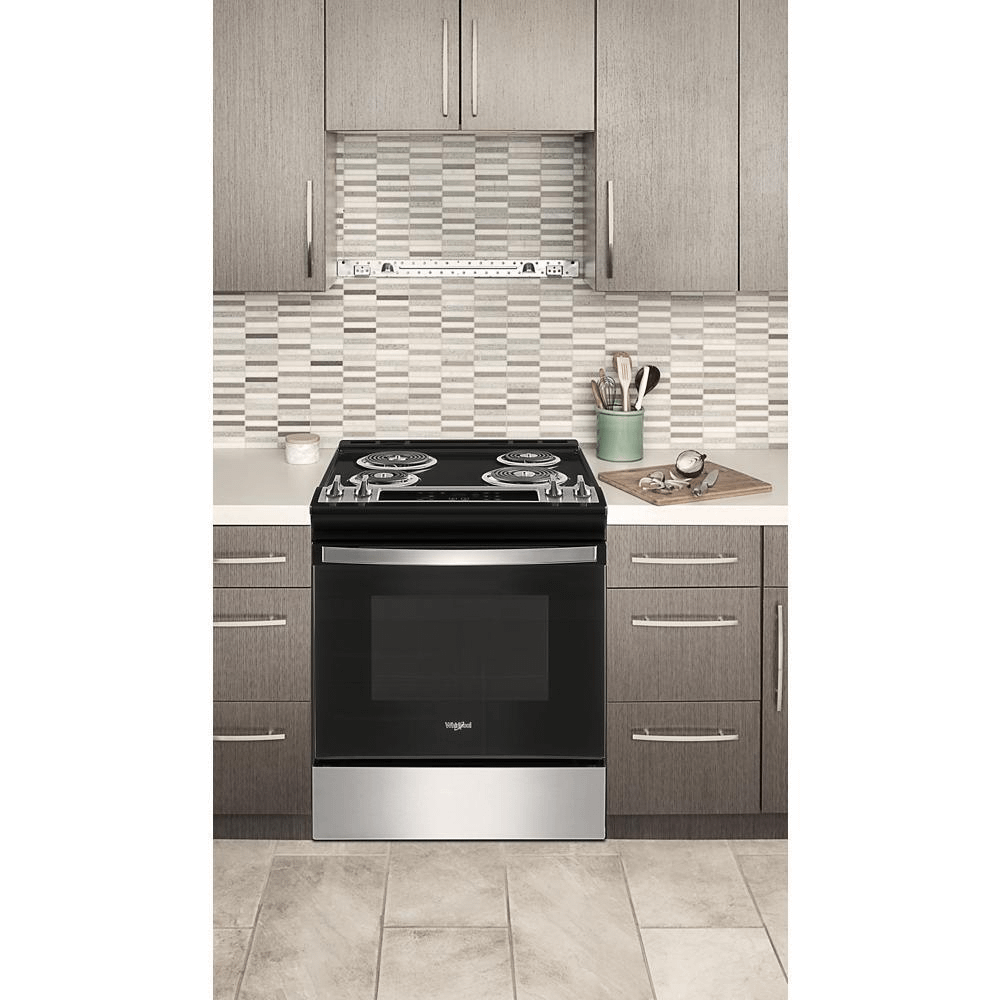

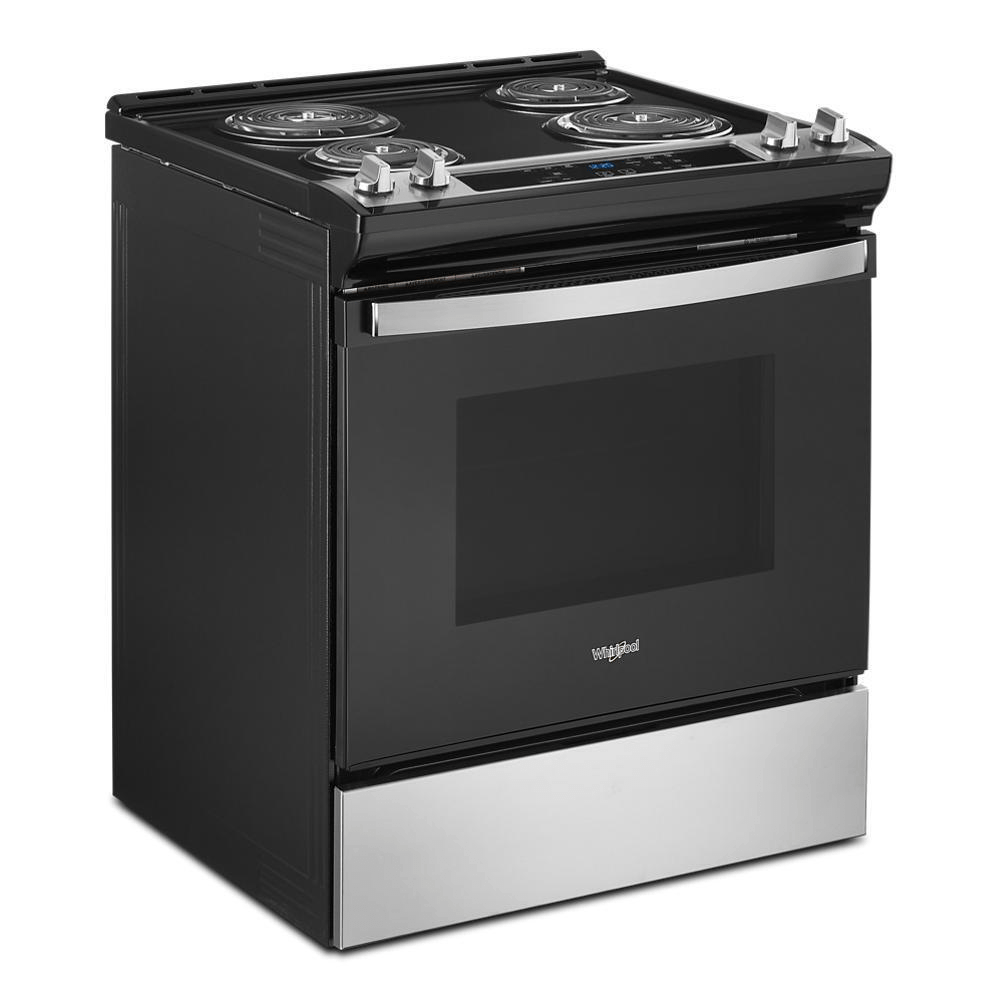

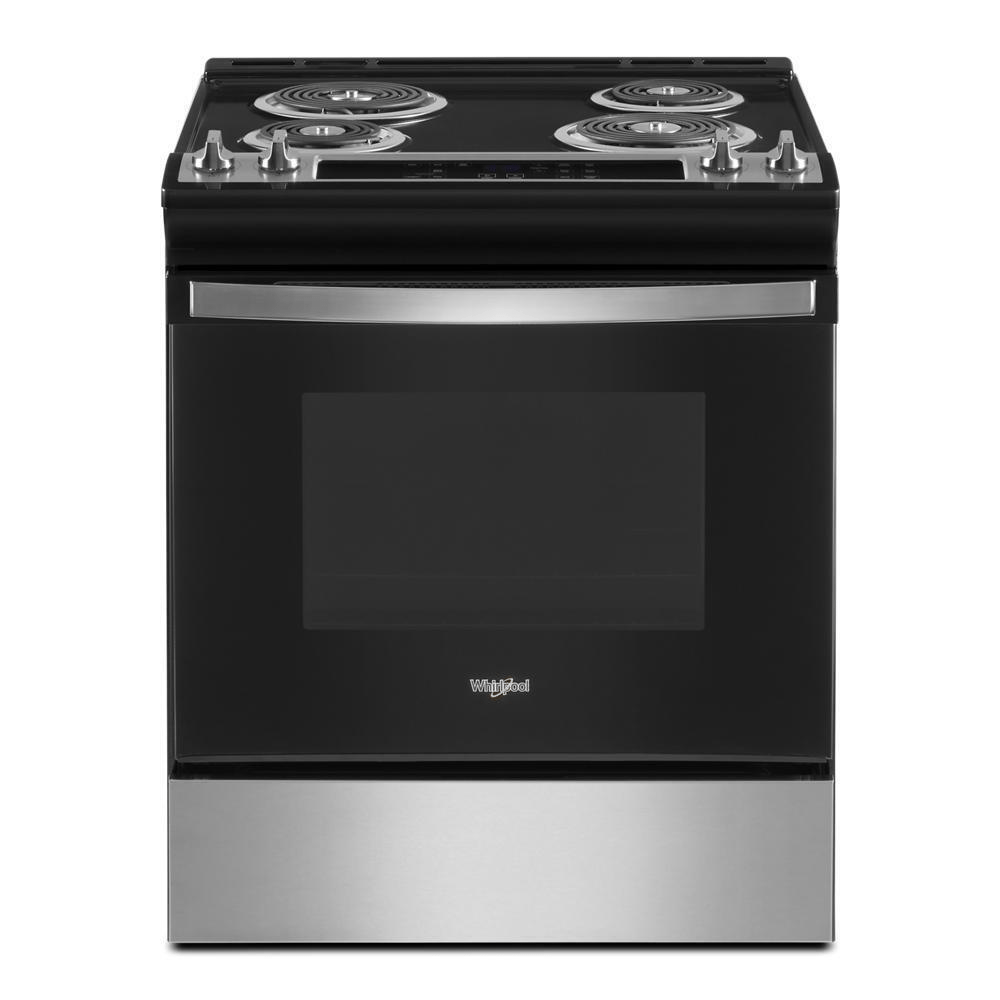

Simplify steps in your cooking process with an electric slide in range that lets you skip preheating using Frozen Bake™ Technology and get favorites like frozen pizza on the table quickly. It also features a high-temperature, adjustable self clean oven cycle so you can clean inside the oven without using chemicals.
- 4.8 Cu. Ft. Capacity
- Easily cook large meals with 4.8 Cu. Ft. Capacity
- ADA compliant
- This range meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.
- Adjustable Self-Clean Cycle
- Clean without harsh chemicals using the high temperature self-clean cycle. Adjust the cycle for various soil levels to keep your oven looking clean.
- Broil Setting
- When you place food close to the oven s top heating element using the Broil Setting, you can quickly sear meat, char vegetables, brown lasagna, caramelize the top of a casserole and more.
- Cooktop Indicator Lights
- Notice when the cooktop s still on or hot with Cooktop Indicator Lights, so you can finish every meal with added peace of mind.

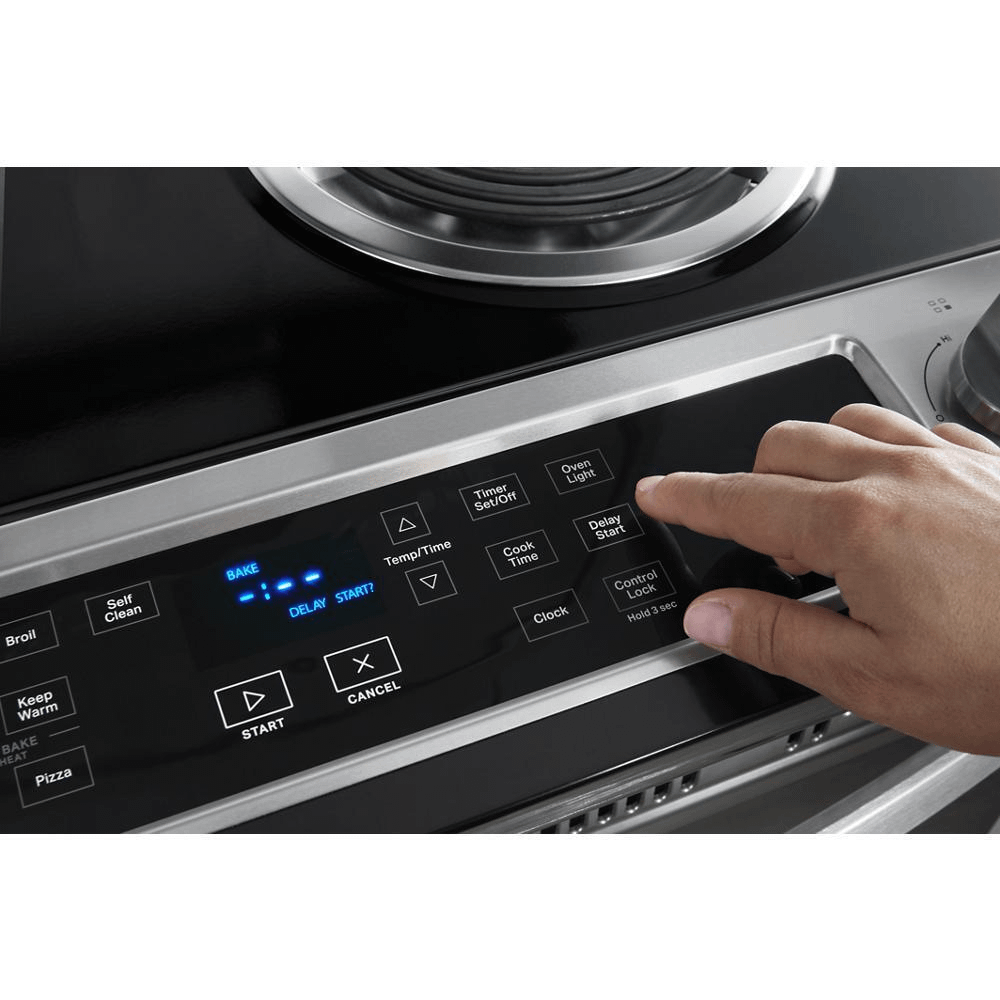

- Delay Start
- Program the oven to start baking at a future time so you can move onto other things, and still get dinner to the table on time.
- Frozen Bake(TM) Technology
- Skip preheating and cook frozen favorites like pizza in fewer steps with preprogrammed settings that automatically adjust cooking times for you.

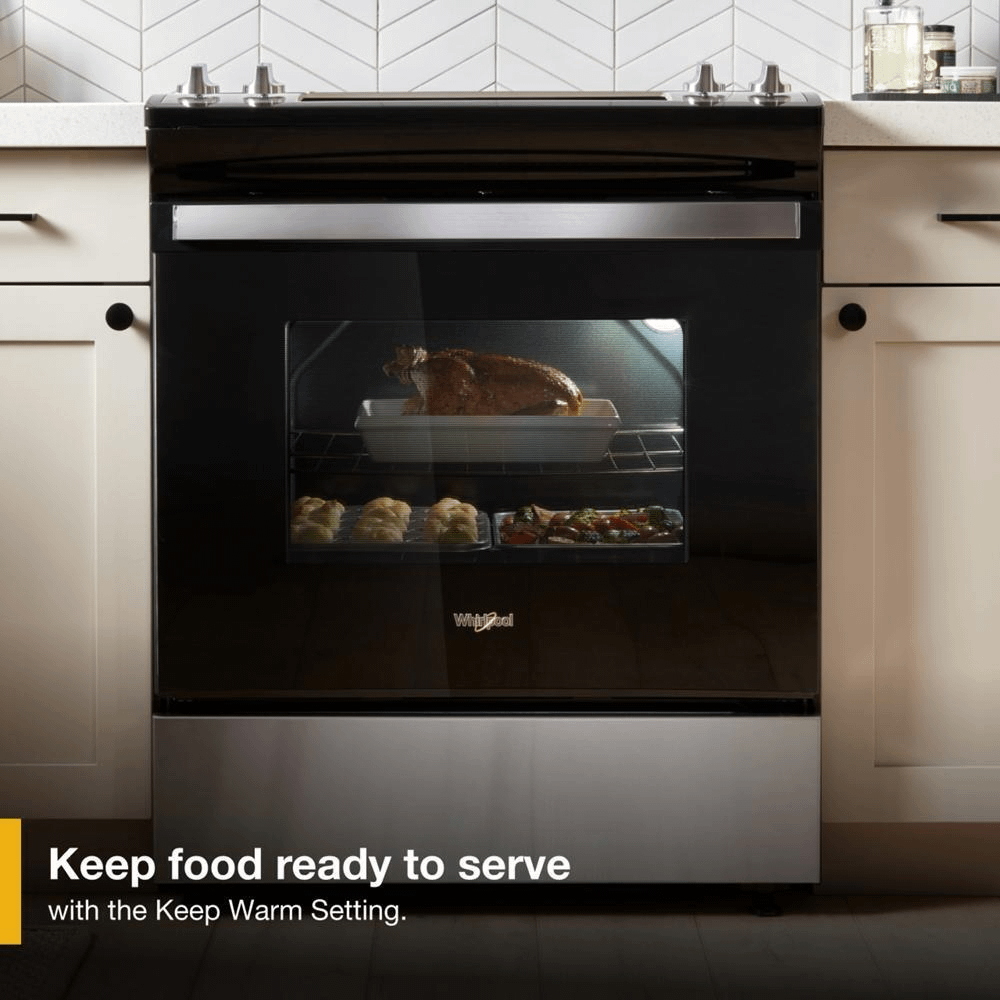

- Keep Warm Setting
- Keep dishes from getting cold with this setting that delivers low heat to the oven.

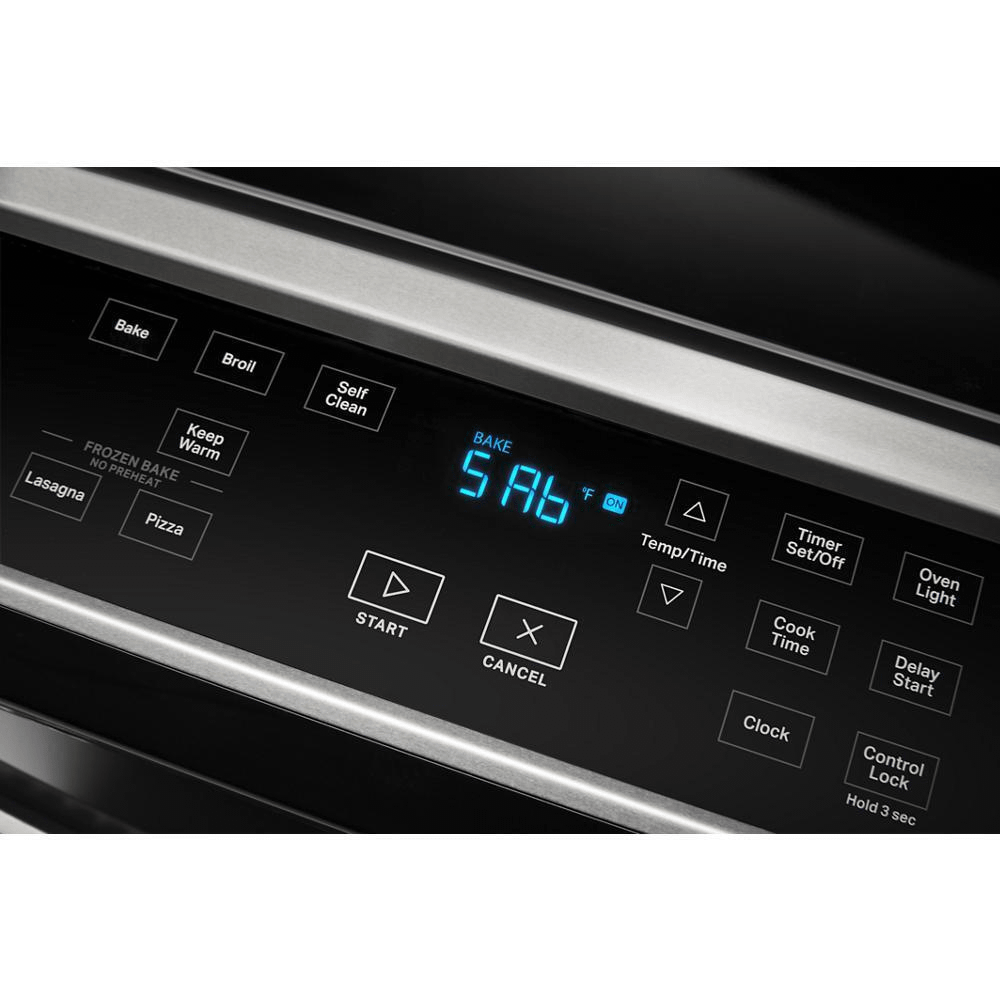

- Sabbath mode
- Use Sabbath mode to keep the oven on the "Bake" setting at a constant temperature until it's turned off. When this mode is enabled, displays, tones and all other cooking and cleaning cycles are disabled.
Certifications | |
Ada Compliant | Yes |
Prop65 | Standard |
Ul | Yes |

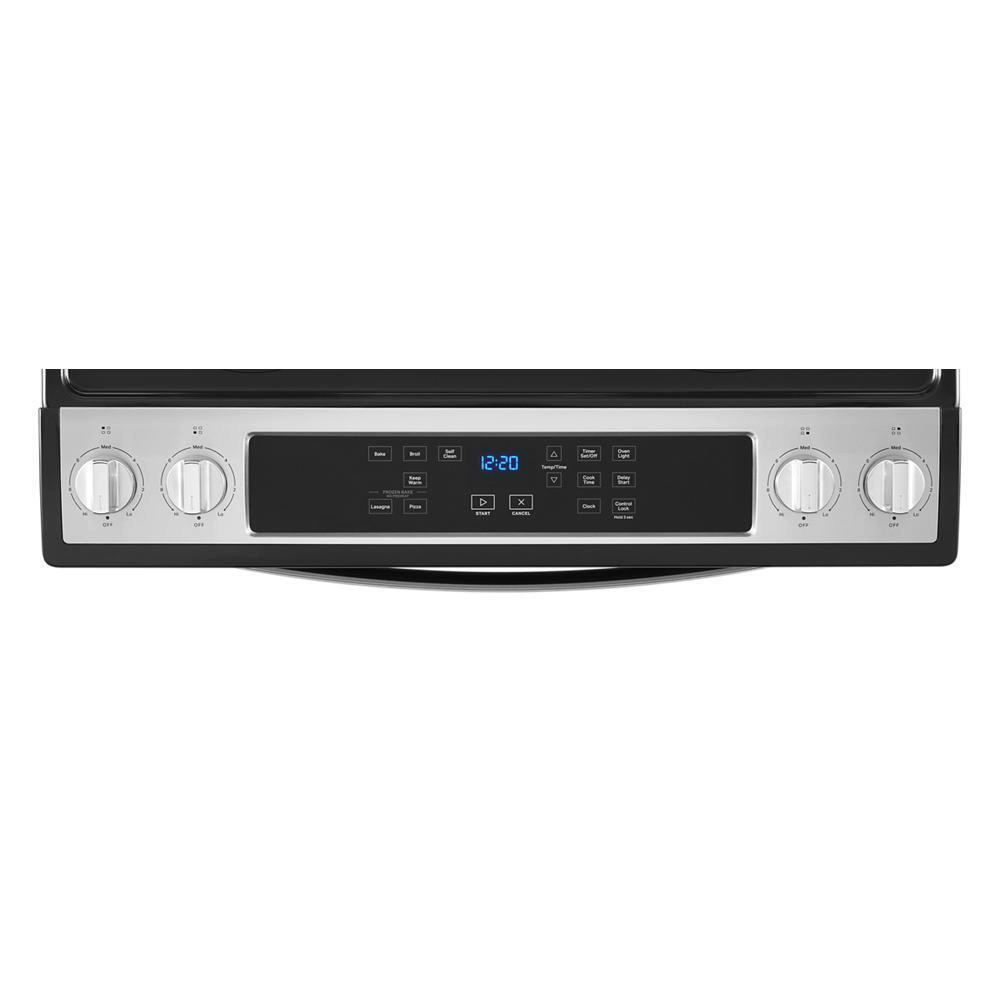

Controls | |
Display Color | Blue |
Electronic Display Type | LED |

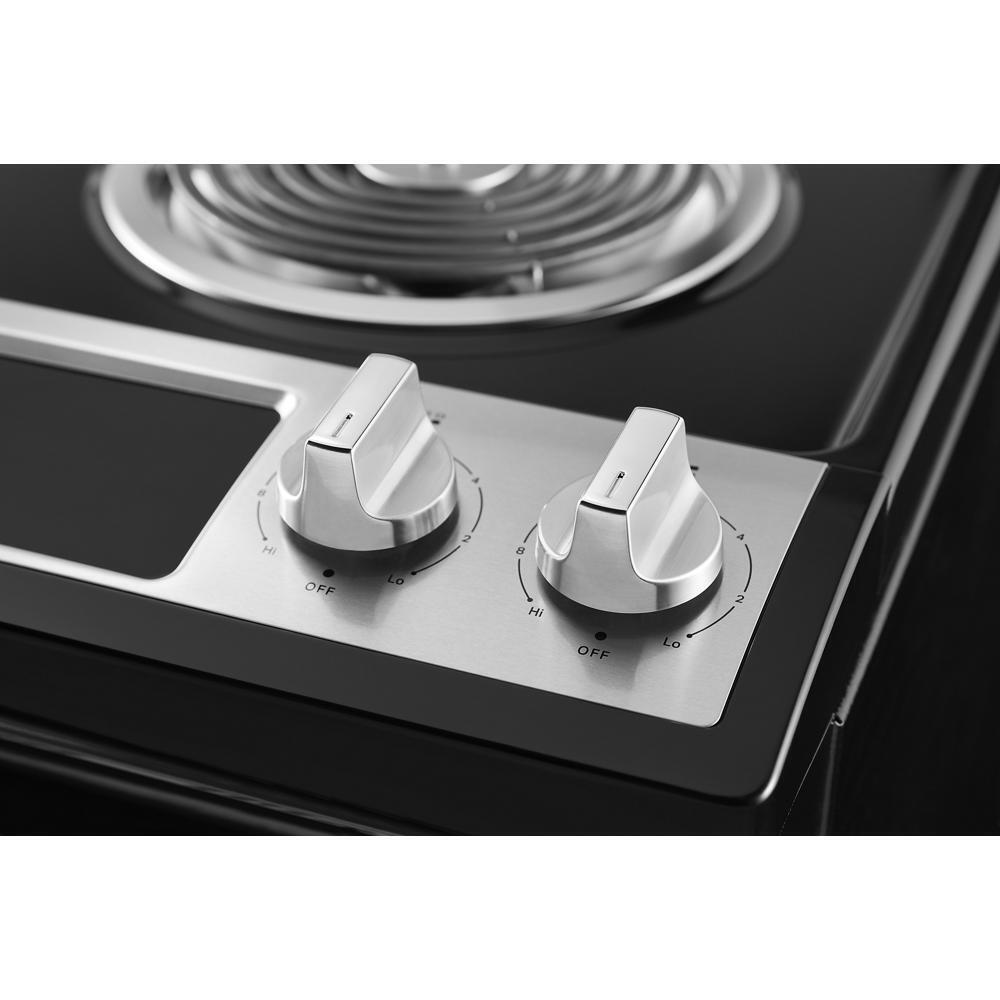

Cooktop Details | |
Cooktop Control Knob Color | Stainless Steel |
Cooktop Control Knob Type | Plastic |
Cooktop Control Location | Front |
Cooktop Control Type | Knobs |
Cooktop Surface Color | Black |
Cooktop Surface Material | Porcelain Coated Steel |
Griddle Included | N/A |
Heating Element On Indicator Light | Yes |
Hot Surface Indicator Light | Yes |
Details | |
Automatic Convection Conversion Temperature Adjust | No |
Cooktop Configuration | All Burners |
Fuel Type | Electric |
Oven Light Switch Location | Oven Control |
Oven Selections | Audible Signal; Bake; Broil; Cancel/Off; Clock; Control Lock; Cook Time Indicator; Delay Start; Frozen Bake; Keep Warm/Warm Hold; Sabbath Mode; Smart Mode; Timer |
Power Outage Compatible | No |
Range Drawer Type | Storage Drawer |
Range Type | Freestanding |

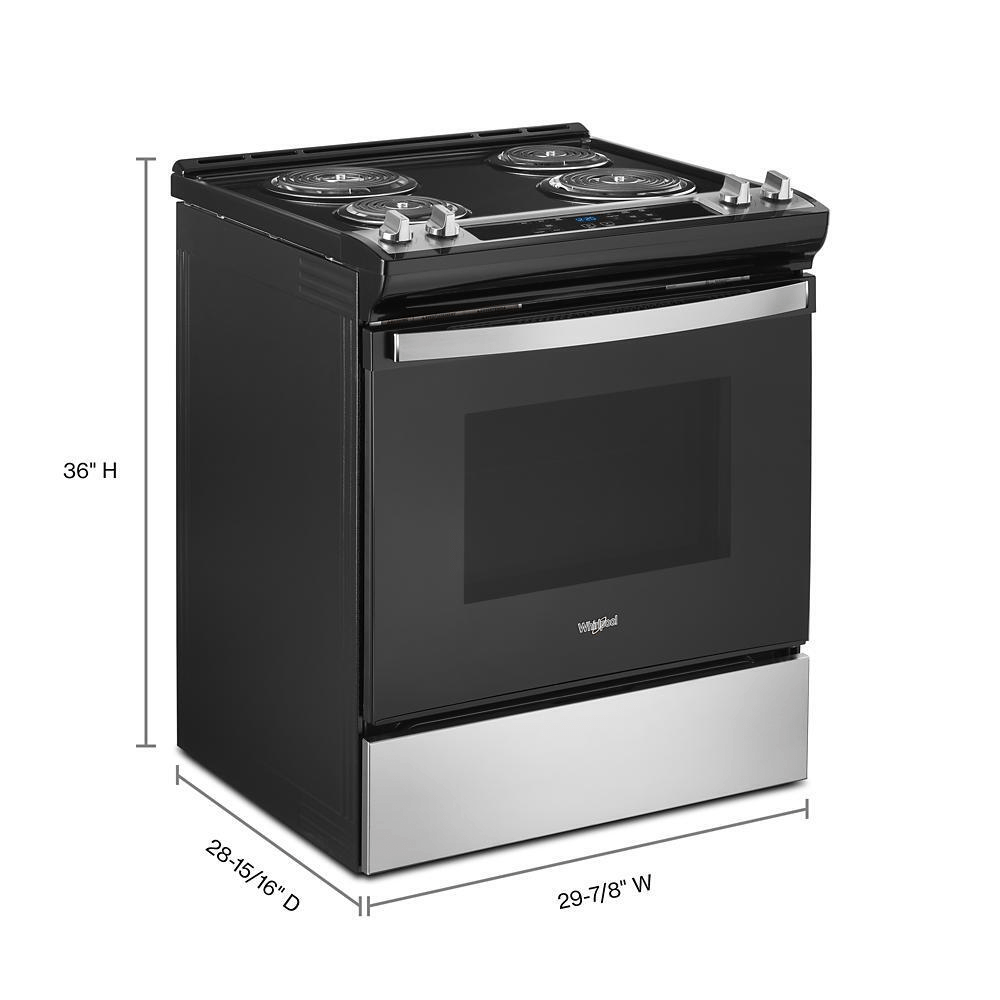

Dimensions | |
Carton Depth | 30.5 |
Carton Height | 43.5 |
Carton Width | 31.5 |
Cutout Depth | 24 |
Cutout Height | 36 |
Cutout Width | 30.125 |
Depth Closed Excluding Handles | 28.125 |
Depth With Door Open 90 Degree | 47.375 |
Gross Weight | 173 |
Net Weight | 156 |
Oven Interior Depth | 18.5 |
Oven Interior Height | 18.125 |
Oven Interior Width | 24.5 |

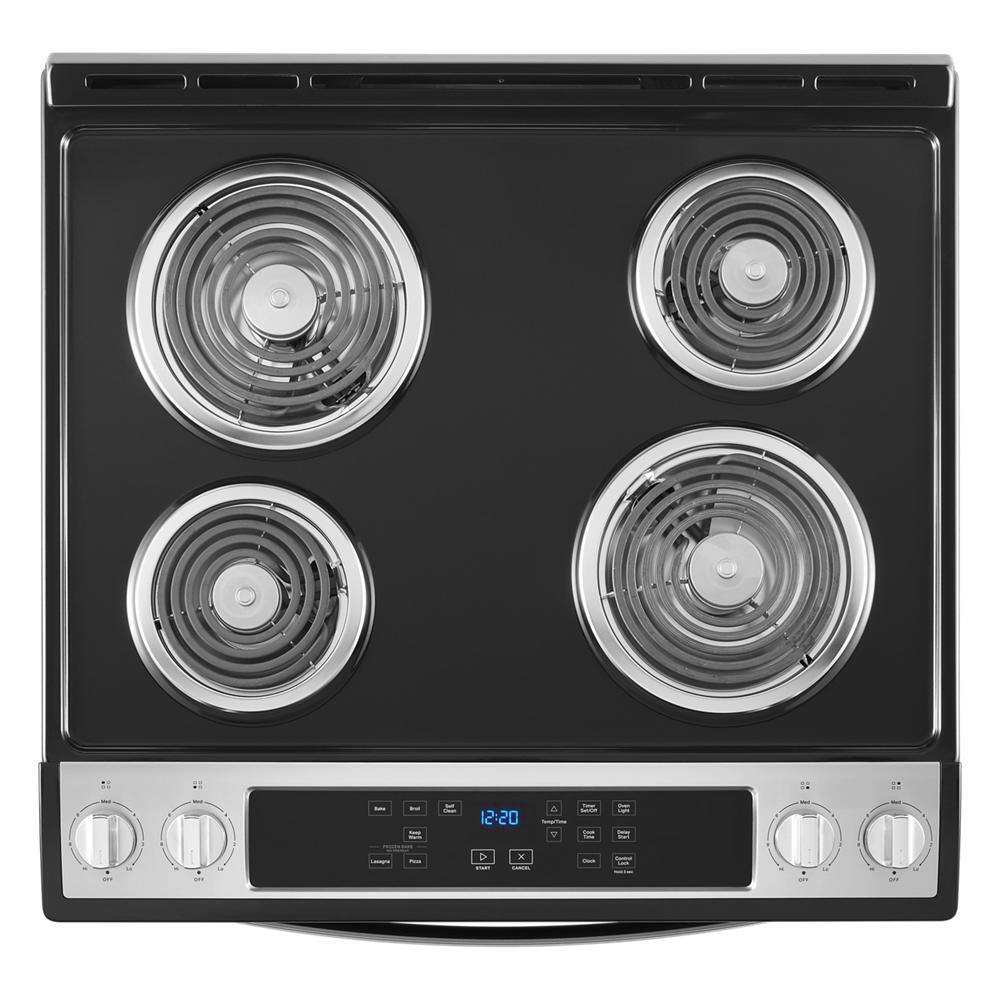

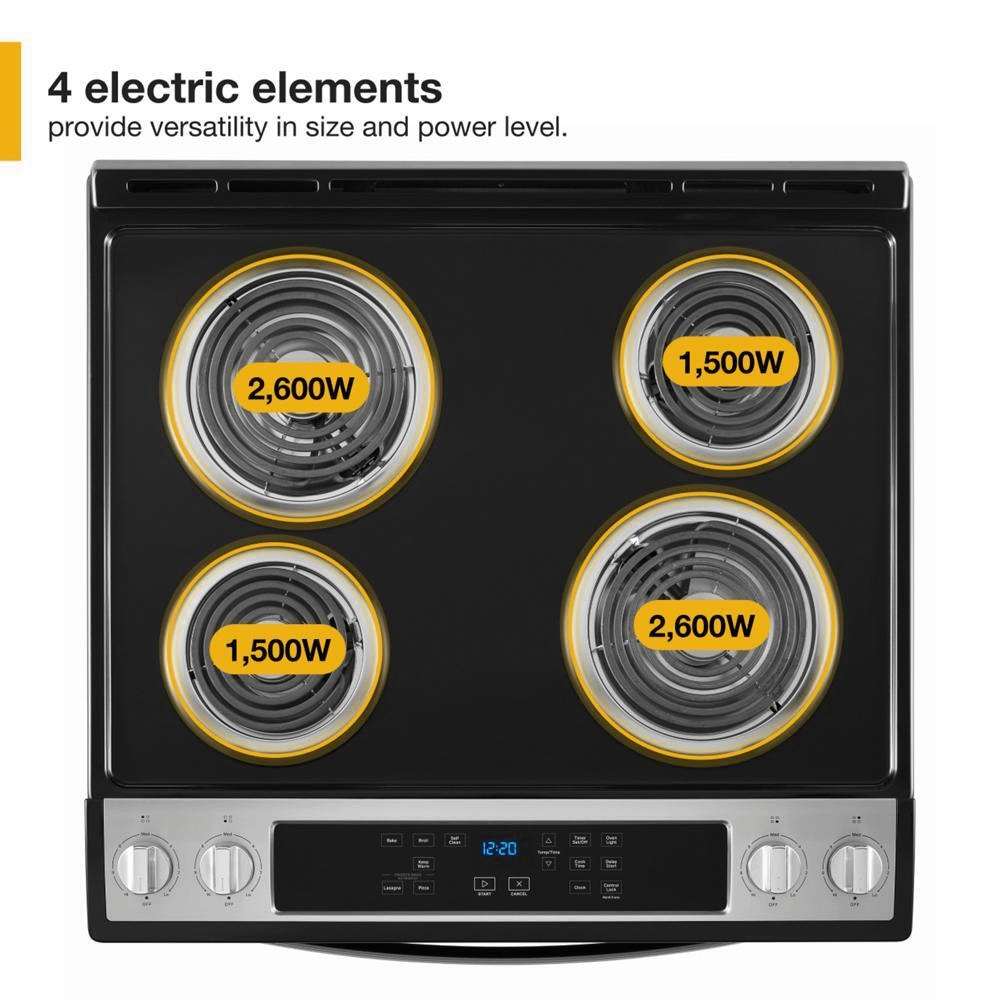

Element/burner Details | |
Cooktop Element Style | Coil |
Left Front Element-burner Power | 2,600W |
Left Front Element-burner Size | 8in. |
Left Front Element-burner Type | Coil |
Left Rear Element-burner Power | 1,500W |
Left Rear Element-burner Size | 6in. |
Left Rear Element-burner Type | Coil |
Number of Cooking Element-burners | 4 |
Right Front Element-burner Power | 1,500W |
Right Front Element-burner Size | 6in. |
Right Front Element-burner Type | Coil |
Right Rear Element-burner Power | 2,600W |
Right Rear Element-burner Size | 8in. |
Right Rear Element-burner Type | Coil |
Exterior Details | |
Door Type | Glass |
Handle Color | Stainless Steel |
Handle Material | Metal |
Handle Type | Reach Through Handle |
Oven Control Location | Front |
Oven Control Type | Tap Touch |
Oven Window Size | Large |

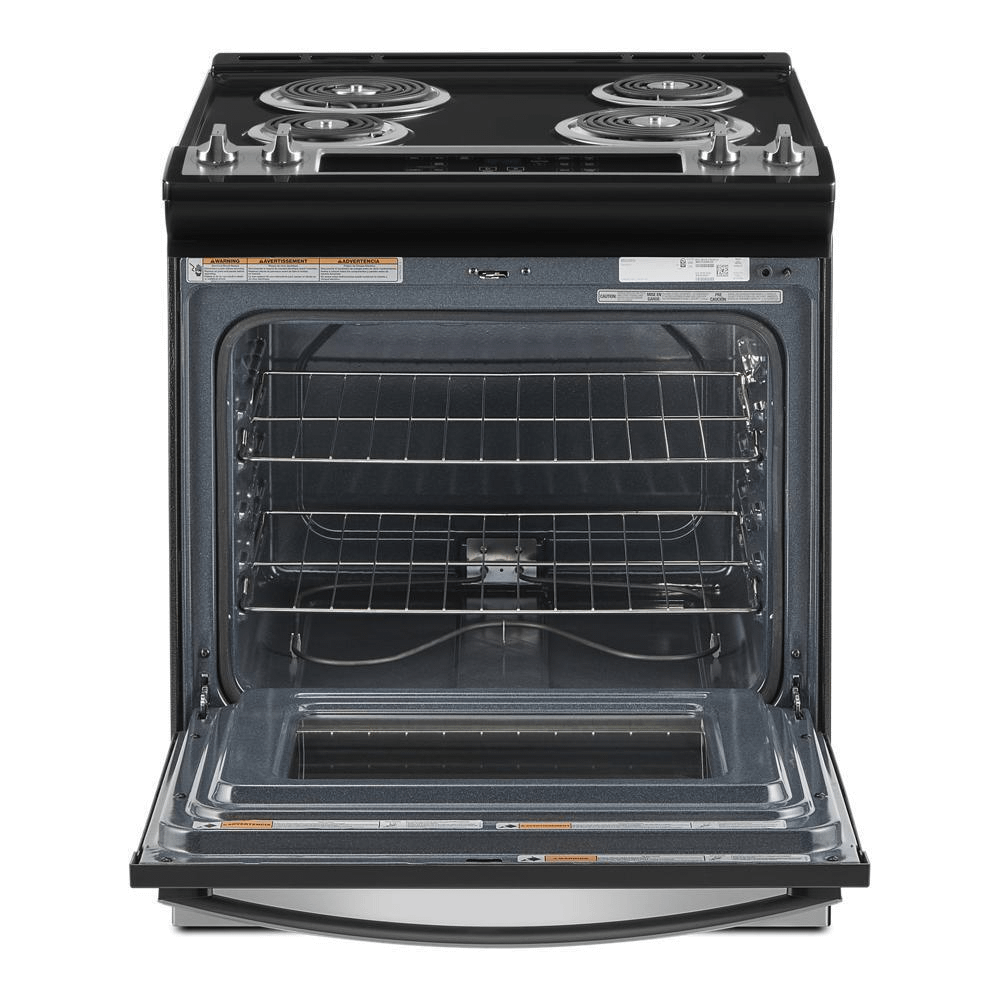

Oven Details | |
Bake Element Power | 2,400 W |
Broiler Element Power | 3,400 W |
Broiler Location | Top of Oven |
Convection Element Type | None |
Door Removable | Yes |
Hidden Bake Element | No |
Interior Color | Dark Grey |
Number of Oven Lights | 1 |
Number of Oven Racks | 2 |
Number of Rack Guides | 5 |
Oven Cleaning Type | Self-Cleaning |
Oven Cooking System | Thermal |
Oven Light Type | Incandescent |
Oven Rack Type | Standard (Both) |
