Overview & Specifications
Overview & Specifications

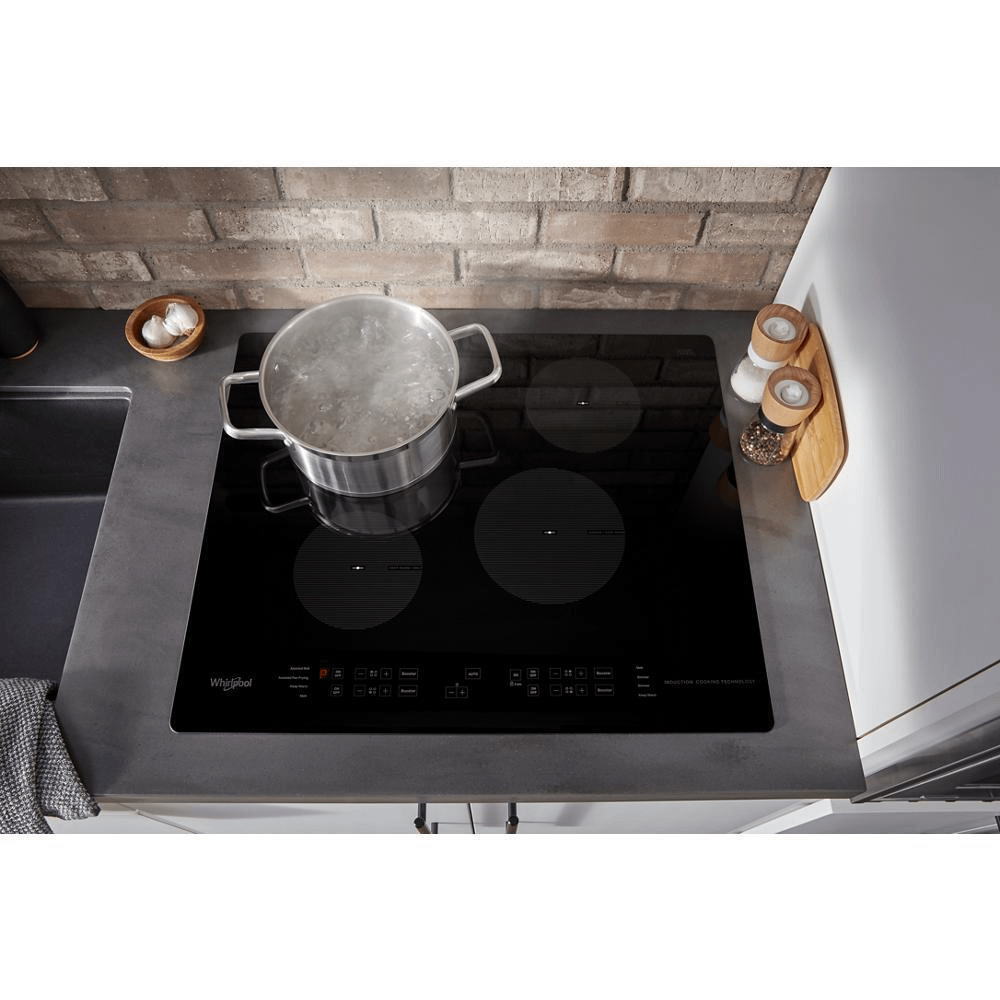

Cook dinner quickly thanks to this small space induction cooktop that boils water fast and offers Quick Cleanup. Also, when using dedicated cookware, optional assisted cooking features allow you to use your time more efficiently prepping other dishes.
- 30 Amp Installation
- Properly install with a 30 amp hookup.
- ADA compliant
- This cooktop meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.

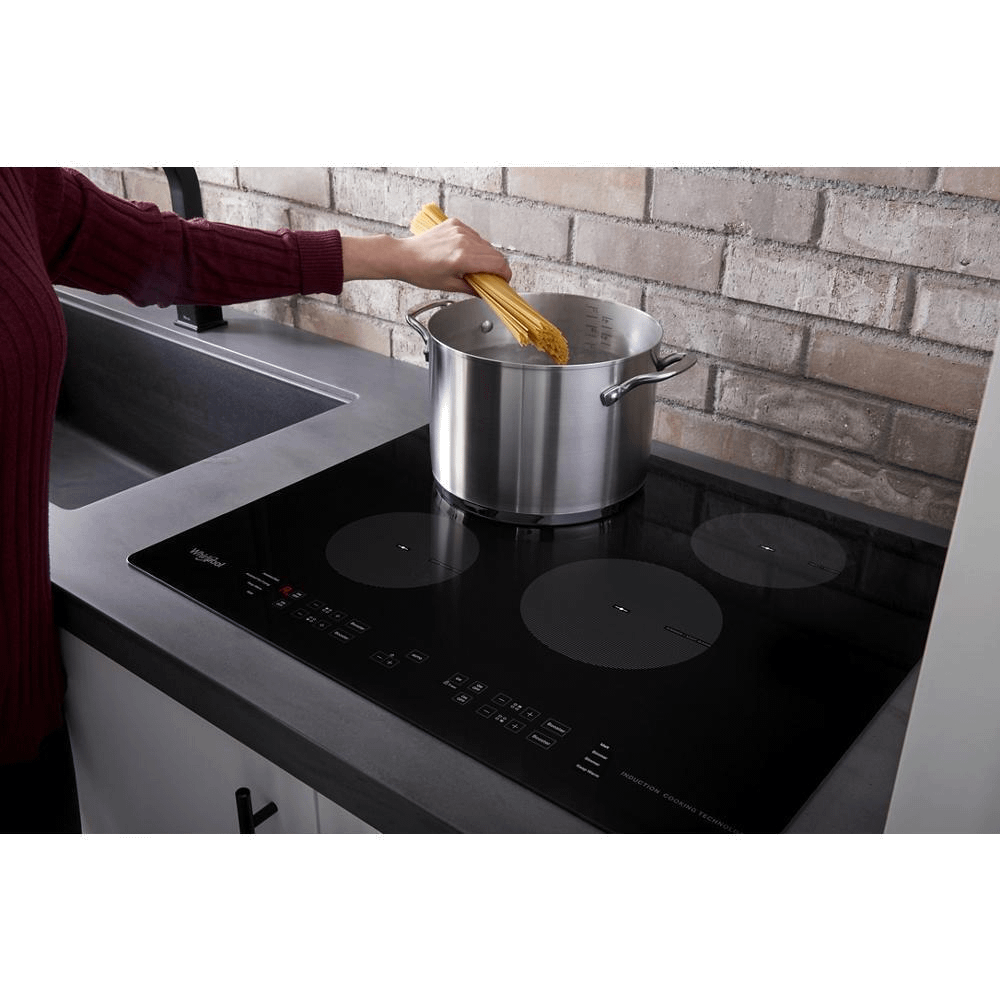

- Assisted Boil
- This optional assisted cooking function notifies you with a helpful tone and flashing light when boiling water reaches the right temperature to add food-so you can keep dinner prep moving and get dinner to the table fast. Requires an accessory pot, part number W11463464, sold separately.

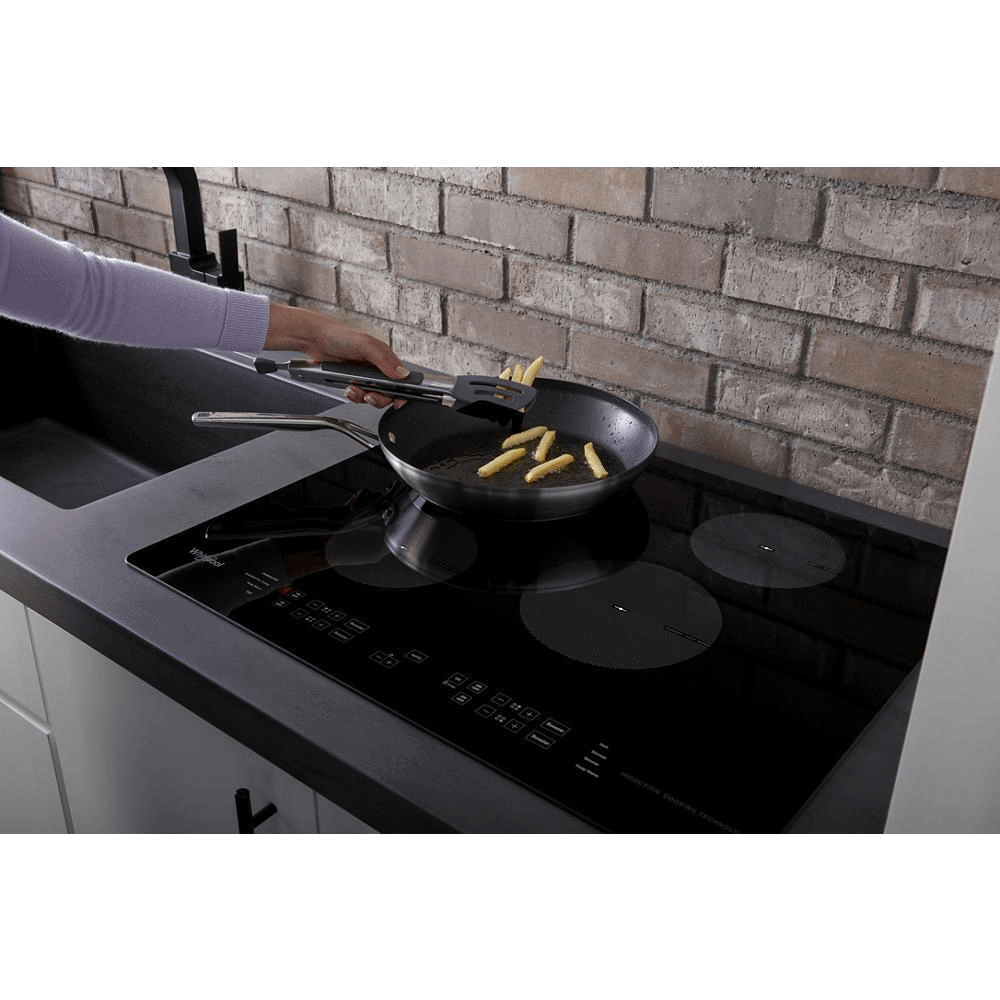

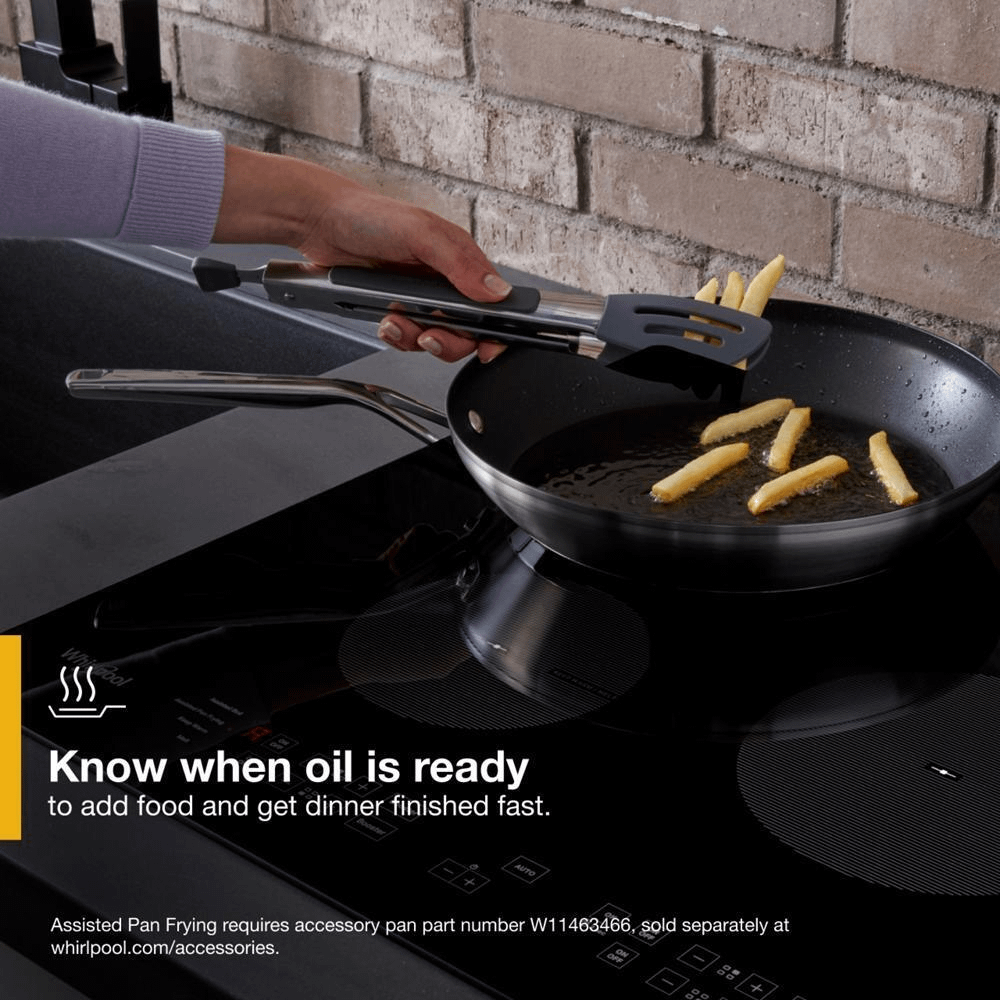

- Assisted Pan Frying
- This optional assisted cooking function notifies you with a helpful tone and flashing light when oil reaches the right temperature to add food-so you can keep dinner prep moving and get dinner to the table fast. Requires an accessory pan, part number W11463466, sold separately.
- Compatible Cutout
- Install your new induction cooktop into the same size cutout as our electric cooktops, making the switch nearly effortless.

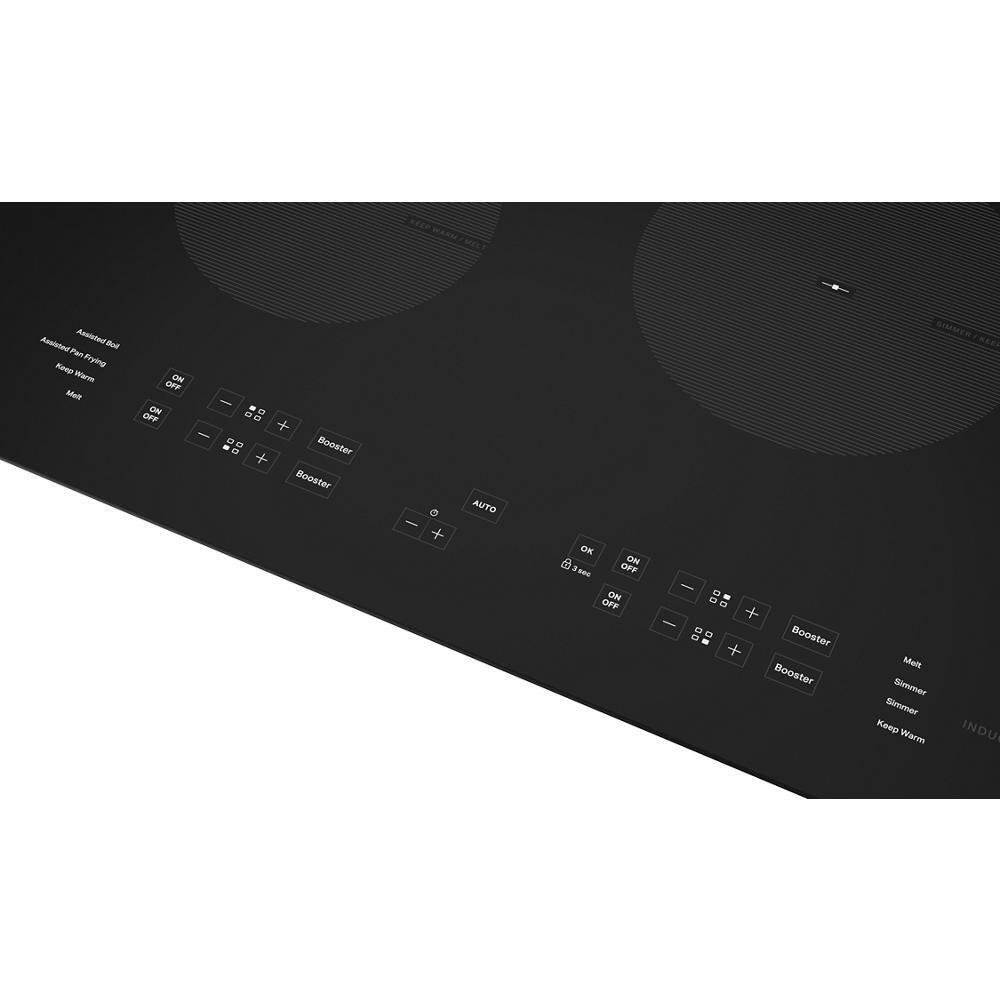

- Control Lock Mode
- Disable the control panel to avoid unintended use and make cleanup easy.
- Keep Warm
- Low heat keeps food ready to serve when other dishes aren t quite done, saving you time spent heating up food that s gotten cold.
- Kitchen Timer
- Keep track of cook times with an easy-to-clean Kitchen Timer that s integrated into the controls.
- Melt
- Prevent burning delicate foods like chocolate or butter with a Melt setting that lets you focus on other tasks.

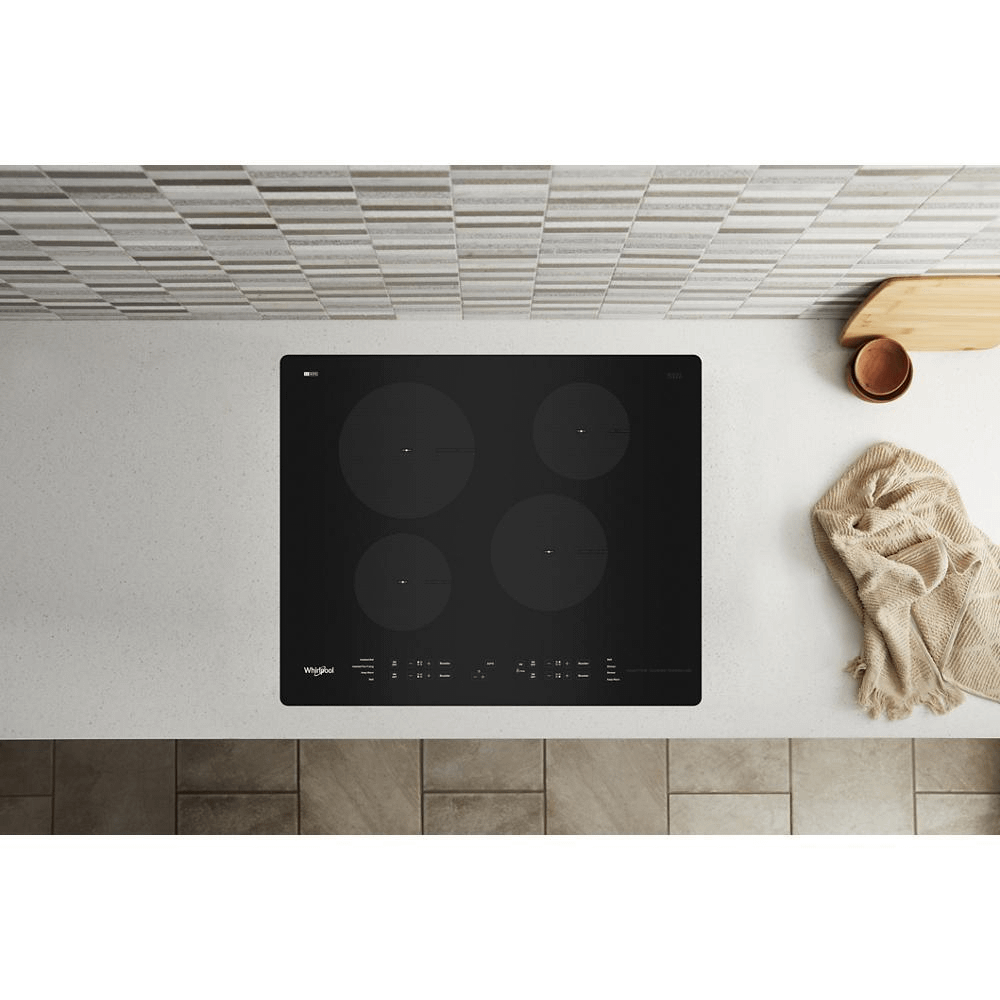

- Optional Flush Installation
- Choose Optional Flush Installation for a flush fit and seamless look. With flush installation the cooktop is placed into the countertop, rather than on top of the countertop for a more built-in appearance.
- Pan Detection
- Easily see which element is activated with Pan Detection. A flashing symbol alerts you when a pan is removed or replaced on an active element.

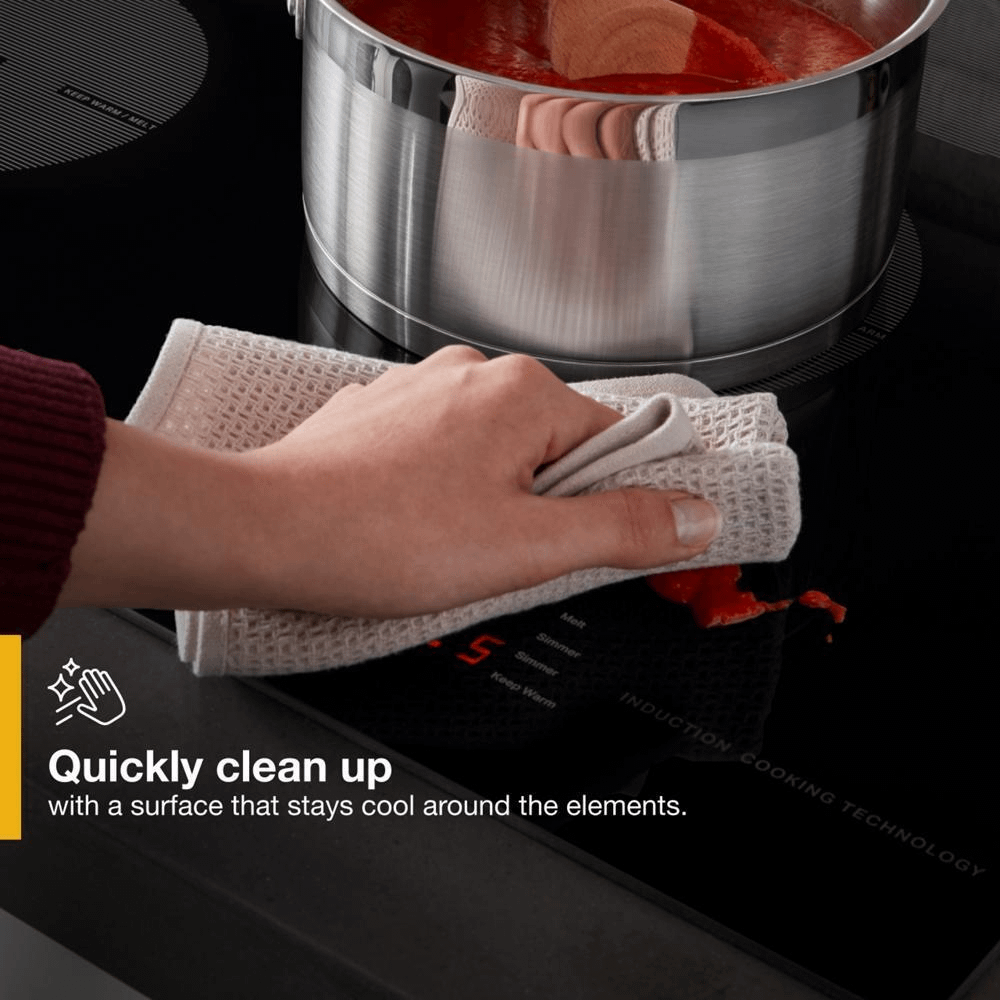

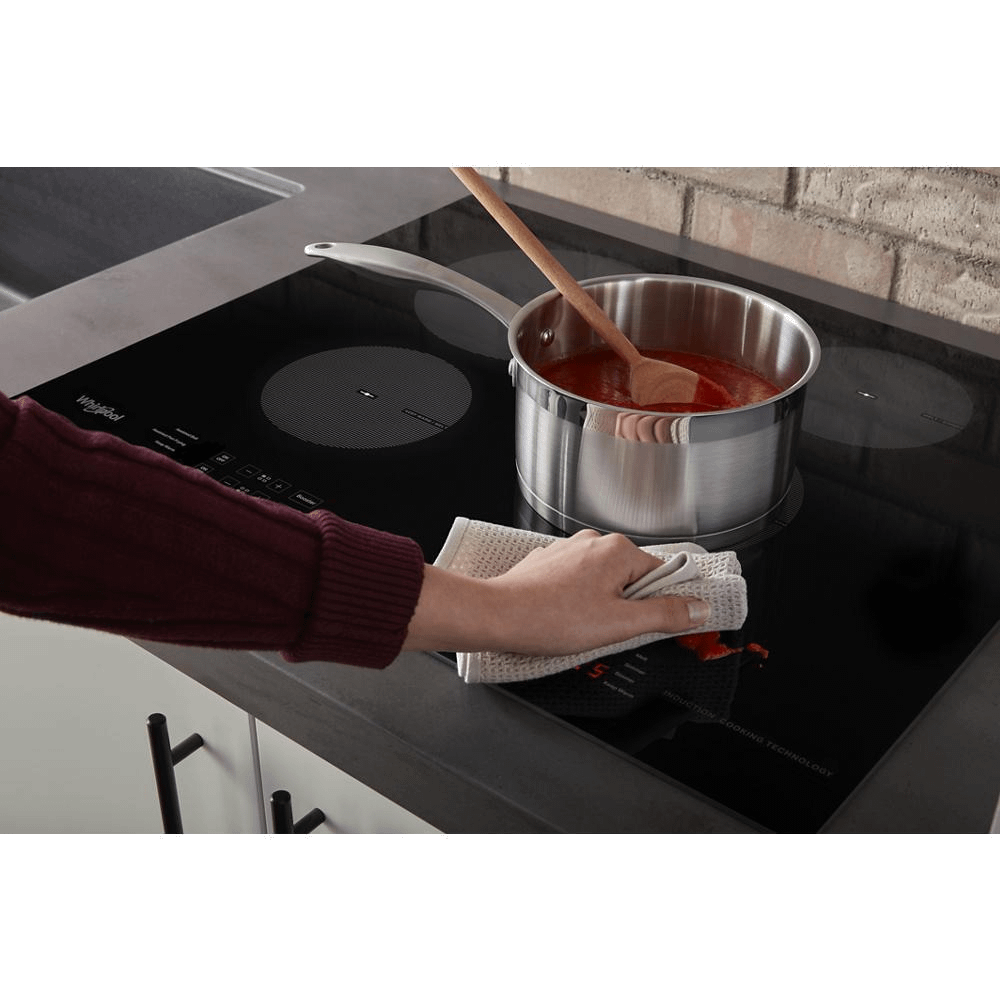

- Quick Clean Up
- Induction technology keeps the cooktop surrounding the elements cool, helping prevent baked-on messes. With fewer messes, you can clean the touch-activated controls on the cooktop as easily as you use them.
- Quick Cleanup
- Induction technology keeps the cooktop surrounding the elements cool, helping prevent baked-on messes. With fewer messes, you can clean the touch-activated controls on the cooktop as easily as you use them.
- Simmer
- Maintain the right temperature for simmering soups and stews so you can let dishes cook while taking on the next step in meal prep.
- Small Space Solution

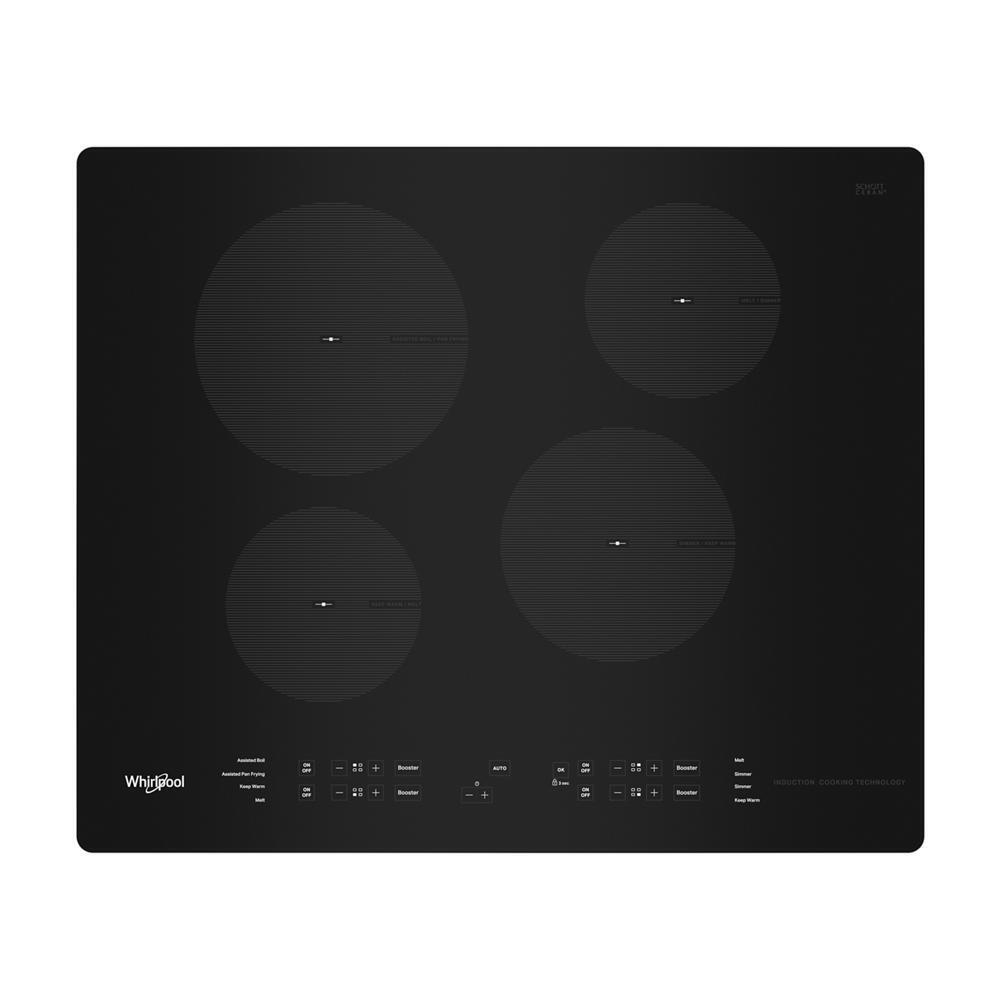

- Cook in multiple pans on a cooktop that packs in four elements without taking up your valuable counter space.

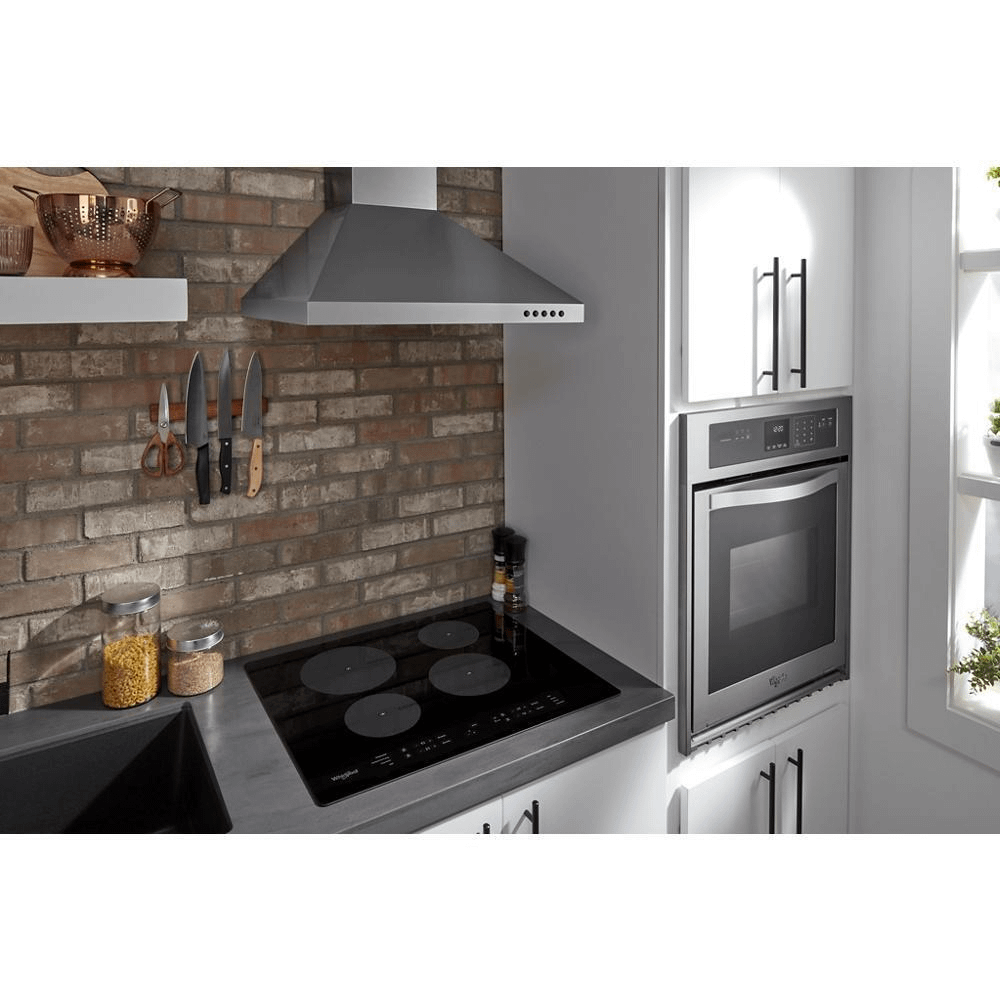

- Wall Oven Compatible
- Install this cooktop on a countertop above a Whirlpool(R) Wall Oven or on its own for more flexibility.
- Fast Boil
- Boil 12 cups of water on average 25% faster on Booster to help you get dinner to the table in less time.
Certifications | |
Ada Compliant | ADA Height and Operation Compliant |
Prop65 | Standard |
Ul | Yes |
Controls | |
Control Location | Front |
Control Type | Tap Touch |
Infinite Heat Controls | No |
Cooktop Details | |
Cooktop Surface Color | Black |
Cooktop Surface Material | Glass |
Digital Display | Yes |
Griddle Included | N/A |
Heating Element On Indicator Light | Yes |
Hot Surface Indicator Light | Yes |
Ignition Type | Electronic Button |
Number of Open Bays | N/A |
Details | |
Automatic Pan Detection | Yes |
Automatic Pan Size Adjustment | Yes |
Combinations With Oven | WOES3027L; WOES3030L; WOES5027L; WOES5030L; WOES5930L; WOES7027P; WOES7030P; WOS31ES0; WOS31ES7; WOS51EC0; WOS51EC7; WOS72EC0; WOS72EC7; WOS92EC0; WOS92EC7 |
Cooktop Configuration | All Burners |
Fuel Type | Electric Induction |
Installs Over Built-in Oven | Yes |
Lp Convertible | No |
Power Outage Compatible | No |

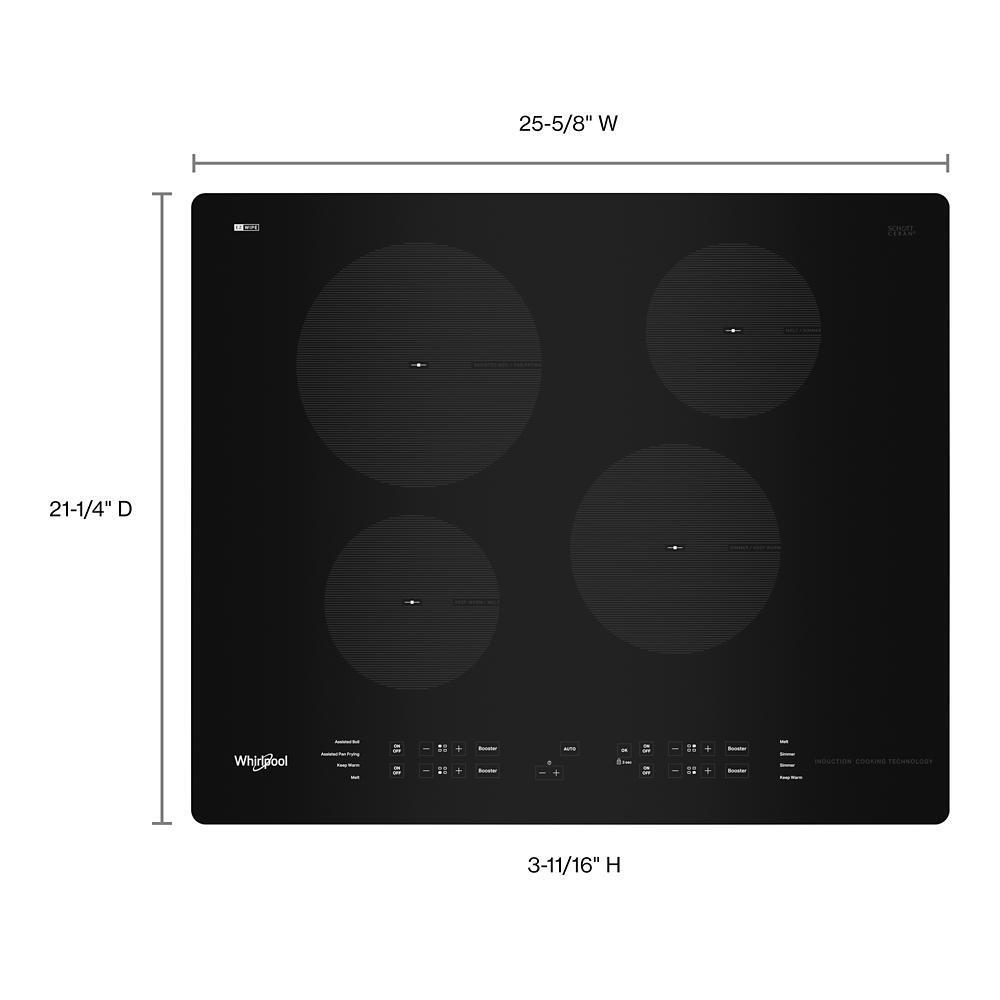

Dimensions | |
Product Height | 3.6875 |
Carton Height | 7.64 |
Gross Weight | 43 |
Carton Depth | 25.28 |
Carton Width | 28.98 |
Product Depth | 21.25 |
Cutout Depth Min | 20.5 |
Net Weight | 32 |
Product Width | 25.625 |
Cutout Width Min | 20.5 |

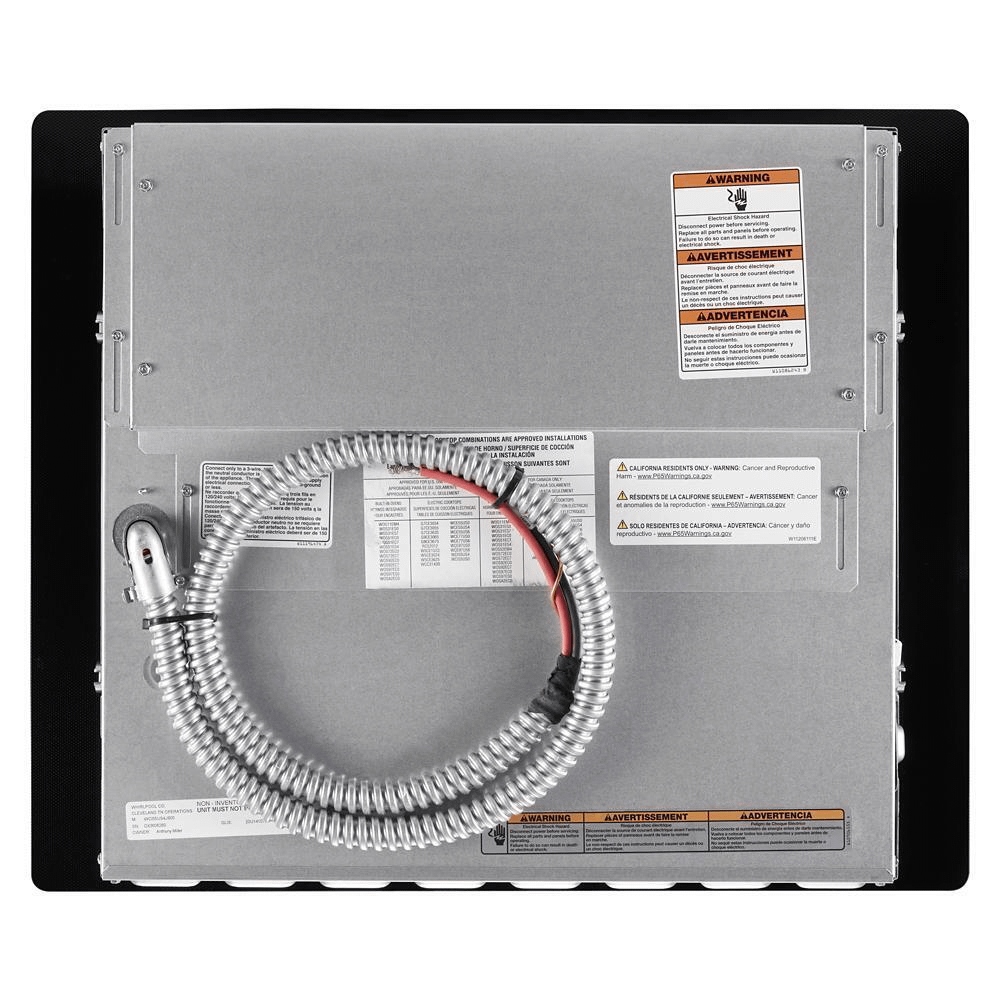

Electrical | |
208v Compatible | Yes |
Power Cord Included | Yes |
Element/burner Details | |
Cooktop Element Style | Induction |
Cooktop Type | Standard |
Left Front Element-burner Power | 1200W/1600W Boost |
Left Front Element-burner Size | 6in. |
Left Front Element-burner Type | Round |
Left Rear Element-burner Power | 2100W/ 3000W Boost |
Left Rear Element-burner Size | 8in. |
Left Rear Element-burner Type | Round |
Number of Cooking Element-burners | 4 |
Power Boost | Yes |
Right Front Element-burner Power | 1800W/ 2100W Boost |
Right Front Element-burner Size | 7in. |
Right Front Element-burner Type | Round |
Right Rear Element-burner Power | 1200W/ 1600W Boost |
Right Rear Element-burner Size | 6in. |
Right Rear Element-burner Type | Round |
General | |
Combination Match With Oven | WOS31ES0; WOS31ES7; WOS51EC0; WOS51EC7; WOS72EC0; WOS72EC7; WOS92EC0; WOS92EC7 |
Ventilation Details | |
Downdraft Vent | No |
