Overview & Specifications
Overview & Specifications

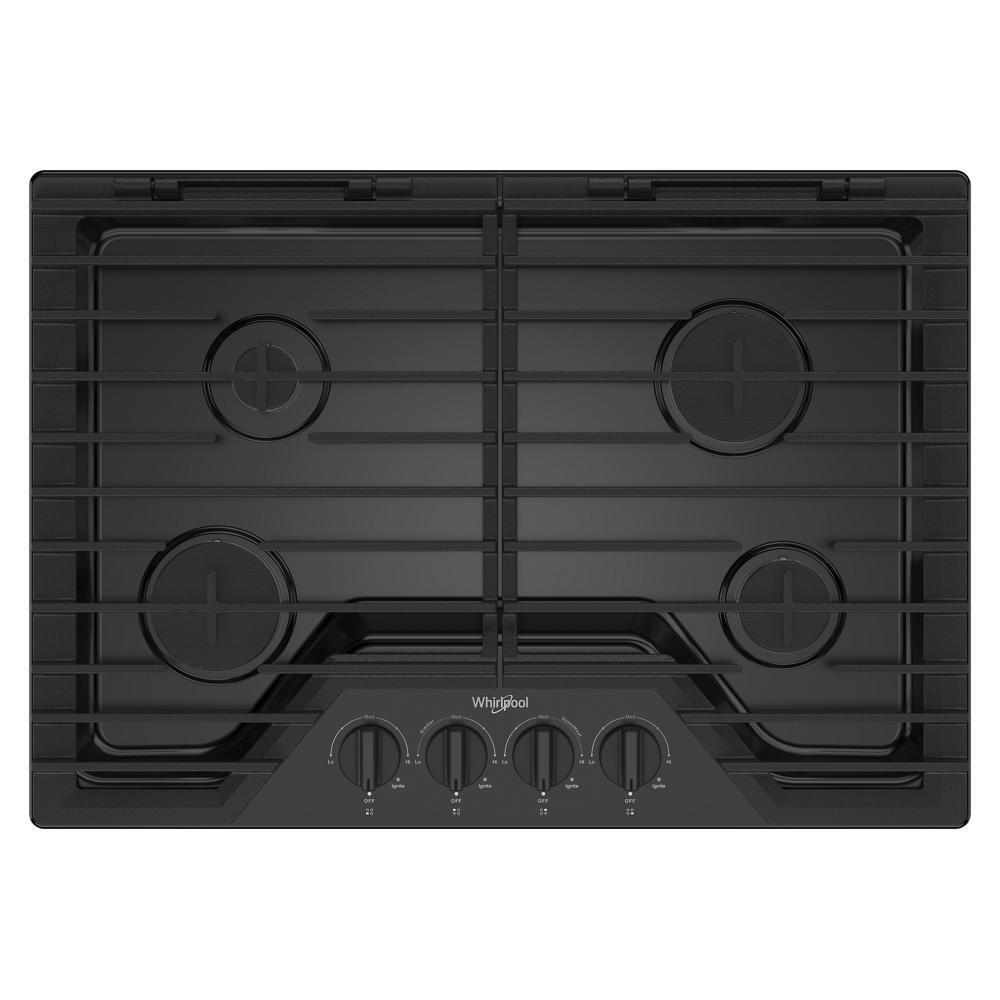

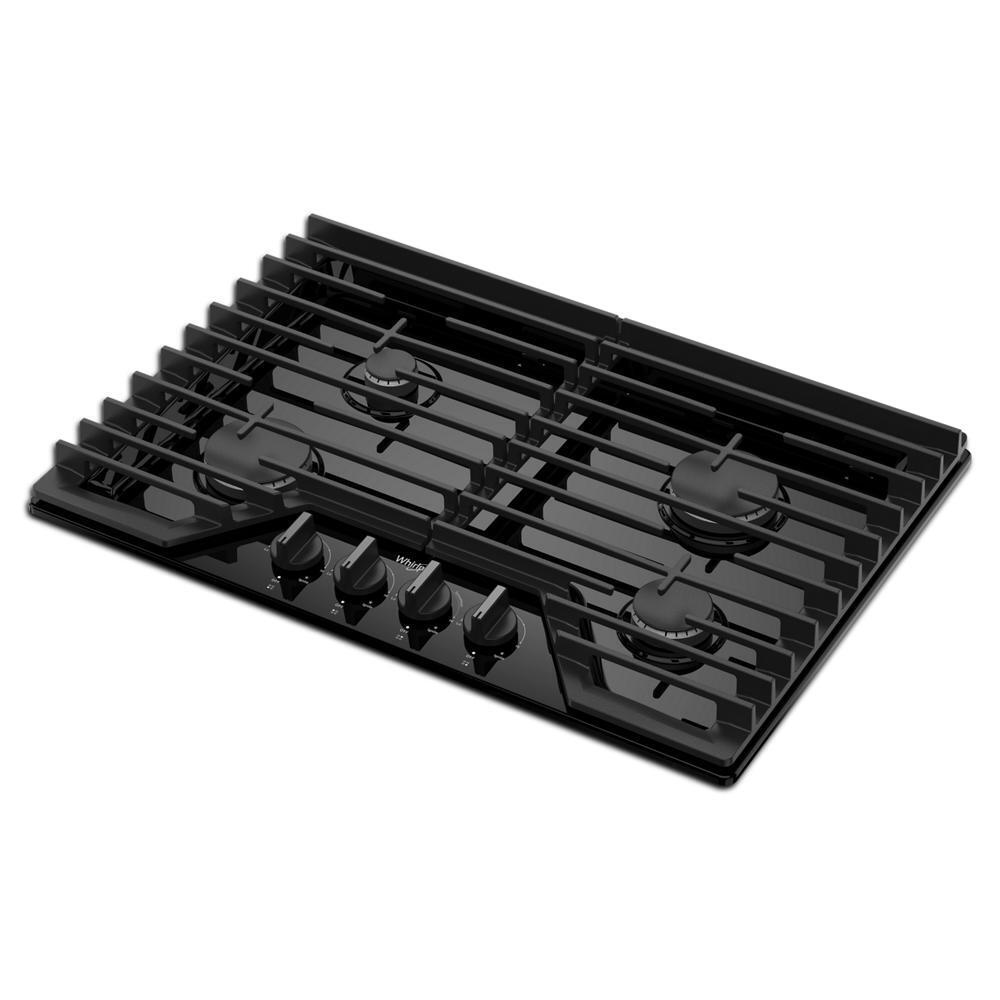

Get dinner on the table fast with greater Cooking Flexibility thanks to various burner sizes and power levels. Use the SpeedHeat™ Burner as a quick boil burner and the 5K BTU Simmer Burner for low, even heat. The 9.1K-12K BTU Multi-Purpose Burners are perfect for daily cooking. Then cleanup is quick and easy with the EZ-2-Lift™ Hinged Cast-Iron Grates.

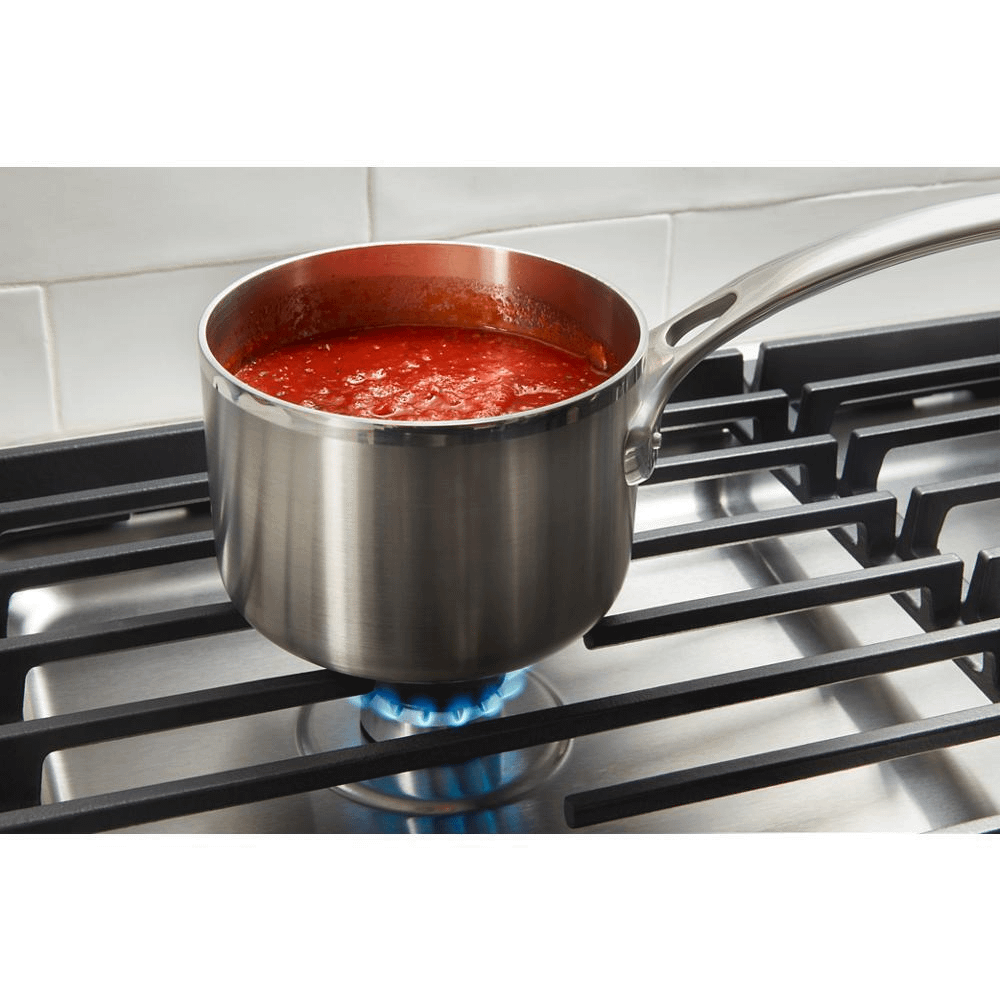

- 5K BTU Simmer Burner
- Easily maintain low, even heat to simmer your sauces, warm up leftovers or melt chocolate with the 5K BTU Simmer Burner.
- 9.1K-12K BTU Multi-Purpose Burners
- Get a variety of heating power with your multi-purpose burners. The 9.1K BTU burner gives medium heat for daily cooking while the 12K BTU burner gives quick, high heat for searing.
- ADA Compliant
- This cooktop meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.

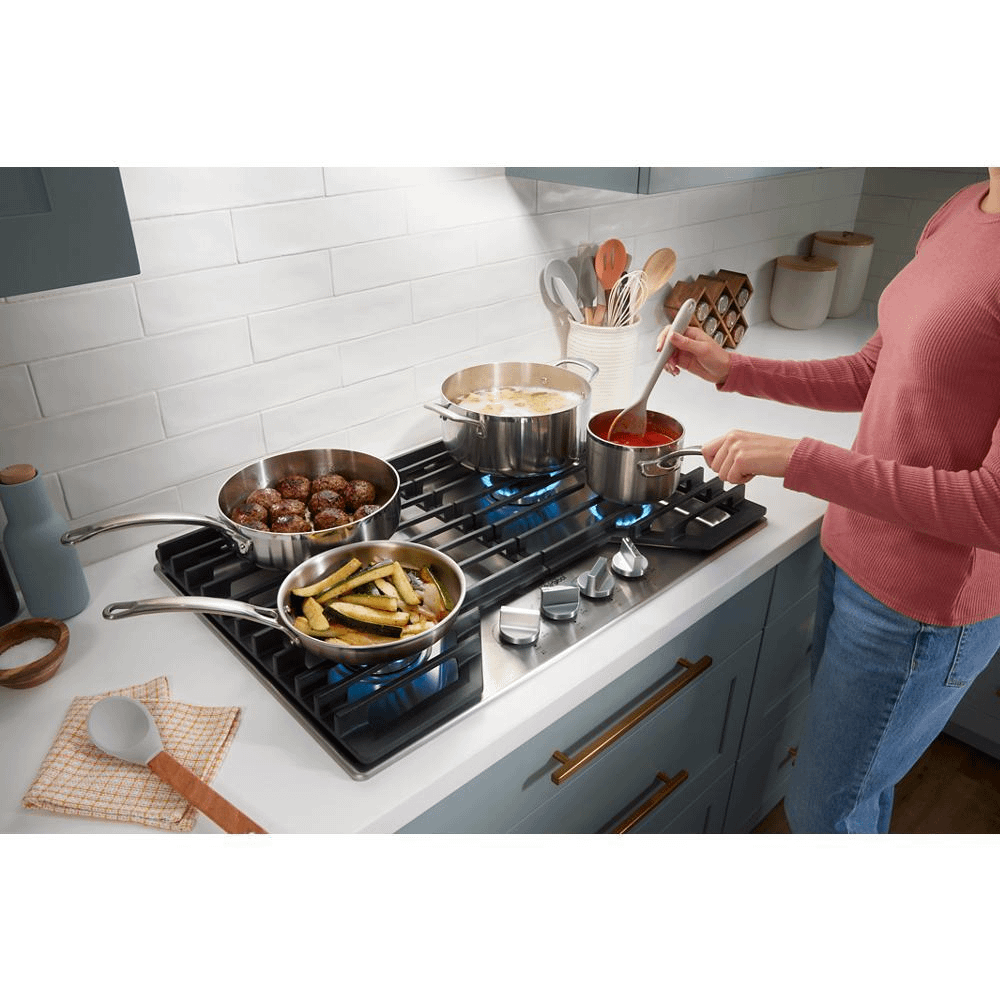

- Cooking Flexibility
- Navigate busy mealtimes with various burner sizes and a range of power levels, so you can simmer your sauce while you sear your steaks to maximize time in the kitchen.

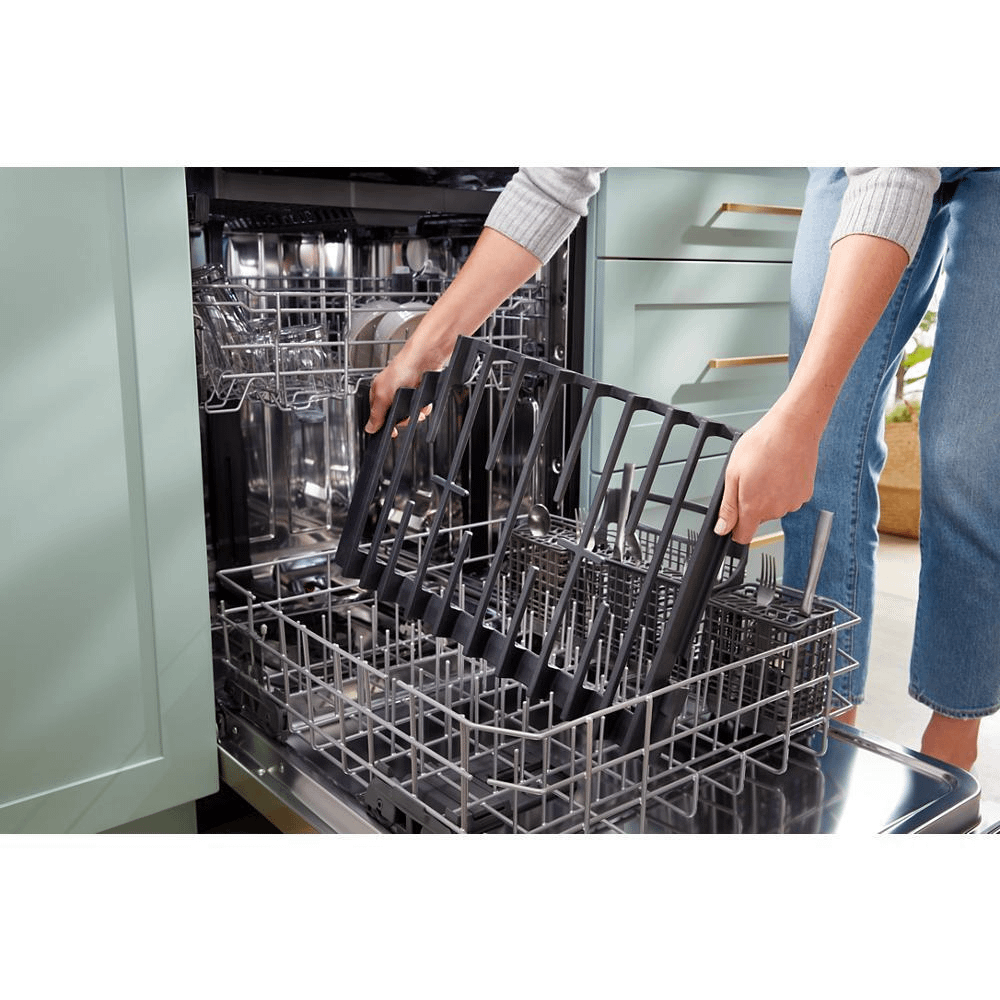

- Dishwasher-Safe Cast-Iron Grates
- Wash these cast-iron grates right in the dishwasher when they get messy, thanks to a dishwasher-safe finish that makes them easy to clean.

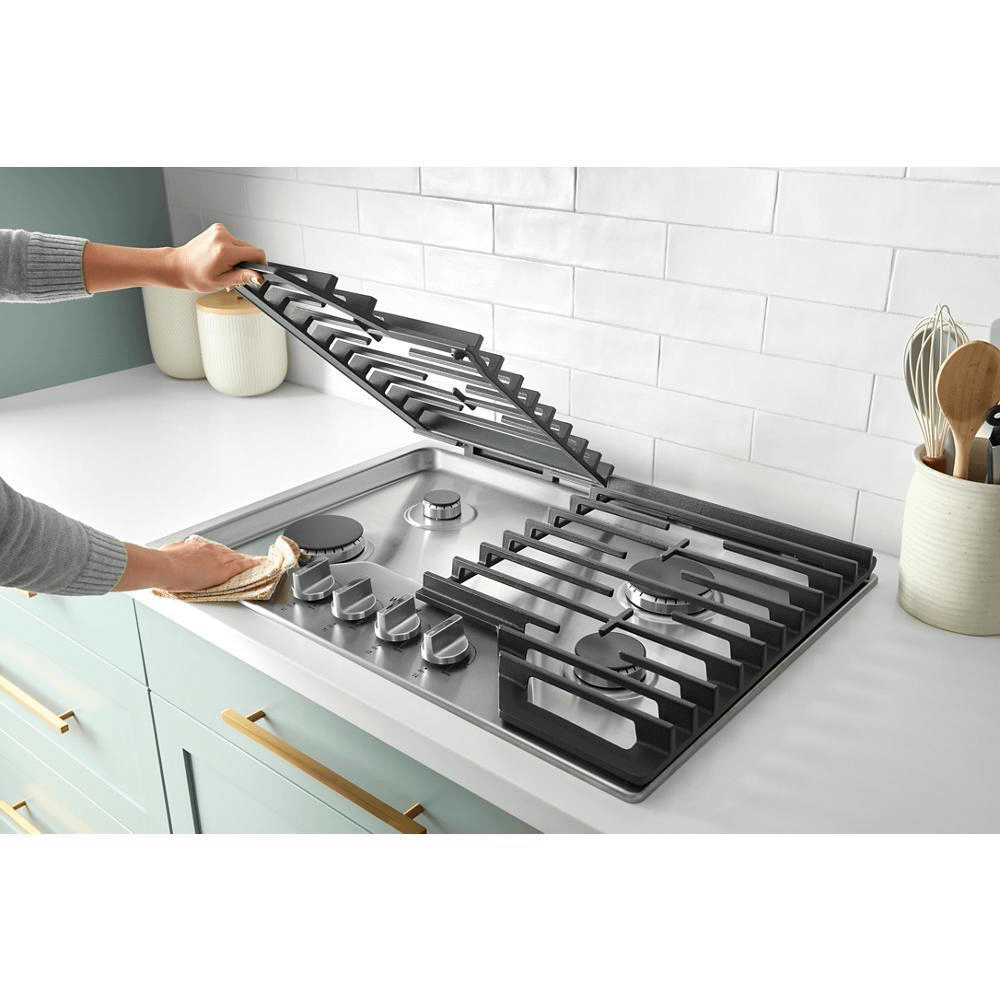

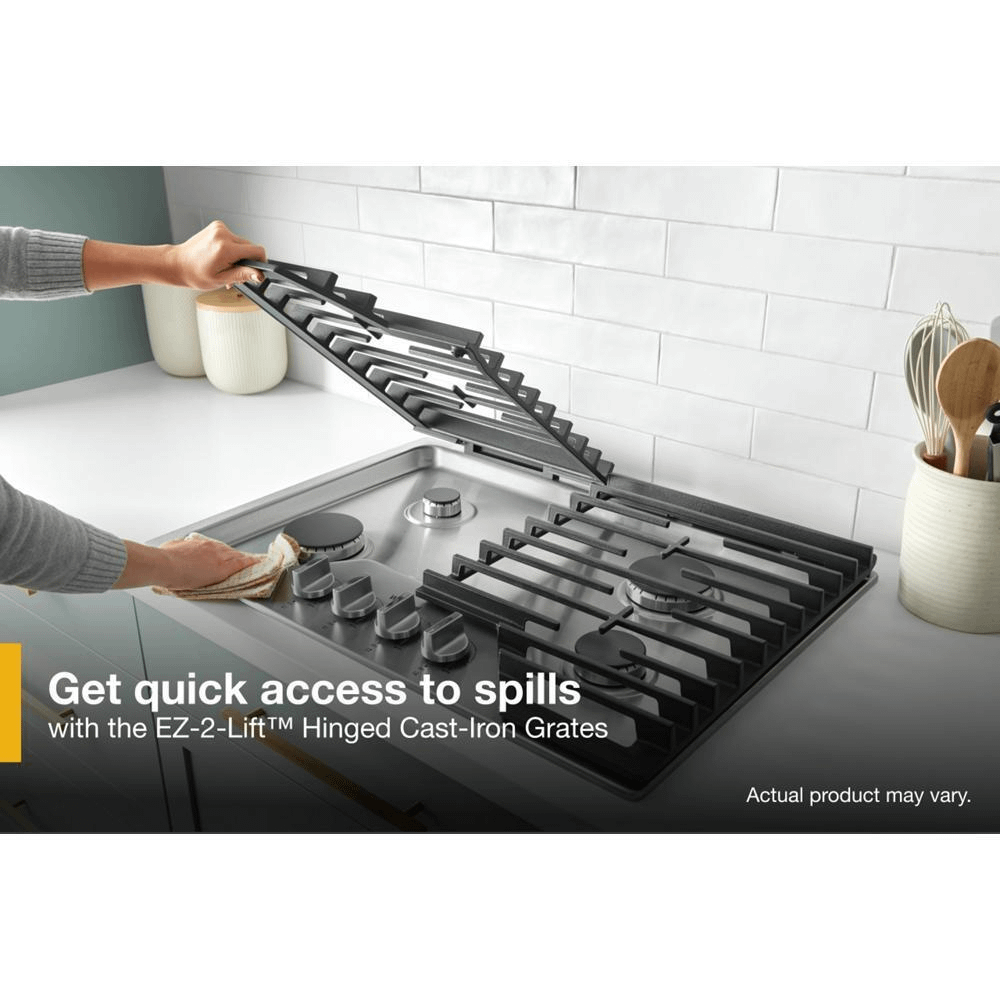

- EZ-2-Lift(TM) Hinged Cast-Iron Grates
- Get quick access to spills on the cooktop with our industry-first EZ-2-Lift(TM) Hinged Cast-Iron Grates. The hinged design lets you wipe up underneath without the hassle of removing heavy grates.

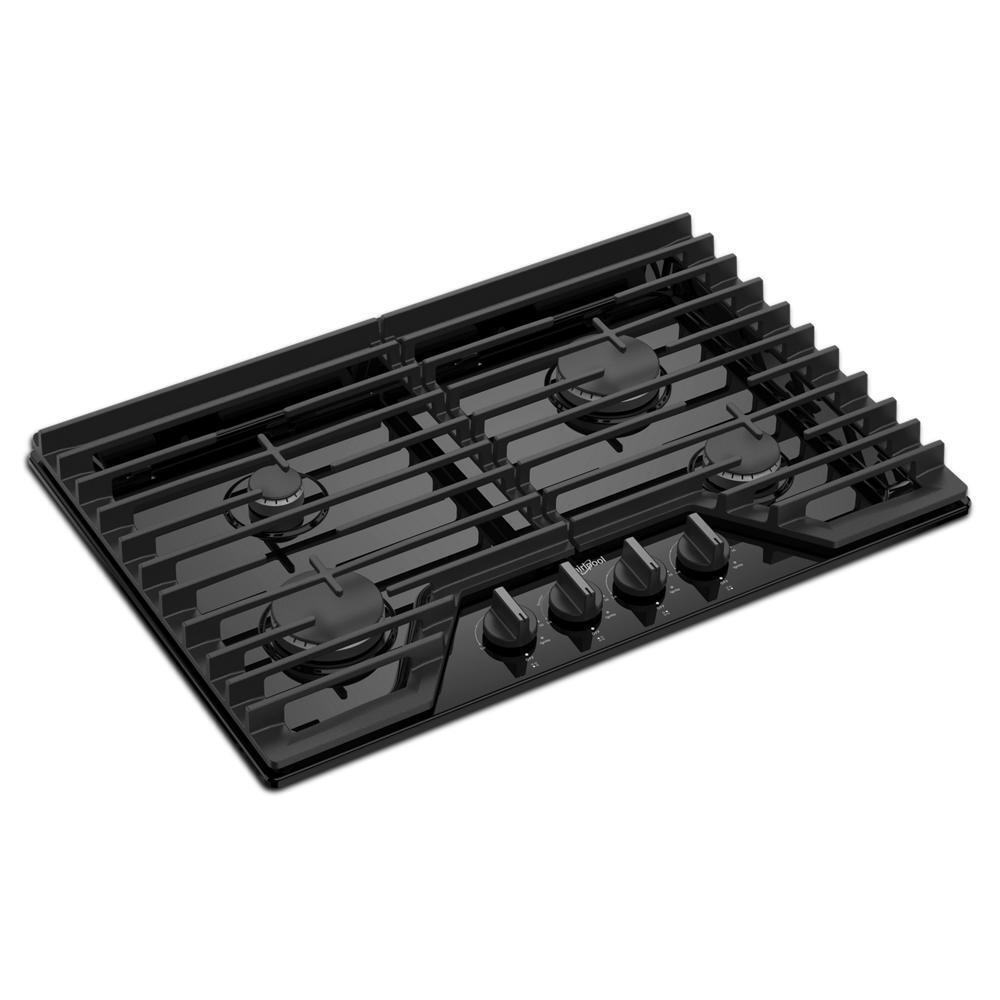

- Edge-to-Edge Cast-Iron Grates
- Maximize your space to saut(eback), boil and simmer with cast-iron grates that extend across the entire cooktop, giving you the flexibility to move pots and pans anywhere.
- Porcelain-Enameled Cooktop
- Clean up easily with a smooth, porcelain-enameled surface that makes it simple to wipe up cooktop spills.

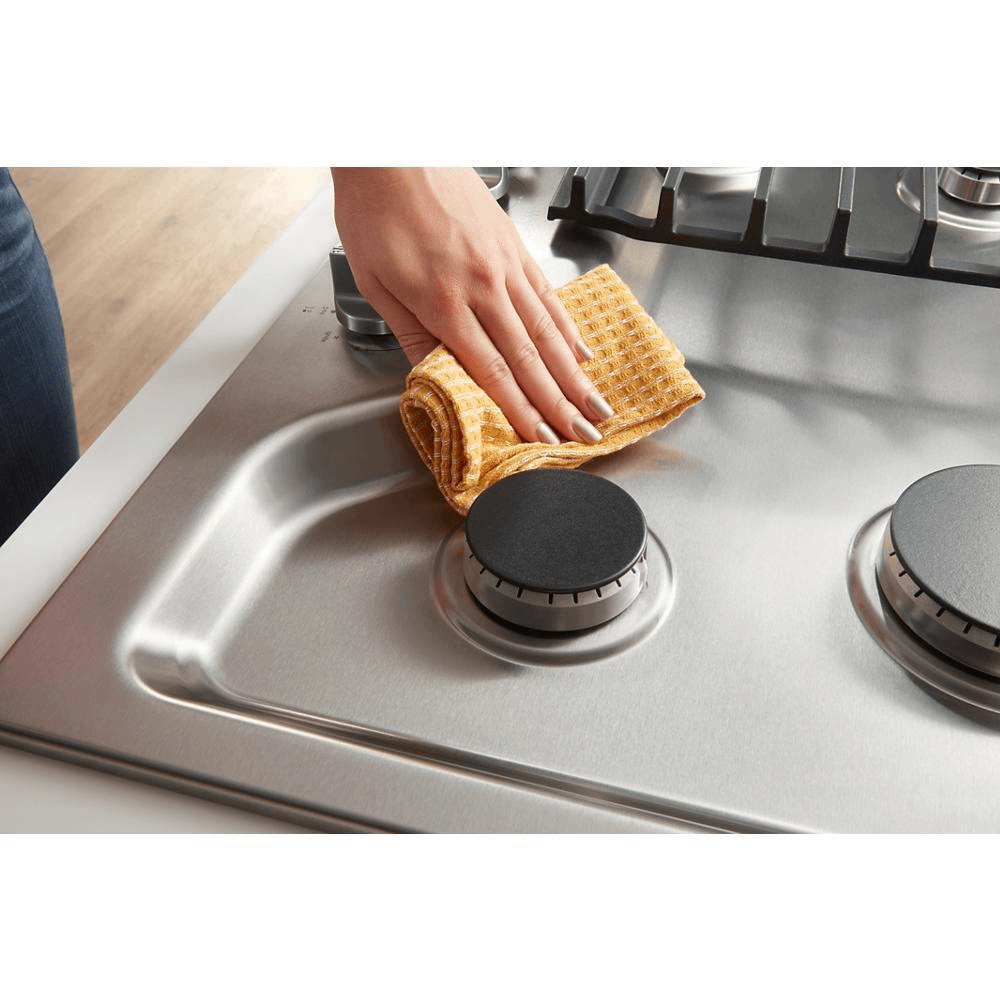

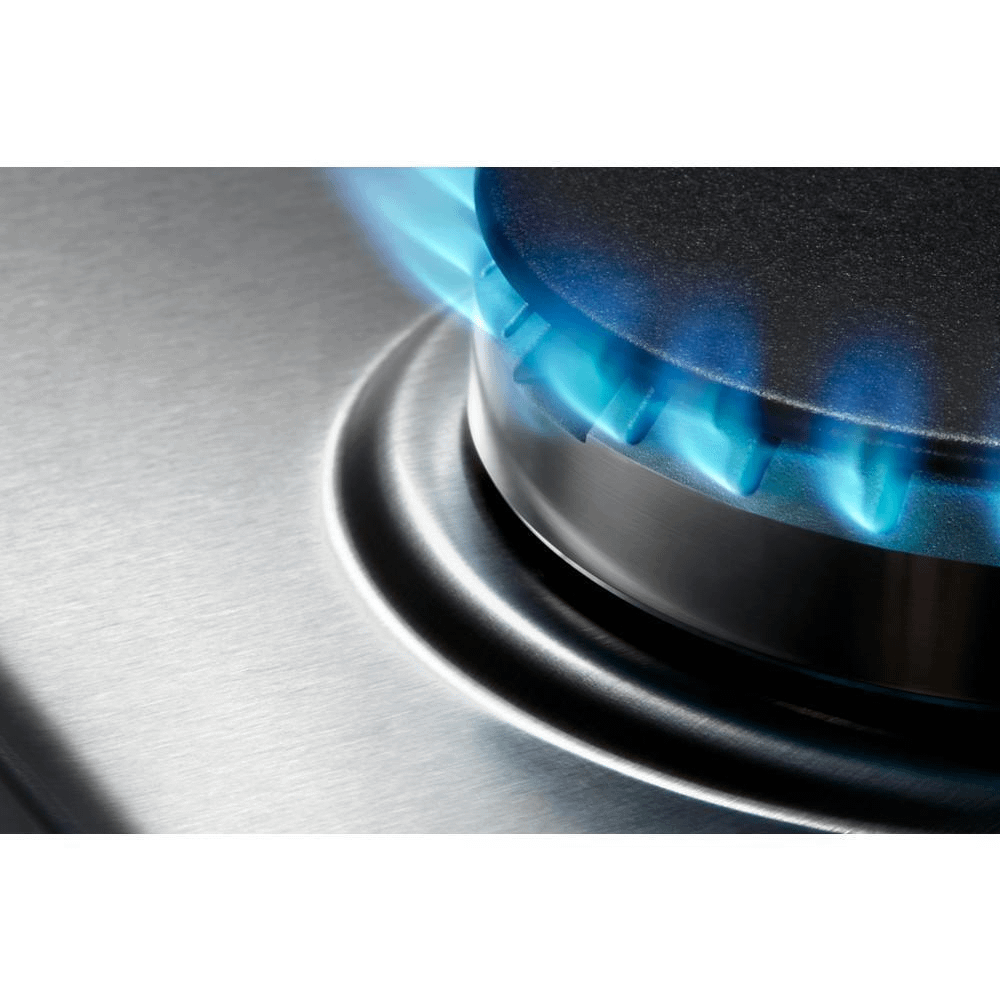

- Sealed Burners
- Cut down on cleanup with burners that are sealed to prevent food from falling into them.

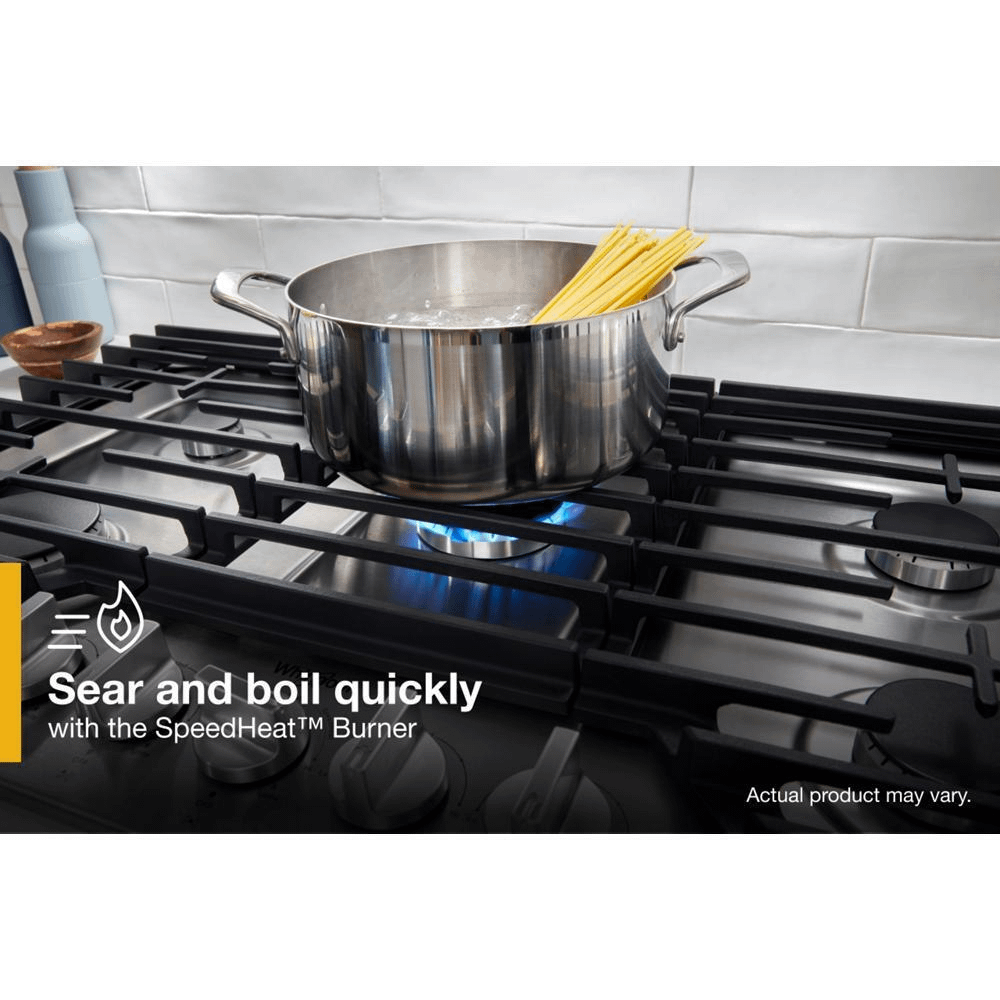

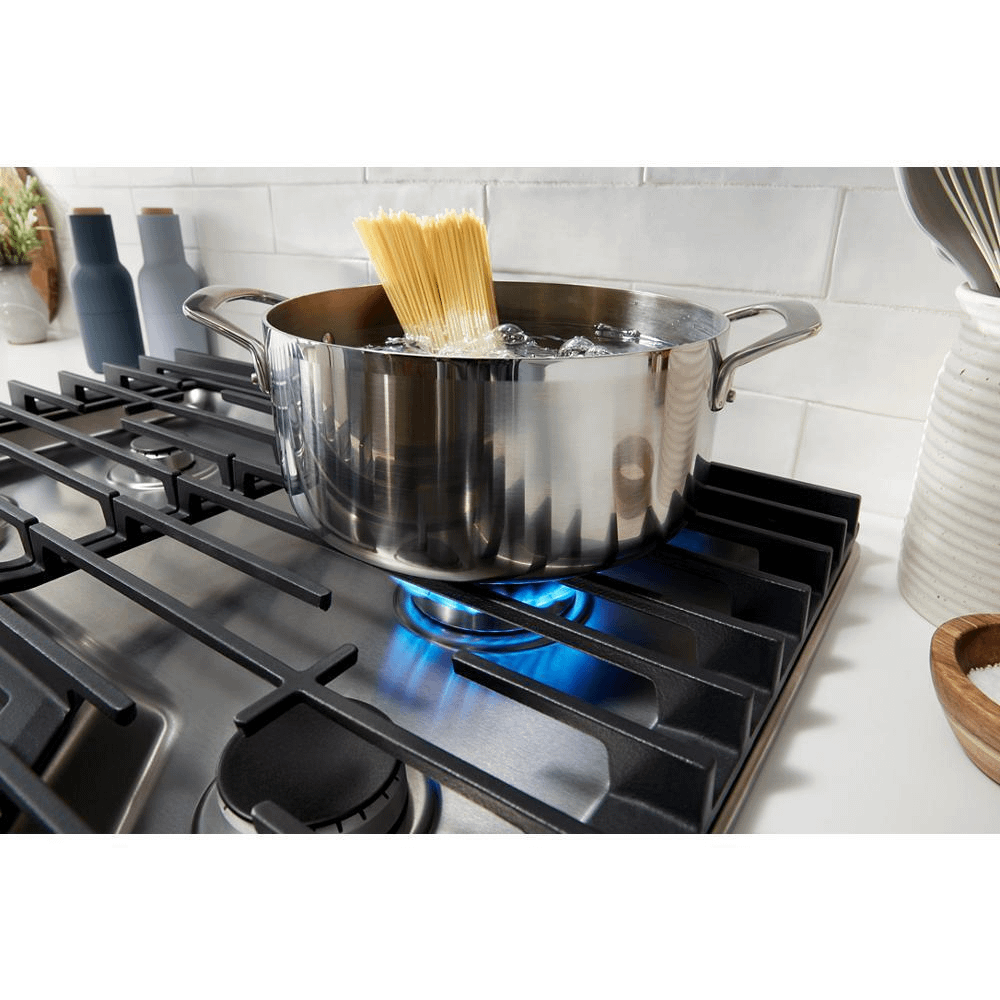

- SpeedHeat(TM) Burner
- Get a rapid boil and perfect sear quickly with the SpeedHeat(TM) Burner, which generates high heat to get dinner to the table fast.
- Upswept SpillGuard(TM) Cooktop
- Cleanup is fast and easy with a cooktop that has raised edges to help contain spills.

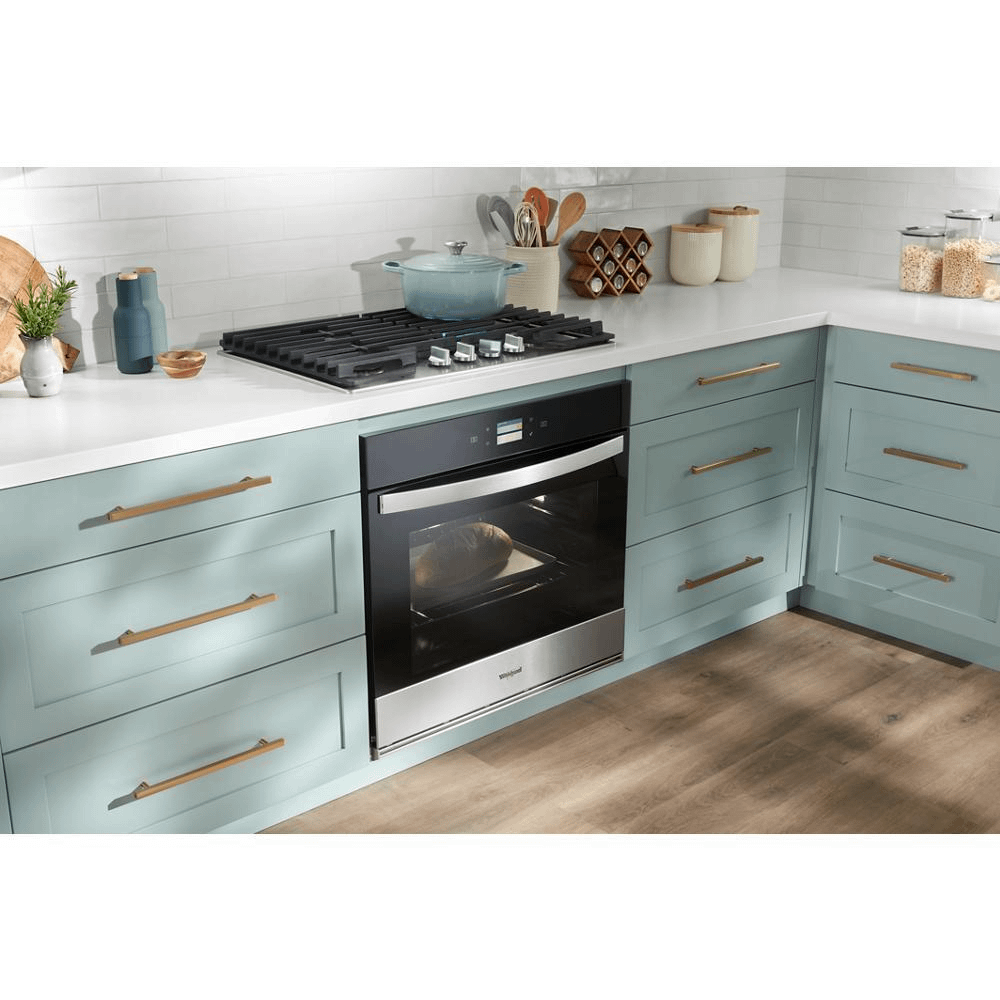

- Wall Oven Compatible

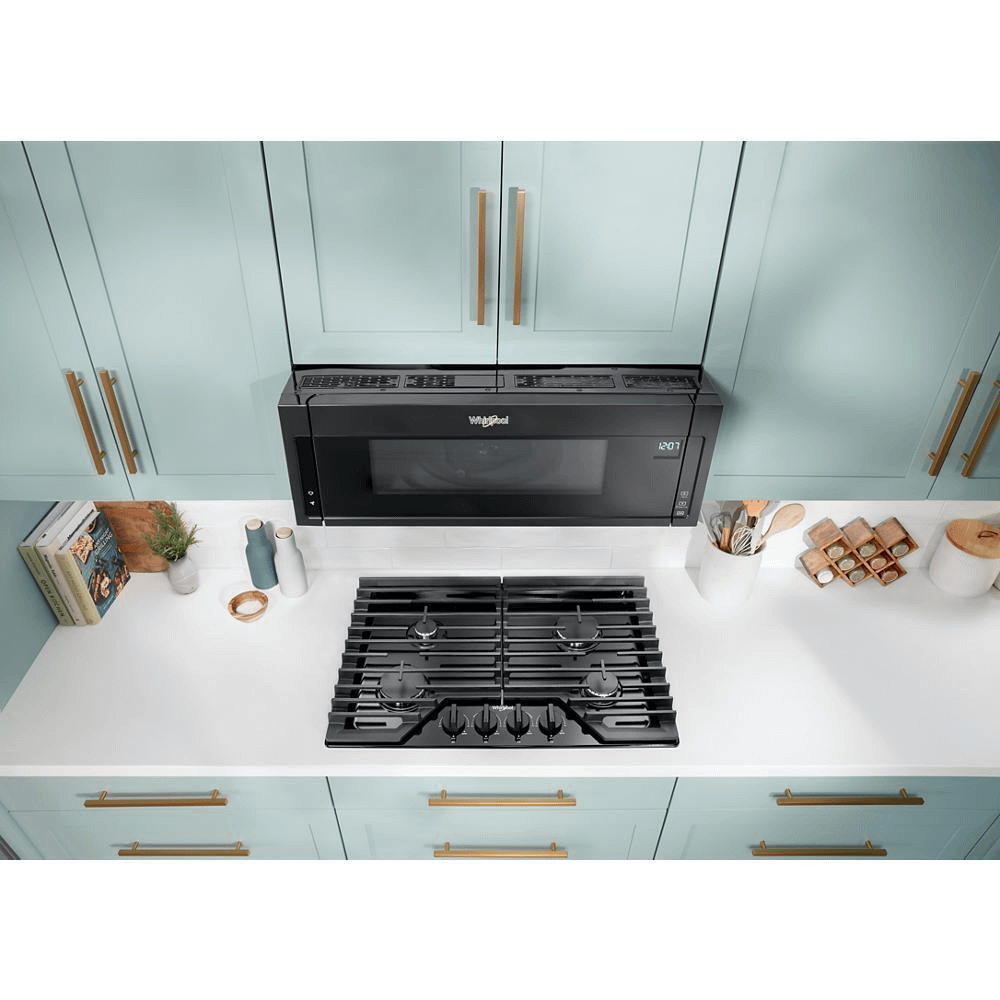

- Install this cooktop in a counter above select Whirlpool(R) Single Wall Ovens or on its own for more flexibility.*
*See Oven/Cooktop Compatibility in specifications for more information.
Certifications | |
Ada Compliant | ADA Height and Side Reach Compliant |
Prop65 | Standard |
Ul | Yes |
Controls | |
Control Location | Front |
Control Type | Knobs |
Infinite Heat Controls | No |
Cooktop Details | |
Cooktop Surface Color | Black |
Digital Display | No |
Griddle Included | N/A |
Heating Element On Indicator Light | No |
Hot Surface Indicator Light | No |
Ignition Type | Direct Spark Ignition |
Details | |
Automatic Pan Detection | No |
Automatic Pan Size Adjustment | No |
Combinations With Oven | WOES3027L; WOES3030L; WOES5027L; WOES5030L; WOES5930L; WOES7027P; WOES7030P; WOS31ES0; WOS31ES7; WOS51EC0; WOS51EC7; WOS52EM4; WOS52ES4M; WOS72EC0; WOS72EC7 |
Cooktop Configuration | All Burners |
Installs Over Built-in Oven | Yes |
Lp Convertible | Yes - Kit Included |
Power Outage Compatible | Yes |

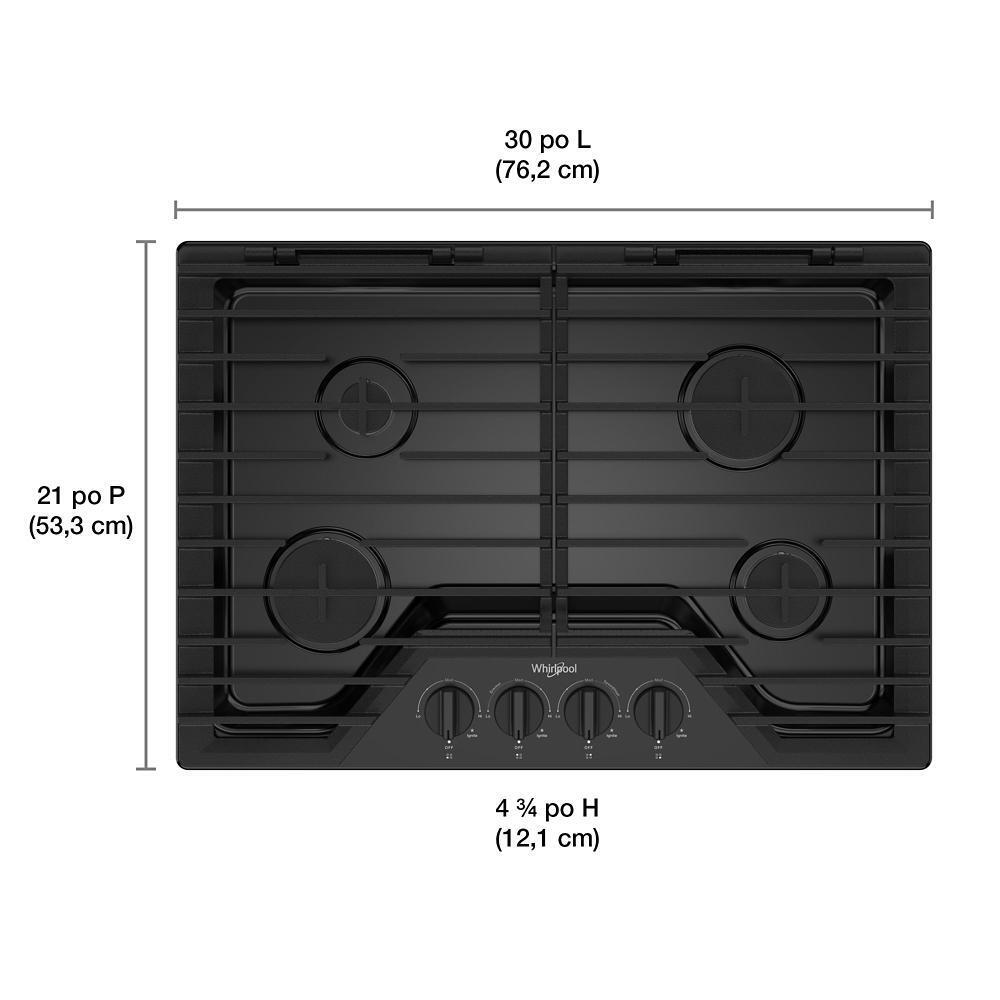

Dimensions | |
Product Height | 5.5625 |
Carton Height | 12.99 |
Gross Weight | 60.54 |
Carton Width | 34.68 |
Product Depth | 21.0 |
Cutout Depth Max | 20 |
Cutout Width Min | 28.5 |
Cutout Depth | 20 |
Carton Depth | 24.96 |
Cutout Width | 29.563 |
Cutout Depth Min | 19 |
Cutout Width Max | 29.563 |
Net Weight | 56.14 |
Product Width | 30.0 |
Electrical | |
Power Cord Included | Yes |
Element/burner Details | |
Cooktop Element Style | Sealed Burner |
Left Front Element-burner Power | 12000 BTU |
Left Front Element-burner Type | Standard |
Left Rear Element-burner Power | 5000 BTU |
Left Rear Element-burner Type | Simmer |
Number of Cooking Element-burners | 4 |
Power Boost | No |
Right Front Element-burner Power | 9100 BTU |
Right Front Element-burner Type | Standard |
Right Rear Element-burner Power | 18,000 BTU |
Right Rear Element-burner Type | Power |
Exterior Details | |
Knob Color | Black |
Knob Type | Plastic |
General | |
Combination Match With Oven | WOES3027L; WOES5027L; WOES5030L; WOES5930L; WOES7027P; WOES7030P; WOS31ES0; WOS31ES7; WOS51EC0; WOS51EC0A; WOS51EC7; WOS52EM4; WOS52ES4M; WOS72EC0; WOS72EC7; WOS92EC0; WOS92EC7 |
Grate Details | |
Grate Details | Cast Iron Grates; Continuous with Hinge; Dishwasher Safe; Matte Finish |
Number of Grates | 2 |
Smart Compatibility | |
Works With | No |
Ventilation Details | |
Downdraft Vent | No |
Ventilation Type | N/A |
Venting | N/A |
