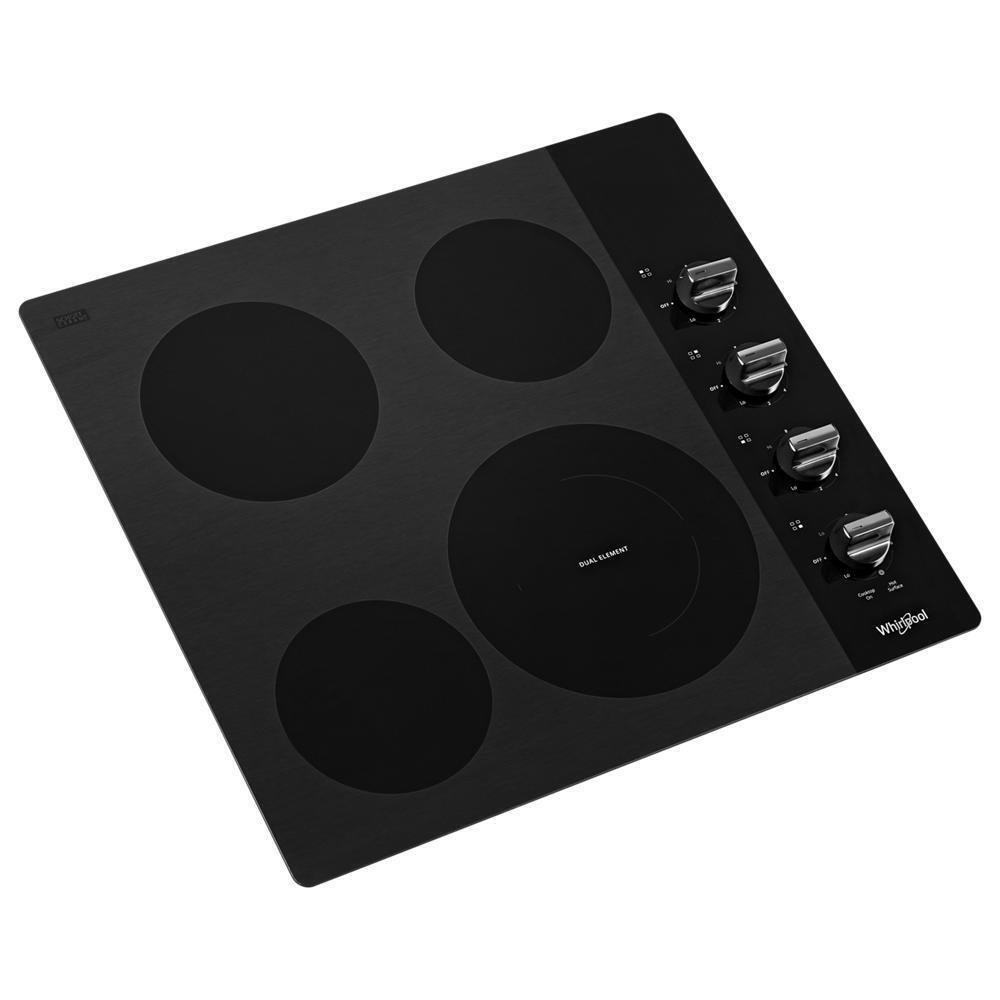

Cook all your family s favorites and clean up quick with a compact cooktop designed to make the most of your kitchen space and mealtime routine. Get added flexibility when installing with 30 & 40 amp compatibility, or while cooking with the FlexHeat™ Dual Radiant Element. When dinner s done, a ceramic glass cooktop makes it easy to wipe away messes.
- 30 & 40 Amp Installation
- Properly install with either a 30 or 40 amp hookup, so there's no need to rewire.
- 6" Extra Element
- Cook small dishes like sides and sauces on the 6" Extra Element.
- 8" Extra Element
- Cook small dishes like sides and sauces on the 8" Extra Element.
- ADA compliant
- This cooktop meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.
- Easy-Wipe Ceramic Glass Cooktop
- Wiping up spills is simple with the easy-to-clean cooktop.

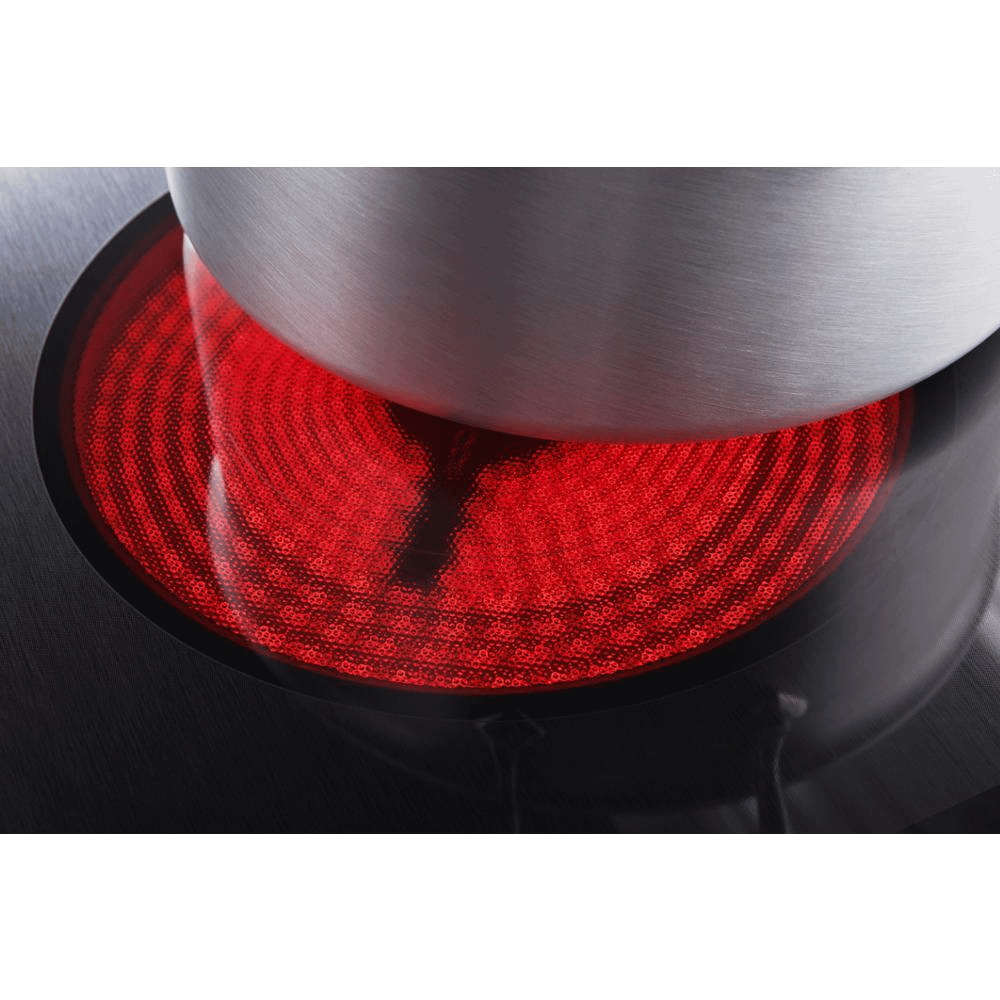

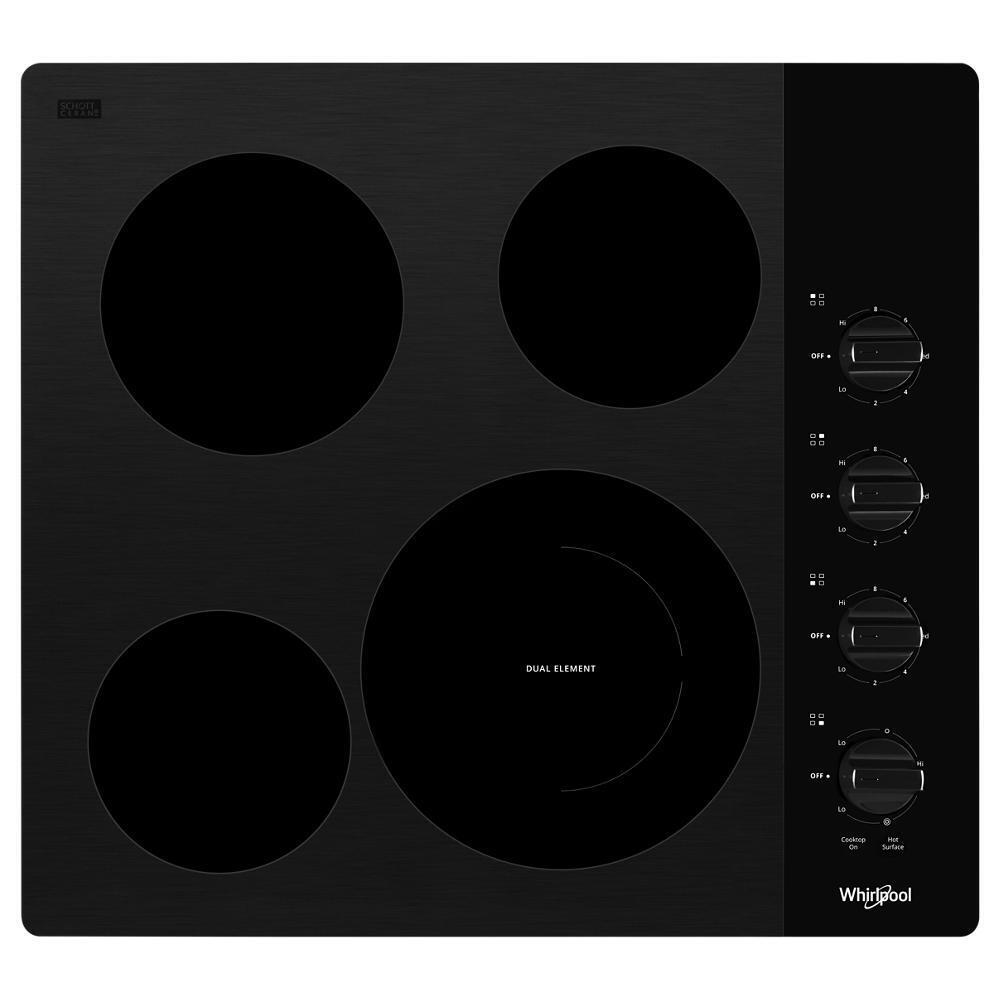

- FlexHeat(TM) Dual Radiant Element
- Get two elements in one with a 6" inner ring that's great for smaller pots and pans and a 10" expandable outer ring that makes room for larger cookware.
- Hot Surface Indicator Light
- See when the cooktop's still hot to the touch, even after it's been turned off, with a light that lets you know.

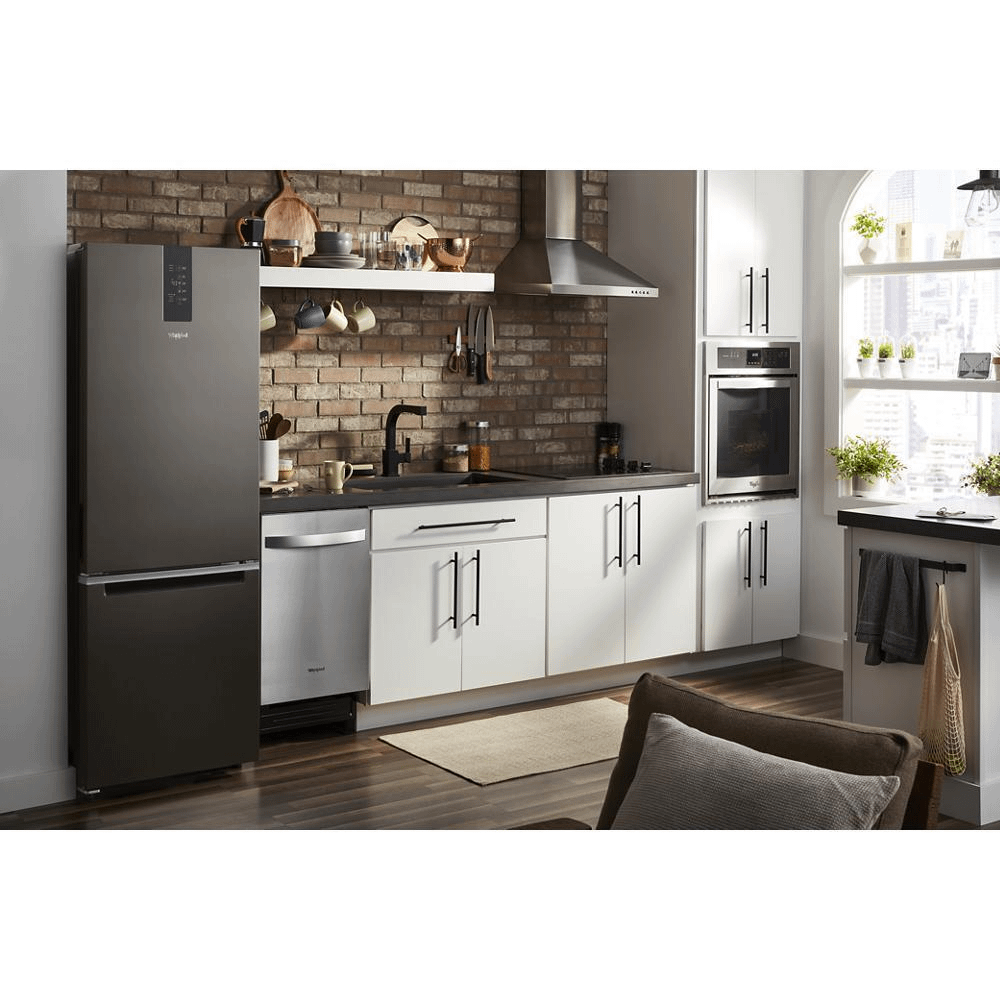

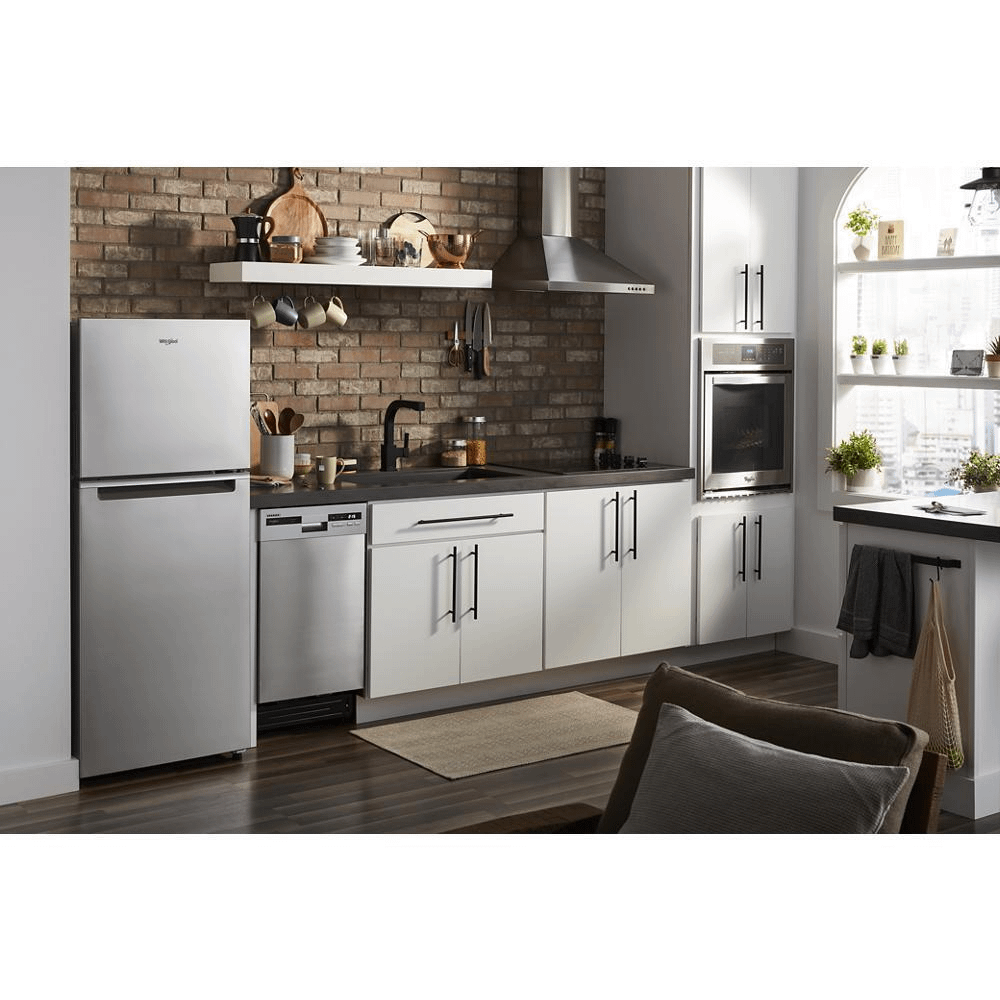

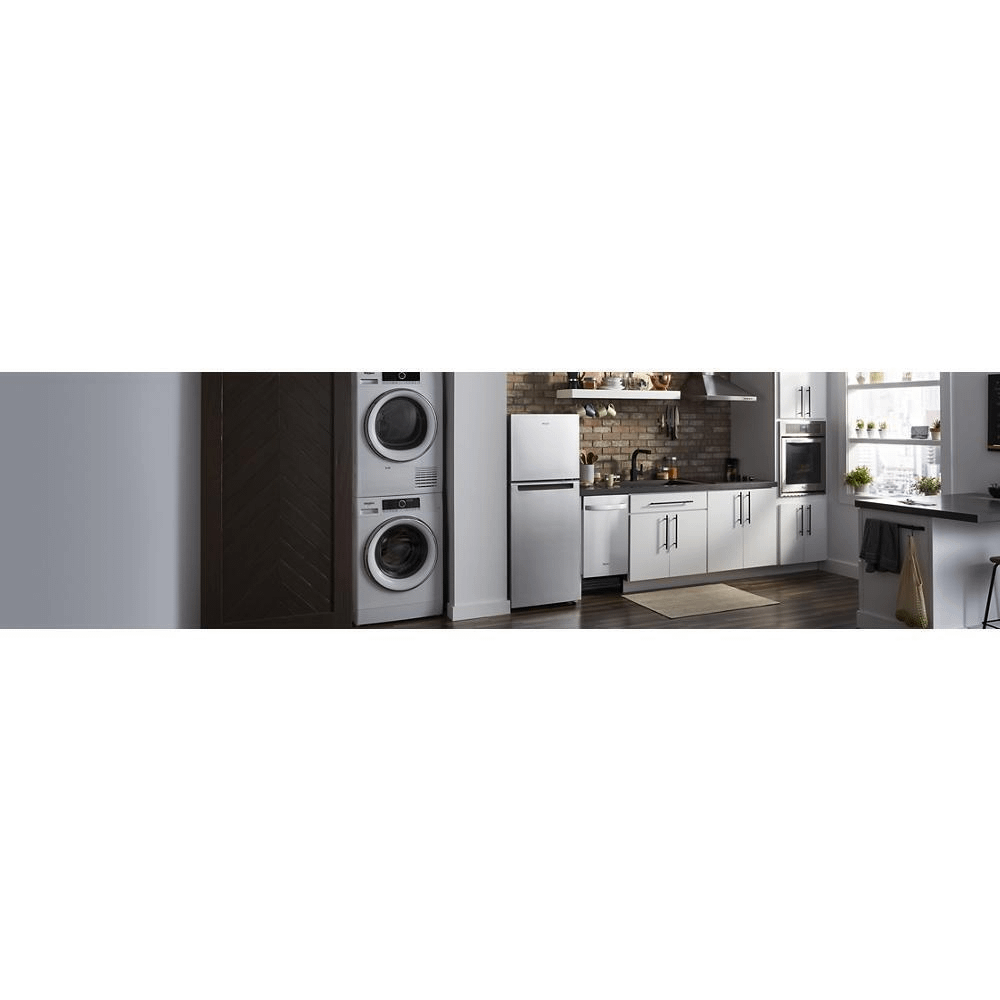

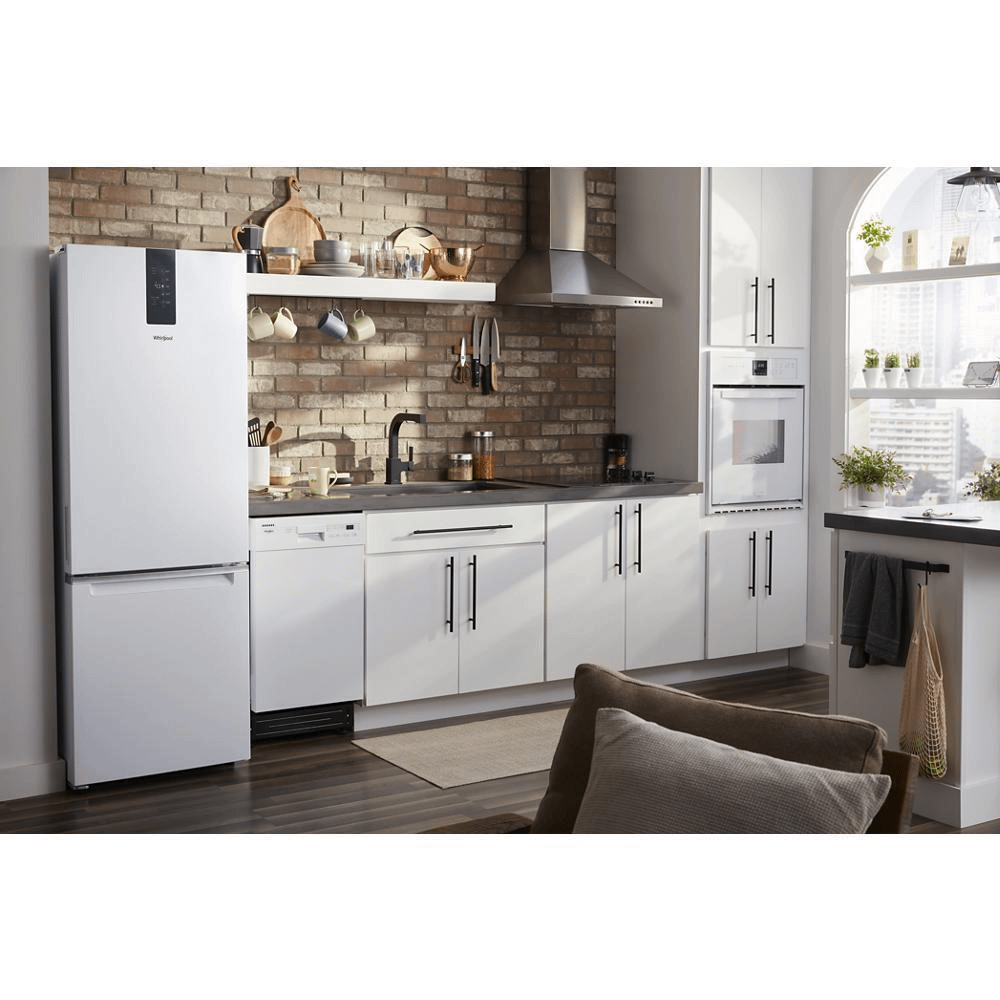

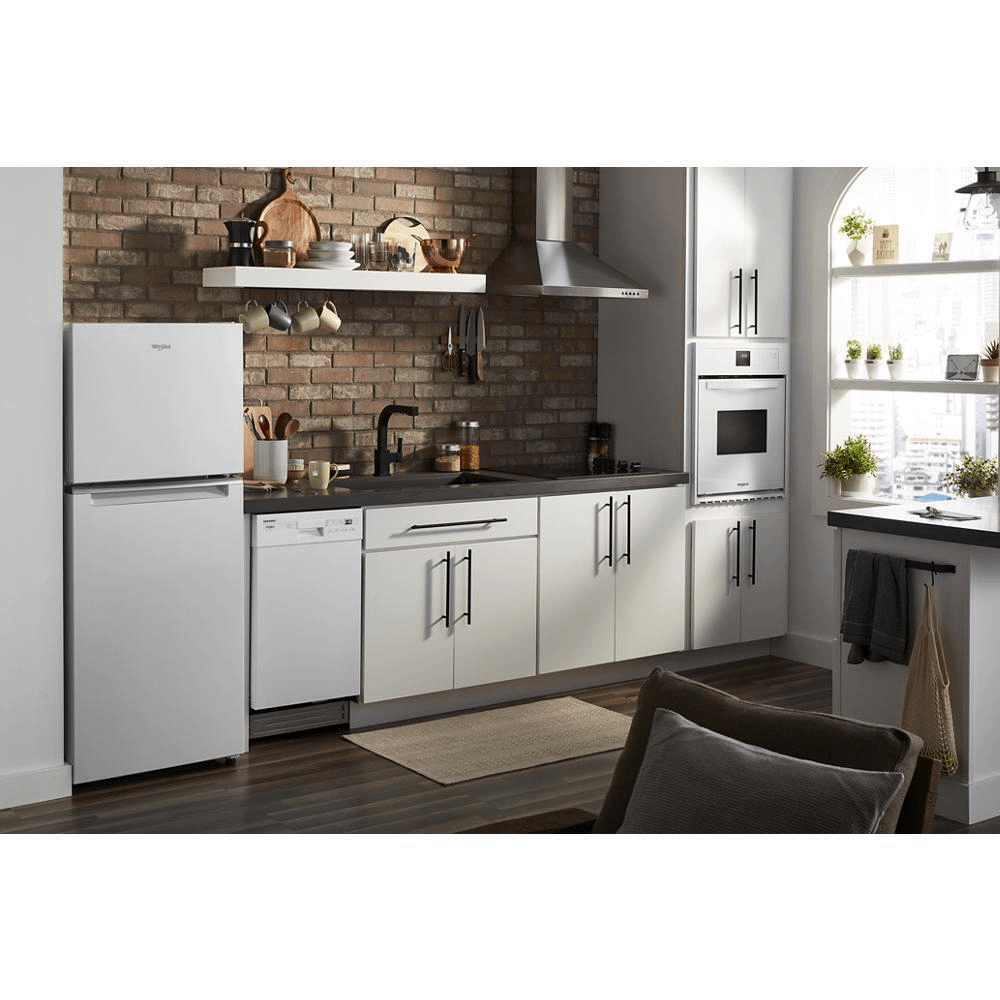

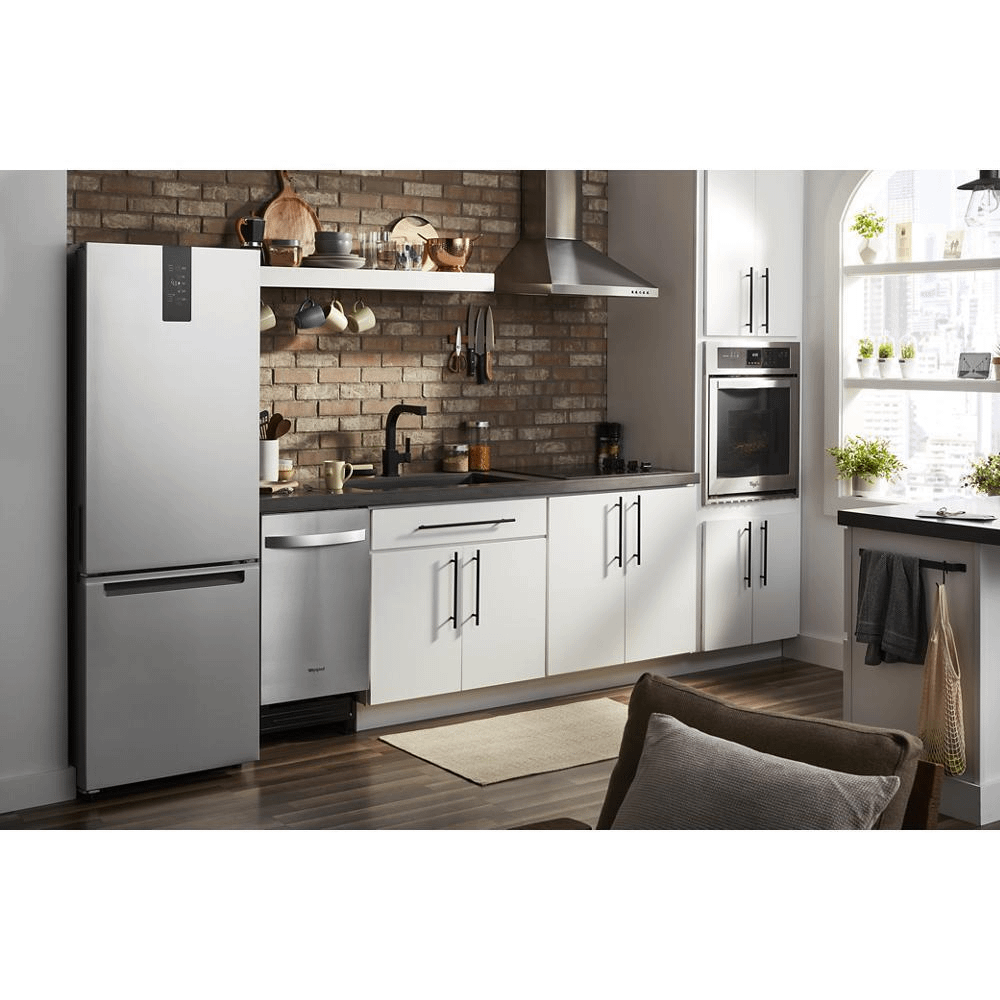

- Small Space Solution
- Cook multiple dishes at once, even in small spaces, with a cooktop made to fit your family's needs.
- Wall Oven Compatible
- Install this cooktop to work with a wall oven or on its own for more flexibility.
Certifications | |
Ada Compliant | ADA Height and Side and Front Reach Compliant |
Prop65 | Standard |
Ul | Yes |
Controls | |
Control Location | Right Side |

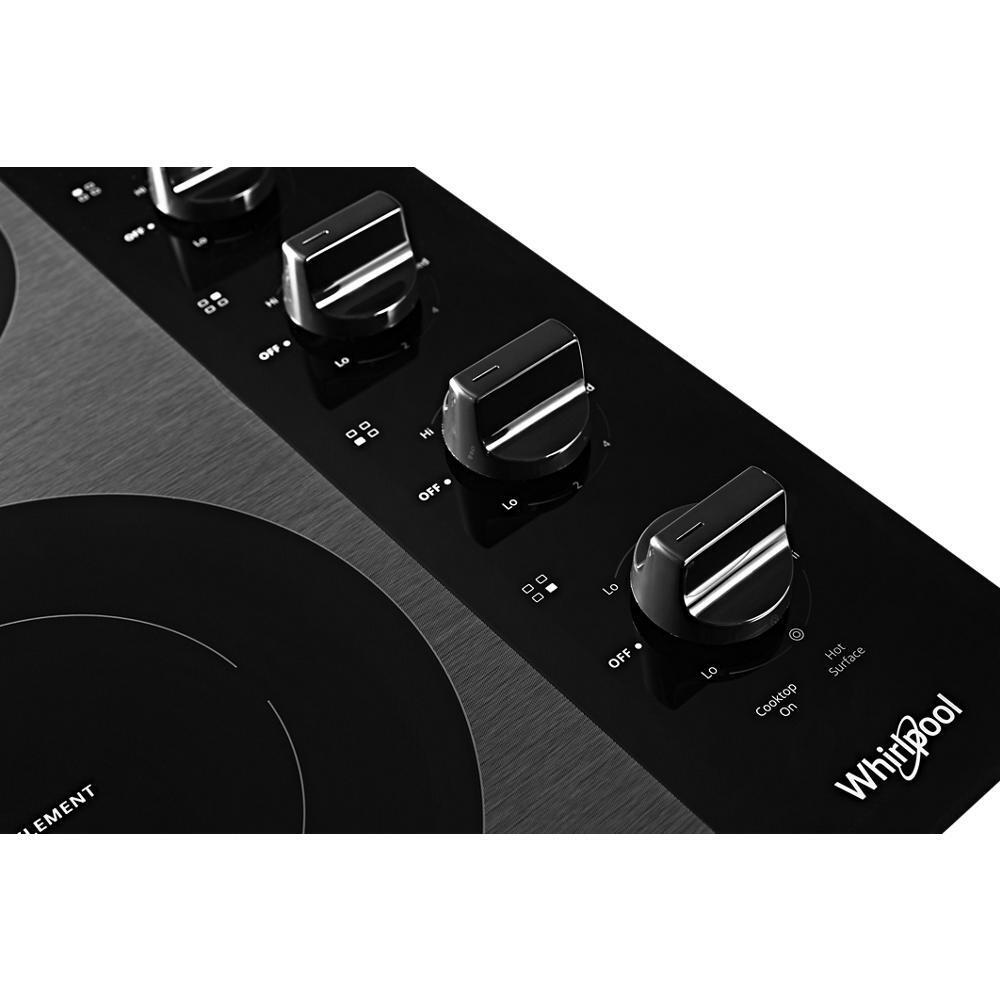

Control Type | Knobs |
Infinite Heat Controls | Yes |
Cooktop Details | |
Cooktop Surface Color | Black |
Cooktop Surface Material | Glass |
Digital Display | No |
Griddle Included | N/A |
Heating Element On Indicator Light | Yes |
Hot Surface Indicator Light | Yes |
Ignition Type | Electronic |
Details | |
Automatic Pan Detection | No |
Combinations With Oven | WOES3027L; WOES3030L; WOES5027L; WOES5030L; WOES5930L; WOES7027P; WOES7030P; WOS11EM4; WOS31ES0; WOS31ES7; WOS51EC0; WOS51EC7; WOS51ES4; WOS52EM4; WOS72EC0; WOS72EC7; WOS92EC0; WOS92EC7; WOS97EC0; WOS97ES0; WOSA2EC0 |
Cooktop Configuration | All Burners |
Fuel Type | Electric |
Installs Over Built-in Oven | Yes |
Lp Convertible | No |
Power Outage Compatible | No |

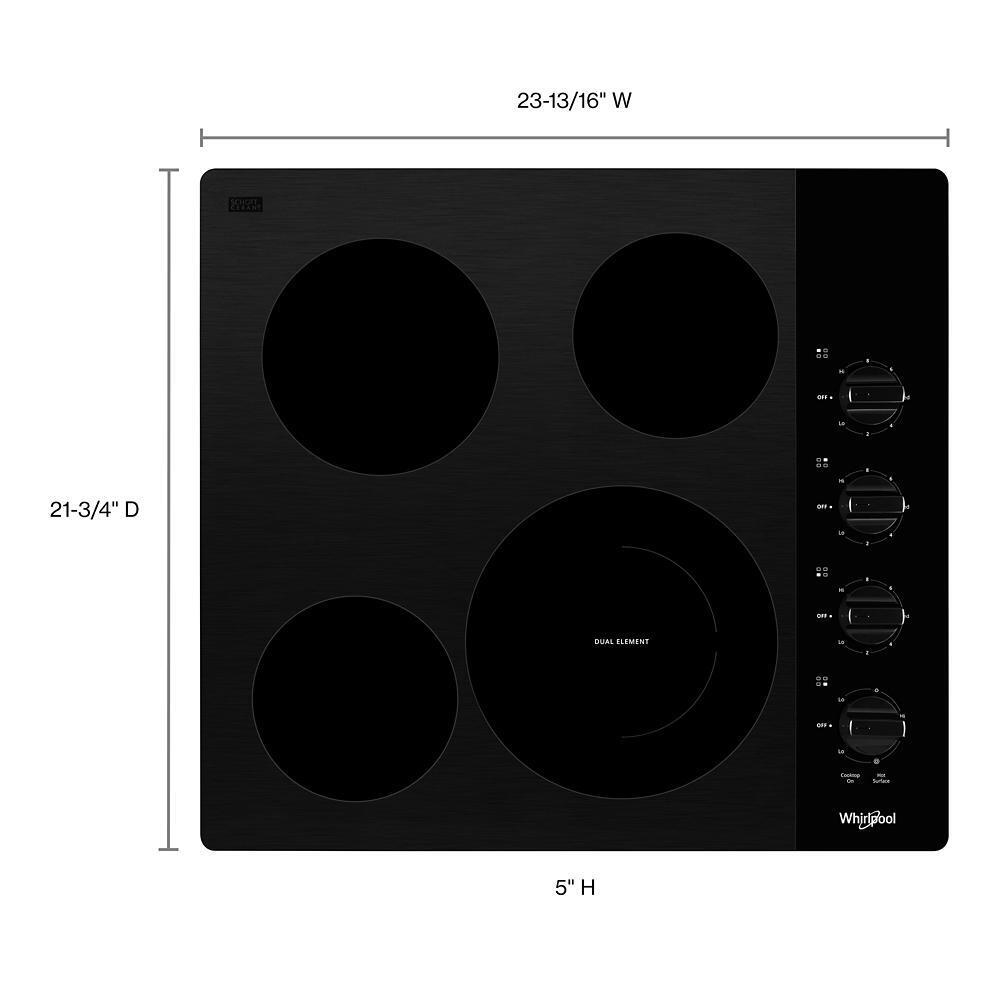

Dimensions | |
Product Height | 5.0 |
Carton Height | 9.25 |
Gross Weight | 44 |
Carton Width | 27.75 |
Product Depth | 21.75 |
Cutout Depth Max | 20.563 |
Cutout Width Min | 22.25 |
Cutout Depth | 20.375 |
Carton Depth | 25 |
Cutout Width | 21.25 |
Cutout Depth Min | 20.375 |
Cutout Width Max | 22.438 |
Net Weight | 39 |
Product Width | 23.8125 |
Electrical | |
208v Compatible | Yes |
Power Cord Included | Yes |
Element/burner Details | |
Cooktop Element Style | Radiant |
Cooktop Type | Standard |
Left Front Element-burner Power | 1,200W |
Left Front Element-burner Size | 6in. |
Left Front Element-burner Type | Standard |
Left Rear Element-burner Power | 1,800W |
Left Rear Element-burner Size | 8in. |
Left Rear Element-burner Type | Standard |
Number of Cooking Element-burners | 4 |
Power Boost | No |
Right Front Element-burner Power | 2,500W |
Right Front Element-burner Size | 10in./6in. |
Right Front Element-burner Type | Dual |
Right Rear Element-burner Power | 1,200W |
Right Rear Element-burner Size | 6in. |
Right Rear Element-burner Type | Standard |
Exterior Details | |
Knob Color | Black |
Knob Type | Dishwasher-Safe Plastic |
General | |
Combination Match With Oven | WOS11EM4; WOS31ES0; WOS31ES7; WOS51EC0; WOS51EC7; WOS51ES4; WOS52EM4; WOS72EC0; WOS72EC7; WOS92EC0; WOS92EC7; WOS97EC0; WOS97ES0; WOSA2EC0 |
Smart Compatibility | |
Connectivity | No |
Works With | No |
Ventilation Details | |
Downdraft Vent | No |
