Whirlpool WCC31430AW
$709.00
Unit price
/
Unavailable
Overview & Specifications
Overview & Specifications
Meet all your cooking needs with the 30-inch electric cooktop. Two 8-inch and two 6-inch coil elements offer the heat you need to quickly boil, fry or sear your favorite dishes. Use the infinite heat controls to select a heat output ranging from low to high for more convenience as you cook. A porcelain SpillGuard™ cooktop also helps contain messes and makes cleanup easier with a raised-ridge design.
- Chrome Drip Bowls
- Helps catch spills and wipe up easily.
- Hot Surface Indicator Light
- A hot surface indicator light illuminates when the cooktop surface is still hot to the touch even after the heating element has been turned off.
| Certifications | |
| Prop65 | Standard |
| Ul | Yes |
| Controls | |
| Control Location | Right Side |
| Control Type | Knobs |
| Infinite Heat Controls | Yes |
| Cooktop Details | |
| Cooktop Surface Color | White |
| Cooktop Surface Material | Stainless Steel |
| Digital Display | No |
| Griddle Included | N/A |
| Heating Element On Indicator Light | Yes |
| Hot Surface Indicator Light | No |
| Details | |
| Combinations With Oven | WOES3027L; WOES3030L; WOES5027L; WOES5030L; WOES5930L; WOES7027P; WOES7030P; WOS11EM4; WOS51EC0; WOS51EC7; WOS51ES4; WOS72EC0; WOS72EC7; WOS92EC0; WOS92EC7; WOS97EC0; WOS97ES0; WOSA2EC0 |
| Cooktop Selections | Power On Indicator Light |
| Fuel Type | Electric |
| Installs Over Built-in Oven | Yes |
| Power Outage Compatible | No |

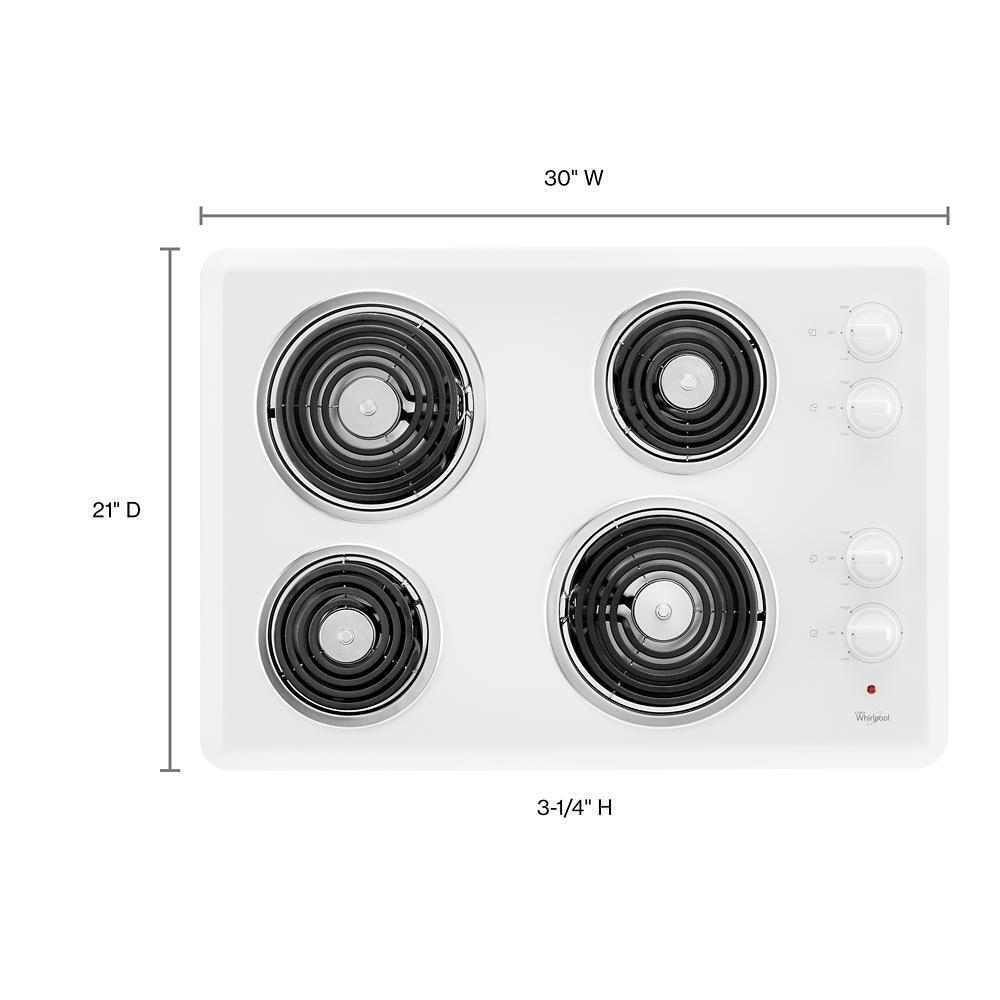

| Dimensions | |
| Product Height | 3.25 |
| Carton Height | 7.75 |
| Gross Weight | 32 |
| Carton Width | 35.75 |
| Product Depth | 21.0 |
| Cutout Width Min | 28.313 |
| Cutout Depth | 19.813 |
| Cutout Height | 4.75 |
| Carton Depth | 25 |
| Cutout Width | 28.313 |
| Cutout Width Max | 28.875 |
| Net Weight | 0 |
| Product Width | 30.0 |
| Electrical | |
| Power Cord Included | No |
| Element/burner Details | |
| Cooktop Element Style | Coil |
| Cooktop Type | Standard |
| Left Front Element-burner Power | 1,500W |
| Left Front Element-burner Size | 6in. |
| Left Front Element-burner Type | Coil |
| Left Rear Element-burner Power | 2,350W |
| Left Rear Element-burner Size | 8in. |
| Left Rear Element-burner Type | Coil |
| Number of Cooking Element-burners | 4 |
| Right Front Element-burner Power | 2,350W |
| Right Front Element-burner Size | 8in. |
| Right Front Element-burner Type | Coil |
| Right Rear Element-burner Power | 1,500W |
| Right Rear Element-burner Size | 6in. |
| Right Rear Element-burner Type | Coil |
| Exterior Details | |
| Knob Color | Color Coordinated |
| Knob Type | Dishwasher-Safe Plastic |
| General | |
| Combination Match With Oven | WOS11EM4; WOS51EC0; WOS51EC7; WOS51ES4; WOS72EC0; WOS72EC7; WOS92EC0; WOS92EC7; WOS97EC0; WOS97ES0; WOSA2EC0 |
| Ventilation Details | |
| Downdraft Vent | No |
