Overview & Specifications
Overview & Specifications

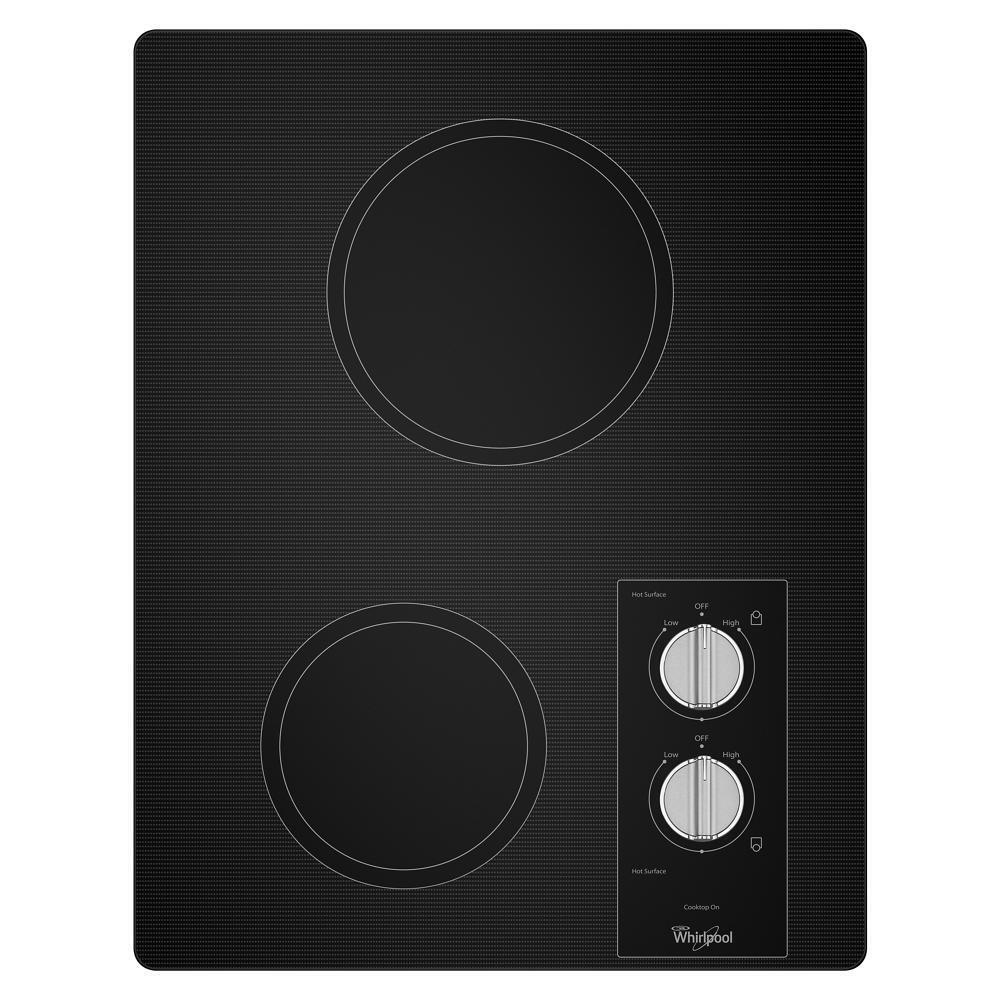

The ceramic glass cooktop provides an ideal space for cooking and easy cleanup.
- Built-In Oven Compatible
- This cooktop is built-in oven compatible and can be installed over a single built-in oven for added installation flexibility. G7CG3665XB and G7CG3064XB excluded.
- Easy-Wipe Ceramic Glass Cooktop
- The ceramic glass cooktop provides an ideal space for cooking and easy cleanup.
Certifications | |
Ada Compliant | ADA Height and Side and Front Reach Compliant |
Prop65 | Standard |
Controls | |
Control Location | Front |
Control Type | Knobs |
Infinite Heat Controls | Yes |
Cooktop Details | |
Cooktop Surface Color | Black |
Cooktop Surface Material | Ceramic Glass |
Digital Display | No |
Griddle Included | N/A |
Heating Element On Indicator Light | Yes |
Hot Surface Indicator Light | Yes |
Details | |
Automatic Pan Detection | No |
Combinations With Oven | WOES3027L; WOES3030L; WOES5027L; WOES5930L; WOES7027P; WOES7030P; WOS11EM4; WOS51EC0; WOS51EC7; WOS51ES4; WOS72EC0; WOS72EC7; WOS92EC0; WOS92EC7; WOS97EC0; WOS97ES0; WOSA2EC0 |
Fuel Type | Electric |
Power Outage Compatible | No |

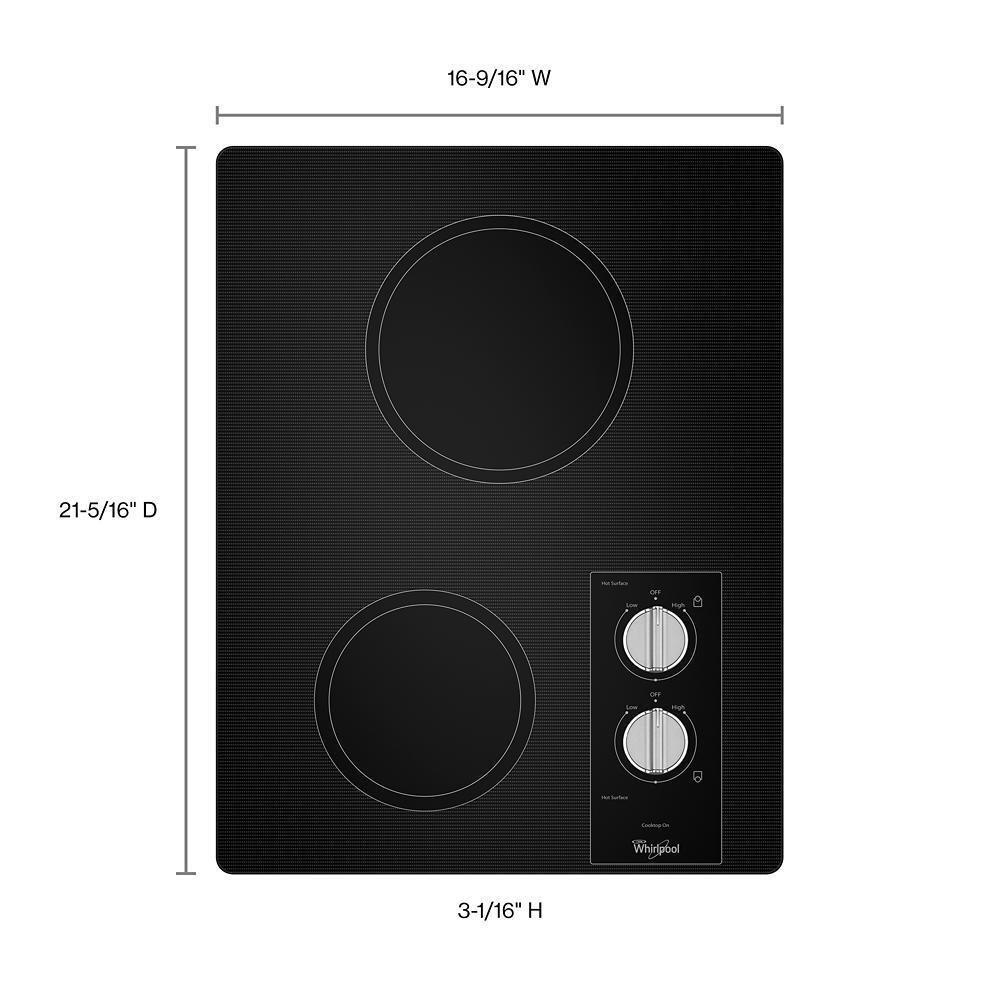

Dimensions | |
Product Height | 3.0625 |
Cutout Depth | 20.5 |
Carton Height | 7.5 |
Gross Weight | 20 |
Carton Depth | 22.5 |
Carton Width | 24.5 |
Cutout Width | 14.5 |
Product Depth | 21.3125 |
Net Weight | 0 |
Product Width | 16.5625 |
Electrical | |
Power Cord Included | No |
Element/burner Details | |
Cooktop Element Style | Radiant |
Cooktop Type | Standard |
Left Front Element-burner Power | 1,200W |
Left Front Element-burner Size | 7in. |
Left Front Element-burner Type | Single |
Left Rear Element-burner Power | 1,800W |
Left Rear Element-burner Size | 8in. |
Left Rear Element-burner Type | Single |
Number of Cooking Element-burners | 2 |
Power Boost | No |
Exterior Details | |
Knob Color | Stainless Steel |
Knob Type | Dishwasher-Safe Plastic |
General | |
Combination Match With Oven | WOS11EM4; WOS51EC0; WOS51EC7; WOS51ES4; WOS72EC0; WOS72EC7; WOS92EC0; WOS92EC7; WOS97EC0; WOS97ES0; WOSA2EC0 |
Ventilation Details | |
Downdraft Vent | No |
