Overview & Specifications
Overview & Specifications
Commercial-Type Cooking Power
- 15,000 BTU stainless steel burners with porcelain/cast iron caps
- Exclusive! VariSimmer™ setting for all burners
- Exclusive! All burners equipped with SureSpark™ Ignition System for consistent and reliable ignition
- Automatic re-ignition; surface burners light at any position on the knob and re-light if extinguished even on lowest setting
- Exclusive! Combination of single 30,000 BTU U-shaped burner and infrared broiler with SureSpark™ Ignition System; left oven in 48" wide model has one 15,000 BTU burner
- GourmetGlo™ Infrared Broiler provides intense searing heat for broiling applications (right oven only in 48" wide model)
- New BlackChrome Metal Knobs ship standard
- New larger window opening
- Extremely large convection oven
- Right Oven - large convection oven
- Overall 23"W. x 16 1/8"H. x 18 3/4"D. - 4.0 cubic feet
- AHAM Standard 23"W. x 16 1/8"H. x 17"D. - 3.7 cubic feet
- Three heavy-duty racks/six porcelain coated rack positions
- Left Bake Oven
- Overall 12 1/8"W. x 16 1/8"H. x 18 3/4"D. - 2.1 cubic feet
- AHAM Standard 12 1/8"W. x 16 1/8"H. x 18 1/8"D. - 2.0 cubic feet
- Two heavy-duty racks/six porcelain coated rack positions
- Six functions - natural airflow bake, convection bake, infrared broil, convection infrared broil, convection dehydrate, and convection defrost (right oven only in 48" wide model)
- All convection functions utilize the ProFlow™ Convection Air Baffle, which is specifically designed to ensure balanced airflow for even heat distribution
- Convection fan switch conveniently located on control panel
- Two halogen oven lights for excellent visibility throughout the oven cavity
Easy Operation and Cleanup
- Removable pull-out drip tray with roller bearing glides for smooth operation
- Removable grate supports with separately removable, dishwasher-safe porcelain burner bowls
- Burner caps are easily removable for quick cleaning
- Heavy-duty, porcelainized, cast-iron removable surface grates provide continuous front-to-rear, left-to-right surface for easy movement of large pots
Installation Accessories
- 8"H. Backguard - BG8548SS
- High Shelf - HS24536SS
- Countertop Side Trim - P24CST
- Countertop Rear Trim - P48CRTSS
- Curb Base and Custom Curb Base Front - P48CBF4SS
Optional Accessories
- LP/Propane Conversion Kit - LPKPDR
Exclusive Color Finishes
- Available in all Classic and Contemporary Color Finishes.
Models
- VGIC5482-8B
- All models are available as LP (add LP after color code)
Warranty Highlights
- Two-year full - complete product
- Ninety-day full - cosmetic parts such as glass, painted items, and decorative items
- Five-year limited - all gas burners
California Prop. 65 WARNING: Cancer and birth defects or other reproductive harm - www.P65Warnings.ca.gov
- VariSimmer(TM) Setting
- The VariSimmer(TM) Setting on ALL burners provides gentle, even simmering at precisely low cooking temperatures.

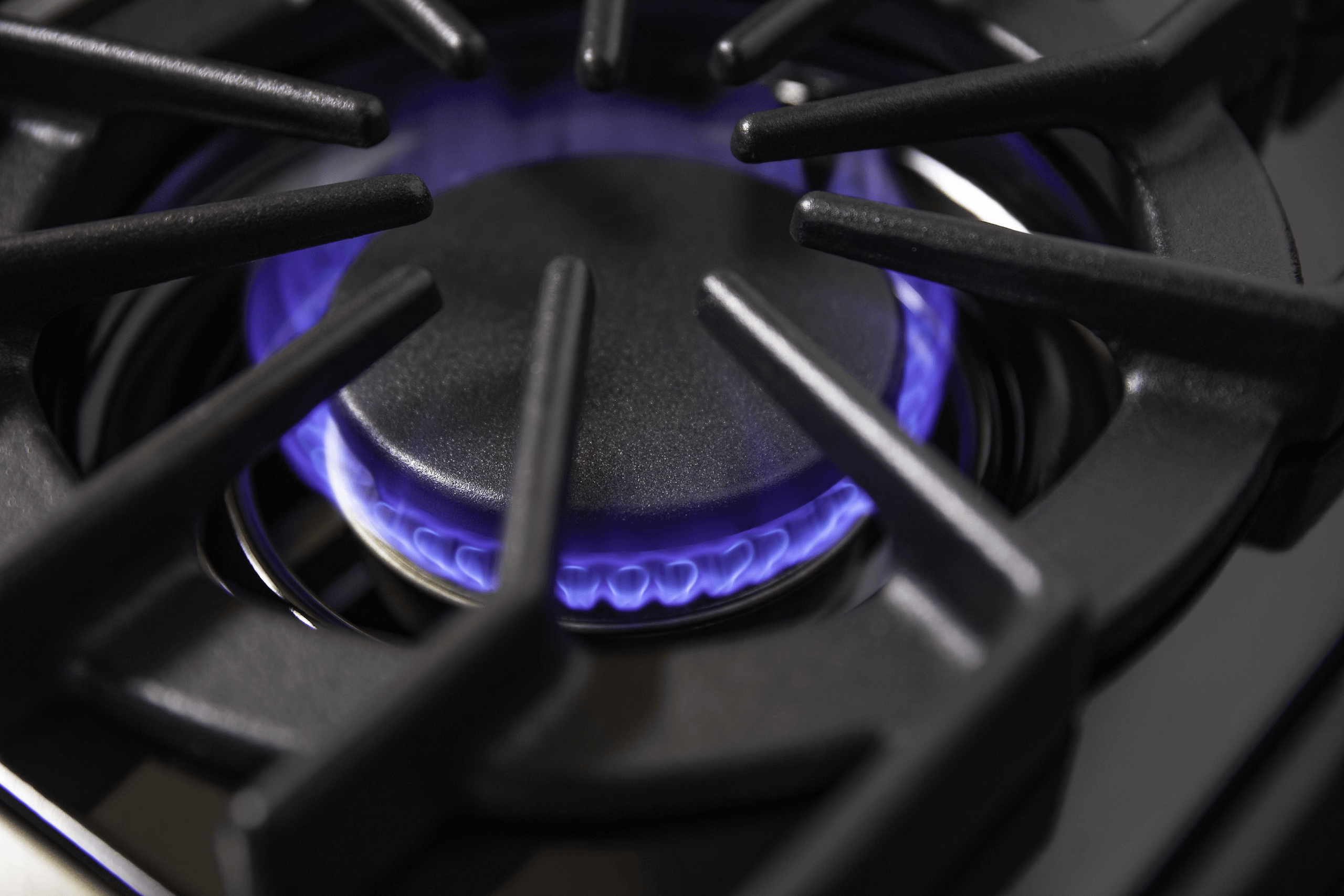

- Commercial Type Stainless Steel Open Burners
- Cook like a pro with up to 15,000 BTUs and infinite settings of easy-to-clean high performance open burners with porcelain/cast iron caps
- SureSpark(TM) Ignition System
- The exclusive SureSpark(TM) Ignition System ensures automatic ignition/re-ignition should the burners extinguish any time while cooking.
- Gourmet-Glo(TM) Gas Infrared Broiler
- Lock in all the savory juices of even the thickest porterhouse with the intense heat of the restaurant-quality Gourmet-Glo(TM) Infrared Broiler. Intense heat from broiler sears meats and fish locking in juices.
- ProFlow(TM) Convection Baffle
- Bake breads and cakes to lofty perfection with the incredibly even heat circulation of the ProFlow(TM) Convection Baffle system. Each Pro Flow Baffle has been engineered specifically for each oven cavity to maximize even cooking.
