Overview & Specifications
Overview & Specifications

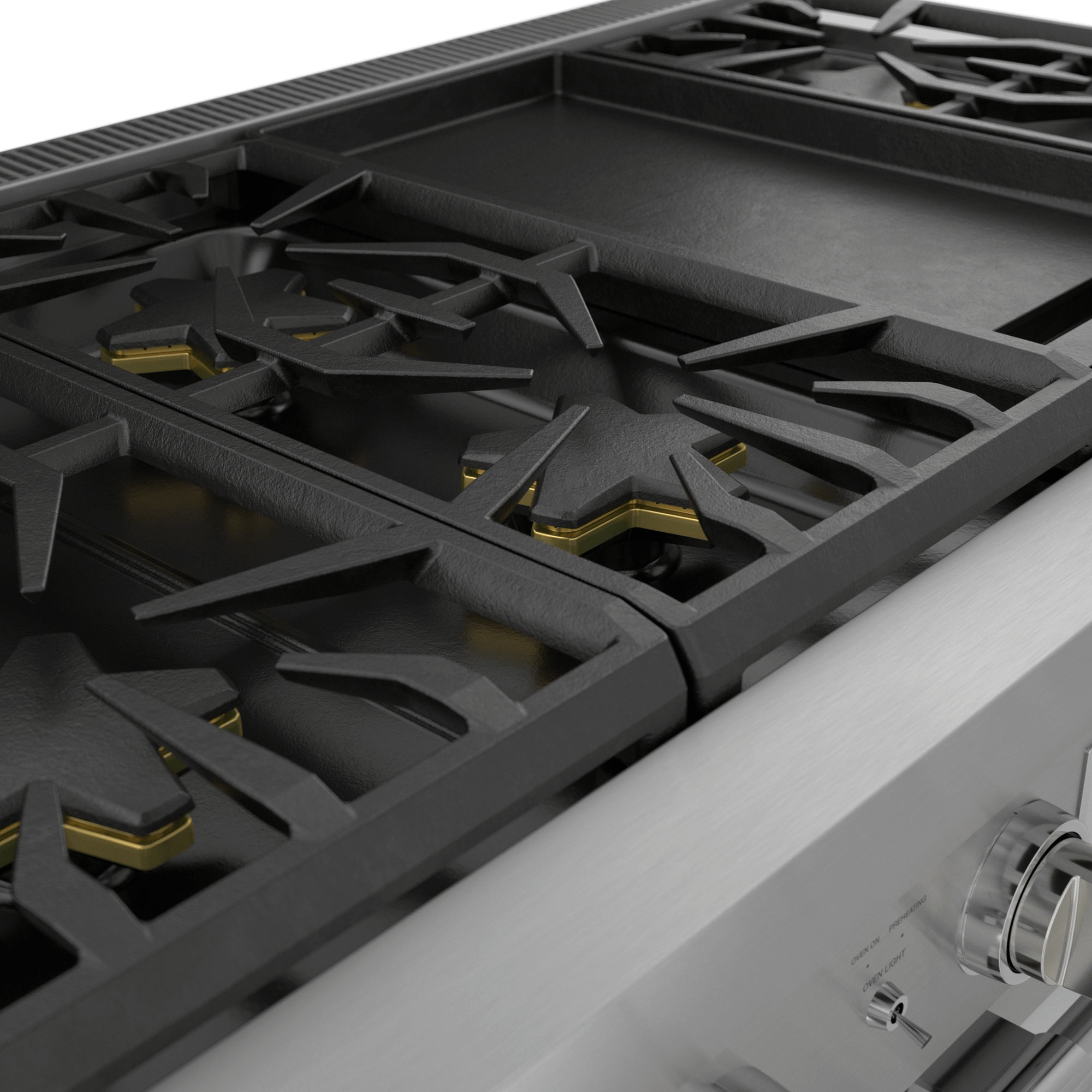

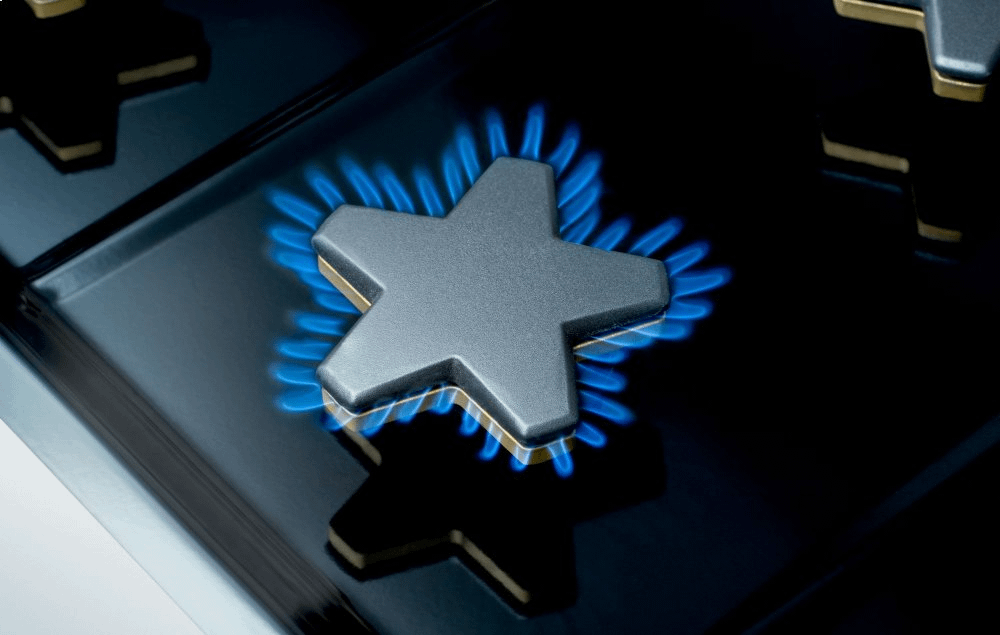

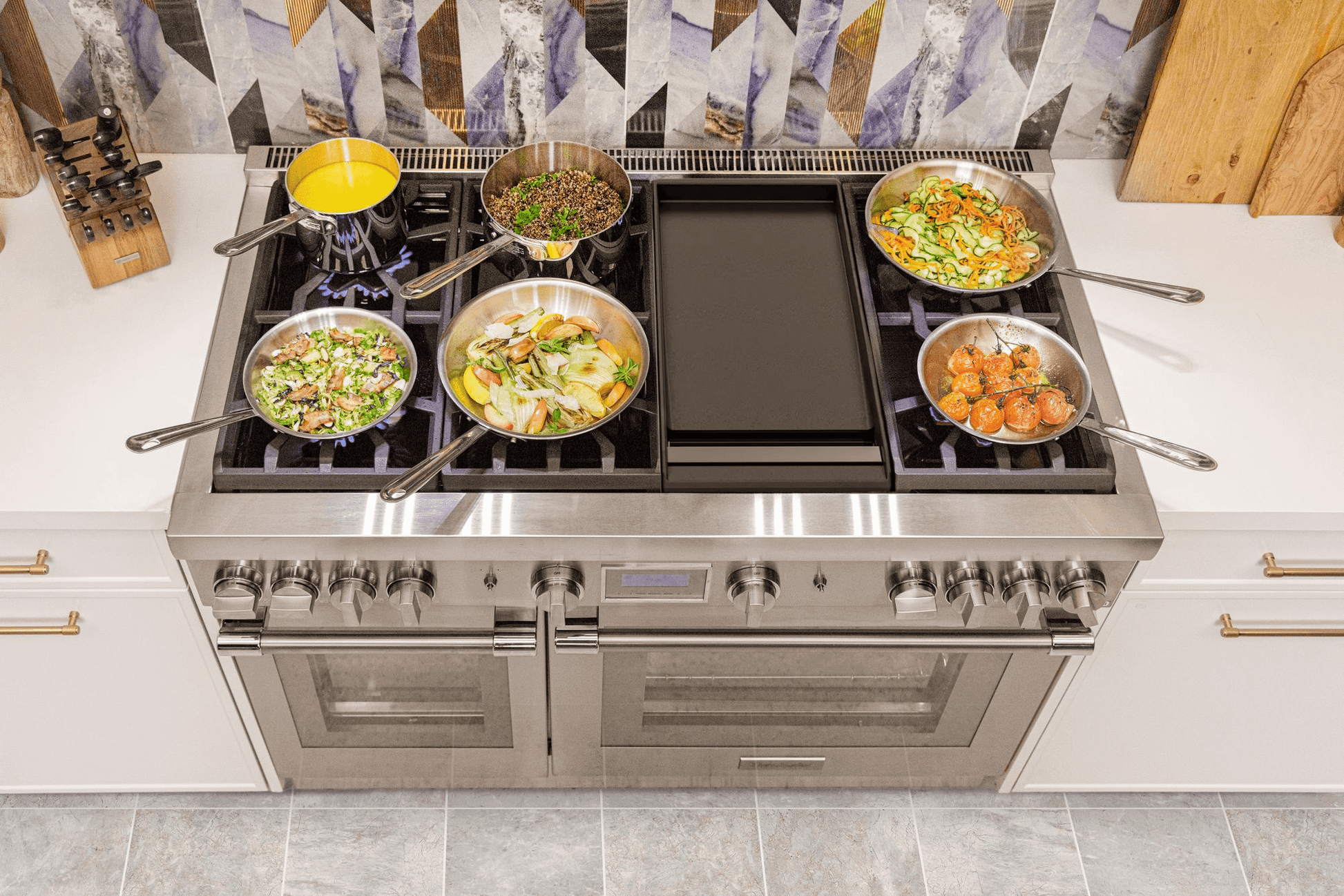

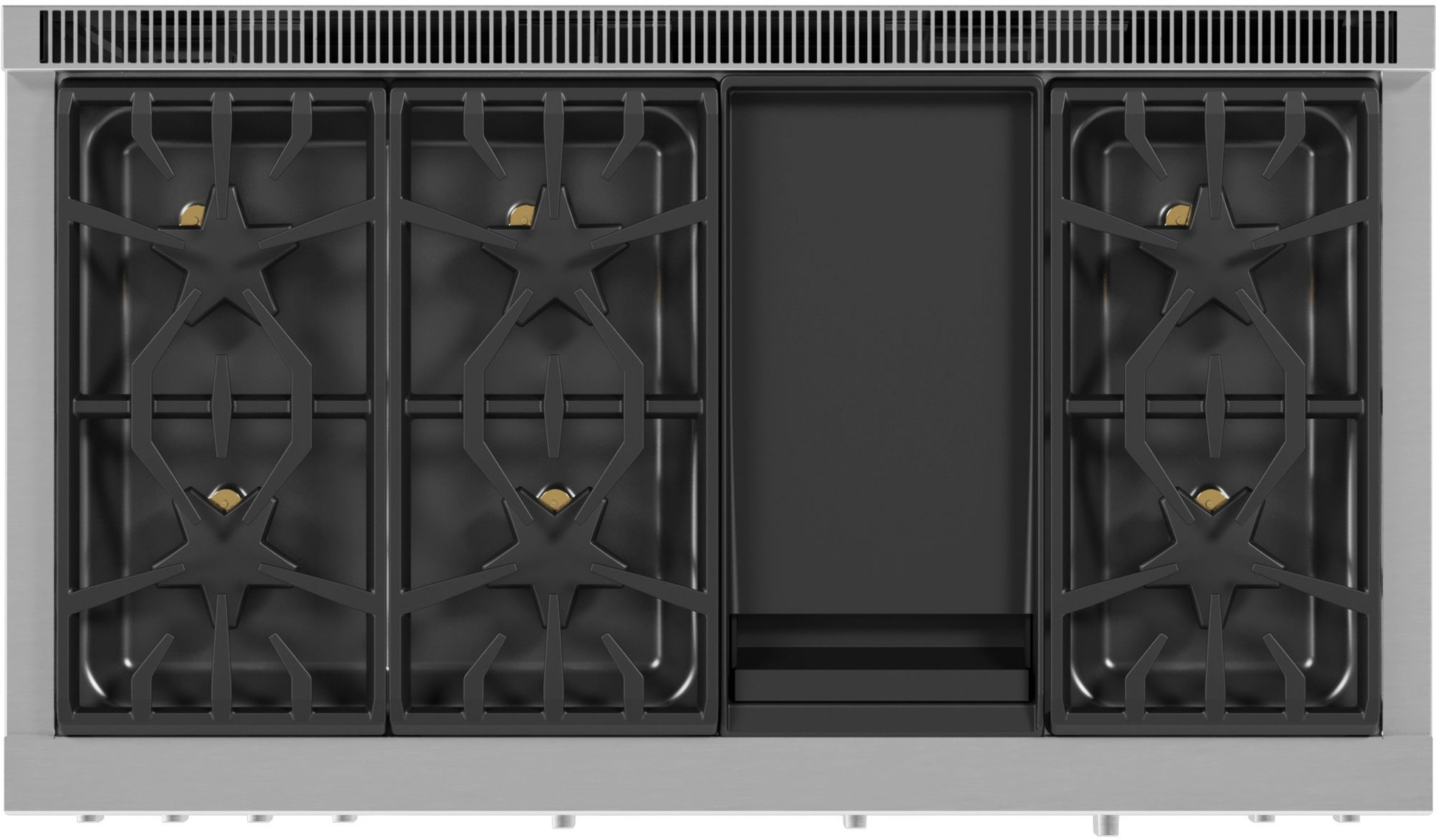

- Six Star Burners provide equal flame distribution
- Star(R) Burners are 56% longer than a round burner of the same size, which allows for more flame ports. The result is a burner that delivers a superior flame spread and reduced cold spots for faster and more even heating.
- ExtraLow Burners offer precise settings for cooking
- Our ExtraLow feature provides a wide range of temperature control. It cycles the burners on and off to maintain a very low temperature. Perfect for simmering delicate sauces or keeping food warm without scorching or stirring.
- Boil water quickly with 18,000 BTU
- Optimal for rapid boiling and high heat searing, our patented Star(R) Burner delivers 18,000 BTU of power.

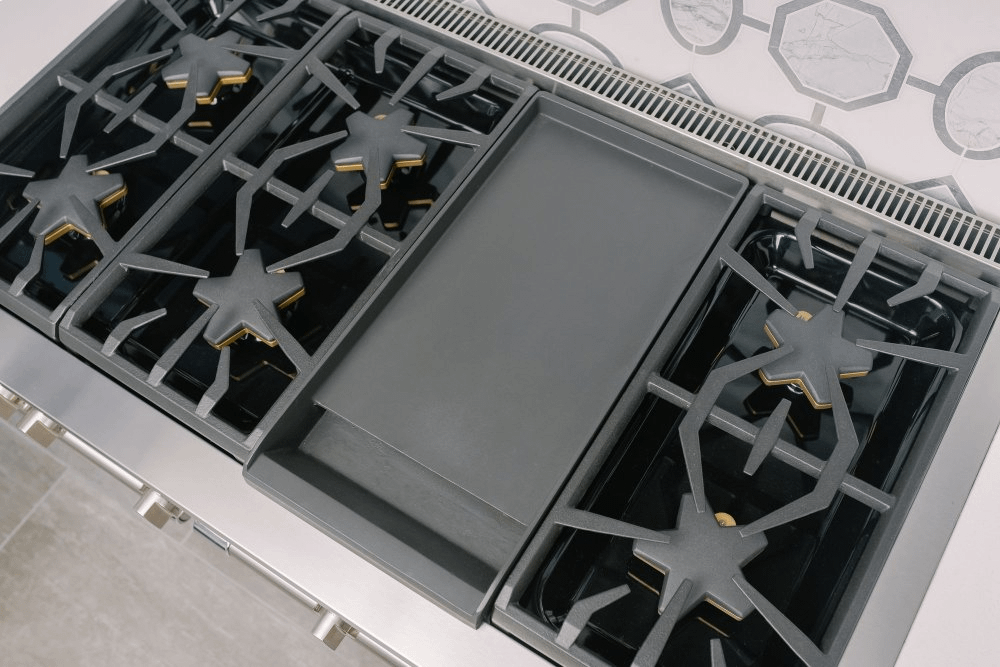

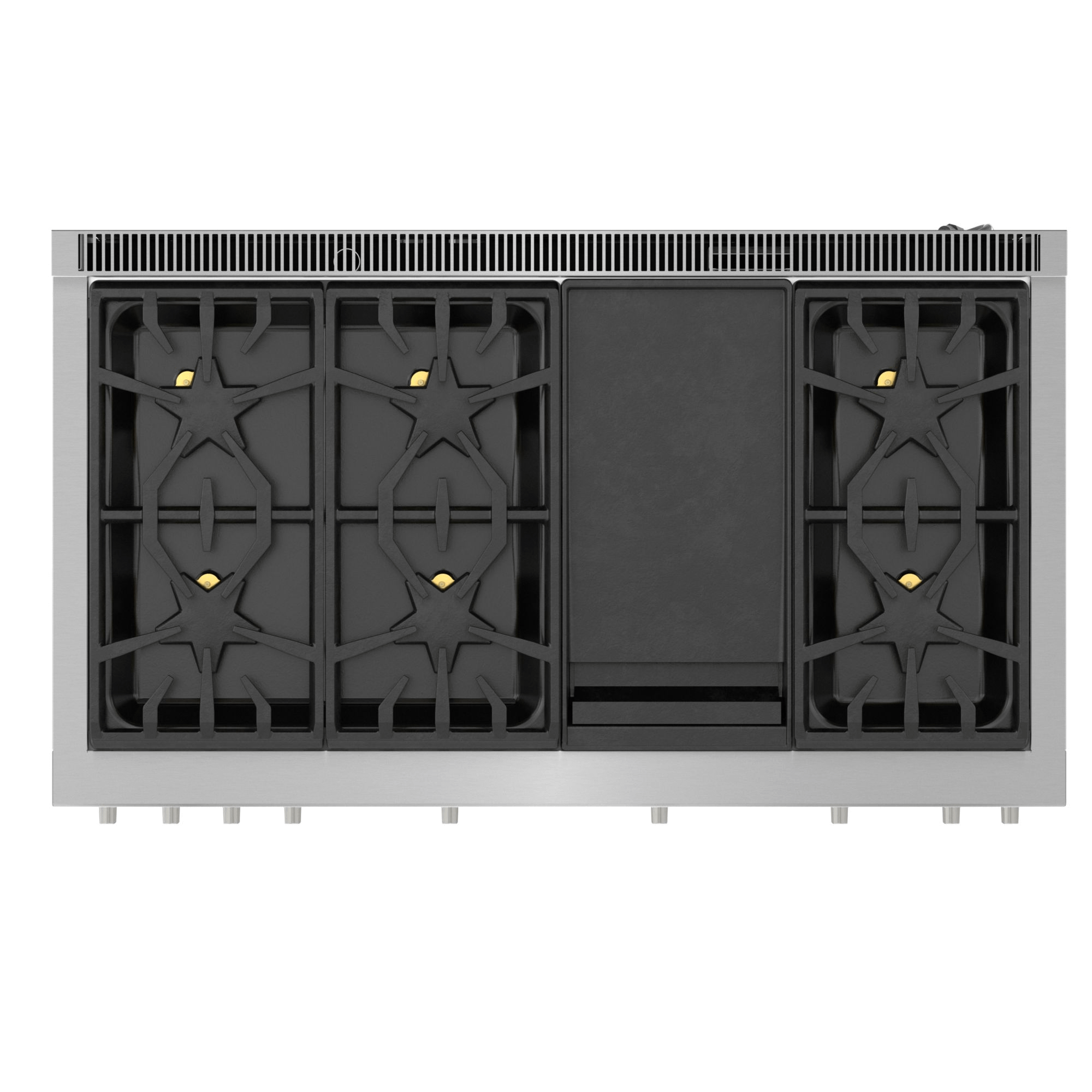

- Non-Stick Griddle for easy cooking & clean-up
- Our 12" non-stick, corrosion resistant cast-aluminum easy-clean coated surface griddle is thermostatically controlled to deliver consistent, even heating across the entire surface. It is also removable for easy cleaning or interchange it with our grill accessory.

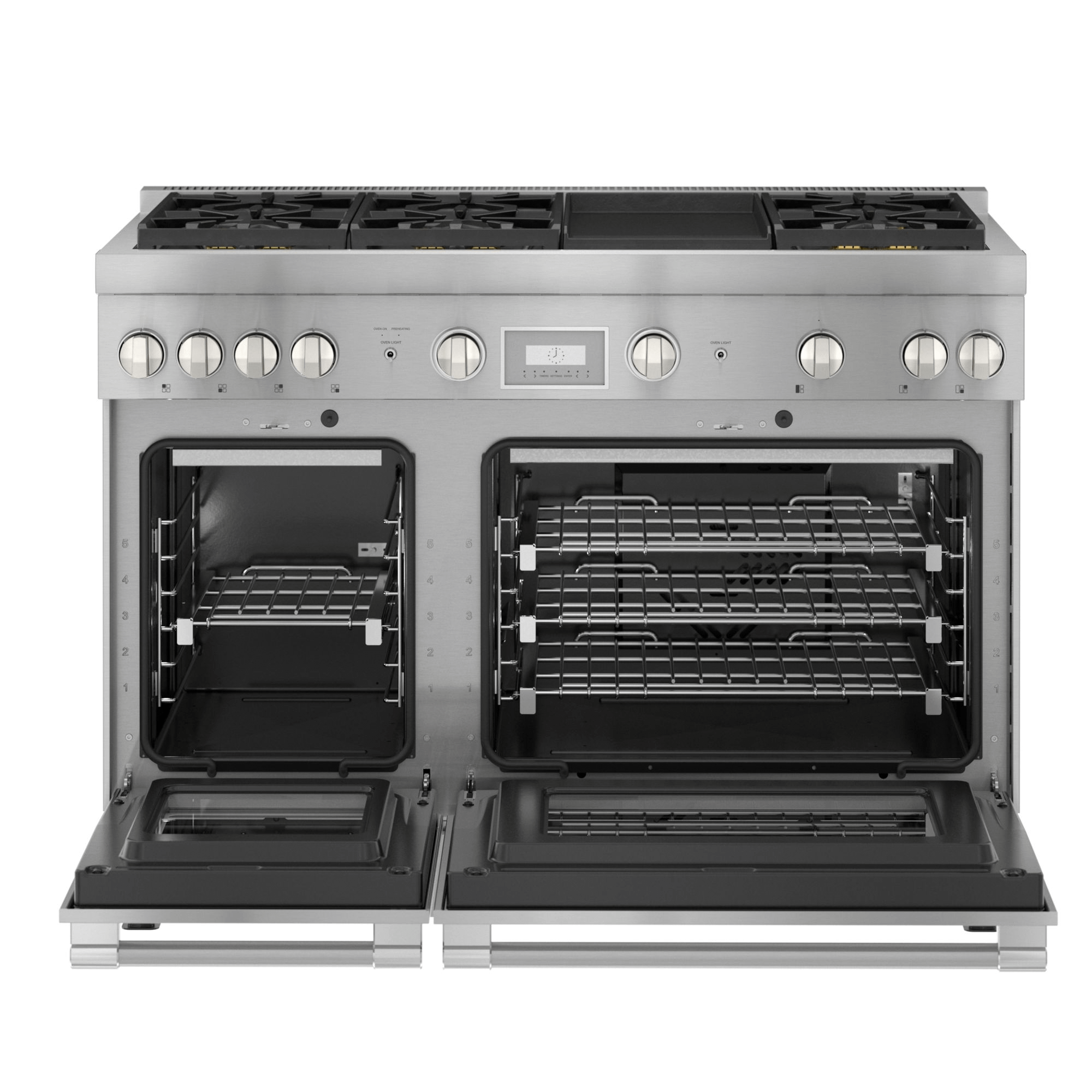

- Telescopic racks glide smoothly for easy use

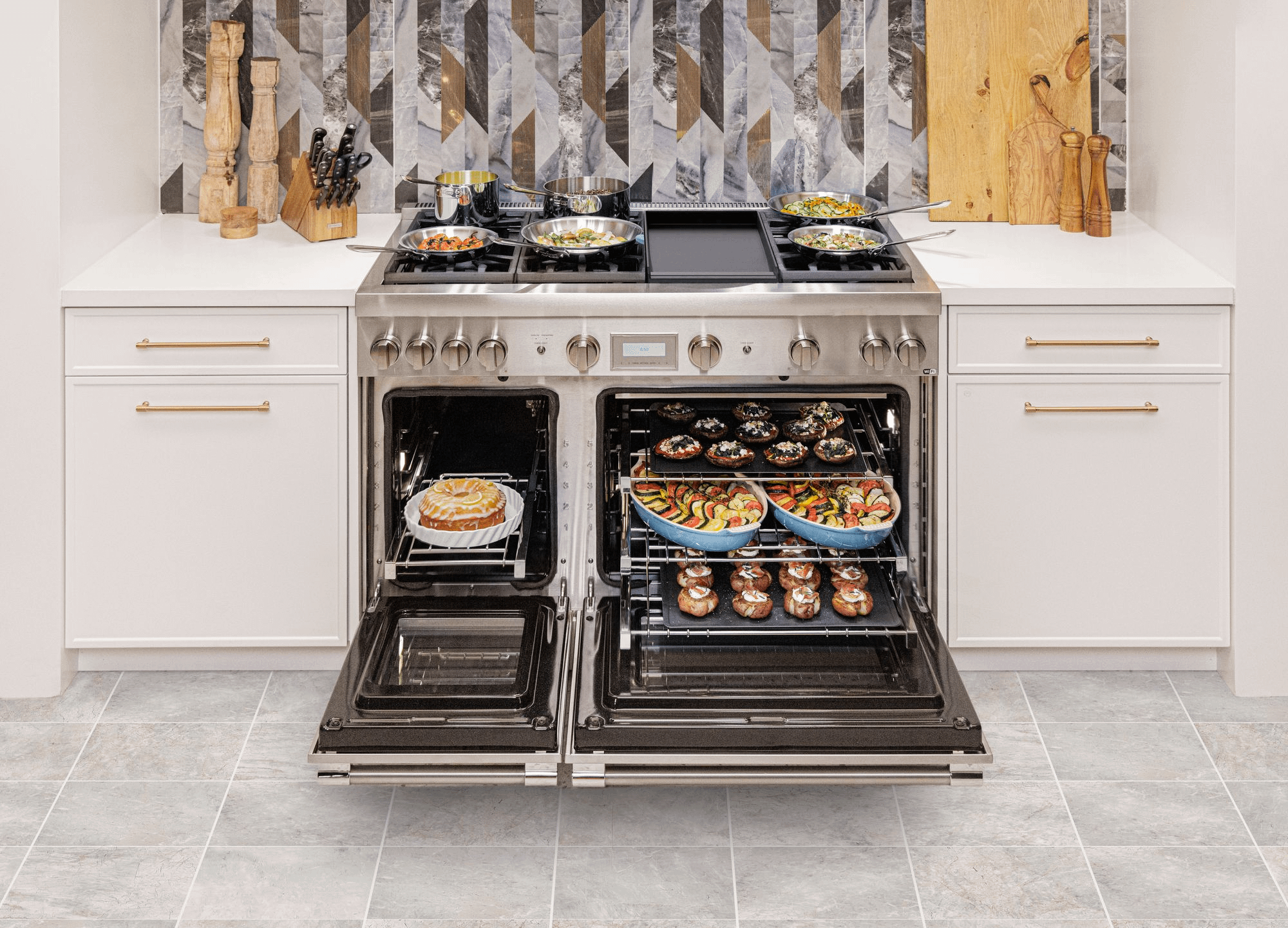

- Full Access(R) Telescopic Racks glide smoothly on ball bearings, allowing them to extend for safe, easy access while supporting the heaviest dishes. Large oven has 3 Telescopic racks and small oven has 1 Telescopic rack.
- Connect to your Range with Home Connect
- Connect to your range for remote preheating and monitoring via the Home Connect(R) app, smartwatch and other smart home devices and services, like Amazon Alexa, for hands-free voice control.

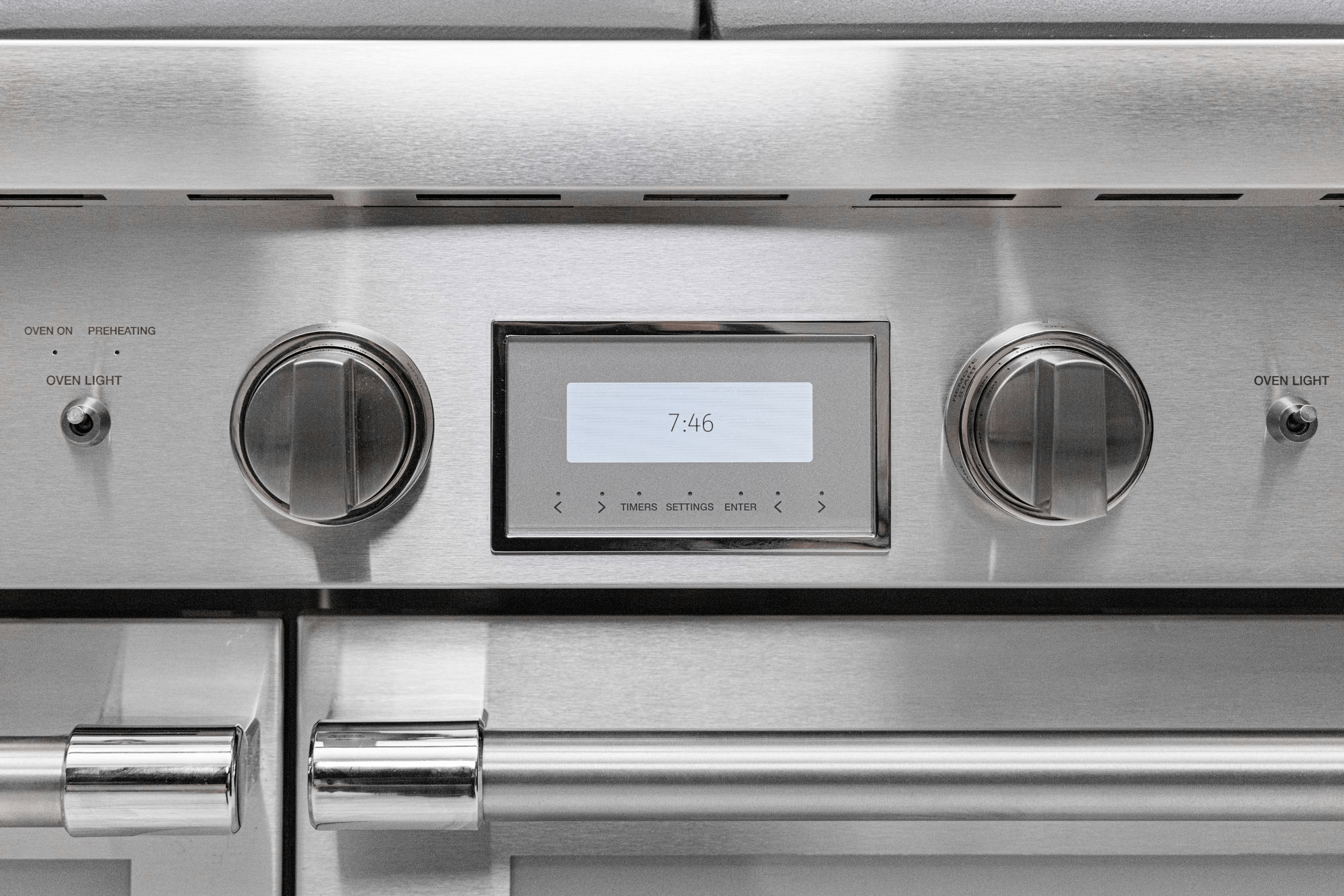

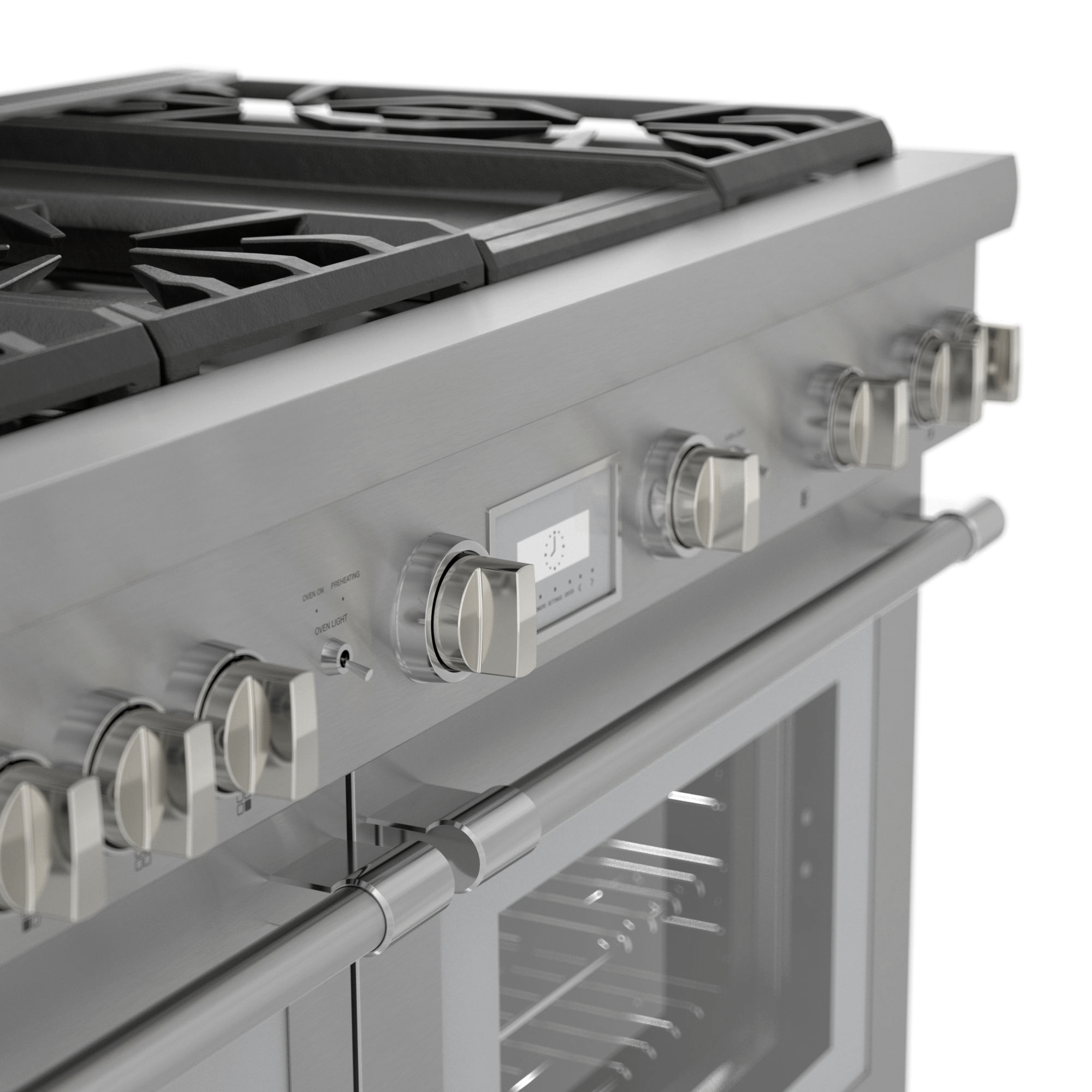

- Change settings on the Color TFT Display
- The TFT display panel offers a vibrant, full-color touchscreen display that lets you easily adjust settings.

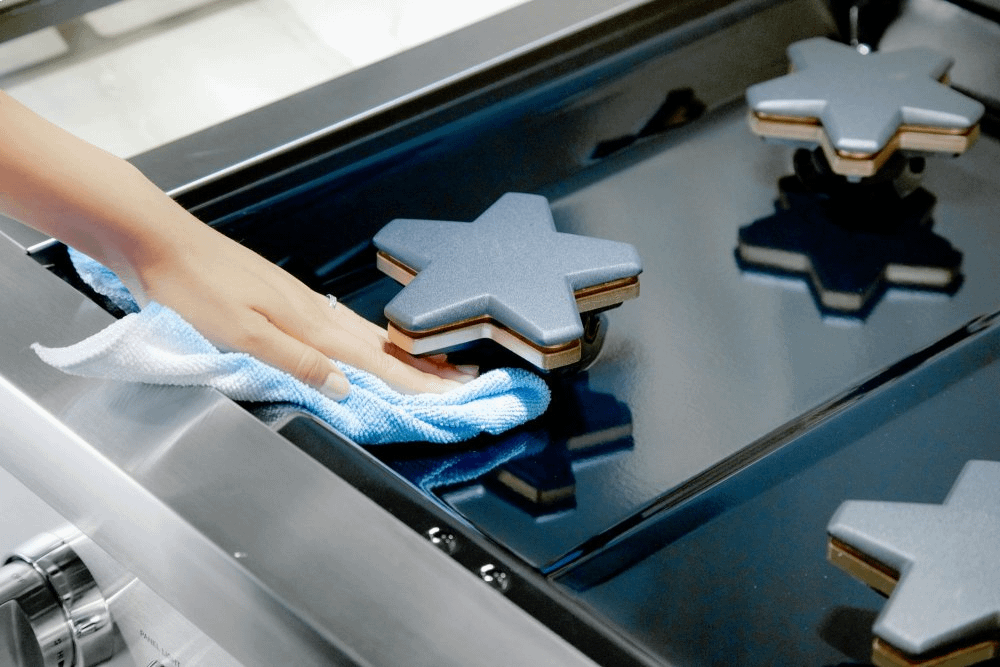

- QuickClean Base allows for easy cleaning
- The raised, patented Pedestal Star(R) Burner and porcelain maintop have been crafted for perfect integration and easy cleanup.

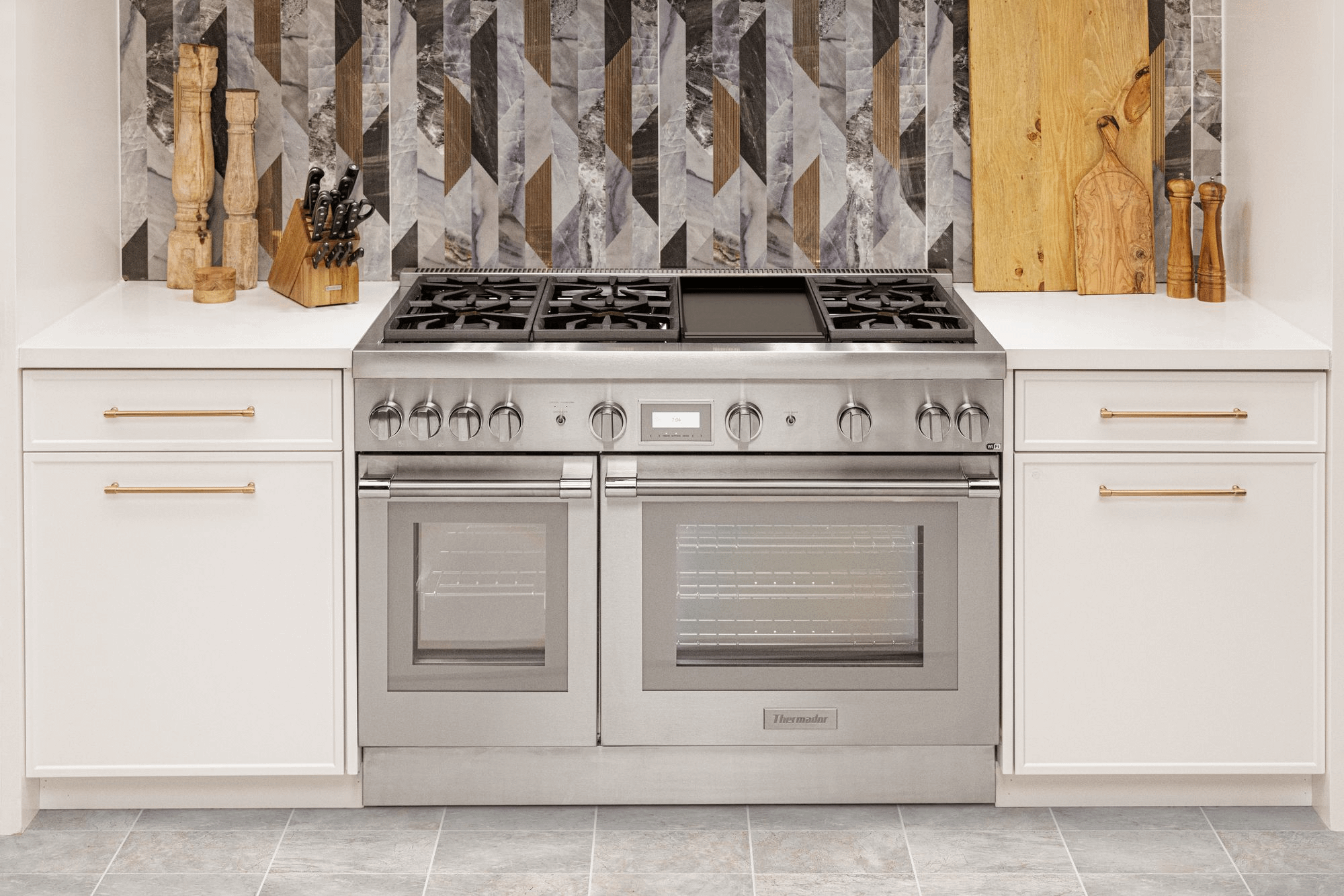

- Truly Flush Mounted ranges that are fit seamlessly in your kitchen
- Designed to fit perfectly flush in standard 24" depth cabinets.
General | |
Brand | Thermador |
SKU | PRG486WDH |
UPC code | 825225926436 |
Construction type | |
Product color | Stainless Steel |
Design | Free-standing |
Type of Control | Rotary knob, sword knobs |
Door Material - primary cavity | Stainless steel |
Energy source | Gas |
Type of energy - primary cavity | Gas heating for cooker and hob |
Size and weight | |

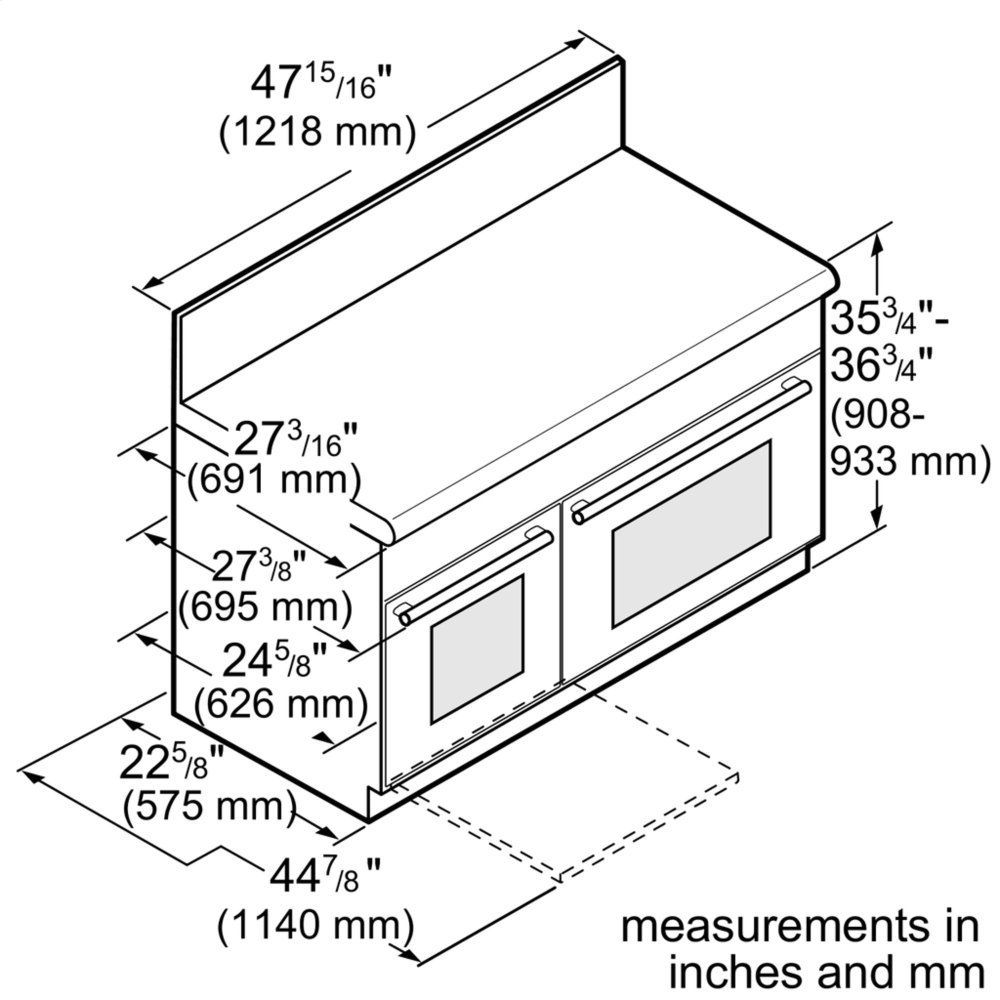

Overall Appliance Dimensions (HxWxD) (in) | 35 7/8'' x 47 15/16'' x 24 3/4'' |
Required Cutout Size (HxWxD) (in) | 48'' width slide-in |
Net Weight | 472.000 lbs |
Oven | |
Cooking Modes | Convection Bake, Gas grill/broiler, Gas top/bottom heat, Roast |
Comfort | |
Included Accessories | 1 x Broiler pan, 1 x broiler pan small, 1 x island trim |
Optional accessories - primary cavity | PA12CHPBLK, PA12GRILFW, PA12GRILLW, PA12LCVRW, PA48WLBH, PAALTKITH, PAGRIDDLE, PAKNOBLUWH, PALPKITGA6, PARKB48DHY, PWOKRINGHC |
Connection | |
Power Cord Length | 65 |
Amps | 20 A |
Watts | 1,900 W |
Plug Type | 120V-3 prong |
Volts | 120 V |
