- Telescopic racks glide smoothly for easy use
- Full Access(R) Telescopic Racks glide smoothly on ball bearings, allowing them to extend for safe, easy access while supporting the heaviest dishes. Large oven has 3 Telescopic racks and small oven has 2 Telescopic racks.

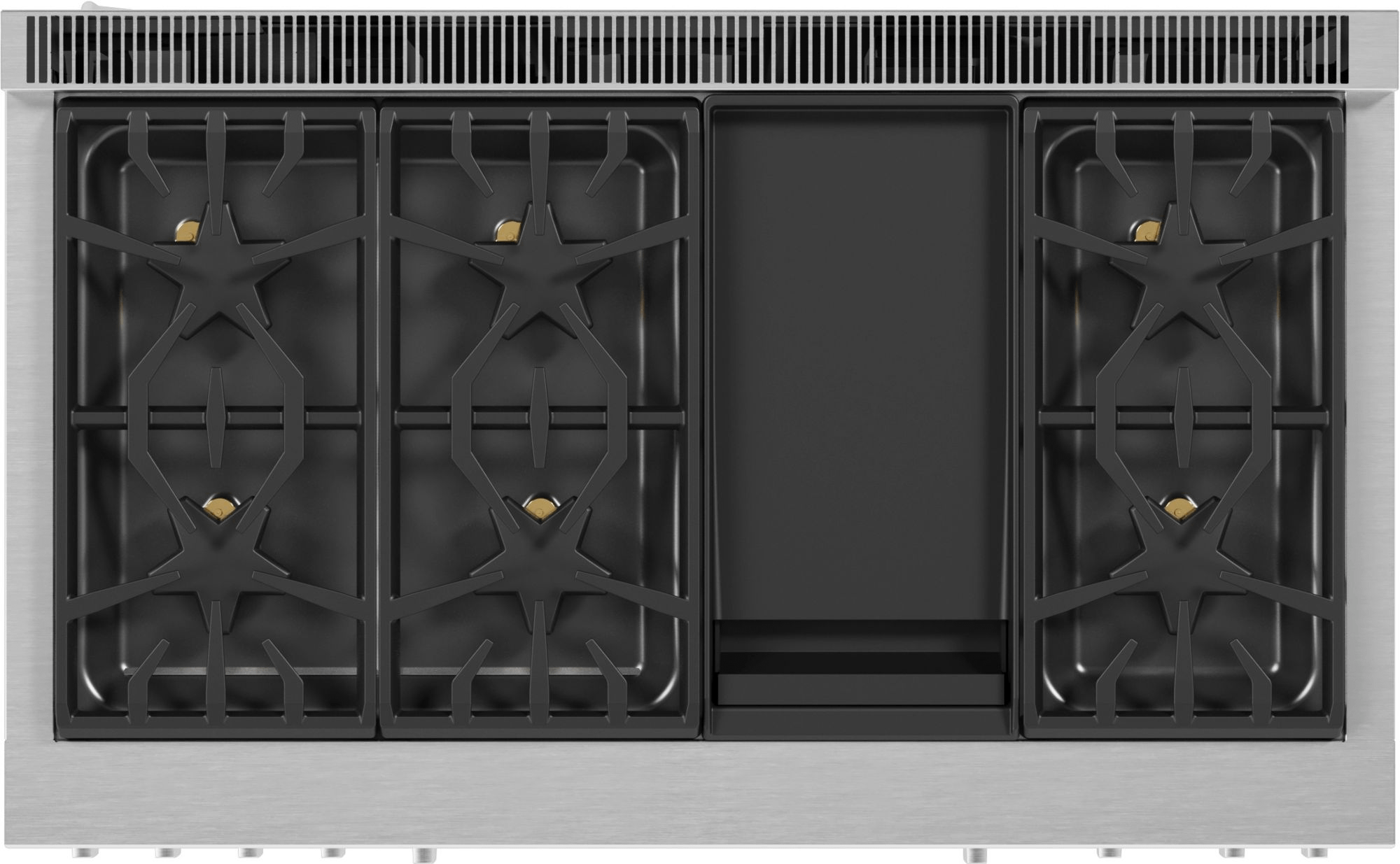

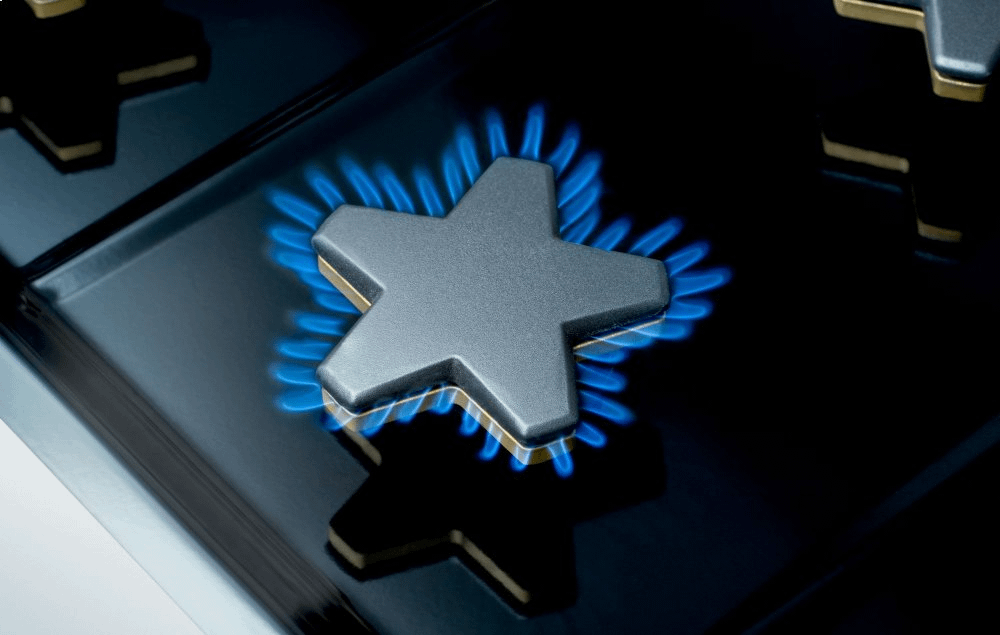

- Six Star Burners provide equal flame distribution
- Star(R) Burners are 56% longer than a round burner of the same size, which allows for more flame ports. The result is a burner that delivers a superior flame spread and reduced cold spots for faster and more even heating.
- Faster boiling with 22,000 BTU
- Our powerful, patented Pedestal Star(R) Burner delivers 22,000 BTU of pure cooking power for better searing and faster boiling.
- Connect to your Range with Home Connect
- Connect to your range for remote preheating and monitoring via the Home Connect(R) app, smartwatch and other smart home devices and services, like Amazon Alexa, for hands-free voice control.
- Change settings on the Color TFT Display
- The TFT display panel offers a vibrant, full-color touchscreen display that lets you easily adjust settings.
- Close the Door Smoothly with SoftClose Hinges
- Hydraulic SoftClose(R) Hinges prevent slamming and ensure ultra smooth closing for all doors on your appliance.
- Large Oven boasts 5.7 cubic feet
- Large oven accommodates professional-grade catering trays with 5.7 cubic feet.
General | |
Brand | Thermador |
SKU | PRG486WDG |
UPC code | 825225928362 |
Construction type | |
Product color | Stainless Steel |
Design | Free-standing |
Type of Control | Rotary knob, sword knobs |
Door Material - primary cavity | Stainless steel |
Energy source | Gas |
Type of energy - primary cavity | Gas heating for cooker and hob |
Size and weight | |

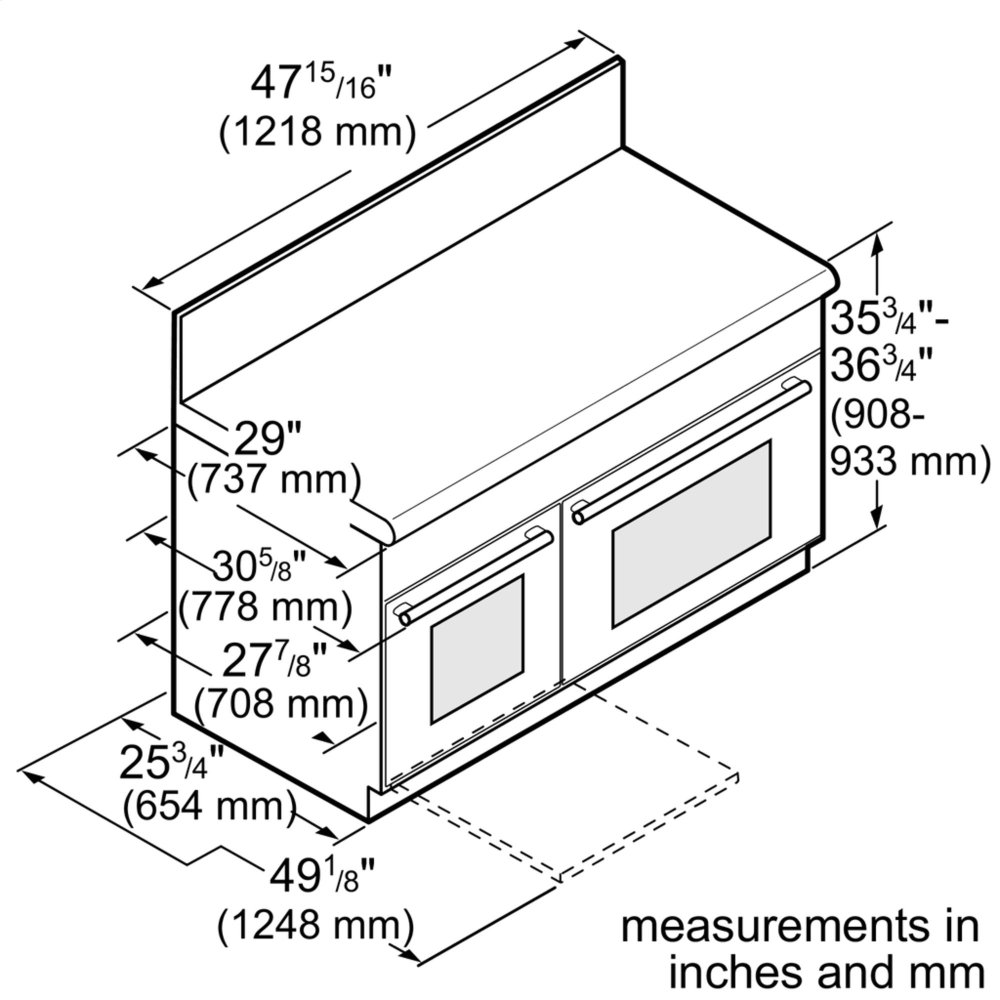

Overall Appliance Dimensions (HxWxD) (in) | 35 7/8'' x 47 15/16'' x 27 7/8'' |
Required Cutout Size (HxWxD) (in) | 48'' width slide-in |
Net Weight | 495.000 lbs |
Oven | |
Cooking Modes | Convection Bake, Gas grill/broiler, Gas top/bottom heat, Keep Warm, Roast, Self-Clean |
Comfort | |
Included Accessories | 1 x temperature sensor, 1 x telescopic rack - small, 1 x telescopic rack, 1 x Broiler pan, 1 x broiler pan small, 1 x island trim |
Optional accessories - primary cavity | PALPKITGGW, PARKB48SGY, PWOKRINGHC, PA12CHPBLK, PA12GRILFW, PA12GRILLW, PA12LCVRW, PA48WLBG, PA48WTKG, PAALTKITGW, PAGRIDDLE, PAKNOBLUWG |
Connection | |
Power Cord Length | 65 |
Amps | 20 A |
Watts | 1,800 W |
Plug Type | 120V-3 prong |
Volts | 120 V |
