Overview & Specifications
Overview & Specifications

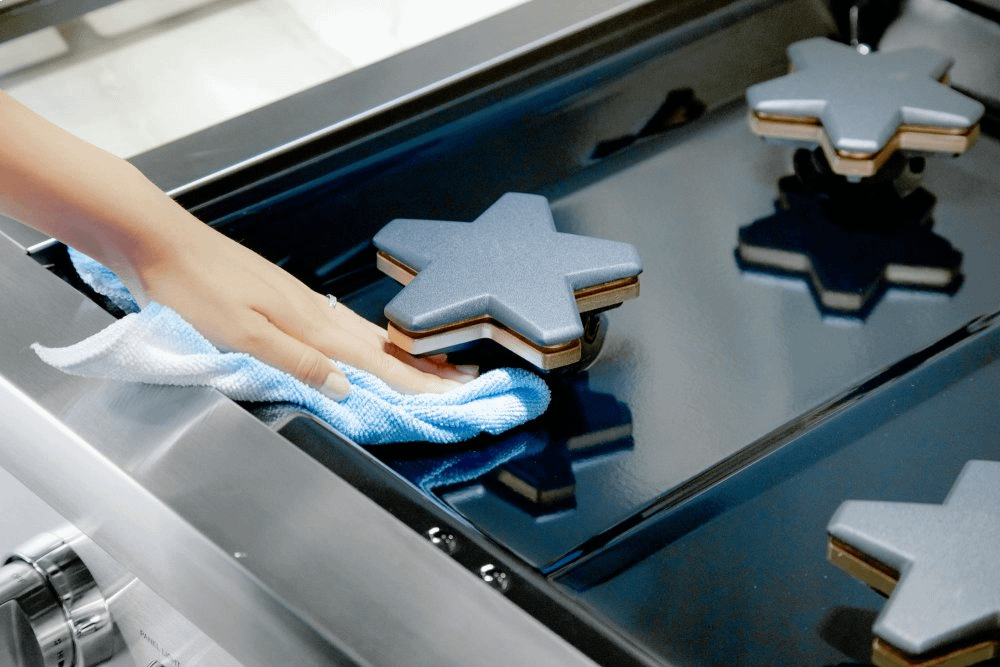

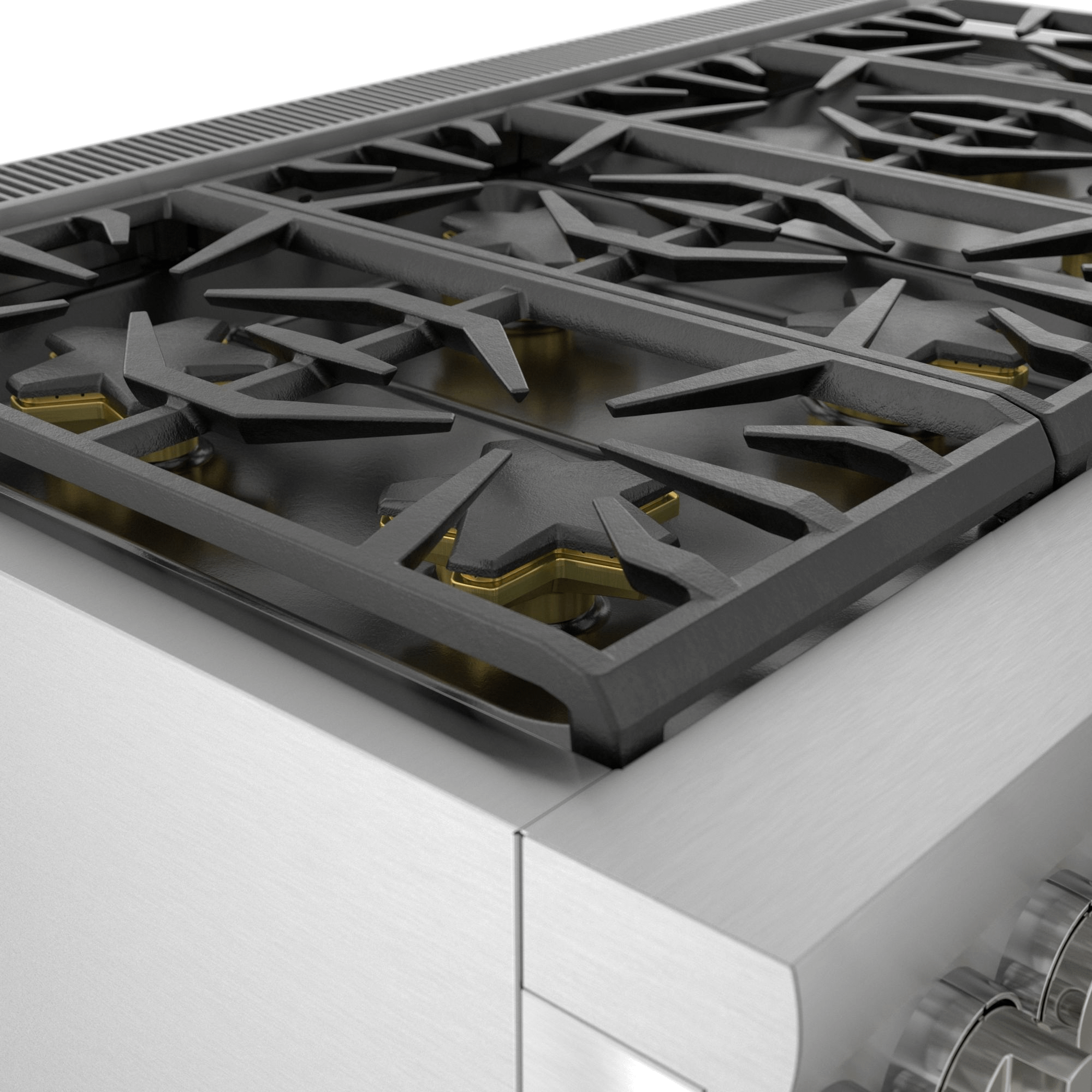

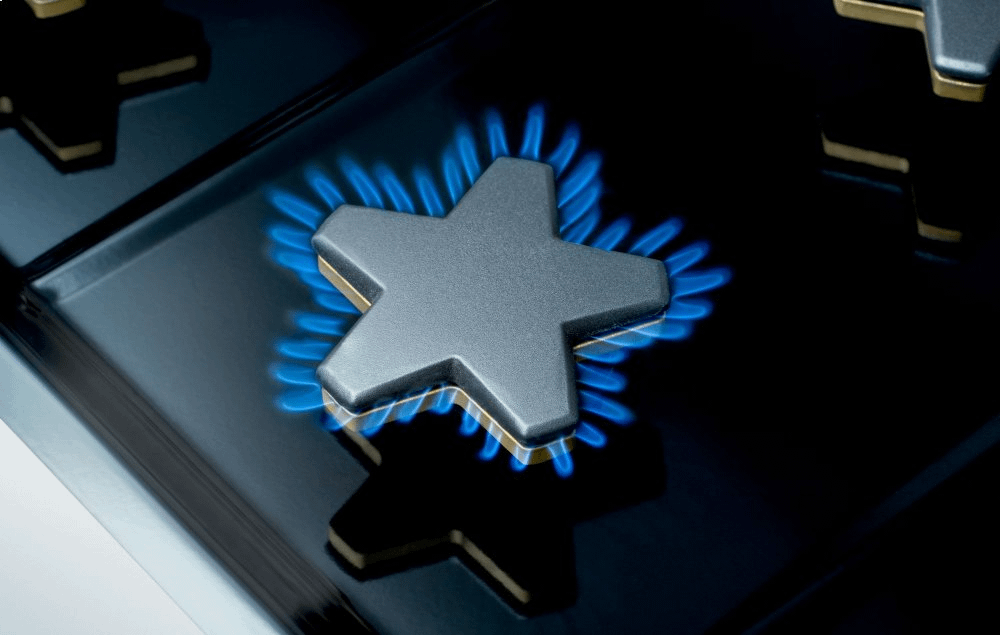

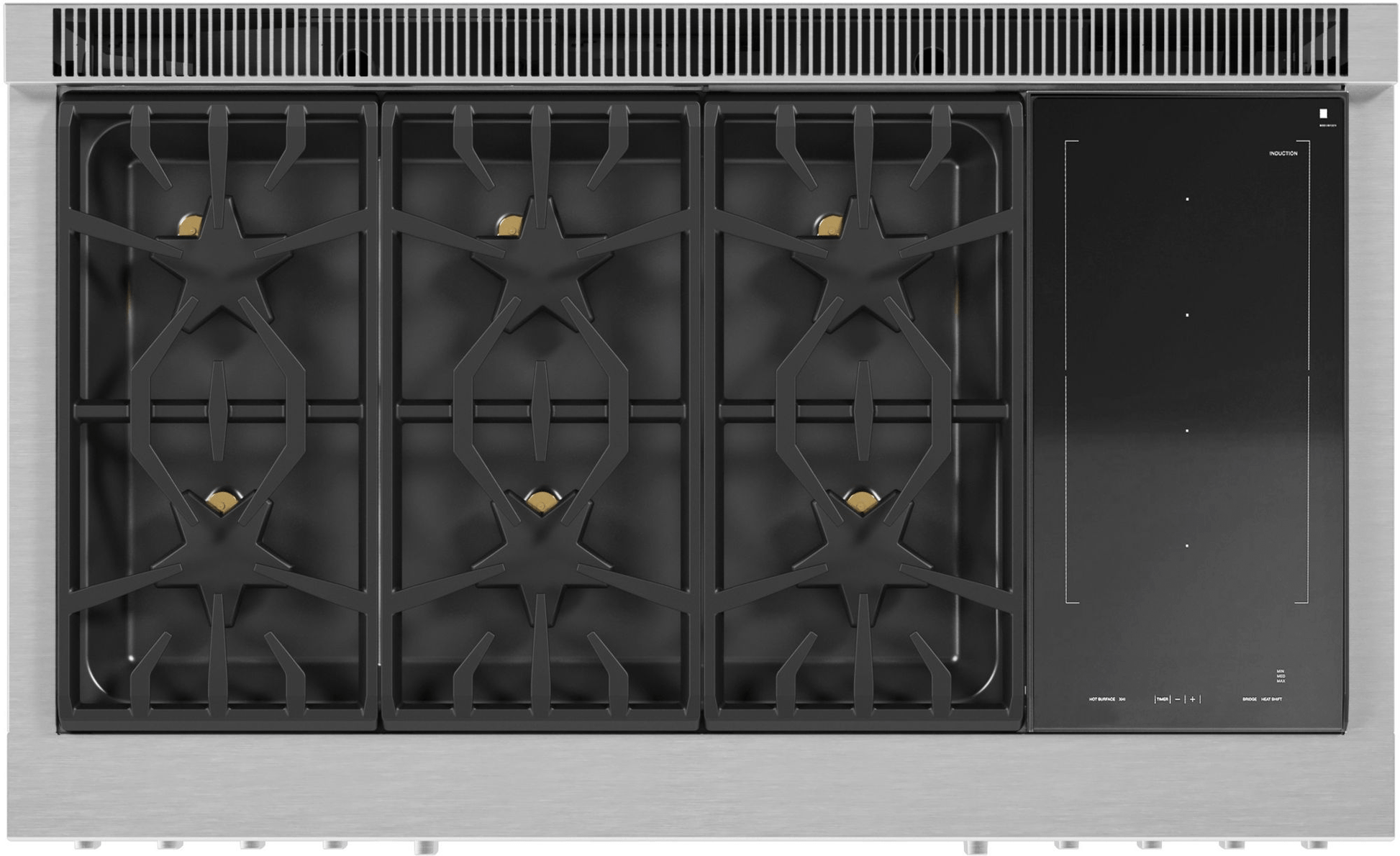

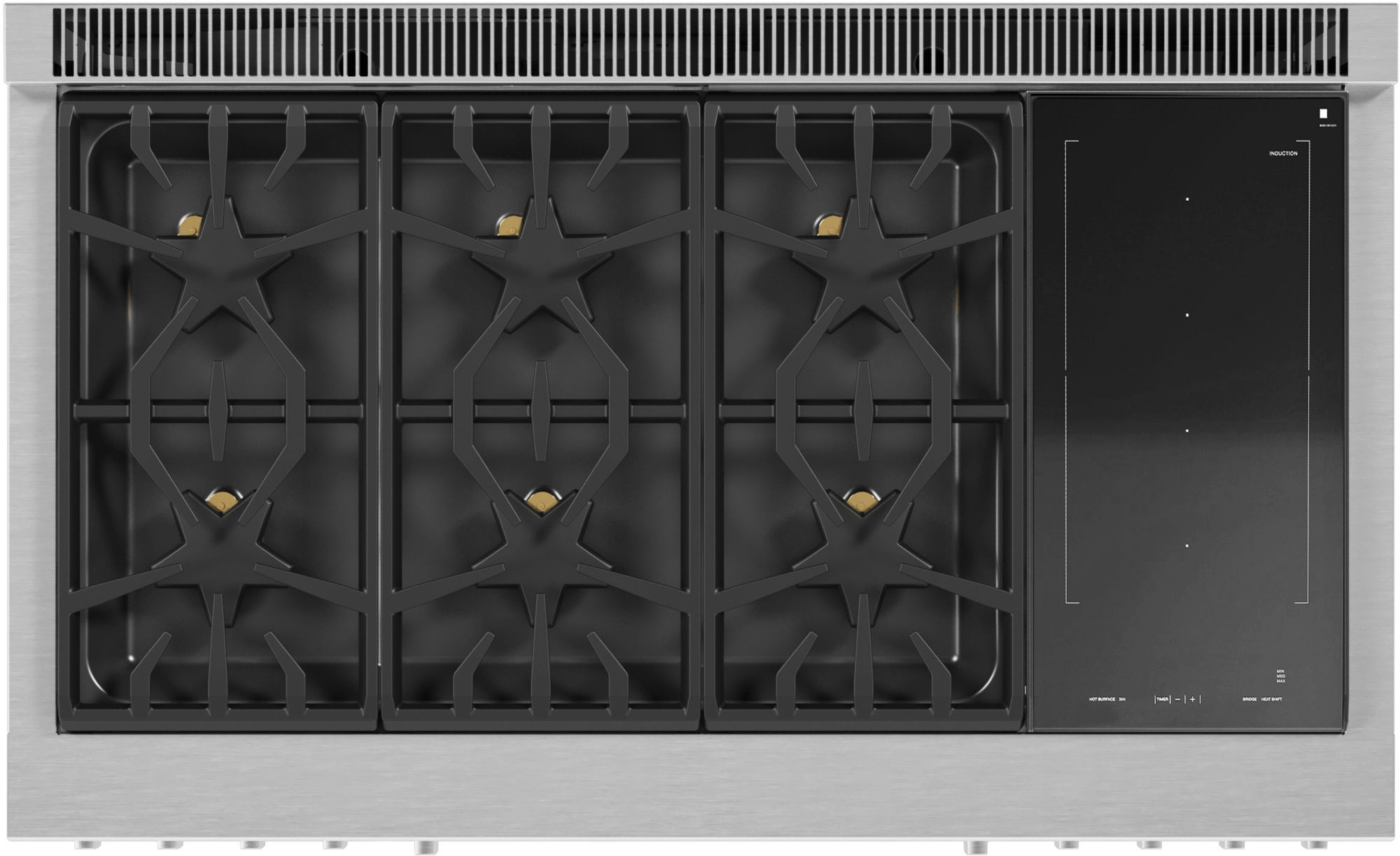

- Six Star Burners provide equal flame distribution
- Star(R) Burners are 56% longer than a round burner of the same size, which allows for more flame ports. The result is a burner that delivers a superior flame spread and reduced cold spots for faster and more even heating.
- Faster boiling with 22,000 BTU
- Our powerful, patented Pedestal Star(R) Burner delivers 22,000 BTU of pure cooking power for better searing and faster boiling.
- Connect to your Range with Home Connect
- Connect to your range for remote preheating and monitoring via the Home Connect(R) app, smartwatch and other smart home devices and services, like Amazon Alexa, for hands-free voice control.
- Change settings on the Color TFT Display
- The TFT display panel offers a vibrant, full-color touchscreen display that lets you easily adjust settings.

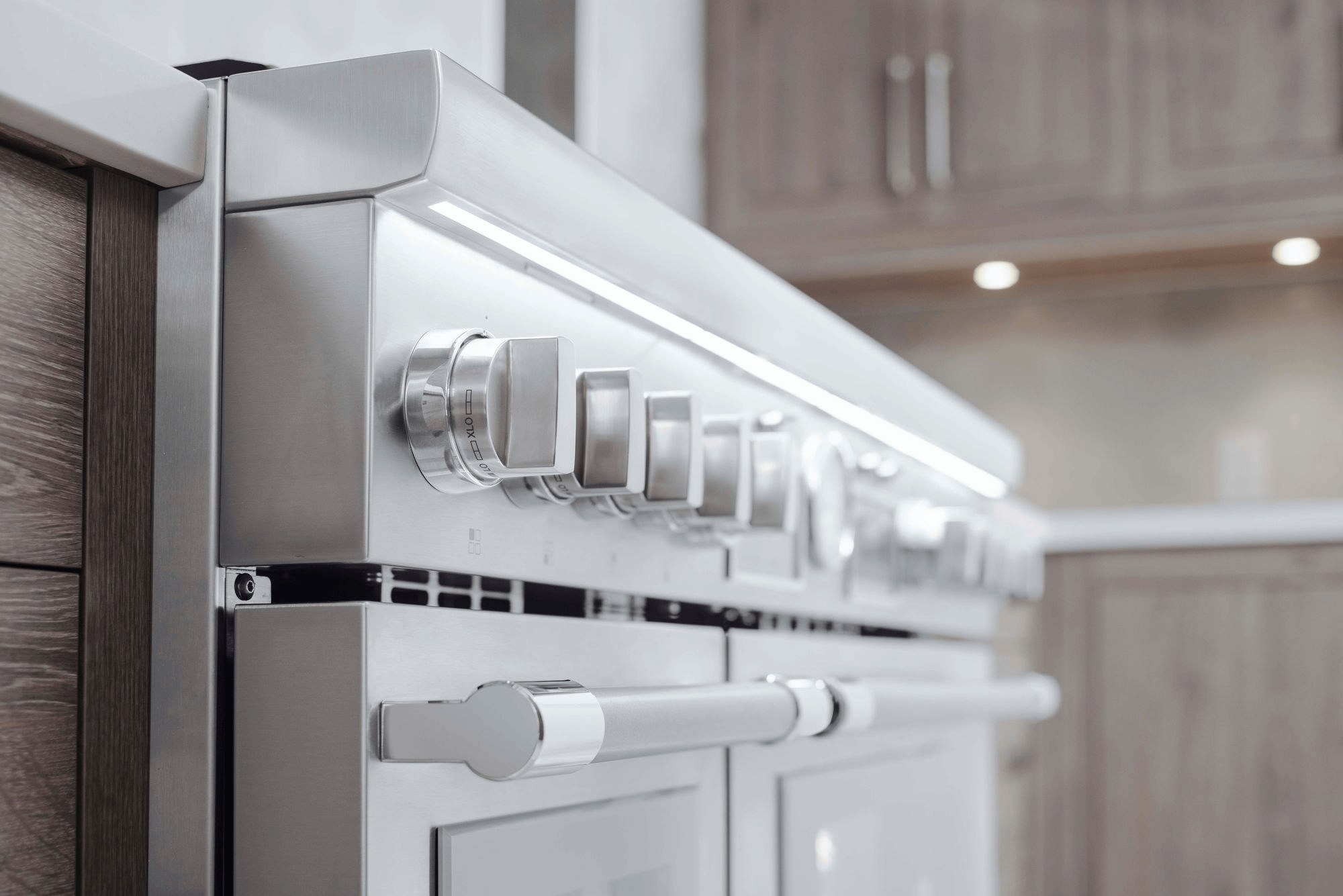

- Close the Door Smoothly with SoftClose Hinges
- Hydraulic SoftClose(R) Hinges prevent slamming and ensure ultra smooth closing for all doors on your appliance.

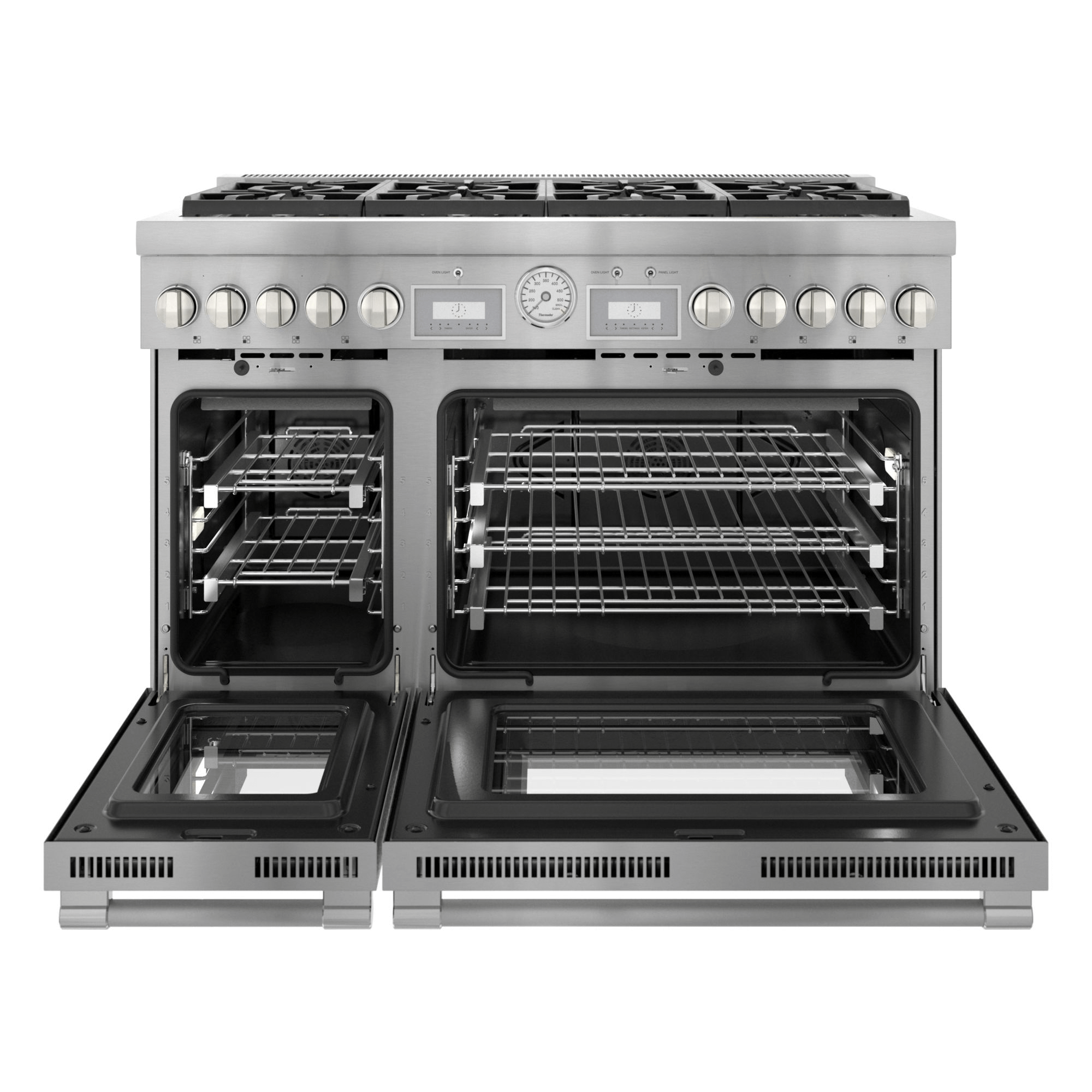

- Large Oven boasts 5.7 cubic feet
- Large oven accommodates professional-grade catering trays with 5.7 cubic feet.
- True Convection gives you maximum cooking efficiency
- True Third Element Convection means you can cook multiple dishes - with multiple levels of sheet pans - with even baking results.
General | |
Brand | Thermador |
SKU | PRD486WIGU |
UPC code | 825225928355 |
Construction type | |
Product color | Stainless Steel |
Design | Free-standing |
Type of Control | Rotary knob, sword knobs |
Door Material - primary cavity | Stainless steel |
Energy source | Mixed |
Type of energy - primary cavity | Gas heating for cooker and hob |
Size and weight | |

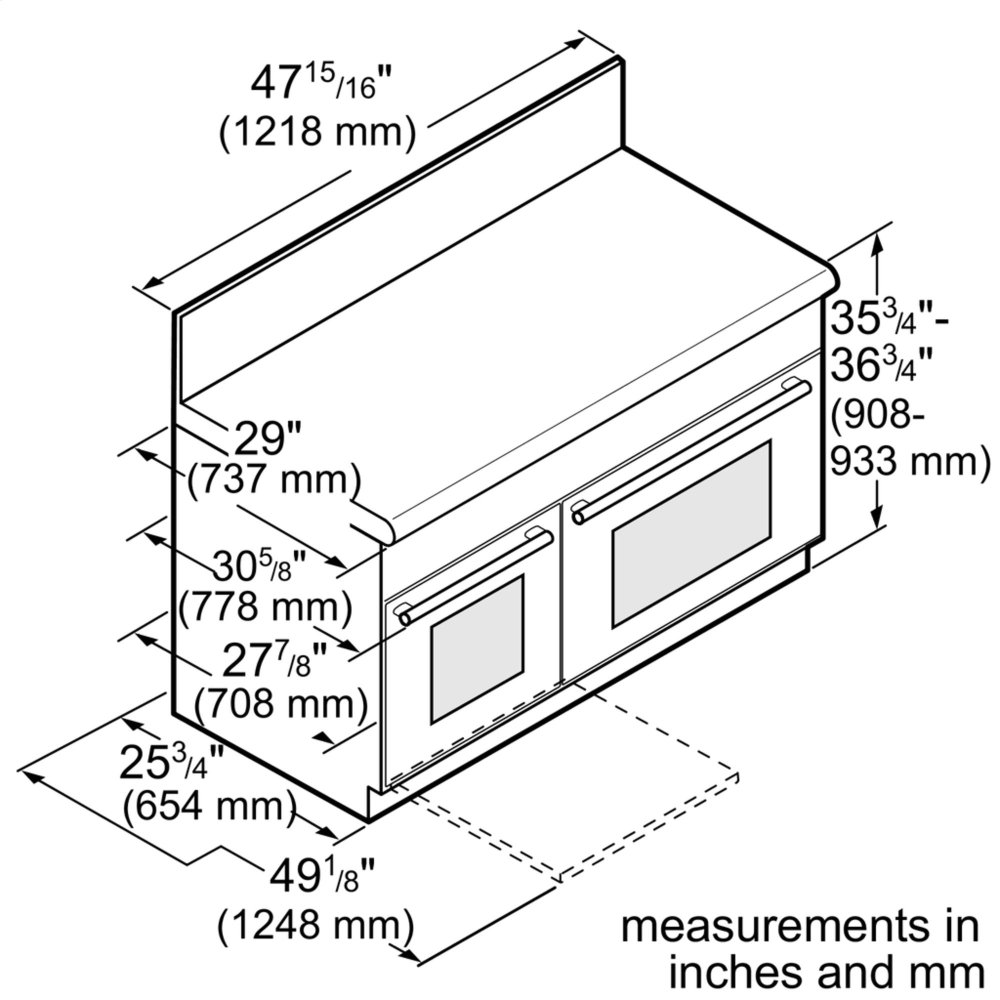

Overall Appliance Dimensions (HxWxD) (in) | 35 7/8'' x 47 15/16'' x 27 7/8'' |
Required Cutout Size (HxWxD) (in) | 48'' width slide-in |
Net Weight | 497.000 lbs |
Oven | |
Cooking Modes | Bake, Broil , Convection Bake, Convection Broil, Roast, Self-Clean, True Convection |
Comfort | |
Included Accessories | 1 x temperature sensor, 1 x telescopic rack - small, 1 x telescopic rack, 1 x grill plate, 1 x Broiler pan, 1 x broiler pan small, 1 x island trim |
Optional accessories - primary cavity | TROASTERT, PARKB48CGY, PWOKRINGHC, TEPPAN1016, CHEFSPAN08, PA12CHPBLK, PA48WLBG, PA48WTKG, PAALTKITGW, PAGRIDDLE, PAKNOBLUWG, PALPKITDGW |
Connection | |
Amps | 50 A |
Watts | 14,100 W |
Plug Type | No Plug |
Volts | 240/208 V |
