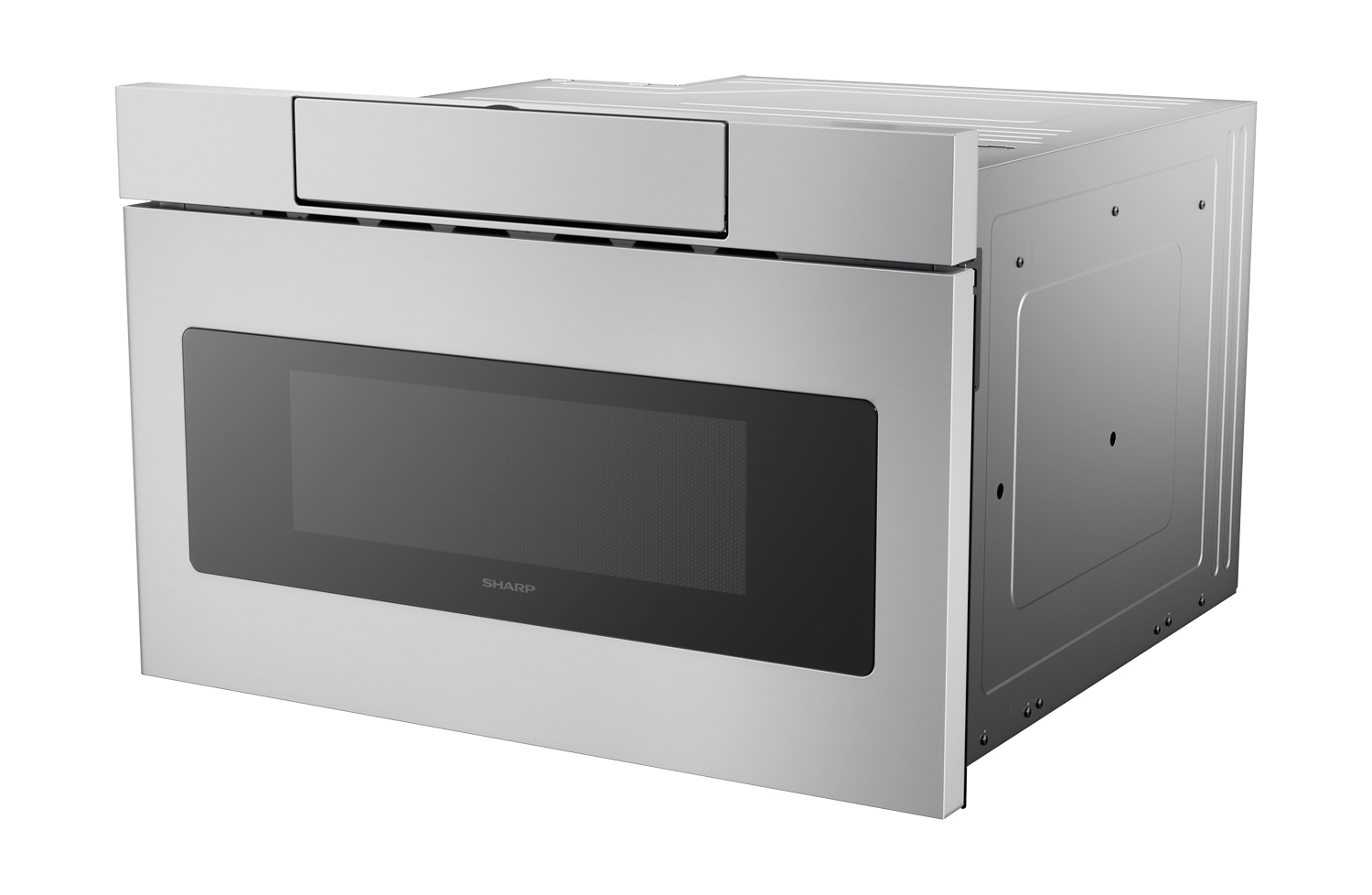

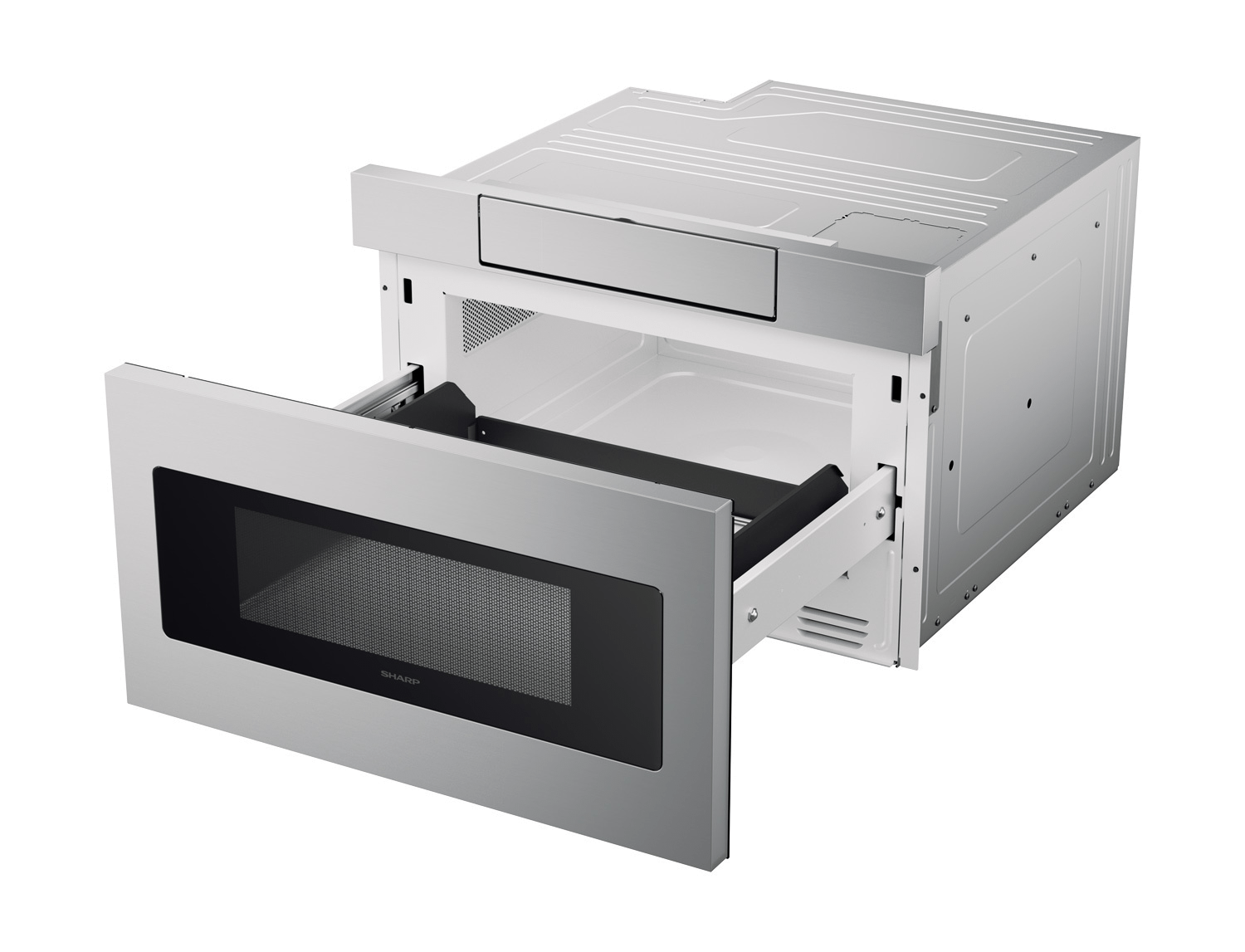

Focus on the design elements you prefer by removing the microwave from sightlines and enabling more design versatility. This 24 inch Stainless Steel Microwave Drawer offers flexible placement options below an island, peninsula or standard cabinetry, or can be installed below your wall oven. The SMD2470ASY Microwave Drawer allows you to showcase your design savvy and create a kitchen that flows with your lifestyle.

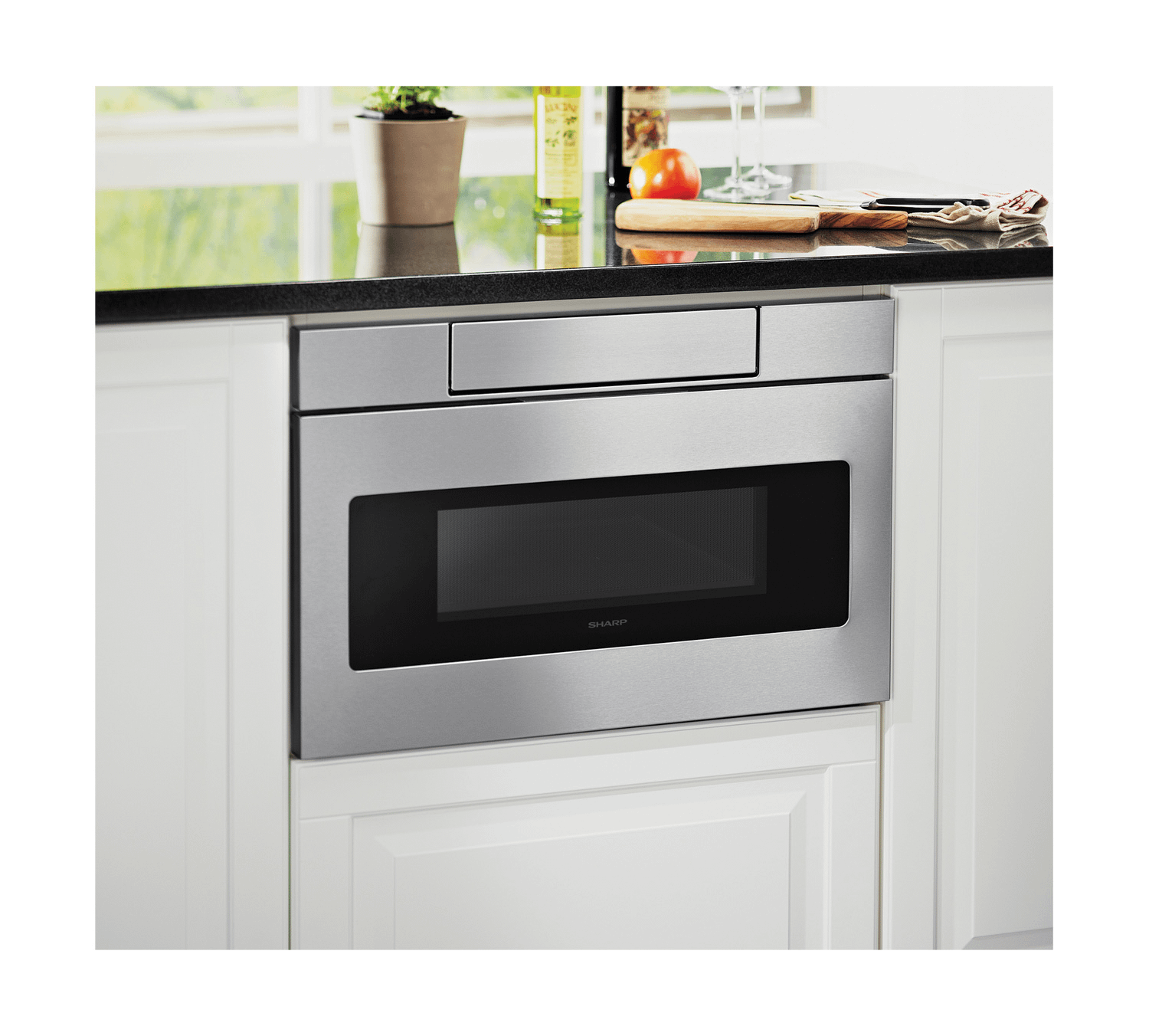

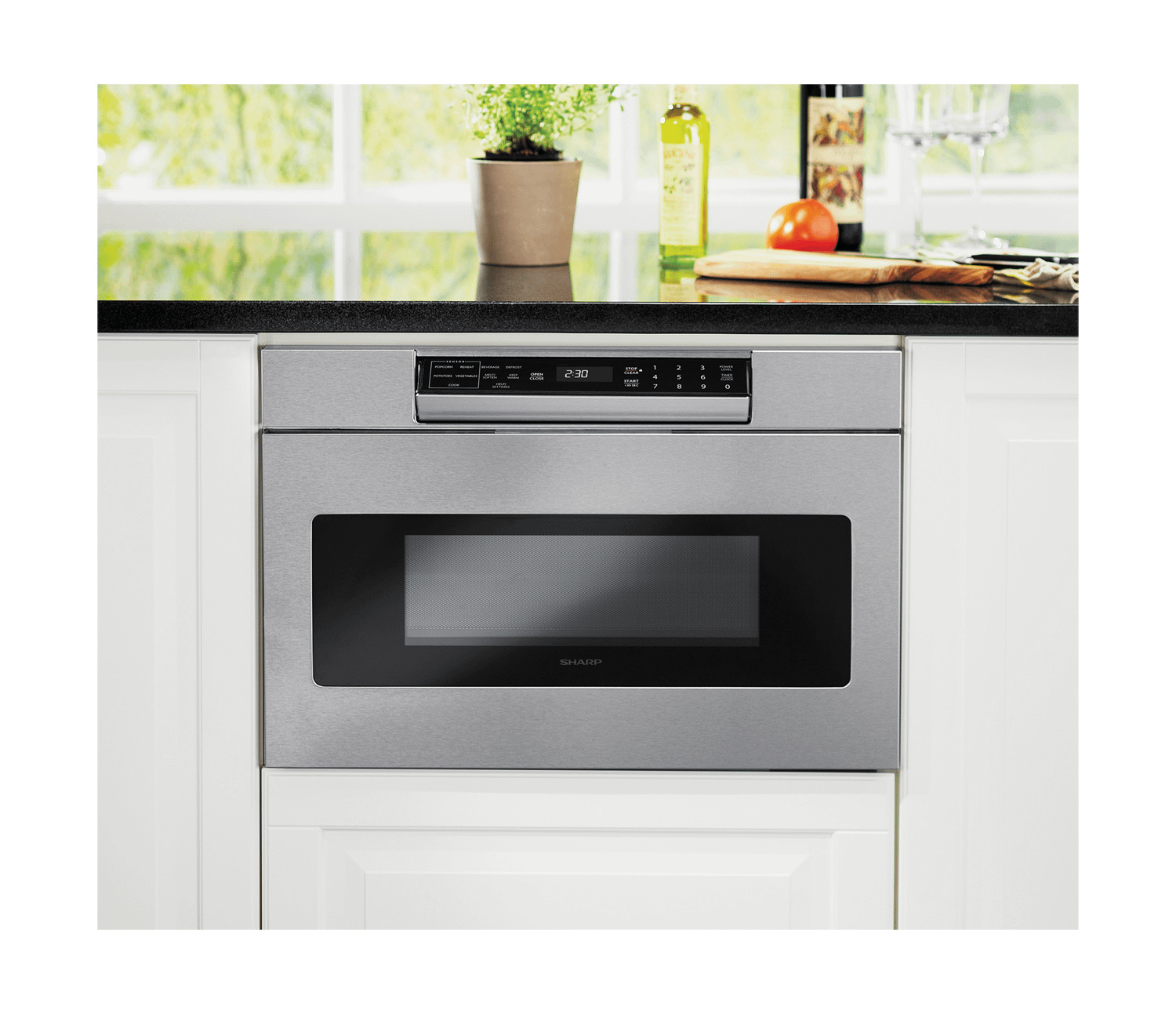

The Microwave Drawer allows you to choose a location that works for your lifestyle. Cooking is easier and faster when the Sharp SMD2470ASY 24-Inch Stainless Steel Microwave Drawer Oven is installed adjacent to your food preparation area: in islands, peninsulas or under the counter. Available in 24 and 30 widths. Accessories available (SKMD24U0ES, SKMD30F0AS).

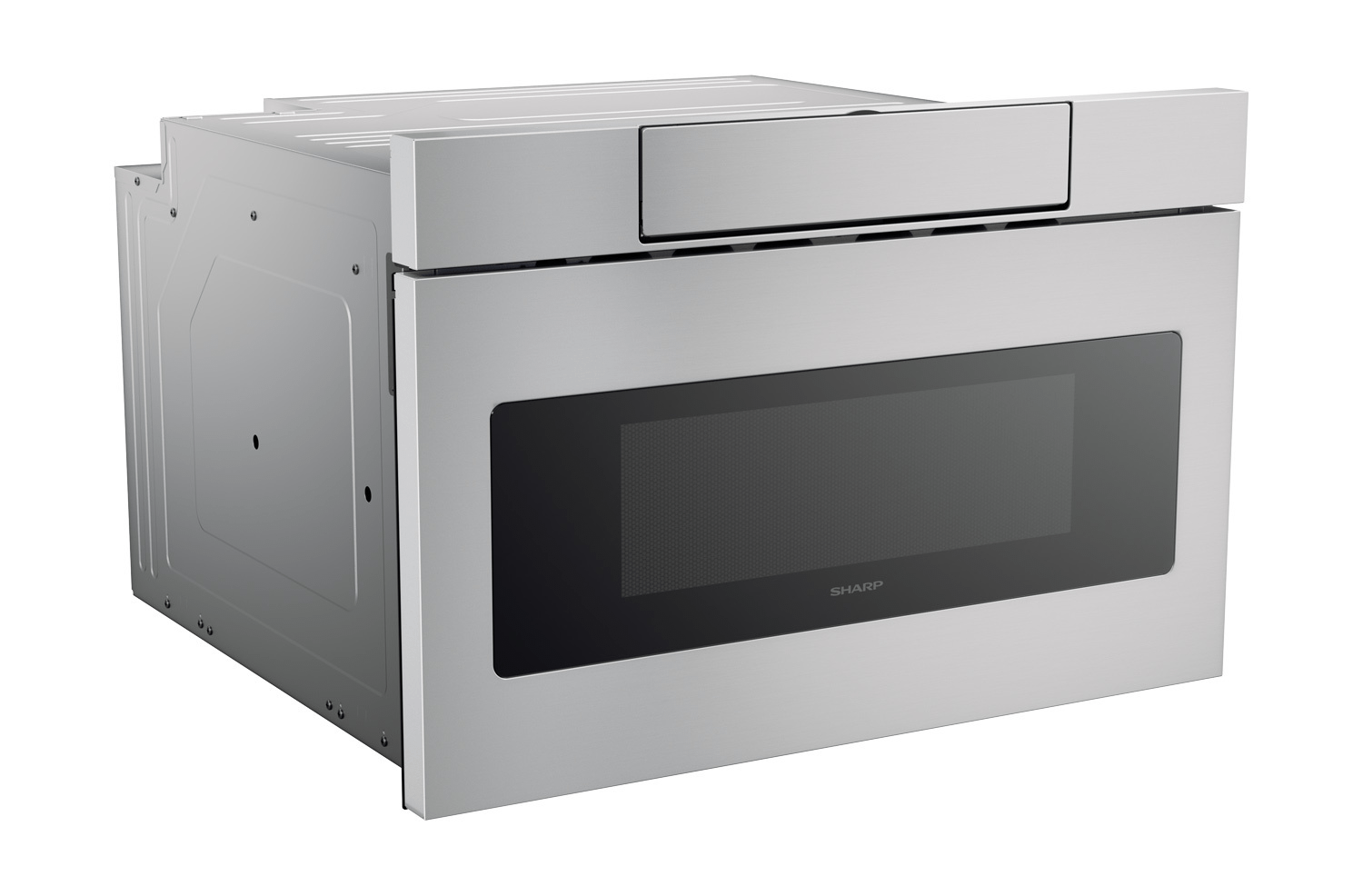

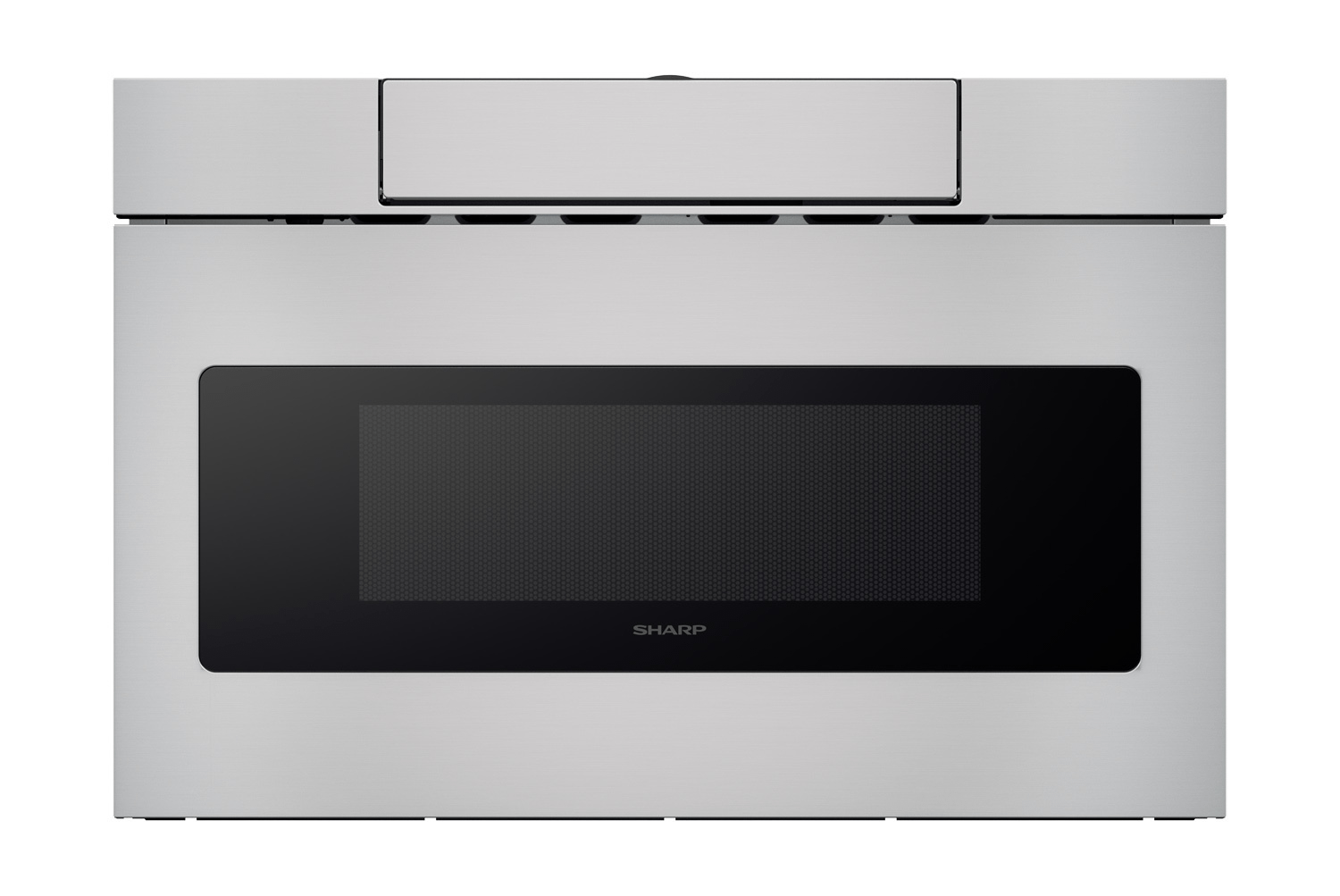

The 24- inch Sharp Microwave Drawer Oven has been designed to complement the widest range of kitchen styles and appliances. The sleek, low-profile design and a stainless-steel finish beautifully complement any kitchen.

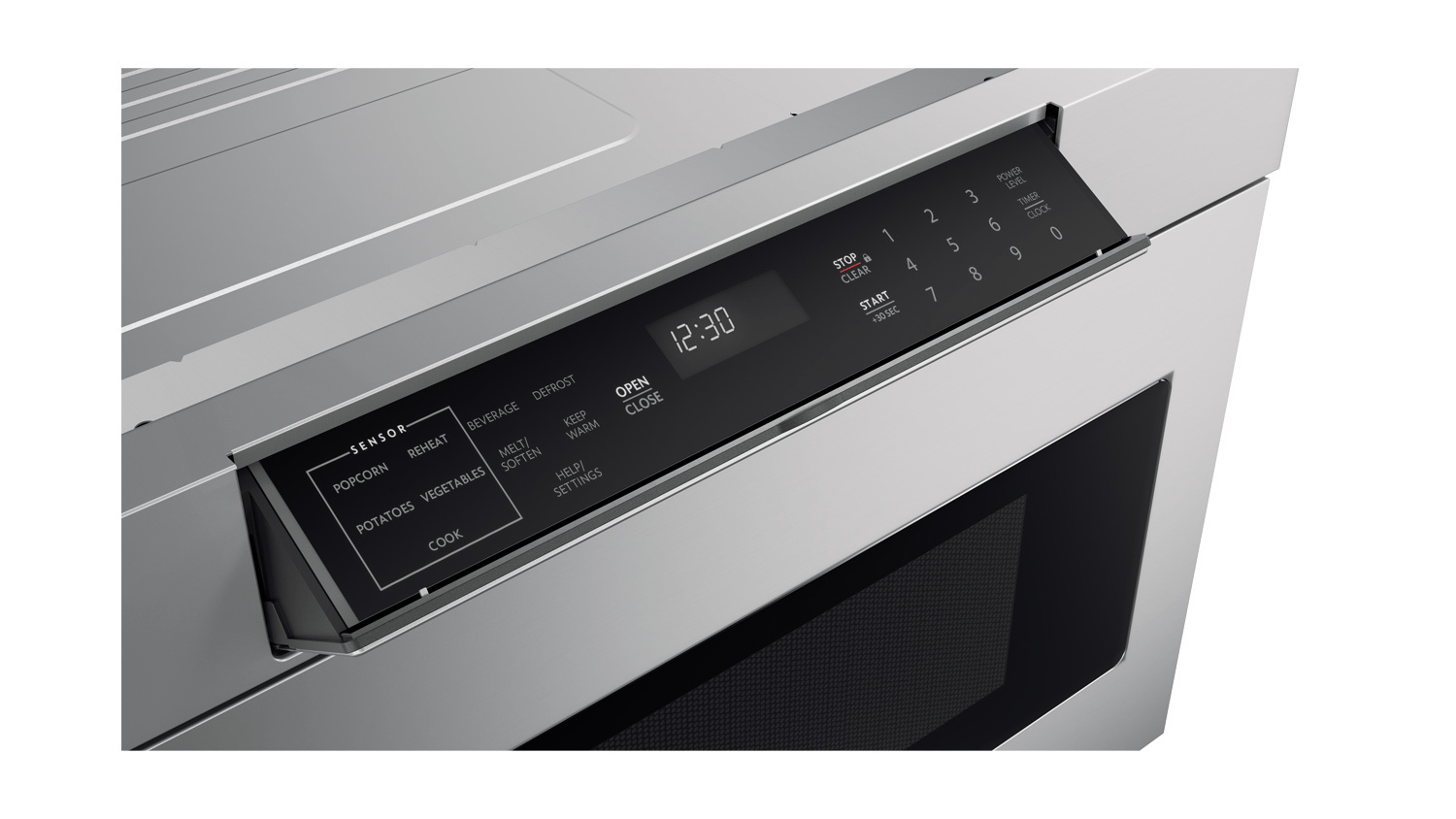

The SMD2470ASY Sharp Microwave Drawer Oven boasts an easy-to-read display that disappears until you need it. The concealed control panel opens at a 45-degree angle, so it s easy to read and operate.
Browse our full range of Sharp microwave drawers to find the right model for your home.
Features | |
Finish | Stainless Steel |
Drawer Opening | Easy Touch Automatic |

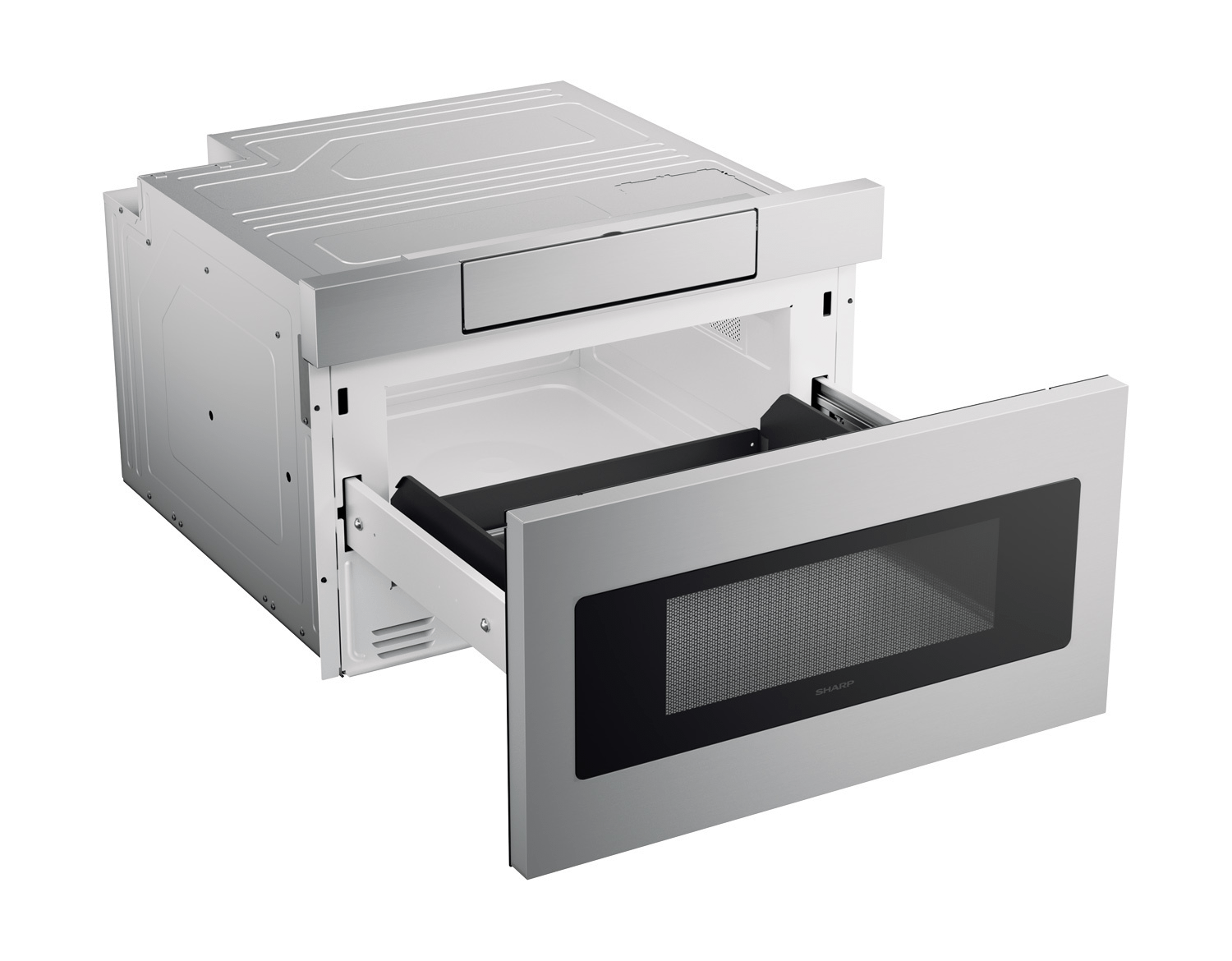

Capacity | 1.2 Cu. Ft. (holds 9" x 13" dish) |
Output Power | 950 watts |
Sensor Cook, Reheat and Popcorn | Yes, 12 settings |
Reheat Auto Settings | 2 settings |
Defrost Auto Settings | 6 settings |
Microwave Keep Warm Setting | Yes, up to 30 minutes |
Clock | Yes |
Minute Plus™ | Yes |
Interior Oven Light | Yes |
Kitchen Timer | Yes |
Control Lock | Yes |
Demonstration Mode | Yes |
Built-In Ready for Easy Installation | Yes |
Control Panel | |
Control Panel Location | Center/Top |
Control Panel Type | Touchpad, Drop-down 45° Angle |
Display Type | LCD |
Display Color | White on Black Background |
Additional Specifications | |
Power Connection | 3-Prong Grounding Plug (included) |
Power Ratings | 120V, 60Hz / 1.67kW, 14.5 Amps |
Safety Compliance: | FCC, DHHS, UL listed |
Dimensions & Weight (in./lbs.) (W x H x D) | |
Cutout Dimensions | 22 1/8" x 15 9/16" x 23 1/2" |

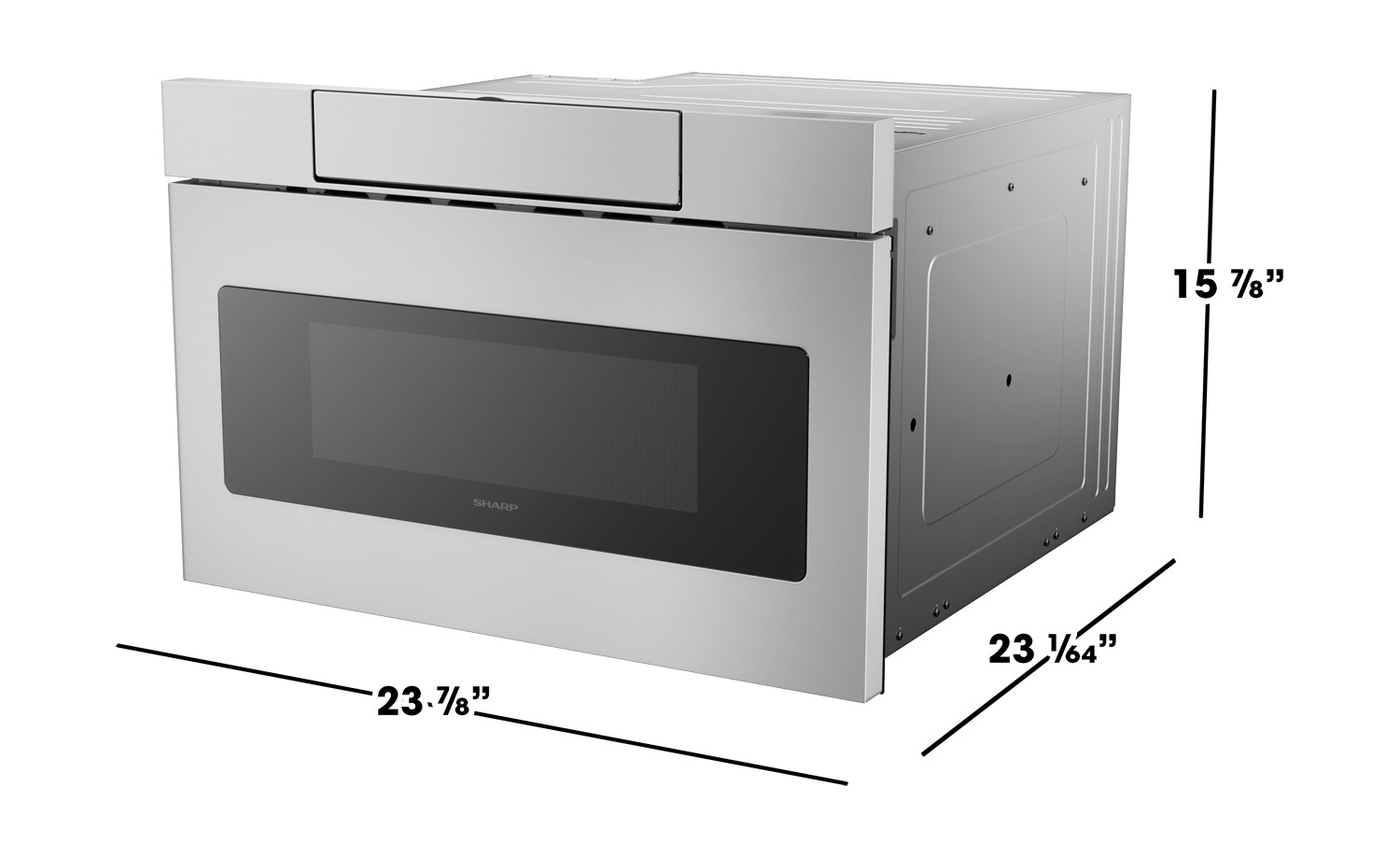

Product Dimensions | 23 7/8" x 15 7/8" x 23 1/64" |
Shipping Weight | 86 |
Product Weight | 74 |
Warranty/UPC | |
Parts | 1 Year |
Labor | 1 Year |
Magnetron Tube | 5 Years total (part only) |
UPC | 074000619371 |
Optional Accessory | |
30" Flush Mount Deflector Vent | SKMD30F0AS |
Flush Mount Deflector Vent Kit | (1) PREF-B020MRP0 (2) LX-CZB055MRE0 |
