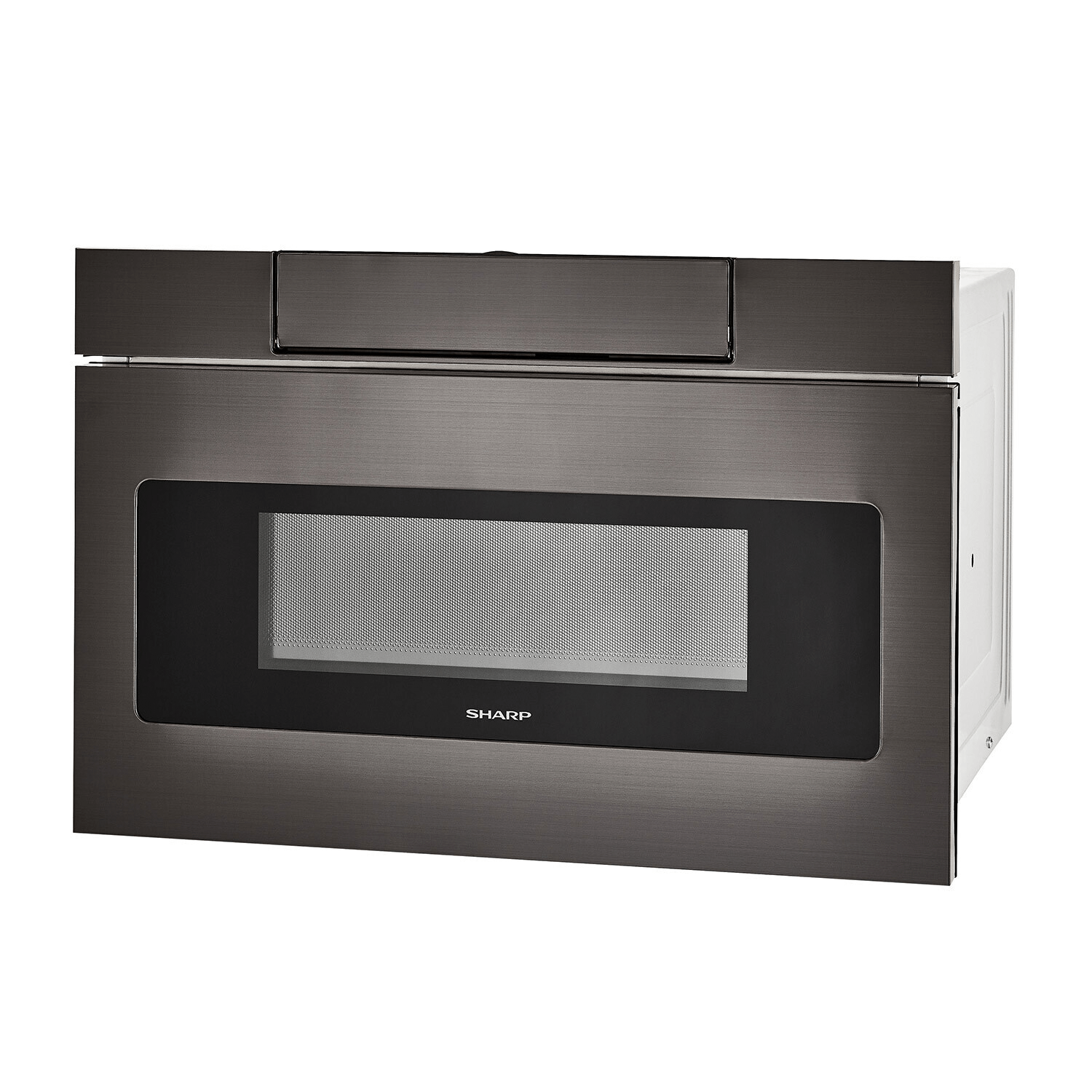

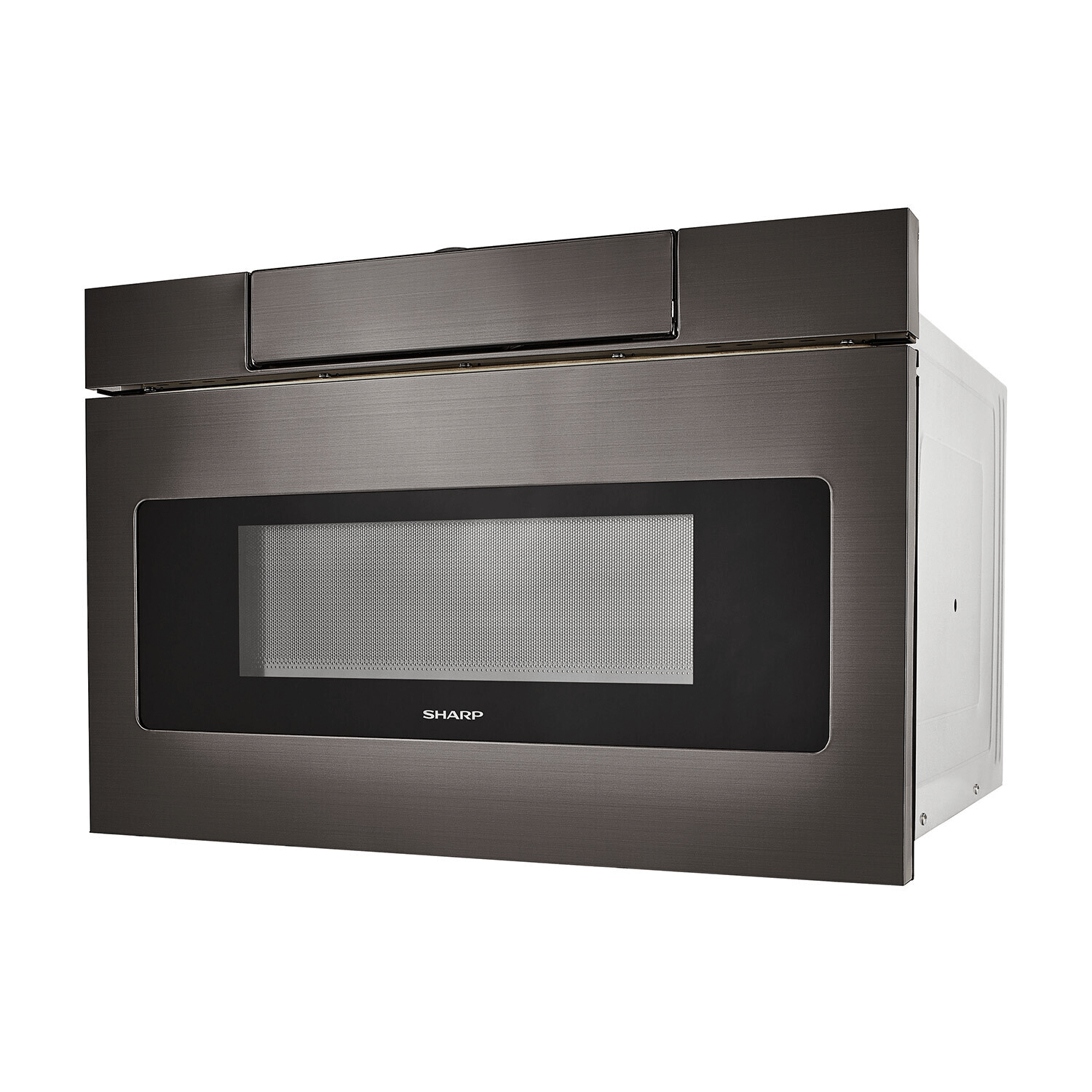

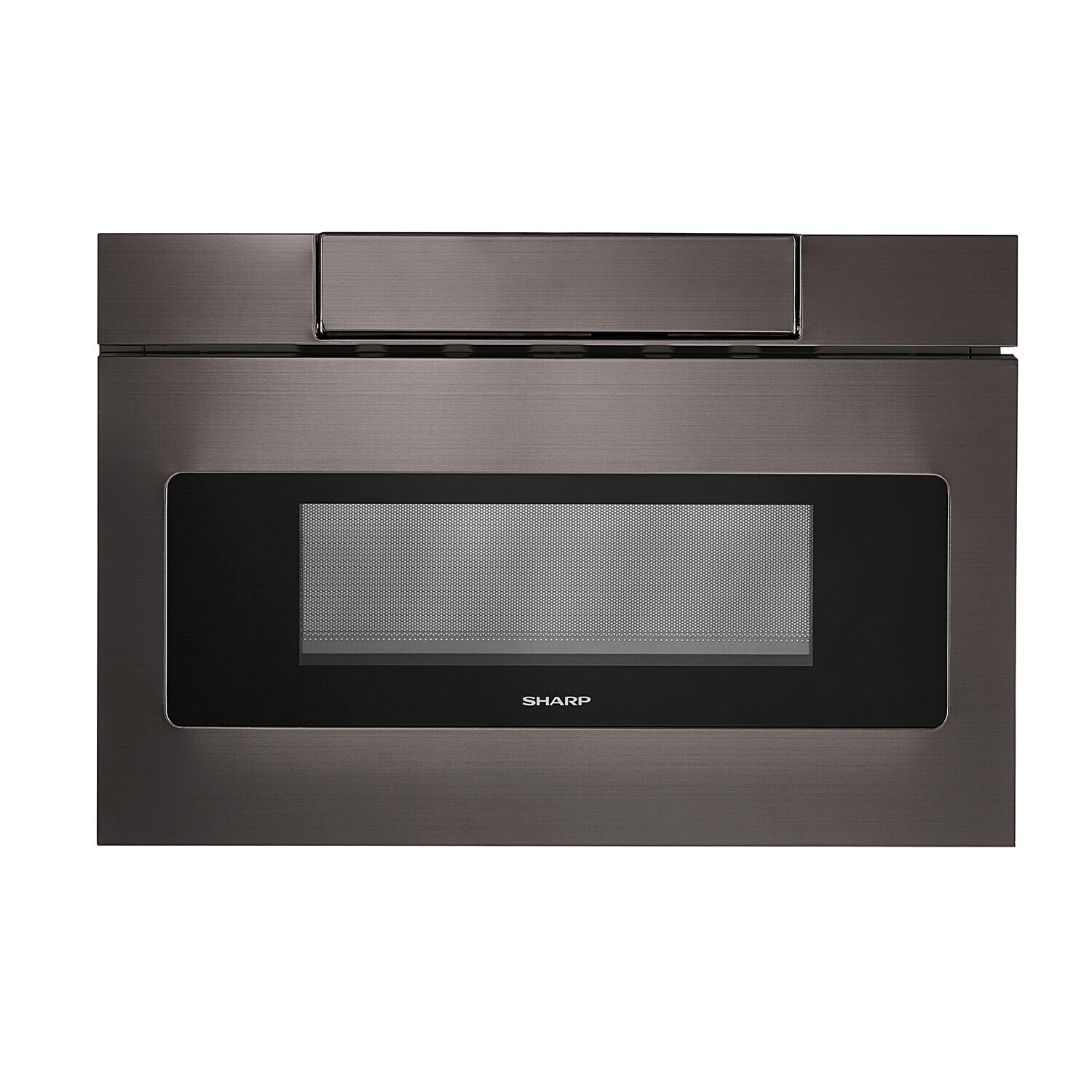

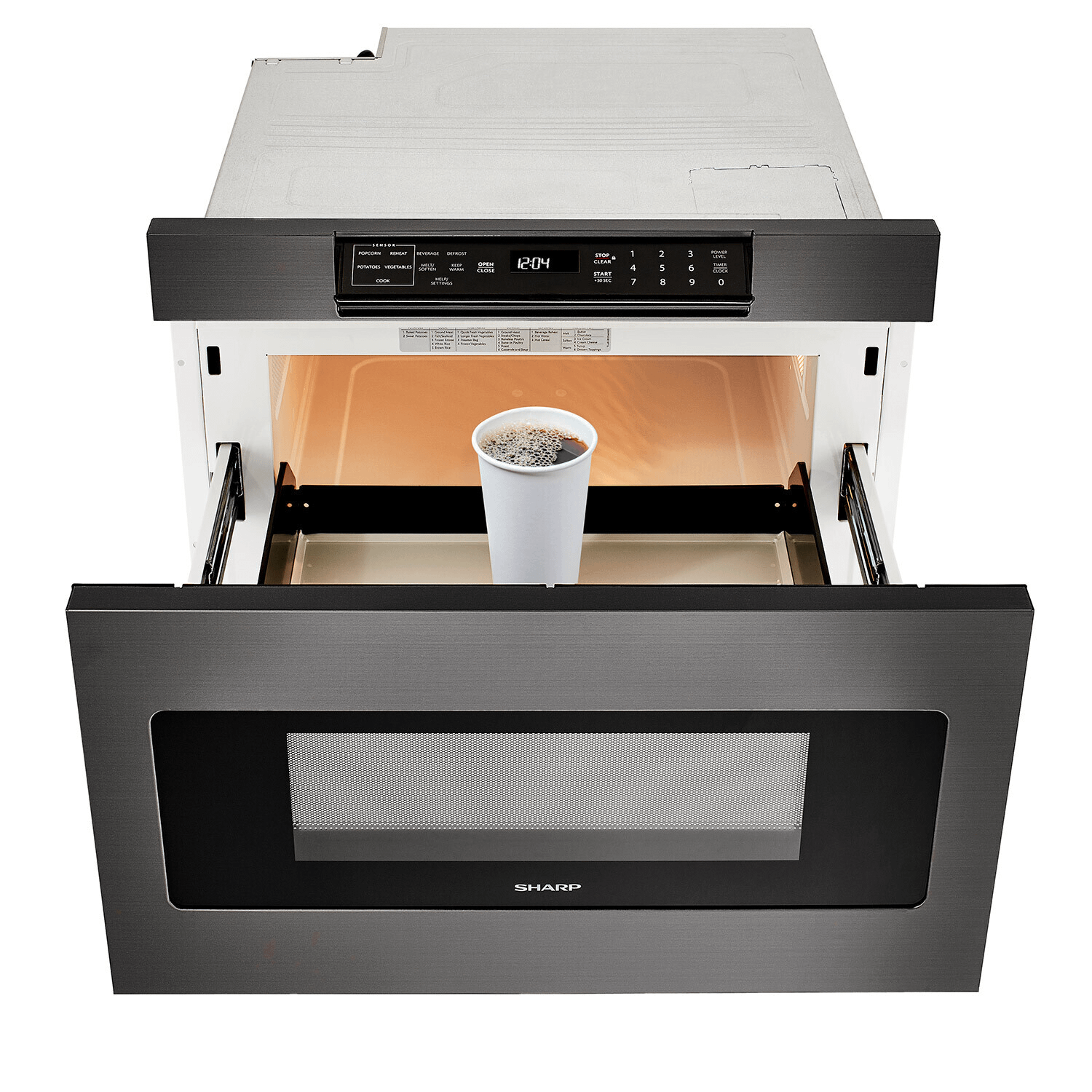

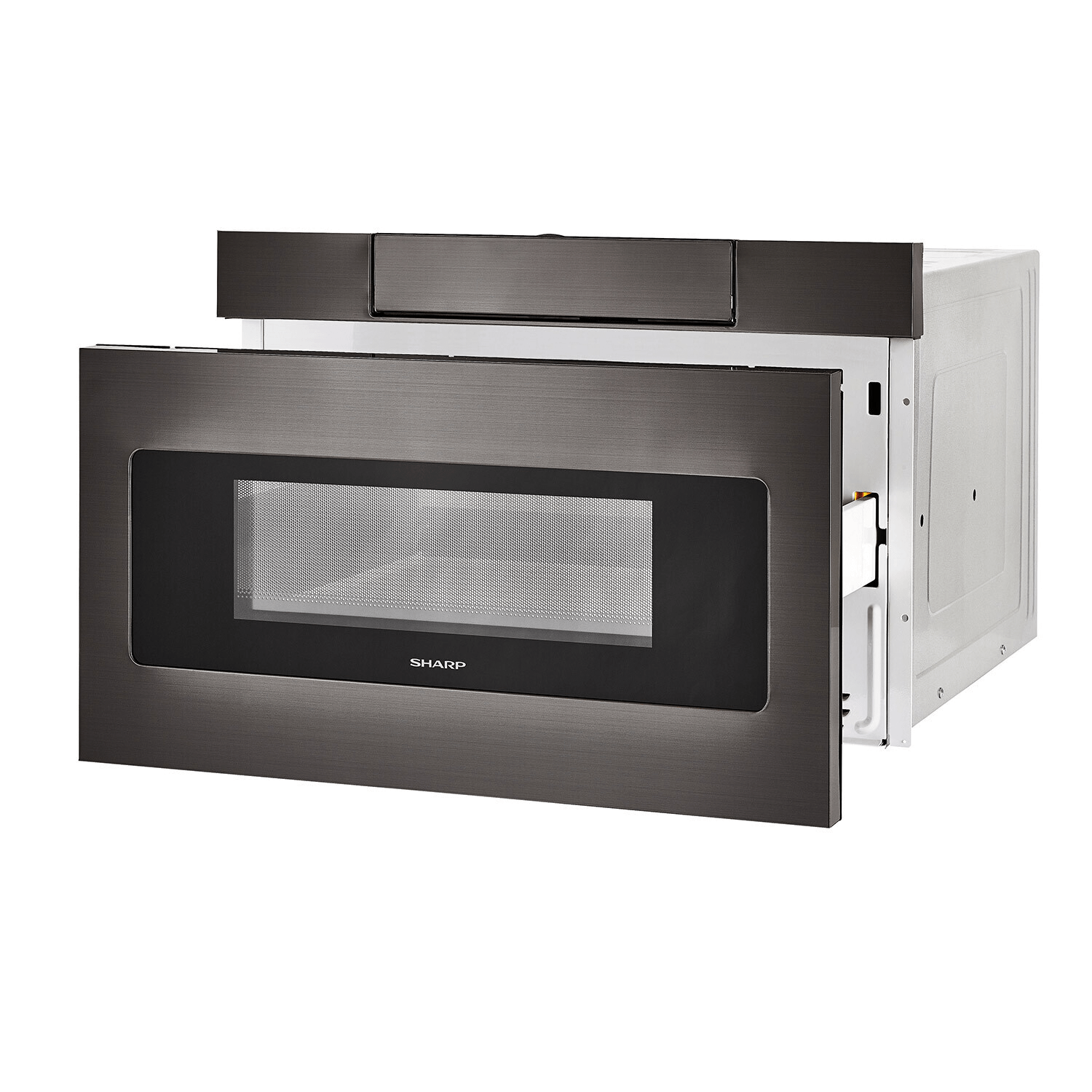

Sharp's Black Stainless Steel Microwave Drawer's rich, elegant finish is an absolute show-stopper for your dream kitchen. As a complimentary appliance in a black stainless kitchen, or a stunning design statement in any kitchen, the Sharp Black Stainless Microwave Drawer (SMD2470AH) allows you to showcase your design savvy and create a premium kitchen that flows with your lifestyle.
The 24-inch Black Stainless Steel Microwave Drawer offers flexible placement options so you can focus on the design elements you prefer by maximizing sight-lines and enabling more design versatility than typical built-in, over-the-range or countertop microwaves. The Microwave Drawer can be placed below an island, peninsula, or standard cabinetry, and can also be installed adjacent to your wall oven.
The SMD2470AH Black Microwave Drawer allows you to choose a location that works for your lifestyle. Cooking is easier and faster when the Sharp Microwave Drawer Oven is installed adjacent to your food preparation area: in islands, peninsulas or under the counter.
The Sharp Black Stainless Steel Microwave Drawer has been designed to complement the widest range of kitchen styles and appliances. The sleek, low-profile design and a stainless-steel finish beautifully complement any kitchen.
Our Black Microwave Drawer boasts an easy-to-read display that disappears until you need it. The concealed control panel opens at a 45-degree angle, so it's easy to read and operate.
Browse our full range of Sharp microwave drawers to find the right model for your home.
- Hidden Control Panel
- The Sharp Microwave Drawer Oven boasts an easy-to-read display that disappears until you need it. The concealed control panel opens at a 45-degree angle, so it's easy to read and operate.
Features | |
Built-in Ready | Yes, this Microwave Drawer Oven can be installed below any electric or gas wall oven |
Front-mounted touch controls | Yes, angled for easy viewing |
Microwave Drawer Oven opening system | Easy Open |
Digital LCD Display | Yes |
Interior Oven Light | Yes |
Wattage | 950 |
Color | Black Stainless Steel |
Microwave Keep Warm | Yes, up to 30 minutes |
Kitchen timer | Yes |
Control lock | Yes |
Demonstration mode | Yes |
Demonstration mode | 1.2 cu. ft. capacity (holds 9" x 13" dish) Internal capacity is calculated by measuring maximum width, depth, and height. Actual capacity for holding food is less. |
Sensor Cook®, Reheat, Popcorn | 12 Settings |
Preprogrammed Reheat | 2 Settings |
Automatic Defrost | 6 Settings |
Clock | Yes |
Additional Specifications | |
Power Connection | 3-Prong Grounding Plug (included) |
Power Ratings | 120V, 60Hz / 1.67kW, 14.5 Amps |
Safety Compliance | FCC, DHHS, UL listed |
Limited Warranty | One-year parts and one-year labor with in-home service. The warranty continues for an additional four years, for a total of five years, on the magnetron tube for parts only. |
Weights and Dimensions | |
Cutout Dimensions (with handle) (inches) | 22 1/8" x 15 9/16" x 23 1/2" |
Dimensions (with handle) (inches) | 23 7/8" x 15 7/8" x 23 1/64" |
Shipping Dimensions (inches) | 29.8" x 27.9" x 21.9" |
Shipping Weight (lbs.) | 86 |
Product Weight (lbs.) | 74 |
