Overview & Specifications
Overview & Specifications

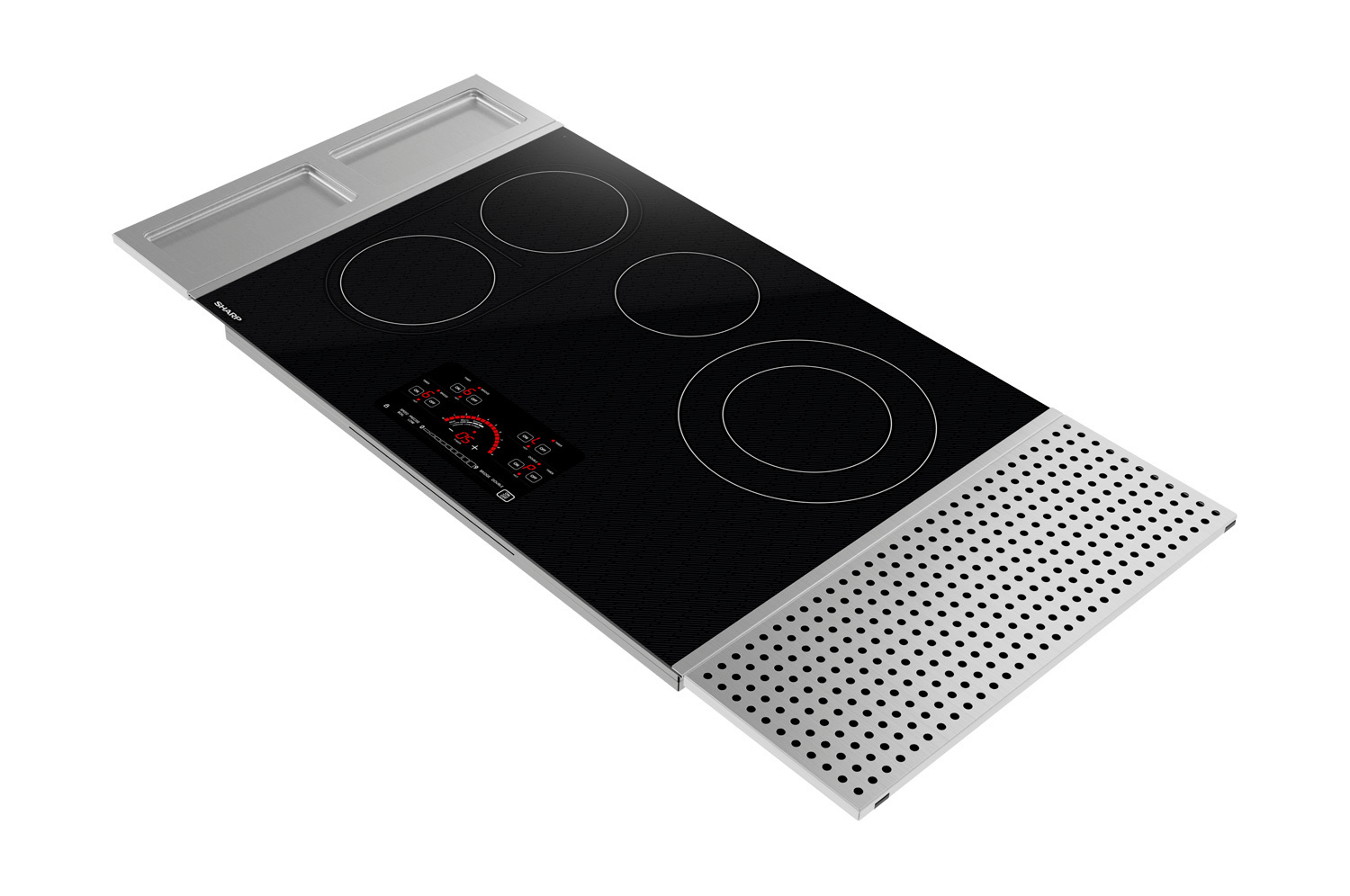

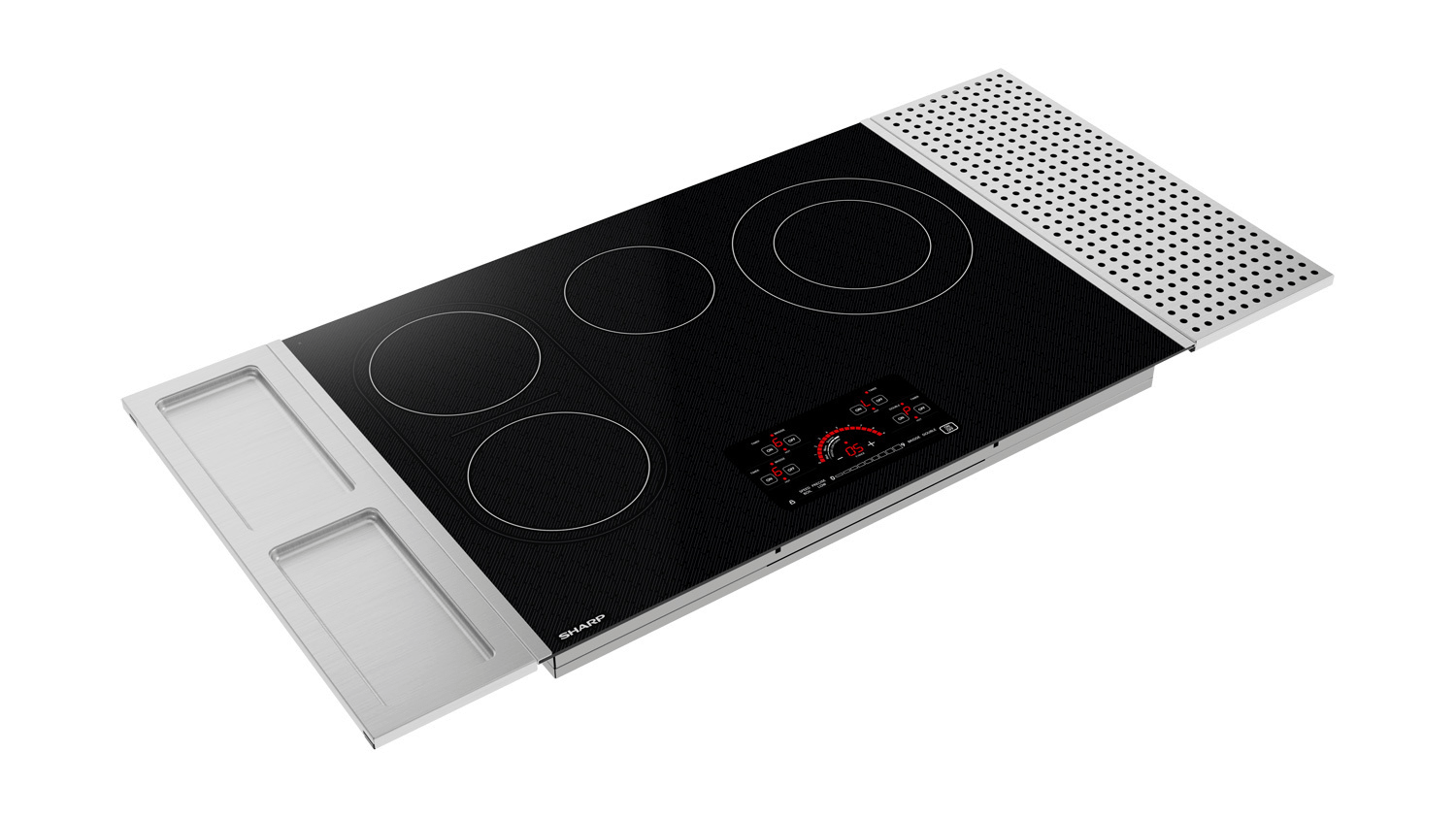

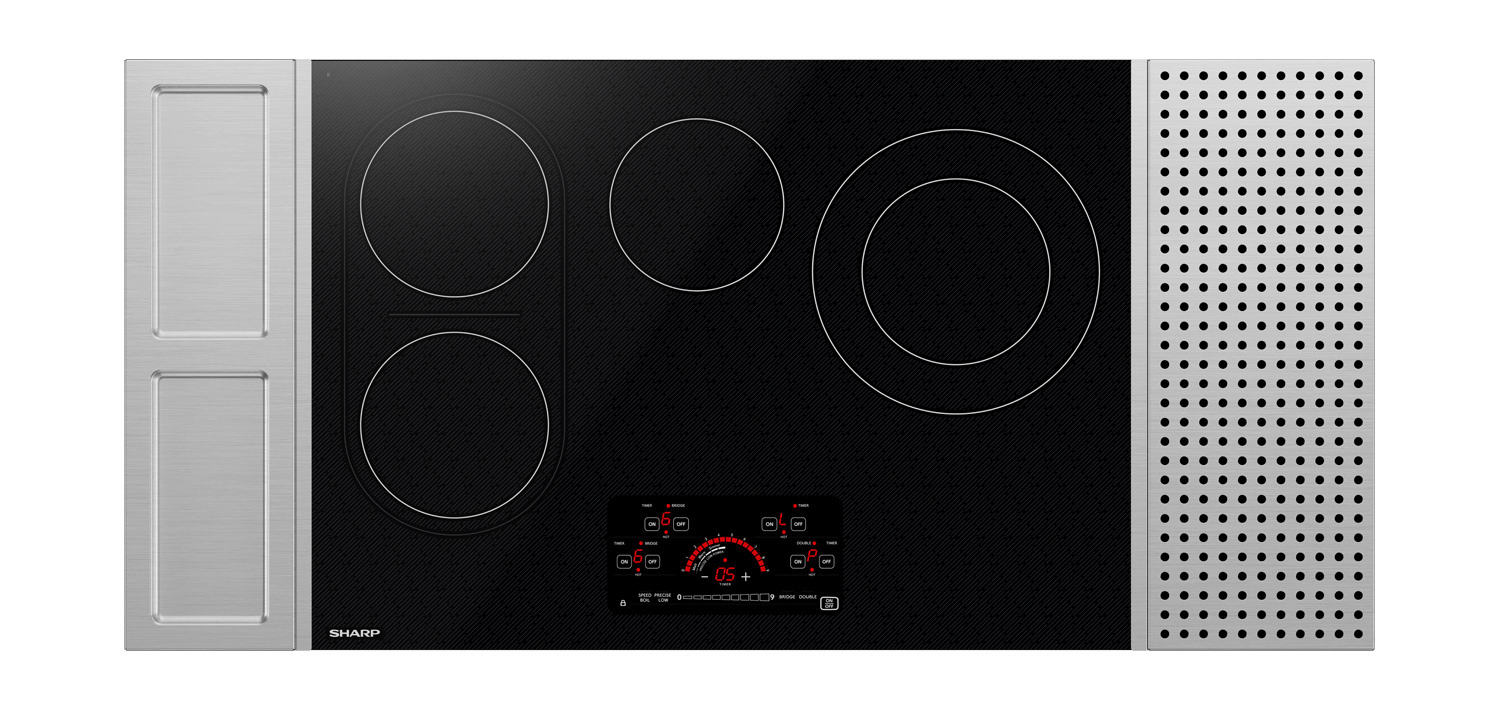

The Sharp® 30-inch SCR3042FB Radiant Electric Cooktop adds power, beauty, and versatility to your dream kitchen. The black mirror finish of the glass surface matches modern appliances, while precise temperature control with touch-glass controls for each of the four cooking zones provide convenience you can count on. The magnetic stainless steel side accessories included with the cooktop are dishwasher safe and a convenient place to rest spoons, ladles, spatulas along with pots and pans.
The SCR3042FB Radiant Cooktop features a variable-sized zone with Double Heater capability perfect for larger size pots and pans. Dual elements make it easy to use pans of any size, and the Bridge Heater synchronizes the two left cooking zones to support large specialty cookware for your most elaborate entertaining. Each cooking zone has its own kitchen timer to help you prepare multiple dishes simultaneously.
The Sharp 30-inch Drop-In Radiant Cooktop with Side Accessories includes practical safety features. For families with small children, the control lock helps to prevent unwanted or accidental use. The Hot Surface Light indicator lets you quickly see which of the cooking surfaces is on or still hot with residual heat. With its versatile features and convenient side accessories, the beautiful Sharp 30-inch SCR3042FB Drop-In Radiant Cooktop is certainly Simply Better Living.
DESIGN | |
Size | 30" Wide |
Number of Cooking Zones | 4 |
Color | Black with Stainless Steel Side Trims |
Magnetic Side Accessories | Yes, Stainless Steel & Dishwasher Safe |
CONTROLS | |

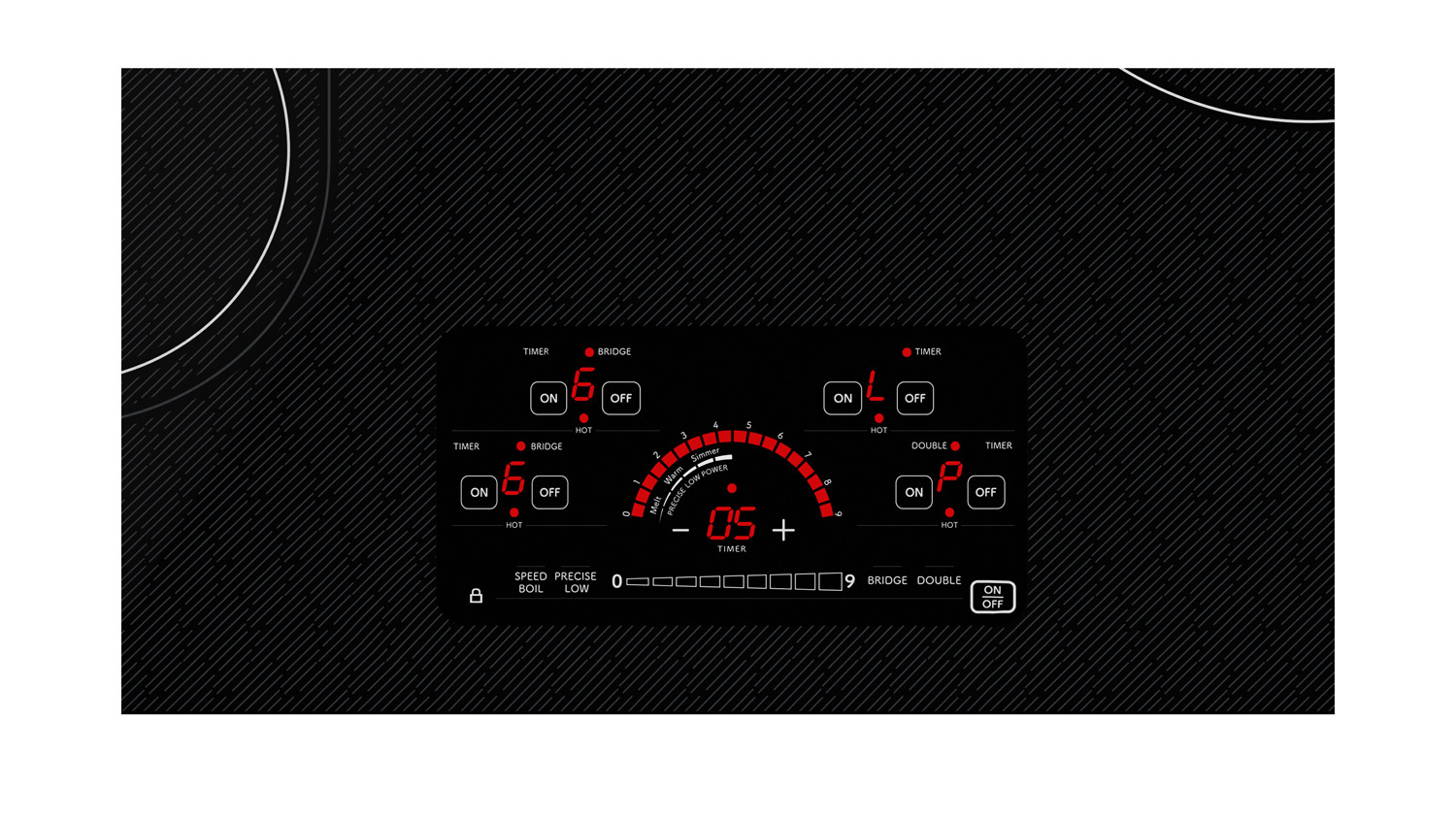

Control Type | Digital Glass Touch |
Control Location | Front Center |
Display | Red LED |
FEATURES | |
Power Adjustment Levels | 1 - 9 |
Bridge Heater | Yes |
Double Heater | Yes |
Speed Boil | Yes |
1-99 Minute Timer / Zone | Yes, 5 Timers (4 Heaters and 1 Independent Timer) |
Precise Low Power | Melt, Warm, Simmer |
Hot Surface Indicator Lights | Yes |
Control Lock | Yes |
Auto Power Shut Down | Yes |
ZONE ONE | |
Location | Left Front |
Size | 7" |
Bridge | Yes |
Wattage | 1500W |
ZONE TWO | |
Location | Left Rear |
Size | 7" |
Bridge | Yes |
Wattage | 1500W |
ZONE THREE | |
Location | Right Front |
Size | Single - 6" and Double - 9" |
Wattage (Single, 6") | 1400W |
Wattage (Double 9") | 3000W |
ZONE FOUR | |
Location | Right Rear (Middle) |
Size | 6" |
Wattage | 1200W |
TECHNICAL DETAILS | |
Total Wattage | 7200W |
Voltage | 208V / 240V |
Amps | 30A |
Agency Certifications | CUL |
Approved for Combination Installation with Sharp's Single Wall Oven and Microwave Drawer™ | Yes |
ACCESSORIES (w x h) | |
Stainless Steel, Magnetic Cooling Rest | 8" x 21" |
Stainless Steel, Magnetic Side Spoon Rest | 6" x 21" |
DIMENSIONS & WEIGHT (IN./LBS.) (W X H X D) | |
Cutout Dimensions (W x D) | 28-5/8" x 2-5/16" (min) x 19-11/16" |
Product Dimensions (W x H x D) | 30" x 2-5/16" x 21" |
Shipping Dimensions (W x H x D) | 33-7/16" x 7-7/8" x 24-1/16" |
Product Weight / Shipping Weight | 25 lbs. / 30 lbs. |
WARRANTY/UPC | |
Parts and Labor | 1 Year Parts, 1 Year Labor |
UPC | 074000621190 |
