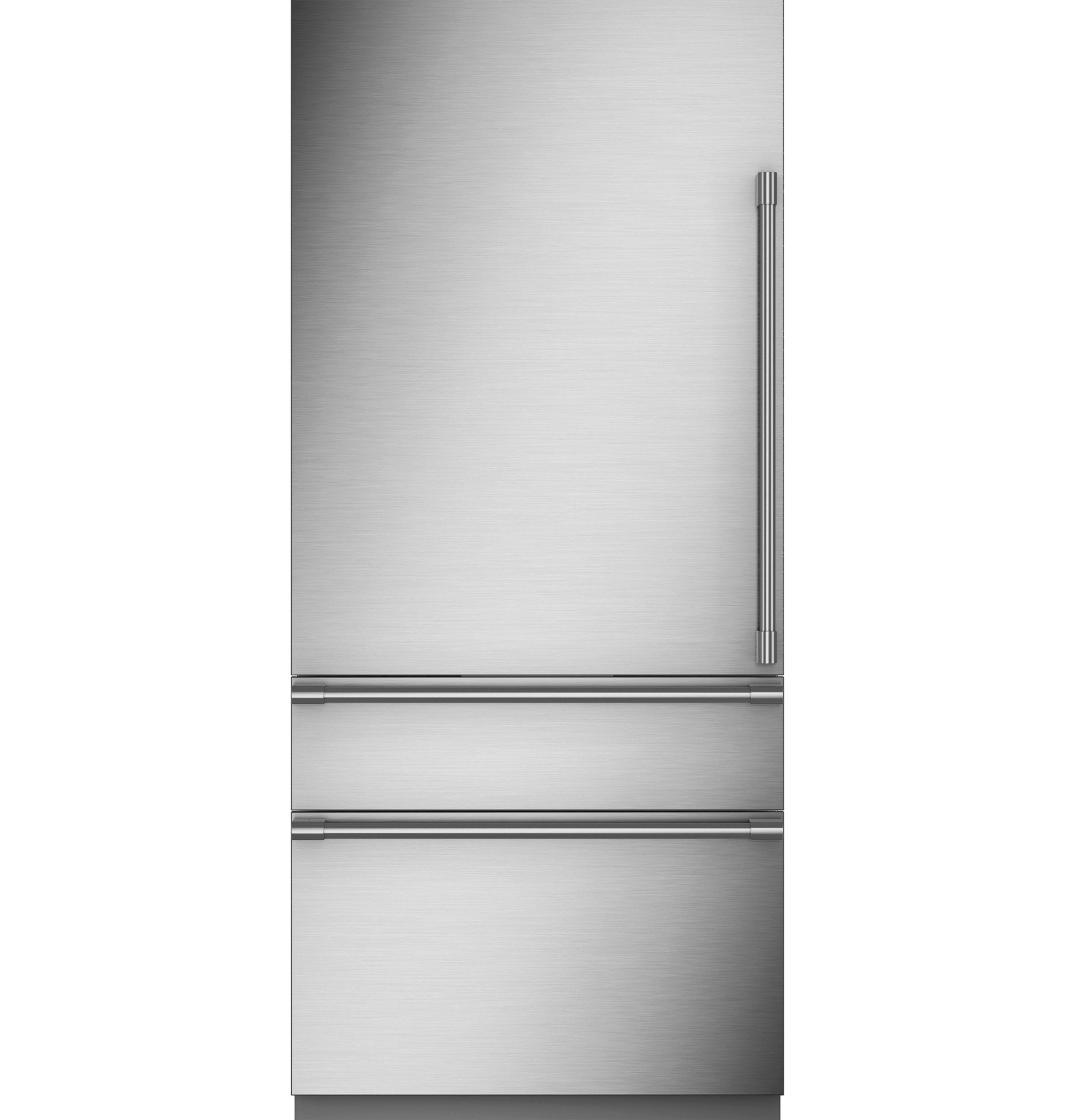

Monogram ZIC363NBVLH Monogram 36" Panel-Ready Integrated Bottom-Freezer Refrigerator- Left Hinge

$9,900.00 $10,890.00

Save $990

Or $825.00/mo suggested payments with 12-month special financing. More financing options available.

Rebates Available See below

Overview & Specifications

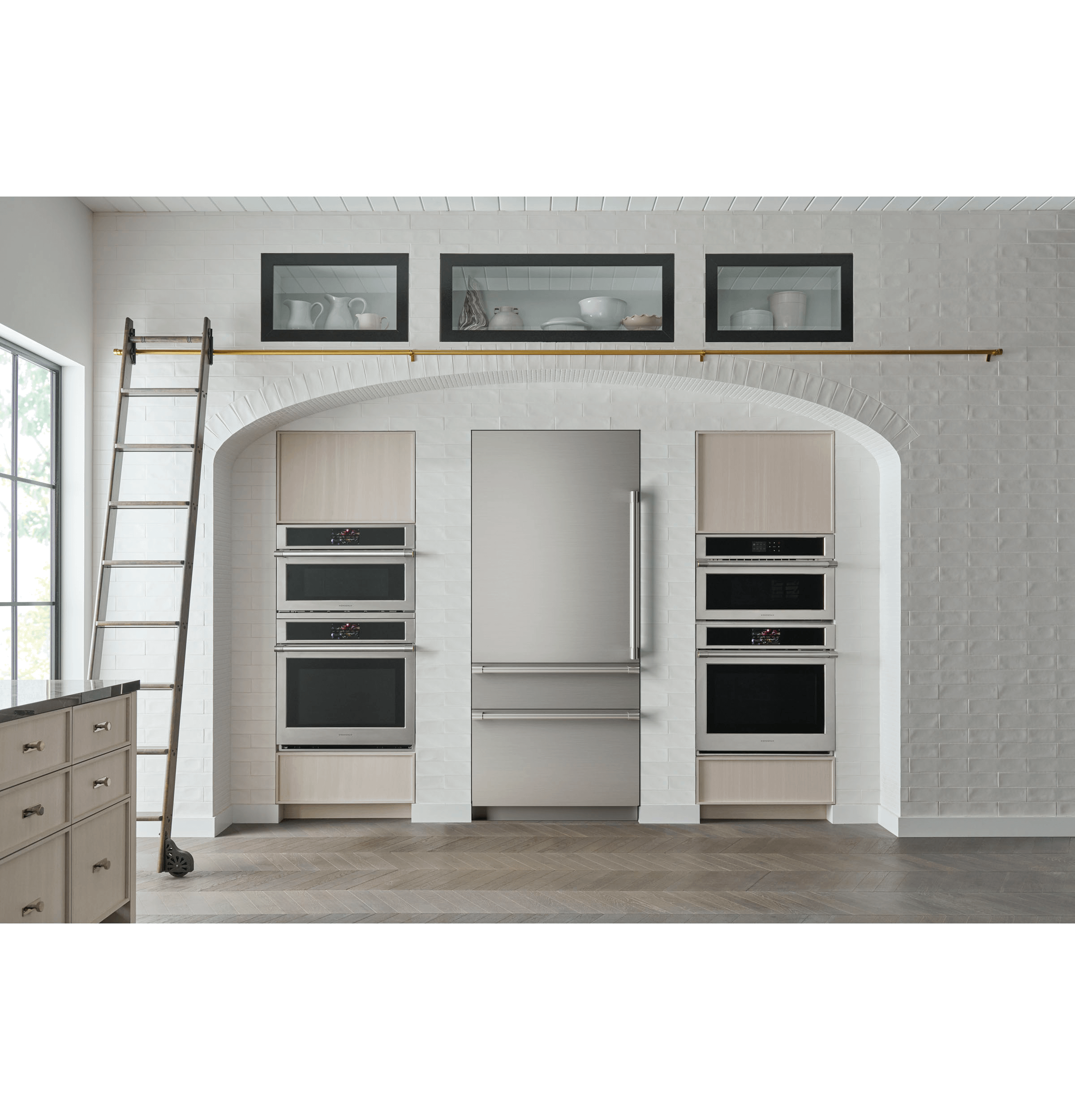

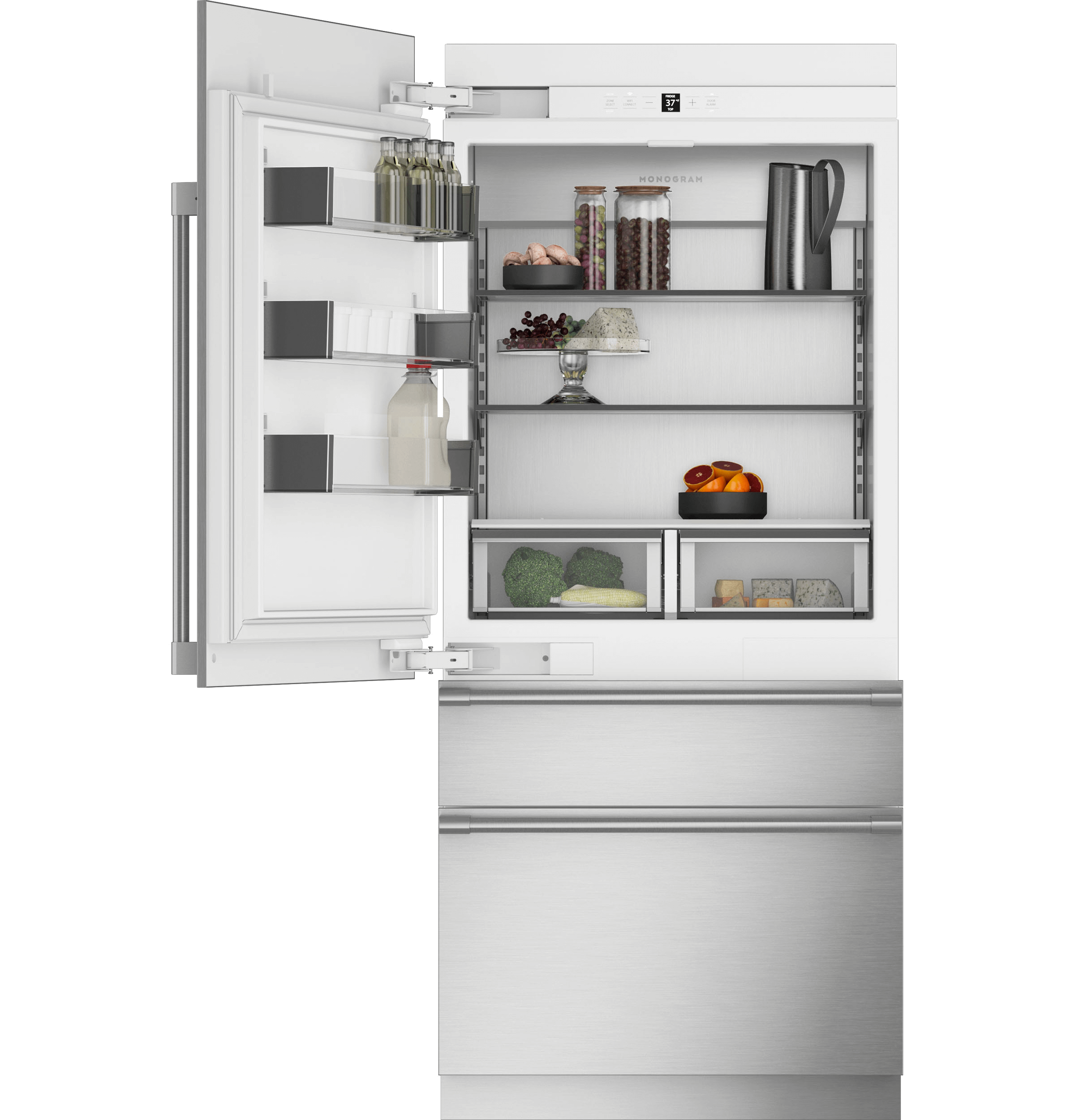

Bottom Freezer with Flush Inset Installation
Sleek design allows the refrigerator to be installed flush with adjacent cabinetry

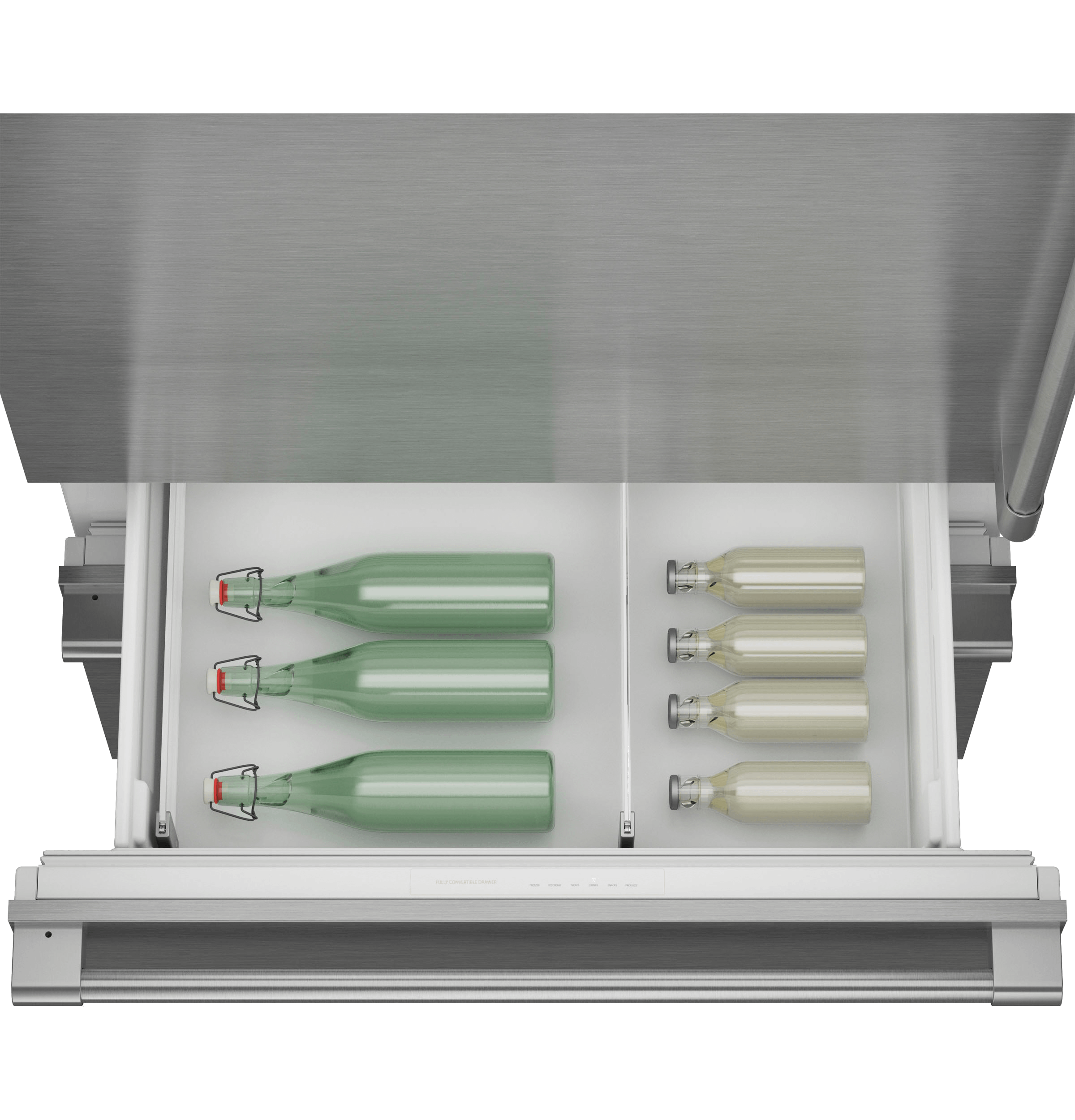

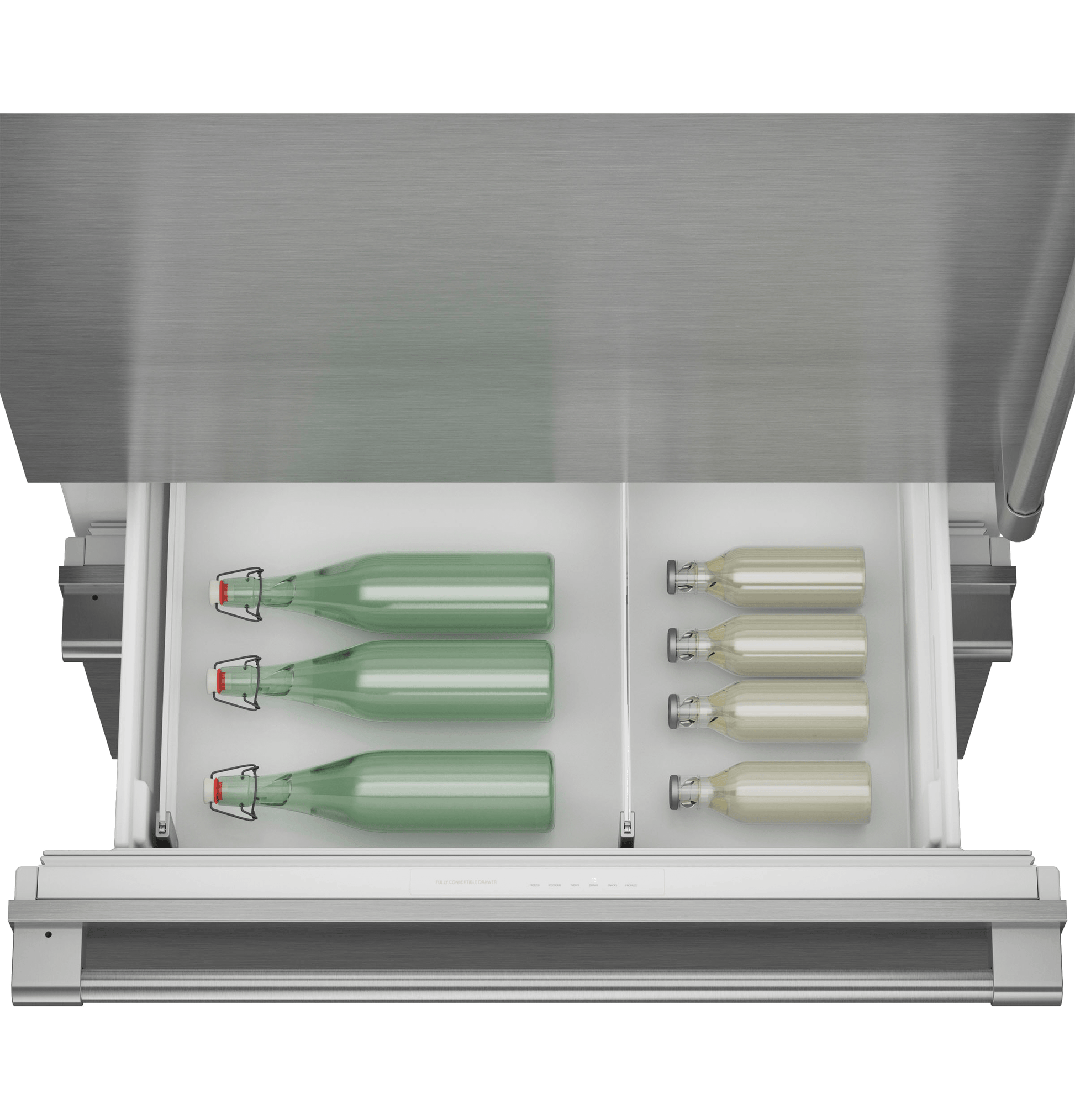

6-Temperature Setting Convertible Drawer
The convertible middle drawer with 6 temperature settings allows you to choose temperatures best suited for storing cold drinks, meat, snacks, ice cream, produce or frozen items

WiFi Connected Refrigerator
The WiFi refrigerator allows you to wirelessly control refrigerator settings from your smartphone, using an available app

2 Humidity-Controlled Vegetable Drawers
Enjoy additional storage flexibility with pre-programmed settings that help to preserve food freshness

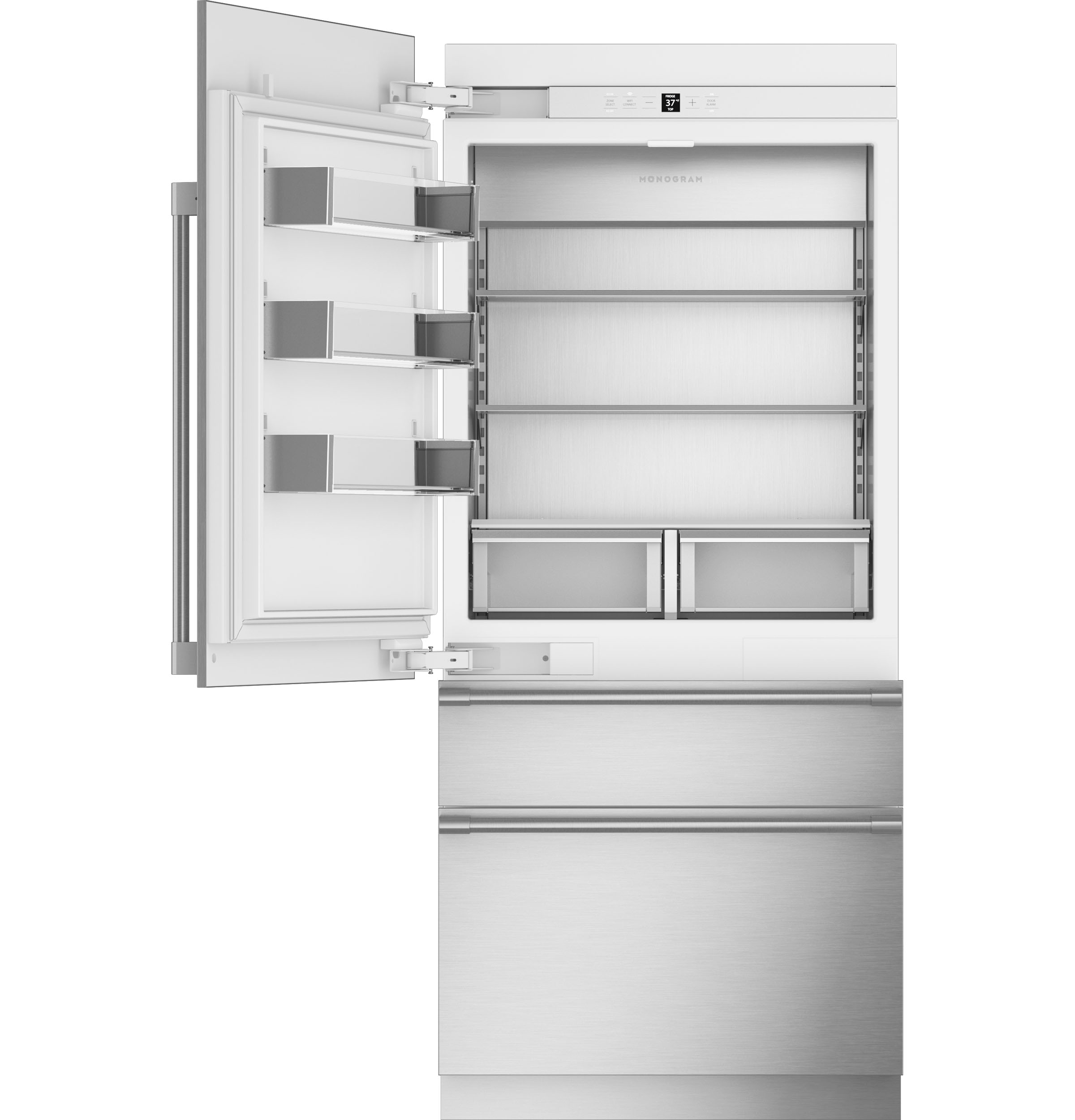

Refrigerator Shelves
Edge-to-edge glass shelves provide convenient storage and a clean appearance

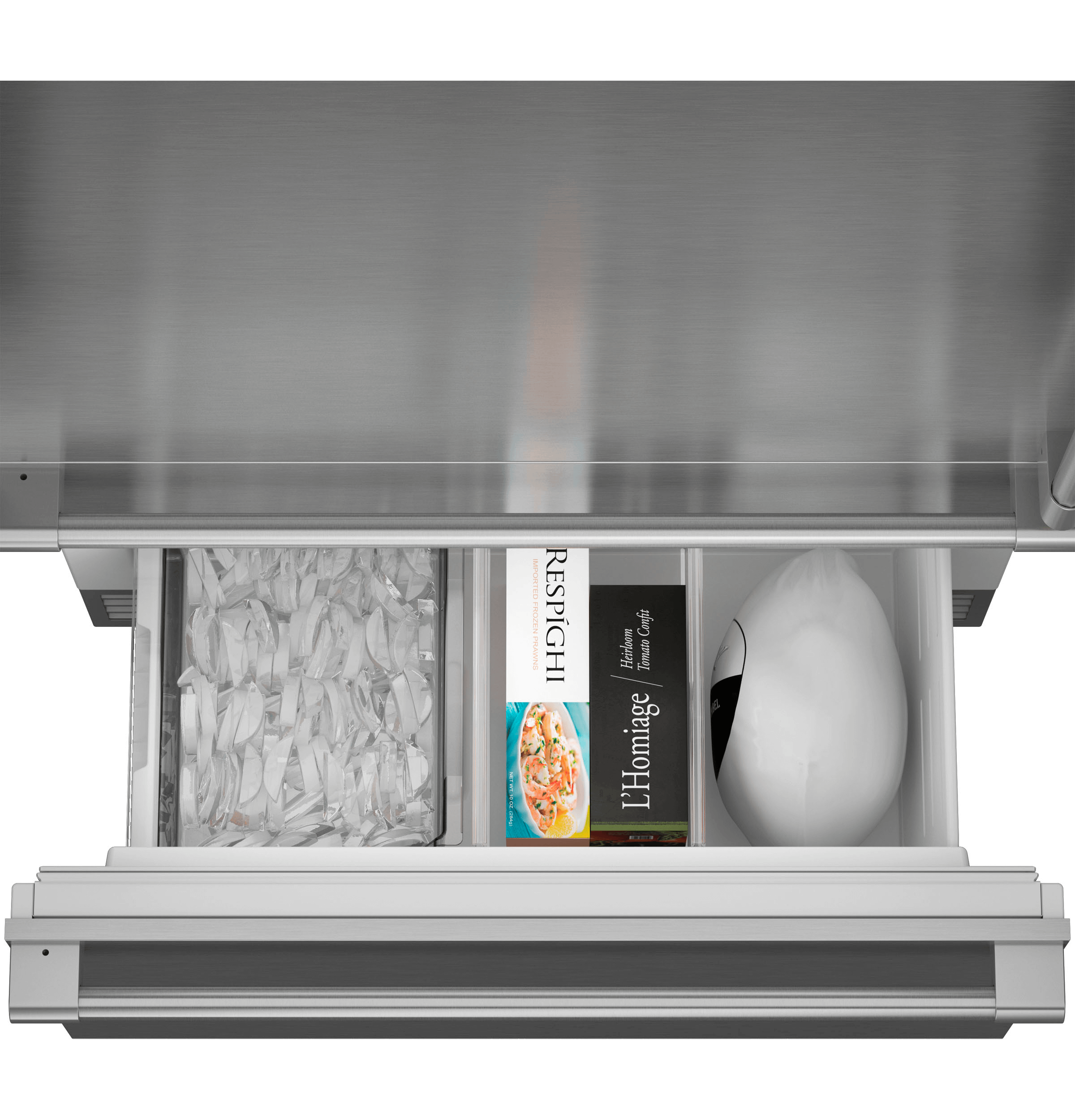

Factory Installed Ice Maker
Create all the ice you want, anytime you like, with this refrigerator with ice maker

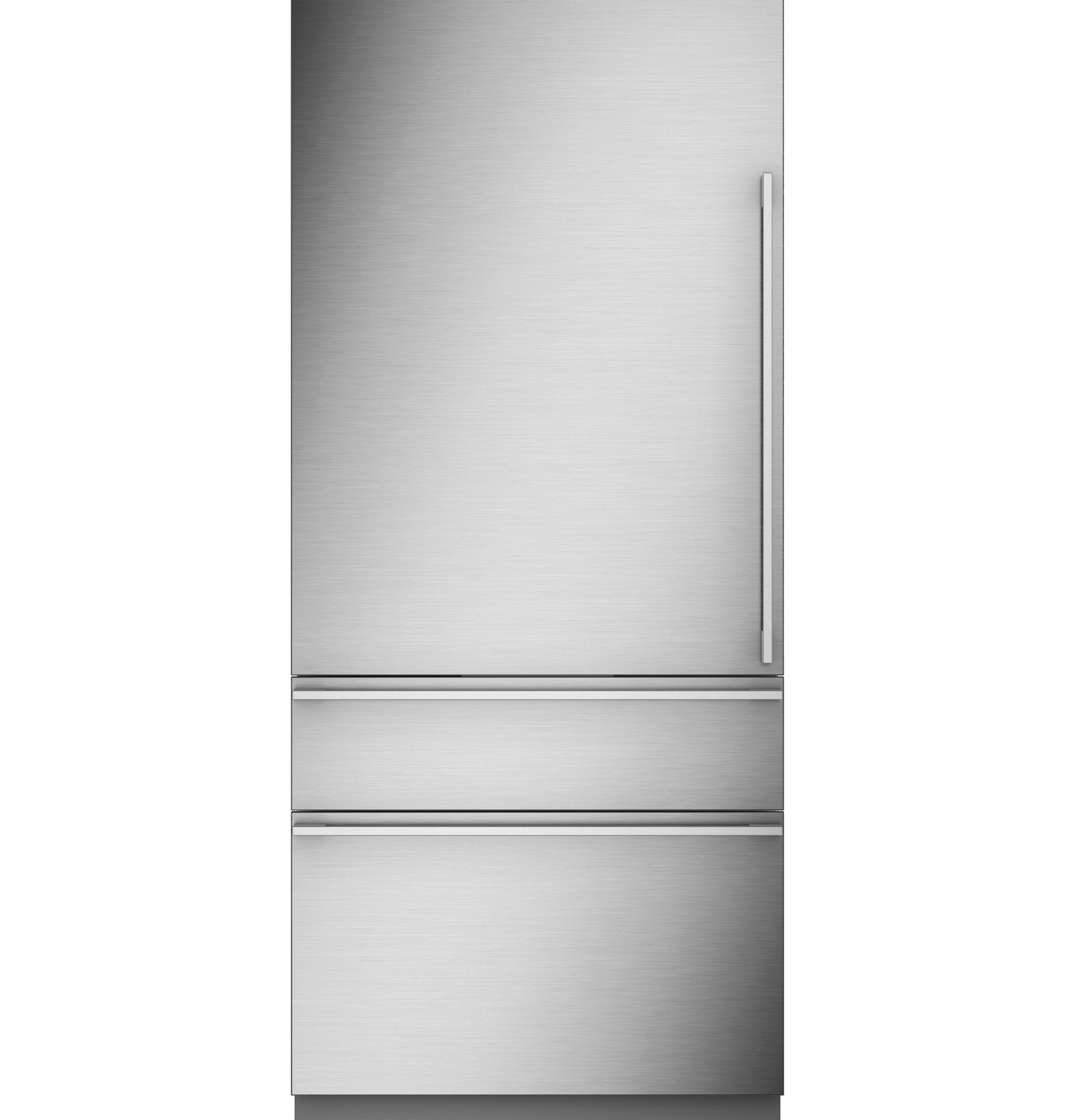

Statement and Minimalist Collection Refrigerator Handles (sold separately)
Designed to enhance choice and customization with Statement and Minimalist Collection handle options. HANDLES AND STAINLESS PANELS SOLD SEPARATELY.

  • Bottom Freezer with Flush Inset Installation
  • Sleek design allows the refrigerator to be installed flush with adjacent cabinetry
  • 6-Temperature Setting Convertible Drawer
  • The convertible middle drawer with 6 temperature settings allows you to choose temperatures best suited for storing cold drinks, meat, snacks, ice cream, produce or frozen items
  • WiFi Connected Refrigerator
  • The WiFi refrigerator allows you to wirelessly control refrigerator settings from your smartphone, using an available app
  • 2 Humidity-Controlled Vegetable Drawers
  • Enjoy additional storage flexibility with pre-programmed settings that help to preserve food freshness
  • Refrigerator Shelves
  • Edge-to-edge glass shelves provide convenient storage and a clean appearance
  • Factory Installed Ice Maker
  • Create all the ice you want, anytime you like, with this refrigerator with ice maker
  • Statement and Minimalist Collection Refrigerator Handles (sold separately)
  • Designed to enhance choice and customization with Statement and Minimalist Collection handle options. HANDLES AND STAINLESS PANELS SOLD SEPARATELY.

CAPACITY
Convertible Drawer Capacity 2.91 cu ft
Fresh Food Capacity 13.71 cu ft
Total Capacity (cubic feet) 20.1 cu ft
Freezer Capacity 3.45 cu ft
APPEARANCE
Panel Capability SS Door Panel Kit ZK3SN369VLH, ZK3SN364VRH
Adjustable Rollers 2
Door Style Solid Door

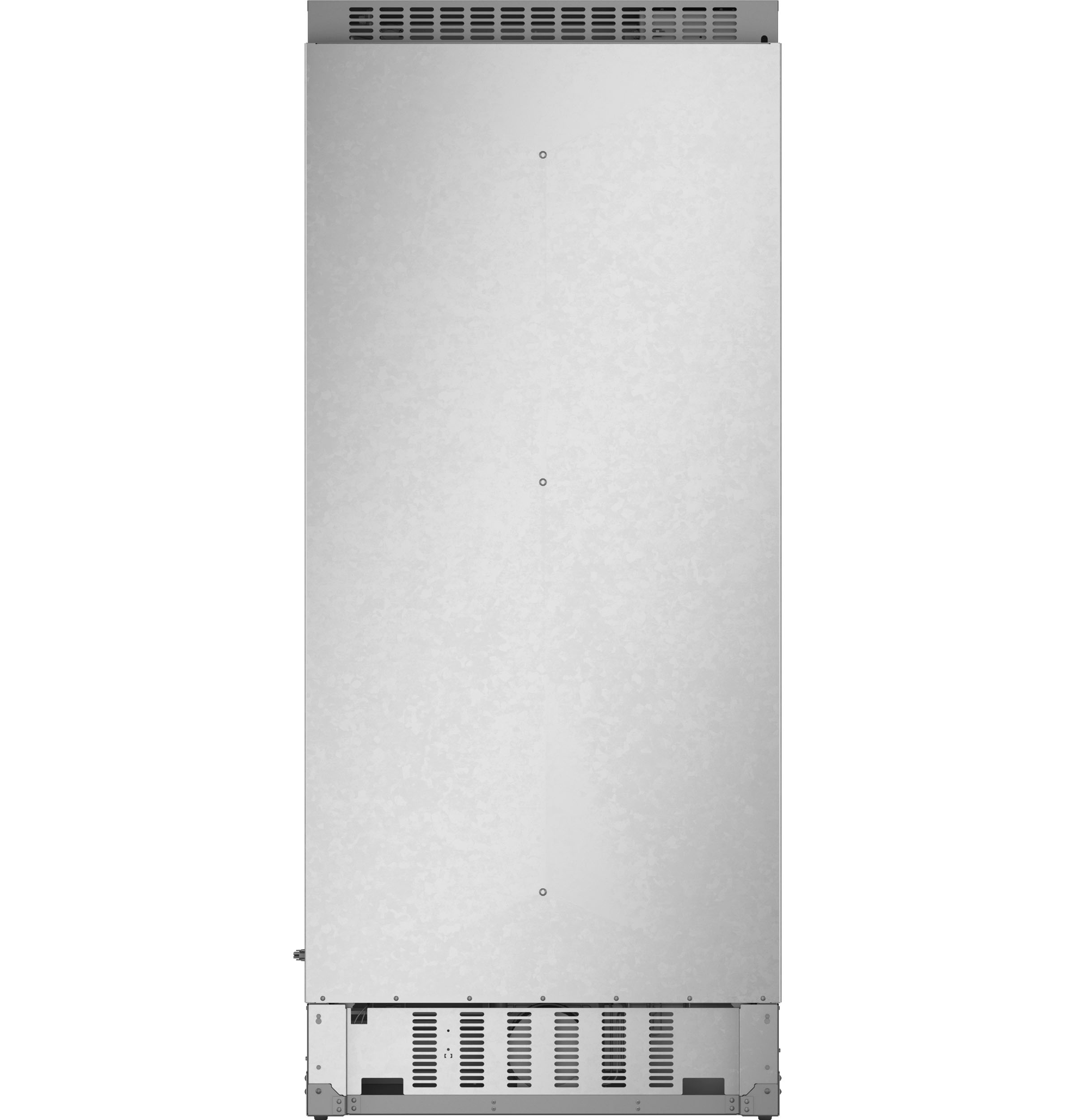

Coil-Free Back Yes
Door Swing Hinges on Left
Handle Purchased Separately Requires Statement Handle Kit (ZKSB3H3PVSS) or Minimalist Handle Kit (ZKSB3H3CVSS)
Color Appearance Custom Panel and Handle Required
Door Stops 90 Degree and 115 Degree
Design Style Custom Panel & Handles

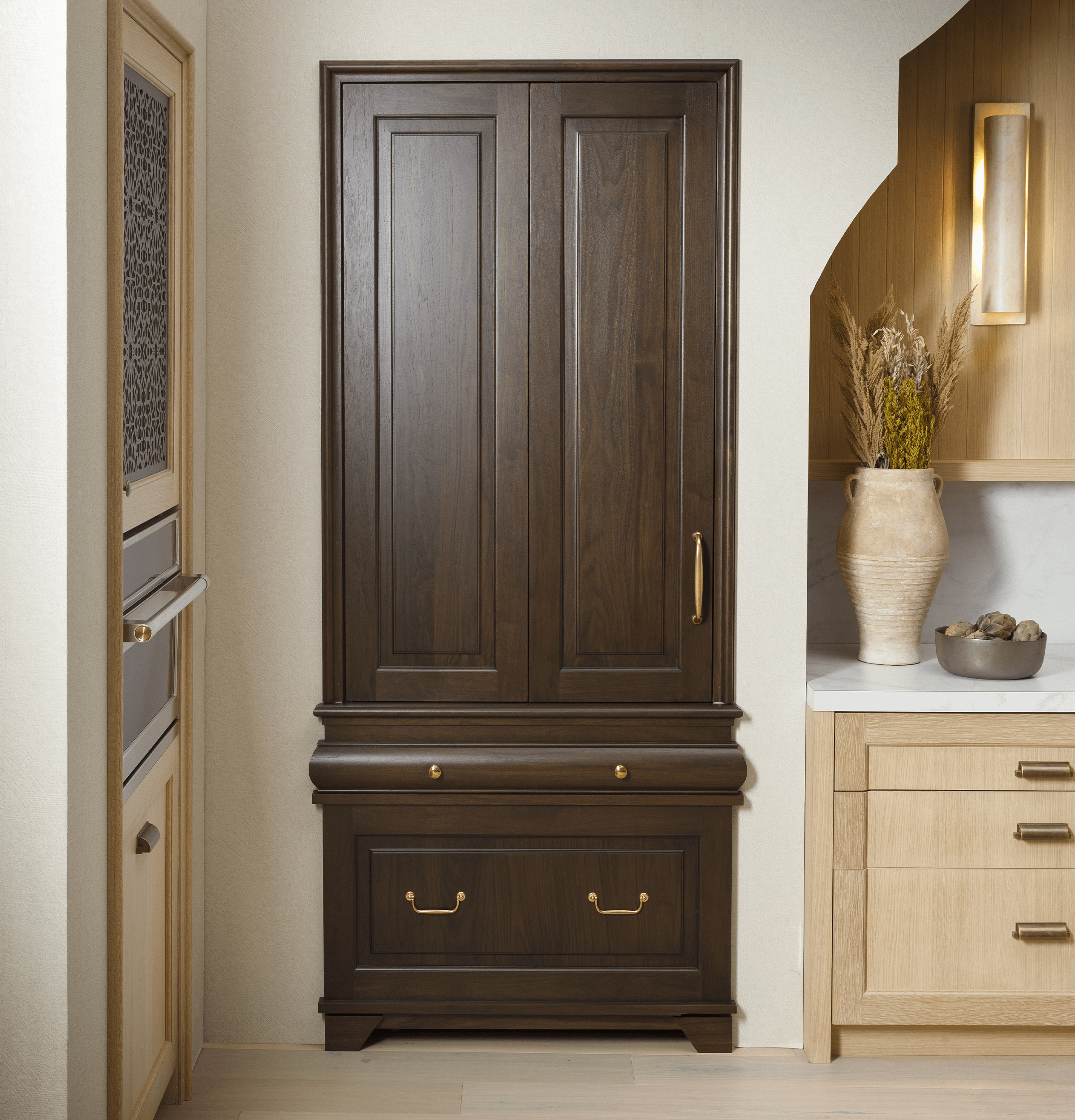

Installation Fully Integrated Installation
Hidden Door Hinge(s) Yes
WARRANTY
Labor Warranty Limited 2-year entire appliance
Limited 5-year sealed refrigerating system
Warranty Notes See written warranty for full details
Parts Warranty Limited 12-year sealed refrigerating system parts
Limited 2-year entire appliance
POWER / RATINGS
Volts/Hertz/Amps 115V; 60Hz; 20A
ECONOMICAL / QUIET
Quiet Package 36 dBA
ACCESSORIES
Side by Side Install Toe-Kick Kit 54" ZKK54P
60" ZKK60P
66" ZKK66R
72" ZKK72R
Handle Stud Kit ZKPN
Trim Kit 36" Trim Kit for 24" deep cabinets ZKW36V
72" Trim Kit for 24" deep cabinets ZKW72V
SxS Install Heater/Unification Kit ZKMV

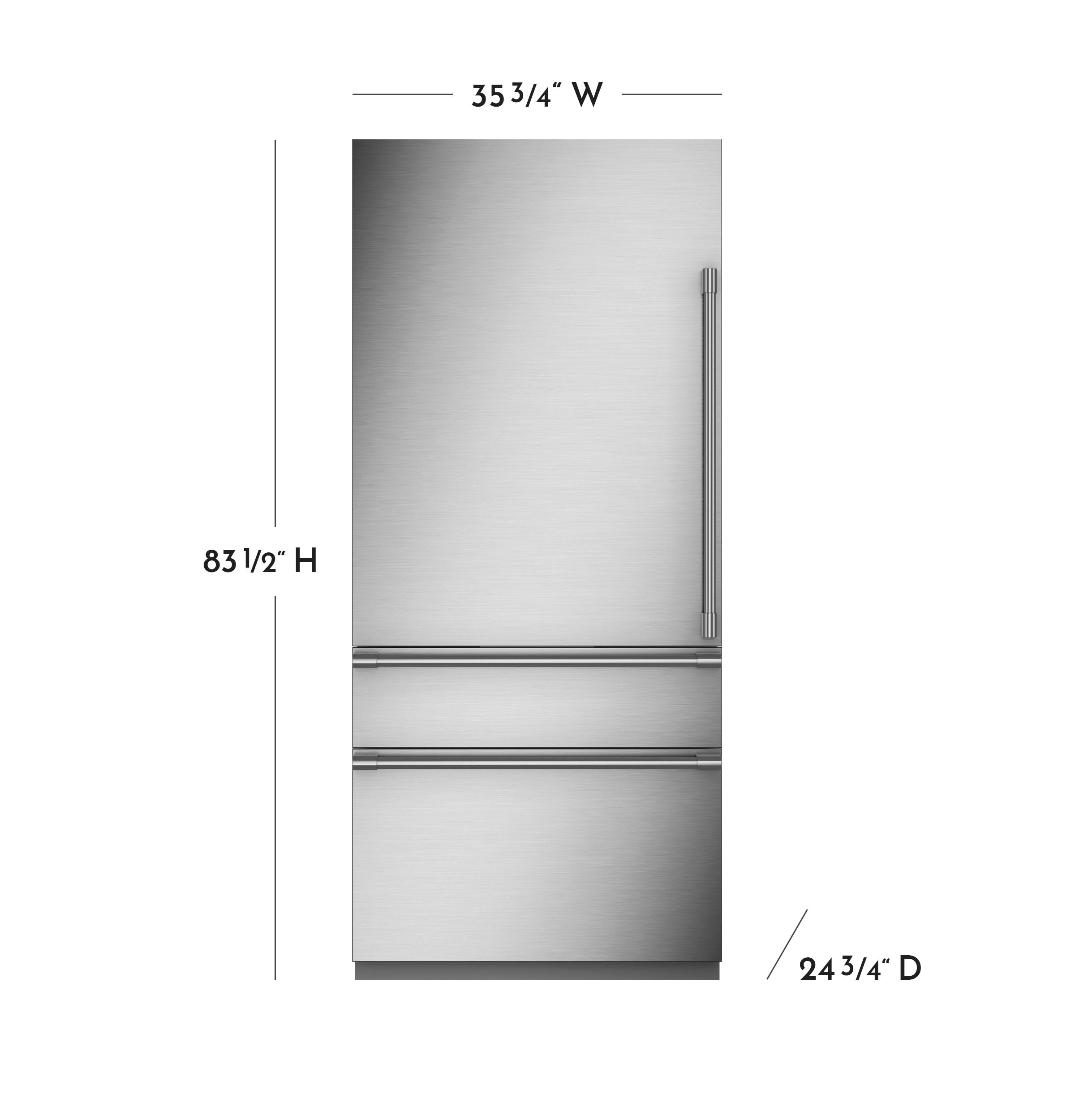

WEIGHTS & DIMENSIONS
Overall Width 35.75 in
Approximate Shipping Weight 621 lb
Overall Depth 24.75 in
Height to Top of Hinge 83.5 in
Net Weight 586 lb
Overall Height 83.5 in
FEATURES
Temperature Management Features Dual Evaporator
Independent Temperature Controls
Multi-Shelf Air Management Tower
Fresh Food Features Display Temp Setpoint
Door Alarm
Filter-Change Indicator
Interior Lighting - Ramp Up LED 4
Sabbath Mode Status

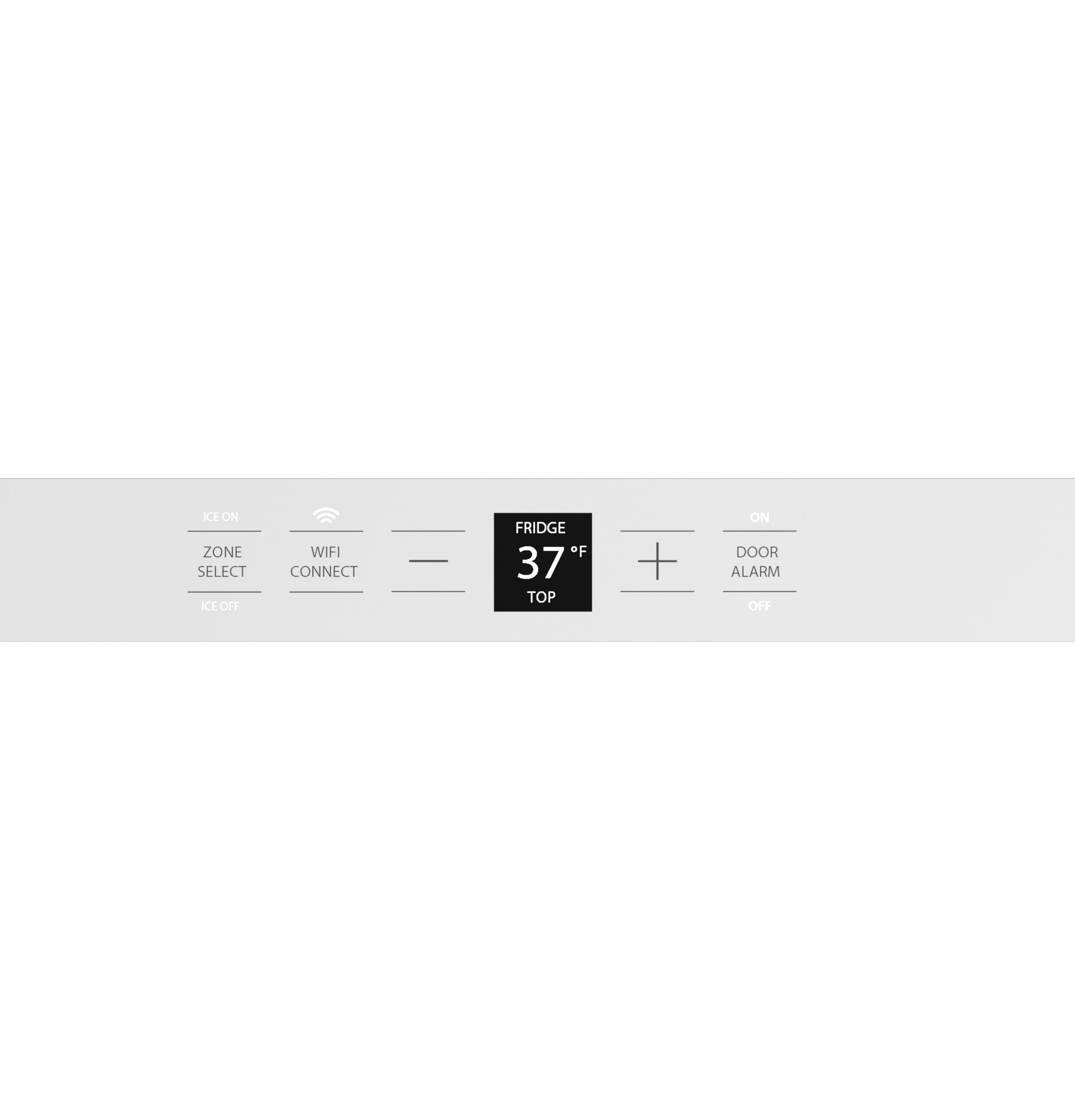

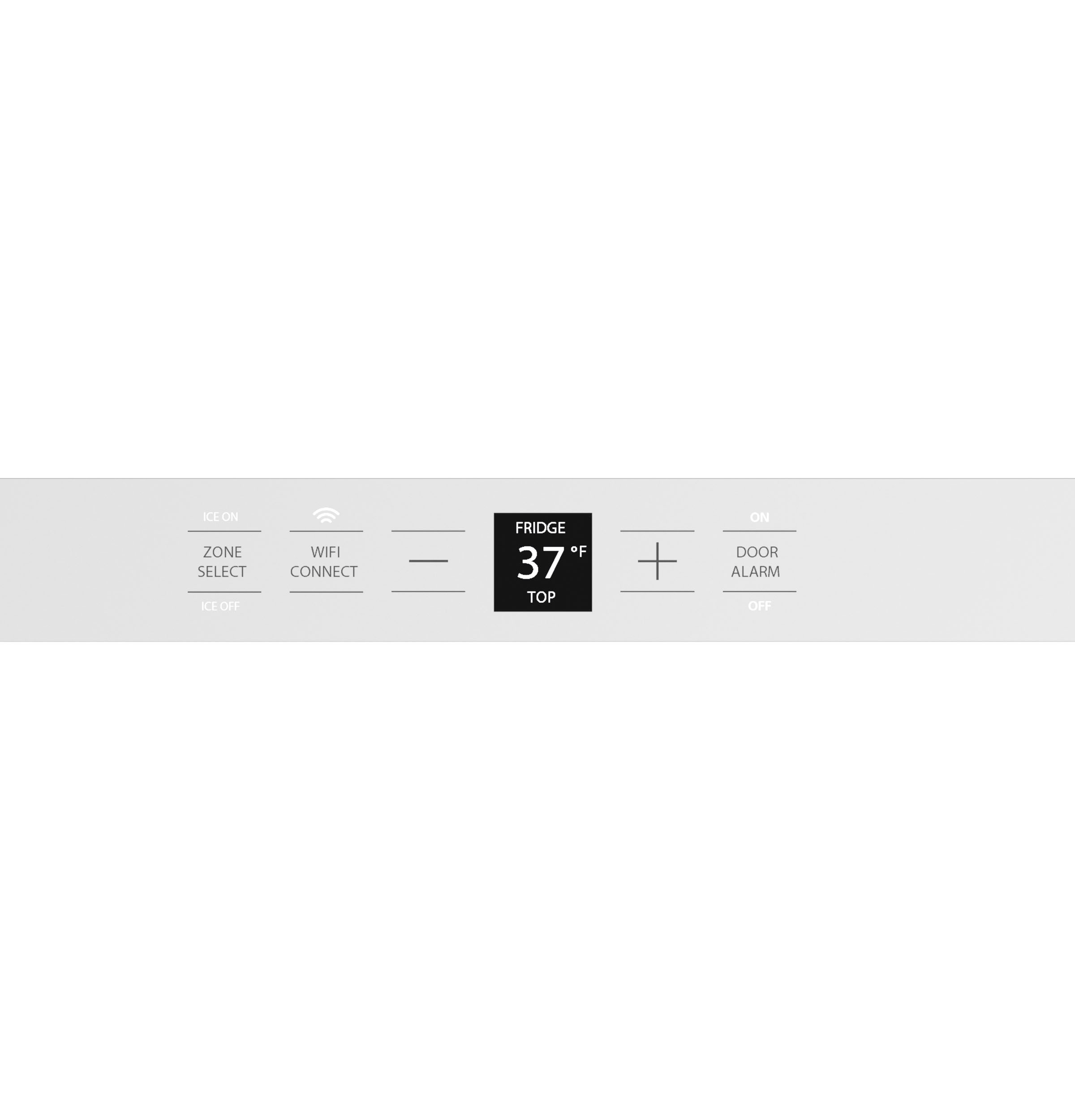

Control Type Integrated
Upfront Capacitance Touch Controls
Exterior Style Built-In
Configuration Full Door and Double Drawer
Door Alarm Yes
Refrigerant Type R600a
Custom Panel Ready Integrated Panels
Icemaker Factory-Installed
WiFi Connect Built-In
Fresh Food Cabinet Shelves 2 Total - Glass with Trim
Interior Lighting LED
Filter Change Indicator Display water filter status @ 90% usage
Sabbath Mode Yes
Bottom Drawer One Adjustable Divider
Plastic Interior
Yes, Freezer w/IM
Dispenser Non-Dispenser
Defrost Type Automatic Defrost
Fresh Food Cabinet Drawers 2 Half-Width Adjustable Humidity Drawers
Full-Extension Soft-Close Slides

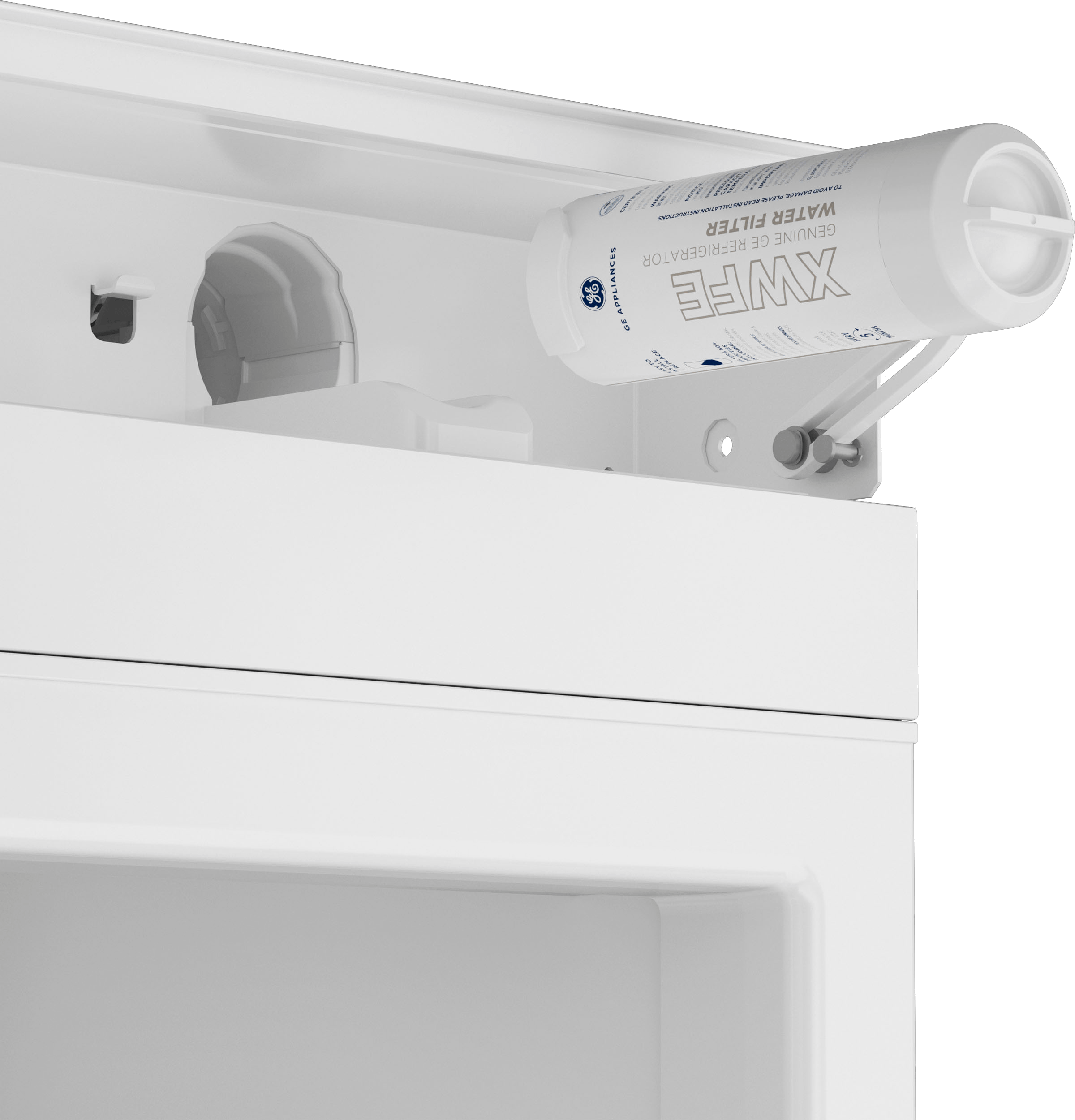

Water Filtration GE Water Filtration (XWFE Filter)
Fresh Food Door Features 3 Adjustable Bins
Full-Width
Leveling System 4 Point (2 adjustable back rollers, 2 adjustable front legs)
Fresh Food Door Bins 3 Full-Width
Product Type Bottom Freezer Refrigerator
Built-In Refrigerator
Middle Drawer 6 Settings (Hard Freeze [sync w/freezer], Soft Freeze/Gelato, Meats, Cold Beverages, FF/Snack, Produce
Yes, Convertible; Plastic Interior
OU Certified OU/CRC Enhanced Shabbos Mode, when used with Shabbos Keeper, sold separately
Freezer Features Freezer Drawer with Full Extension Slides
Soft-Close
