Overview & Specifications
Overview & Specifications

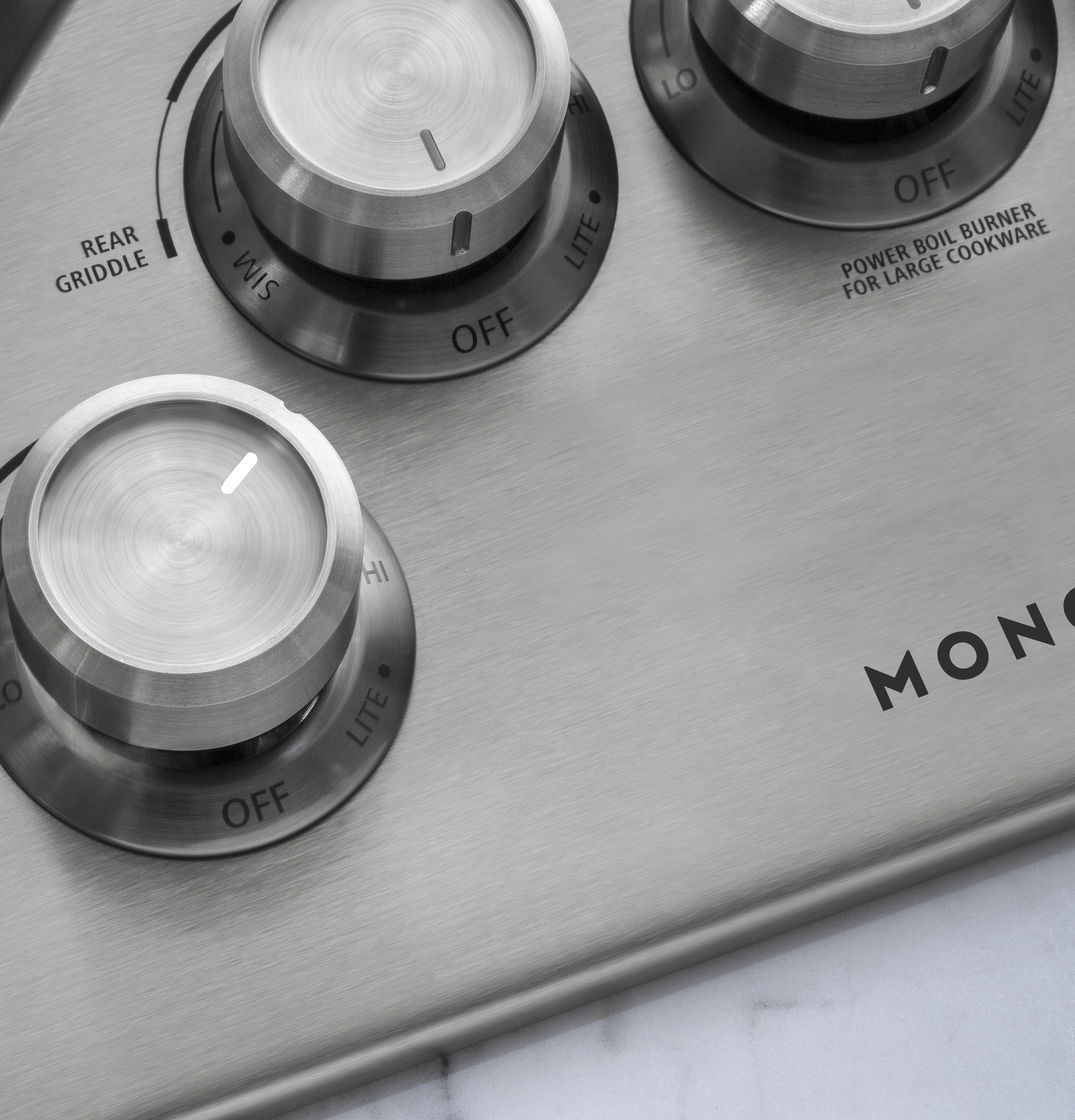

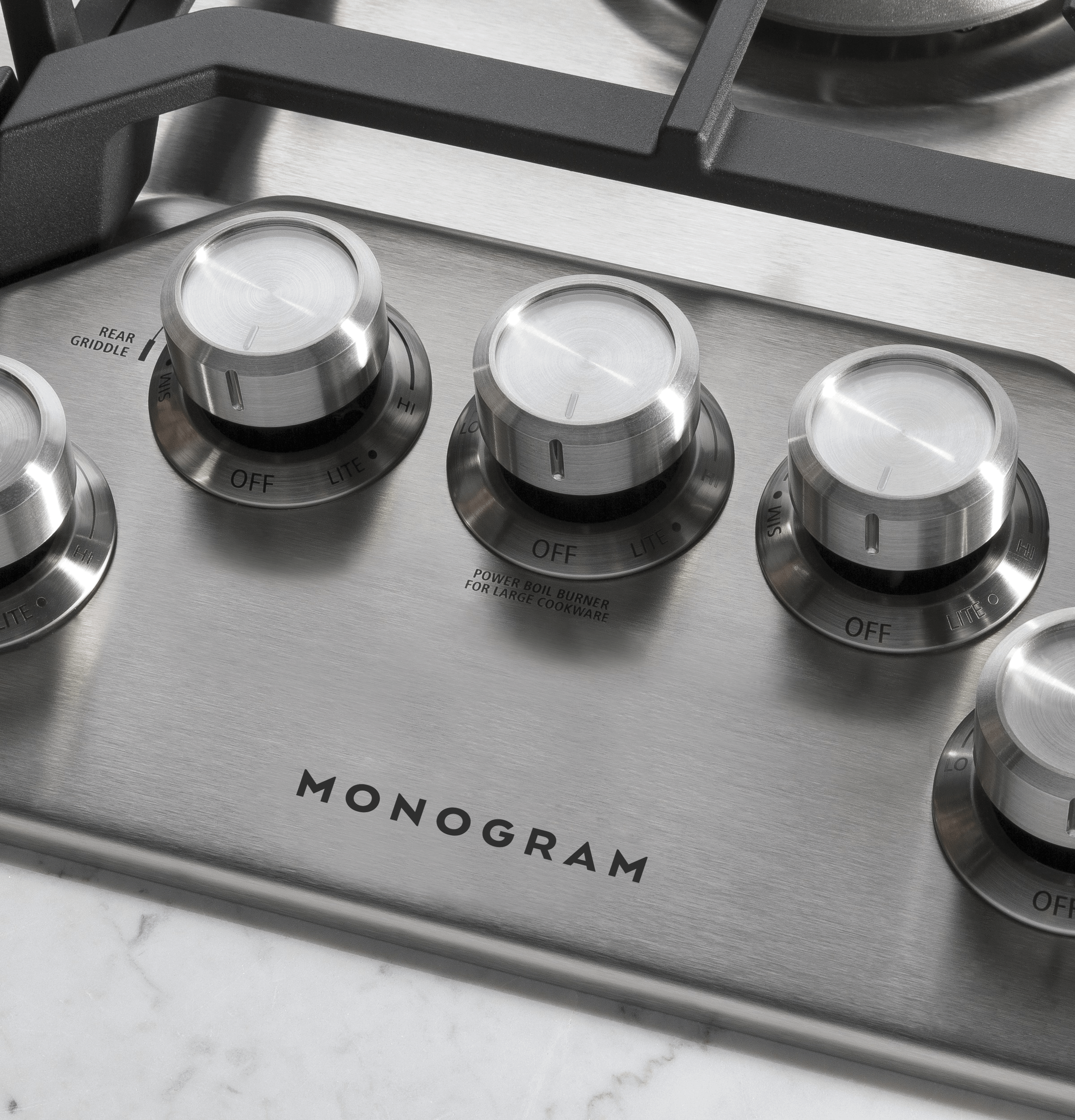

Precision knobs
With embedded sapphire glass illuminate each knob making it easy to view and select heat settings

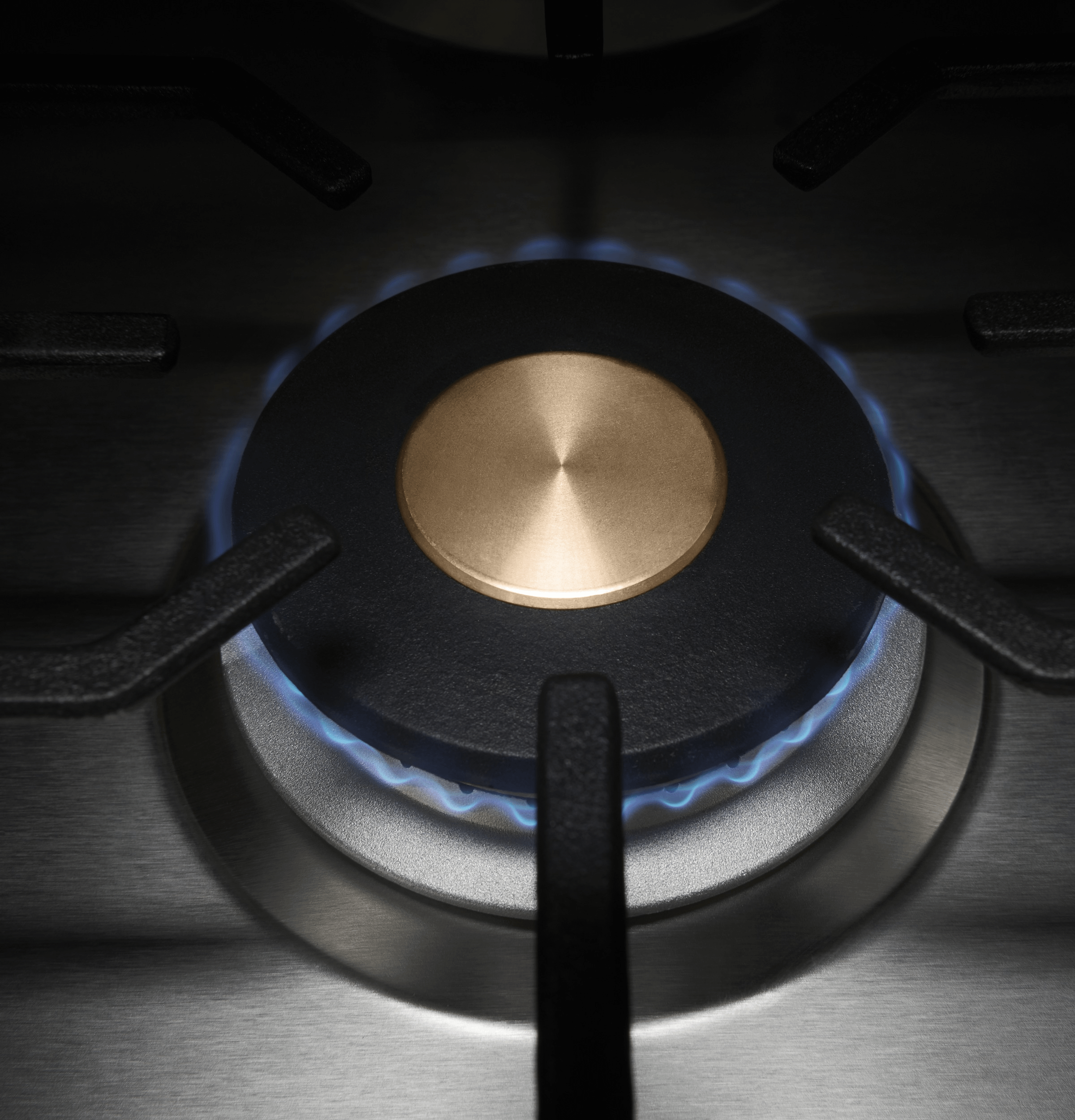

Dual-flame stacked burners
Provide complete 140F simmer-to-rapid-boil flexibility on all burners; the burners are sealed to the cooktop for easy cleaning
High-output cooking
Delivered by a 20,000 BTU tri-ring burner, total of 62,000 BTUs

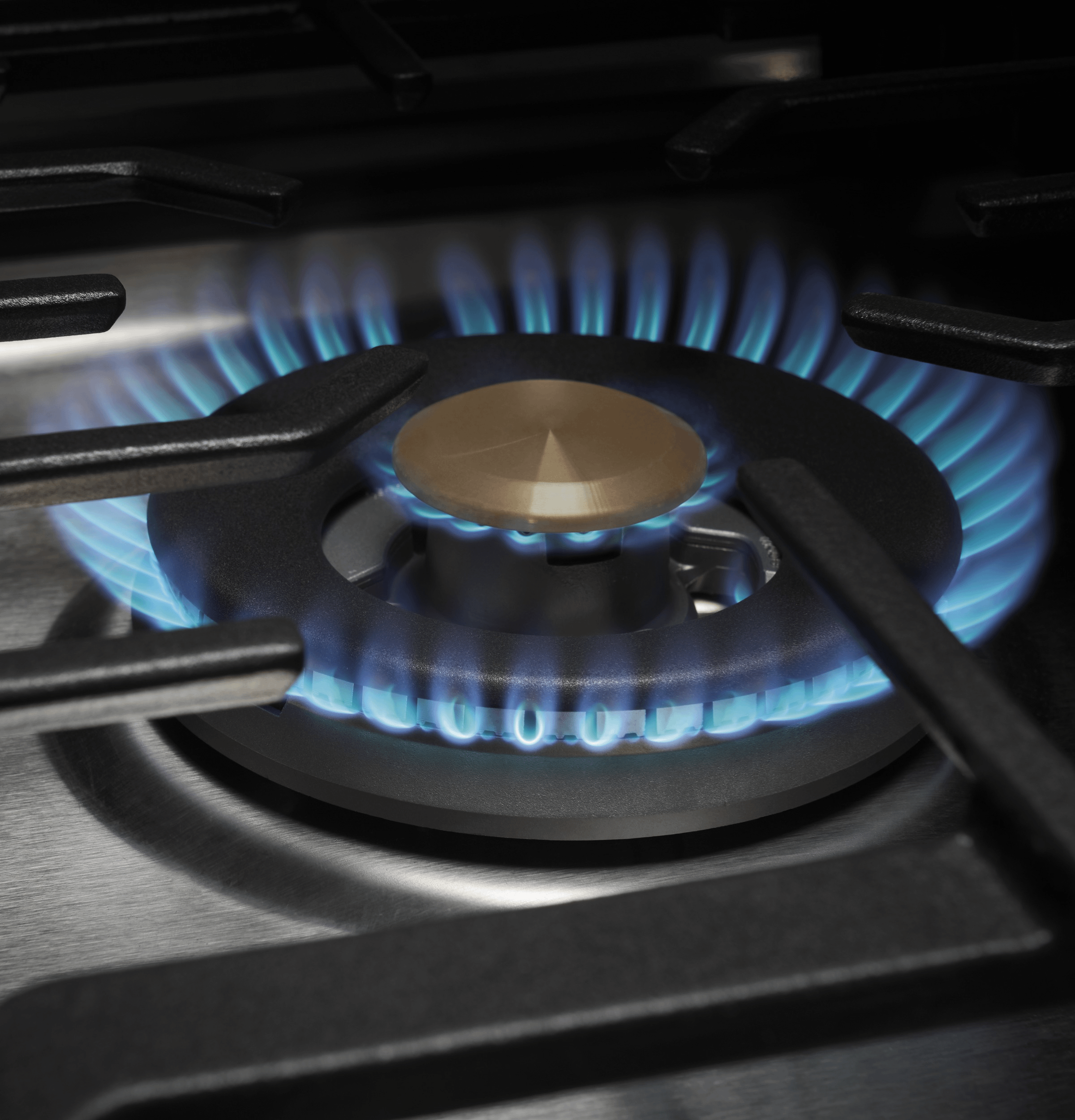

Tri-ring burner
Versatile burner creates 20,000 BTUs of intense heat, perfect for searing, frying and saut(eback)ing
Continuous grates
Designed for even cooking and simple movement of cookware across the surface
Electronic ignition
Ensures a continuous flame and reignites automatically if accidentally extinguished

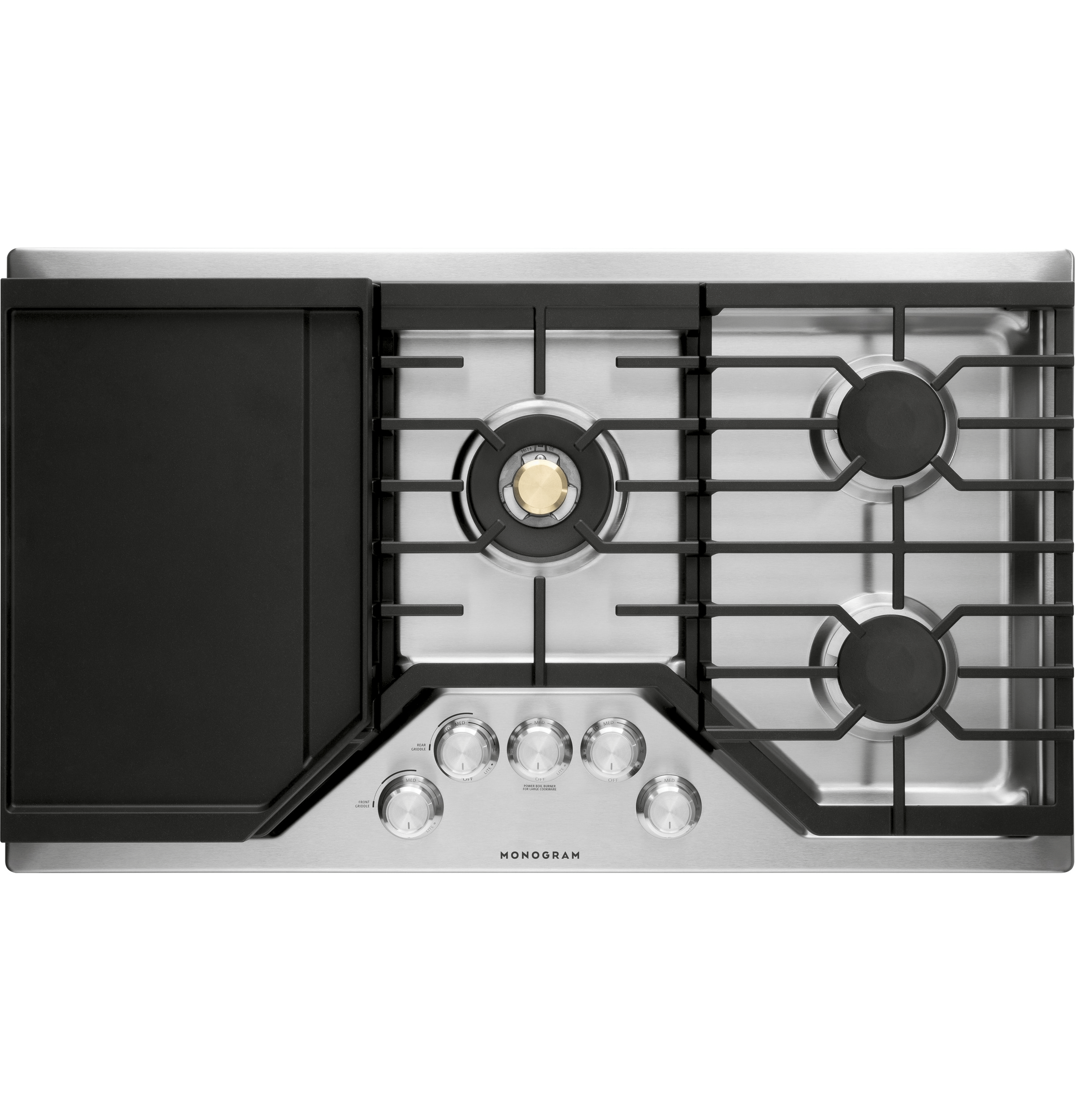

Heavy-duty, cast-iron griddle
Designed to fit the Monogram gas cooktop
With embedded sapphire glass illuminate each knob making it easy to view and select heat settings
Dual-flame stacked burners
Provide complete 140F simmer-to-rapid-boil flexibility on all burners; the burners are sealed to the cooktop for easy cleaning
High-output cooking
Delivered by a 20,000 BTU tri-ring burner, total of 62,000 BTUs
Tri-ring burner
Versatile burner creates 20,000 BTUs of intense heat, perfect for searing, frying and saut(eback)ing
Continuous grates
Designed for even cooking and simple movement of cookware across the surface
Electronic ignition
Ensures a continuous flame and reignites automatically if accidentally extinguished
Heavy-duty, cast-iron griddle
Designed to fit the Monogram gas cooktop
- Precision knobs
- With embedded sapphire glass illuminate each knob making it easy to view and select heat settings
- Dual-flame stacked burners
- Provide complete 140F simmer-to-rapid-boil flexibility on all burners; the burners are sealed to the cooktop for easy cleaning
- High-output cooking
- Delivered by a 20,000 BTU tri-ring burner, total of 62,000 BTUs
- Tri-ring burner
- Versatile burner creates 20,000 BTUs of intense heat, perfect for searing, frying and saut(eback)ing
- Continuous grates
- Designed for even cooking and simple movement of cookware across the surface
- Electronic ignition
- Ensures a continuous flame and reignites automatically if accidentally extinguished
- Heavy-duty, cast-iron griddle
- Designed to fit the Monogram gas cooktop
APPEARANCE | |
Color Appearance | Stainless Steel |
Installation | Over Advantium Built-In 120V Over Single Wall Oven (except Single-Double) Over Warming Drawer |
Control Knobs | Precision Knobs with Embedded Sapphire Glass |
WARRANTY | |
Parts Warranty | Limited 2-year entire appliance |
Warranty Notes | See written warranty for full details |
Labor Warranty | Limited 2-year entire appliance |
POWER / RATINGS | |
Volts/Hertz/Amps | 120V; 60Hz; 5.0A |
ACCESSORIES | |
Conversion Kit | Included - Nat. Gas to LP |
Cooktop Cleaning | Included |
WEIGHTS & DIMENSIONS | |
Overall Height | 7.875 in |
Cutout Depth (in) | 19-1/8 |
Cabinet Width | 36 in |
Approximate Shipping Weight | 65 lb |
Overall Width | 36 in |
Net Weight | 59 lb |
Cutout Width (in) | 33-7/8 |
Overall Depth | 21 in |
FEATURES | |
Cooktop Burner Type | 5 Sealed |
Valves (Degree of Turn) | 270 |
Burner - Right Rear | 10,000 BTU Dual |
Burner - Right Front | 12,000 BTU Dual |
Fuel Type | Natural Gas (factory set) |
Control Location | Front Center |
Cooktop Type | Continuous Grates |
Ignition System | Direct Electronic Ignition |
Burner - Center | 20,000 BTU Tri-ring (Brass Cap) |
Cooktop Surface | Stainless Steel |
Burner - Left Rear | 10,000 BTU Dual |
Extra Low Simmer | 5 |
Burner Indicator Light | Yes - in Knob |
Automatic Re-Ignition | Yes |
Cooktop Burner Grate Material | Cast-Iron; Porcelainized |
Cooktop Burner Grate Features | Continuous Grates |
Griddle | JXGRIDL236 (Included) |
140 Deg. Simmer Burner | 5 |
Configuration | 5 Sealed Cooktop Burners |
Burner - Left Front | 10,000 BTU Dual |
Dual Flame Stacked Burners | 5 |
