Overview & Specifications
Overview & Specifications

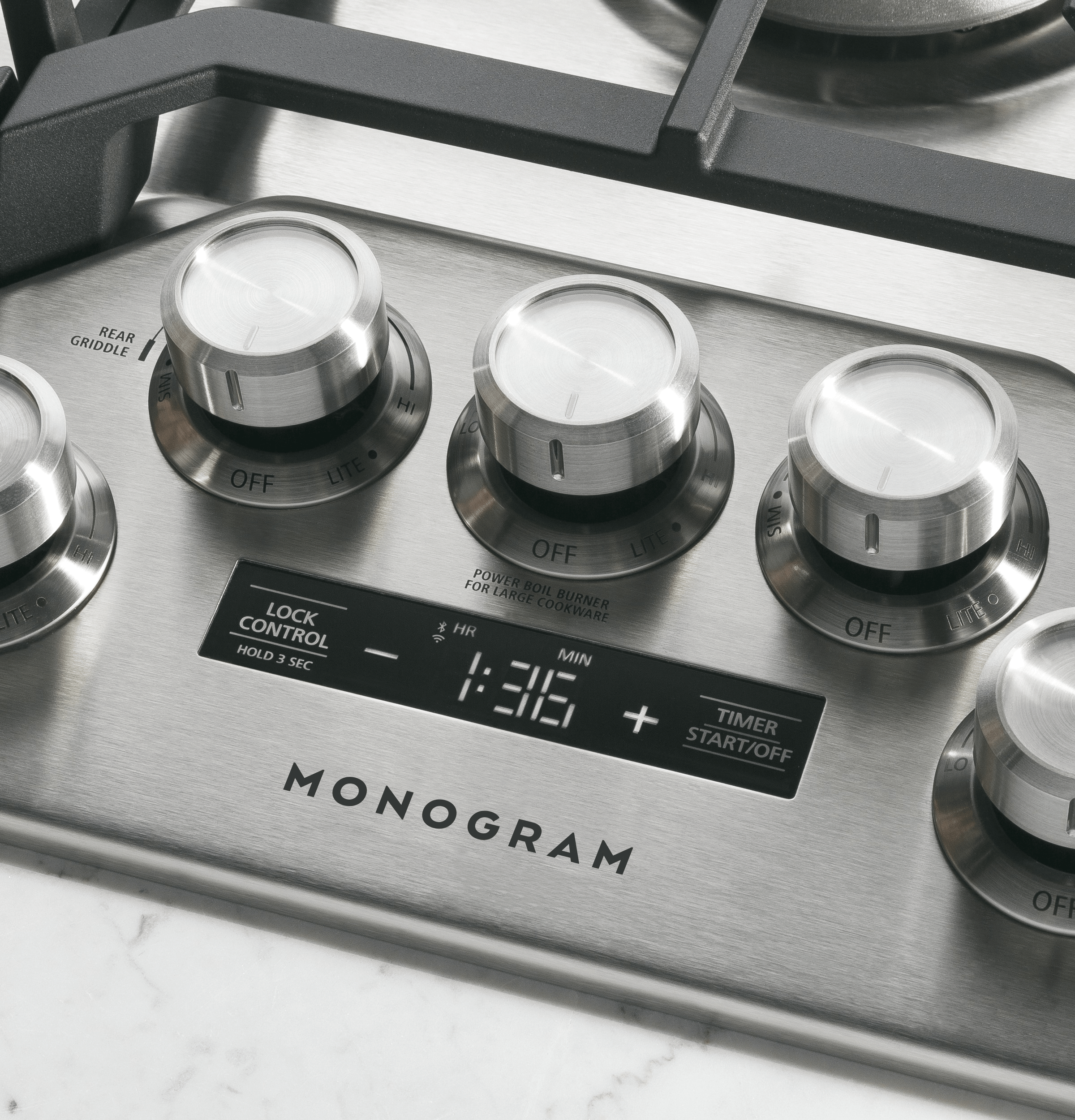

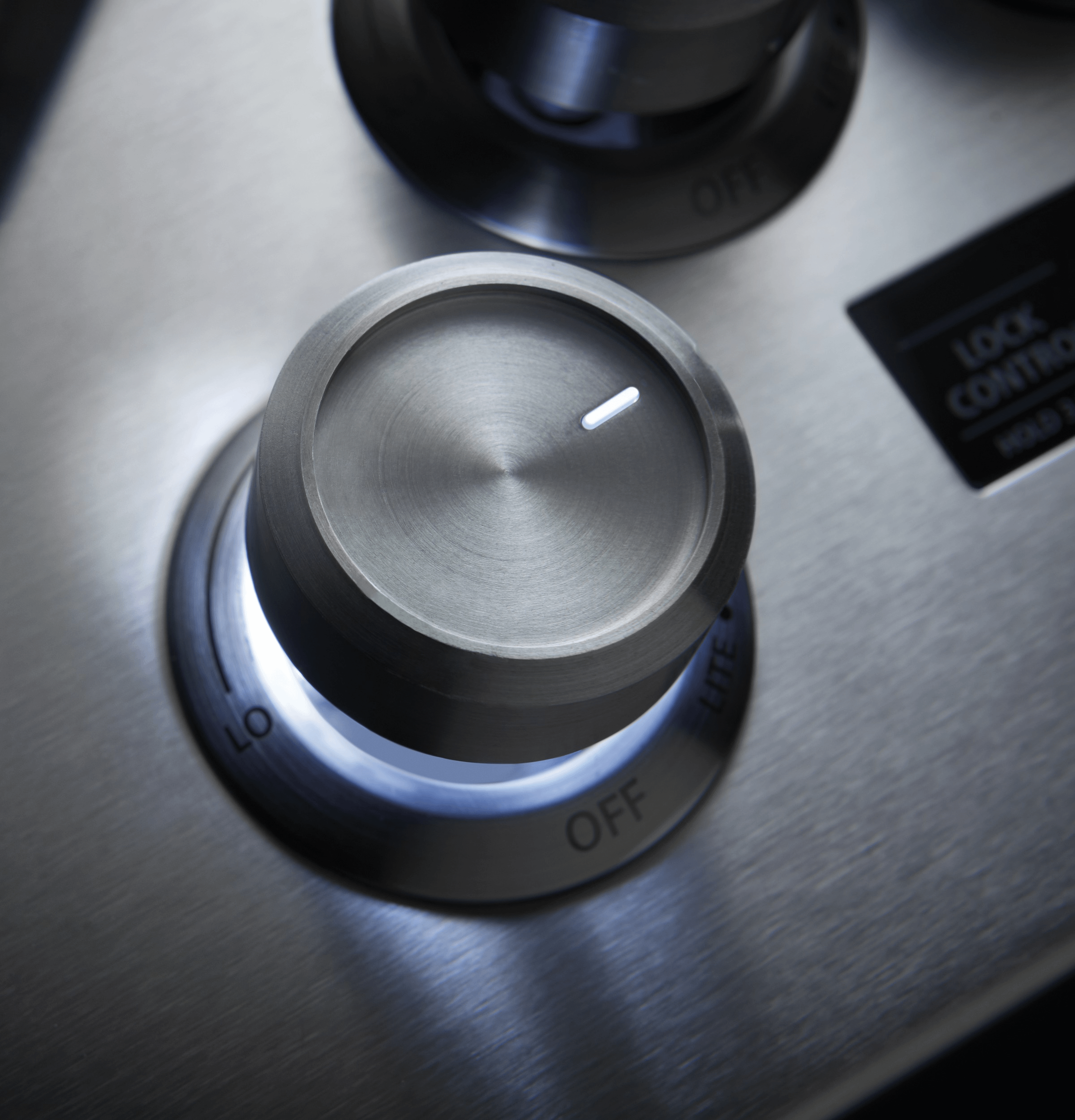

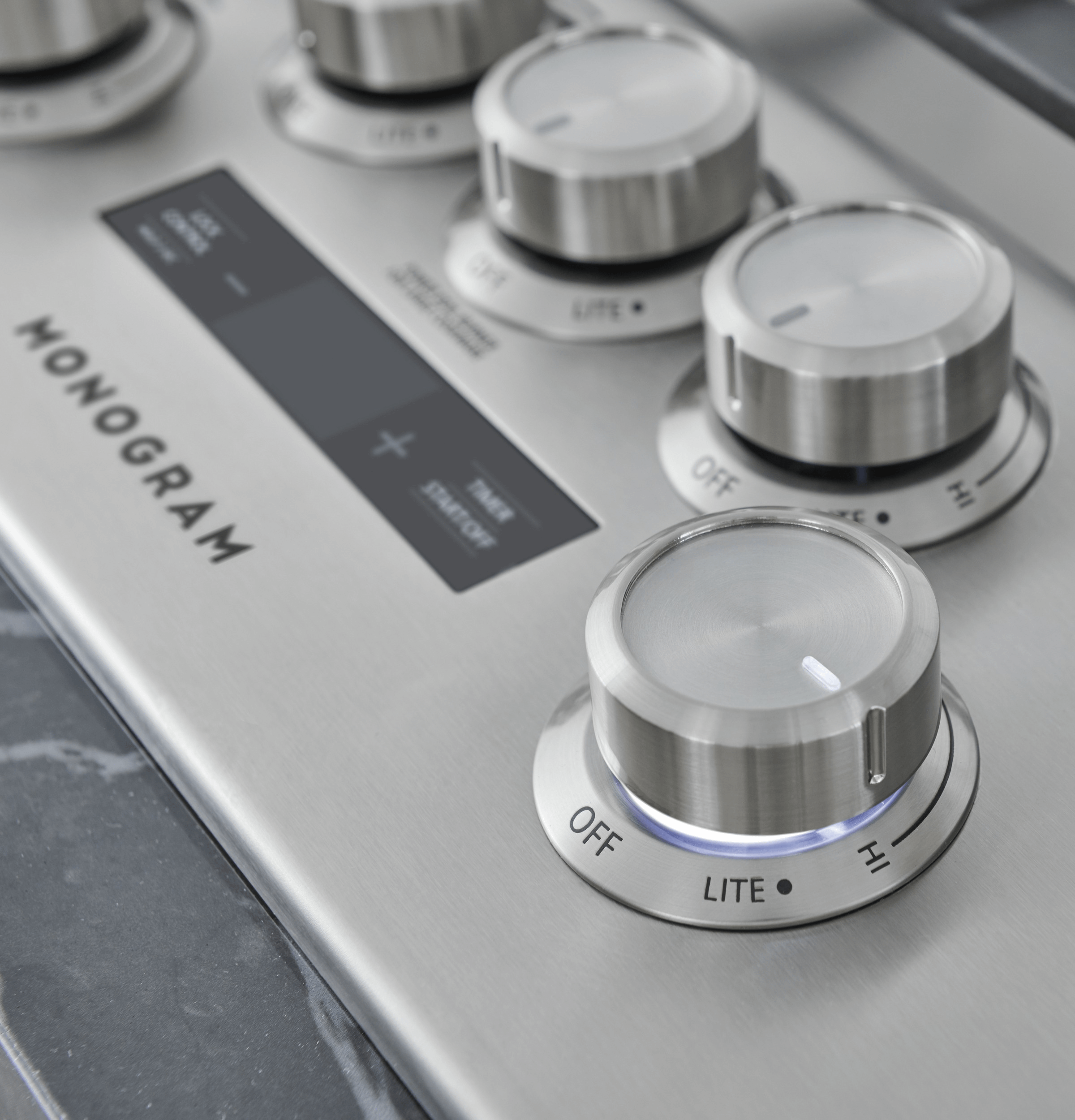

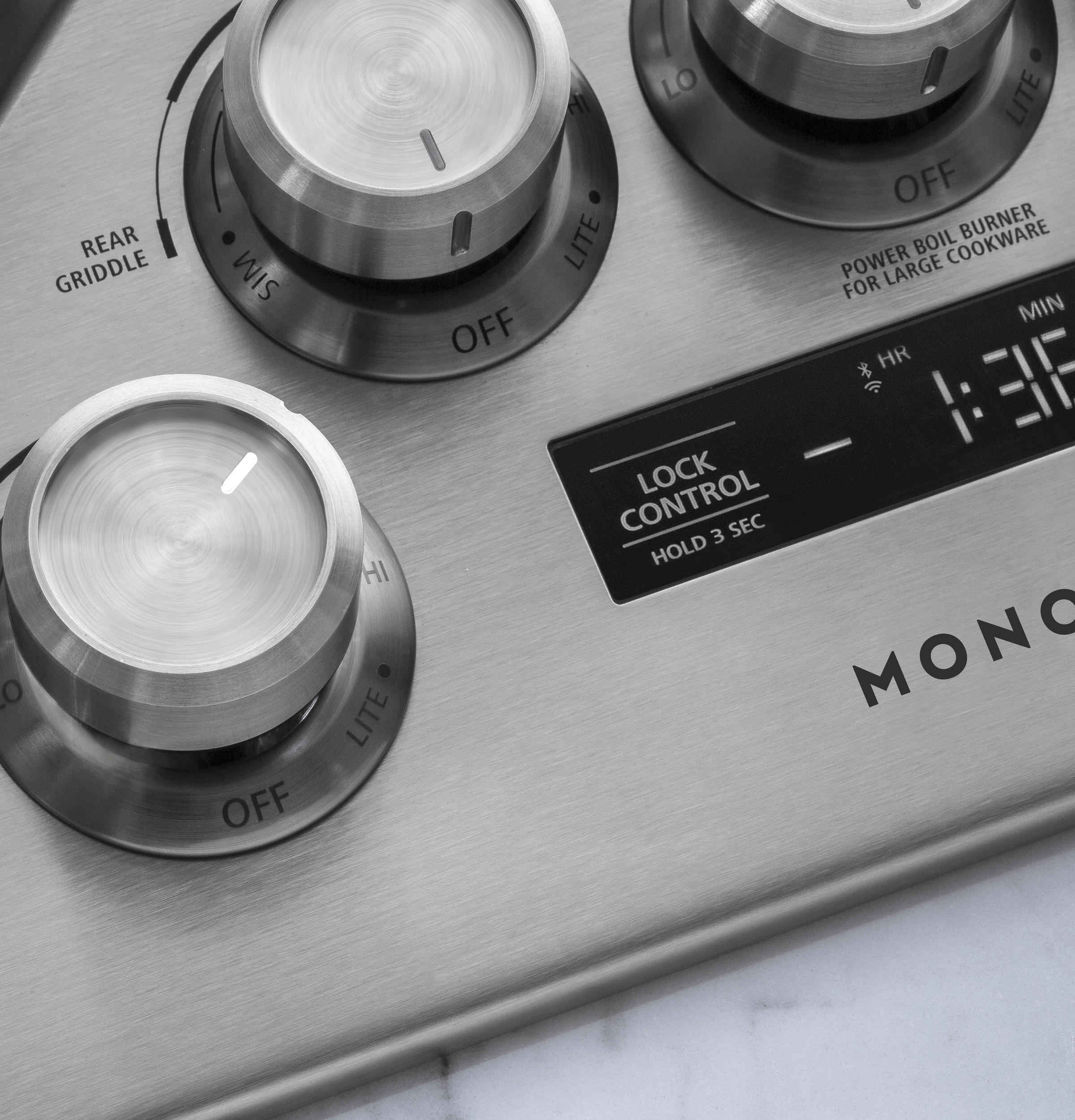

Precision knobs
With embedded sapphire glass illuminate each knob making it easy to view and select heat settings

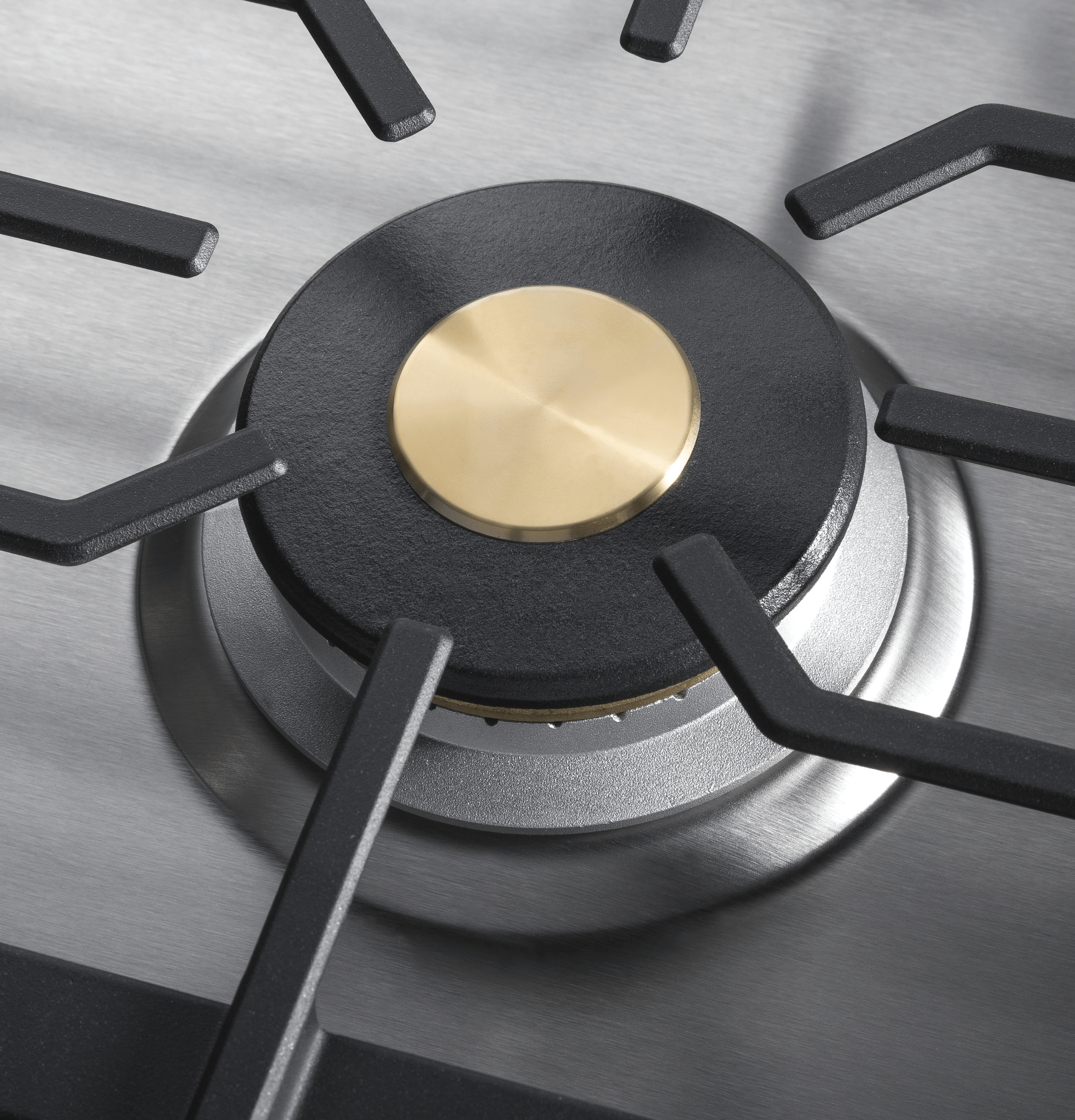

Brass burners accents
For the ultimate in elegant styling

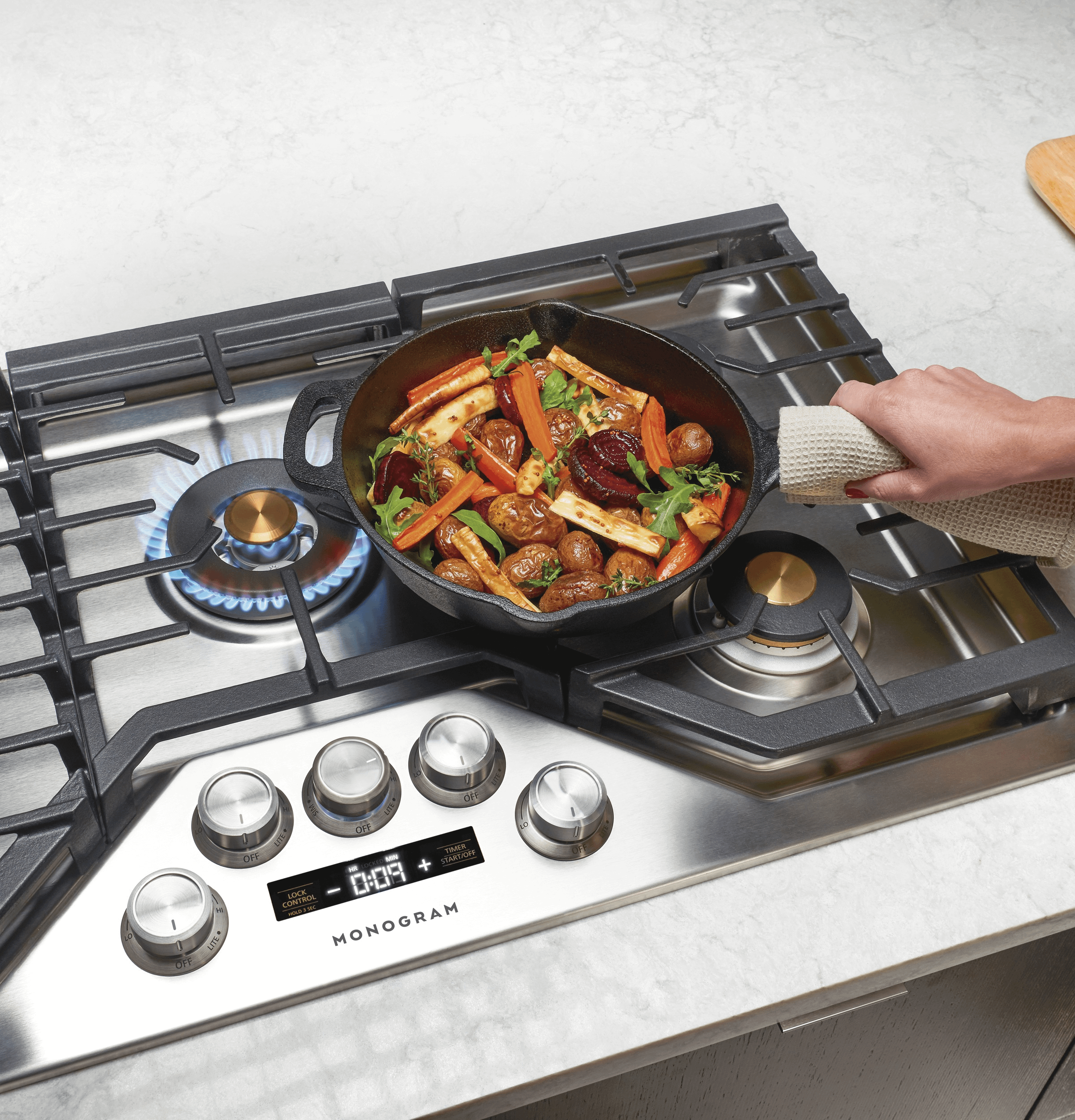

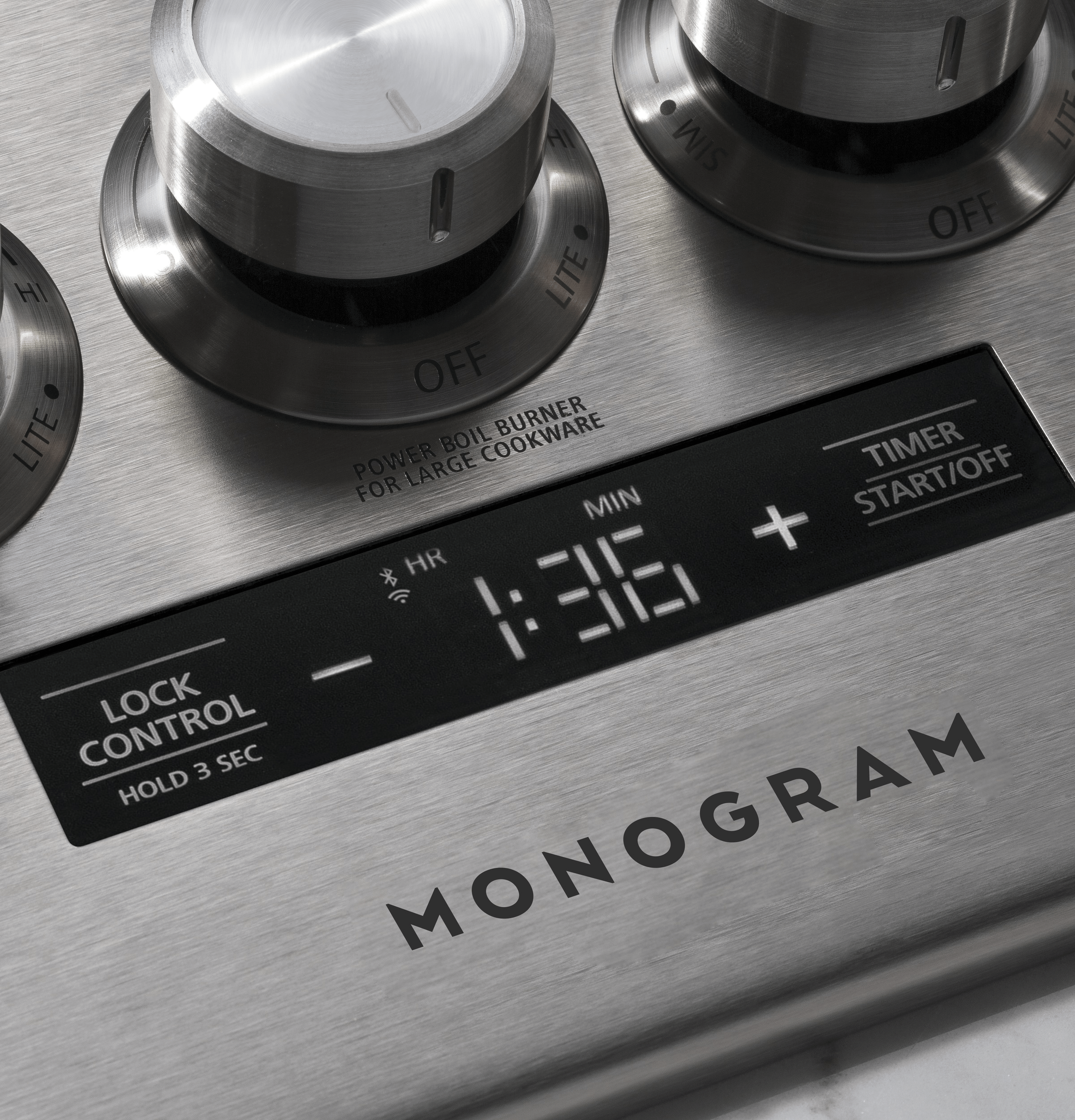

Electronic kitchen timer
Built in to the cooktop for meal preparation
Dual-flame stacked burners
Provide complete 140F simmer-to-rapid-boil flexibility on all burners; the burners are sealed to the cooktop for easy cleaning

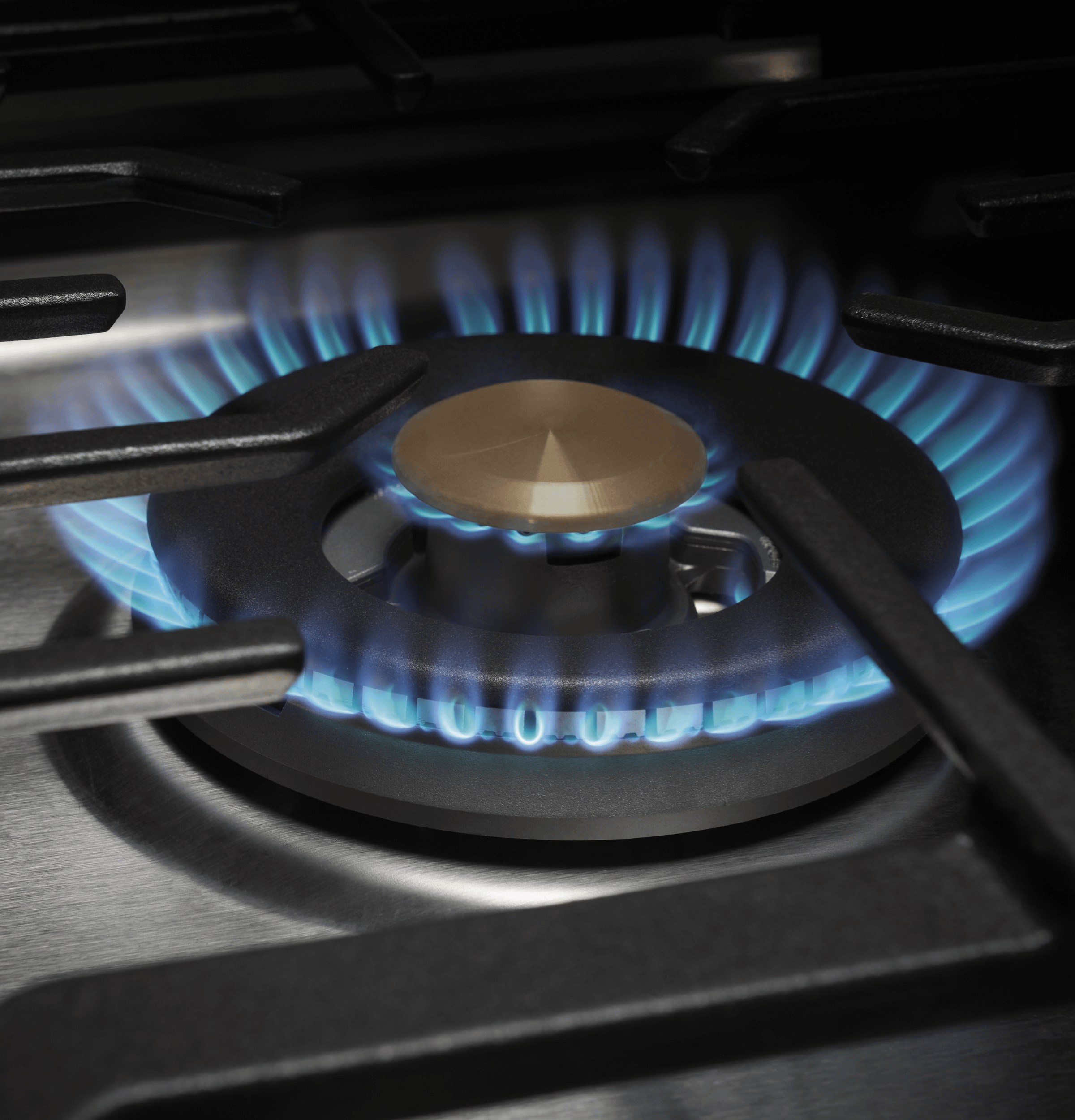

Tri-ring burner
Versatile burner creates 20,000 BTUs of intense heat, perfect for searing, frying and saut(eback)ing

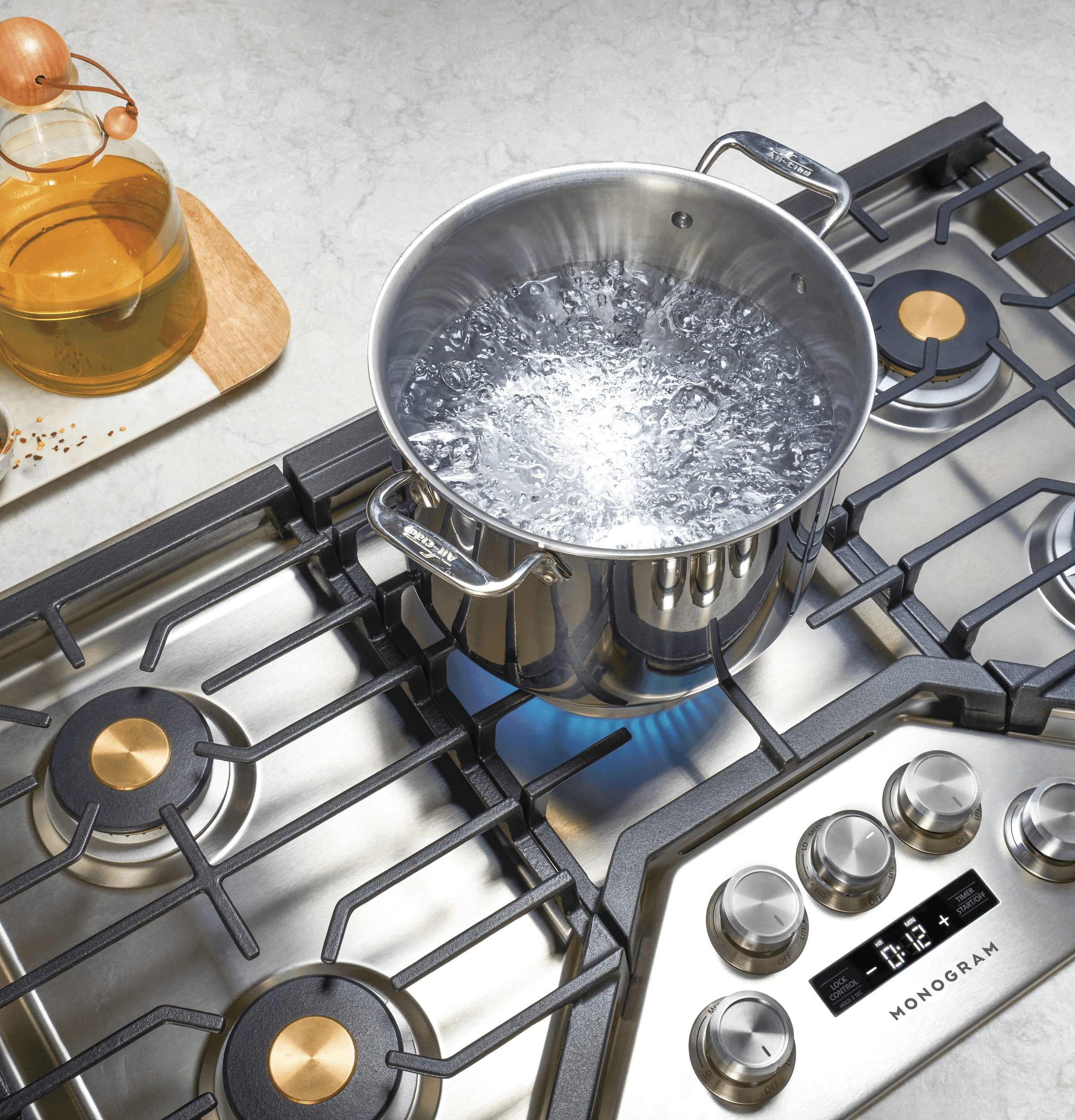

High-output cooking
Delivered by a 20,000 BTU tri-ring burner, total of 62,000 BTUs

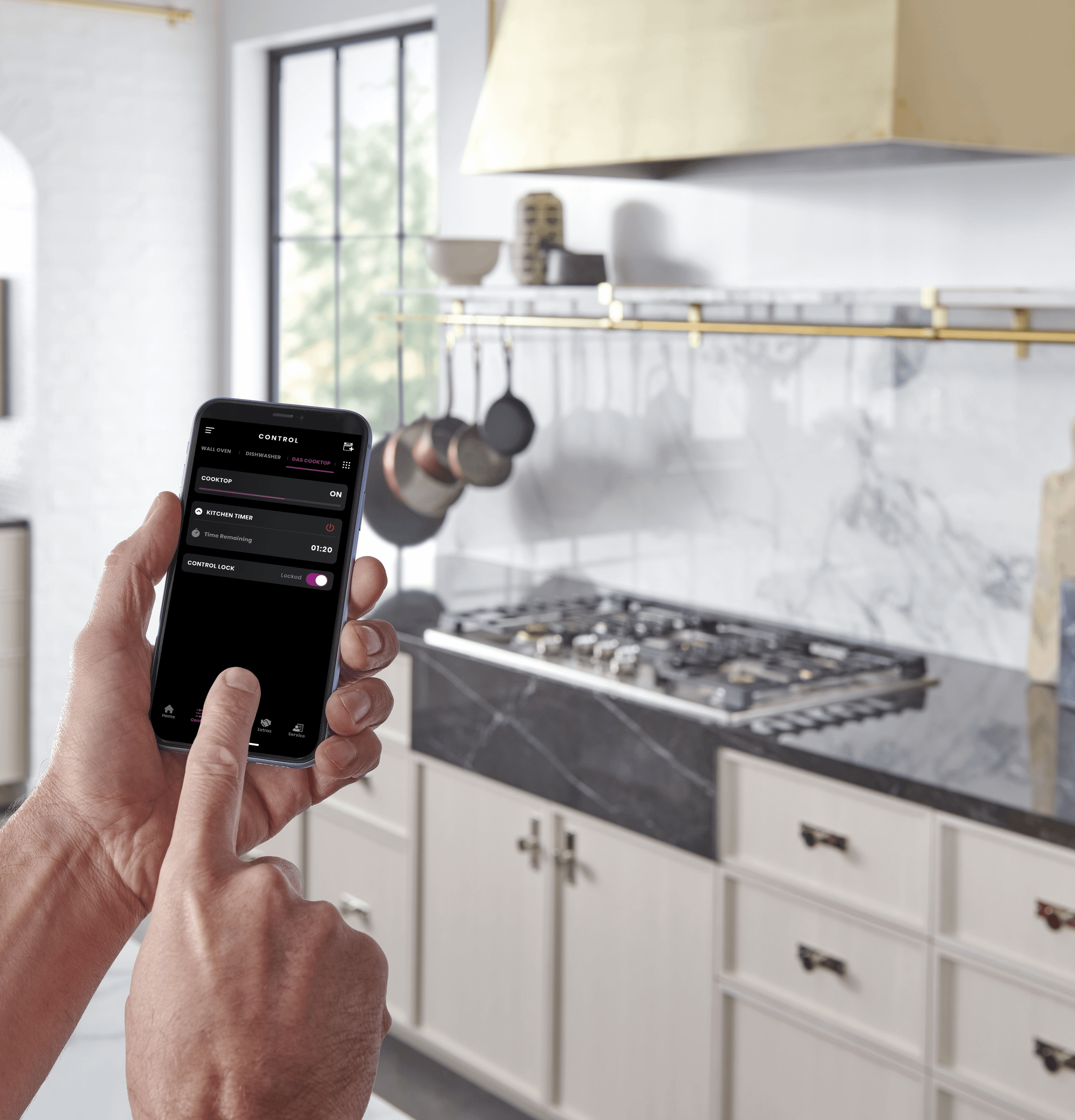

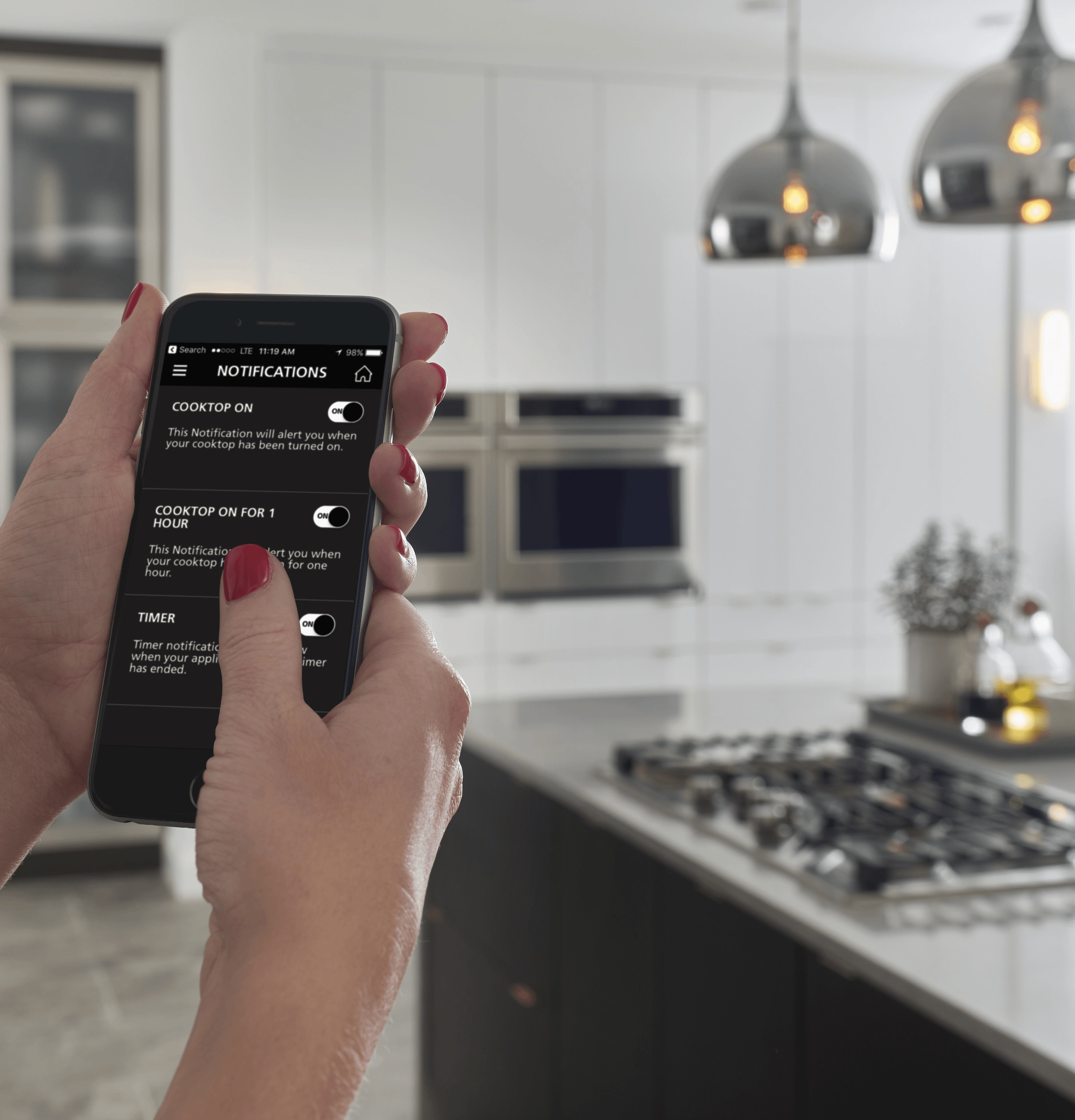

Remote connectivity via WiFi
Allows you to wirelessly control gas cooktop functions from your smartphone
Bluetooth connectivity
Bluetooth technology pairs your Monogram gas cooktop and hood for proper cooking ventilation

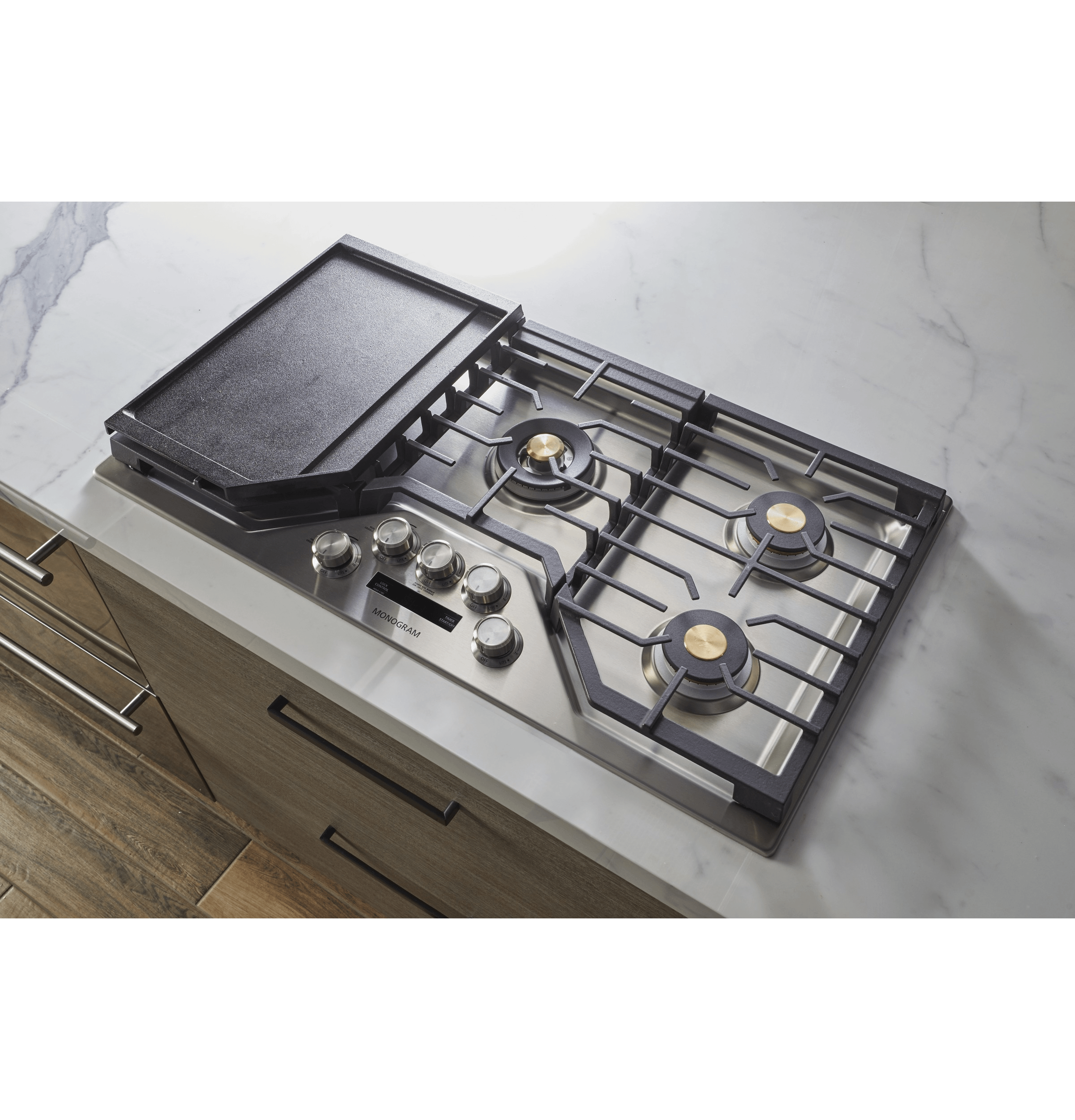

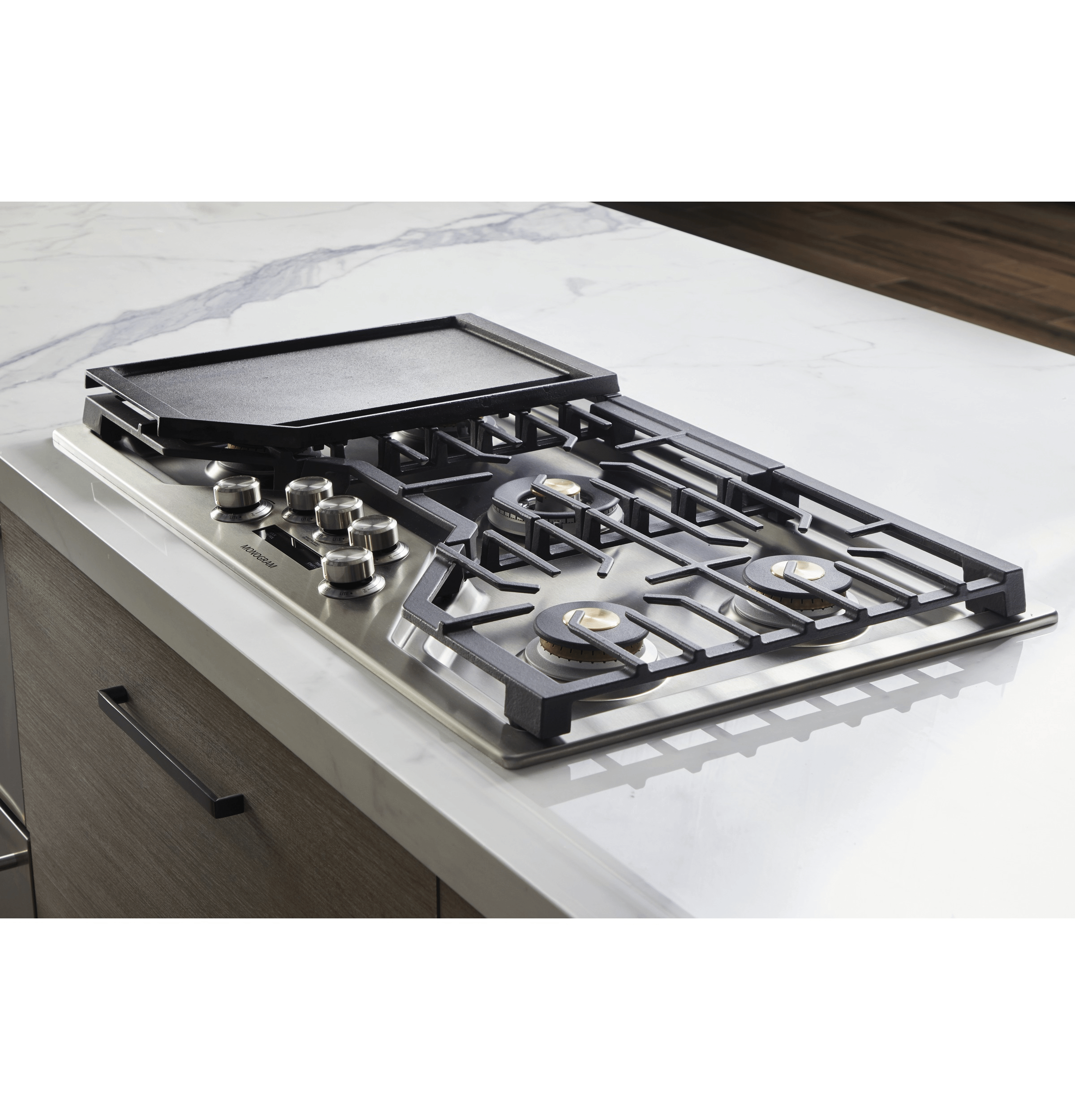

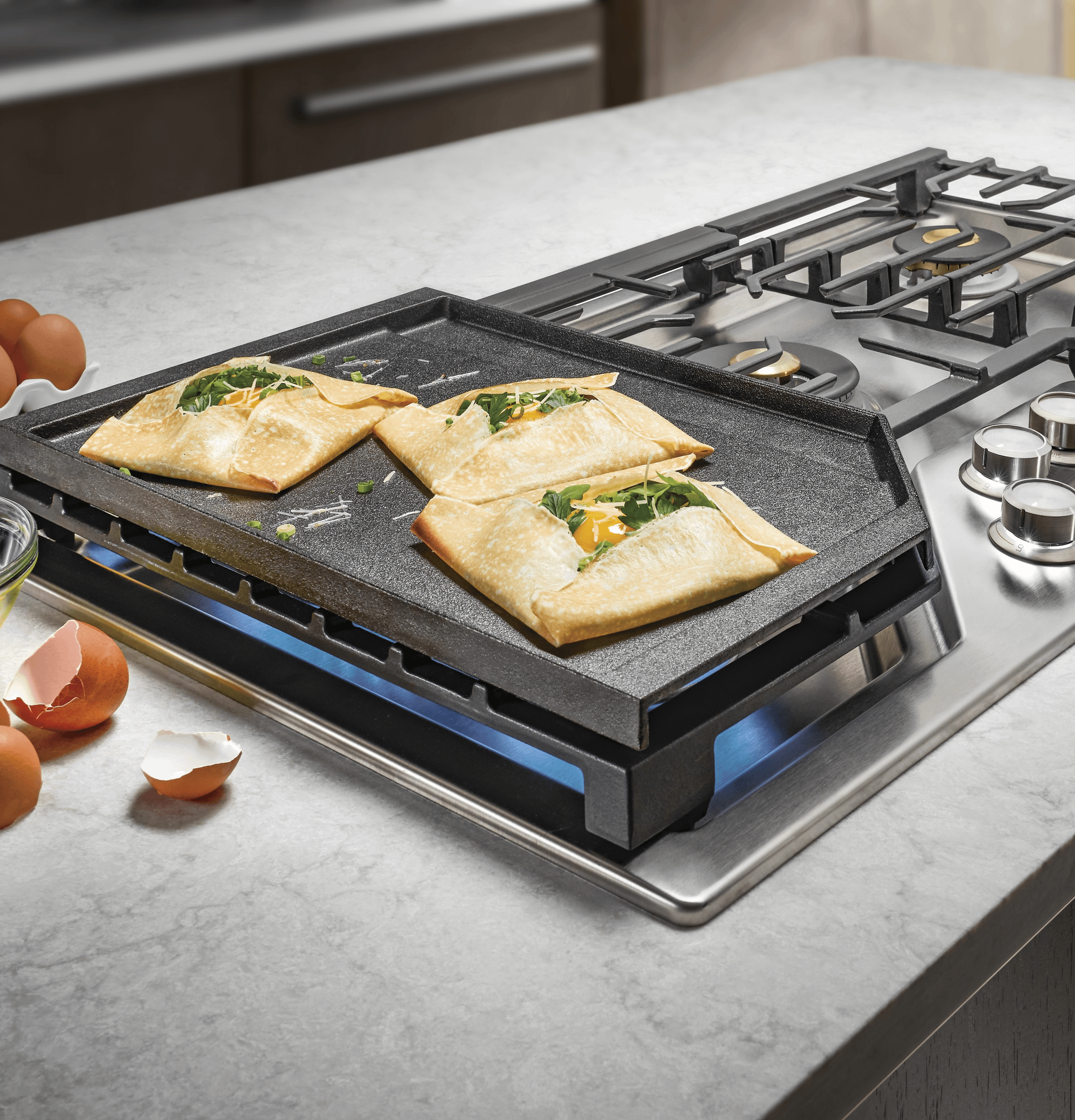

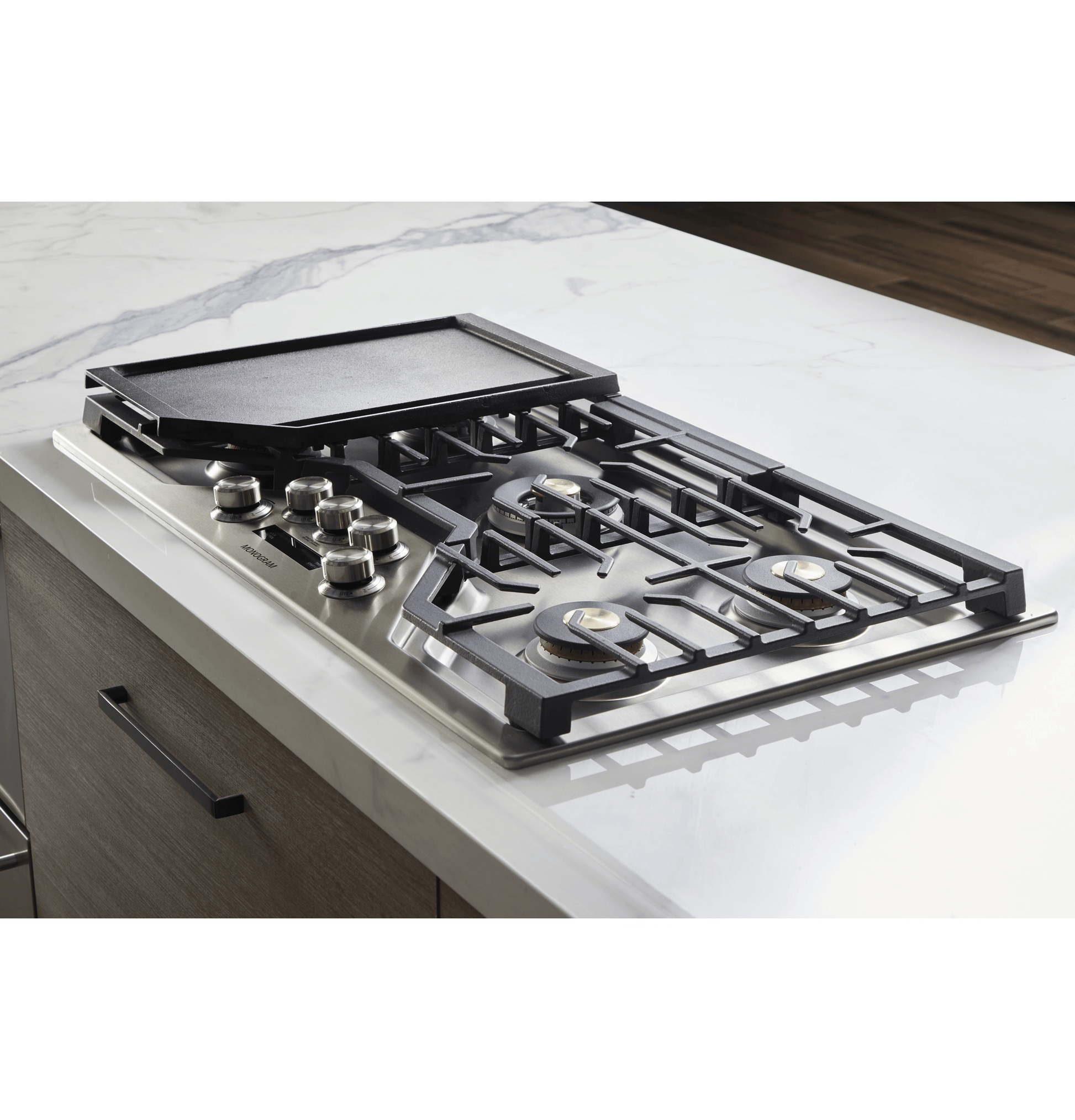

Heavy-duty, cast-iron griddle
Designed to fit the Monogram gas cooktop
With embedded sapphire glass illuminate each knob making it easy to view and select heat settings
Brass burners accents
For the ultimate in elegant styling
Electronic kitchen timer
Built in to the cooktop for meal preparation

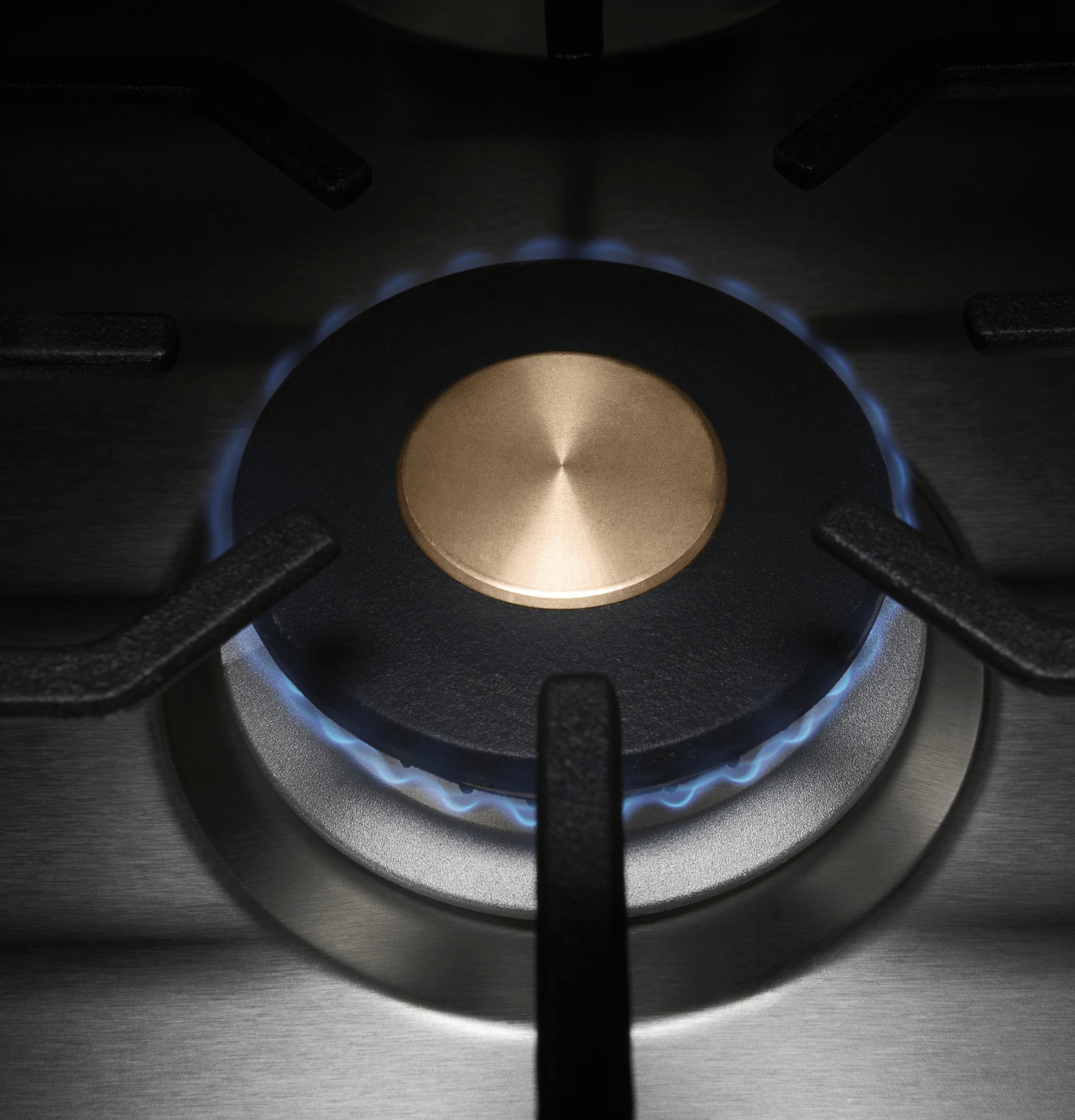

Dual-flame stacked burners
Provide complete 140F simmer-to-rapid-boil flexibility on all burners; the burners are sealed to the cooktop for easy cleaning
Tri-ring burner
Versatile burner creates 20,000 BTUs of intense heat, perfect for searing, frying and saut(eback)ing
High-output cooking
Delivered by a 20,000 BTU tri-ring burner, total of 62,000 BTUs
Remote connectivity via WiFi
Allows you to wirelessly control gas cooktop functions from your smartphone
Bluetooth connectivity
Bluetooth technology pairs your Monogram gas cooktop and hood for proper cooking ventilation
Heavy-duty, cast-iron griddle
Designed to fit the Monogram gas cooktop
- Precision knobs
- With embedded sapphire glass illuminate each knob making it easy to view and select heat settings
- Brass burners accents
- For the ultimate in elegant styling
- Electronic kitchen timer
- Built in to the cooktop for meal preparation
- Dual-flame stacked burners
- Provide complete 140F simmer-to-rapid-boil flexibility on all burners; the burners are sealed to the cooktop for easy cleaning
- Tri-ring burner
- Versatile burner creates 20,000 BTUs of intense heat, perfect for searing, frying and saut(eback)ing
- High-output cooking
- Delivered by a 20,000 BTU tri-ring burner, total of 62,000 BTUs
- Remote connectivity via WiFi
- Allows you to wirelessly control gas cooktop functions from your smartphone
- Bluetooth connectivity
- Bluetooth technology pairs your Monogram gas cooktop and hood for proper cooking ventilation
- Heavy-duty, cast-iron griddle
- Designed to fit the Monogram gas cooktop
FILTER | |
App Filter - WiFi Connect | Built-In |
APPEARANCE | |
Color Appearance | Stainless Steel |
Installation | Over Advantium Built-In 120V Over Single Wall Oven (except Single-Double) Over Warming Drawer |
Control Knobs | Precision Knobs with Embedded Sapphire Glass |
WARRANTY | |
Parts Warranty | Limited 2-year entire appliance |
Warranty Notes | See written warranty for full details |
Labor Warranty | Limited 2-year entire appliance |
POWER / RATINGS | |
Volts/Hertz/Amps | 120V; 60Hz; 5.0A |
ACCESSORIES | |
Conversion Kit | Included - Nat. Gas to LP |
Cooktop Cleaning | Included |
WEIGHTS & DIMENSIONS | |
Overall Height | 7.875 in |
Cutout Depth (in) | 19-1/8 |
Cabinet Width | 36 in |
Approximate Shipping Weight | 65 lb |
Overall Width | 36 in |
Net Weight | 59 lb |
Cutout Width (in) | 33-7/8 |
Overall Depth | 21 in |
FEATURES | |
WiFi Connect | Built-In |
Cooktop Burner Type | 5 Sealed |
Valves (Degree of Turn) | 270 |
Burner - Right Rear | 10,000 BTU Dual Brass Center |
Burner - Right Front | 12,000 BTU Dual Brass Center |
Fuel Type | Natural Gas (factory set) |
Control Location | Front Center |
Cooktop Type | Continuous Grates |
Ignition System | Direct Electronic Ignition |
Burner - Center | 20,000 BTU Tri-ring (Brass Cap) |
Cooktop Surface | Stainless Steel |
Cooktop Control Features | Control Lock Capability Kitchen timer |
Burner - Left Rear | 10,000 BTU Dual Brass Center |
Extra Low Simmer | 5 |
Burner Indicator Light | Yes - in Knob |
Control Type | Glass Touch Controls |
Automatic Re-Ignition | Yes |
Cooktop Burner Grate Material | Cast-Iron; Porcelainized |
Cooktop Burner Grate Features | Continuous Grates |
Griddle | JXGRIDL236 (Included) |
140 Deg. Simmer Burner | 5 |
Configuration | 5 Sealed Cooktop Burners |
Burner - Left Front | 10,000 BTU Dual Brass Center |
Dual Flame Stacked Burners | 5 |
