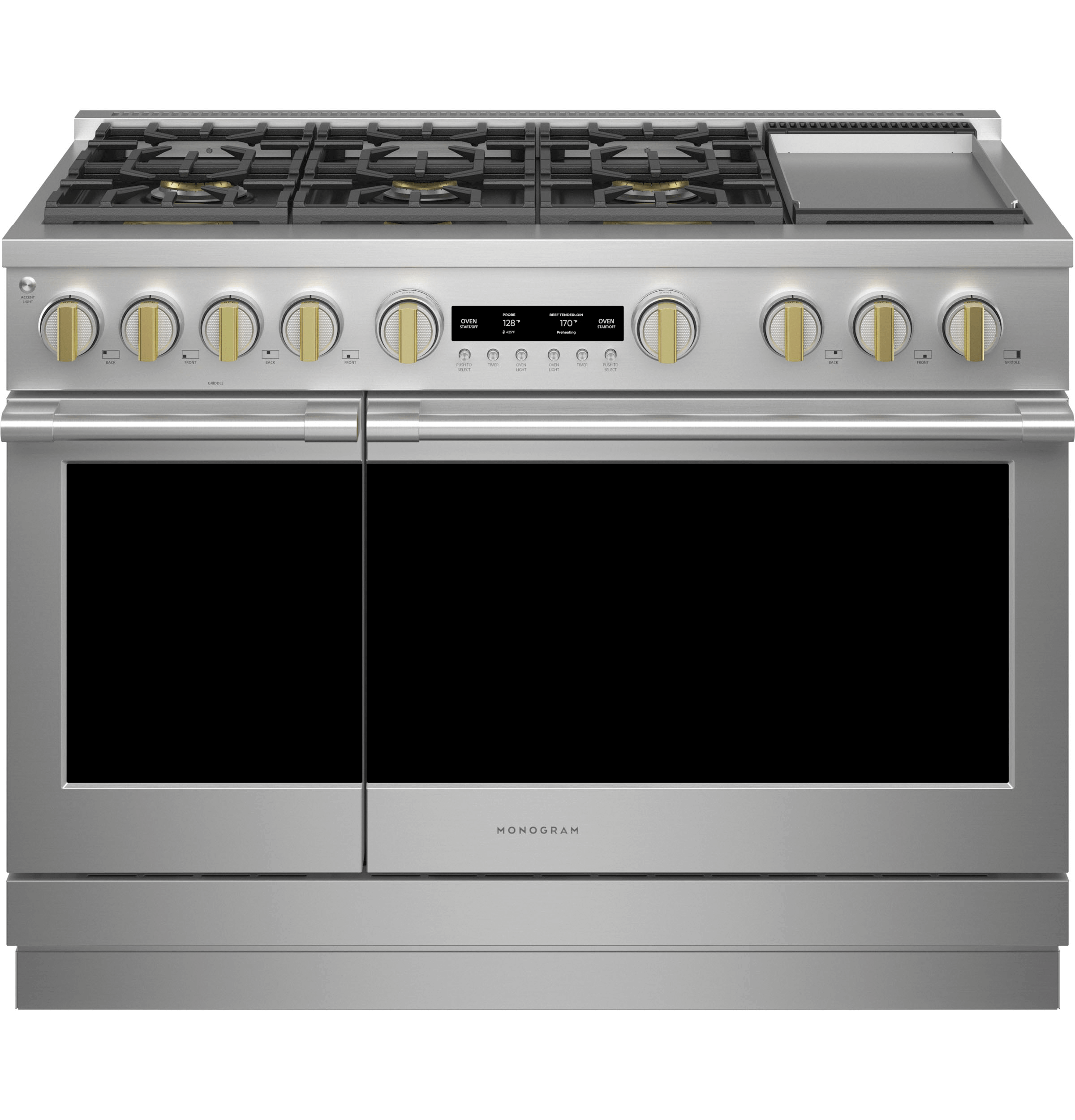

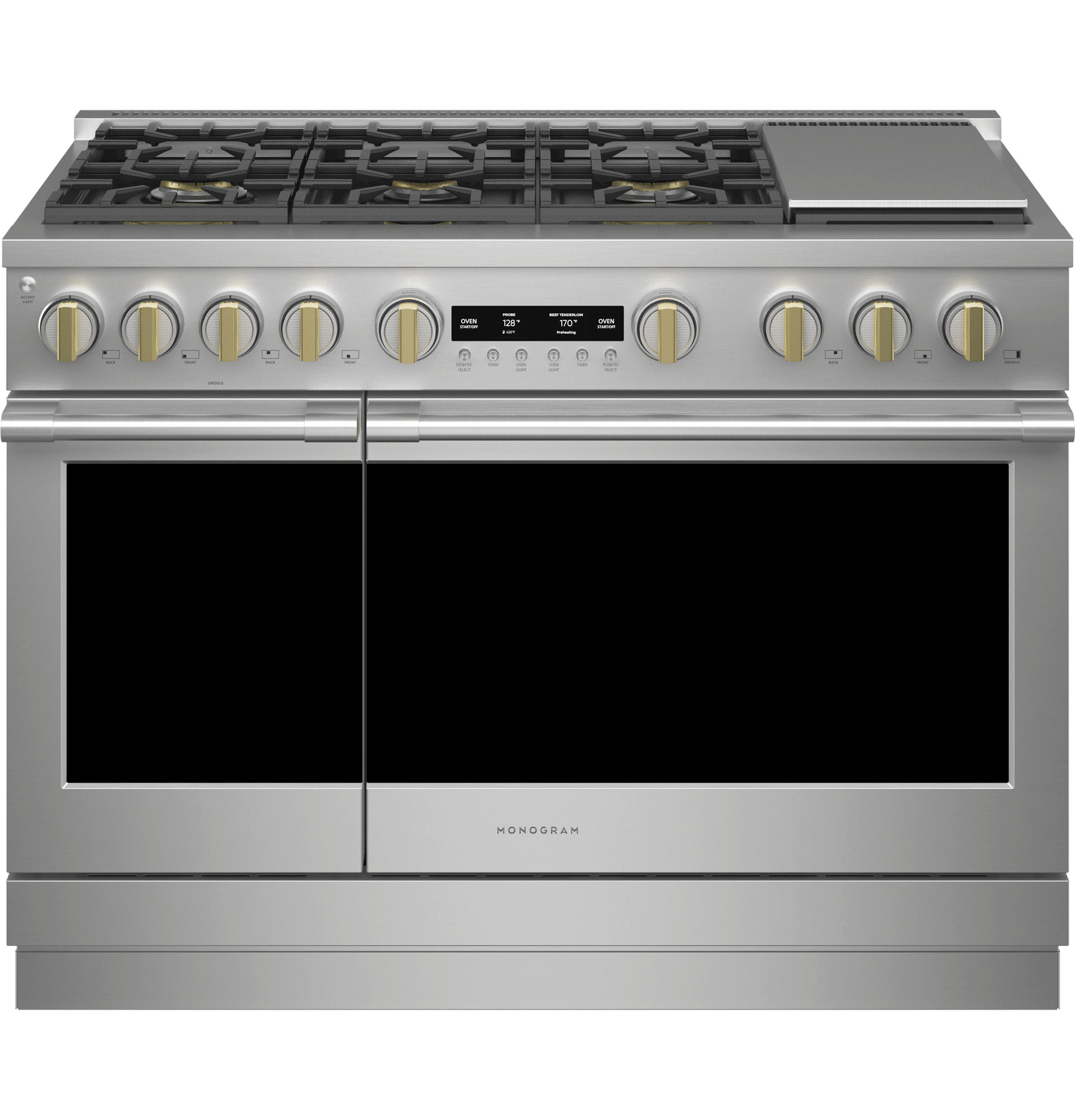

Monogram ZGP486NDTSS
$11,000.00
$12,100.00
Unit price
/
Unavailable
Overview & Specifications
Overview & Specifications

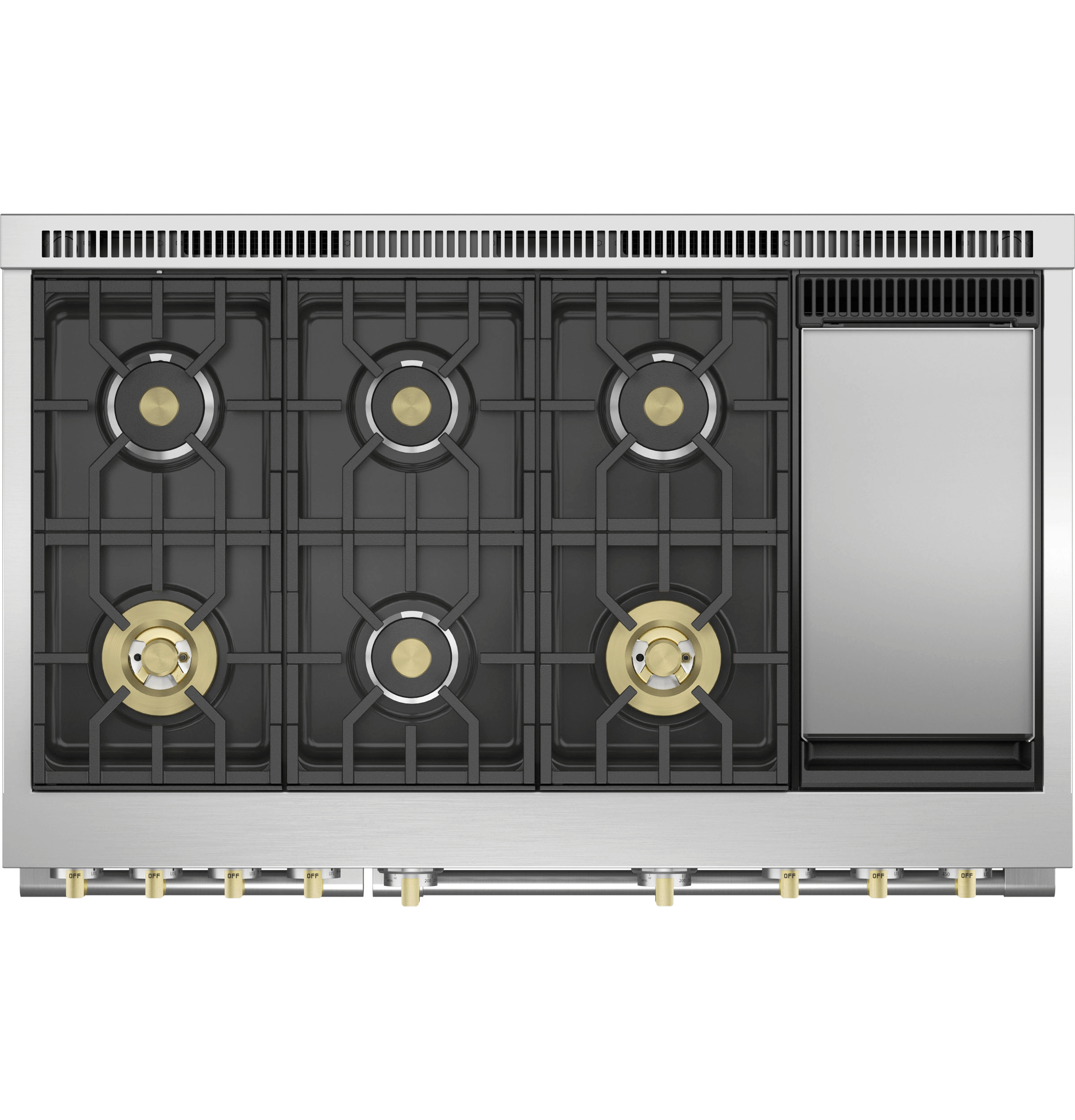

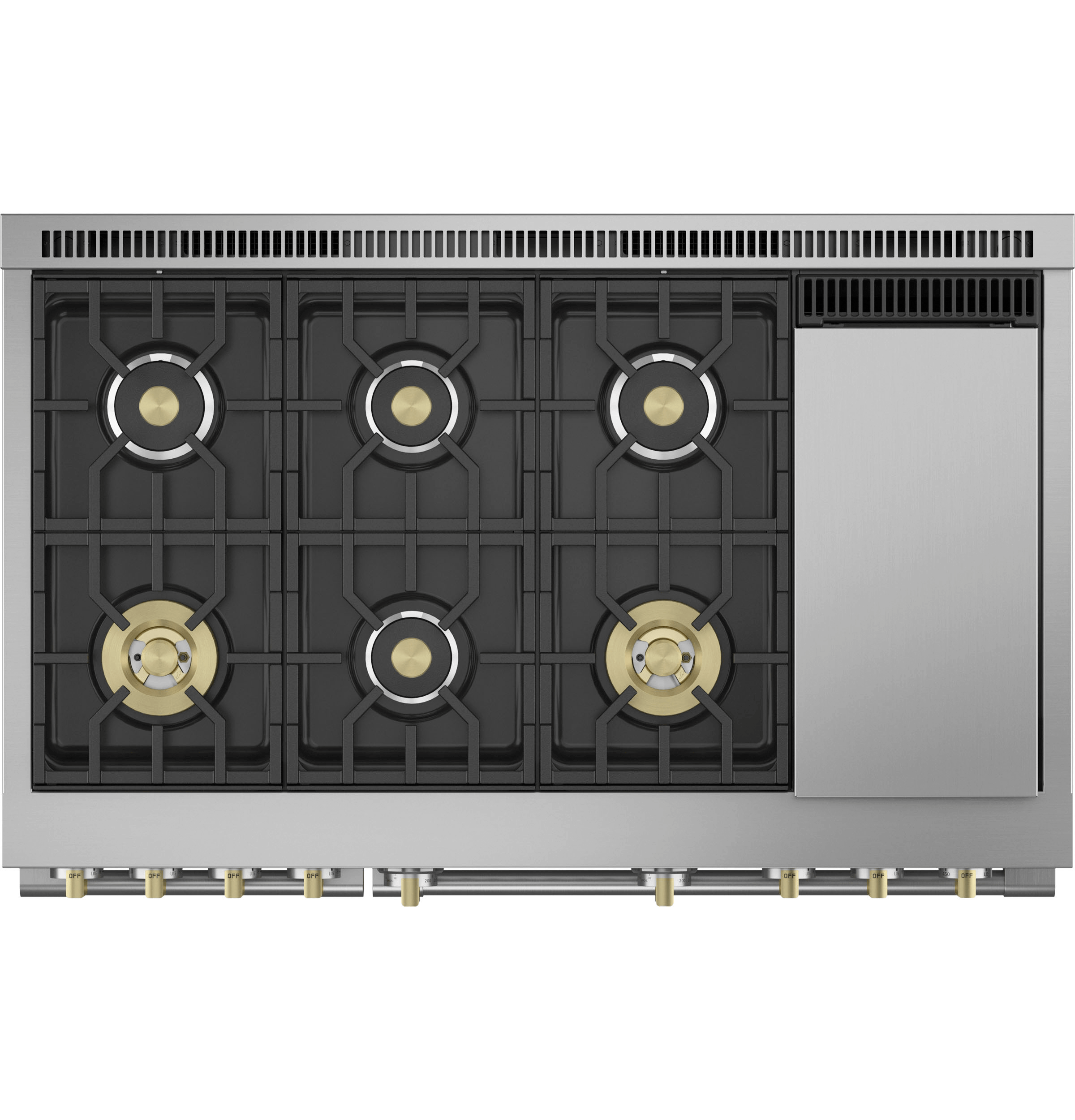

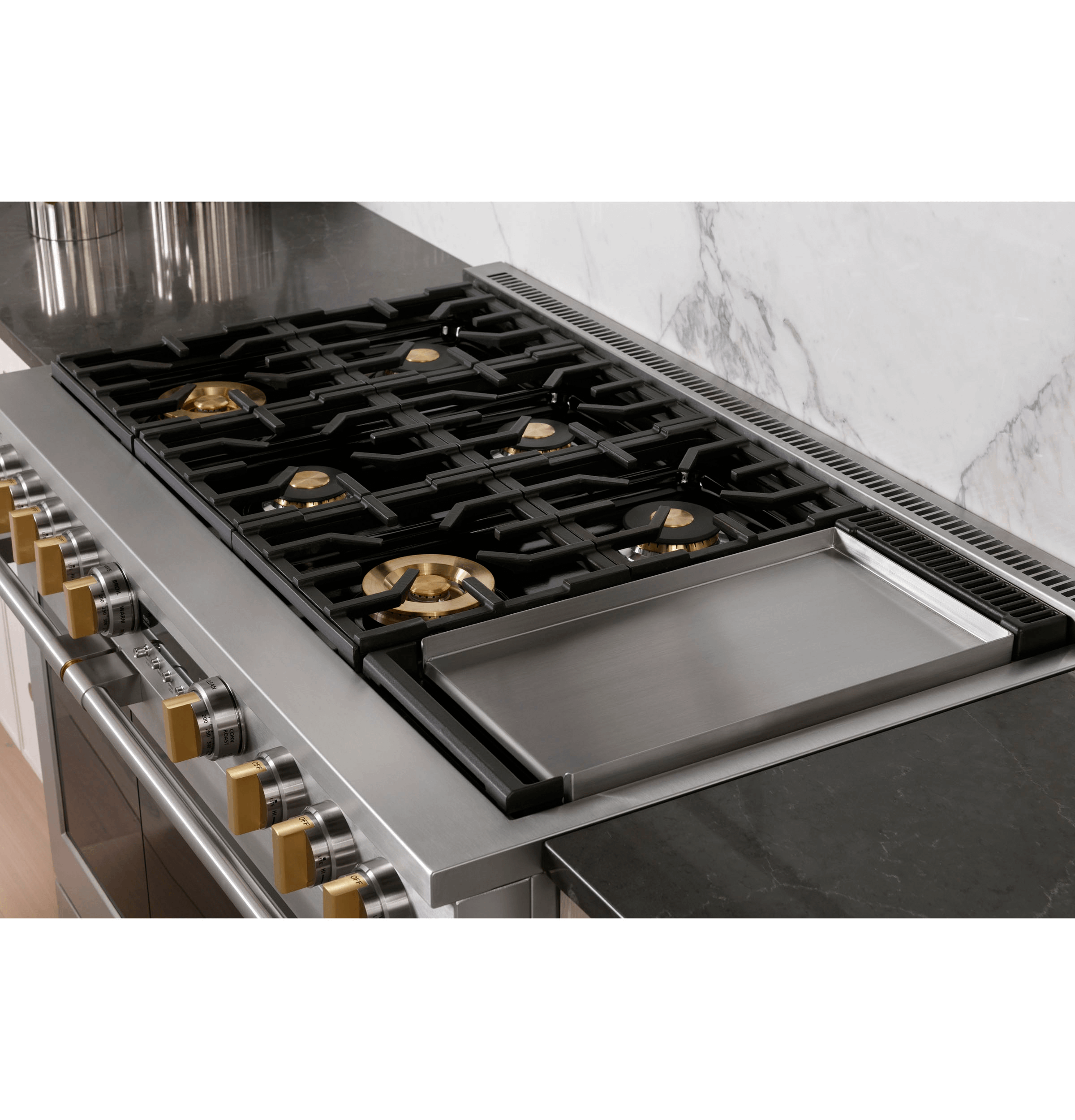

Versatile Gas Burner Configuration
Delivering exceptional cooking flexibility, the two 23,000-BTU multi-ring brass burners and dual-stack burners offer a range of heat settings, from gentle simmer to intense flame

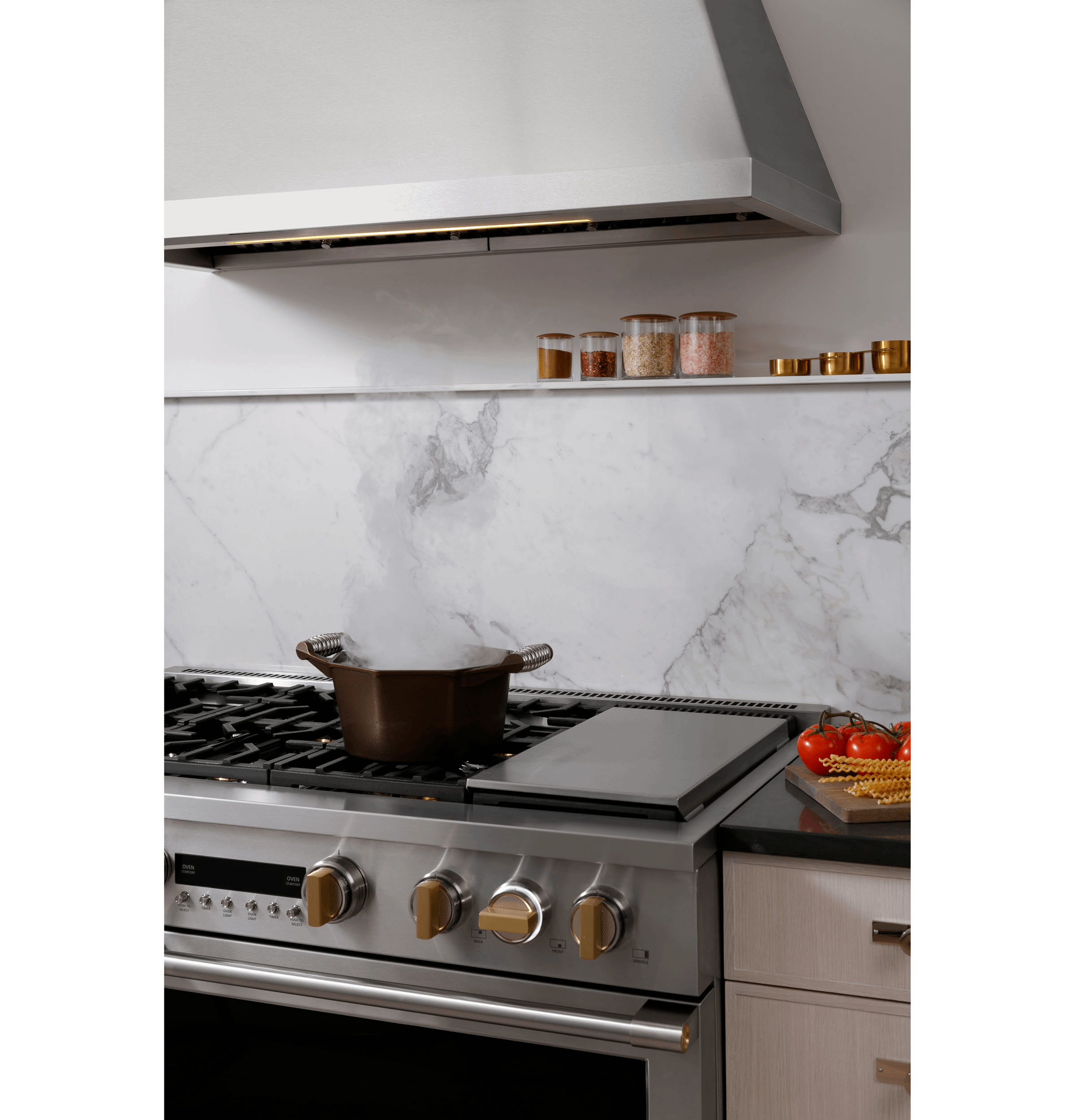

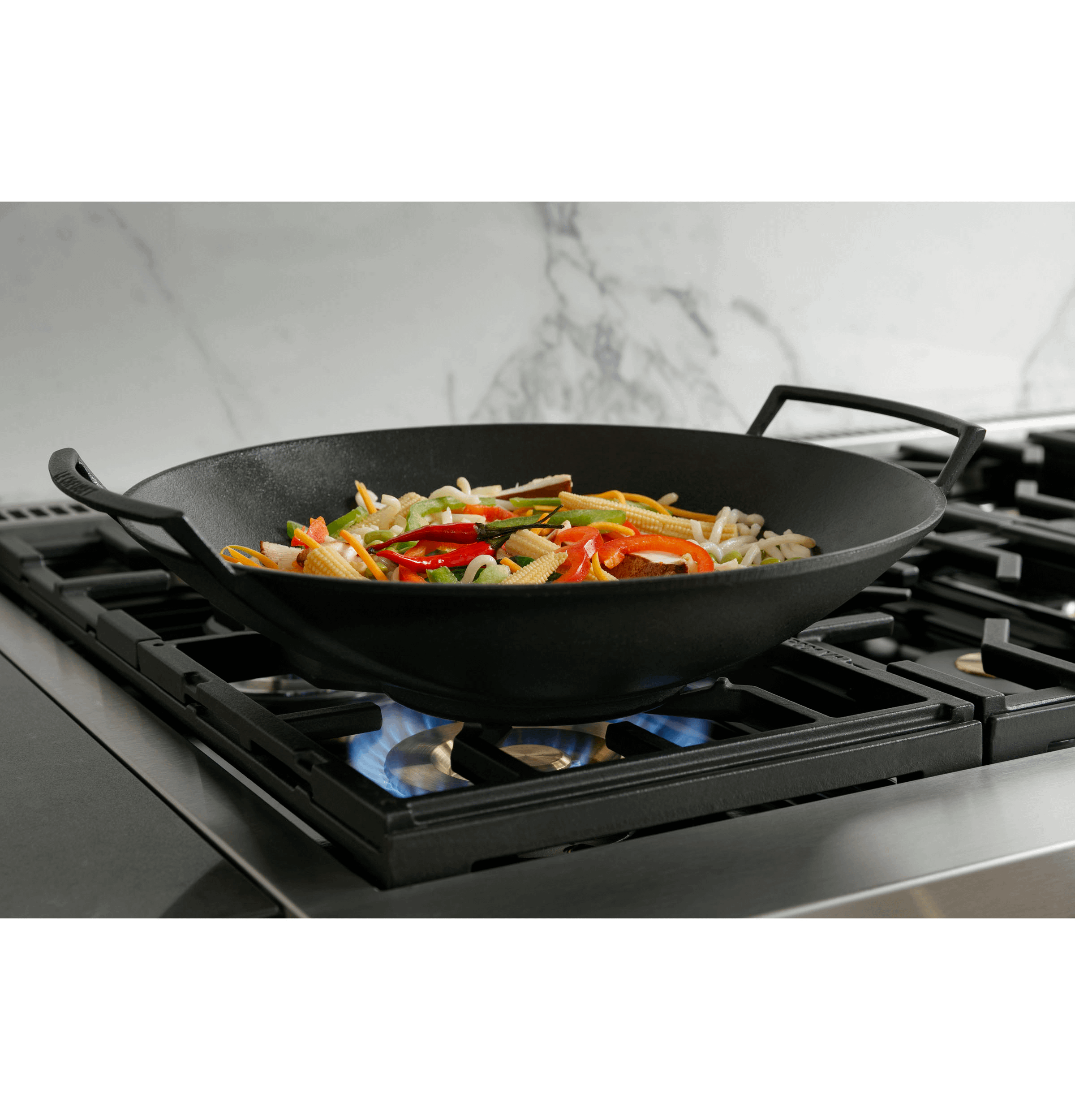

3-Piece Grates with Reversible Wok Feature
Reversible grates are easy to clean and complement different culinary techniques, with a flat side for traditional cooking and contoured side that perfectly holds round-bottom woks

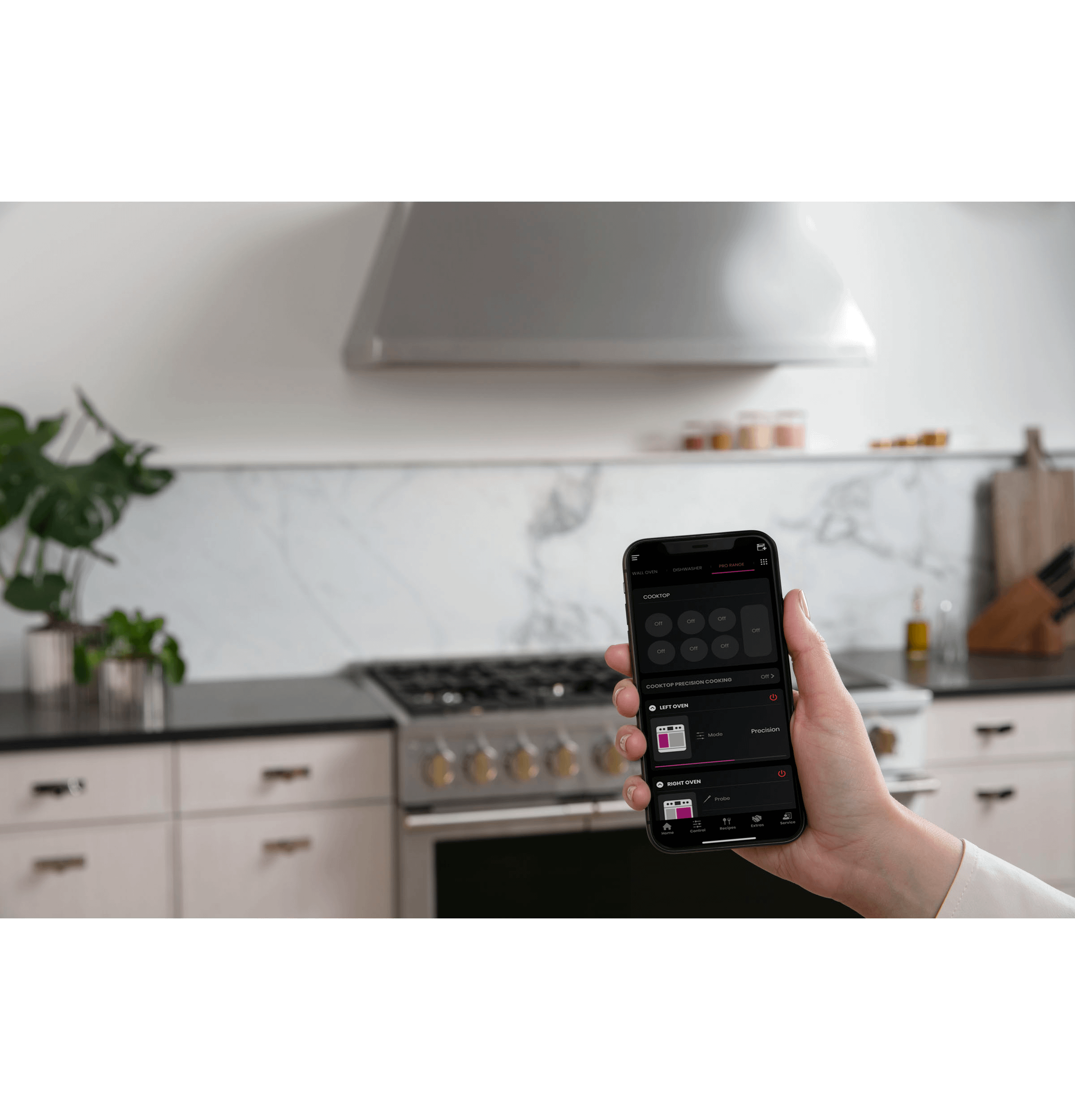

WiFi Monitoring and Remote Control with the SmartHQ™ app
Perfect for a busy lifestyle, built-in WiFi capabilities allow for the remote activation of cooking functions, like preheating the oven, setting timers, activating Chef Connect and more

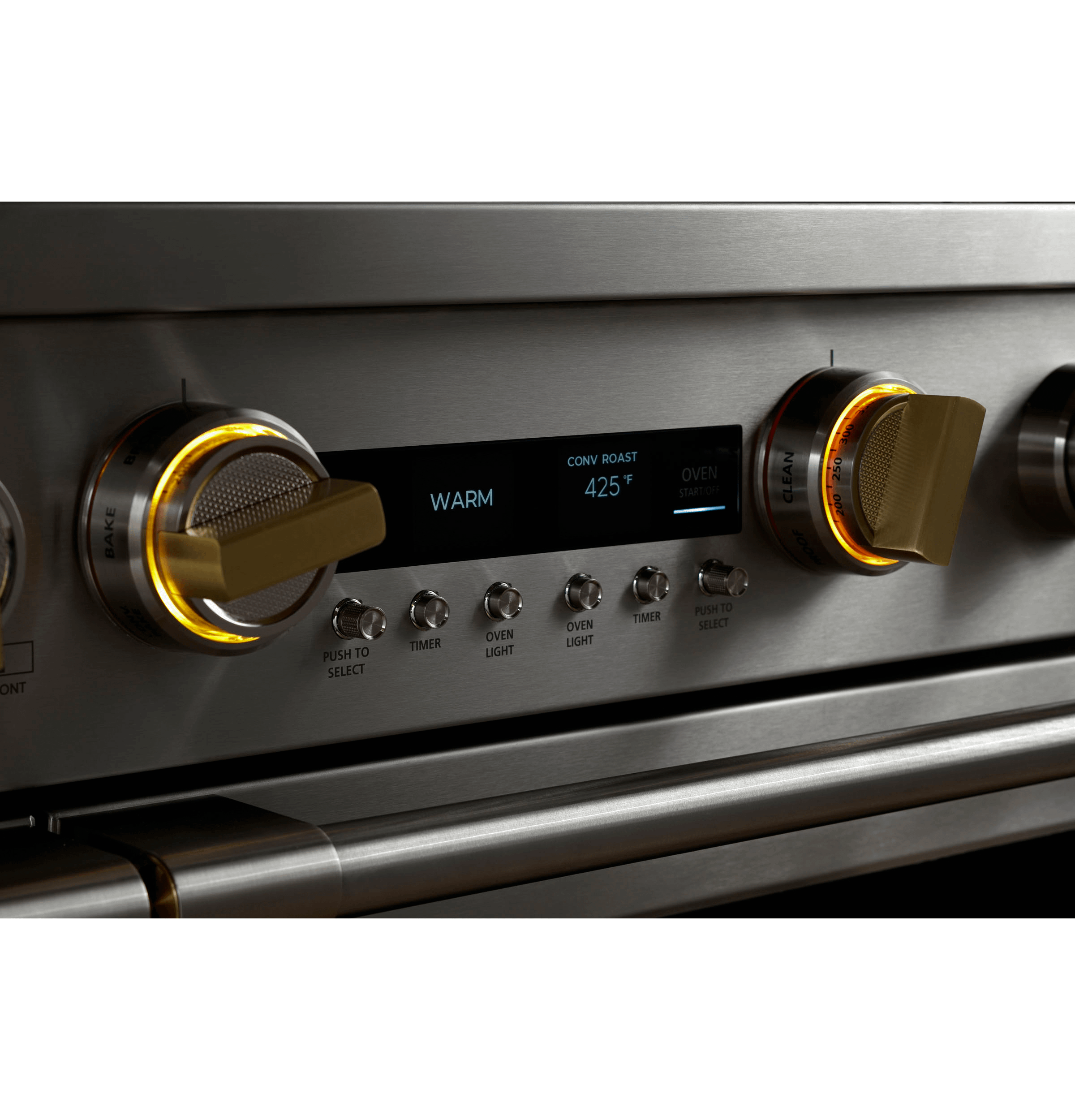

Dynamic Oven LCD
Functional and stylish, the LCD shows which oven mode is currently in use and other helpful information, like oven temperature, timer and probe temp
Solid Brass Burners
Monogram burners are constructed of 100% brass, embracing the natural thermal properties of this premium quality material. As they are exposed to heat, a natural patina will build up to protect the burners from corrosion and ensure that your brass burners will withstand even the highest temperatures
Chef Connect
Stay completely connected with Chef Connect, the smart and convenient feature that can effortlessly synchronize a range of kitchen items such as surface lights and even the vent when the burners are on
Industry Exclusive-Custom Color LED Accent Lighting
For an elevated level of luxury, use the SmartHQ™ app to customize the accent lighting color and brightness to perfectly match kitchen d(eback)cor or dining ambiance

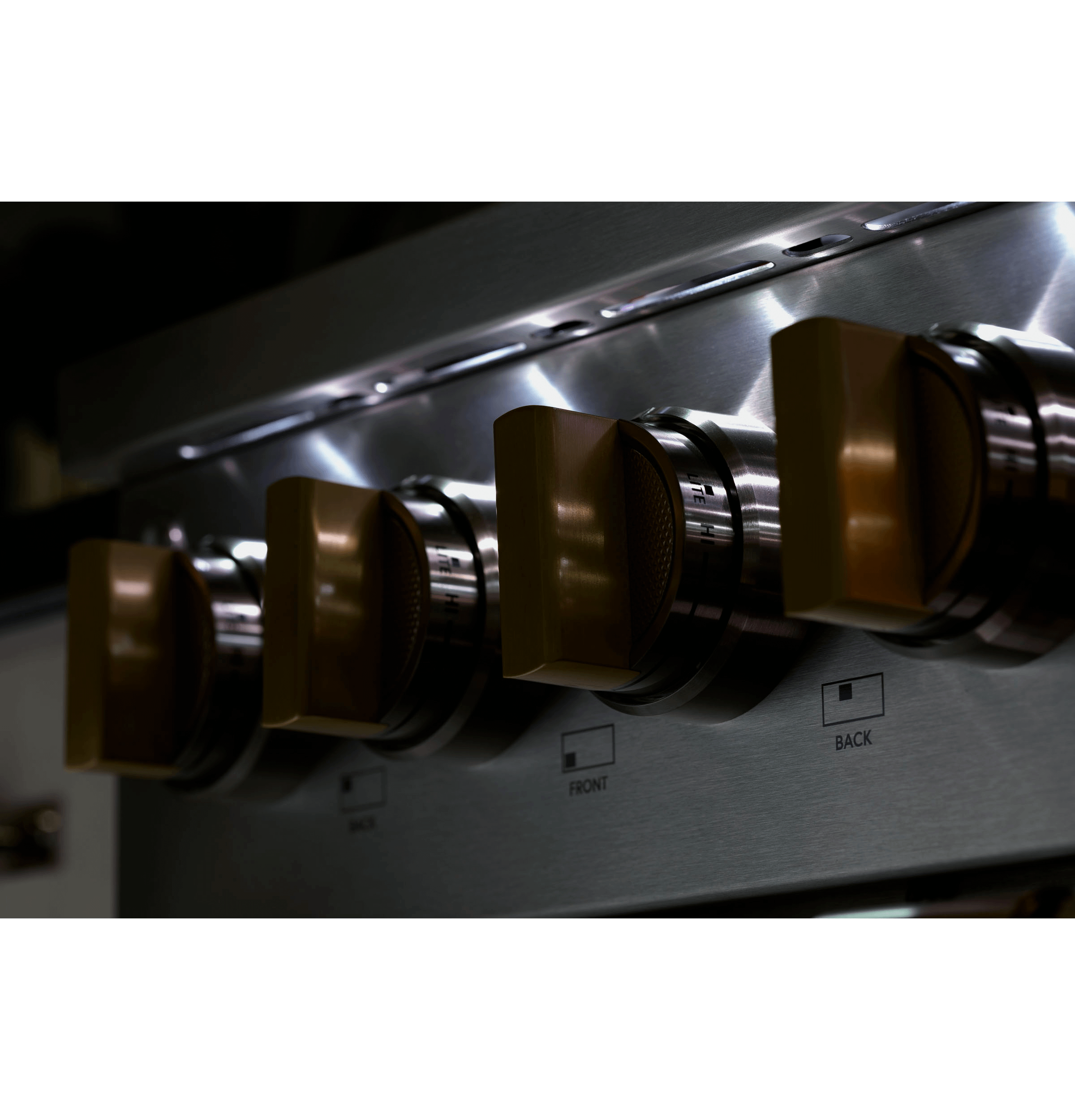

Ring-Lit Knobs
Delivering a modern approach to customization, the SmartHQ™ app allows for the range knobs to be set in any color you choose, indicating when a burner is on and showing the status of the oven

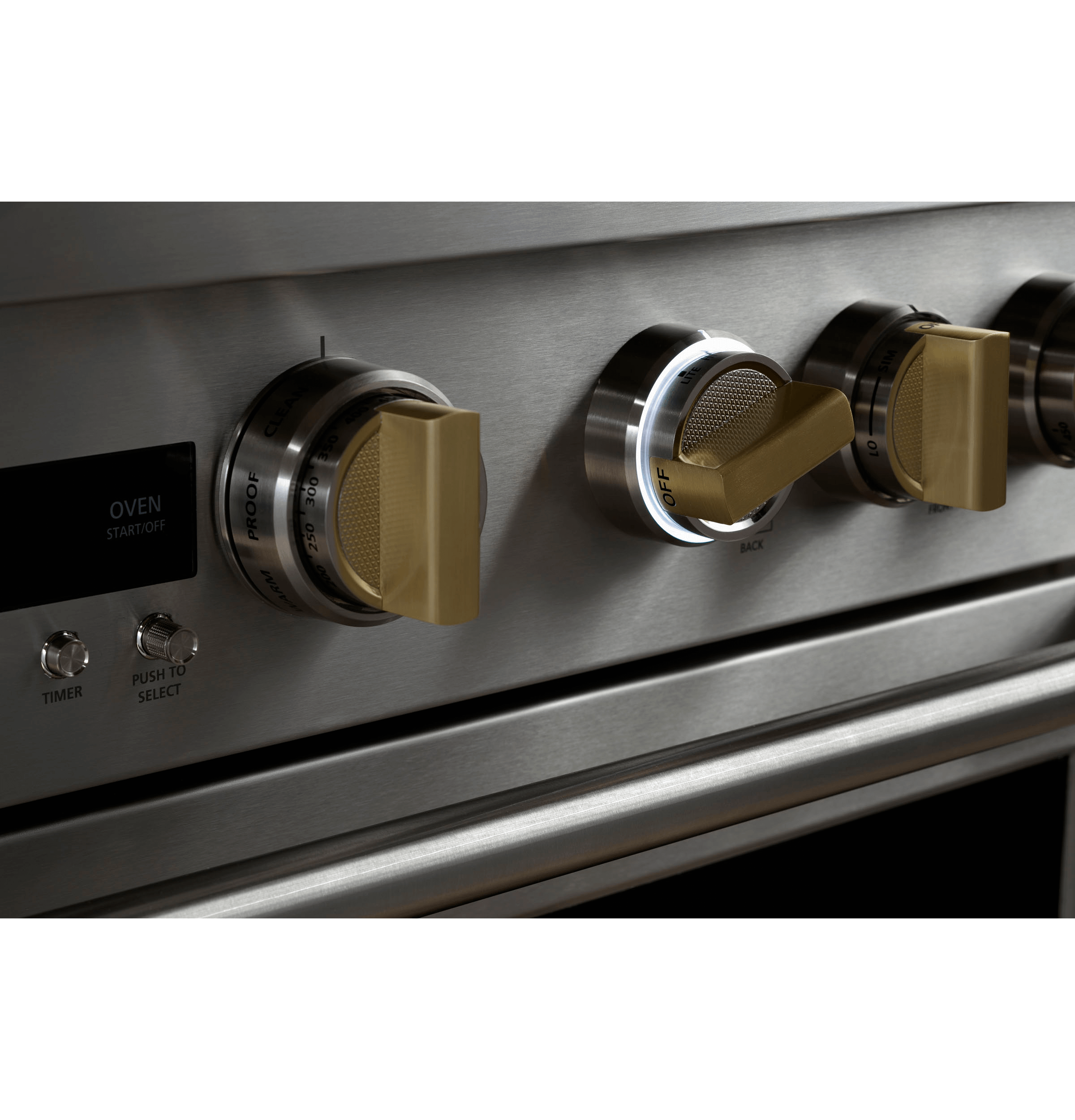

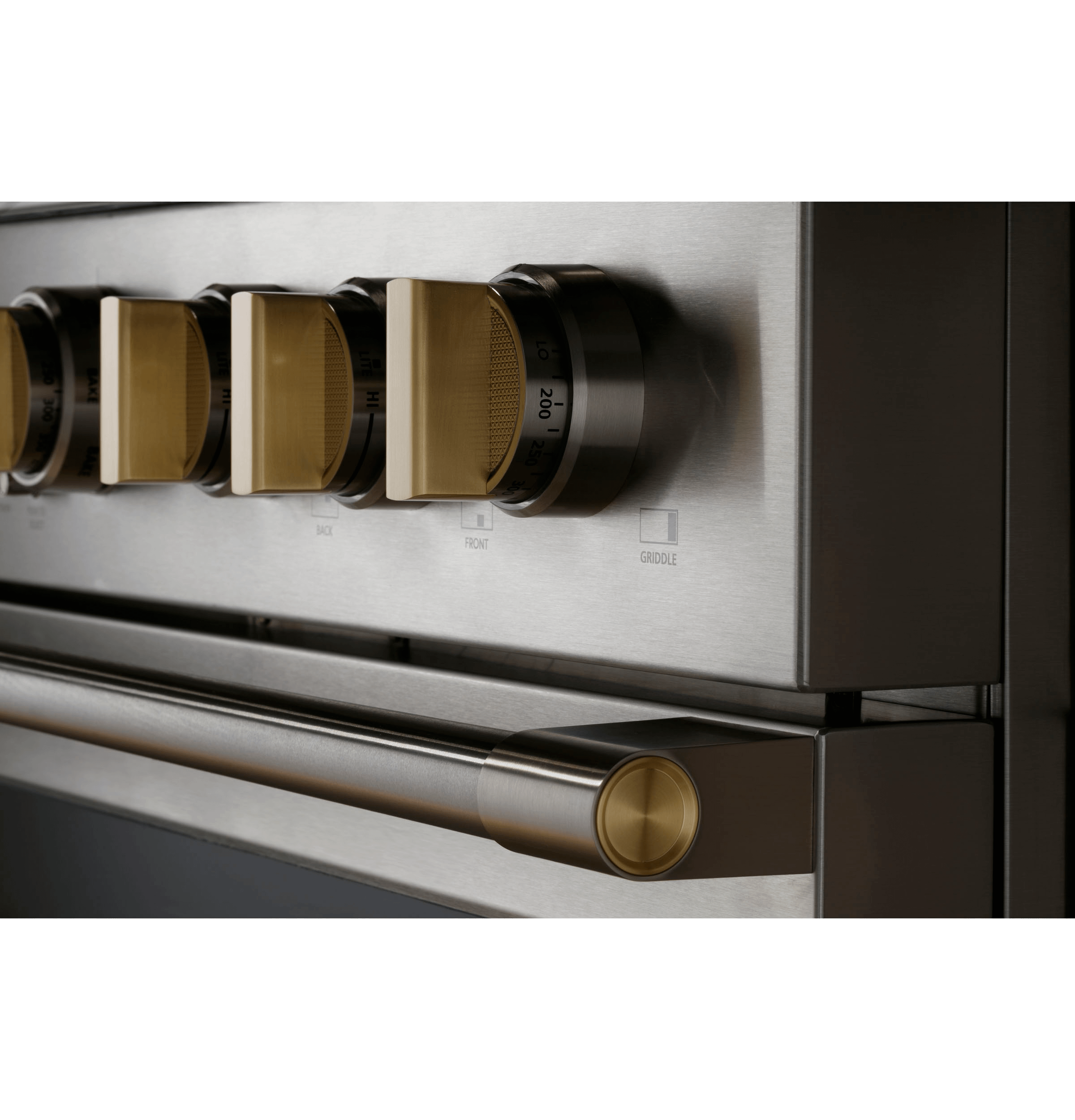

Solid Brass Blades on Precision Machined Knobs
With an unmatched attention to detail, all knobs on the new Monogram Pro ranges and range tops come with solid brass accents
Seamless Stainless Top Frame
Meticulously crafted from one piece of stainless steel that covers the cooktop and control panel, this seamless and stylish surface is easy to clean and beautiful to look at
Soft-Close Hinges
Specially designed, soft-close hinges ensure that the oven door always closes smoothly and quietly for a new level of kitchen refinement

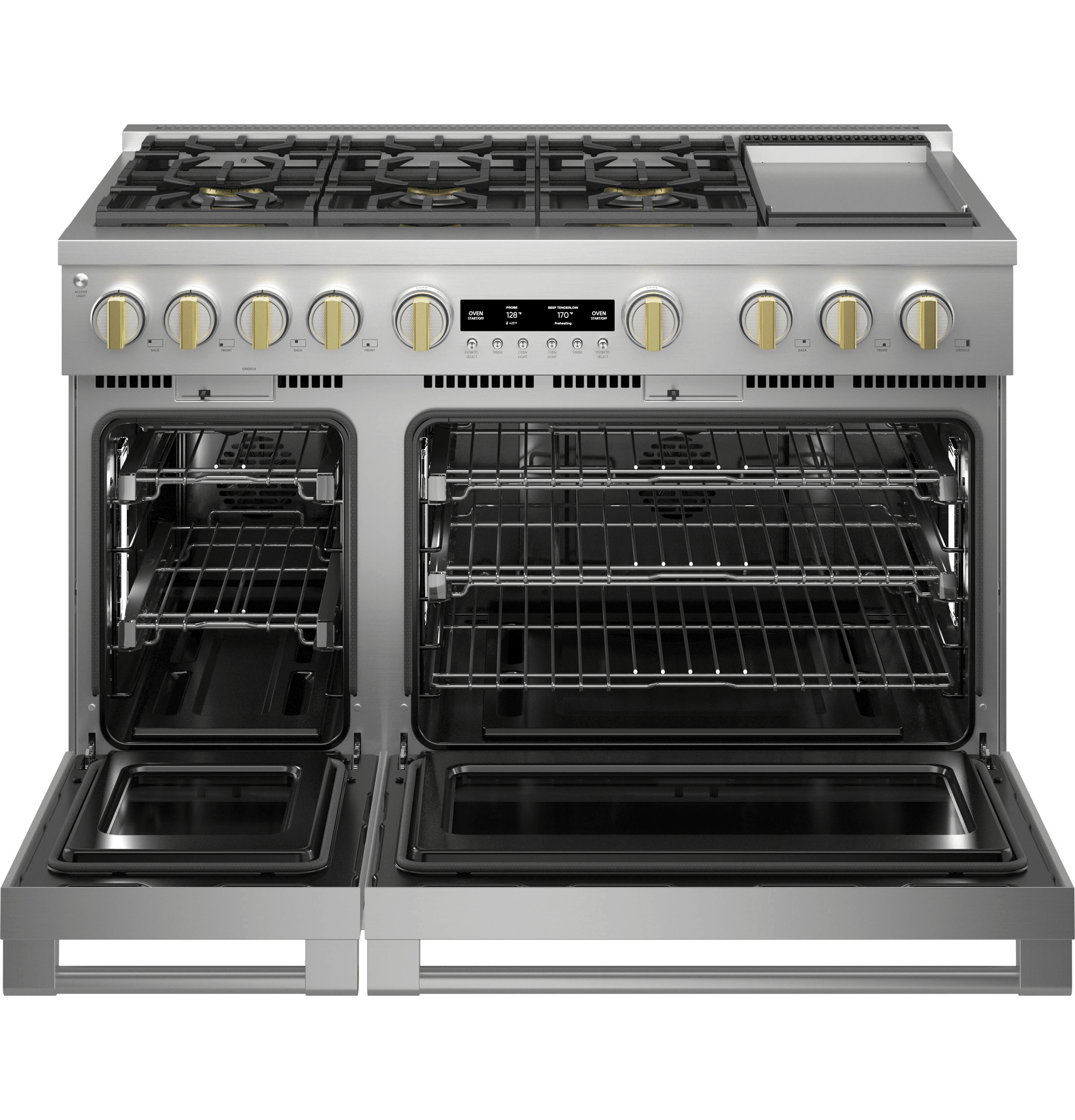

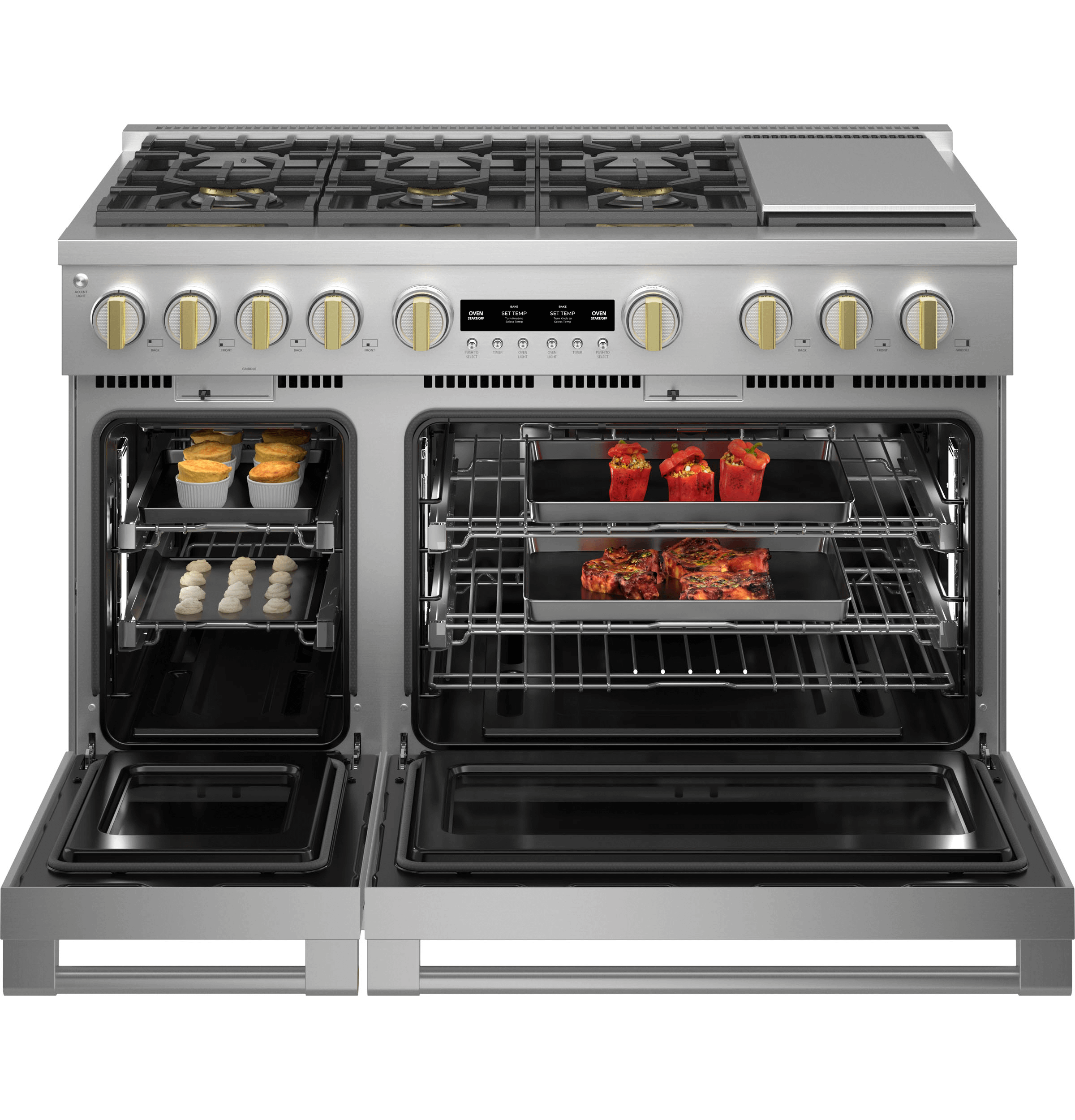

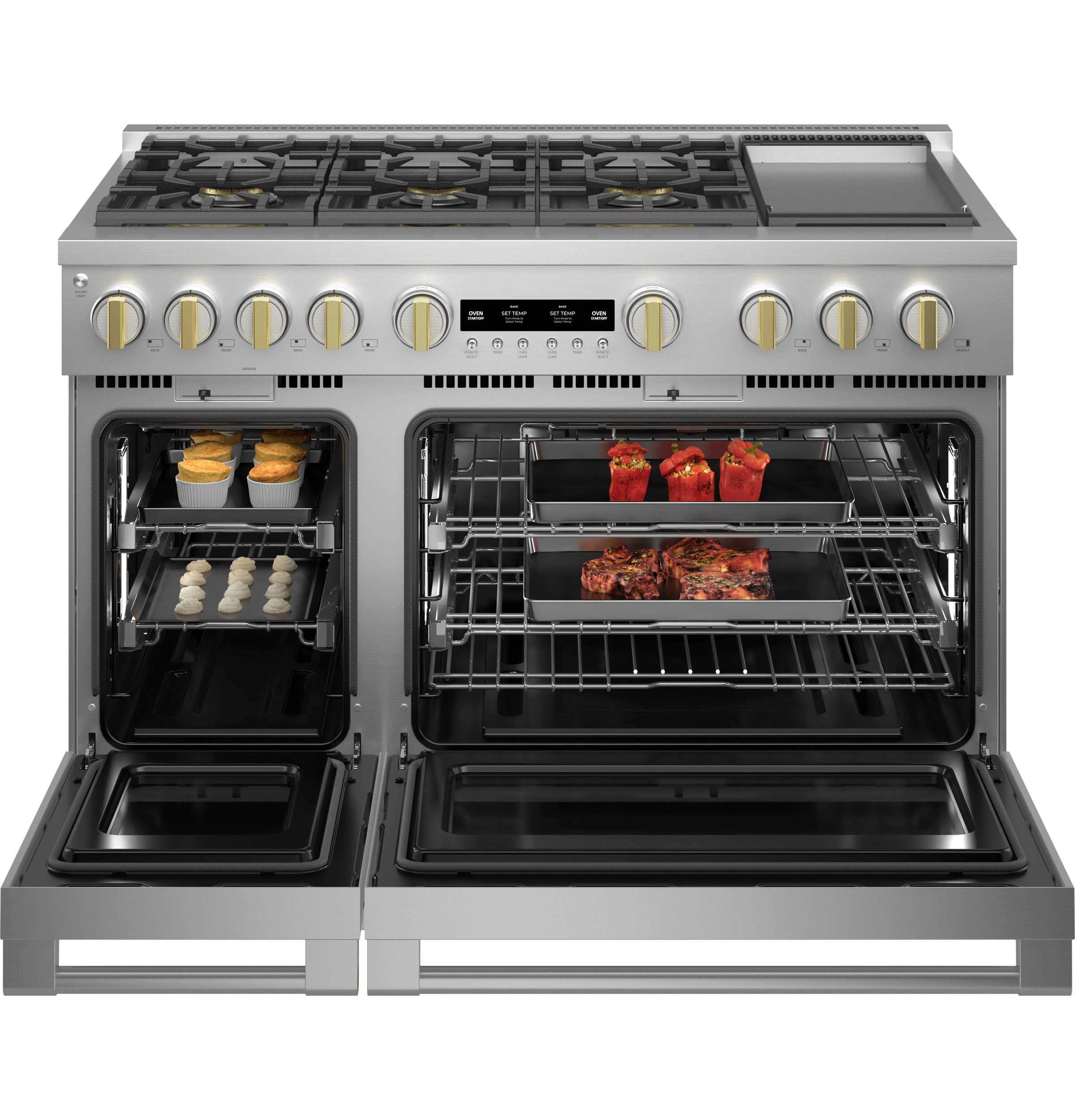

4 Oven Racks (Full-Extension), 1 Low Profile
Oven racks glide smoothly in and out on stainless steel ball bearings for easy access
Precision Oven Modes with SmartHQ™ app
Simplify the cooking process with Precision Oven Modes that automatically track progress and make time and temperature adjustments
Precise Air Convection System
Designed to optimize air movement in the oven, the convection fan system automatically adjusts airflow-forwards or backwards- depending on the oven mode being used
Delivering exceptional cooking flexibility, the two 23,000-BTU multi-ring brass burners and dual-stack burners offer a range of heat settings, from gentle simmer to intense flame
3-Piece Grates with Reversible Wok Feature
Reversible grates are easy to clean and complement different culinary techniques, with a flat side for traditional cooking and contoured side that perfectly holds round-bottom woks
WiFi Monitoring and Remote Control with the SmartHQ™ app
Perfect for a busy lifestyle, built-in WiFi capabilities allow for the remote activation of cooking functions, like preheating the oven, setting timers, activating Chef Connect and more
Dynamic Oven LCD
Functional and stylish, the LCD shows which oven mode is currently in use and other helpful information, like oven temperature, timer and probe temp
Solid Brass Burners
Monogram burners are constructed of 100% brass, embracing the natural thermal properties of this premium quality material. As they are exposed to heat, a natural patina will build up to protect the burners from corrosion and ensure that your brass burners will withstand even the highest temperatures
Chef Connect
Stay completely connected with Chef Connect, the smart and convenient feature that can effortlessly synchronize a range of kitchen items such as surface lights and even the vent when the burners are on
Industry Exclusive-Custom Color LED Accent Lighting
For an elevated level of luxury, use the SmartHQ™ app to customize the accent lighting color and brightness to perfectly match kitchen d(eback)cor or dining ambiance
Ring-Lit Knobs
Delivering a modern approach to customization, the SmartHQ™ app allows for the range knobs to be set in any color you choose, indicating when a burner is on and showing the status of the oven
Solid Brass Blades on Precision Machined Knobs
With an unmatched attention to detail, all knobs on the new Monogram Pro ranges and range tops come with solid brass accents
Seamless Stainless Top Frame
Meticulously crafted from one piece of stainless steel that covers the cooktop and control panel, this seamless and stylish surface is easy to clean and beautiful to look at
Soft-Close Hinges
Specially designed, soft-close hinges ensure that the oven door always closes smoothly and quietly for a new level of kitchen refinement
4 Oven Racks (Full-Extension), 1 Low Profile
Oven racks glide smoothly in and out on stainless steel ball bearings for easy access
Precision Oven Modes with SmartHQ™ app
Simplify the cooking process with Precision Oven Modes that automatically track progress and make time and temperature adjustments
Precise Air Convection System
Designed to optimize air movement in the oven, the convection fan system automatically adjusts airflow-forwards or backwards- depending on the oven mode being used
- Versatile Gas Burner Configuration
- Delivering exceptional cooking flexibility, the two 23,000-BTU multi-ring brass burners and dual-stack burners offer a range of heat settings, from gentle simmer to intense flame
- 3-Piece Grates with Reversible Wok Feature
- Reversible grates are easy to clean and complement different culinary techniques, with a flat side for traditional cooking and contoured side that perfectly holds round-bottom woks
- WiFi Monitoring and Remote Control with the SmartHQ(TM) app
- Perfect for a busy lifestyle, built-in WiFi capabilities allow for the remote activation of cooking functions, like preheating the oven, setting timers, activating Chef Connect and more
- Dynamic Oven LCD
- Functional and stylish, the LCD shows which oven mode is currently in use and other helpful information, like oven temperature, timer and probe temp
- Solid Brass Burners
- Monogram burners are constructed of 100% brass, embracing the natural thermal properties of this premium quality material. As they are exposed to heat, a natural patina will build up to protect the burners from corrosion and ensure that your brass burners will withstand even the highest temperatures
- Chef Connect
- Stay completely connected with Chef Connect, the smart and convenient feature that can effortlessly synchronize a range of kitchen items such as surface lights and even the vent when the burners are on
- Industry Exclusive-Custom Color LED Accent Lighting
- For an elevated level of luxury, use the SmartHQ(TM) app to customize the accent lighting color and brightness to perfectly match kitchen d(eback)cor or dining ambiance
- Ring-Lit Knobs
- Delivering a modern approach to customization, the SmartHQ(TM) app allows for the range knobs to be set in any color you choose, indicating when a burner is on and showing the status of the oven
- Solid Brass Blades on Precision Machined Knobs
- With an unmatched attention to detail, all knobs on the new Monogram Pro ranges and range tops come with solid brass accents
- Seamless Stainless Top Frame
- Meticulously crafted from one piece of stainless steel that covers the cooktop and control panel, this seamless and stylish surface is easy to clean and beautiful to look at
- Soft-Close Hinges
- Specially designed, soft-close hinges ensure that the oven door always closes smoothly and quietly for a new level of kitchen refinement
- 4 Oven Racks (Full-Extension), 1 Low Profile
- Oven racks glide smoothly in and out on stainless steel ball bearings for easy access
- Precision Oven Modes with SmartHQ(TM) app
- Simplify the cooking process with Precision Oven Modes that automatically track progress and make time and temperature adjustments
- Precise Air Convection System
- Designed to optimize air movement in the oven, the convection fan system automatically adjusts airflow-forwards or backwards- depending on the oven mode being used
| CAPACITY | |
| Total Capacity (cubic feet) | 8.9 cu ft |
| Capacity (Cu. Ft.) | 6.2 Caterer Oven/2.7 Everyday Oven |
| APPEARANCE | |
| Toe kick | Included |
| Installation | Flush Installation Capable |
| Oven Door Features | Soft Close Door |
| Design Style | Statement Collection |
| Control Knobs | Diecast Metallic (Included) Stainless Steel with Brass Accents |
| Color Appearance | Stainless Steel |
| POWER / RATINGS | |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (2) 23.0; (2) 18.0; (2) 15.0 |
| Electrical Requirements | 120VAC;15A |
| Top Burner BTU Rating - LP (000's BTU's) | (2) 21.0; (2) 15.0; (2) 10.0 |
| Broiler Wattage | 1050W (Main Oven): 650W (Companion Oven) |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 23.0 Bake / 18.0 Broil Main Oven; 10.5 Bake / 11.0 Companion Oven |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 21.5 Bake / 18.0 Broil Main Oven; 10.0 Bake/11.0 Companion Oven |
| Griddle BTU Rating (000's/BTU) - LP Gas | 16.0 |
| Griddle BTU Rating (000's/BTU) - Natural Gas | 18.0 |
| WARRANTY | |
| Parts Warranty | Limited 2-year entire appliance Limited 5-year gas surface burners Limited lifetime of oven racks |
| Labor Warranty | Limited 2-year entire appliance |
| Warranty Notes | See written warranty for full details |
| ACCESSORIES | |
| 48" Monogram Knob Kit | ZXPR48KKTSS (SS, qty. 11) |
| Optional Backguard | 12" stainless steel backsplash (UX12BS48PSS) 30"-36" adjustable stainless steel backsplash with warming shelf (UXADJB48PSS) |
| Multi Ring Burner Caps (Brass) | Included |
| LP Conversion Kit | Included |
| Multi Ring Burner Caps (Black) | Included |

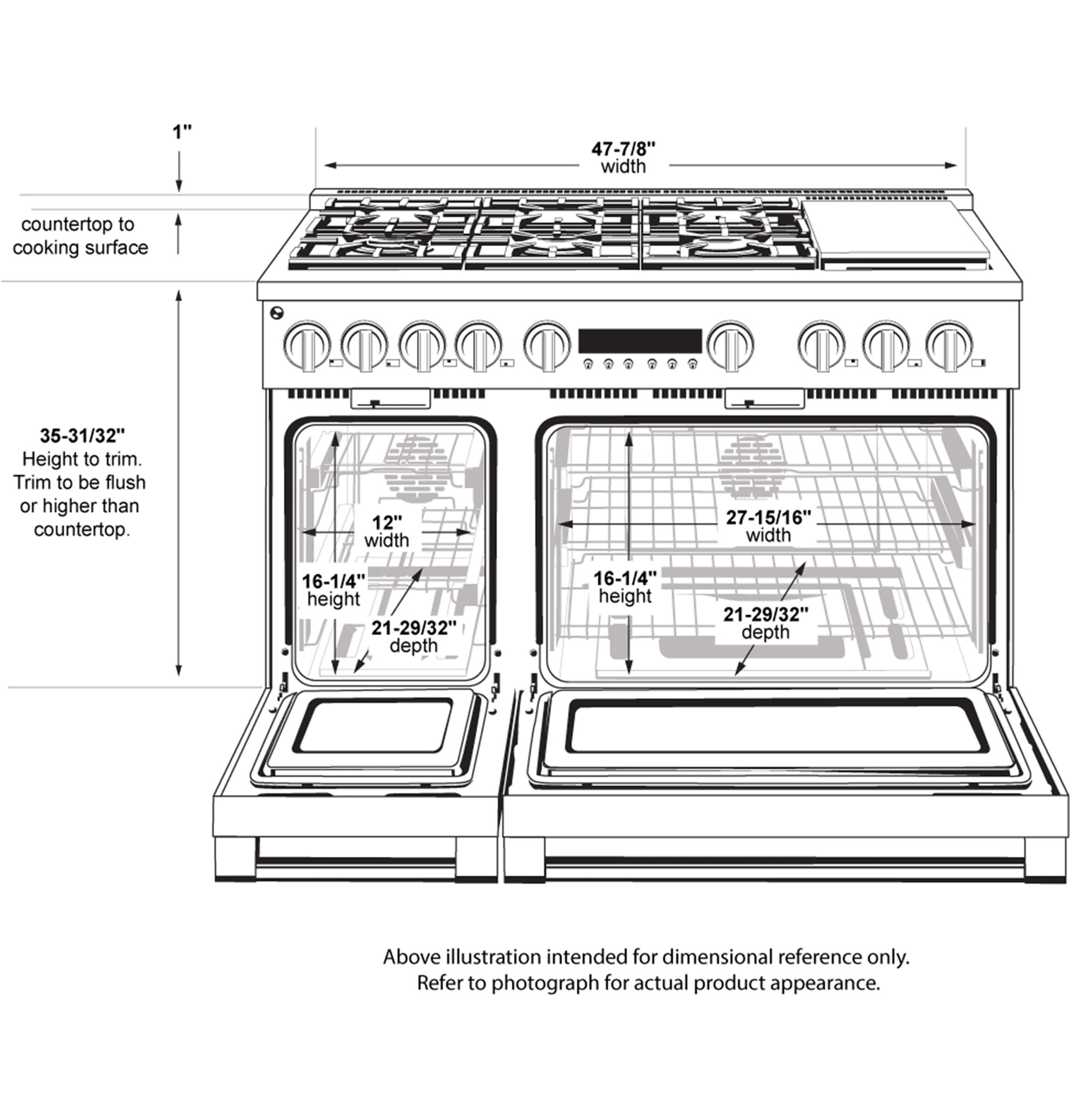

| WEIGHTS & DIMENSIONS | |
| Net Weight | 576 lb |
| Height to Cooking Surface (in.) | 35 1/4 to 36 3/4 |
| Cabinet Width | 48 in |
| Approximate Shipping Weight | 672 lb |
| Overall Width | 47.875 in |
| Interior Dimensions - Main Oven (WxHxD) (in.) | 28-1/4 x 16-3/8 x 19 |
| Overall Height | 35.25 in |
| Overall Depth | 28.5 in |
| Height w/Legs Extended - Maximum Height | 36.75 in |
| Interior Dimensions - Companion Oven (WxHxD) (in.) | 12-1/8 x 16-3/8 x 19 |
| Height With Legs Retracted | 35.25 in |
| FEATURES | |
| Cooking System | Reverse Air Convection |
| Ignition System | Electronic w/Auto Reignition |
| Oven Control Features | 12-Hour Shut-Off Capability Audible Preheat Signal Auto Recipe Conversion Automatic Oven Meat Probe (Both Ovens) Certified Sabbath Mode (* additional purchase required) Chef Connect Cook Time C° or F° Programmable Delay Clean Option (Both Ovens) Probe Mode Proof Mode (Both Ovens) Remote Enabled Steam Clean Timer WiFi Connect |
| Oven Rack Features | 3 Oven Racks (Caterer Oven), 2 Oven Racks (Everyday Oven) 4 Full Extension Racks 4 Rack Positions (Everyday Oven) 5 Rack Positions (Caterer Oven) |
| Convection Roasting Rack | Yes |
| Broiler Pan and Grid | 2 |
| Oven Cleaning Type | Steam Clean (Both Ovens) |
| Removable Drip Tray Liners | (1) Beneath Griddle |
| Griddle | 18,000-BTU Stainless Steel and Aluminum Clad Thermostatically Controlled |
| Connected Capabilities | Amazon Alexa Bluetooth Fresco IFTTT Innit Sonos The Google Assistant |
| 140 Deg. Simmer Burner | All Burners - Adjustable |
| Cooktop Type | 6 Burners Griddle |
| Fuel Type | All-Gas (Natural gas) |
| Indicator Lights | Burner "On" |
| Short Description | 48" Pro Range - All Gas with 6 Burners and Griddle |
| Interior Oven Light | 3 Halogen Lamps (Everyday Oven) 6 Halogen Lamps (Caterer Oven) |
| WiFi Connect | Built-In |
| Extra Low Simmer | All Burners - Adjustable |
| Cooktop Burner Grate Features | Continuous Grates Porcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates |
| Control Type | Digital Temperature LCD Display (Both Ovens) with Timer Display |
| Lighting | Customizable LED Bullnose and Knob Accent Lighting |
| Cooking Technology | Convection |
| Oven Cooking Modes | Convection Bake Multi/Single Rack (Both Ovens) Convection Roast (Both Ovens) Precision Cooking Modes Proof (Both Ovens) Scan-to-Cook Warming (Both Ovens) |
| Cooktop Burner Type | 2 Sealed, Dual Ring 4 Sealed, Dual Flame Stacked (Removable Brass Accents) |
| Removable Grease Trough | (1) Front of Griddle |
| Cooktop Surface | Porcelain-Enamel |
| Stainless Steel Grill / Griddle Covers | 1 |
| Oven Rack Positions (Single or Upper/Lower) | 5 / 4 |
