Overview & Specifications
Overview & Specifications
MasterCool - DynaCool
Storage freedom: A fan ensures a uniform temperature throughout the entire unit.
MasterCool - Push2open
This appliance integrates perfectly into handleless kitchens, as the door opens by pressing the front.
Miele@home *
Make your life smart: thanks to Miele@home * you can cleverly network your domestic appliances - for more options.

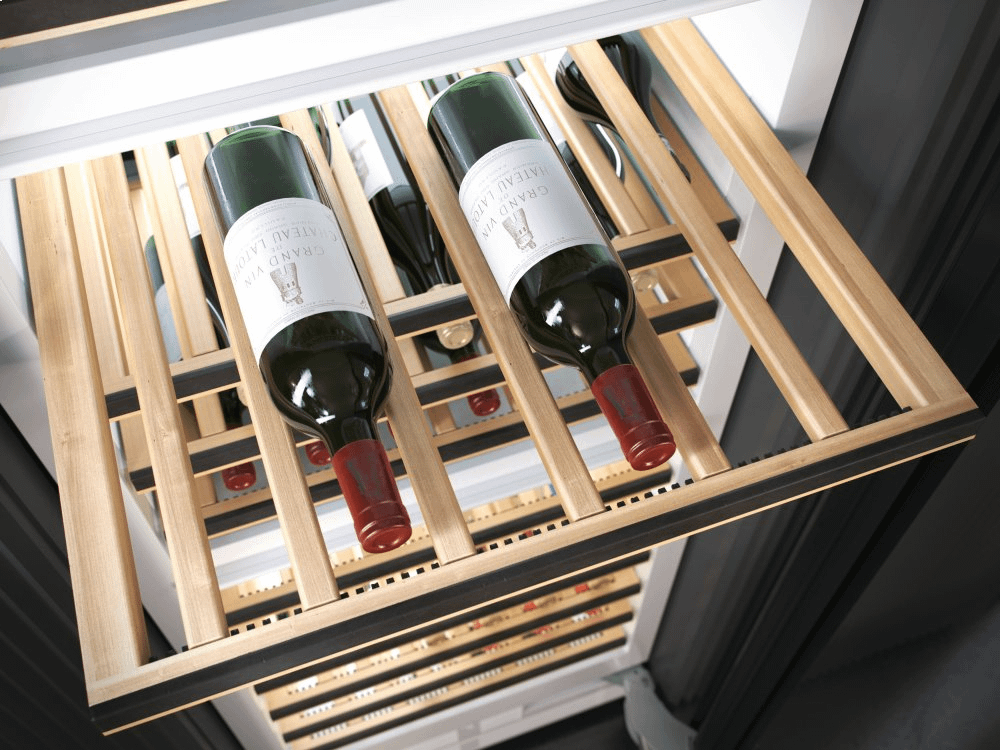

MasterCool - FlexiFrame wooden racks
Just one movement: move individual slats so that you can even store large wine bottles in a flexible manner.
MasterCool - BrilliantLight
Soft and attractive: High-quality LED strips offer perfect illumination and a beautiful lighting.
INNOVATION

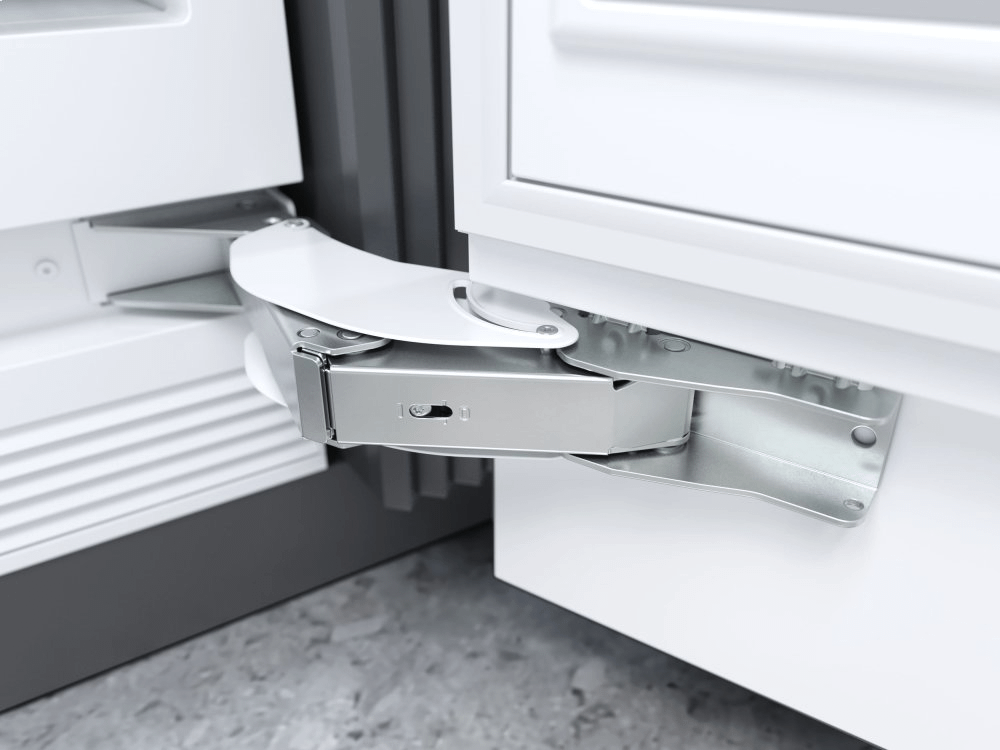

MasterCool - MaxLoad hinge
Strong and robust: The door hinges are able to withstand high loads and make it easy to open large doors.
- MasterCool - DynaCool
- Storage freedom: A fan ensures a uniform temperature throughout the entire unit.
- MasterCool - Push2open
- This appliance integrates perfectly into handleless kitchens, as the door opens by pressing the front.
- Miele@home *
- Make your life smart: thanks to Miele@home * you can cleverly network your domestic appliances - for more options.
- MasterCool - FlexiFrame wooden racks
- Just one movement: move individual slats so that you can even store large wine bottles in a flexible manner.
- MasterCool - BrilliantLight
- Soft and attractive: High-quality LED strips offer perfect illumination and a beautiful lighting.
- MasterCool - MaxLoad hinge
- Strong and robust: The door hinges are able to withstand high loads and make it easy to open large doors.
Appliance category | |
Wine storage unit | • |
Design | |
Built-in | • |
Built-in integrated | • |
Door hinge side | Left |
Convertible hinging | • |
Can be installed side-by-side | |
Design | |
Lighting | BrilliantLight |
User convenience | |
Networking with Miele@home | |
DynaCool | |
SoftClose door closing damper | |
Push2open | |
MaxLoad hinge | |
FlexiFrame | |
Number of FlexiFrame wooden racks | 13 |
Wire Rack material | Beechwood |
NoteBoard | • |
Control | |

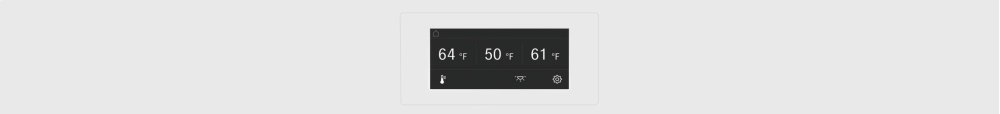

Electronic temperature display and control | MasterSensor |
No. of temperature zones | 3 |
Min. temperature setting range in °F (°C) | 5 |
Max. temperature setting range in °F (°C) | 20 |
Sabbath mode | • |
Safety | |
Lock function | • |
Acoustic door alarm | • |
Acoustic temperature alarm | • |
Optical door alarm | • |
Optical temperature alarm | • |
Technical data | |
Niche width in inches (mm), min. | 24 1/8 (610) |
Niche width in inches (mm), max. | 24 1/8 (610) |
Niche height in inches (mm), min. | 84 1/8 (2134) |
Niche height in inches (mm), max. | 84 1/8 (2134) |
Niche depth in in.(mm) | 24 7/8 (629) |
Appliance width in in.(mm) | 23 3/4 (603) |
Appliance height in in.(mm) | 83 3/4 (2125) |
Appliance depth in in.(mm) | 24 (608) |
Weight in lbs.(kg) | 322 (146.0) |
Type of mounting | Fixed door |
Maximum fridge compartment door front weight in lbs. (kg) | 161 (73) |
Wine compartment in L | 13.38 (379) |
Pantry compartment in l | 379 |
Total usable capacity in cu. ft. (l) | 13.38 (379) |
Current consumption in milliampere (mA) | 4000 |
Voltage in V | 110.00-120.00 |
Fuse rating in A | 10 |
Number of phases | 1 |
Frequency in Hz | 60 |
Wire length in ft (m) | 11 (3.5) |
Available display languages | |
Available display languages via MultiLingua | eesti fran ais e tina sloven ina latviesu sloven ina polski lietuviu fran ais (FR) magyar nederlands hrvatski y bahasa malaysia italiano english (GB) deutsch t rk e dansk suomi rom n english (AU) english (CA) espa ol srpski english svenska fran ais (CA) norsk p portugu s english (US) |
