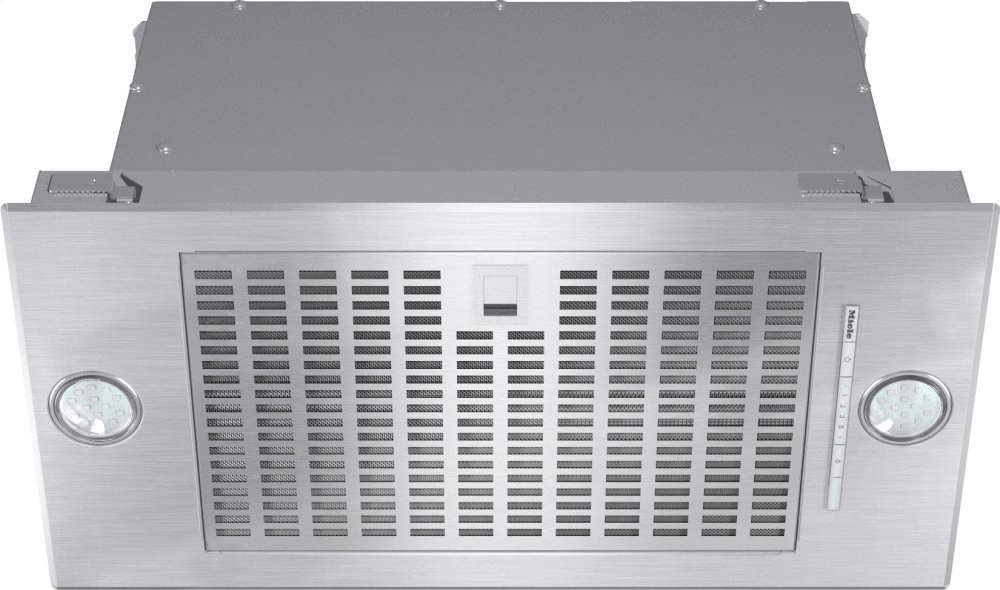

Miele DA2360 DA 2360 - Insert ventilation hood with energy-efficient LED lighting and backlit controls for easy use.

$1,199.00

Or $99.91/mo suggested payments with 12-month special financing. More financing options available.

Rebates Available See below

Overview & Specifications

QUALITY

Handcrafted in Germany

Know-how and craftsmanship: Our expertise goes into every ventilation hood, from development to finished product.



SAFETY

Safety turn off

Sensible, even in case of operating errors: The ventilation hood will switch off automatically after 10 hours.



FEATURES

Active AirClean filter

Efficient odor absorption: The disposable filter with active charcoal must be replaced regularly.


Stainless-steel grease filters (10-layer)

Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.


Miele CleanCover

Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.

  • Handcrafted in Germany
  • Know-how and craftsmanship: Our expertise goes into every ventilation hood, from development to finished product.
  • Safety turn off
  • Sensible, even in case of operating errors: The ventilation hood will switch off automatically after 10 hours.
  • Active AirClean filter
  • Efficient odor absorption: The disposable filter with active charcoal must be replaced regularly.
  • Stainless-steel grease filters (10-layer)
  • Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
  • Miele CleanCover
  • Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.

Construction type
Insert ventilation extractor •
Operating modes
Recirculated mode Convertible
Recirculation conversion kit (order separately) DUU 151
OdorFree charcoal filter (order separately) DKF19-900
Design
Color No colour
Variable height available as special order •
Variable width available as special order •

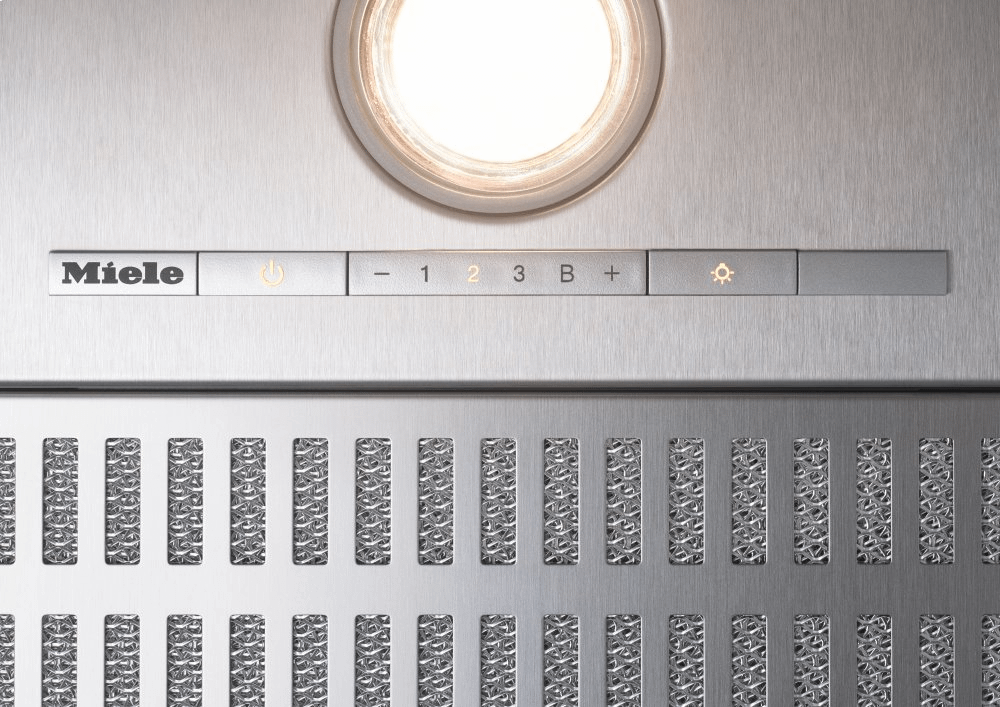

Control panel
Electronic controls •
Light-touch controls •
Power levels (number excl. Intensive) 3
Intensive setting •
Cleaning convenience
CleanCover •
Filter system
Number of dishwasher-safe stainless-steel grease filters 1
Lighting
LED ClearView lighting •
Number x W 2 x 3 W
Light intensity in Lx 350 lx
Color temperature in K 3000 Kelvin
Blower
Dual-action blower •
AC motor •
Extraction
Air throughput Values upon request
Safety
Safety shut-off •
Technical data
Canopy width in in. (mm) 23 (584)
Canopy height in in. (mm) 2 1/2 (63)
Depth of hood canopy in in. (mm) 11 3/4 (297)
Minimum distance above electric cooktops in in. (mm) 24 1/8 (610)
Minimum height above gas cooktop (max. 12.6 kW total power, burner 4.5 kW) in mm 26 (660)
Net weight in lbs. (kg) 25 (11.0)
Length of electrical wire in ft. (m) 4 (1.5)
Standard plug fitted •
Total connected load in kW 0.36
Voltage in V 120
Fuse rating in A 15
Frequency in Hz 60
Number of phases 1
Installation notes
Vent connection at top •
Vent connection at rear •
Vent connection at top and rear •
Diameter of vent connection in in. (mm) 6 (150)
Standard accessories
