Overview & Specifications
Overview & Specifications
You're in control with the Maytag® exclusive electric cooktop with reversible grill and griddle. Sizzle food on powerful elements, with or without the included reversible grill and griddle. Or fire up the 10/6-inch Dual-Choice™ element of the glass cooktop with the pan you want and the power you need. Plus, we stand behind it witha 10-year limited parts warranty.
- 10-Year Limited Parts Warranty on the Glass Cooktop and Elements
- We back these Maytag(R) cooktops for cooking you can count on year after year with a 10-year limited parts warranty on the glass cooktop and elements.

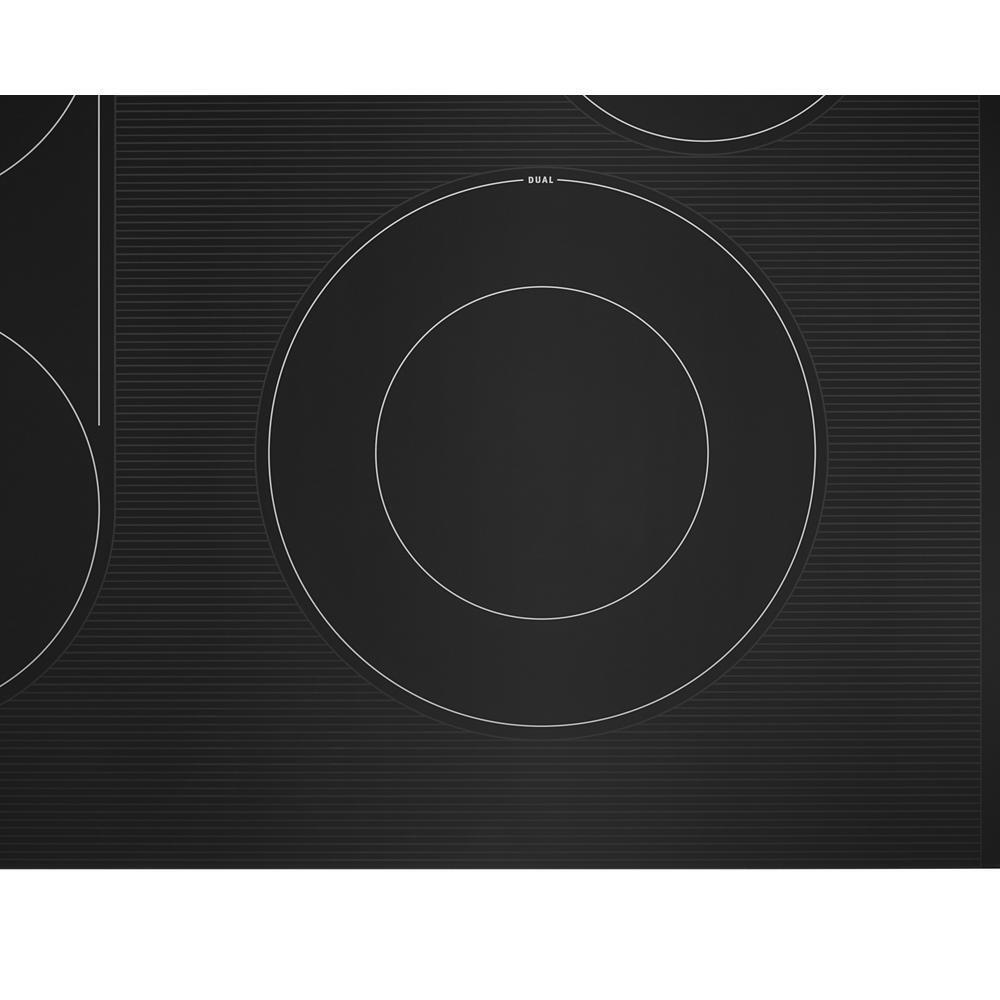

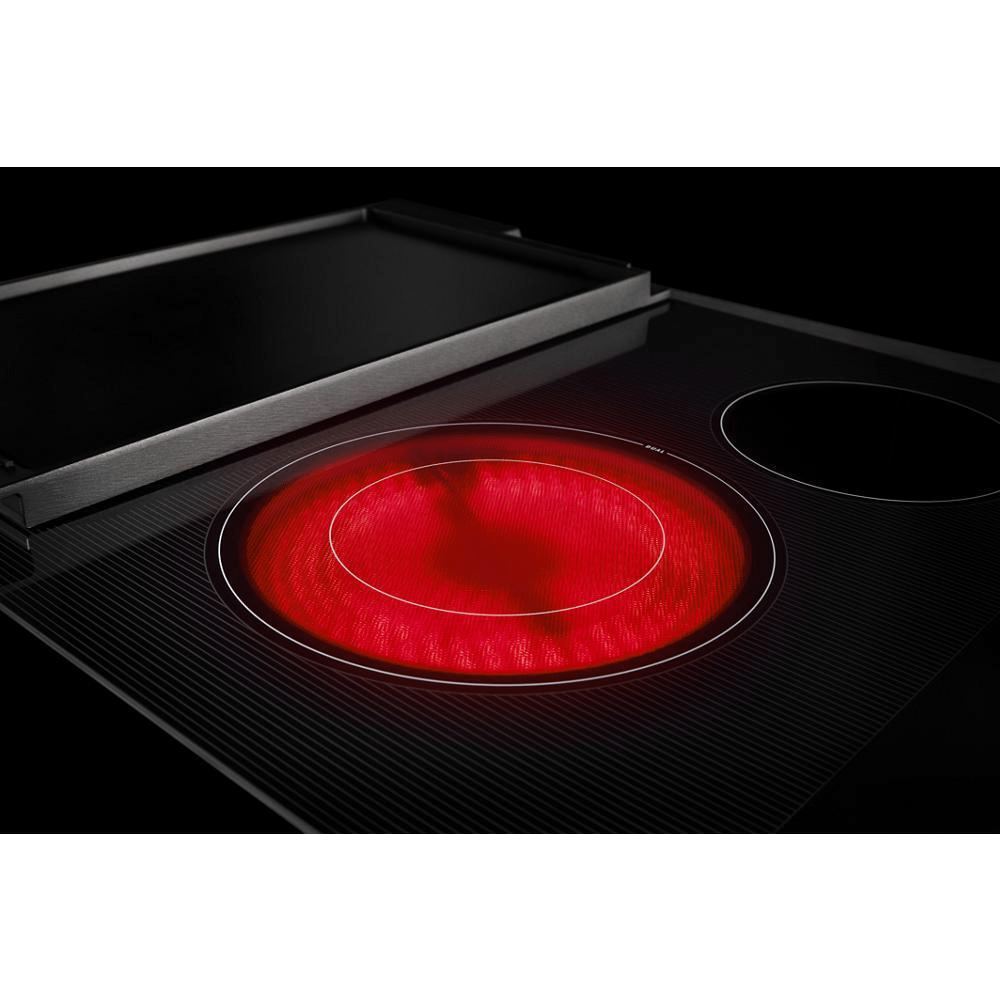

- 10/6-inch Dual-Choice(TM) Element
- The 10/6-inch Dual-Choice(TM) element gives you the ability to cook with the pan you want and the power you need. Control a slow, even saut(eback) and then intensify the heat for searing.
- An American Company for Over 100 Years
- As a long-standing American company, we pack over a century of knowledge, experience and dependability into every product.
- Whirlpool Corporation started in 1911 as a small company in Benton Harbor, Michigan. Today we are a global home appliance business selling products around the world. We are proud of our American heritage and ingenuity that have driven innovation for over 100 years.

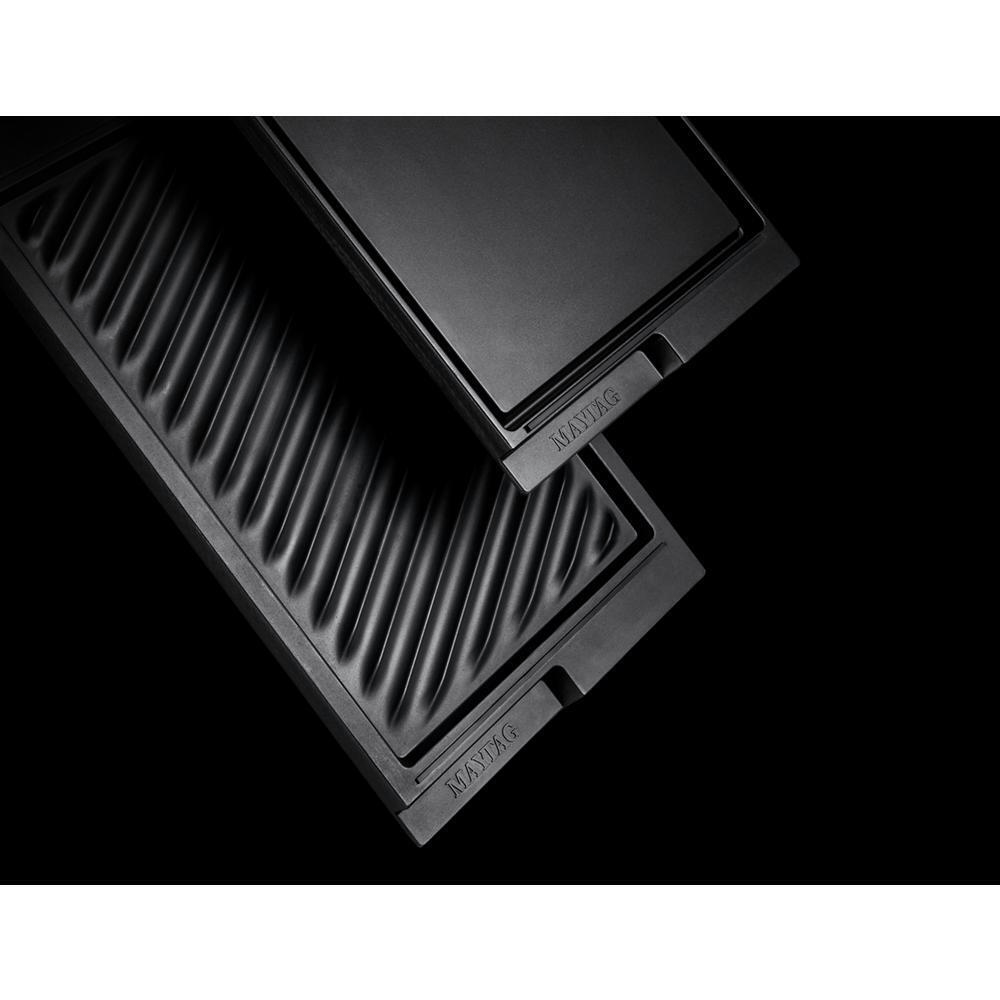

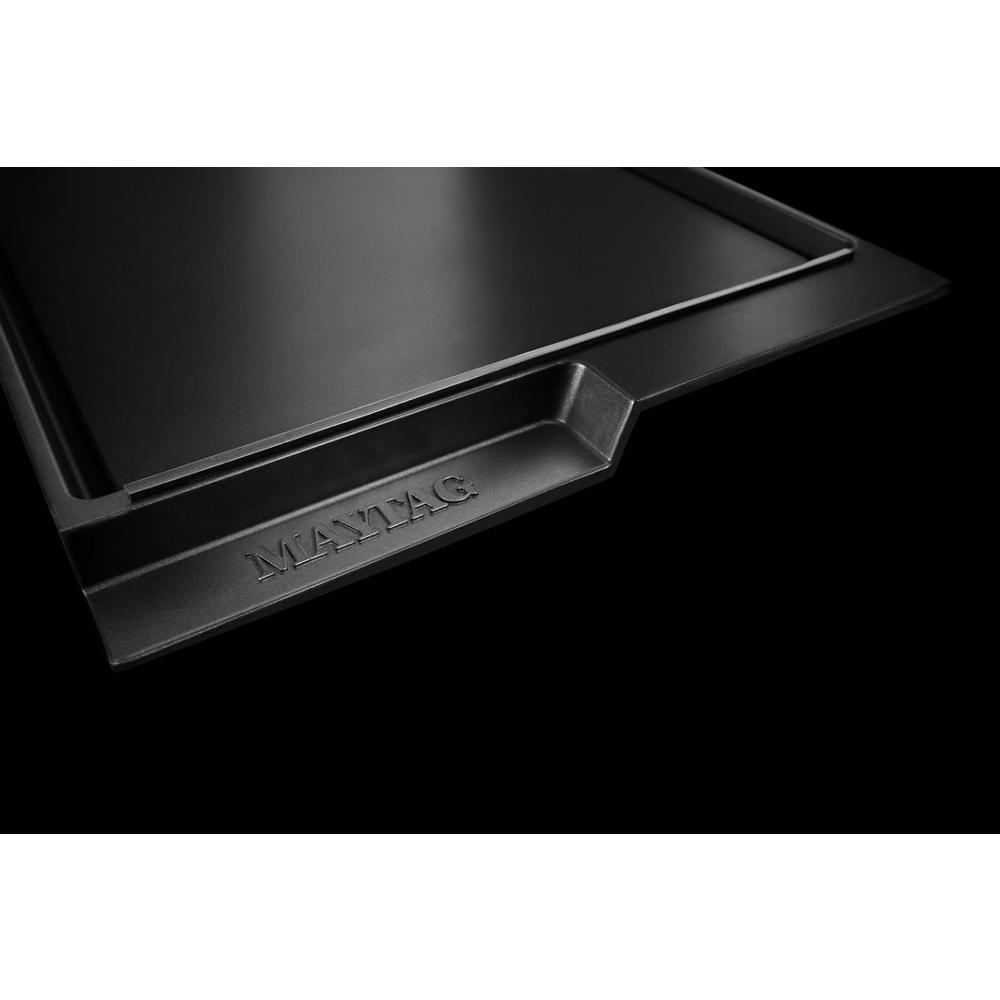

- Flip and Grip Built-In Handles
- When making the flip between grill and griddle, two built-in handles provide hassle-free movement to and from the cooktop.

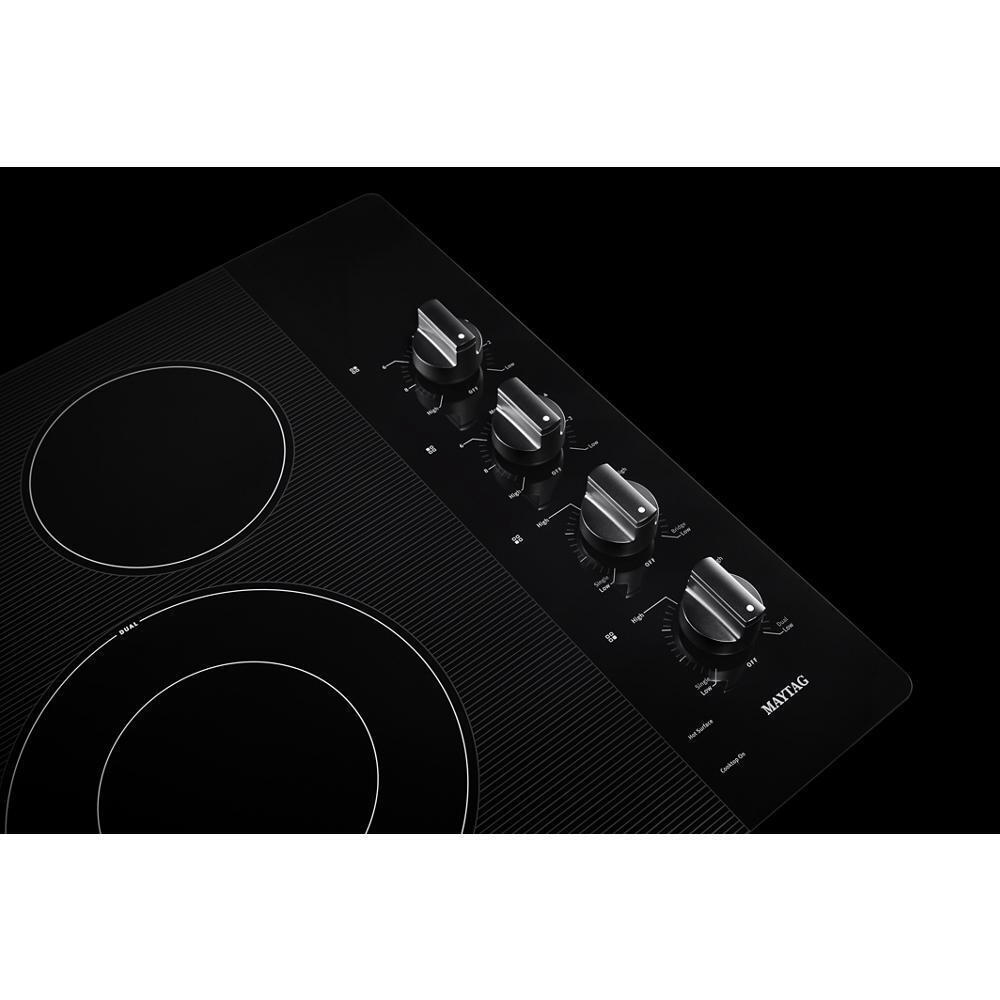

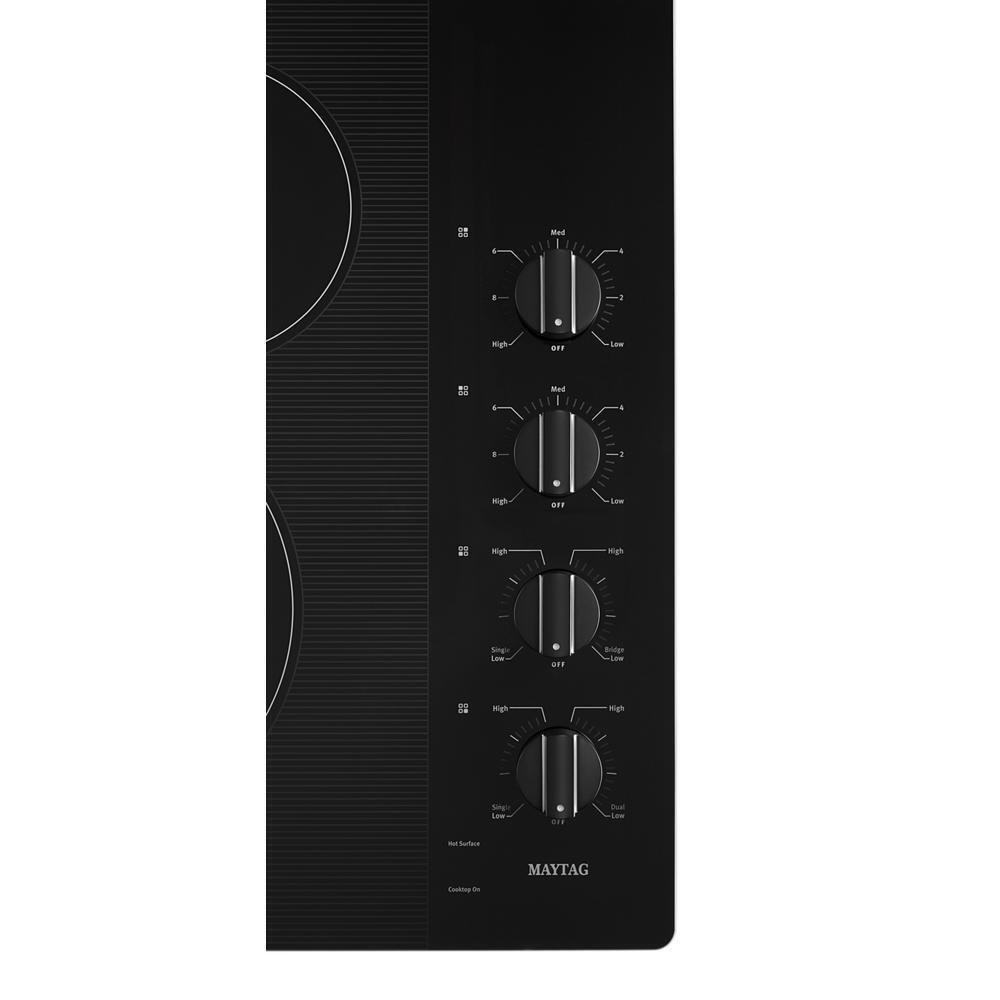

- Heavy-Duty, Die-Cast Metal Knobs
- Built with heavy-duty, die-cast metal knobs to give you dependable and responsive power control.
- Hot Surface Indicator Light
- The hot surface indicator light illuminates when your electric cooktop surface is hot to the touch, even after the heating element has been turned off.

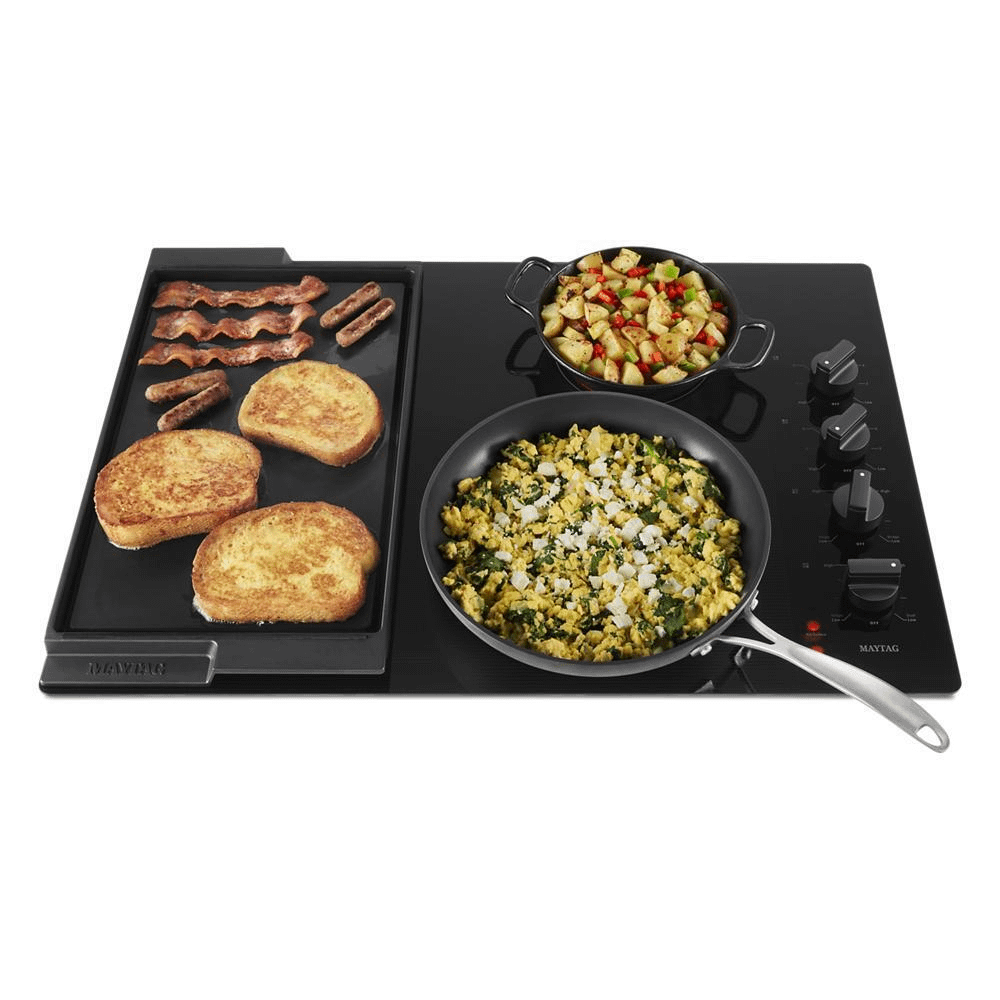

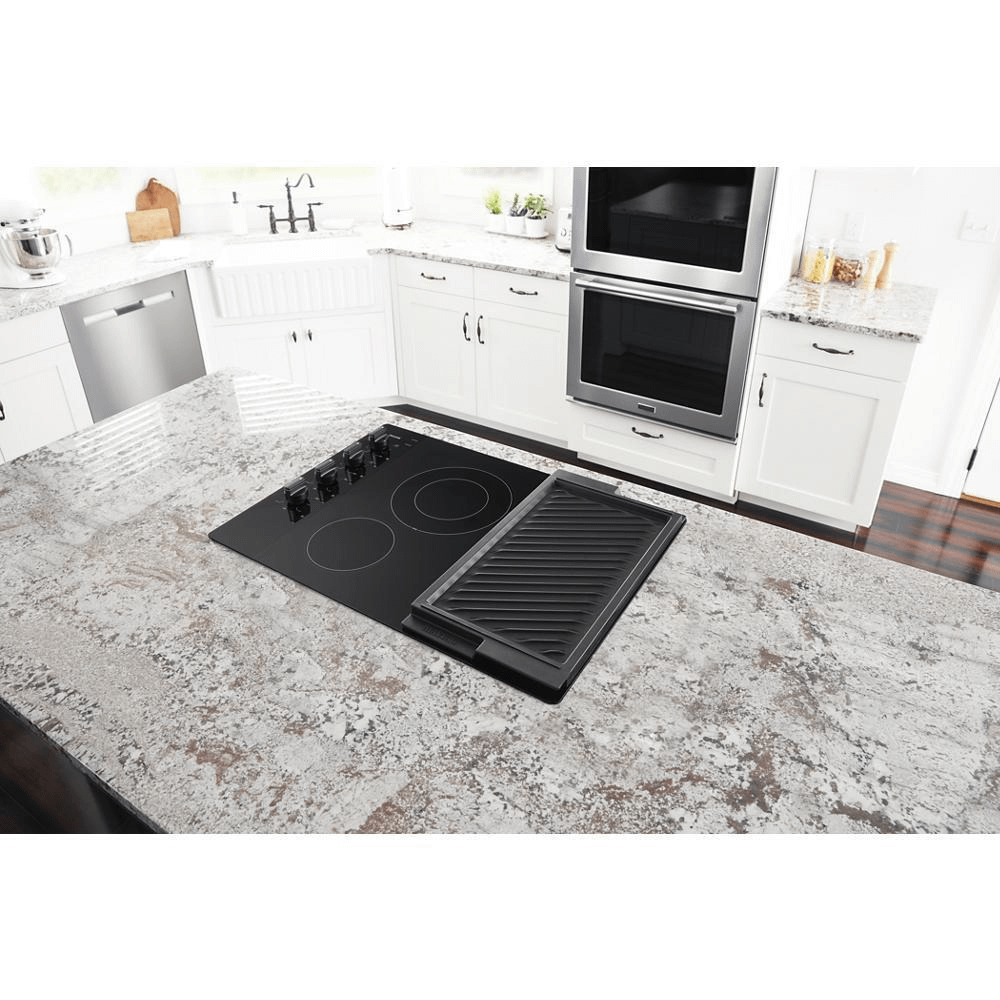

- Maytag(R) Exclusive Electric Cooktop with Reversible Grill and Griddle

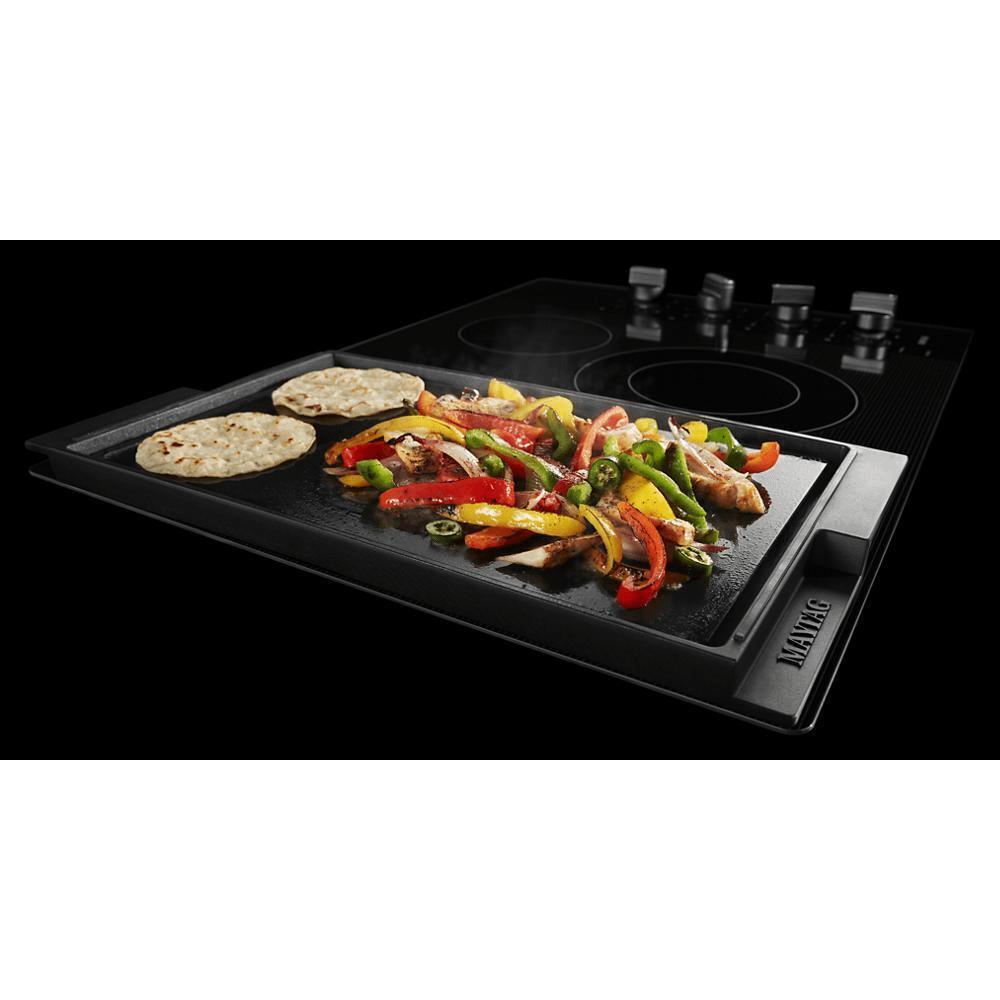

- Boil, pan fry, grill, sear, flip and griddle. No matter what you're bringing to the table, Maytag brings the heat with an exclusive electric cooktop with the reversible grill and griddle.
- Quick Preheat and Precise Cooking Coverage
- The reversible grill and griddle evenly distributes heat across a large surface. It preheats to 350 F quickly for meals that hit the table fast.

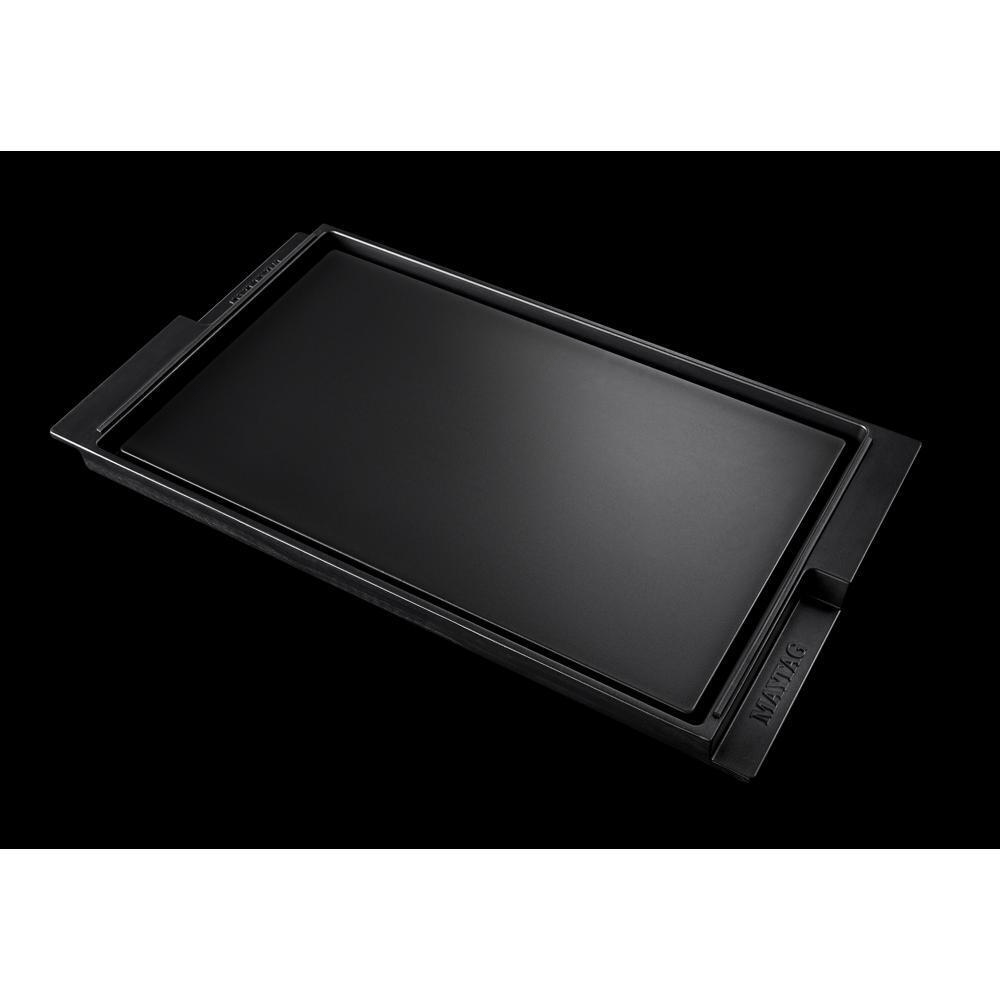

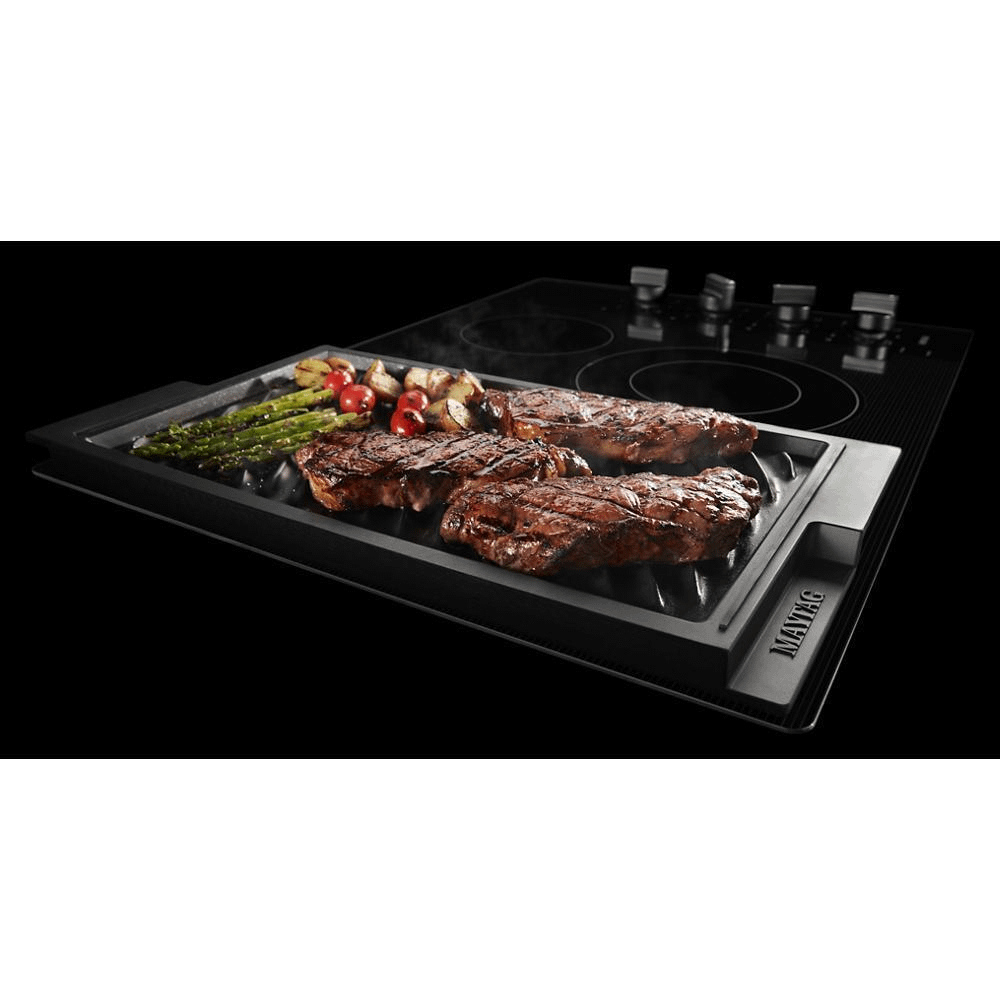

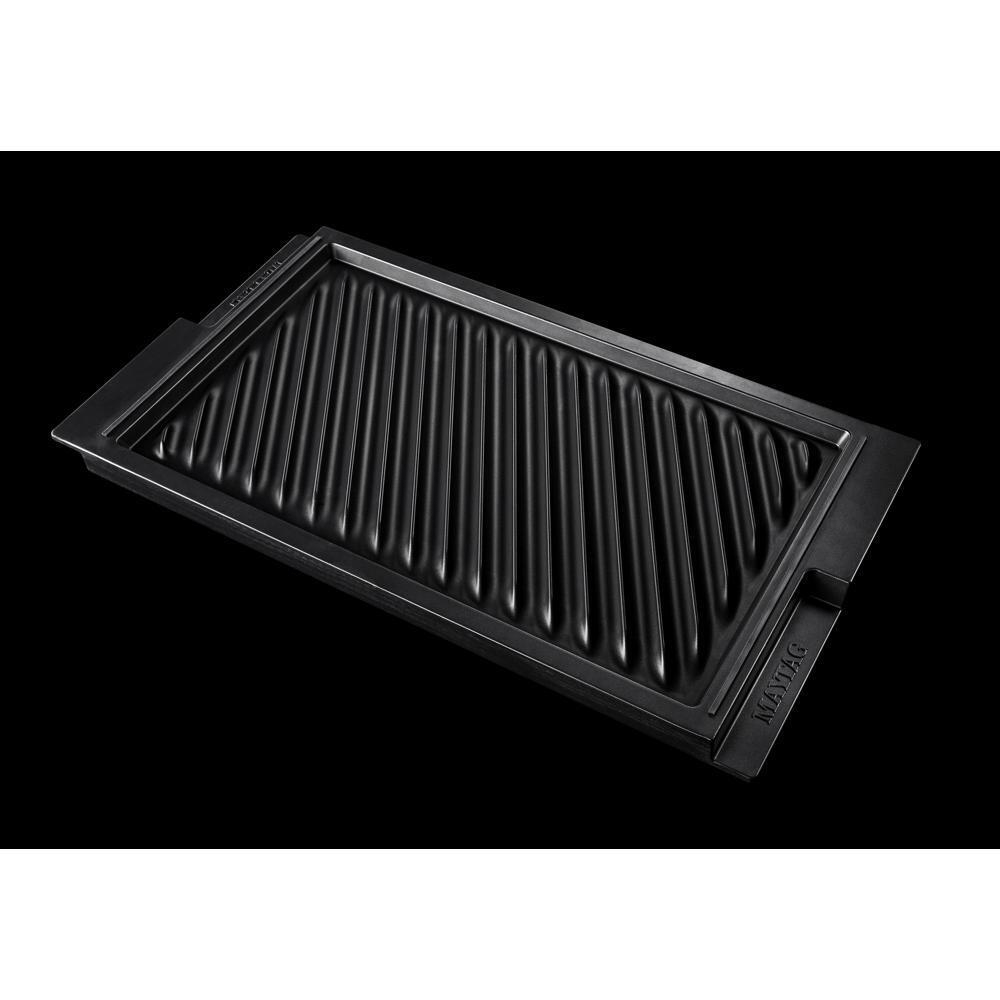

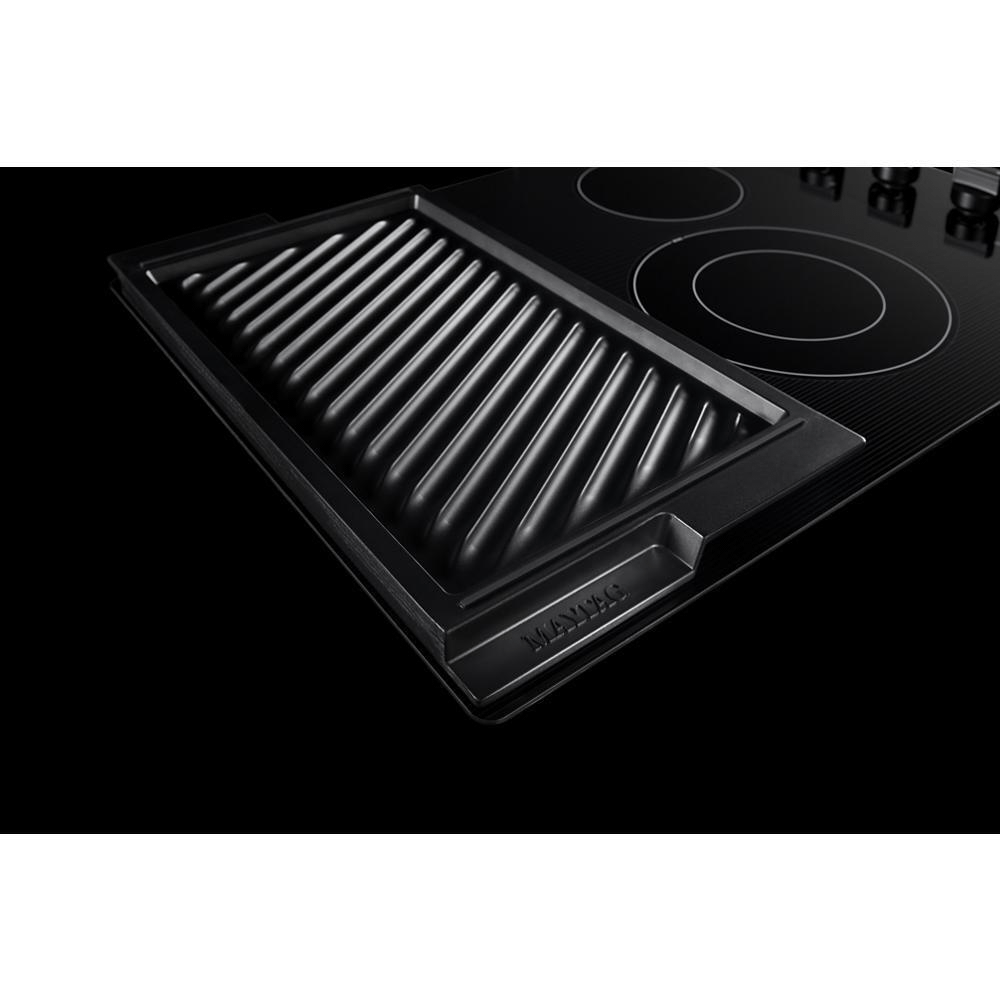

- Reversible Grill and Griddle

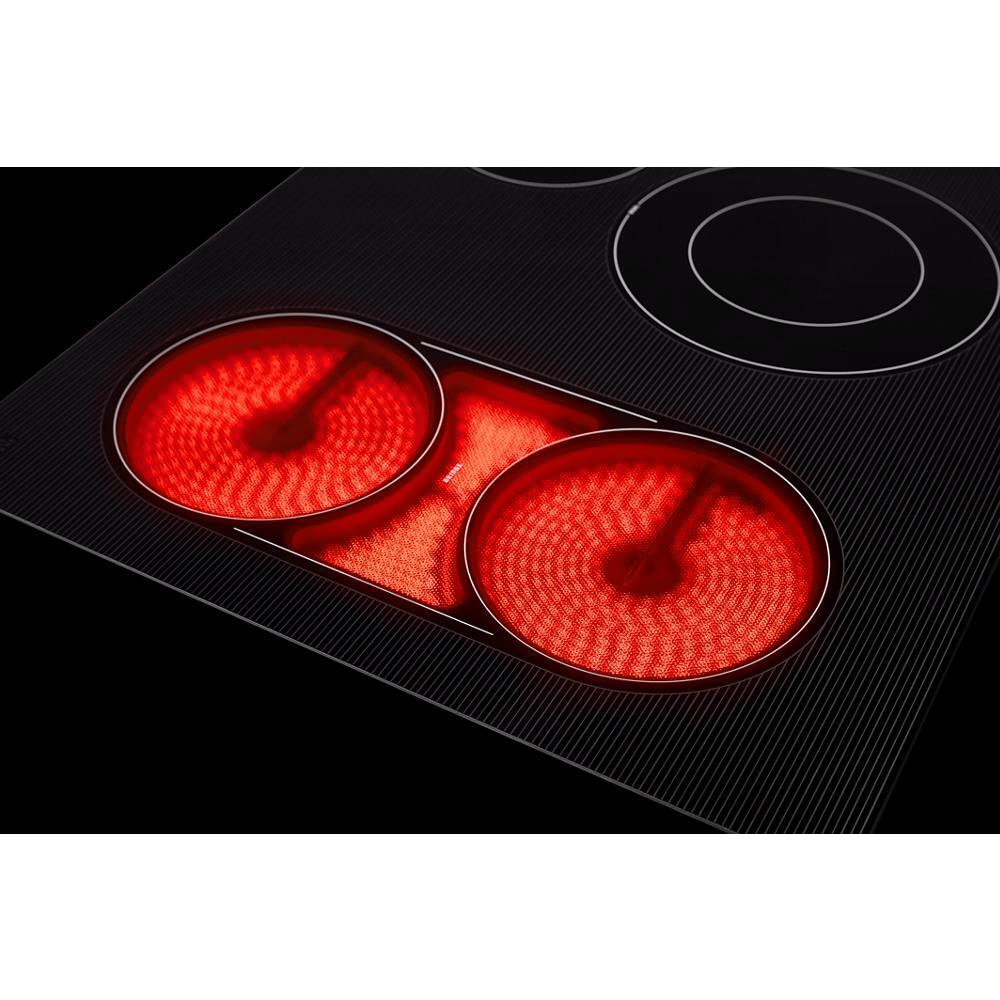

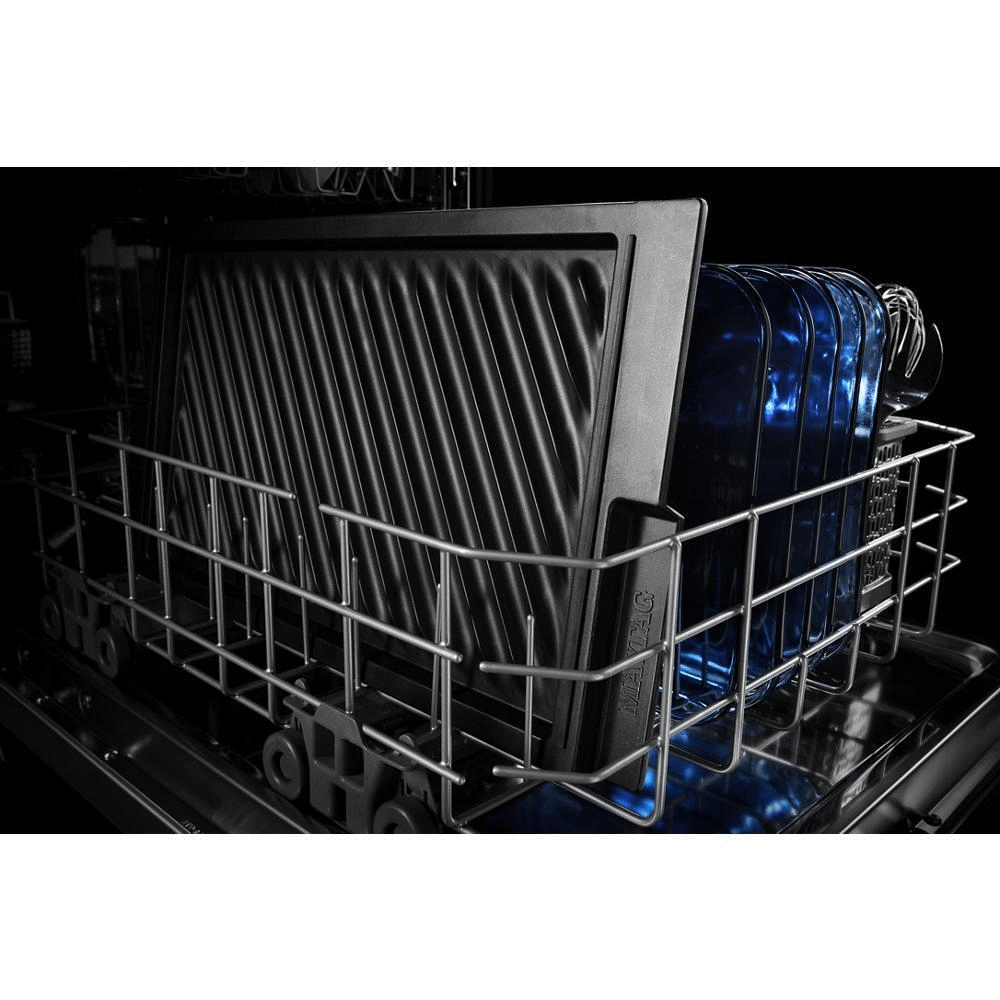

- Crank up the bridge element with the reversible grill and griddle for grilling burgers and flipping stacks of pancakes. Throw the pan into the dishwasher for easy cleanup. Rubber grips reduce slipping and scratching to ensure safe placement on the cooktop.
Certifications | |
Ada Compliant | ADA Height and Operation Compliant |
Prop65 | Standard |
Controls | |
Control Location | Right Side |
Control Type | Knobs |
Infinite Heat Controls | Yes |
Cooktop Details | |
Cooktop Surface Color | Black |
Cooktop Surface Material | Glass |
Digital Display | No |
Griddle Included | Included |
Heating Element On Indicator Light | Yes |
Hot Surface Indicator Light | Yes |
Number of Open Bays | N/A |
Details | |
Automatic Pan Detection | No |
Combinations With Oven | MEW9527; MEW9530 |
Cooktop Configuration | Burners with Integrated Grill and Griddle |
Fuel Type | Electric |
Installs Over Built-in Oven | Yes |
Lp Convertible | No |
Power Outage Compatible | No |

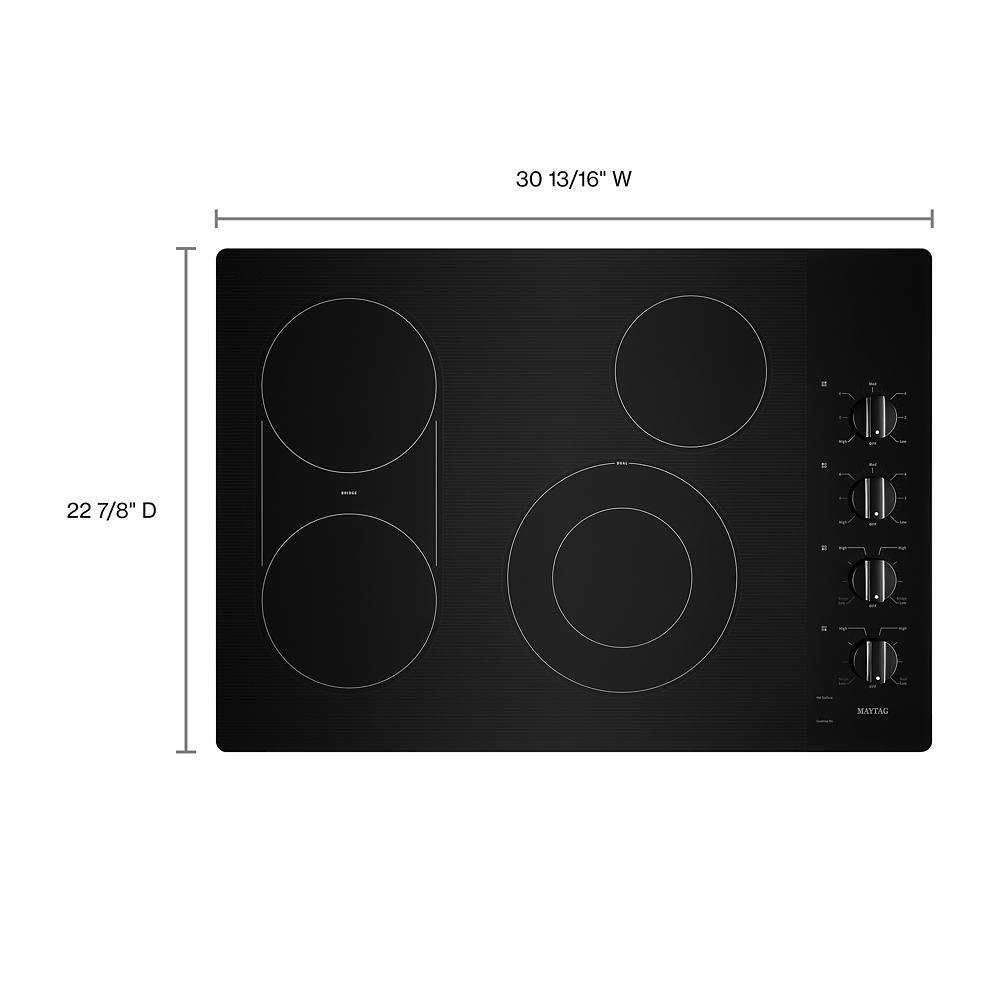

Dimensions | |
Product Height | 5.25 |
Carton Height | 9.25 |
Gross Weight | 59 |
Carton Width | 35 |
Product Depth | 22.875 |
Cutout Depth Max | 20.563 |
Cutout Width Min | 29.063 |
Cutout Depth | 20.375 |
Carton Depth | 25 |
Cutout Width | 29.063 |
Cutout Depth Min | 20.375 |
Cutout Width Max | 29.563 |
Net Weight | 54 |
Product Width | 30.8125 |
Electrical | |
208v Compatible | Yes |
Power Cord Included | No |
Element/burner Details | |
Cooktop Element Style | Radiant |
Cooktop Type | Standard |
Left Front Element-burner Power | 1,800W |
Left Front Element-burner Size | 8in. |
Left Front Element-burner Type | Bridge |
Left Rear Element-burner Power | 1,800W |
Left Rear Element-burner Size | 8in. |
Left Rear Element-burner Type | Bridge |

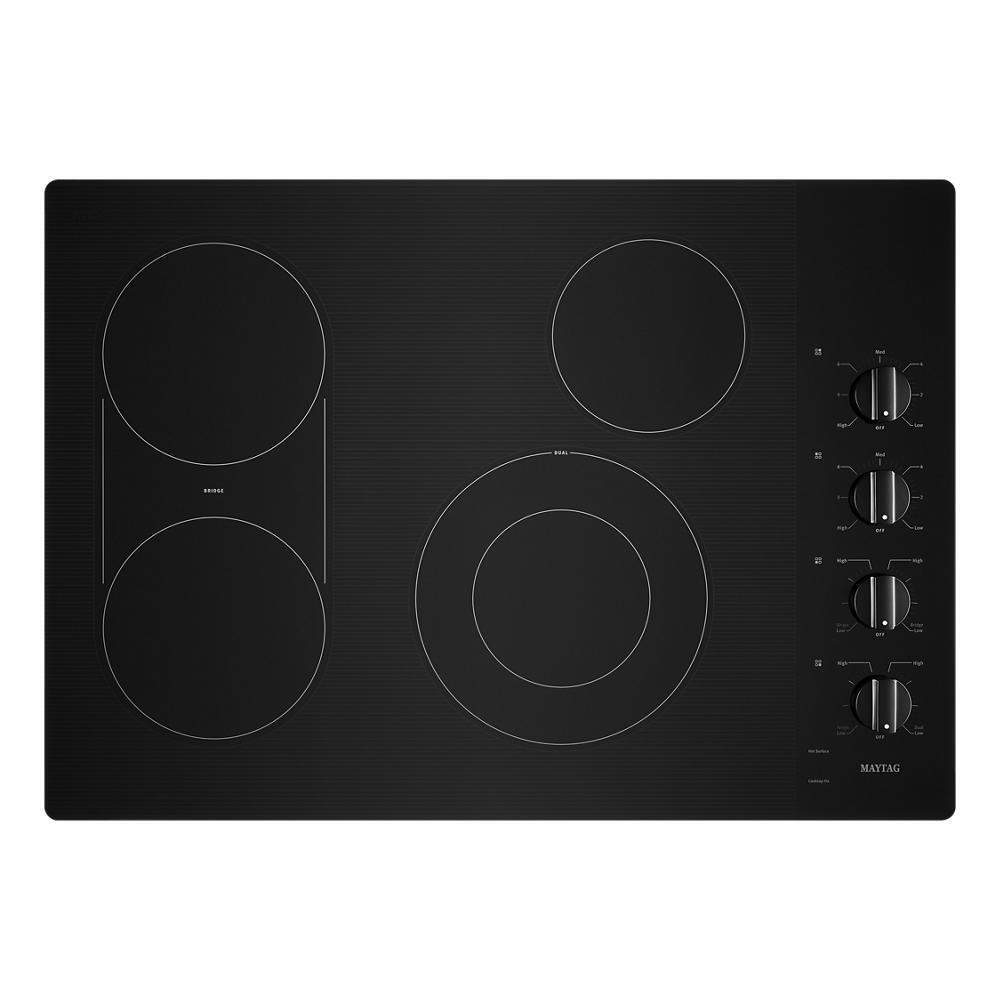

Number of Cooking Element-burners | 4 |
Power Boost | No |
Right Front Element-burner Power | 3000W/1900W |
Right Front Element-burner Size | 10in./6in. |
Right Front Element-burner Type | Dual |
Right Rear Element-burner Power | 1,200W |
Right Rear Element-burner Size | 6in. |
Right Rear Element-burner Type | Standard |
Exterior Details | |
Knob Type | Metal |
General | |
Combination Match With Oven | MEW9527; MEW9530 |
Ventilation Details | |
Downdraft Vent | No |
