Overview & Specifications
Overview & Specifications

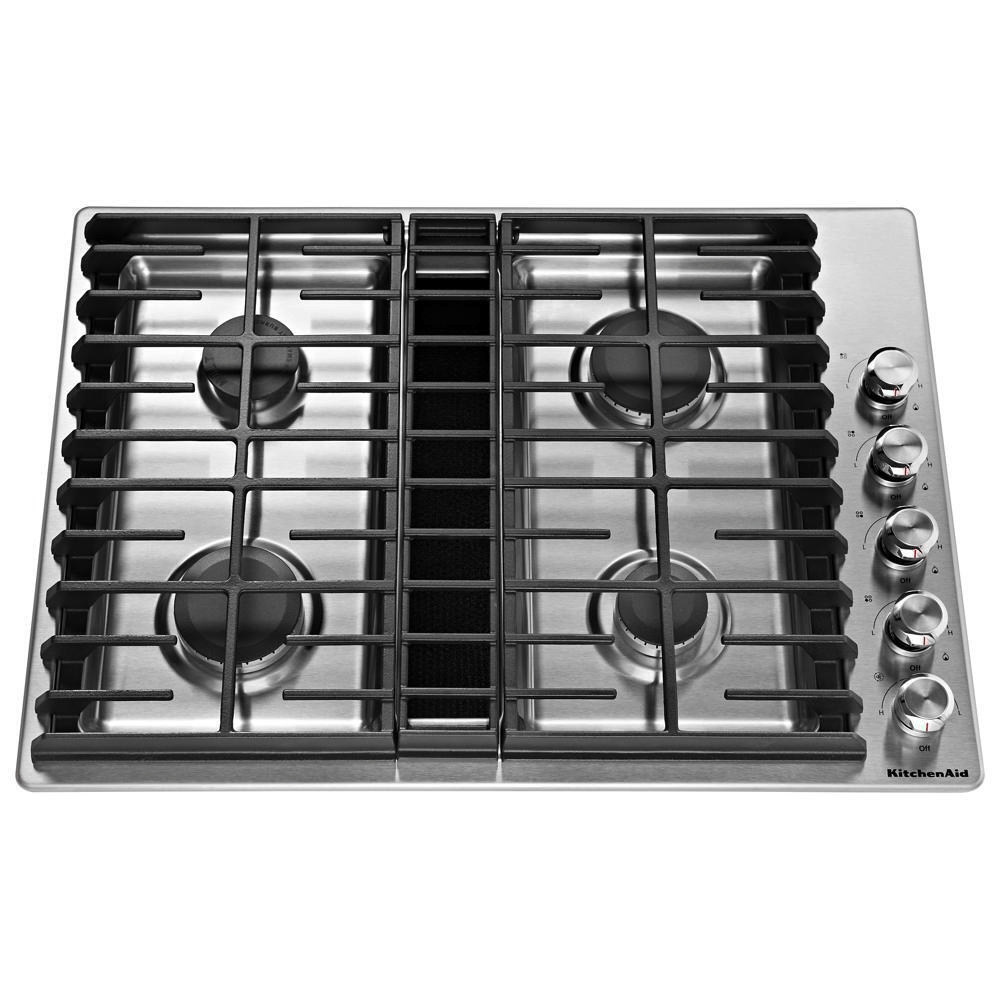

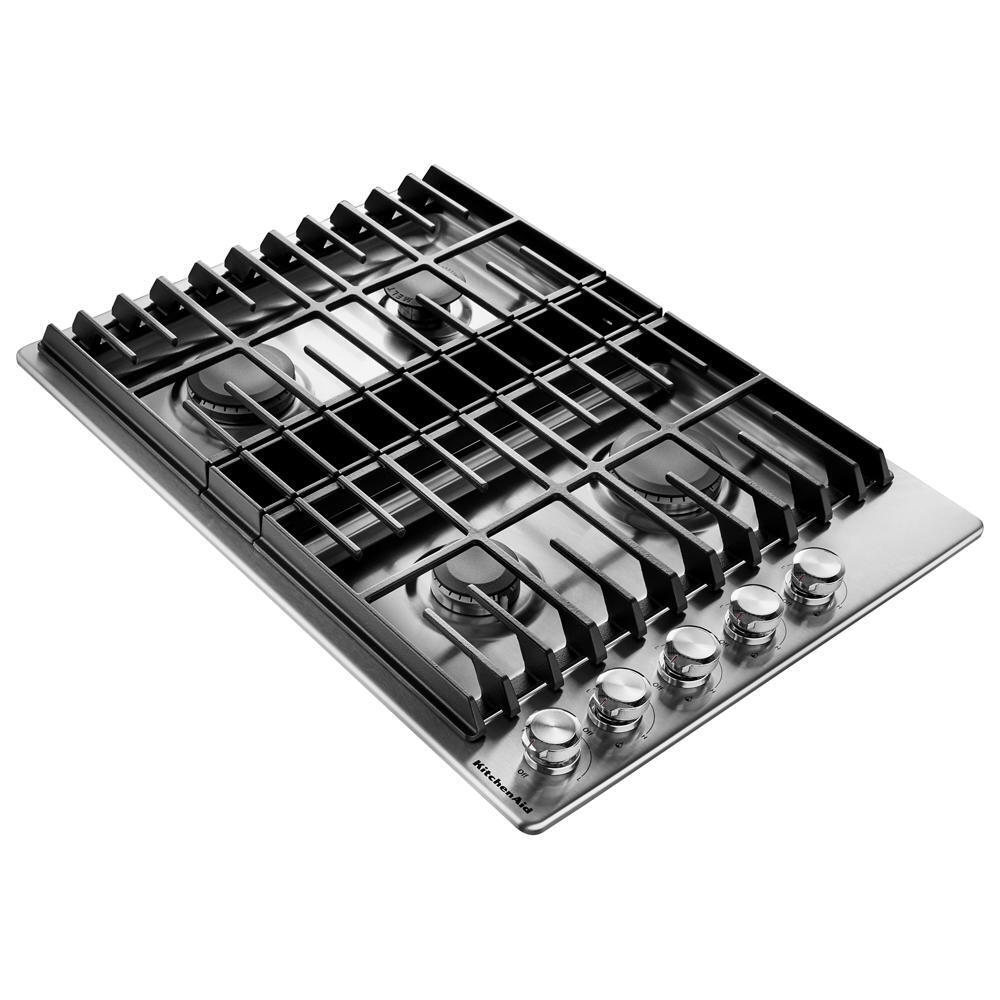

This 30 gas cooktop includes Downdraft, an integrated ventilation system that doesn t require a separate hood. The cooktop features a 17K BTU professional burner to achieve both high heat needed for searing and low simmer settings. The 5K BTU Even-Heat™ Simmer Burner enables precise simmering and melting while the 300 CFM exhaust rating means the venting can handle it all.
- 15K BTU Professional Burner
- Reaches the high temperatures required to quickly get liquids to a boil and for high-temperature cooking techniques including getting a great sear on meat.
- 17K BTU Professional Burner
- Provides the ability to use high-temperature cooking methods such as searing, stir-frying, and wok cooking as well as low temperatures suitable for simmering.
- 3-Speed Fan Control
- Can be precisely matched to cooking needs, effectively removing steam, grease, and odors from the air.
- 300 CFM Exhaust Rating
- Handles the venting requirements of high temperature cooking techniques like pan searing and stir-frying.
- 5K BTU Even-Heat(TM) Simmer Burner
- A diffuser plate allows more control of the flame at the lowest setting, for more precise simmering and melting.
- Convertible to Duct-Free Ventilation
- Allows a downdraft cooktop to be placed nearly anywhere in the kitchen using a duct-free conversion kit (not included). This filters and recirculates the air without running ductwork, ideal for kitchens with installation restrictions or ducting limitations.
- Downdraft Ventilation
- Integrates the ventilation system into the cooking surface so that a separate hood is not needed. Smoke and odors can be removed and taken outside or filtered and recirculated inside. A duct-free kit is available for purchase separately.
- Electronic Ignition and Automatic Re-Ignition
- Lights burners with an electric spark instead of a pilot light. For more reliable performance, burners are relit if the flame is blown out.
- Full-Width Cast-Iron Grates
- Enhance the beautiful look of the cooktop and allow easy movement of cookware around the entire cooking surface.
- LP Conversion Kit
- Allows you to convert the cooktop so it can be used with LP gas.
- Melt Cap
- Melt chocolate or butter, simmer delicate sauces, or poach eggs on a low-power burner, thanks to a wider burner cap that shields and diffuses the flame to produce a gentler, low-power heat.
- Stainless Steel Knobs
- Enhance the look of the cooktop surface with sturdy construction that adds to their premium feel.
Certifications | |
Ada Compliant | No |
Prop65 | Standard |
Ul | Yes |
Controls | |
Control Location | Right Side |
Control Type | Knobs |
Infinite Heat Controls | Yes |
Cooktop Details | |
Cooktop Surface Color | Color Coordinated |
Cooktop Surface Material | Stainless Steel |
Digital Display | No |
Heating Element On Indicator Light | No |
Hot Surface Indicator Light | No |
Ignition Type | Flame-Sensing™ Re-ignition |
Number of Open Bays | N/A |
Details | |
Automatic Pan Detection | No |
Fuel Type | Gas |
Installs Over Built-in Oven | No |
Lp Convertible | Yes |
Number of Vent Speeds | 3 |
Power Outage Compatible | Yes |

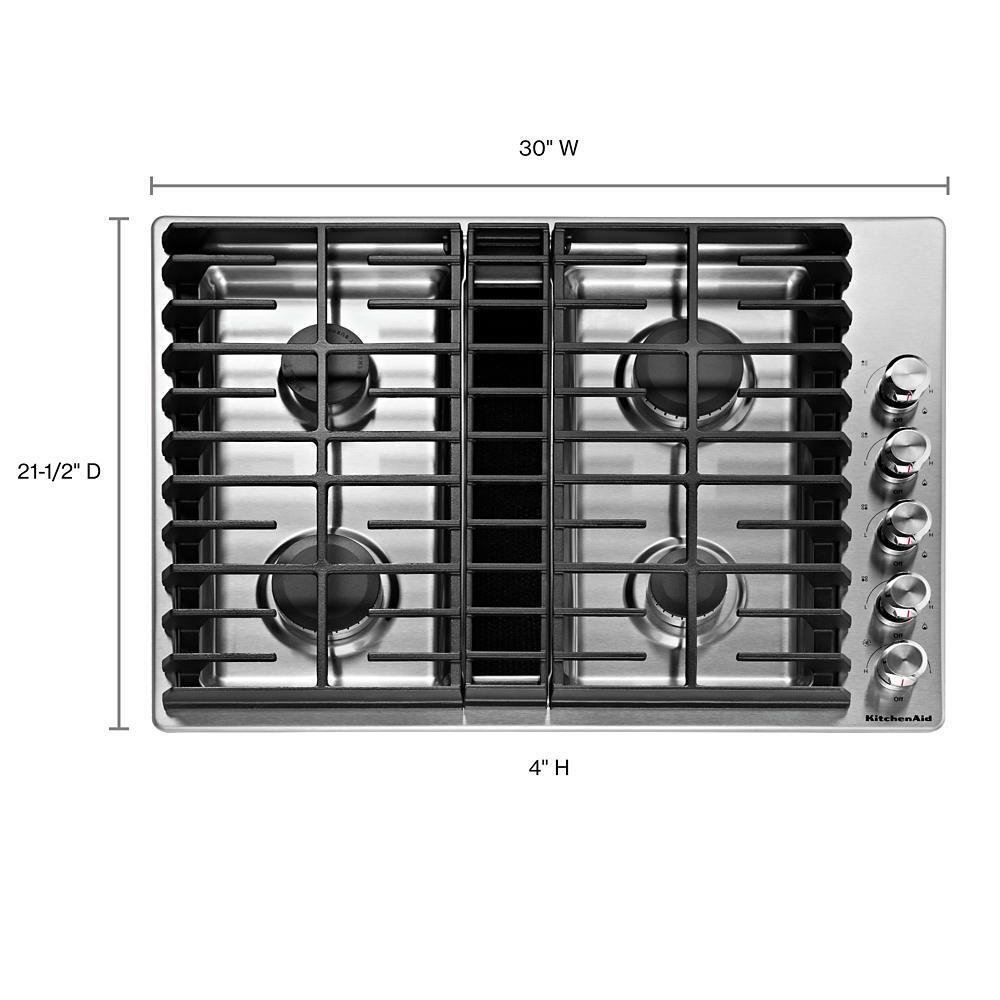

Dimensions | |
Product Height | 18.4375 |
Cutout Depth | 19.938 |
Carton Height | 23.78 |
Gross Weight | 78 |
Carton Depth | 26.38 |
Carton Width | 35.12 |
Cutout Width | 28.625 |
Product Depth | 21.5 |
Net Weight | 66 |
Product Width | 30.0 |
Electrical | |
Power Cord Included | Yes |
Element/burner Details | |
Cooktop Element Style | Sealed Burner |
Cooktop Type | Downdraft |
Left Front Element-burner Power | 17,000 BTU |
Left Front Element-burner Type | Burner |
Left Rear Element-burner Power | 5,000 BTU |
Left Rear Element-burner Type | Even-Heat™ |
Number of Cooking Element-burners | 4 |
Power Boost | No |
Right Front Element-burner Power | 10,000 BTU |
Right Front Element-burner Type | Burner |
Right Rear Element-burner Power | 15,000 BTU |
Right Rear Element-burner Type | Burner |
Exterior Details | |
Knob Color | Stainless Steel |
Knob Type | Metal |
Grate Details | |
Grate Details | Cast Iron Grates; Continuous; Matte Finish |
Number of Grates | 3 |
Ventilation Details | |
Cfm Motor Class | 300 |
Downdraft Vent | Yes |
