Overview & Specifications
Overview & Specifications

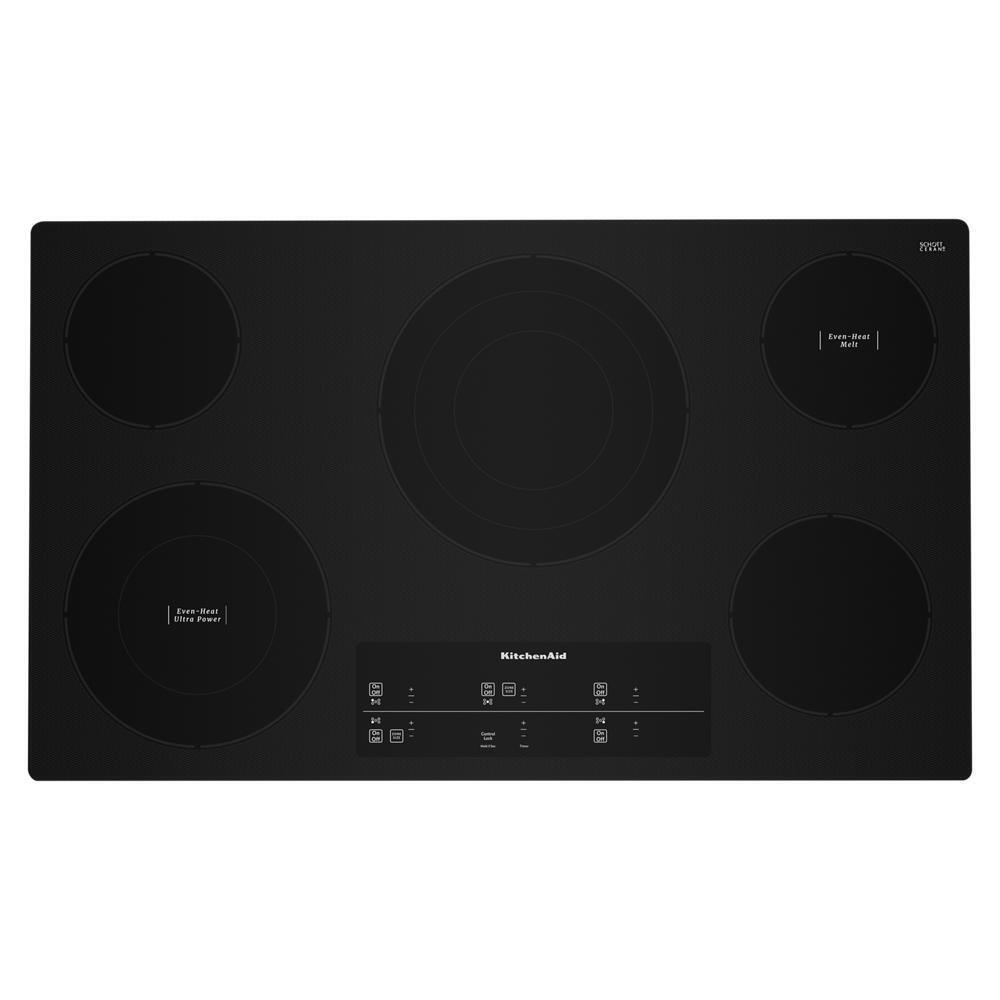

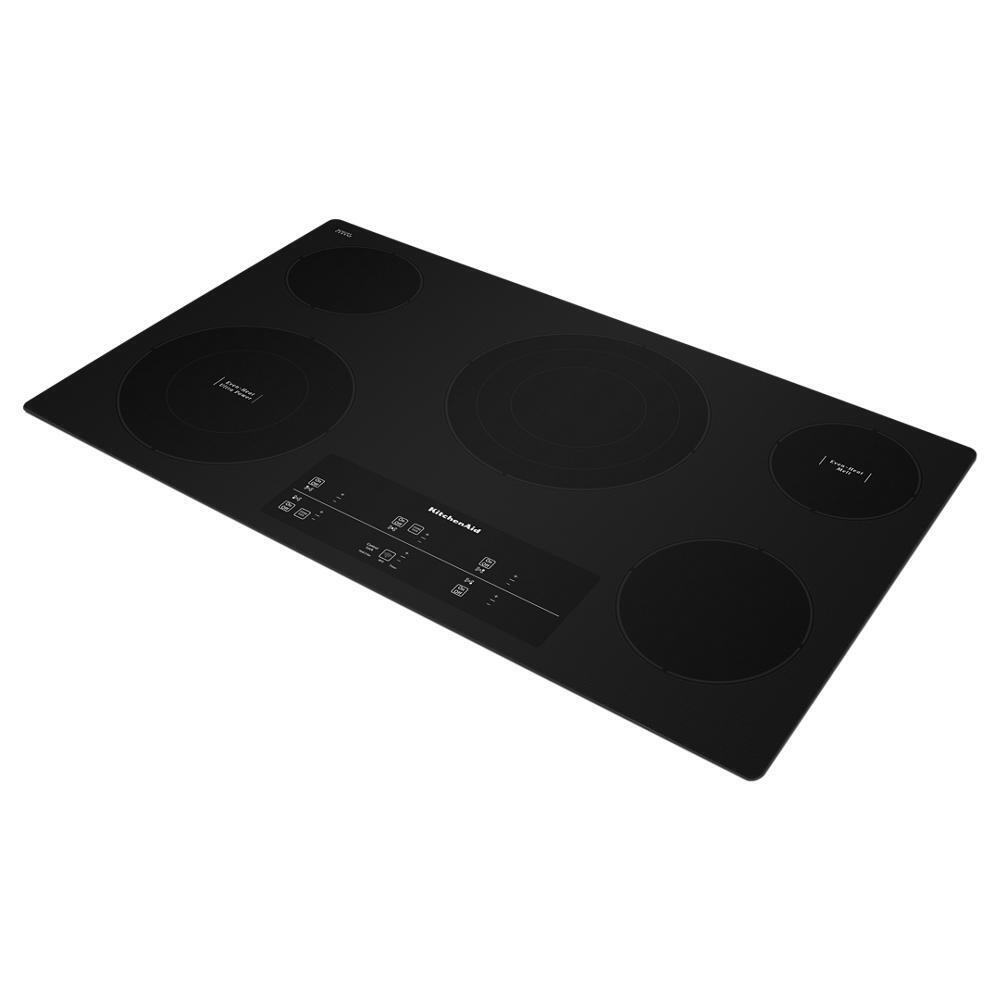

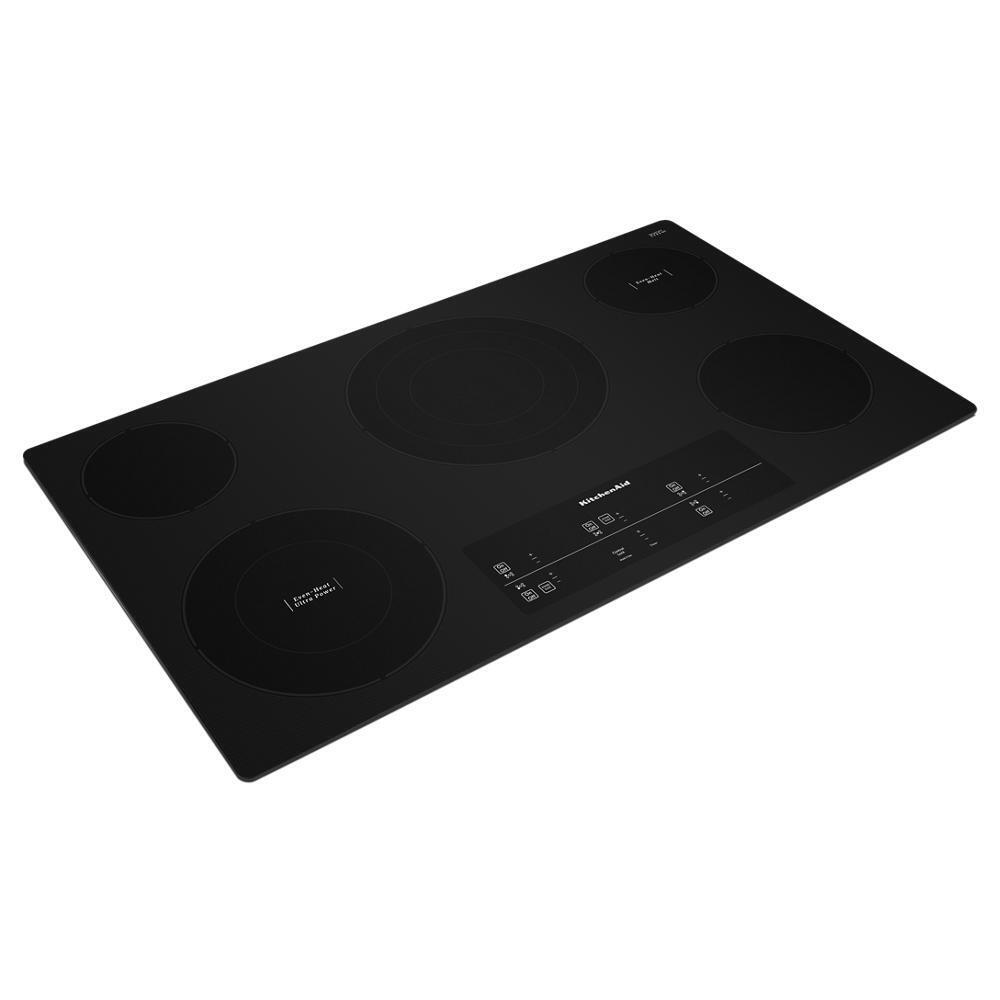

This 36" electric cooktop combines the lasting beauty of a black glass surface with the performance of a 10'' Even-Heat™ Ultra Power™ Element with Simmer Setting, two 6'' Even-Heat™ Elements with Melt Setting, and 12''/9''/6'' Triple-Ring Round Element that maximizes your flexibility with three distinct rings to allow for element selection based on cookware size.

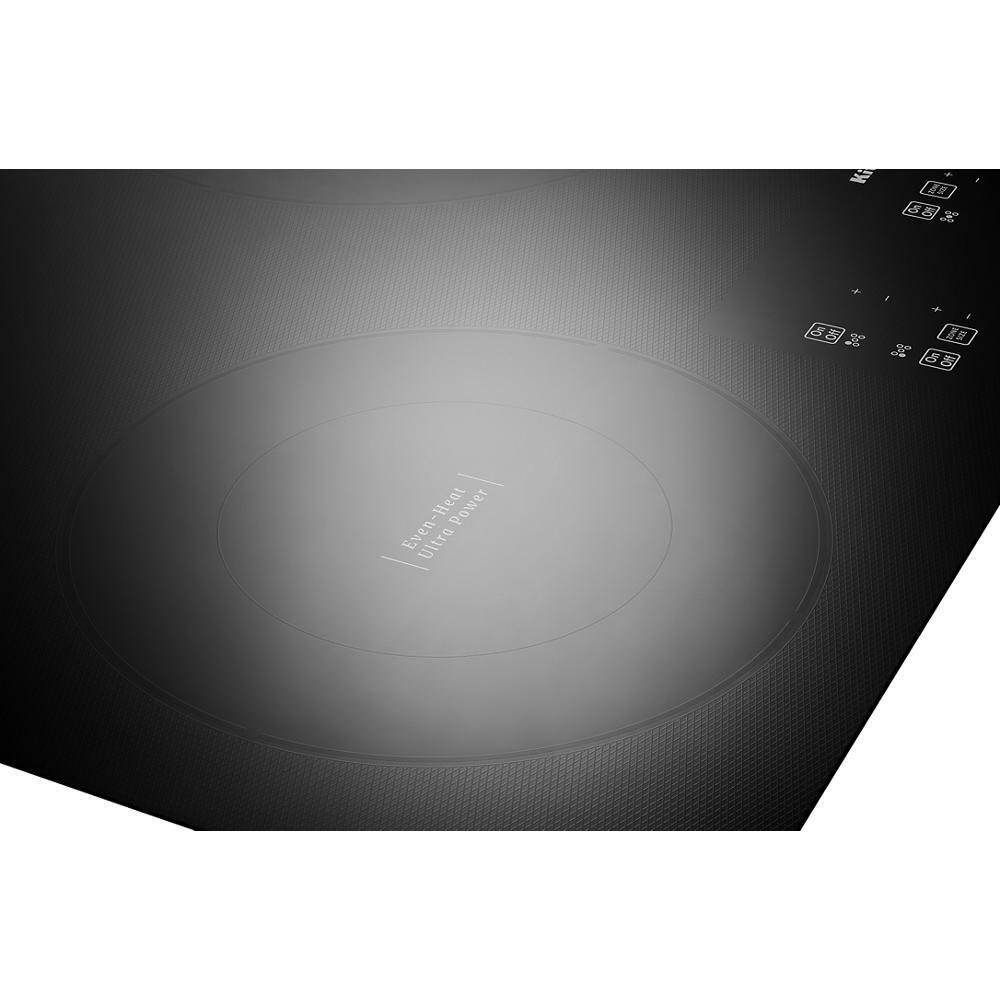

- 10''/6'' Even-Heat(TM) Ultra Power(TM) Element with Simmer Setting
- Adds versatility for high and low temperature cooking. Even-Heat(TM) Technology delivers constant power and a range of simmer settings. Two element sizes in one make it ideal for boiling, yet also accept small pans for various cooking tasks.
- 12''/9''/6'' Triple-Ring Round Element
- Maximizes your flexibility with three distinct sizes that allow for element selection based on cookware size.
- 6'' 1200-Watt Round Element
- Can reach a power output of up to 1200-watts to handle your daily cooking needs.

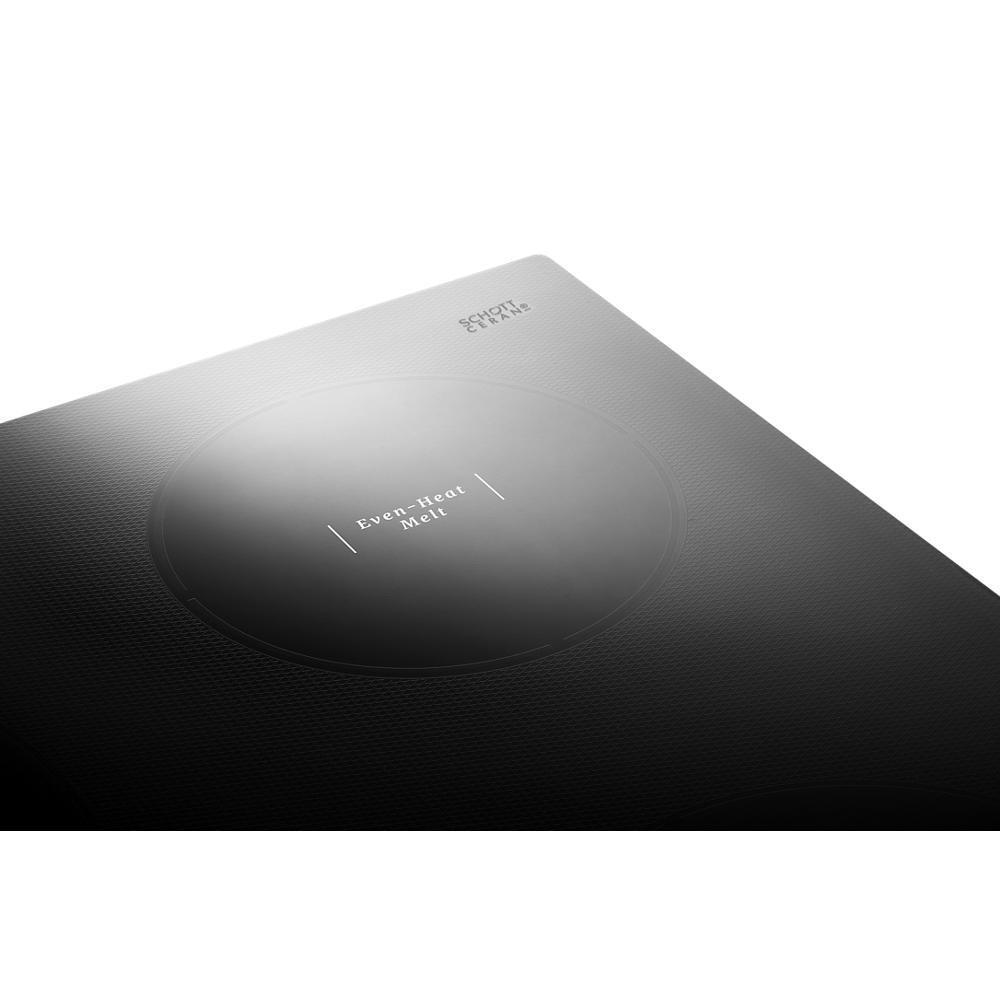

- 6'' Even-Heat(TM) Element with Melt Setting
- Combines the benefits of Even-Heat(TM) Technology with a dedicated setting that reaches the low temperatures needed to melt chocolate or butter without scorching.
- 8'' 1800-Watt Round Element
- Efficiently heats a variety of pan sizes and can reach a power output of up to 1800-watts for every day use.
- Control Lock
- Disables cooking mode for easy cleaning when not in use.
- Hot Surface Indicator
- Protects you by providing a visual indication if a cooking surface is on or still hot, so you can create with confidence.

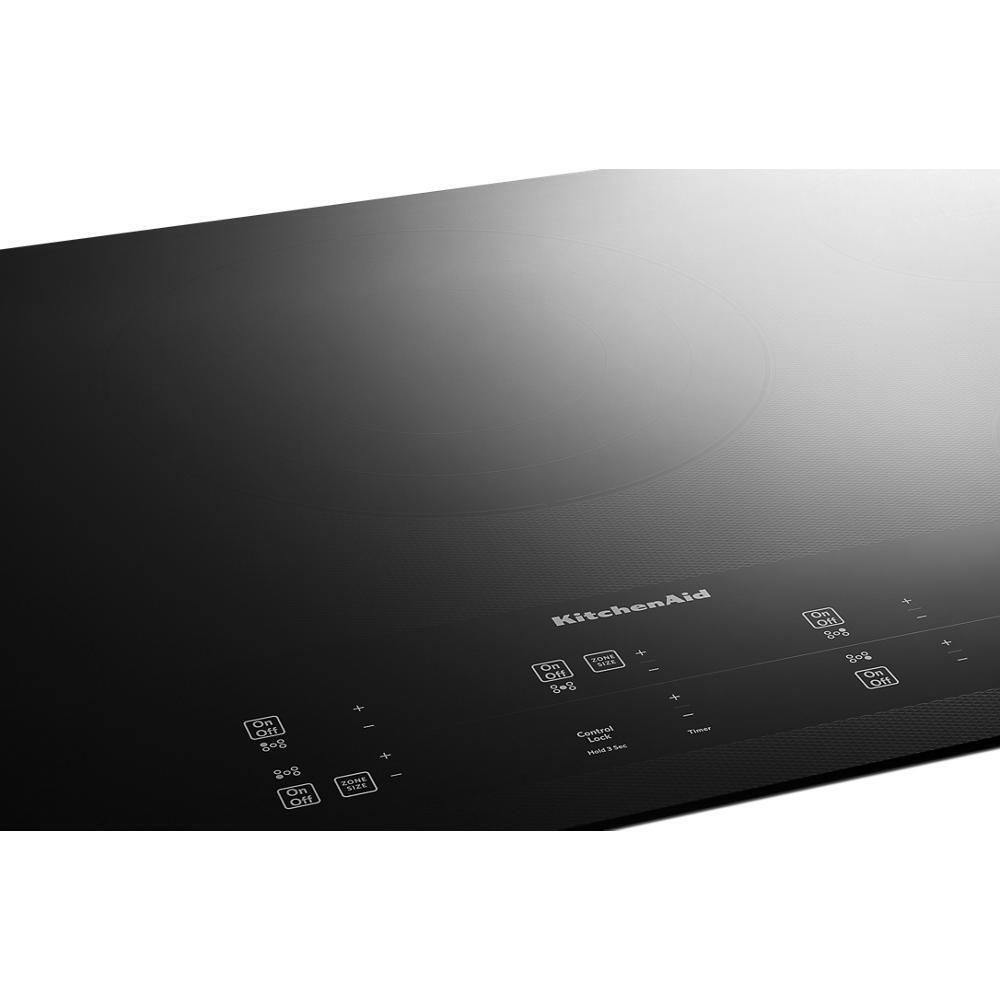

- Touch-Activated Controls
- Offer an intuitive, easy-to-use touch screen experience.
Certifications | |
Ada Compliant | ADA Height and Operation Compliant |
Prop65 | Standard |
Ul | Yes |
Controls | |
Control Location | Right Front |
Control Type | Tap Touch |
Infinite Heat Controls | No |
Cooktop Details | |
Cooktop Surface Color | Black |
Cooktop Surface Material | Glass |
Digital Display | No |
Griddle Included | N/A |
Heating Element On Indicator Light | Yes |
Hot Surface Indicator Light | Yes |
Details | |
Automatic Pan Detection | No |
Automatic Pan Size Adjustment | No |
Combinations With Oven | KOES527P; KOES530P; KOSC504; KOSE500; KOSE507; KOSE900; KOST100; KOST107 |
Cooktop Configuration | All Burners |
Fuel Type | Electric |
Installs Over Built-in Oven | Yes |
Lp Convertible | No |
Power Outage Compatible | No |
Dimensions | |
Product Height | 3.625 |
Carton Height | 9.25 |
Gross Weight | 50 |
Carton Depth | 25 |
Carton Width | 40.75 |
Product Depth | 20.25 |
Cutout Depth Min | 20.375 |
Cutout Width Max | 35.563 |
Net Weight | 44 |
Product Width | 34.4286 |
Cutout Depth Max | 20.563 |
Cutout Width Min | 34.563 |
Electrical | |
208v Compatible | Yes |
Power Cord Included | No |
Element/burner Details | |
Center Rear Element-burner Power | 3000/2200/1100W |
Center Rear Element-burner Size | 12in./9in./6in. |
Center Rear Element-burner Type | Triple |
Cooktop Element Style | Radiant |
Cooktop Type | Standard |
Left Front Element-burner Power | 3200/2300W |
Left Front Element-burner Size | 10in./6in. |
Left Front Element-burner Type | Even Heat Dual |
Left Rear Element-burner Power | 1,200W |
Left Rear Element-burner Size | 6in. |
Left Rear Element-burner Type | Standard |
Number of Cooking Element-burners | 5 |
Power Boost | No |
Right Front Element-burner Power | 1,800W |
Right Front Element-burner Size | 8in. |
Right Front Element-burner Type | Standard |
Right Rear Element-burner Power | 1,300W |
Right Rear Element-burner Size | 6in. |
Right Rear Element-burner Type | Even Heat |
General | |
Combination Match With Oven | KOES527P; KOES530P; KOSC504; KOSE500; KOSE507; KOSE900; KOST100; KOST107 |
Ventilation Details | |
Downdraft Vent | No |
