Overview & Specifications
Overview & Specifications

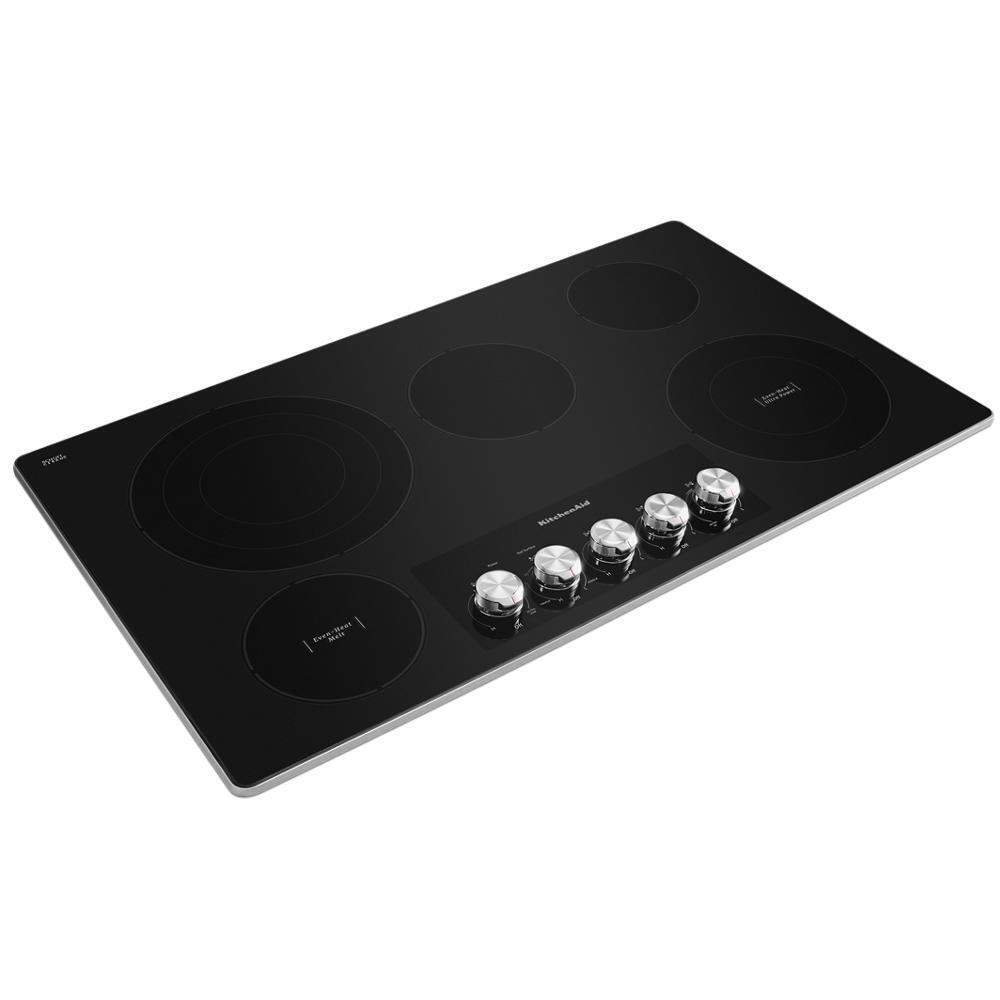

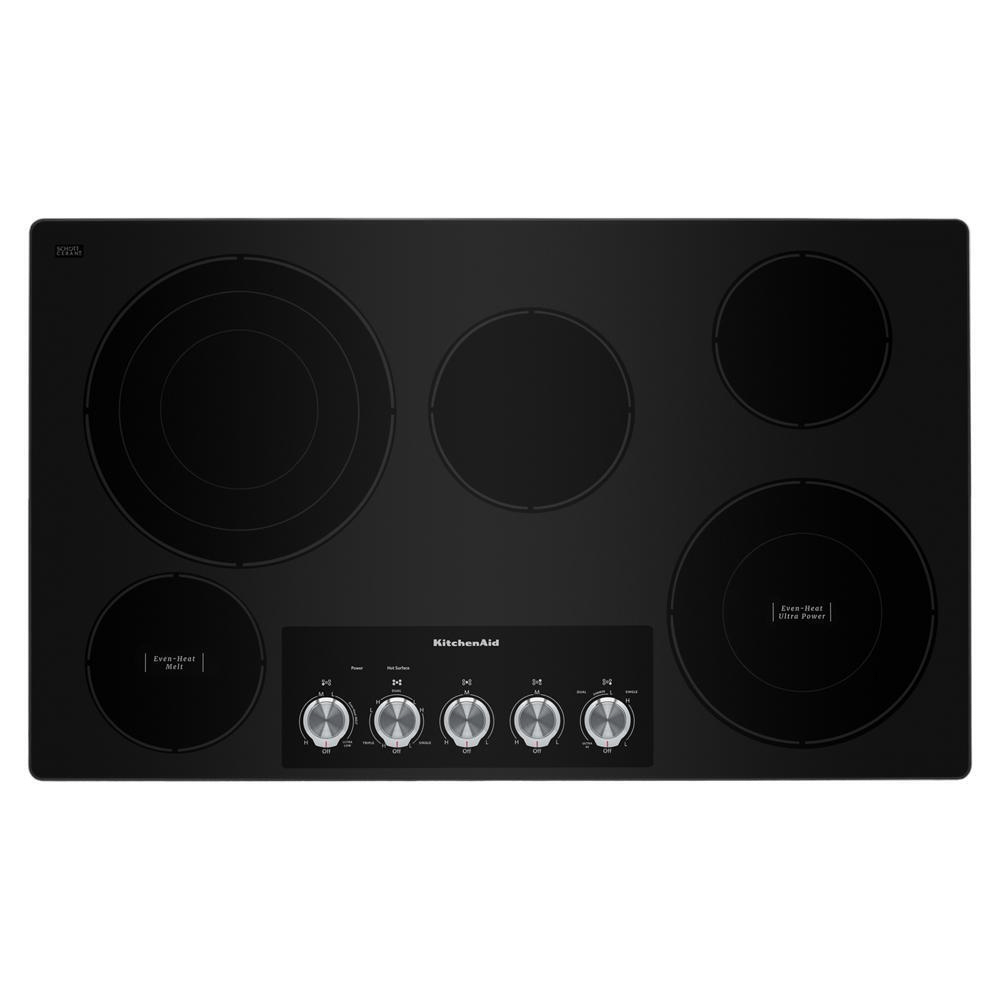

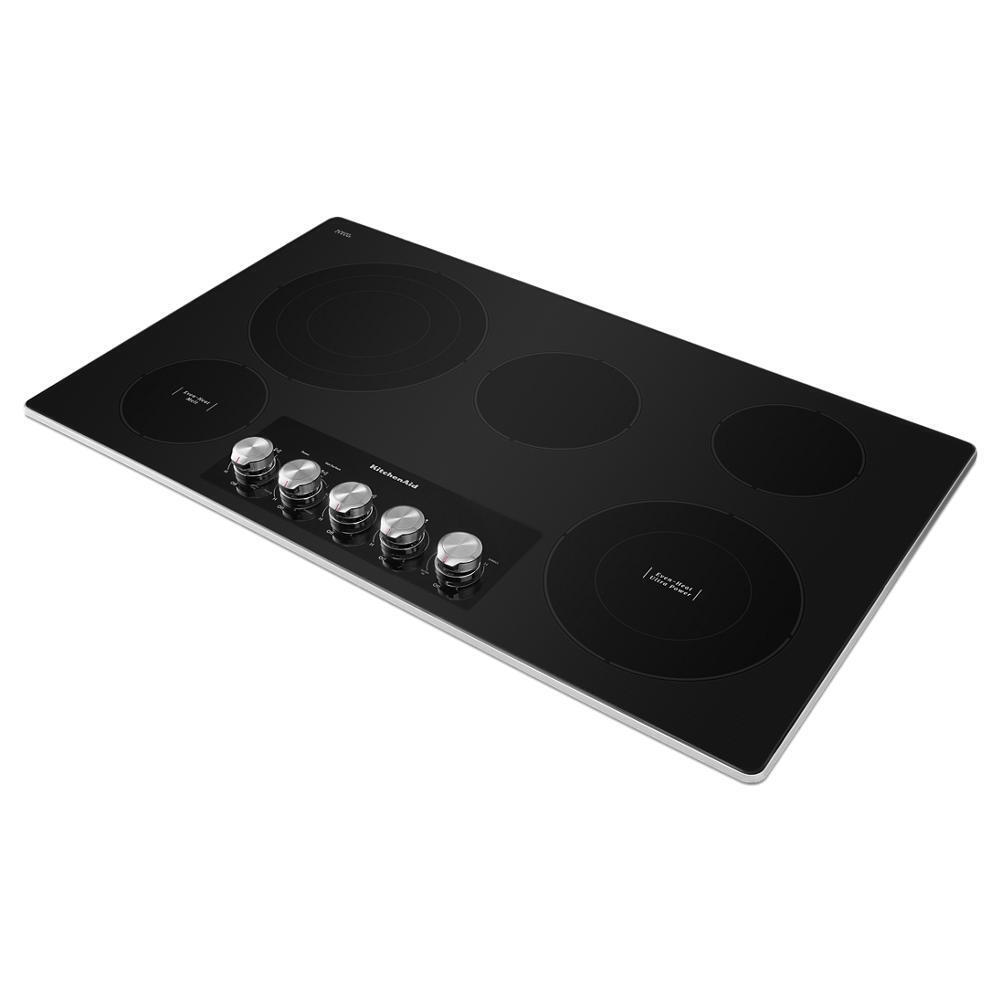

This 36" electric cooktop combines timeless style with the performance of five radiant elements, including a 10'' Even-Heat™ Ultra Power™ Element with Simmer Setting, a 6'' Even-Heat™ Elements with Melt Setting, and a 12''/9''/6'' Triple-Ring Round Element that maximizes your flexibility with three distinct rings that allow for element selection based on cookware size.

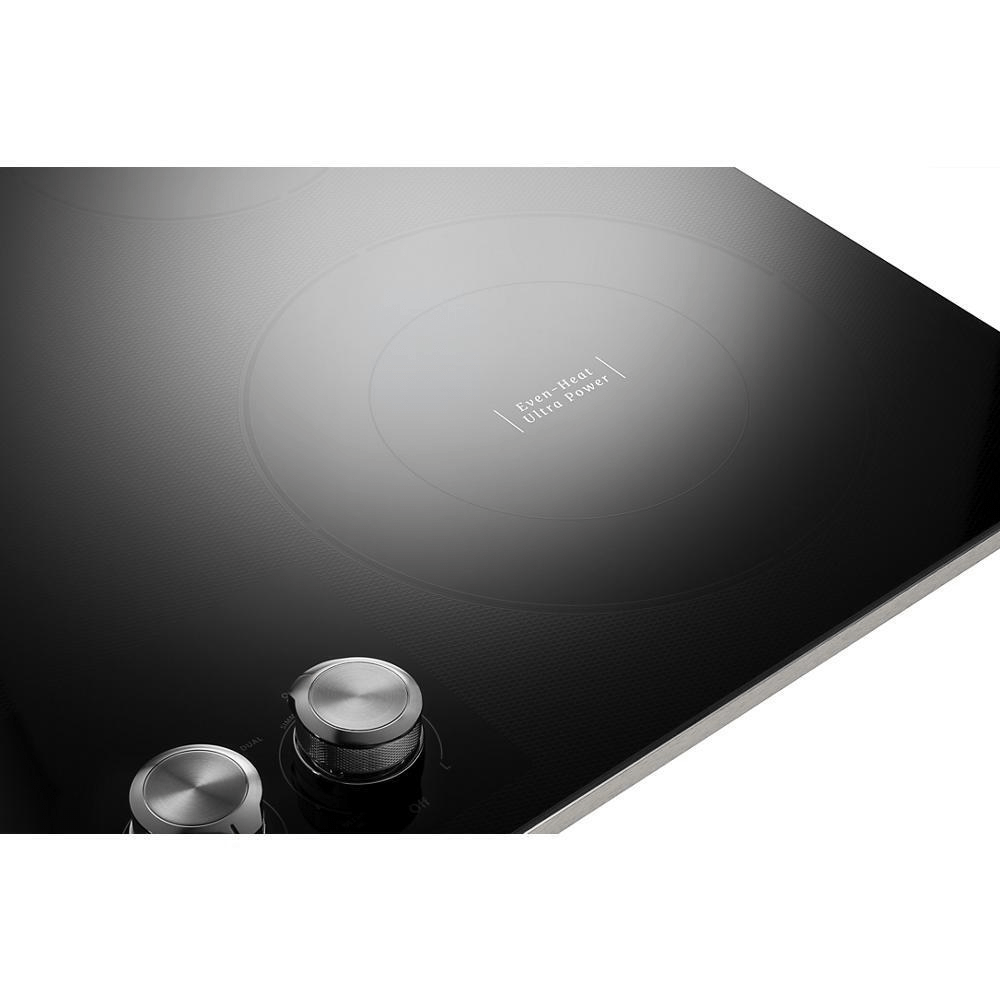

- 10'' Even-Heat(TM) Ultra Power(TM) Element with Simmer Setting
- Provides greater versatility for high and low temperature cooking techniques. Even-Heat(TM) Technology maintains a constant supply of power and delivers a range of simmer settings.

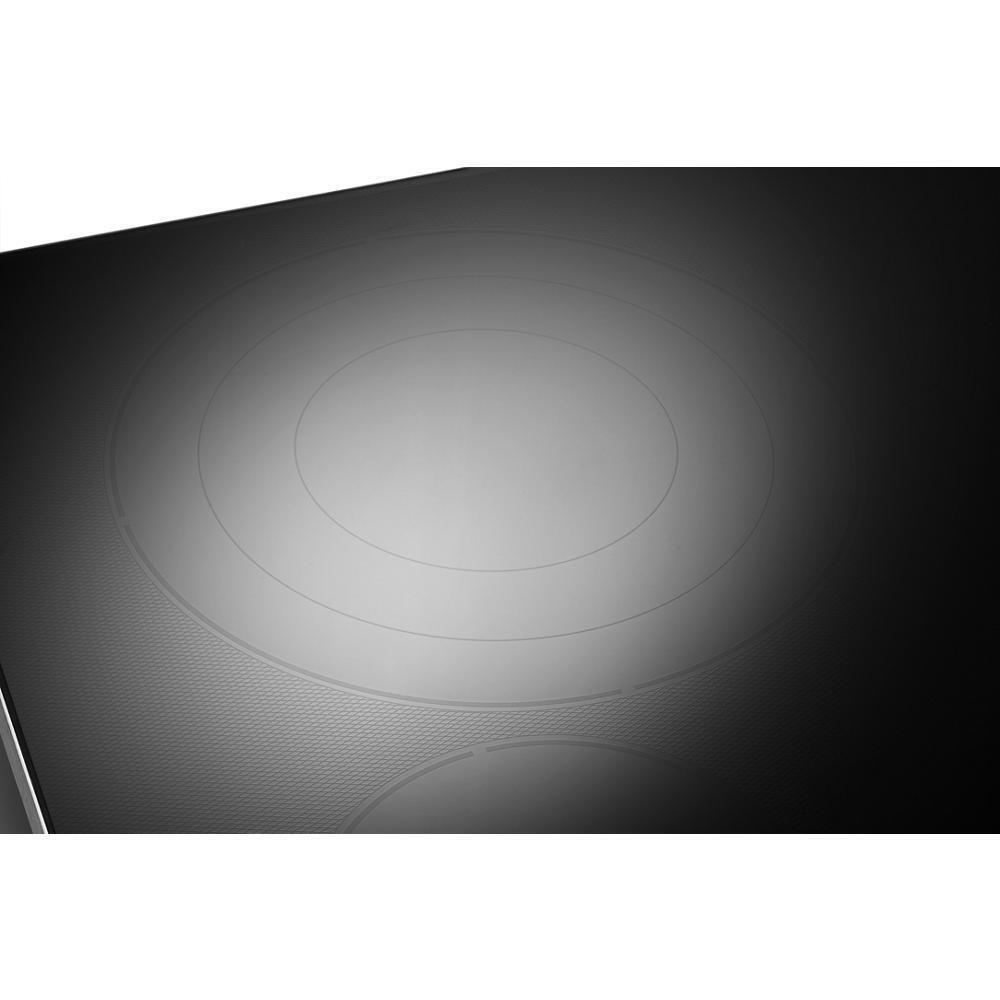

- 12''/9''/6'' Triple-Ring Round Element
- Maximizes your flexibility with three distinct sizes that allow for element selection based on cookware size.

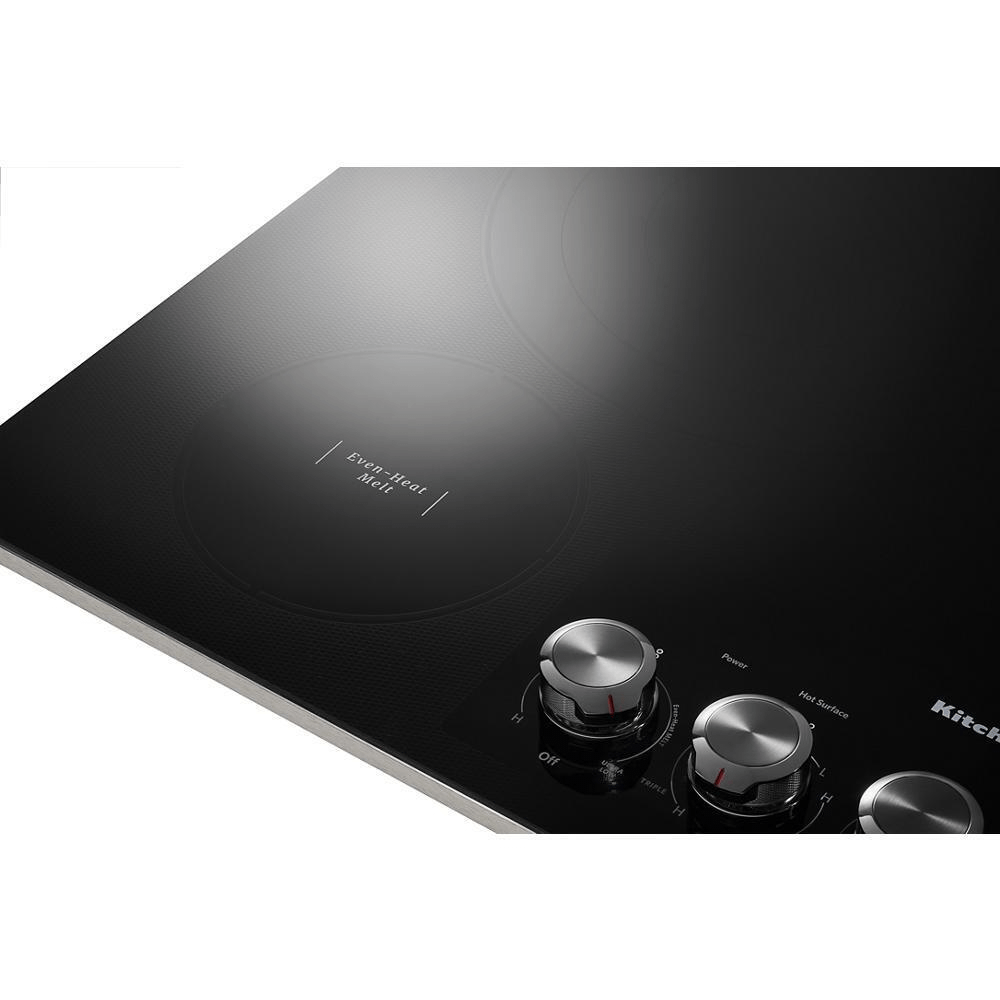

- 6'' Even-Heat(TM) Element with Melt Setting
- Combines the benefits of Even-Heat(TM) Technology with a dedicated setting that reaches the low temperatures needed to melt chocolate or butter without scorching.
- Control Lock
- Disables cooking mode for easy cleaning when not in use.
- Hot Surface Indicator
- Protects you by providing a visual indication if a cooking surface is on or still hot, so you can create with confidence.

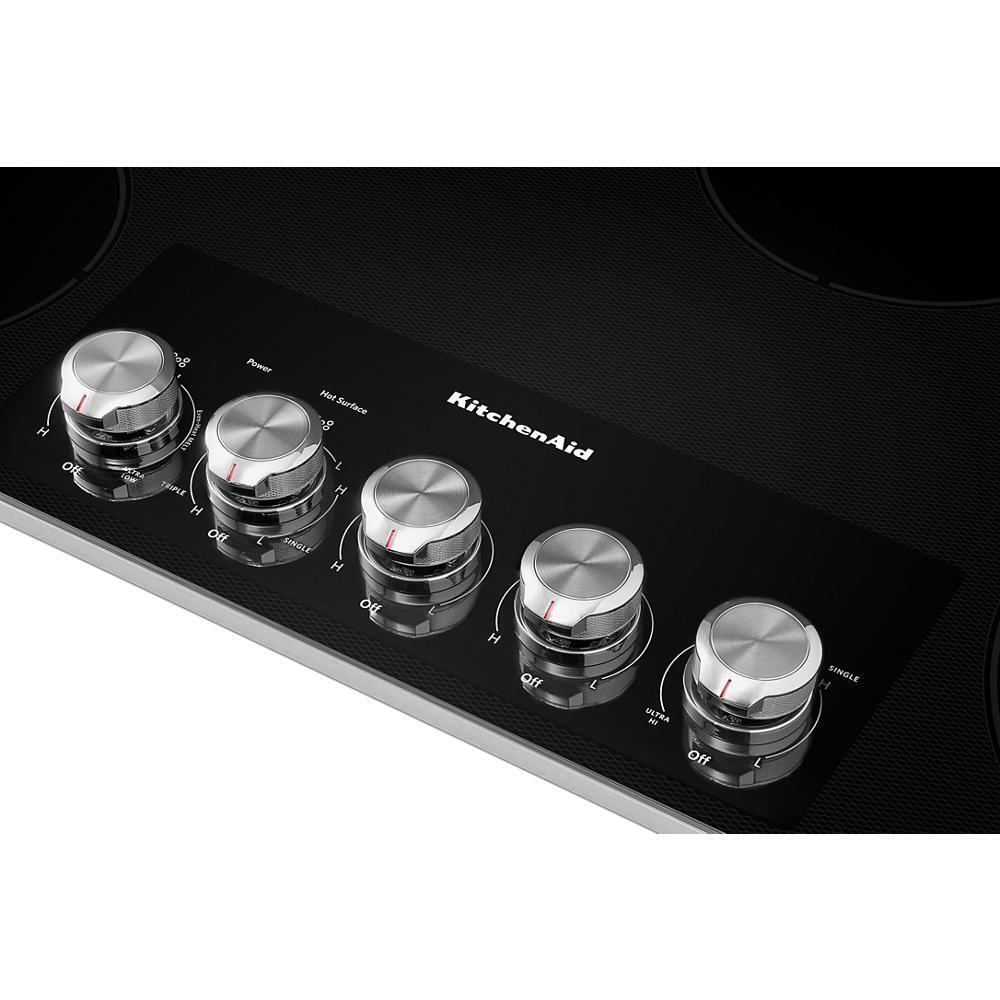

- Metal Control Knobs
- Substantial, professionally-inspired stainless steel knobs easily adjust the cooktop's elements through an infinite number of heat settings, offering responsiveness and flexibility in control.
- Two 6'' 1200-Watt Round Elements
- Can reach a power output of up to 1200-watts to handle your daily cooking needs.
Certifications | |
Ada Compliant | ADA Height and Operation Compliant |
Prop65 | Standard |
Controls | |
Control Location | Front |
Control Type | Knobs |
Infinite Heat Controls | Yes |
Cooktop Details | |
Cooktop Surface Color | Black |
Cooktop Surface Material | Glass |
Digital Display | No |
Griddle Included | N/A |
Heating Element On Indicator Light | Yes |
Hot Surface Indicator Light | Yes |
Number of Open Bays | N/A |
Details | |
Automatic Pan Detection | No |
Combinations With Oven | KOES527P; KOES530P; KOSC504; KOSE500; KOSE507; KOSE900; KOST100; KOST107 |
Cooktop Configuration | All Burners |
Fuel Type | Electric |
Installs Over Built-in Oven | Yes |
Lp Convertible | No |
Power Outage Compatible | No |

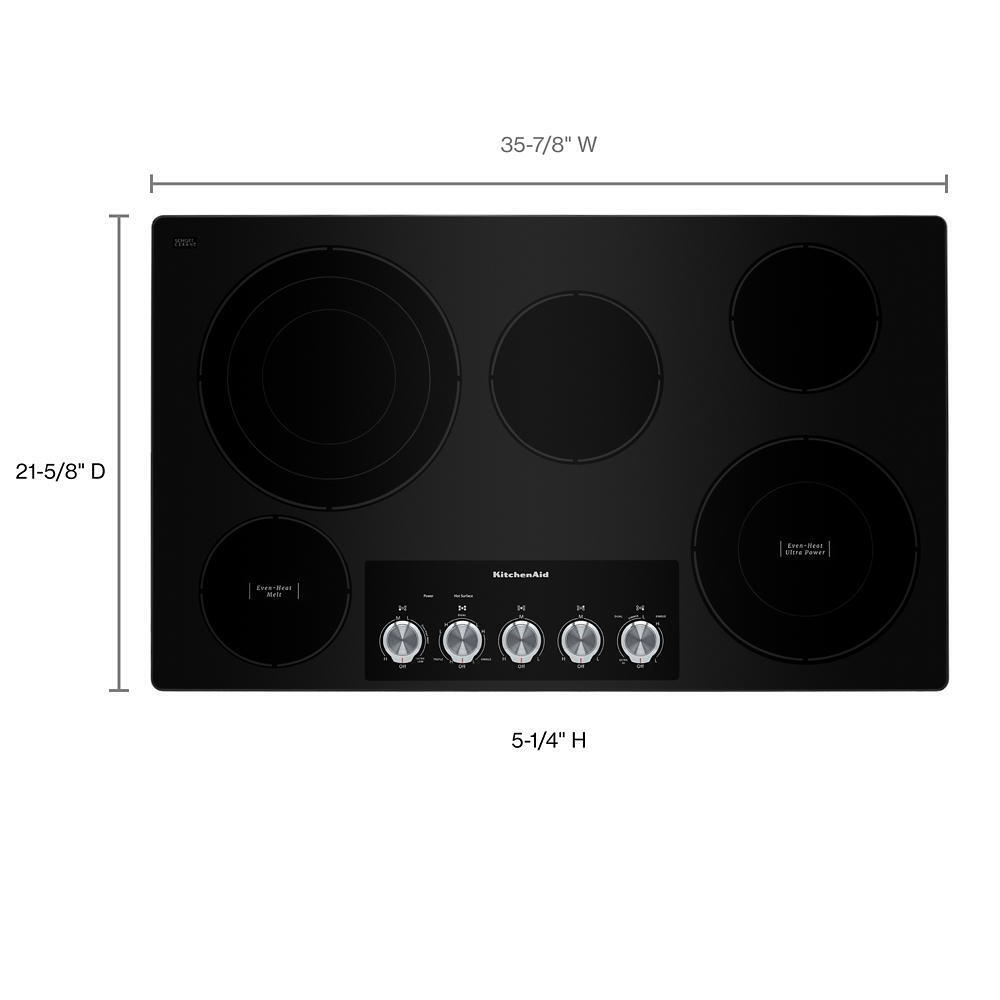

Dimensions | |
Product Height | 5.25 |
Carton Height | 9.25 |
Gross Weight | 56 |
Carton Width | 40.75 |
Product Depth | 21.75 |
Cutout Depth Max | 20.563 |
Cutout Width Min | 34.563 |
Cutout Depth | 20.375 |
Carton Depth | 25 |
Cutout Width | 34.563 |
Cutout Depth Min | 20.375 |
Cutout Width Max | 35.563 |
Net Weight | 44 |
Product Width | 36.3125 |

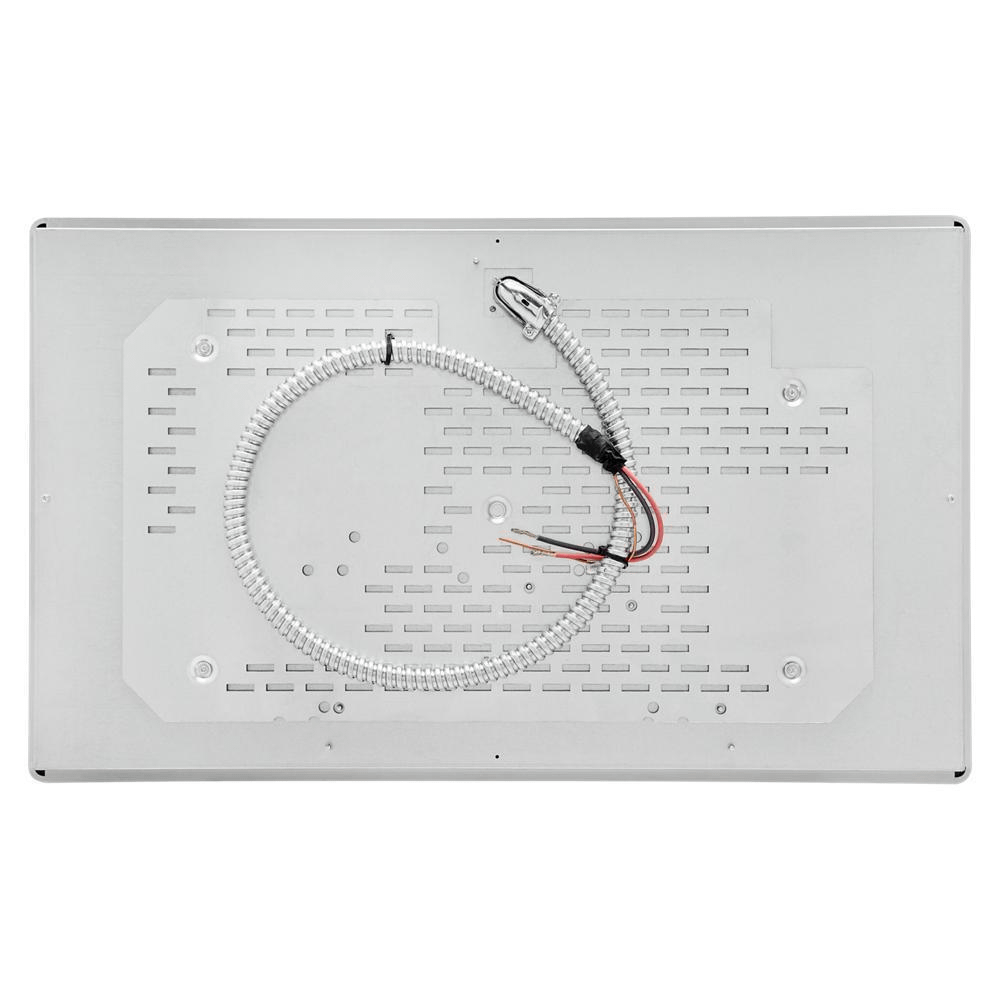

Electrical | |
208v Compatible | Yes |
Power Cord Included | No |
Element/burner Details | |
Center Rear Element-burner Power | 1,800W |
Center Rear Element-burner Size | 8in. |
Center Rear Element-burner Type | Standard |
Cooktop Element Style | Radiant |
Cooktop Type | Standard |
Left Front Element-burner Power | 1,300W |
Left Front Element-burner Size | 6in. |
Left Front Element-burner Type | Even-Heat™ |
Left Rear Element-burner Power | 3000W/2200W/1100W |
Left Rear Element-burner Size | 12in./9in./6in. |
Left Rear Element-burner Type | Triple |
Number of Cooking Element-burners | 5 |
Power Boost | No |
Right Front Element-burner Power | 3,200W |
Right Front Element-burner Size | 10in./6in. |
Right Front Element-burner Type | Dual |
Right Rear Element-burner Power | 1,200W |
Right Rear Element-burner Size | 6in. |
Right Rear Element-burner Type | Standard |
Exterior Details | |
Knob Type | Metal |
General | |
Combination Match With Oven | KOES527P; KOES530P; KOSC504; KOSE500; KOSE507; KOSE900; KOST100; KOST107 |
Ventilation Details | |
Downdraft Vent | No |
