Overview & Specifications
Overview & Specifications

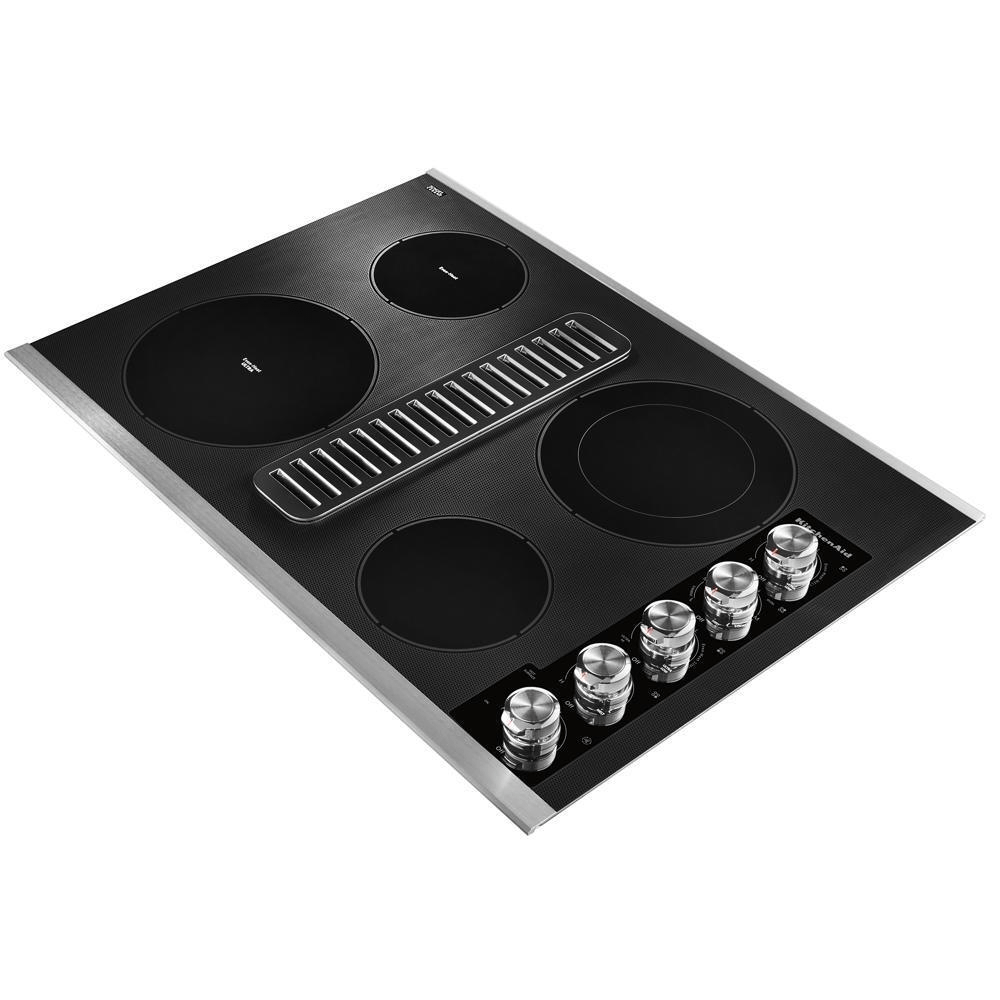

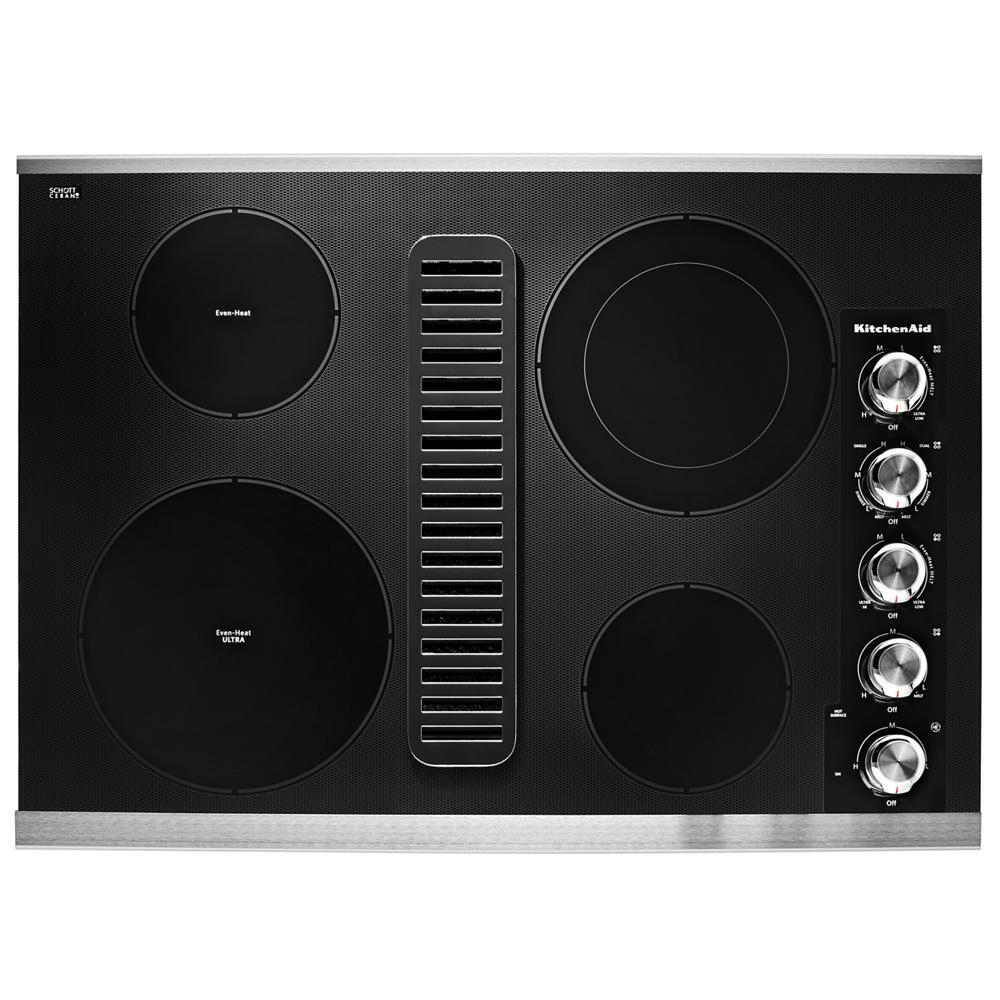

This 30 electric cooktop features Downdraft, an integrated ventilation system that doesn t require a separate hood. A 10-inch Even-Heat™ Ultra element provides versatility for both high- and low-temperature cooking, and has multiple simmer settings. And with a 3-speed fan with 300 CFM exhaust rating, the venting can keep up with your culinary feats.
- 10'' Even-Heat(TM) Ultra Element with Simmer Setting
- Provides more versatility for high and low temperature cooking techniques. Even-Heat(TM) Technology maintains a constant supply of power and delivers a range of simmer settings.
- 3-Speed Fan Control
- Can be precisely matched to cooking needs, effectively removing steam, grease, and odors from the air.
- 300 CFM Exhaust Rating
- Handles the venting requirements of high temperature cooking techniques like pan searing and stir-frying.
- 6'' Even-Heat(TM) Element with Melt Setting
- Combines the benefits of Even-Heat(TM) Technology with a dedicated setting that reaches the low temperatures needed to melt chocolate or butter without scorching.
- 6'' Round Element
- Can reach a power output of up to 1200 watts to handle your daily cooking needs.
- 9''/6'' Ultra Power(TM) Double-Ring Round Element
- Two element sizes in one provide the ability to use it for large stock pots or six-inch saut(eback) pans and handle tasks ranging from rapid boiling and searing to wok cooking.
- Convertible to Duct-Free Ventilation
- Allows a downdraft cooktop to be placed nearly anywhere in the kitchen using a duct-free conversion kit (not included). This filters and recirculates the air without running ductwork, ideal for kitchens with installation restrictions or ducting limitations.
- CookShield Finish for Glass Surface
- Protects the cooktop surface from scratches, helping keep it looking pristine even with frequent use.
- Downdraft Ventilation
- Integrates the ventilation system into the cooking surface so that a separate hood is not needed. Smoke and odors can be removed and taken outside or filtered and recirculated inside. A duct-free kit is available for purchase separately.
- Hot-Surface Indicator
- Provides a clear indication that lets you know if any cooking surface is on or still hot.
- Power-On Indicator Light
- Lets you know at a glance when an element is on.
- Pure Color Ceramic-Glass Surface
- Comes in saturated colors with stainless steel control knobs for a sophisticated, easy-to-clean appearance.
- Stainless Steel Knobs
- Enhance the look of the cooktop surface with sturdy construction that adds to their premium feel.
Certifications | |
Ada Compliant | No |
Prop65 | Standard |
Ul | Yes |
Controls | |
Control Location | Right Side |
Control Type | Knobs |
Infinite Heat Controls | Yes |
Cooktop Details | |
Cooktop Surface Color | Black |
Cooktop Surface Material | Ceramic Glass |
Digital Display | No |
Heating Element On Indicator Light | Yes |
Hot Surface Indicator Light | Yes |
Number of Open Bays | N/A |
Details | |
Automatic Pan Detection | No |
Fuel Type | Electric |
Installs Over Built-in Oven | No |
Lp Convertible | No |
Number of Vent Speeds | 3 |
Power Outage Compatible | No |

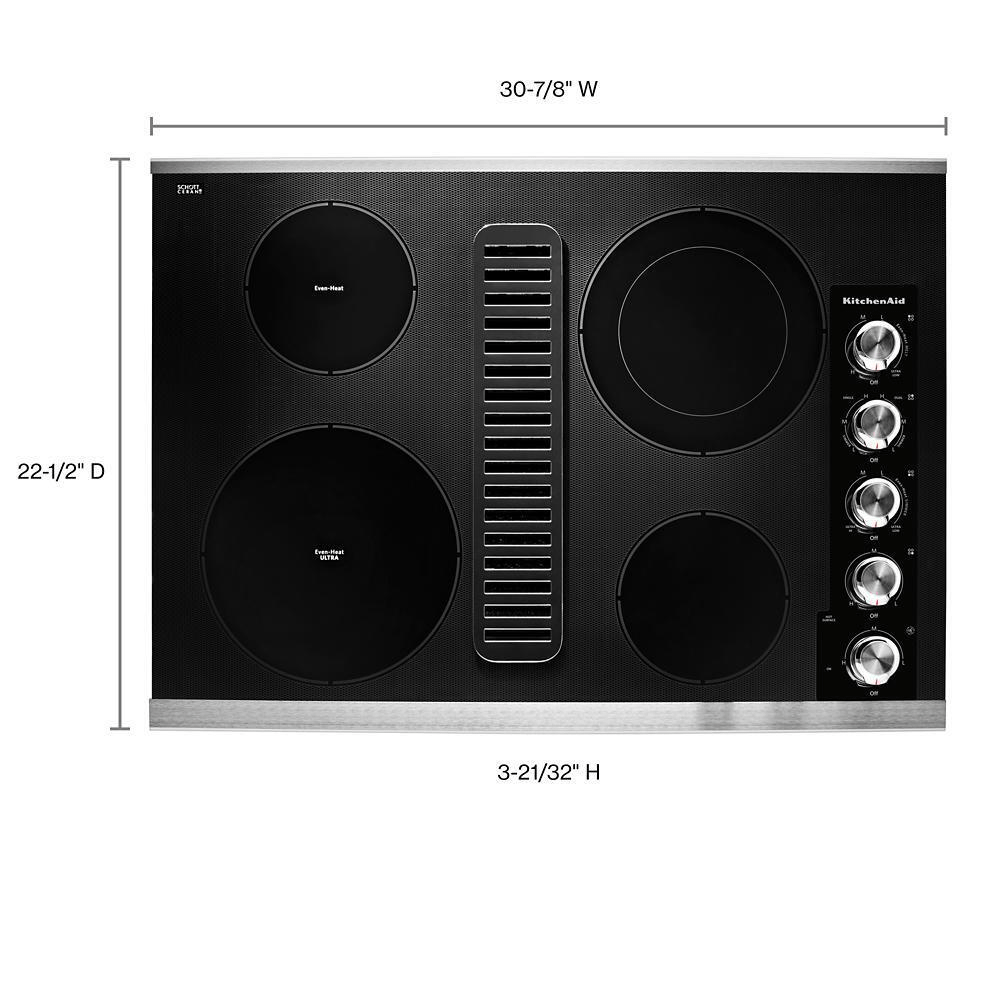

Dimensions | |
Product Height | 3.625 |
Cutout Depth | 21.125 |
Carton Height | 23.78 |
Gross Weight | 62 |
Carton Depth | 26.38 |
Carton Width | 35.12 |
Cutout Width | 28.75 |
Product Depth | 22.0625 |
Net Weight | 50 |
Product Width | 30.875 |
Electrical | |
Power Cord Included | No |
Element/burner Details | |
Cooktop Element Style | Radiant |
Cooktop Type | Downdraft |
Left Front Element-burner Power | 3,200W |
Left Front Element-burner Size | 10in. |
Left Front Element-burner Type | Even-Heat™ Ultra |
Left Rear Element-burner Power | 1,300W |
Left Rear Element-burner Size | 6in. |
Left Rear Element-burner Type | Even-Heat™ |
Number of Cooking Element-burners | 4 |
Power Boost | No |
Right Front Element-burner Power | 1200W |
Right Front Element-burner Size | 6in. |
Right Front Element-burner Type | Single |
Right Rear Element-burner Power | 3000W/1400W |
Right Rear Element-burner Size | 9in./6in. |
Right Rear Element-burner Type | Dual-Stacked Burner |
Exterior Details | |
Knob Color | Stainless Steel |
Knob Type | Metal |
Grate Details | |
Grate Details | Dishwasher Safe |
Ventilation Details | |
Cfm Motor Class | 300 |
Downdraft Vent | Yes |
