Overview & Specifications
Overview & Specifications
Sealed brass burners. Precise, dual flames. Unmistakable firepower erupting through cast-iron grates. Turn on the heat without the click-click clamor, and sear and simmer to satisfy your deepest hunger.

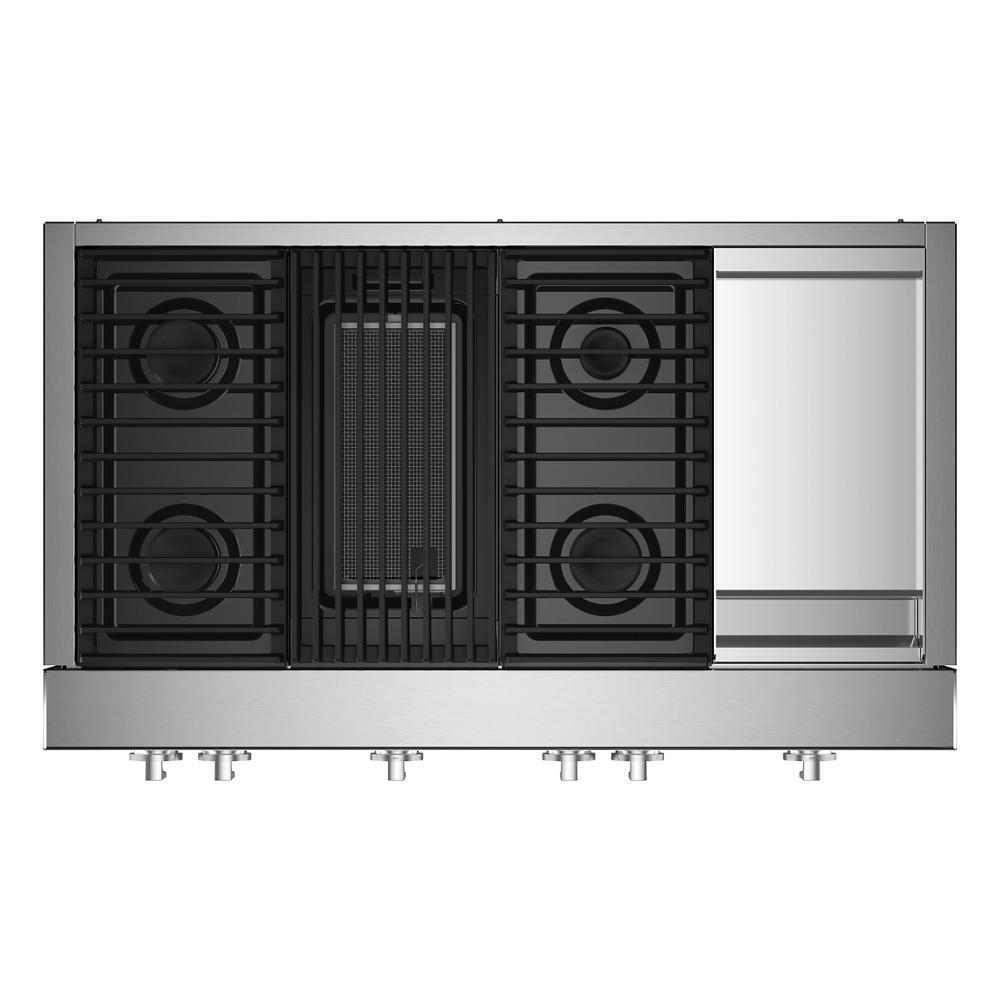

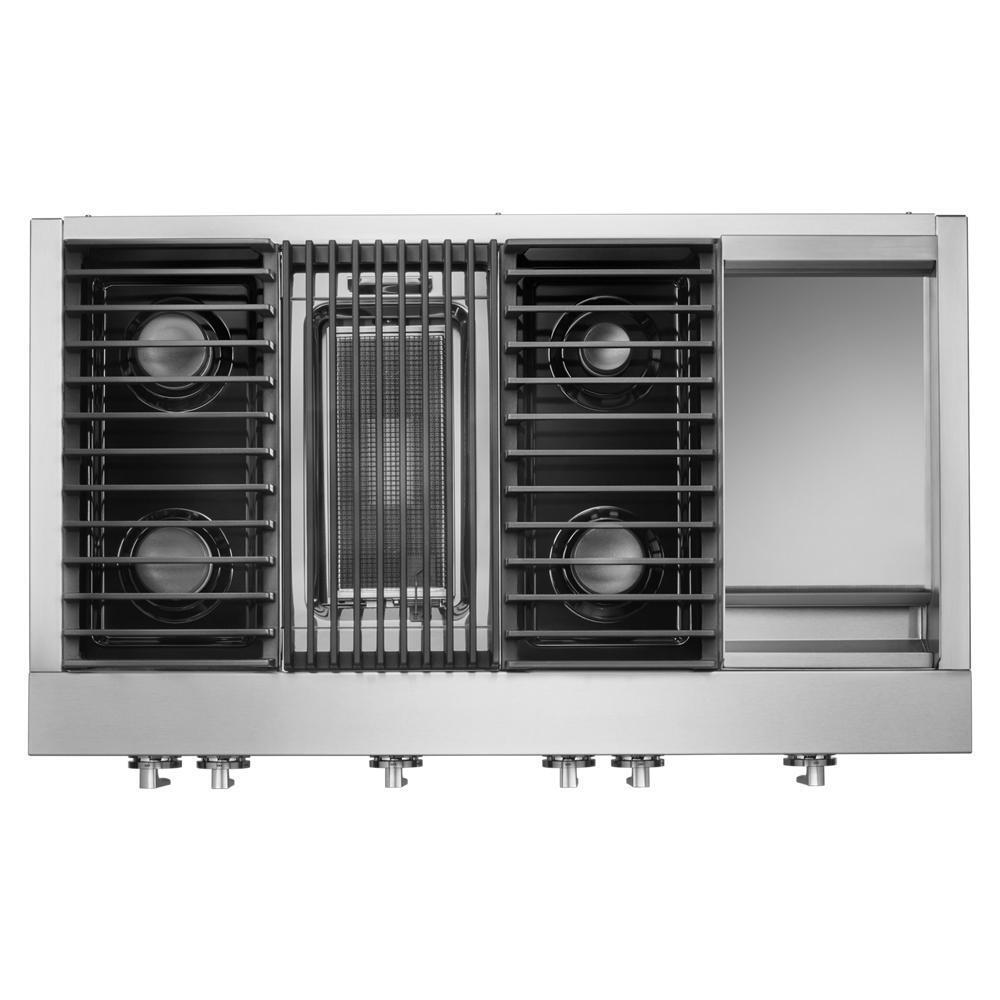

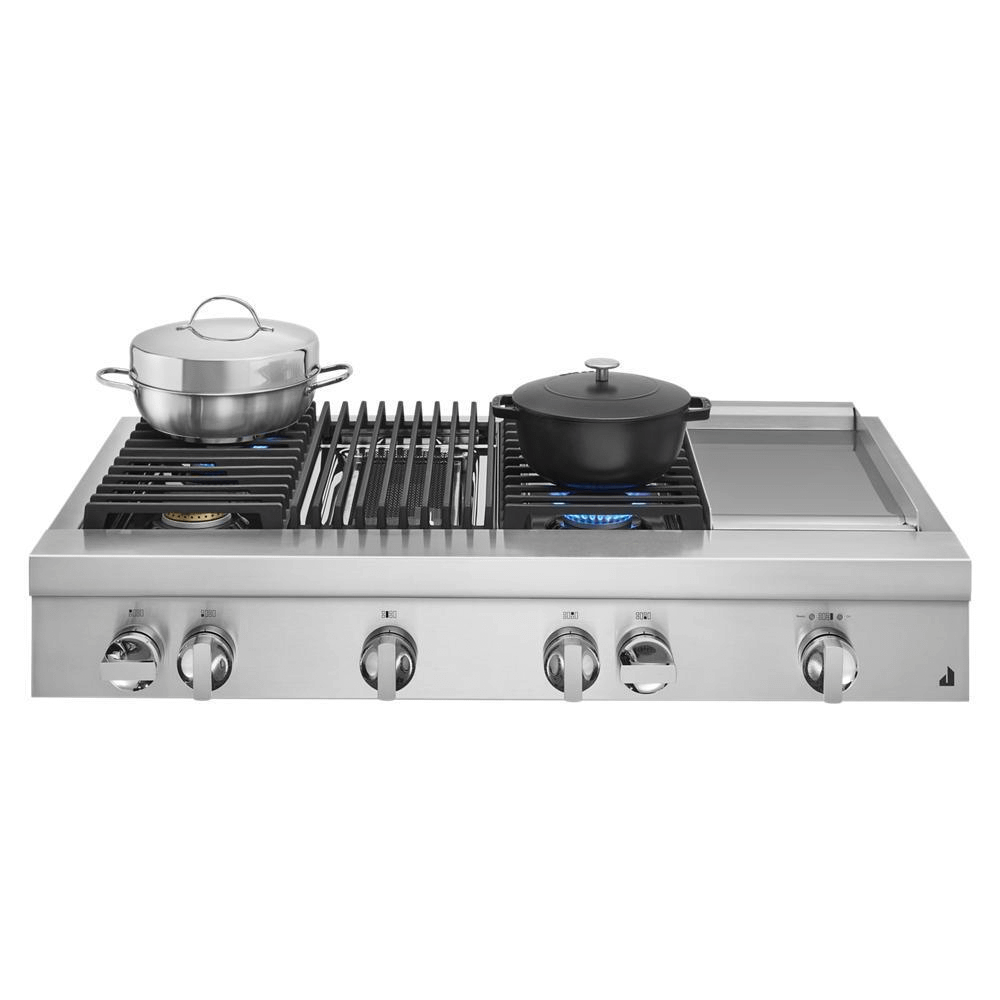

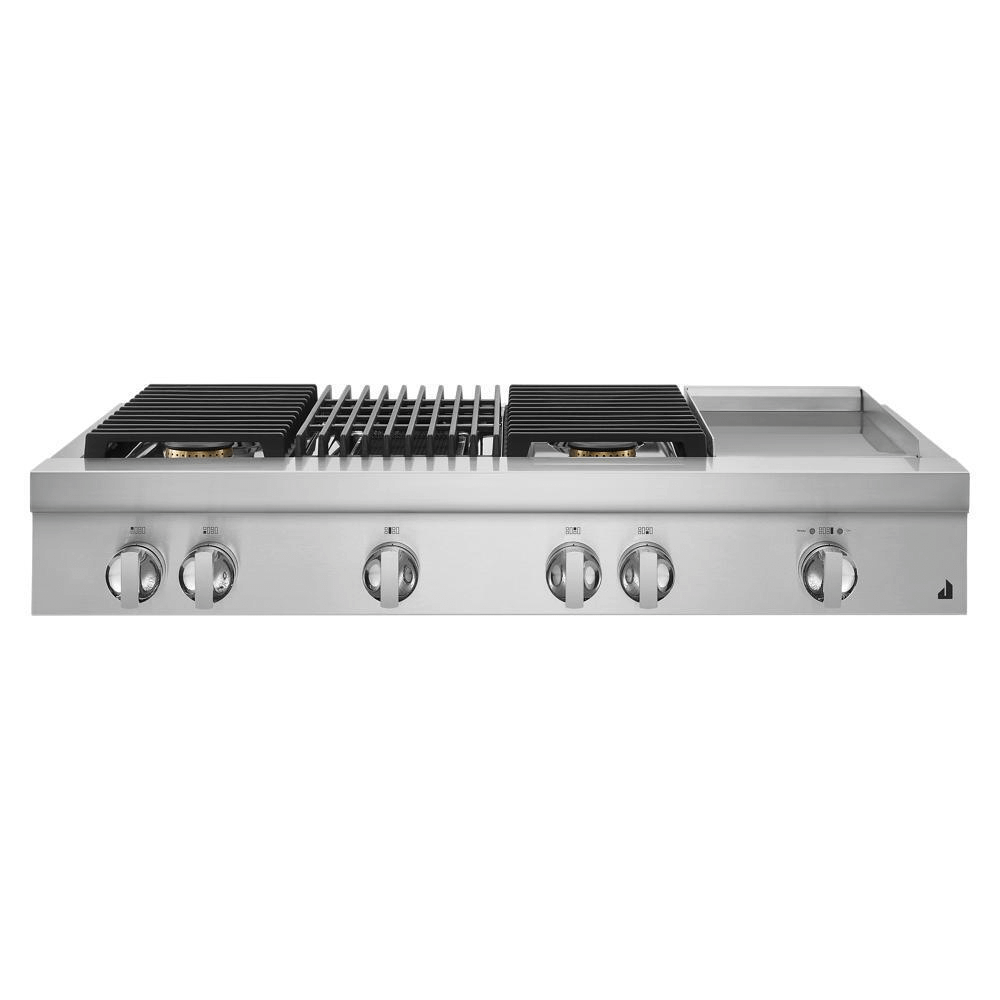

- 14 Rangetop Configurations
- Bend fire to your will. Grills, griddles, brass burners. Three widths. With 14 unique configurations, it s up to you. Cast off porous, superficially plated options. Go deeper. Infused with chrome, our griddle cleans up well after heavy usage. Underneath, a serpentine element powers our best griddle preheat. Fire up the grill for indoor entertainment on your terms.
- 18,000 BTU Dual-Stacked PowerBurner
- This 18,000 BTU dual-stacked PowerBurner can handle high-powered cooking while still being gentle enough for delicate simmering with turndown of 1,650 BTU.
- 20,000 BTU Dual-Stacked PowerBurner
- This 20,000 BTU dual-stacked PowerBurner can handle high-powered cooking while still being gentle enough for delicate simmering with turndown of 1,650 BTU.
- 9,000 BTU Dual-Stacked PowerBurner
- A dual-stacked PowerBurner that reaches a maximum power level of 9,000 BTU and fulfills most everyday cooking functions with turndown of 1,000 BTU.

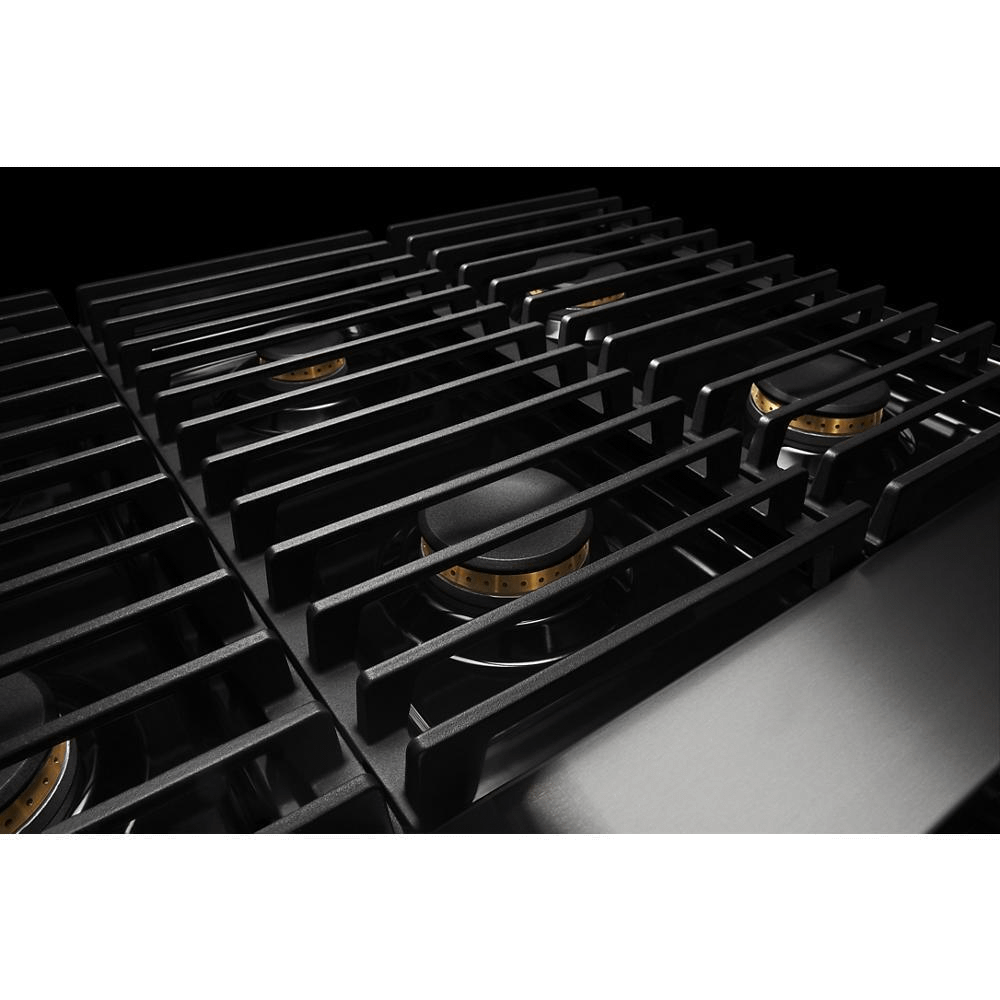

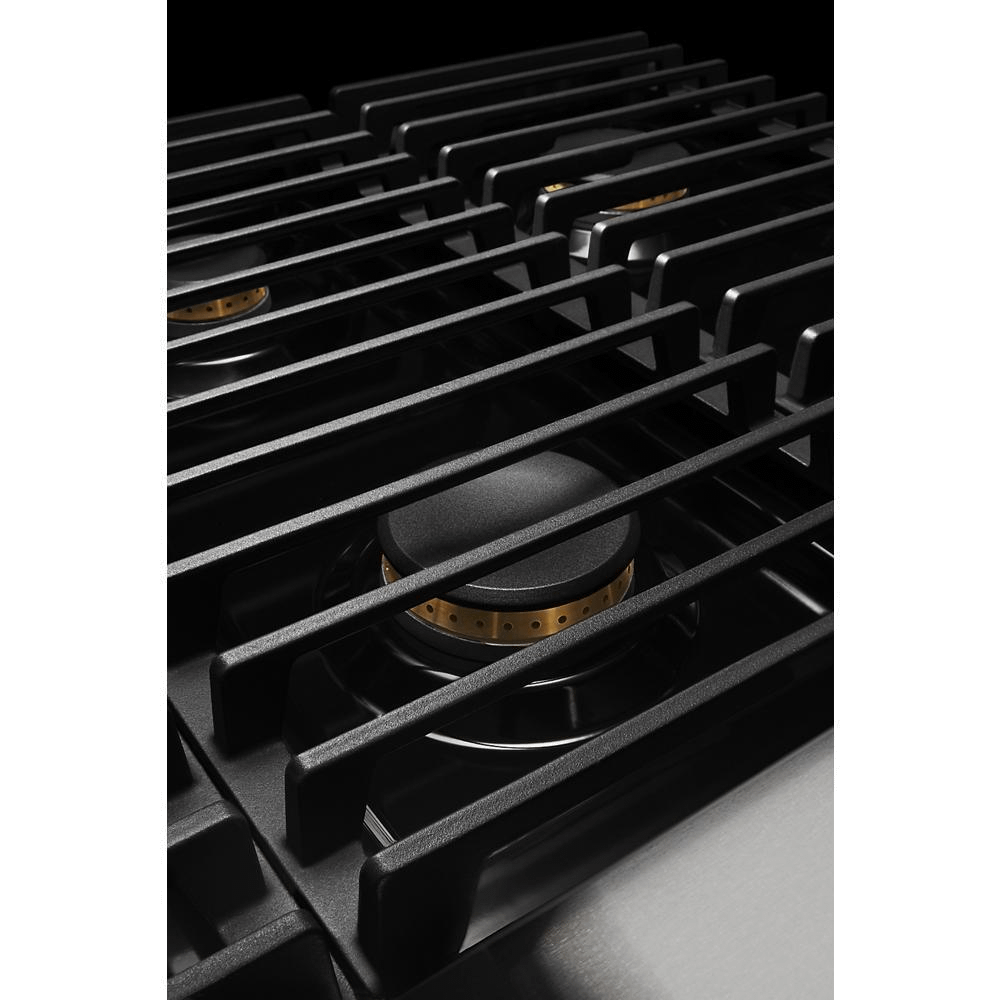

- Cast Iron Grates
- Robust geometric grates form one graceful surface, crafted to withstand heavy woks and cookware.

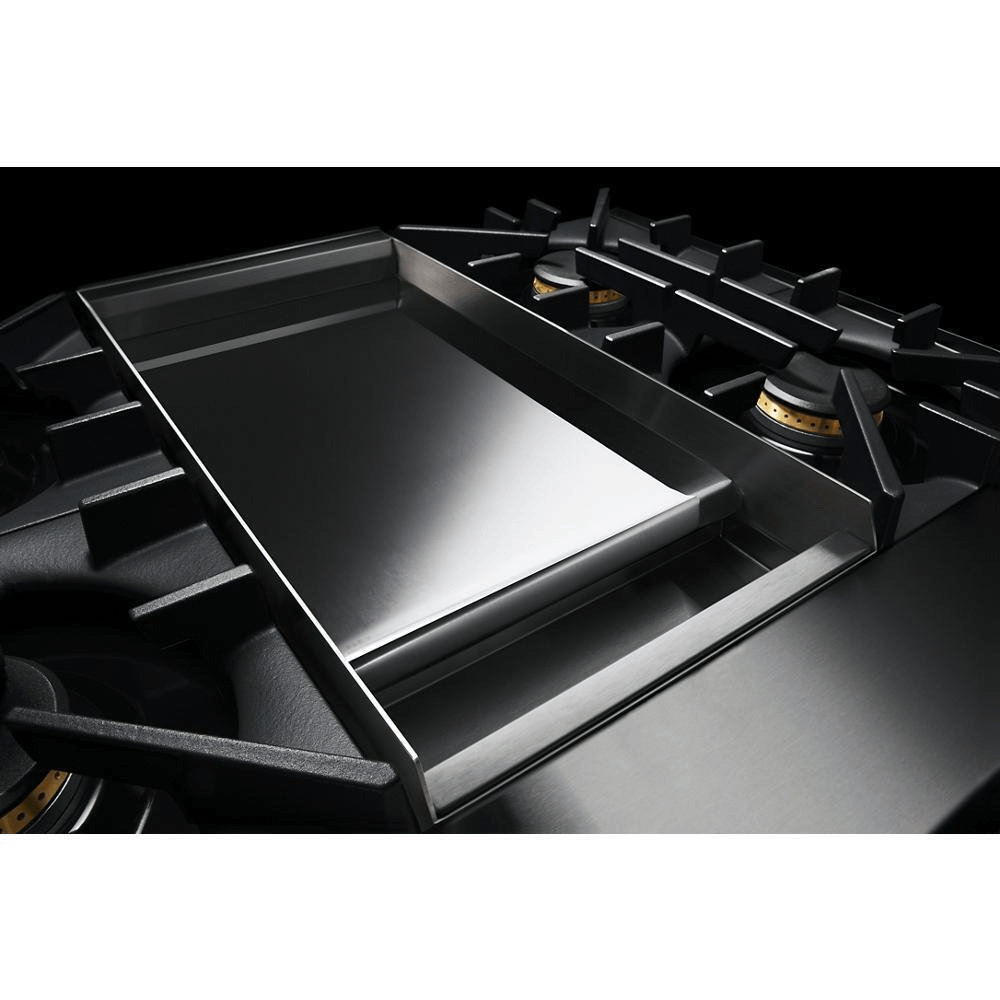

- Chrome-Infused Griddle
- Cast off porous, superficially plated options. Go deeper. Infused with chrome, our griddle cleans up well after heavy usage.

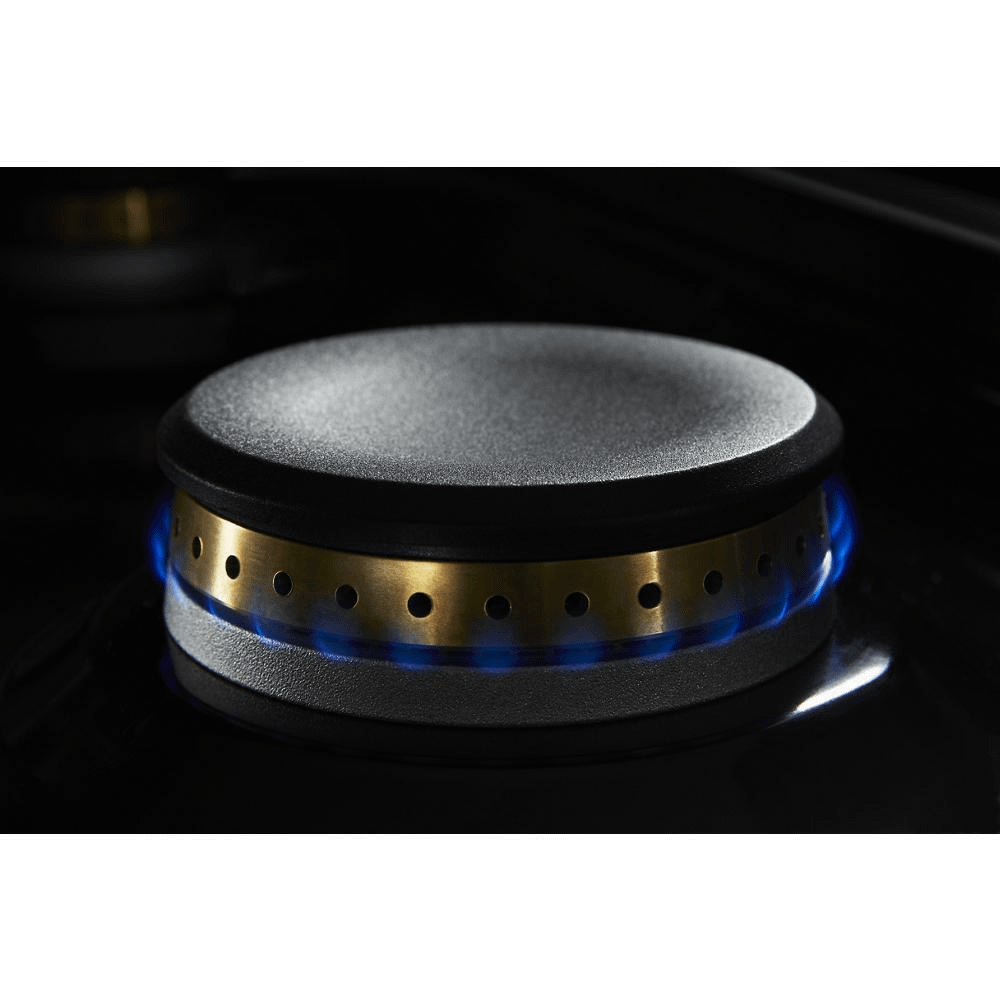

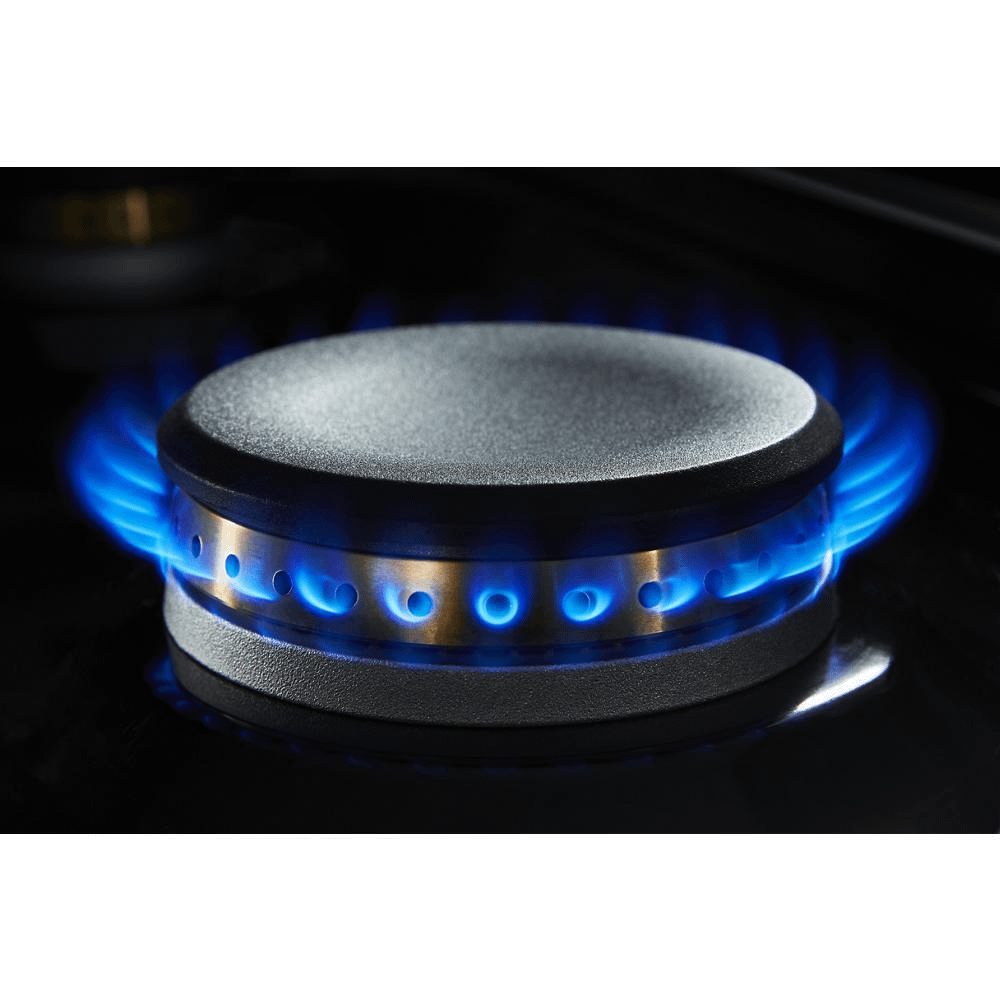

- Dual-Stacked PowerBurners
- Two stacked, symmetrical flames bloom and retreat at your inclination, offering total control over heat levels. High-heat searing and wok cooking. Low, slow simmer and melt. Infinite intermediate settings satisfy every appetite.
- Electronic Ignition with Flame-Sensing(TM) Reignition
- Burnout banned. If a sudden draft blows out a flame, intelligent Flame-Sensing(TM) reignition automatically sparks it back to life.

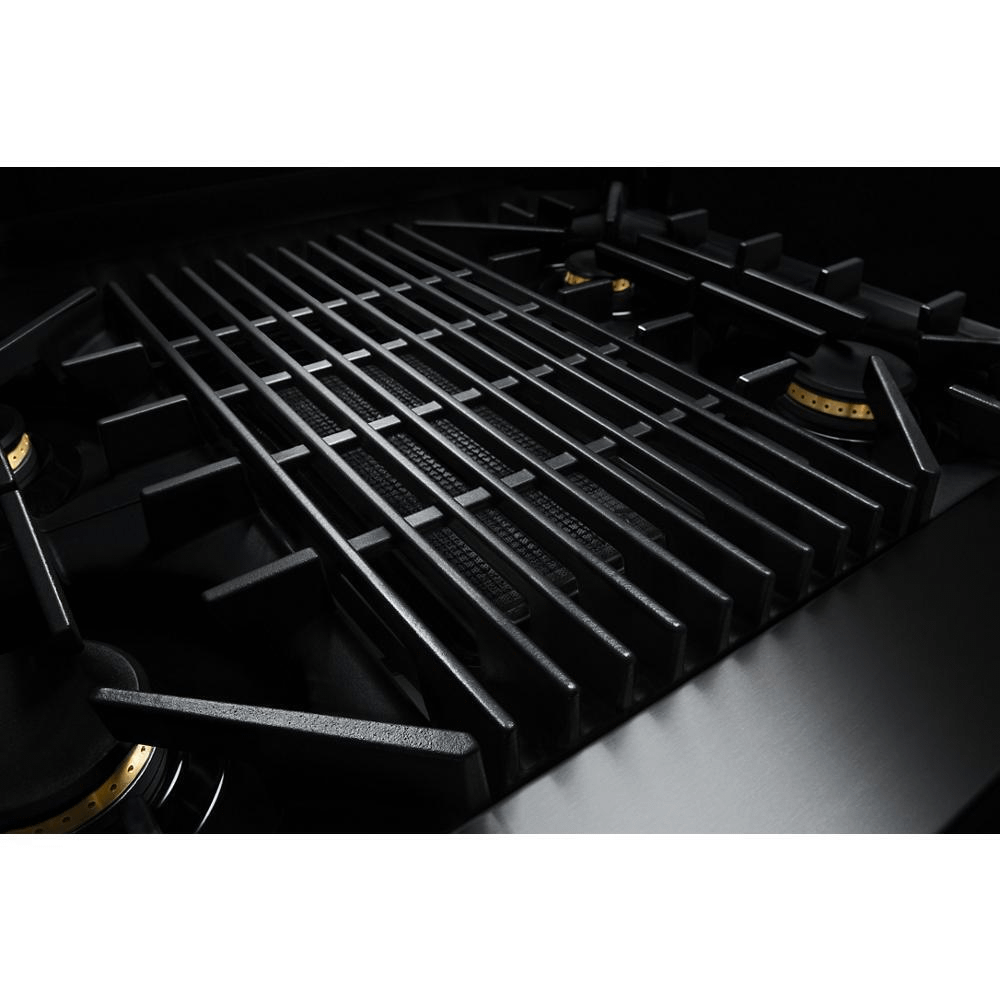

- Grill
- Grilling knows no season. Our founder's legacy is rekindled as we bring grilling back indoors. Harness 16,000 BTUs of searing, even heat coursing beneath cast iron grates.

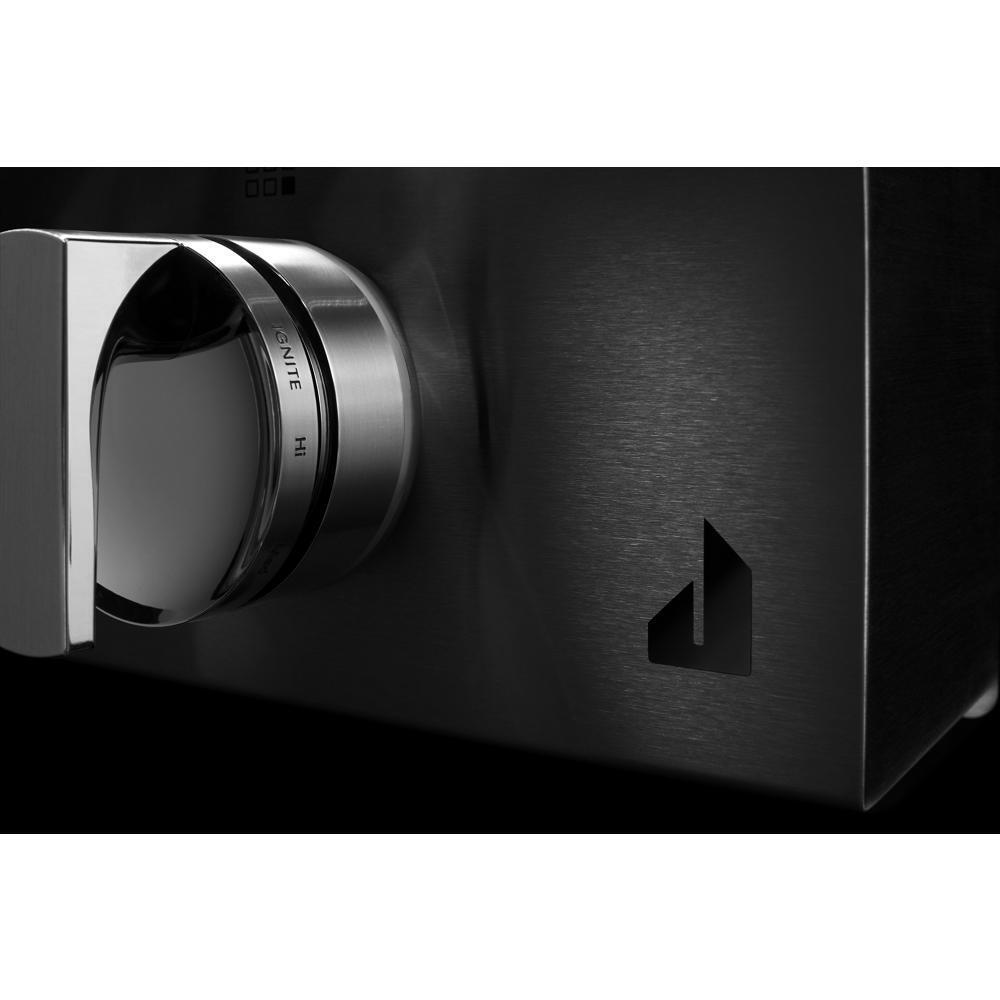

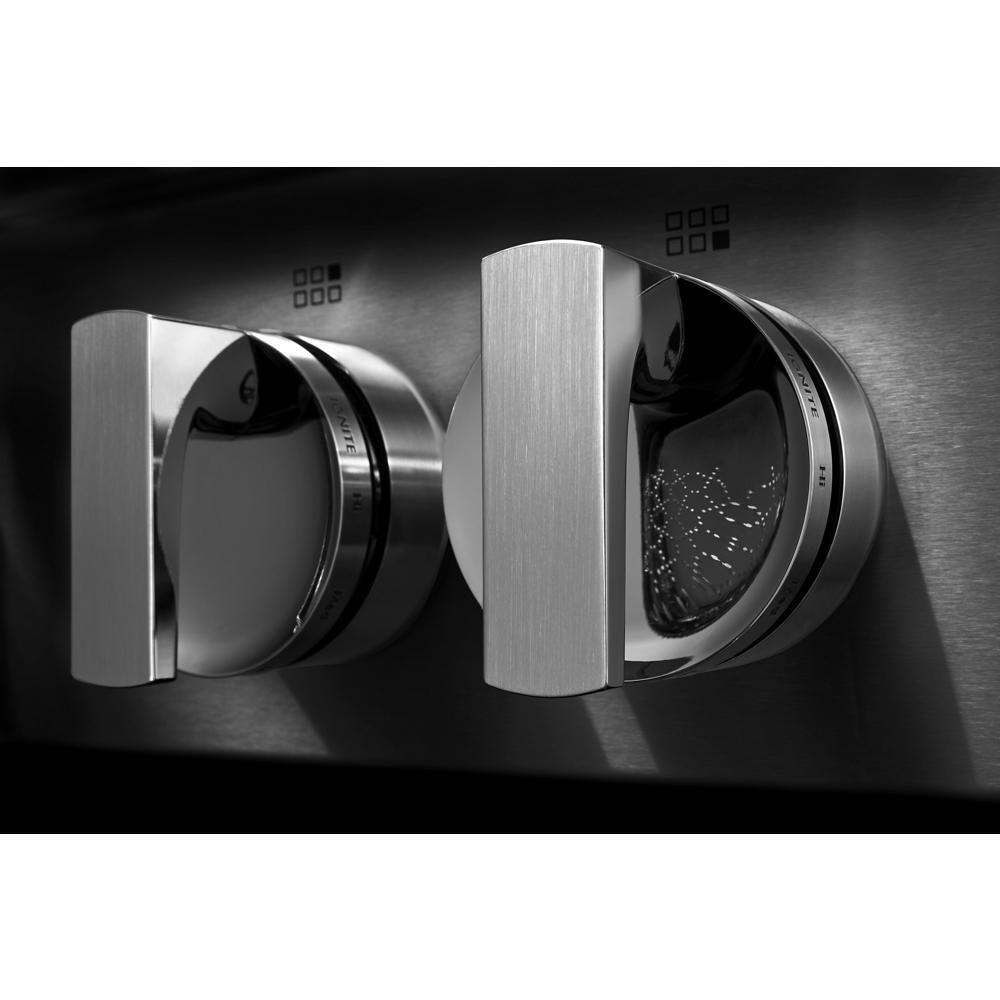

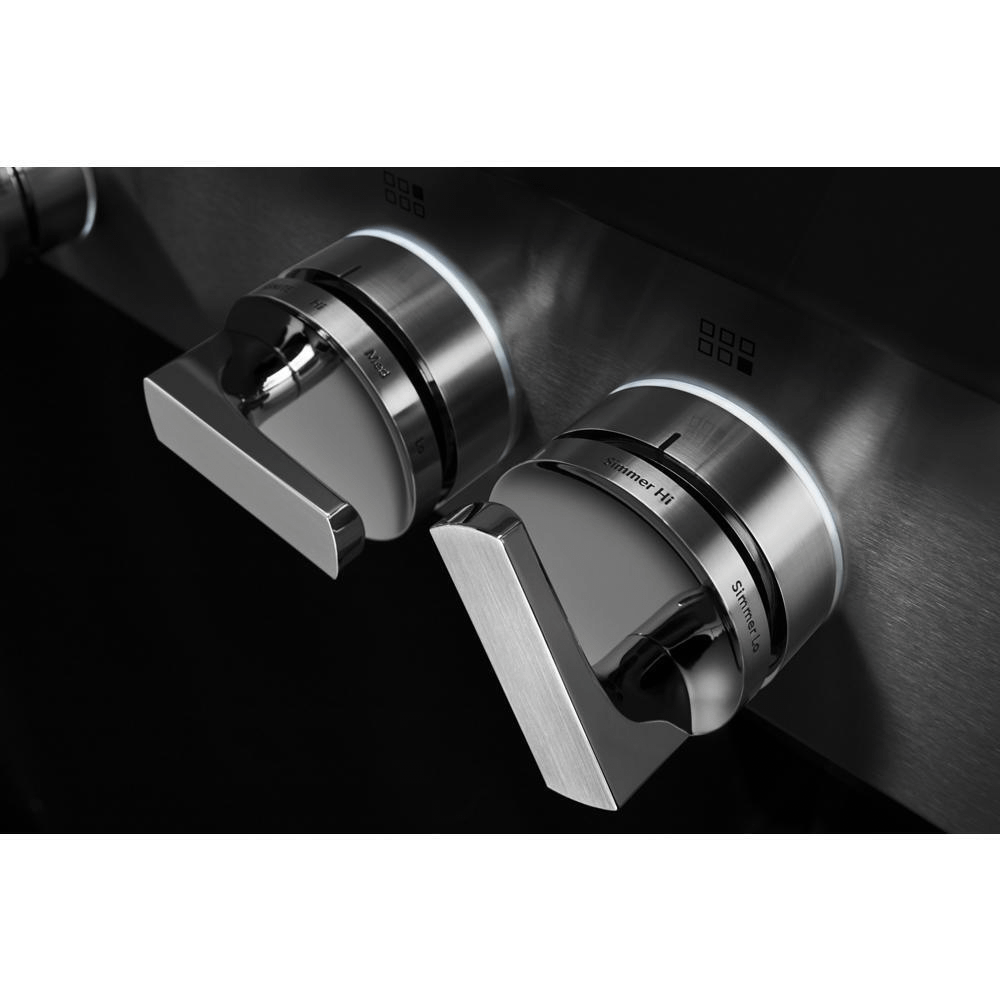

- Halo-Effect Knobs
- A halo of luminary LEDs glows softly when the burner is lit or the oven is on.

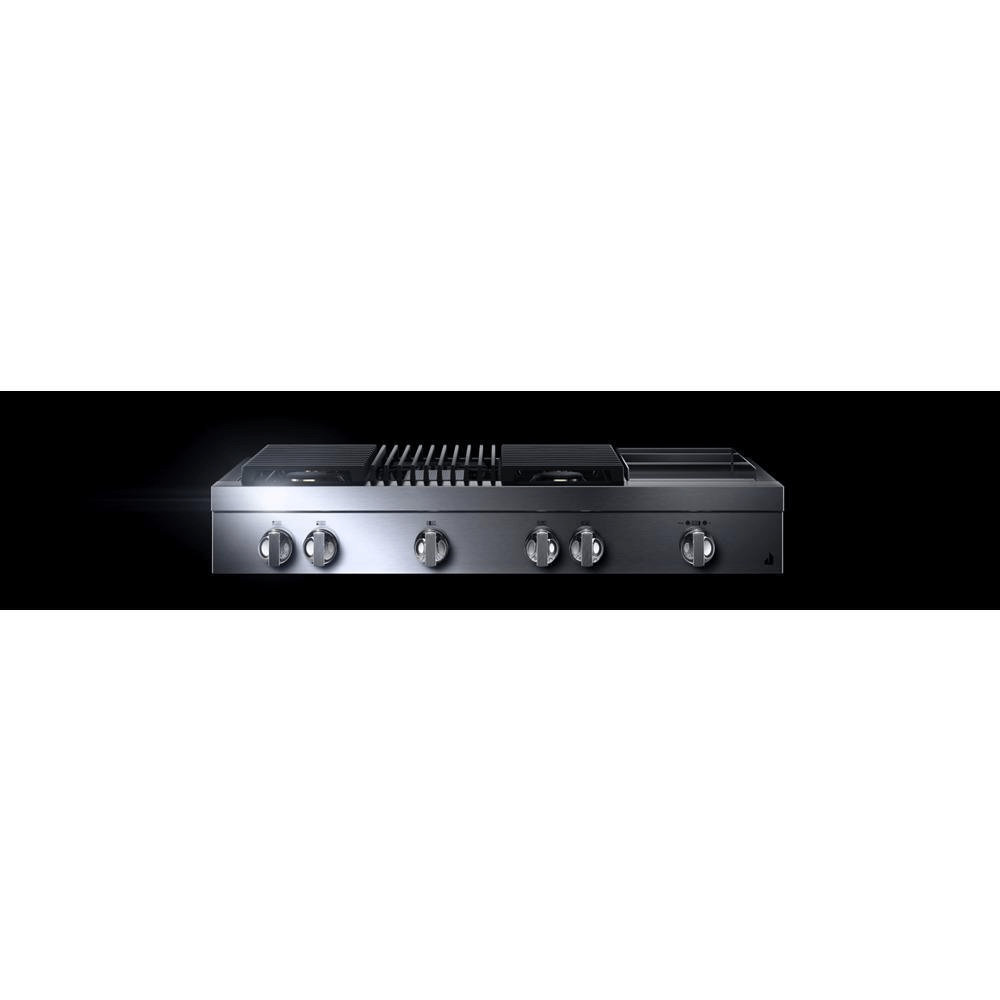

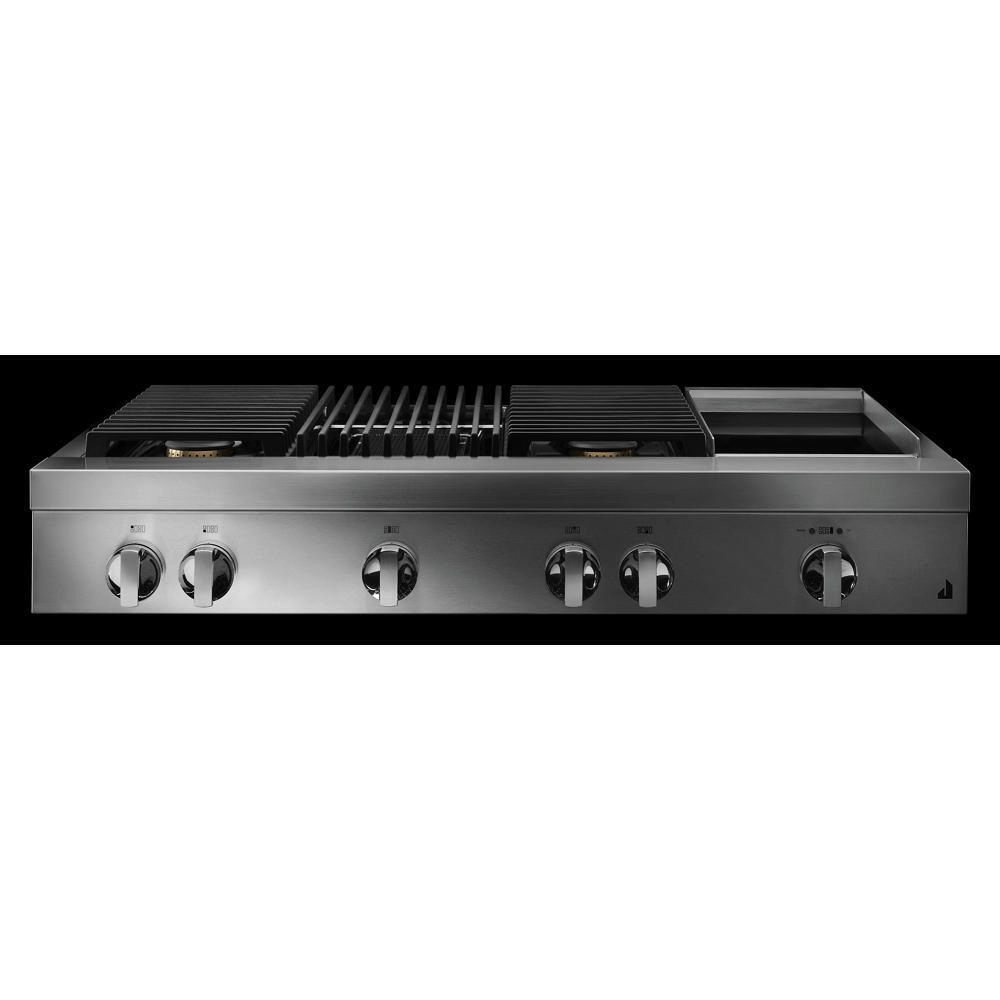

- NOIR(TM) Design Expression
- Sculpted in stainless steel, the NOIR(TM) Design Expression features structured grates and an illusive badge. Explore the artful mystery of a minimalist design that rejects dated ideals of beauty.
- Star-K Certified
Certifications | |
Prop65 | Standard |
Ul | Yes |
Controls | |
Control Location | Front |
Control Type | Knobs |
Infinite Heat Controls | No |
Cooktop Details | |
Cooktop Surface Color | Black |
Cooktop Surface Material | Porcelain Coated Steel |
Digital Display | No |
Griddle Included | Yes, Integrated |
Heating Element On Indicator Light | Yes |
Hot Surface Indicator Light | No |
Ignition Type | Flame-Sensing™ Re-ignition |
Details | |
Automatic Pan Detection | No |
Cooktop Configuration | Burners with Integrated Grill and Griddle |
Design Expression | NOIR™ |
Fuel Type | Gas |
Installs Over Built-in Oven | No |
Lp Convertible | Yes - Kit Included |
Power Outage Compatible | Yes (Gas Cooktop Burners Only) |
Dimensions | |
Product Height | 7.4375 |
Carton Height | 19.5 |
Gross Weight | 170 |
Carton Width | 51.63 |
Product Depth | 27.5 |

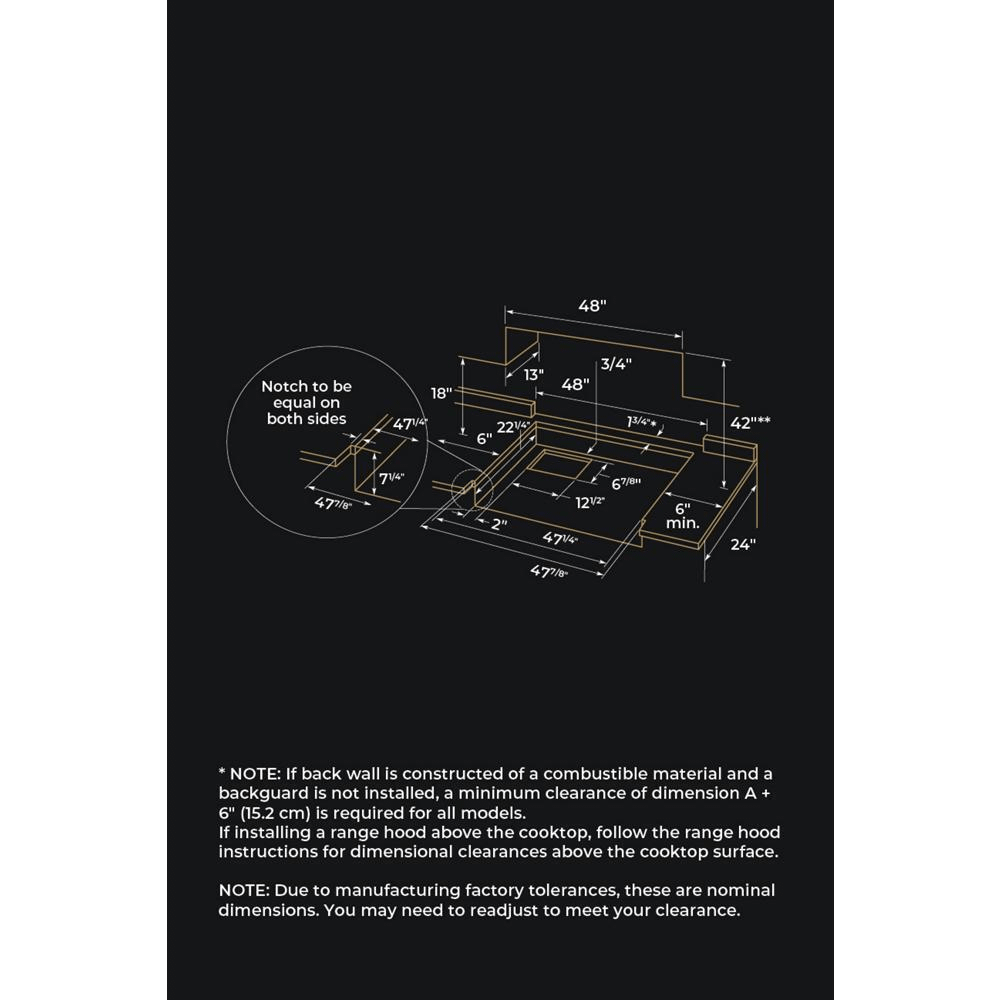

Cutout Width Min | 47.375 |
Cutout Depth | 22.25 |
Carton Depth | 34.5 |
Cutout Width | 47.375 |
Cutout Depth Min | 22.25 |
Cutout Width Max | 47.875 |
Net Weight | 144 |
Product Width | 47.875 |
Electrical | |
208v Compatible | No |
Power Cord Included | Yes |
Element/burner Details | |
Cooktop Element Style | Sealed Burner |
Cooktop Type | Rangetop |
Left Front Element-burner Power | 20,000 BTU |
Left Front Element-burner Type | Dual |
Left Rear Element-burner Power | 18,000 BTU |
Left Rear Element-burner Type | Dual-Stacked Burner |
Number of Cooking Element-burners | 4 |
Power Boost | No |
Right Front Element-burner Power | 20,000 BTU |
Right Rear Element-burner Power | 9,000 BTU |
Right Rear Element-burner Type | Dual-Stacked Burner |
Exterior Details | |
Knob Color | Stainless Steel |
Knob Type | Metal |
Grate Details | |
Grate Details | Continuous; Dishwasher Safe; Individual; Matte Finish; Porcelain Coated Cast Grates |
Ventilation Details | |
Downdraft Vent | No |
