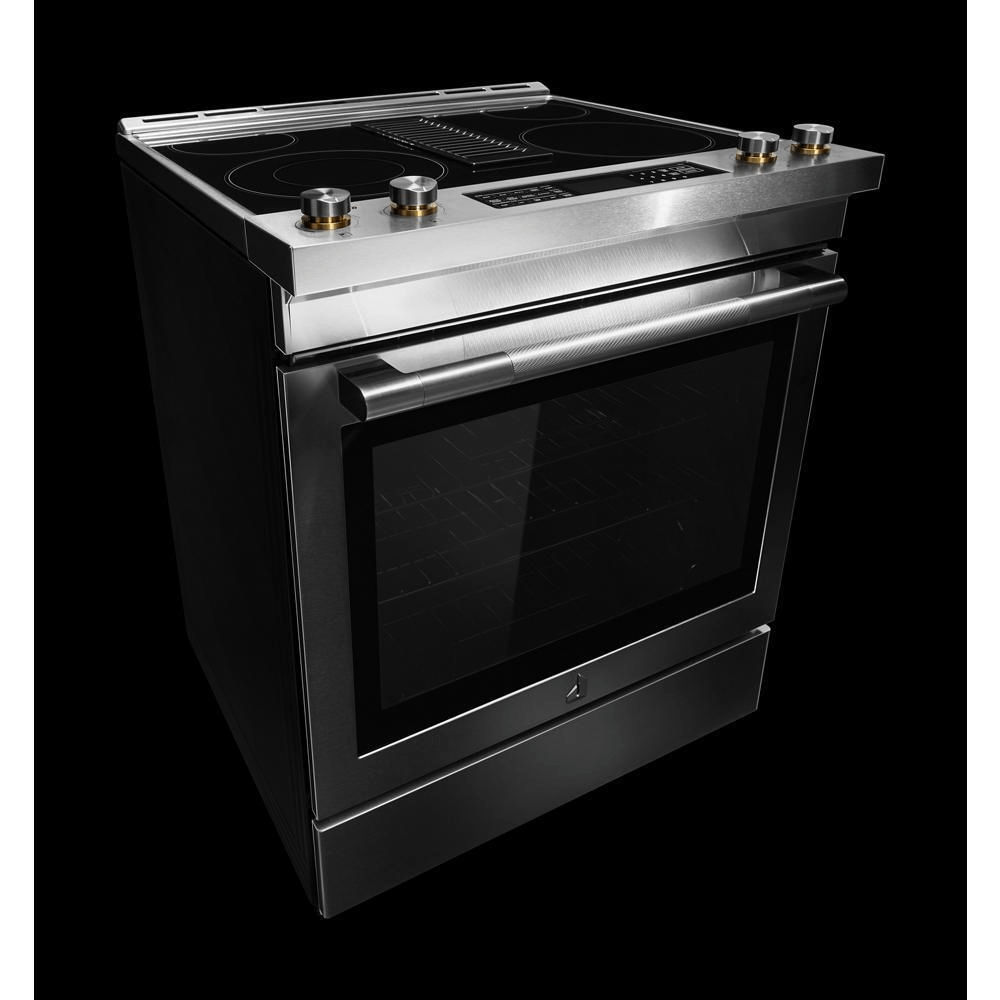

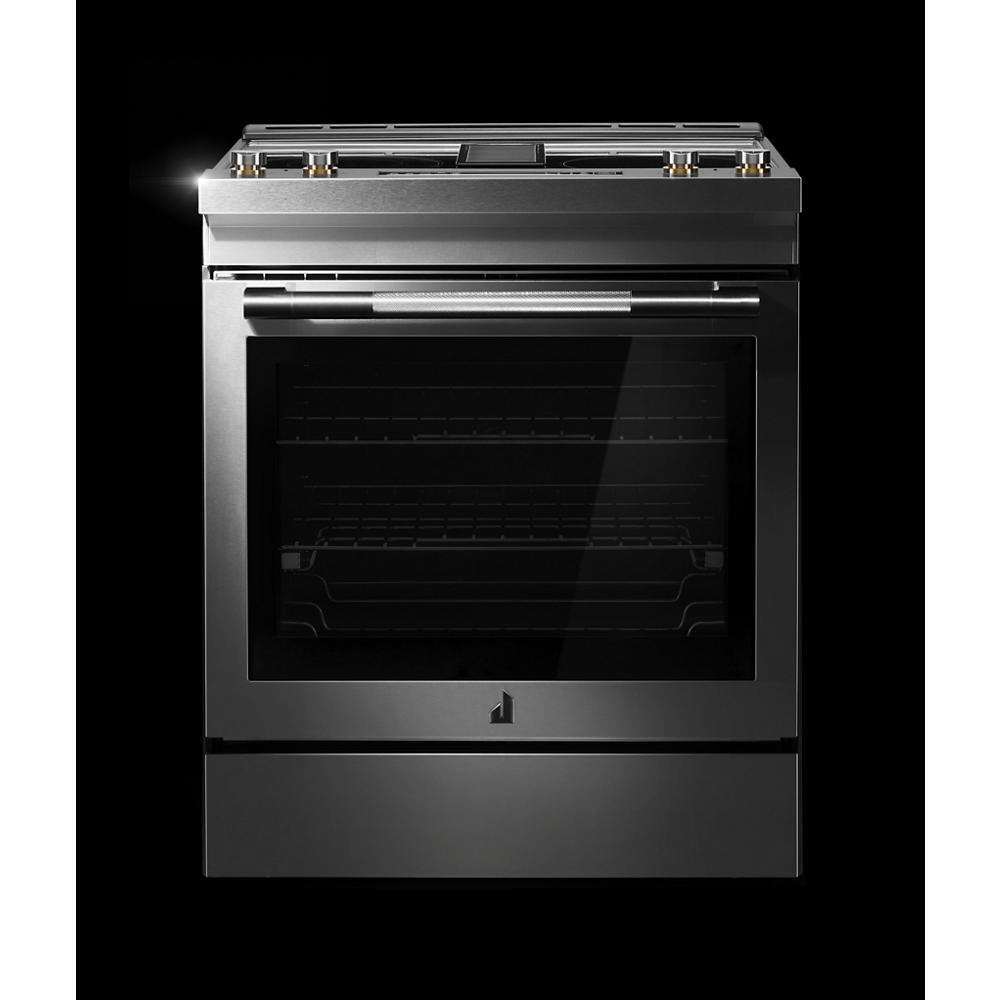

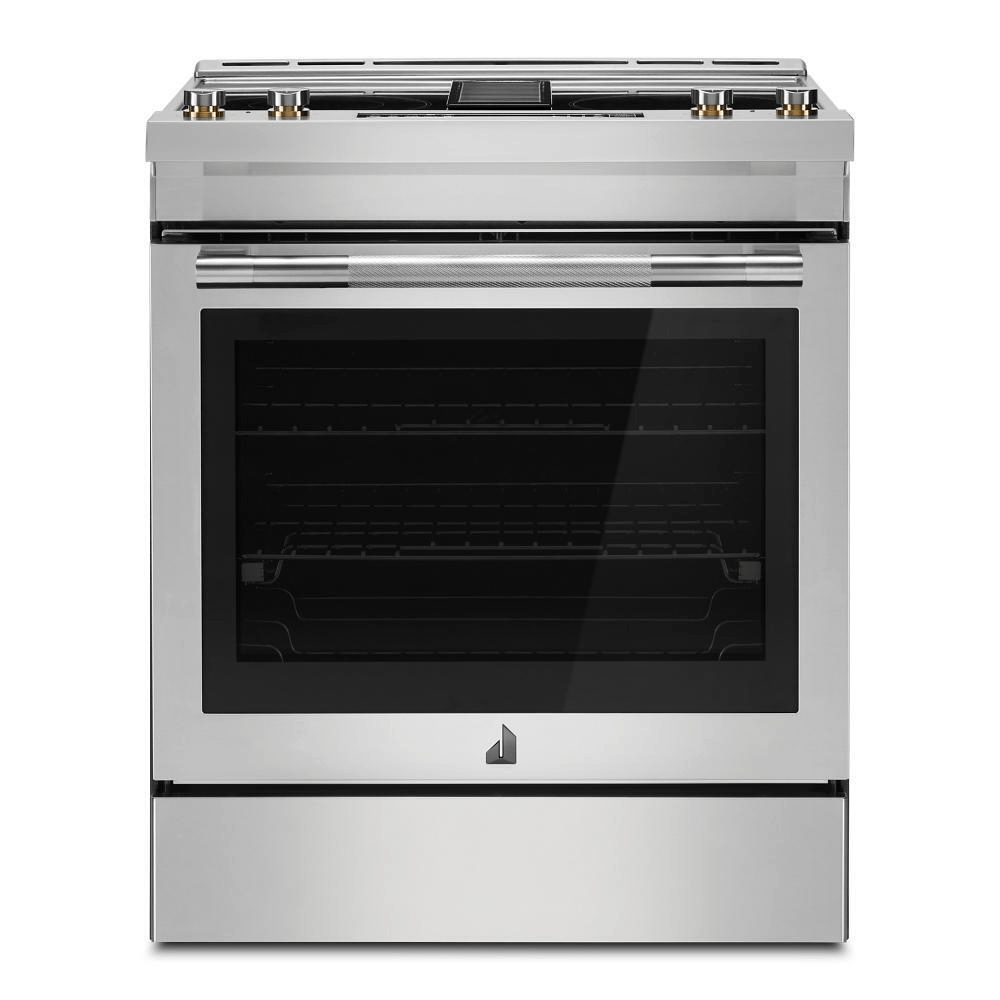

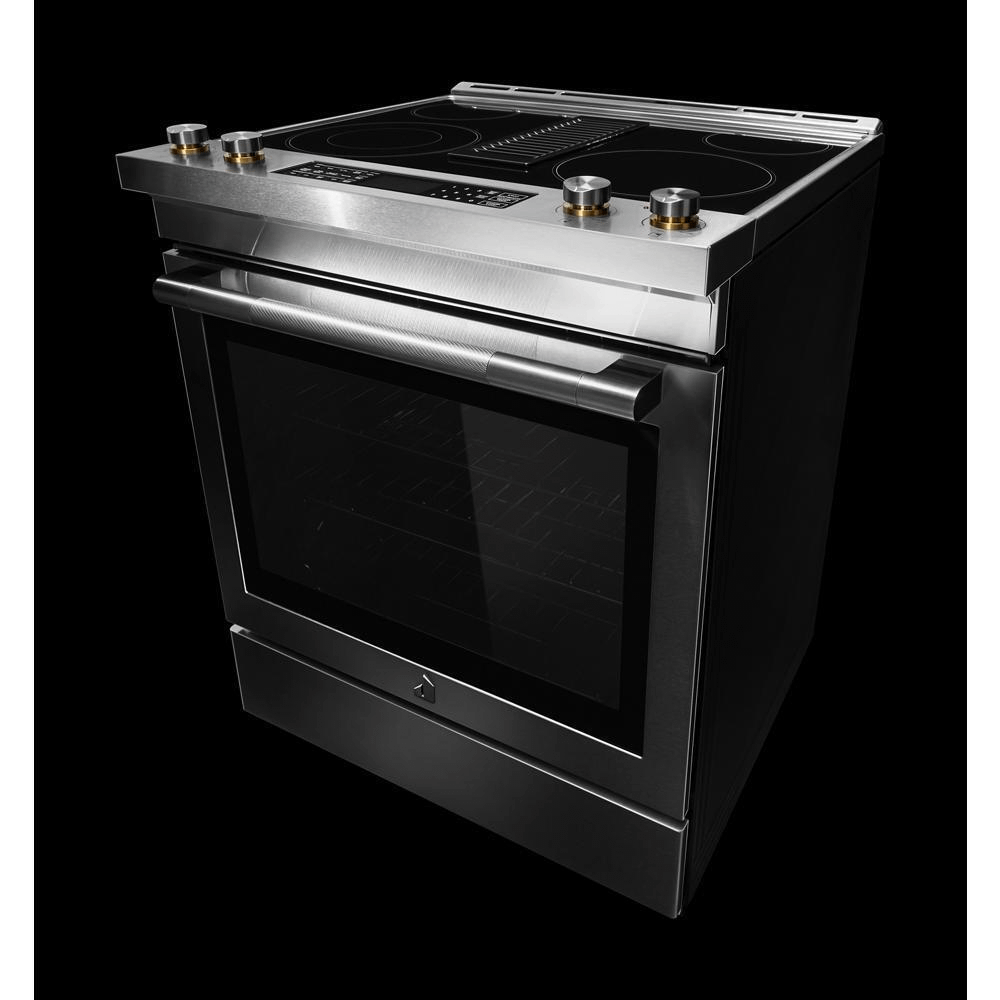

Revel in the power and flexibility of a JennAir® electric downdraft slide-in range. Cook multiple dishes on multiple racks in the 6.2 cu. ft. oven cavity, saut(eback) and simmer on the Dual-Choice™ Element, then utilize a downdraft ventilation system to help draw odors away.

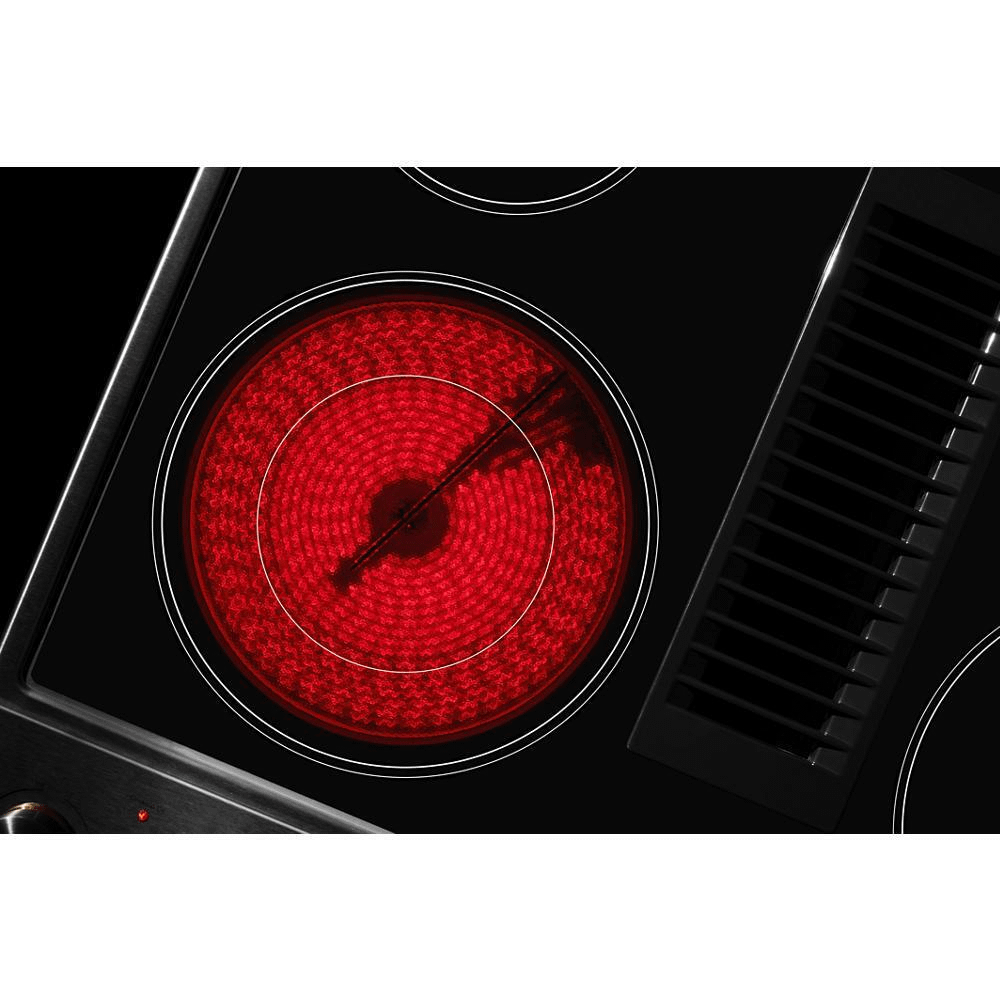

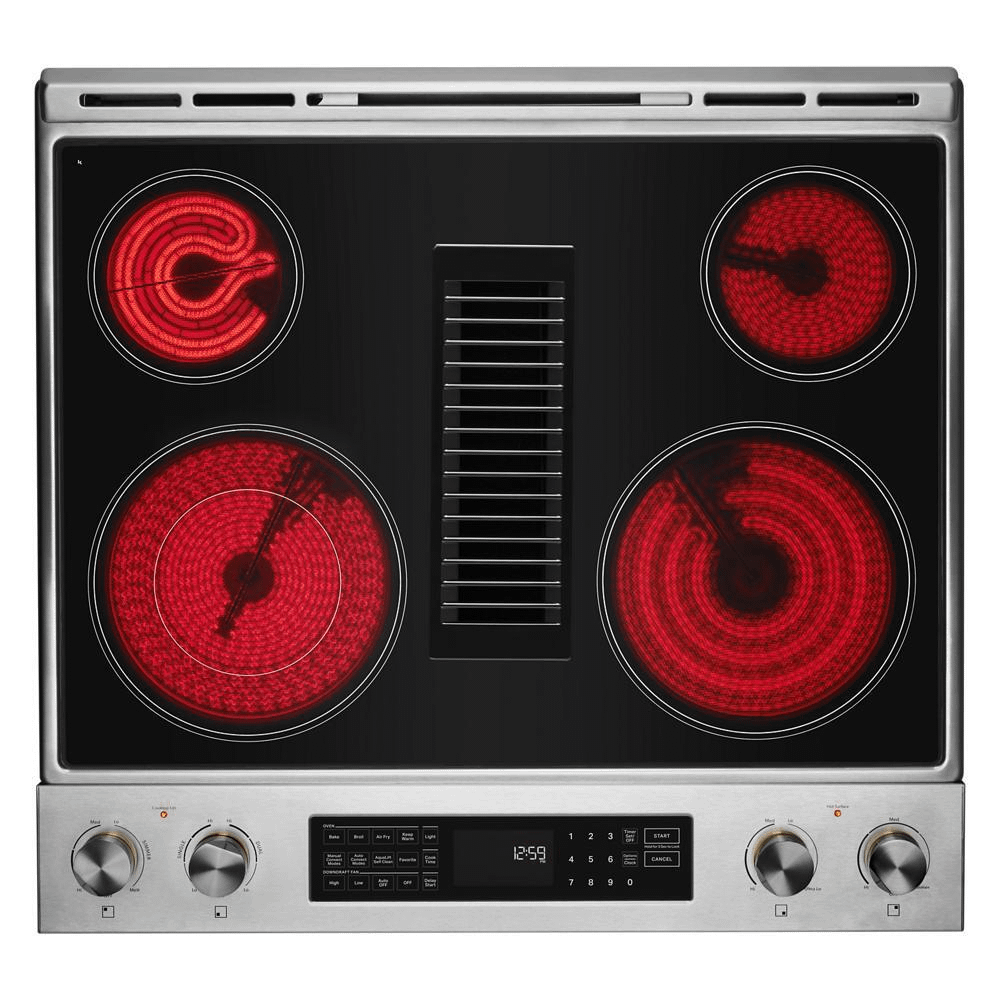

- 12"/6" Dual-Choice(TM) Element
- This two-tiered single element accommodates cookware of various sizes in one location and can achieve an output of up to 3,000 watts when both elements are active.
- 12 /6 Dual-Choice(TM) Element
- The Dual-Choice(TM) element cooks more efficiently by matching the heat to the pan you're using.

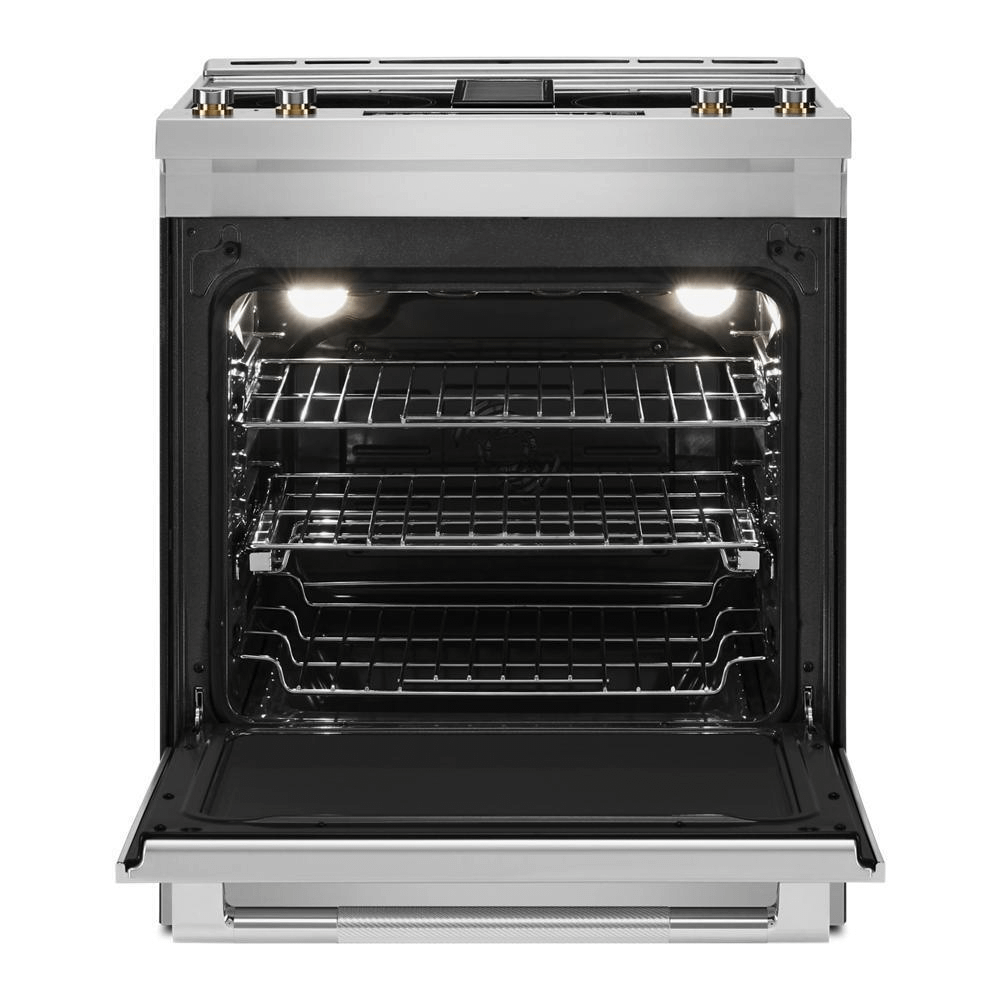

- 6.2 Cu. Ft. Capacity
- A generous 6.2 cu. ft. capacity of the oven cavity lets you cook multiple dishes on multiple racks at once.
- ADA Compliant
- Designed to meet ADA standards when installed according to the ADA guidelines.
- Air Fry
- Achieve crispy results on your favorites, from fresh vegetables to guilty-pleasure fried foods. Preheat the oven, then use Air Fry to circulate hot air around the air fry basket to crisp food using little to no additional oil.

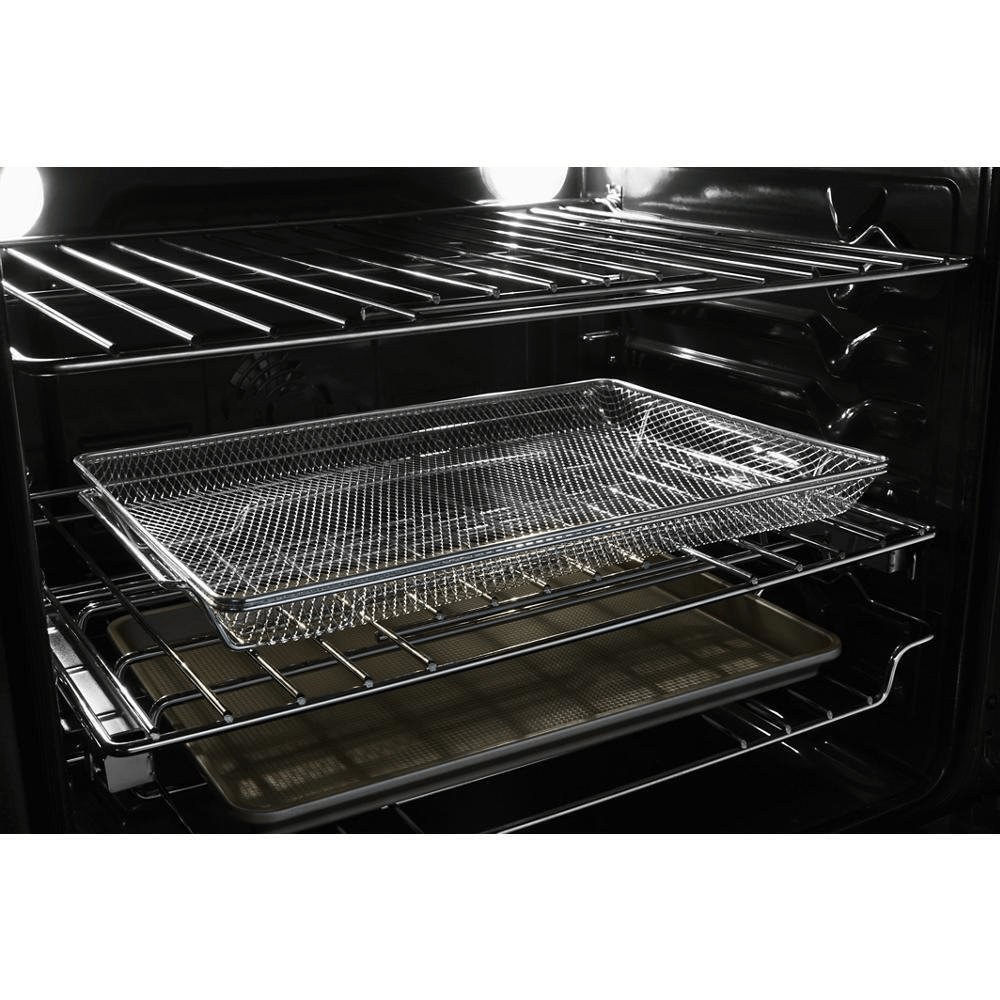

- Air Fry Basket
- Utilize the stainless steel Air Fry Basket in the oven to crisp food, then clean it easily in the dishwasher.
- AquaLift(R) Self-Cleaning Technology
- Clean the oven with minimal odors at a temperature below 248(degree)F. This innovative 40-minute cycle combines low heat with water to release baked-on spills that can be wiped away once the cycle is complete.*

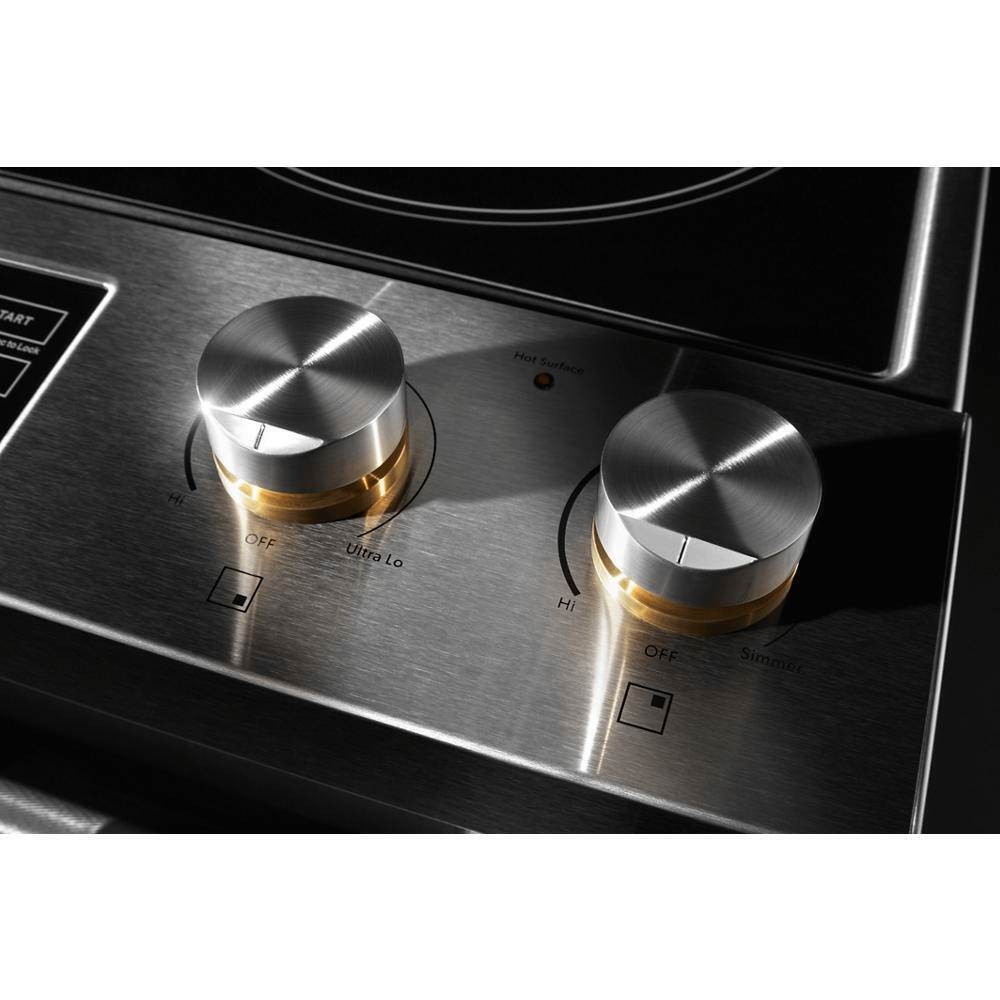

- Die-Cast Metal Knobs
- Robust, die-cast metal knobs offer precise control and coordinate with the range's design.

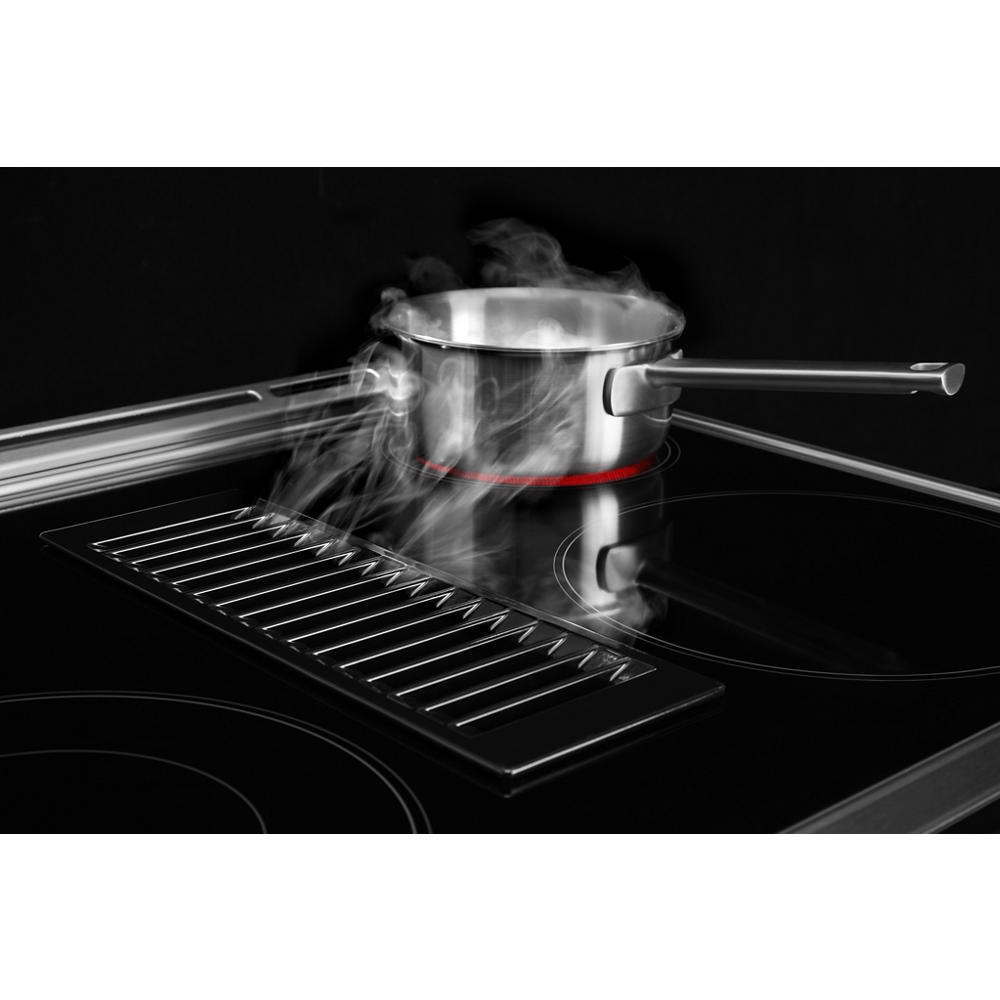

- Downdraft Ventilation
- Developed and refined by JennAir brand, this downdraft ventilation system helps capture smoke, steam and odors at the cooking surface, drawing them down and out of the kitchen.

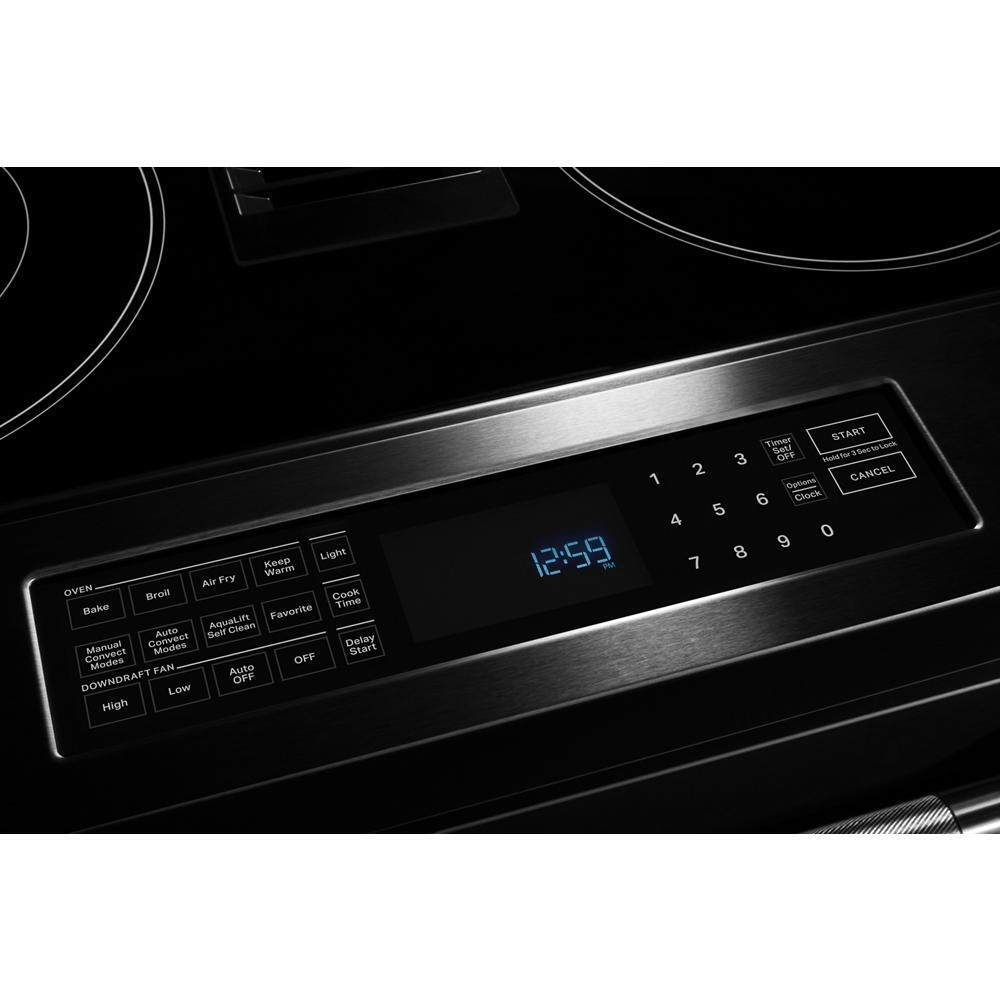

- Emotive Controls
- Striking and inviting controls with LED lighting unleash performance at your touch.
- Experts at the Ready
- Our crew relentlessly engages with JennAir(R) appliances day in, day out. Initiated in rigorous product, process and culinary training, this team answers to you-from sales to installation to ownership.

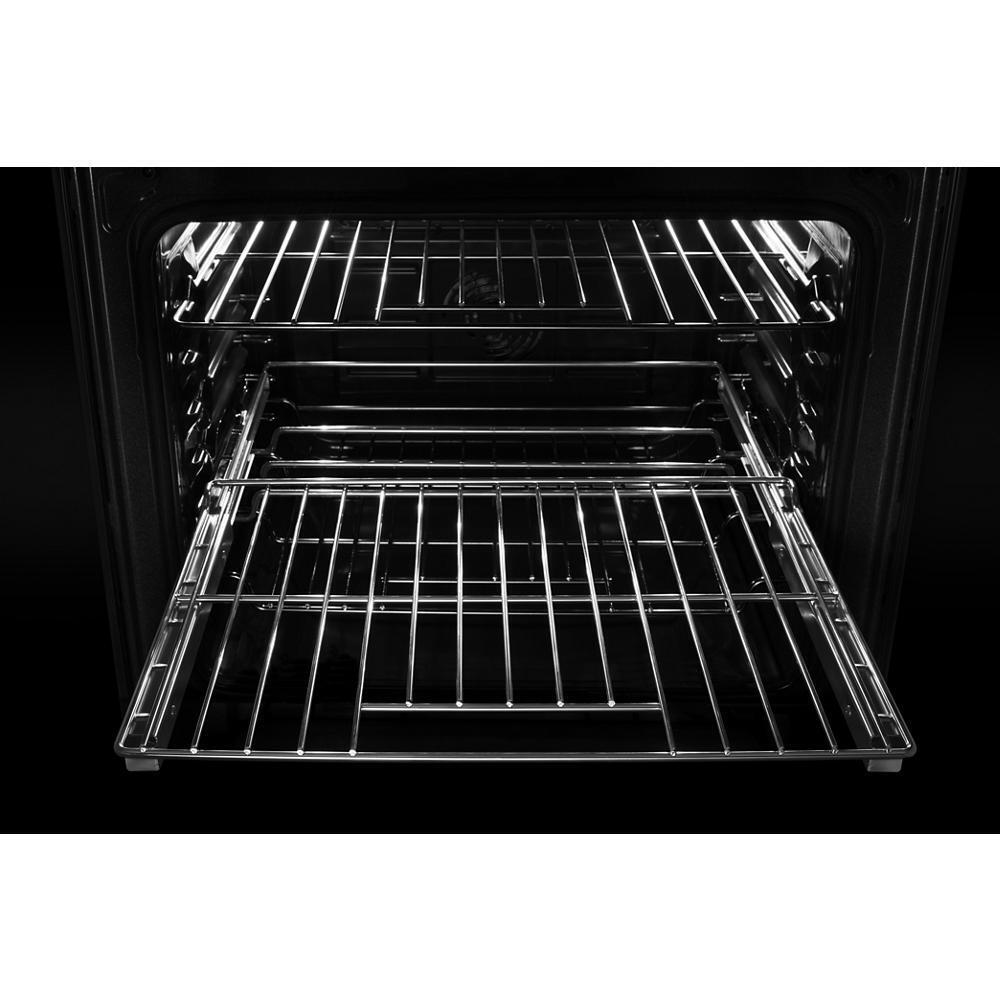

- Glide Rack
- The glide rack smoothly and quietly slides in and out, even when fully loaded.

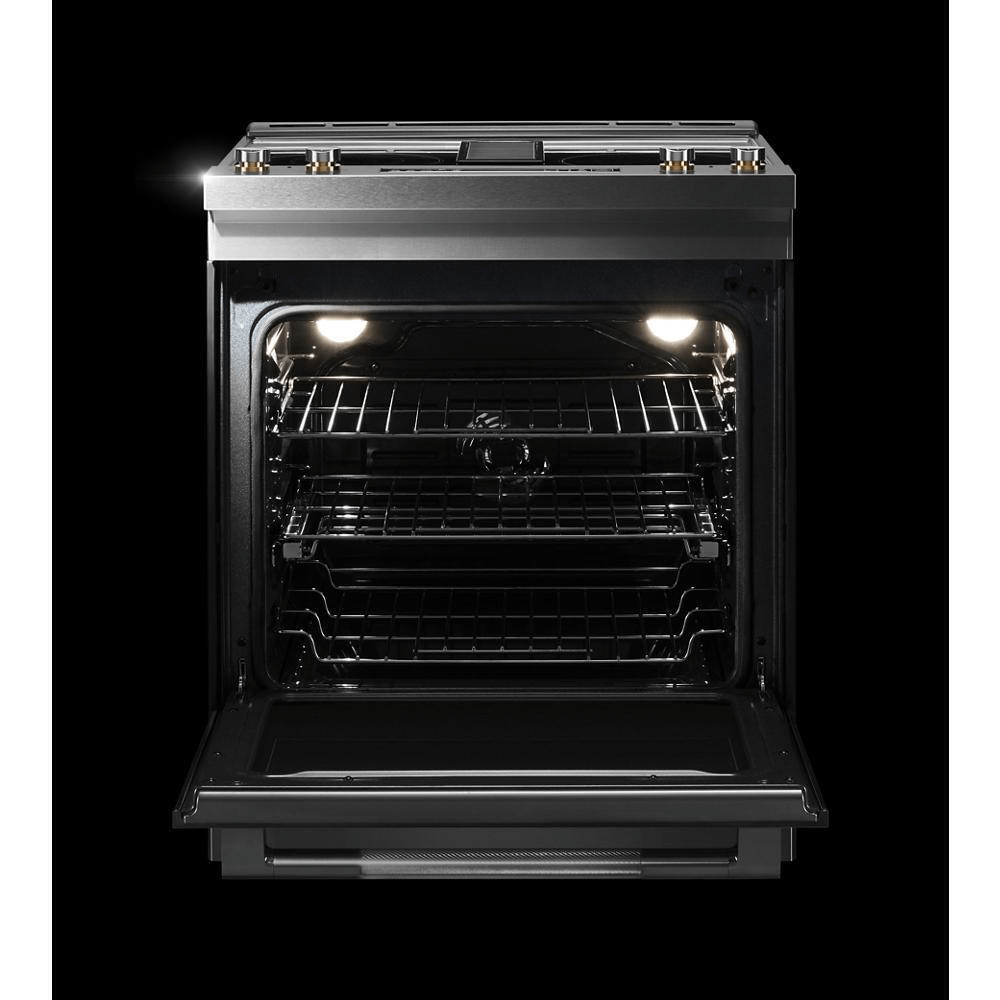

- Halogen Lighting
- Halogen lighting illuminates the interior of the oven to showcase food.
- Halogen lighting
- Halogen lighting casts a bright, white light while still using less energy than incandescent bulbs.

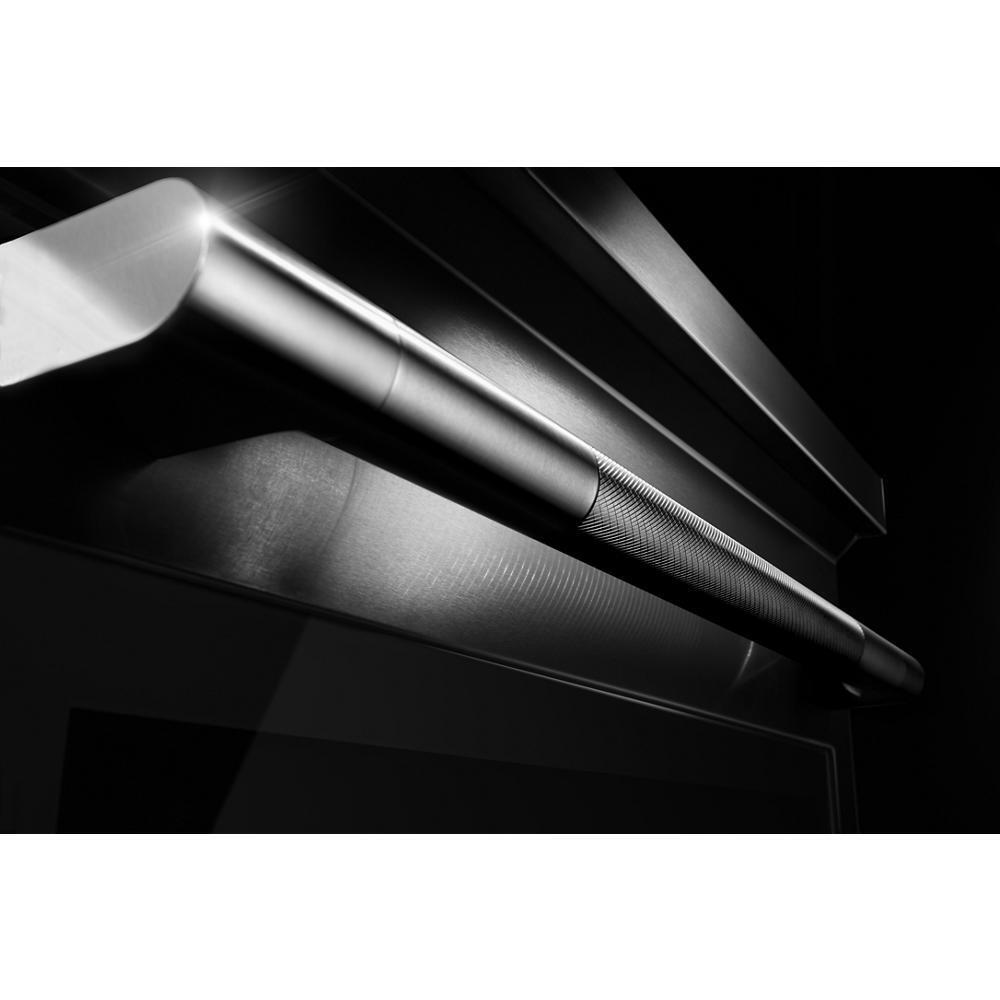

- RISE(TM) Design Expression
- Forged for an era of striking proportions, robust lines of the RISE(TM) Design Expression draw the eye to its traditional yet unconventional design. Indulge in the details - a custom, diamond-knurled handle, brass-inspired bezels and a bold badge.
- Serviced by a Select Few
- We narrowed down our dedicated network to only the most experienced providers. Armed with extensive access to products and knowledge, their expertise is unmatched.

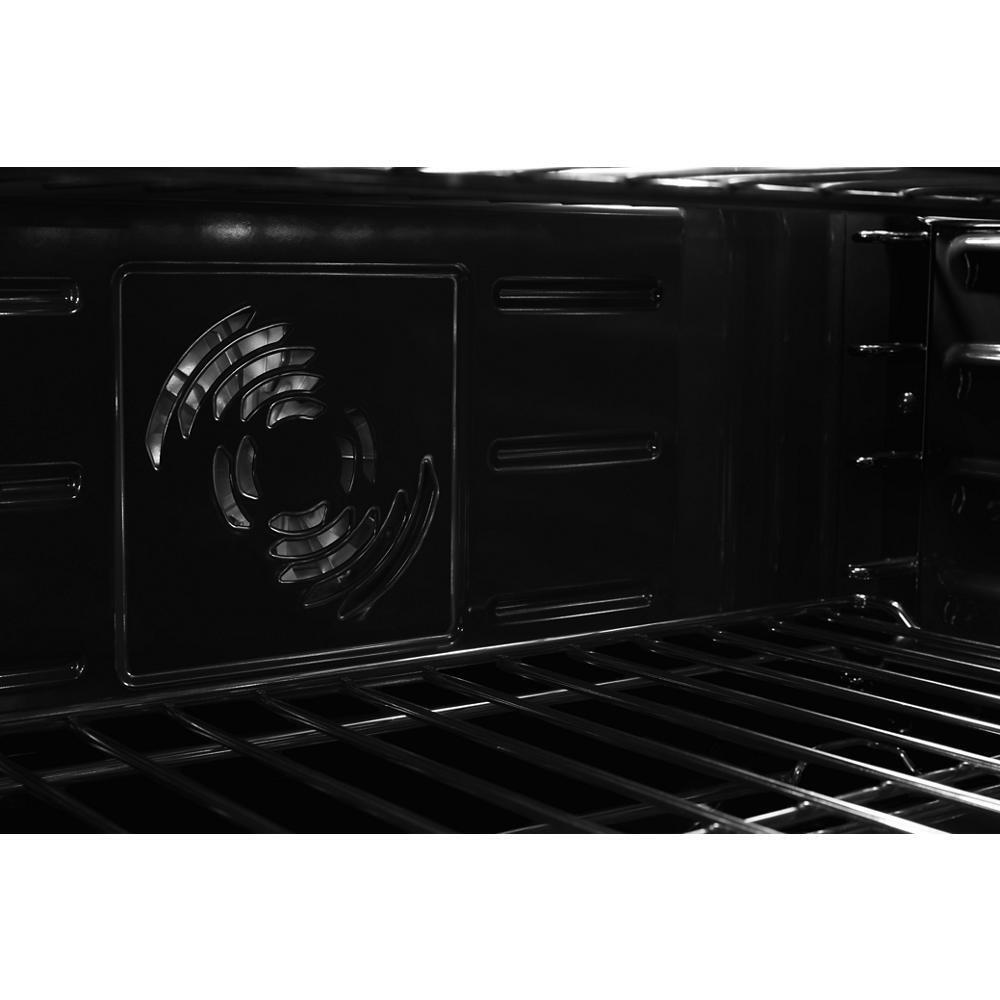

- True Convection
- Steady heat circulates around every rack by whirling metal blades. Flaunt your cooking prowess with mouthwatering, flaky pastries and irresistible roasts.
Certifications | |
Ada Compliant | Yes |
Energy Rating | 636 |
Energy Rating (kwh/year) | 636 |
Prop65 | Standard |
Ul | Yes |
Controls | |
Display Color | White |
Electronic Display Type | PMVA LCD |
Cooktop Details | |
Cooktop Control Knob Color | Stainless Steel |
Cooktop Control Knob Type | Metal |
Cooktop Control Location | Front |
Cooktop Control Type | Knobs |
Cooktop Surface Color | Black |
Cooktop Surface Material | Glass |
Griddle Included | N/A |
Heating Element On Indicator Light | Yes |
Hot Surface Indicator Light | Yes |
Details | |
Automatic Convection Conversion Temperature Adjust | Yes |
Cooktop Configuration | All Burners |
Design Expression | RISE™ |
Fuel Type | Electric |
Oven Light Switch Location | Oven Control |
Oven Selections | Air Fry; Audible Signal; Bake; Broil; Cancel/Off; Clock; Control Lock; Convect Modes; Cook Time Indicator; Delay Start; Favorites; Keep Warm/Warm Hold; Start Time; Stop Time; Timer |
Power On Indicator Light | Yes |
Range Drawer Type | None |
Range Type | Slide-in |
Dimensions | |
Product Height | 36.0 |
Carton Height | 43.5 |
Gross Weight | 234 |
Oven Interior Height | 21.375 |
Carton Width | 31.5 |
Product Depth | 28.625 |
Oven Interior Depth | 20.75 |
Depth Closed Excluding Handles | 27.813 |
Depth Closed Including Handles | 28.625 |
Carton Depth | 30.5 |

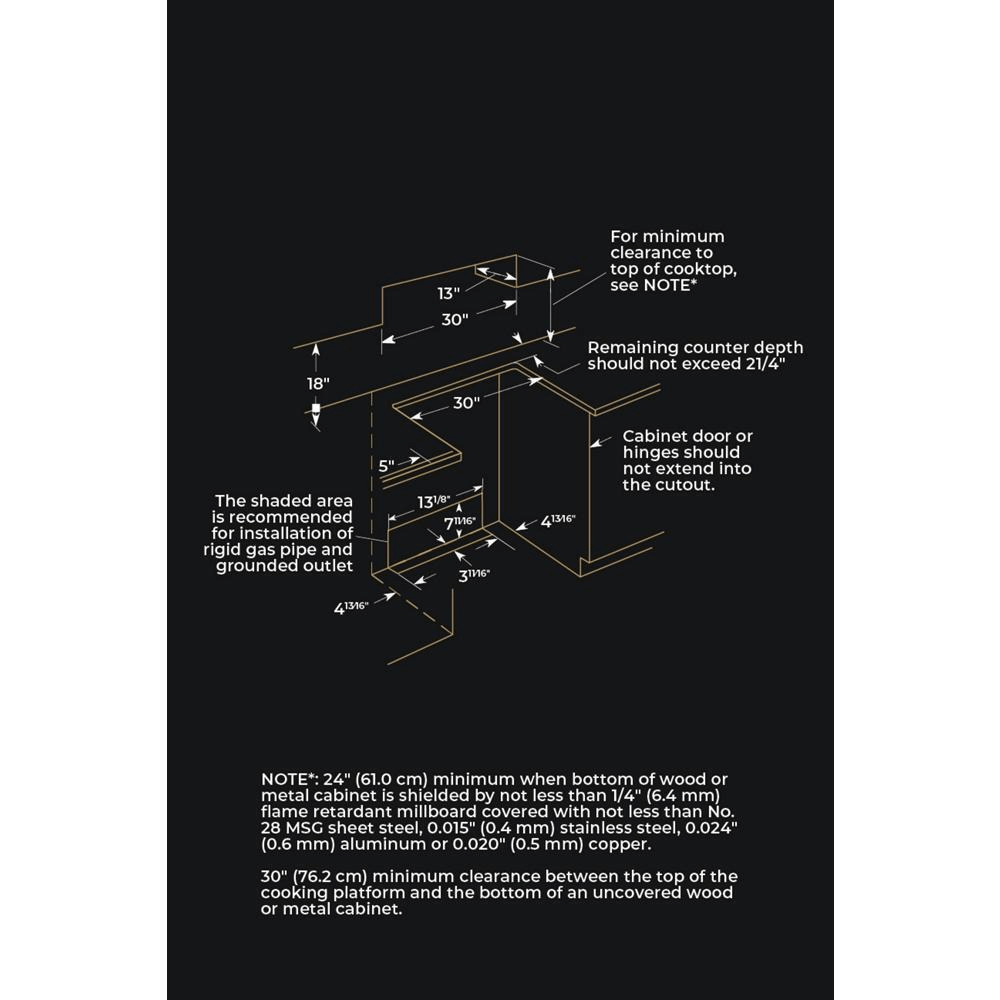

Cutout Width | 30 |
Oven Interior Width | 24.25 |
Net Weight | 214 |
Product Width | 29.875 |
Electrical | |
Power Cord Included | Yes |

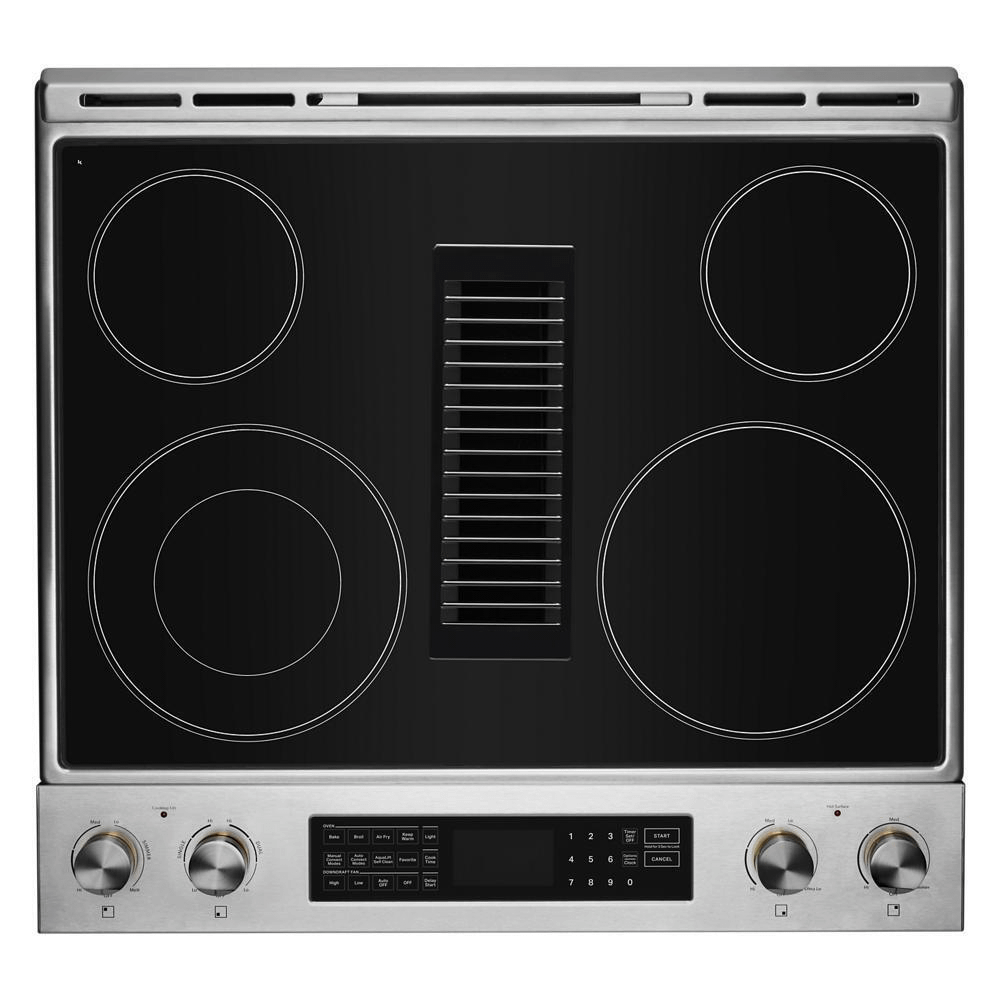

Element/burner Details | |
Cooktop Element Style | Radiant |
Left Front Element-burner Power | 3,000W |
Left Front Element-burner Size | 12in./6in. |
Left Front Element-burner Type | Dual |
Left Rear Element-burner Power | 1,300W |
Left Rear Element-burner Size | 6in. |
Left Rear Element-burner Type | Standard |
Number of Cooking Element-burners | 4 |
Right Front Element-burner Power | 3,200W |
Right Front Element-burner Size | 10in. |
Right Front Element-burner Type | Standard |
Right Rear Element-burner Power | 1,200W |
Right Rear Element-burner Size | 6in. |
Right Rear Element-burner Type | Standard |
Exterior Details | |
Door Type | Metal & Glass |
Handle Color | Stainless Steel |
Handle Material | Metal |
Handle Type | Reach Through Handle |
Oven Control Knob Color | Stainless Steel |
Oven Control Knob Type | Metal |
Oven Control Location | Front |
Oven Control Type | Tap Touch |
Oven Window Size | Large |
Oven Details | |
Bake Element Power | 3,600 W |
Broiler Element Power | 4,000 W |
Broiler Location | Top of Oven |
Convection Element Power | 3,200 |
Convection Element Type | Fan |
Convection Functions | Air Fry; Bake; Broil |
Hidden Bake Element | Yes |
Interior Color | Black |
Number of Oven Lights | 2 |
Number of Oven Racks | 3 |
Number of Rack Guides | 7 |
Oven Cleaning Type | Self-Cleaning |
Oven Cooking System | Convection |
Oven Light Type | Incandescent |
Oven Rack Type | Gliding Roll-Out; Heavy Duty; Max Capacity |
Smart Compatibility | |
Connectivity | No |
Works With | No |
