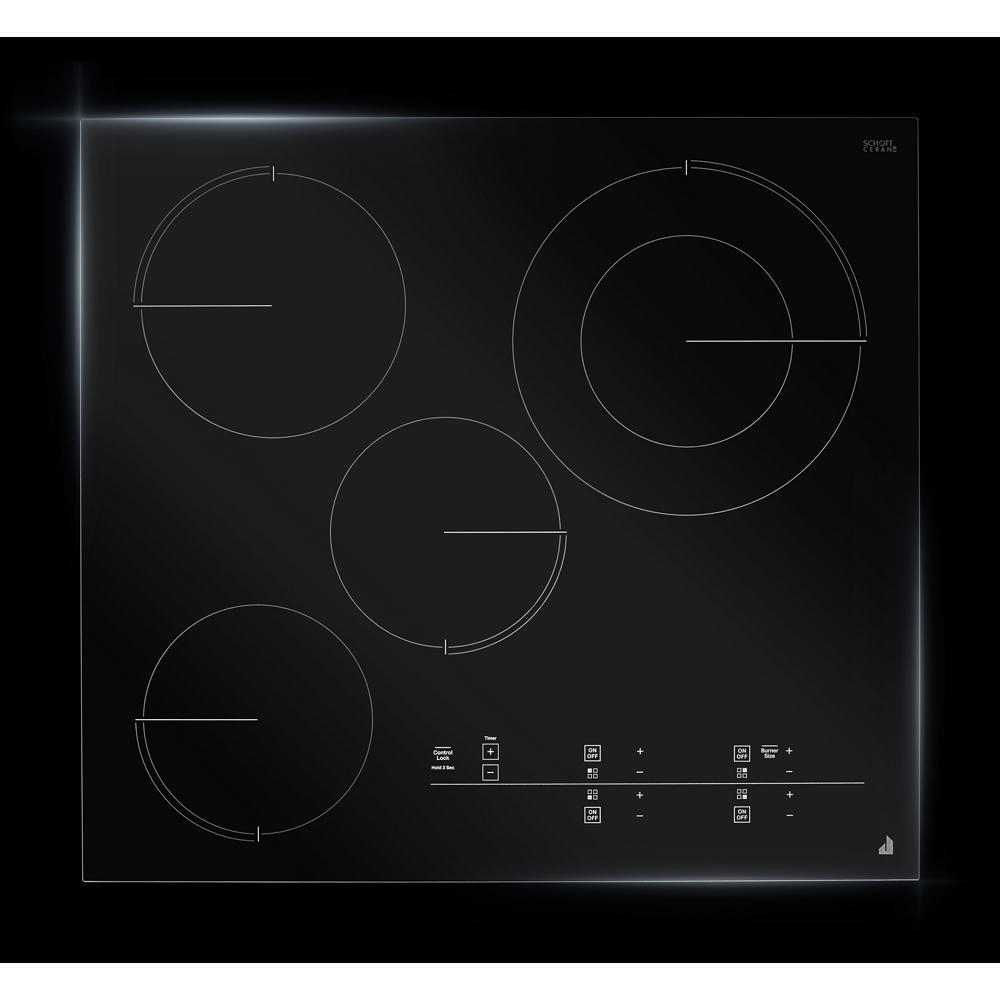

Indulge your untamed appetites with a fast-heating JennAir® radiant cooktop in sleek glass. The most powerful radiant cooktops in their classes* feature white LED emotive controls and a variety of element sizes and wattages.

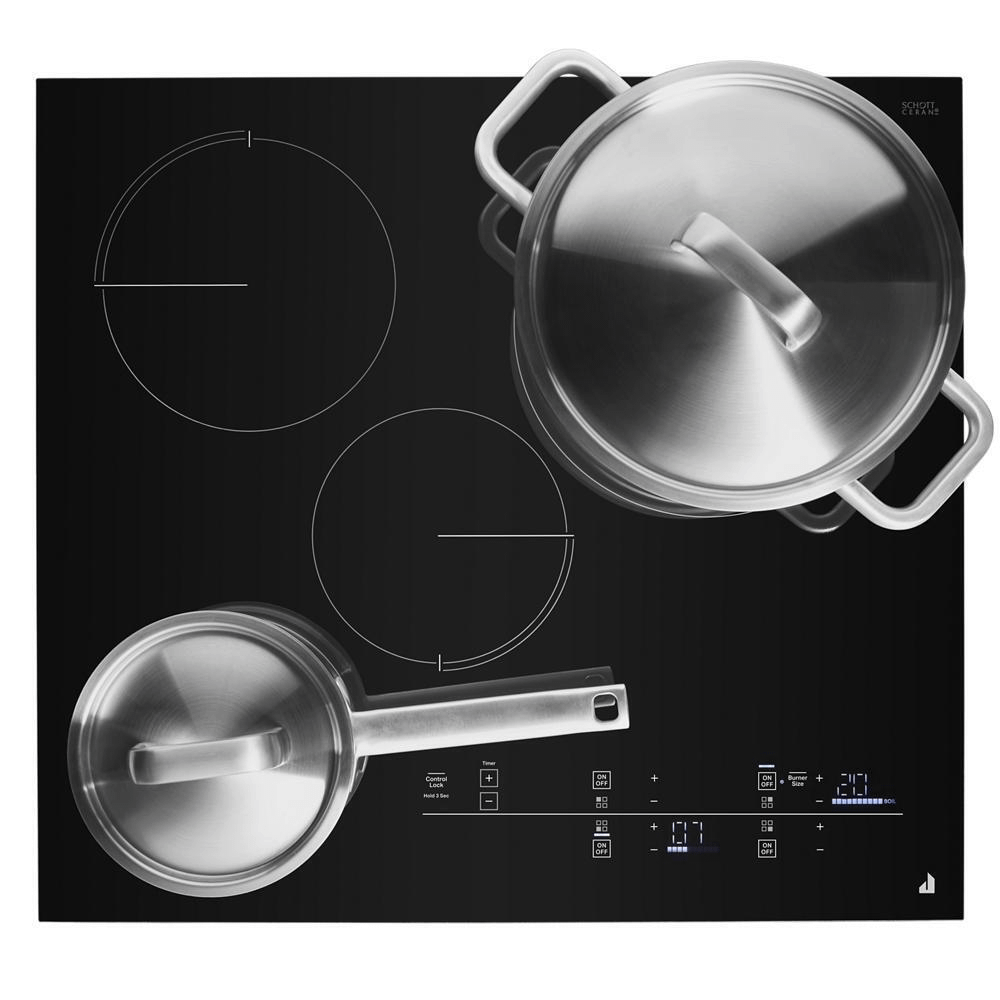

- 10 /6 Dual-Choice(TM) Element
- This two-tiered single element accommodates various-sized cookware in one location and can achieve an output of up to 3,000 watts when both elements are active.
- 6 1,200-Watt Single Element
- A fast-heating heating element ideally sized for small sauce pans and sauciers that can reach up to 1,200 watts of power.
- 6 1,300-Watt Single Element
- A fast-heating element ideally sized for small sauce pans and sauciers that can reach up to 1,300 watts of power and as low as 300 watts.
- 8" 1,800-Watt Single Element
- This element has an output of up to 1,800 watts and is ideally sized for medium cookware and offers the power to perform a wide variety of cooking tasks.
- ADA Compliant
- Designed to meet ADA standards when installed according to the ADA guidelines.
- Control Lock
- Control Lock prevents unintended use of the cooktop and ensures complete, simple cleaning of the controls.
- Cooktop Power Off Function
- Conveniently turn off all radiant elements at once.

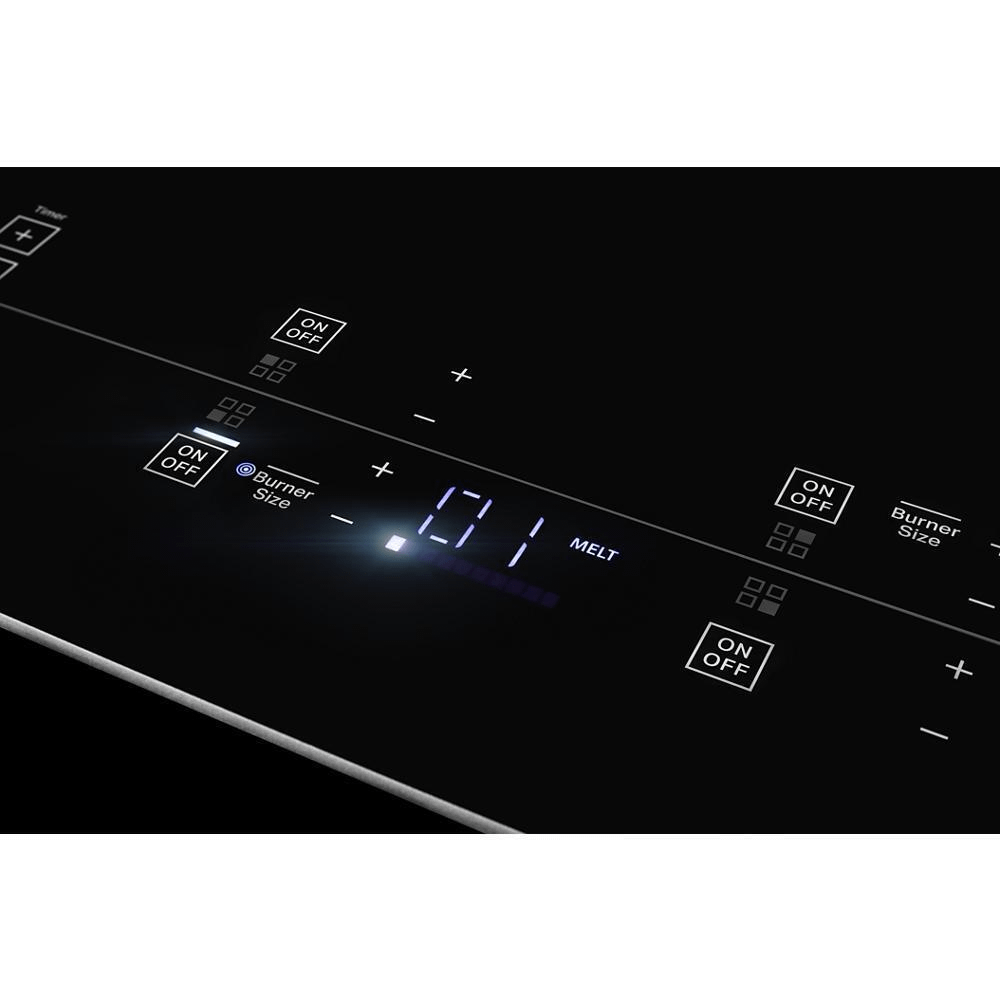

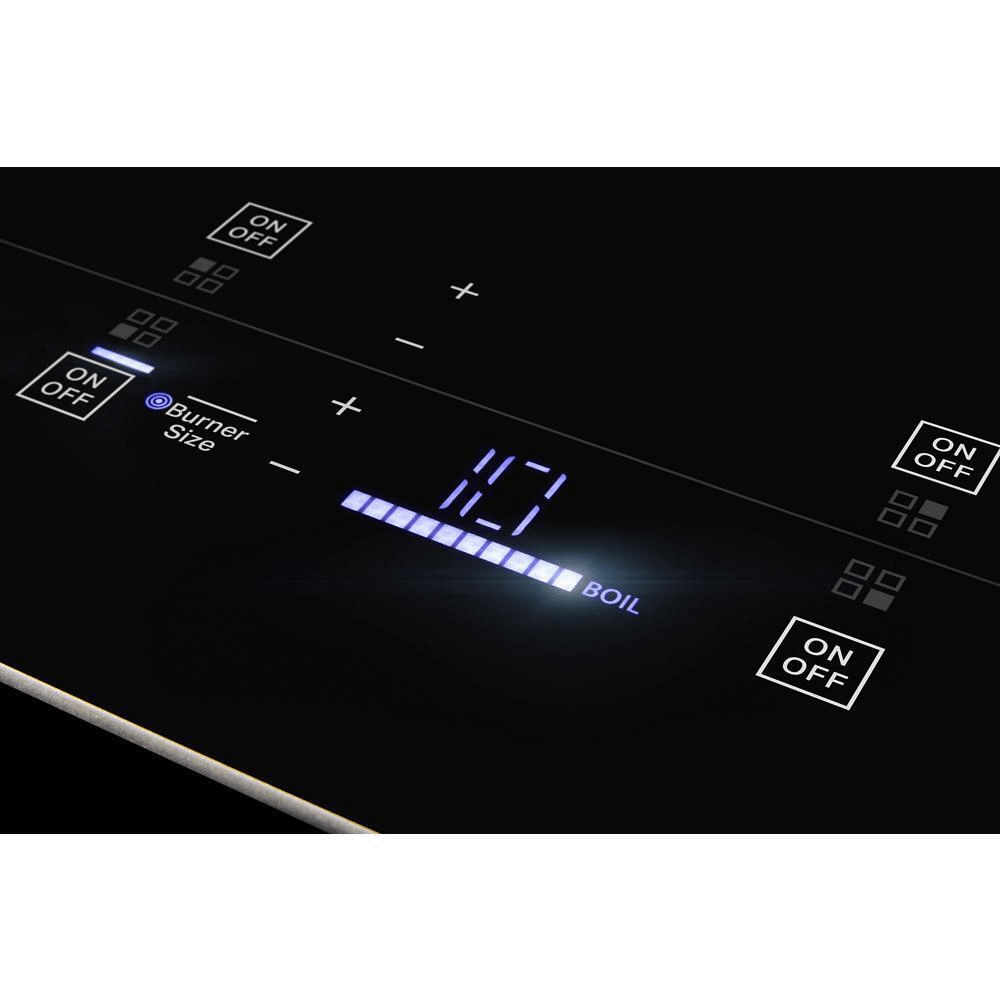

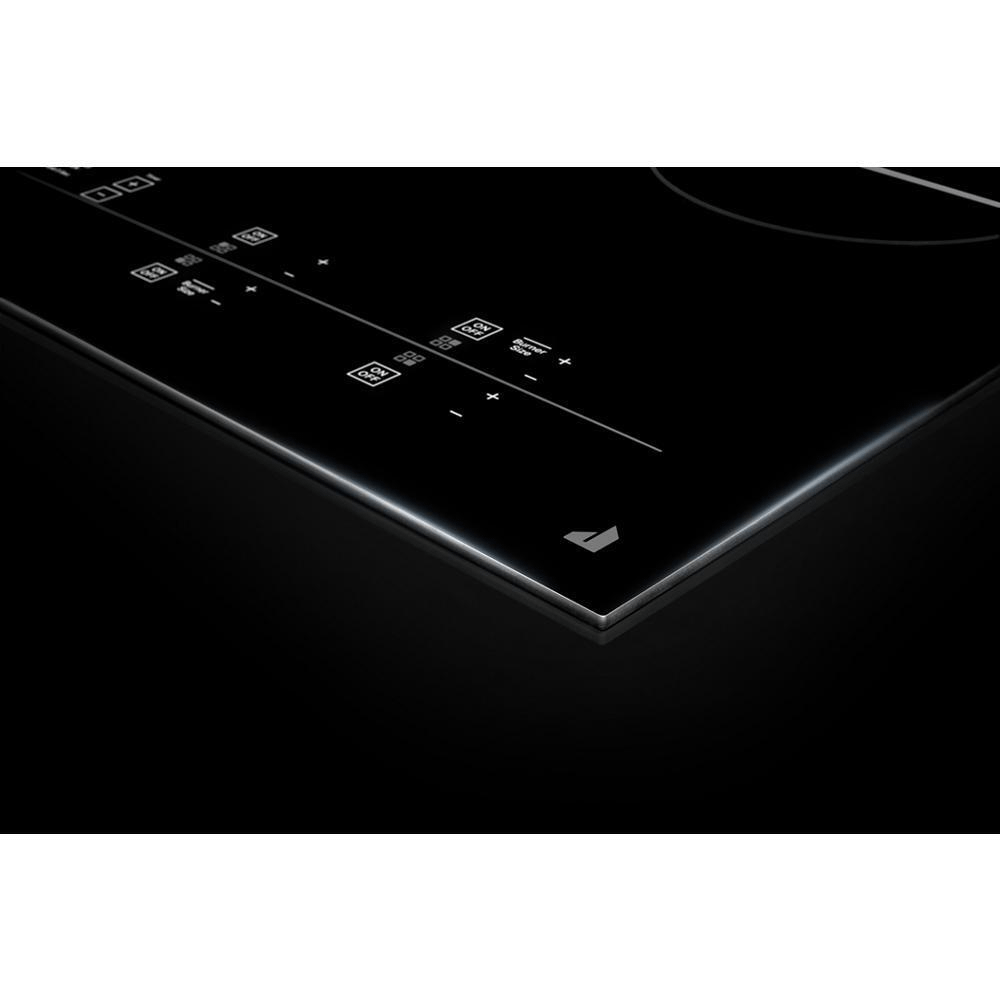

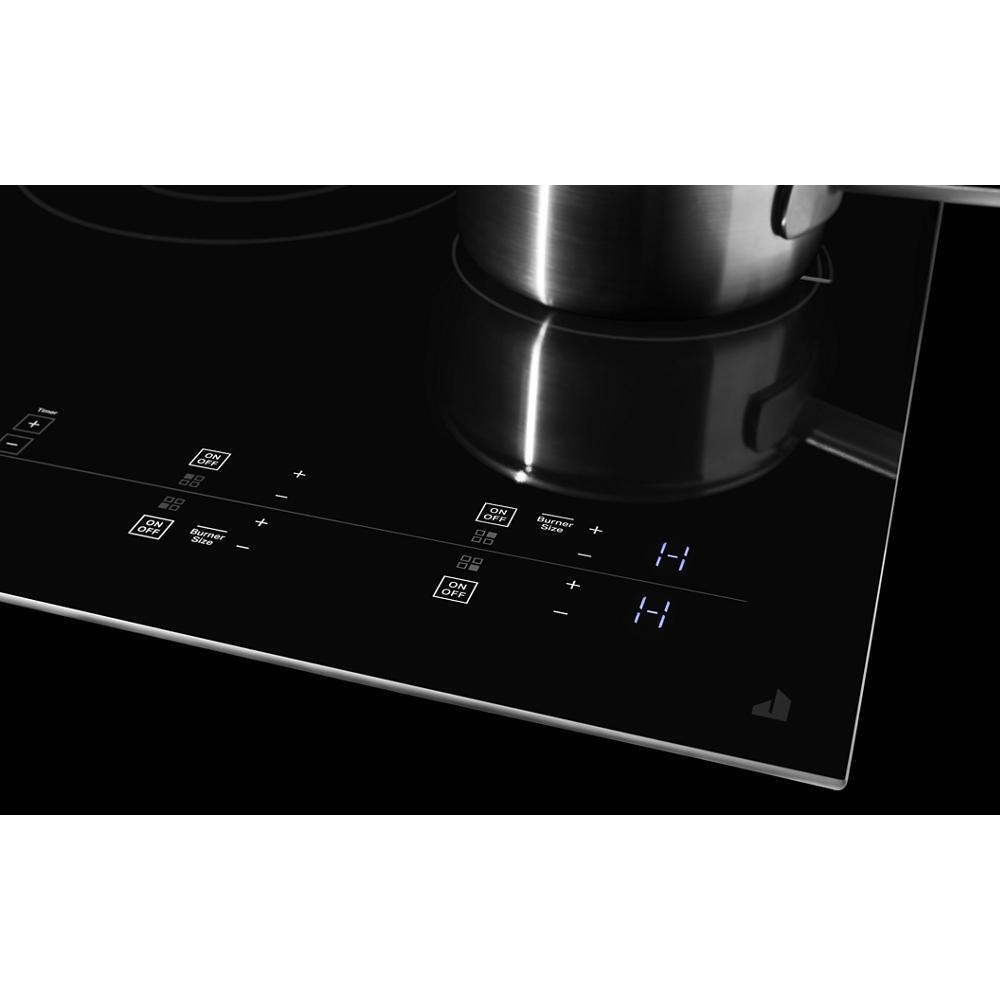

- Emotive Controls
- Striking, intuitive and inviting controls with clear, white LEDs unleash performance at your touch.

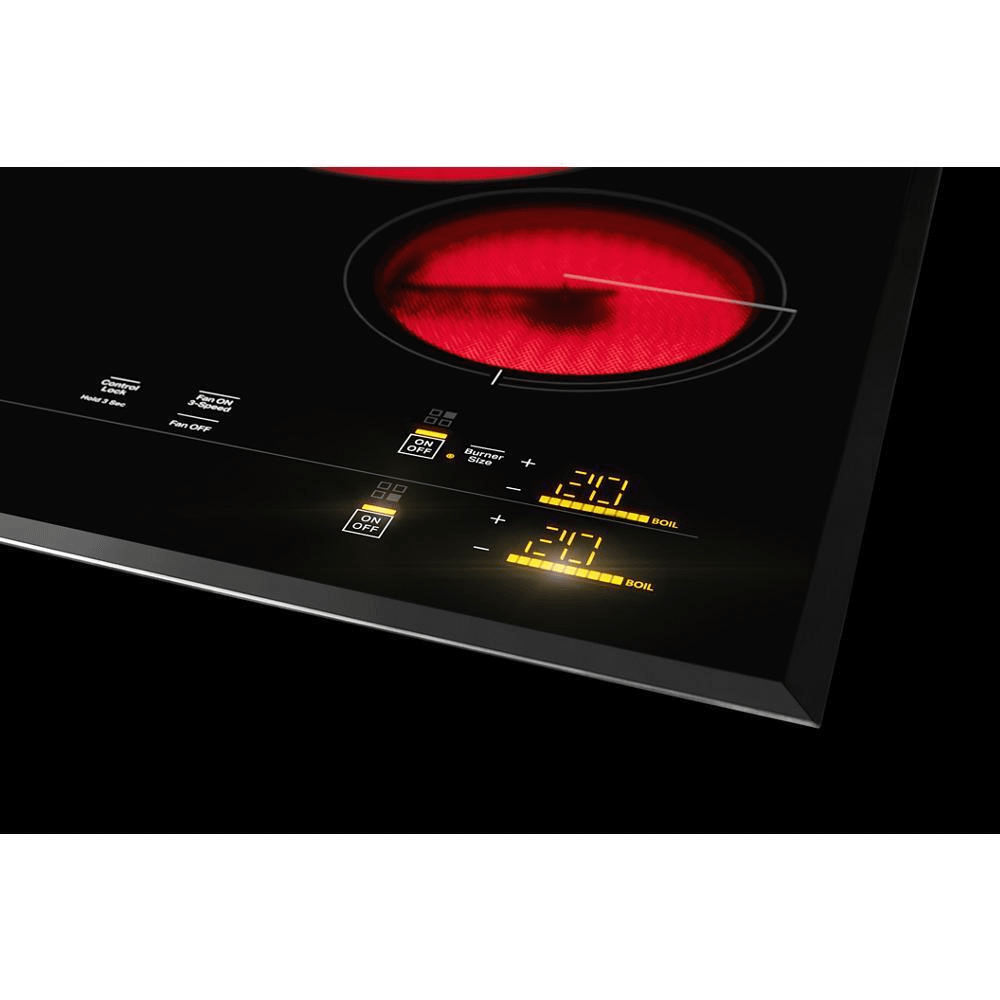

- Hot Surface Indicators
- Light(s) positioned at the controls instantly show which element is still hot-even if the element has been turned off.

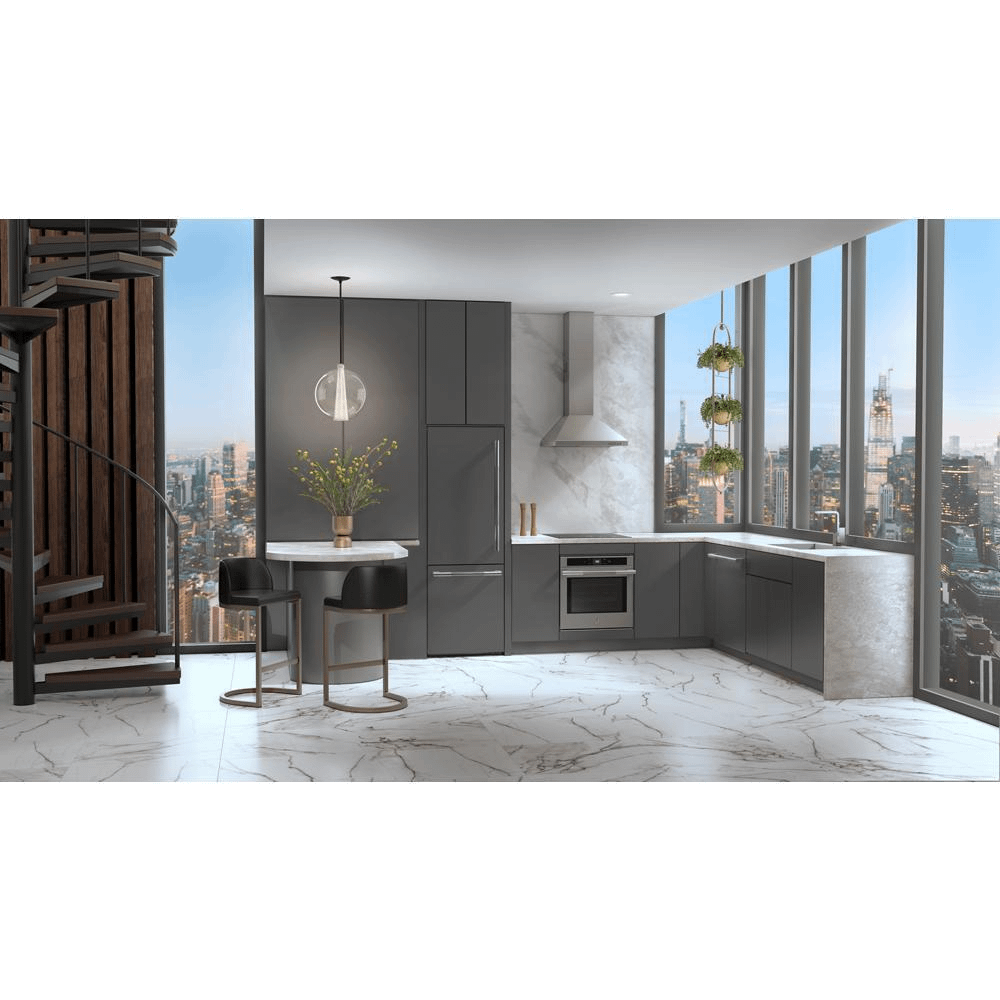

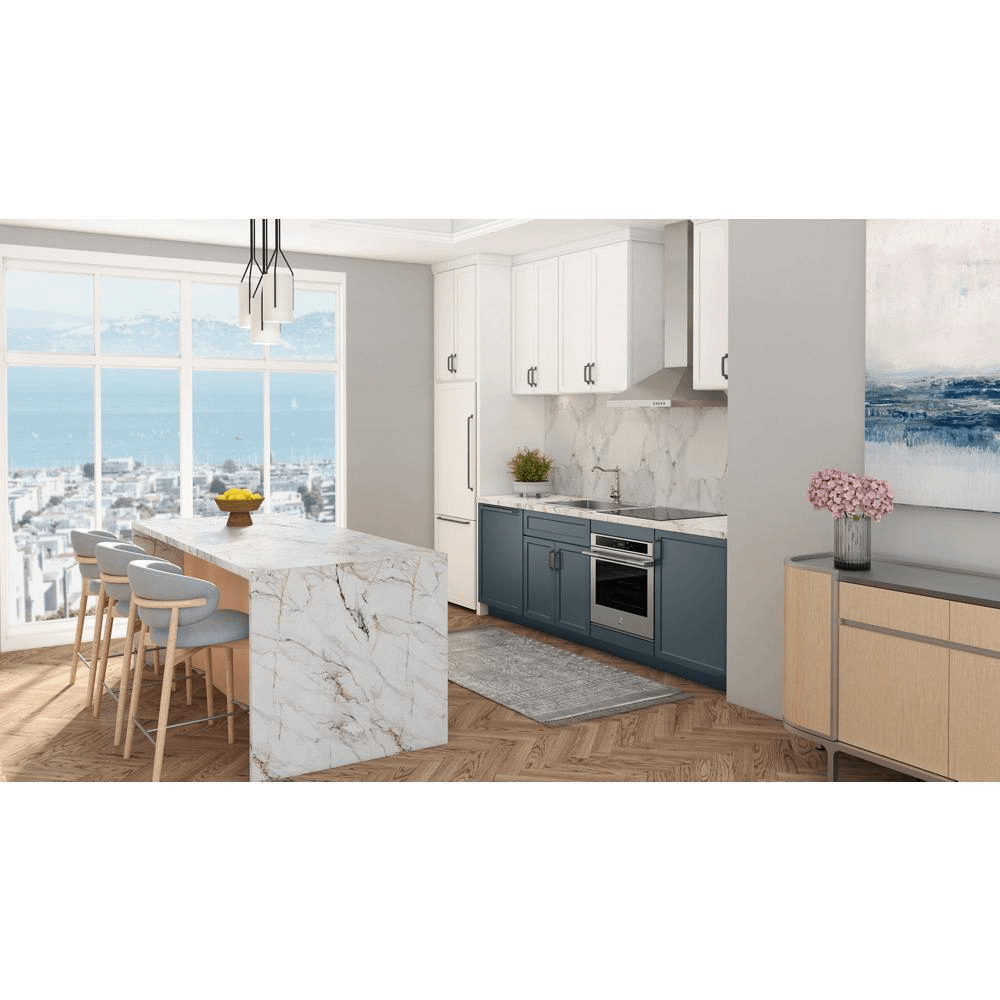

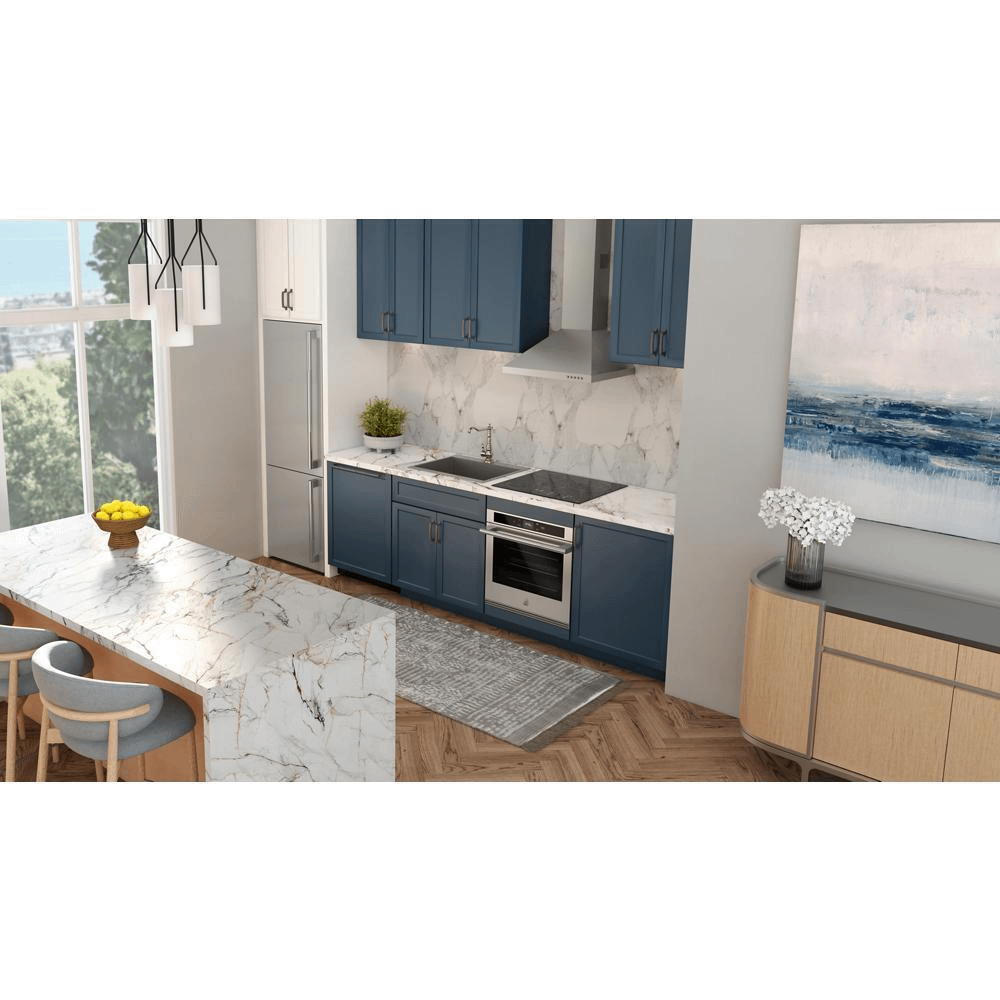

- Install Over Single Wall Oven
- Versatility and functionality converge with the ability to install in a countertop above our single wall oven.

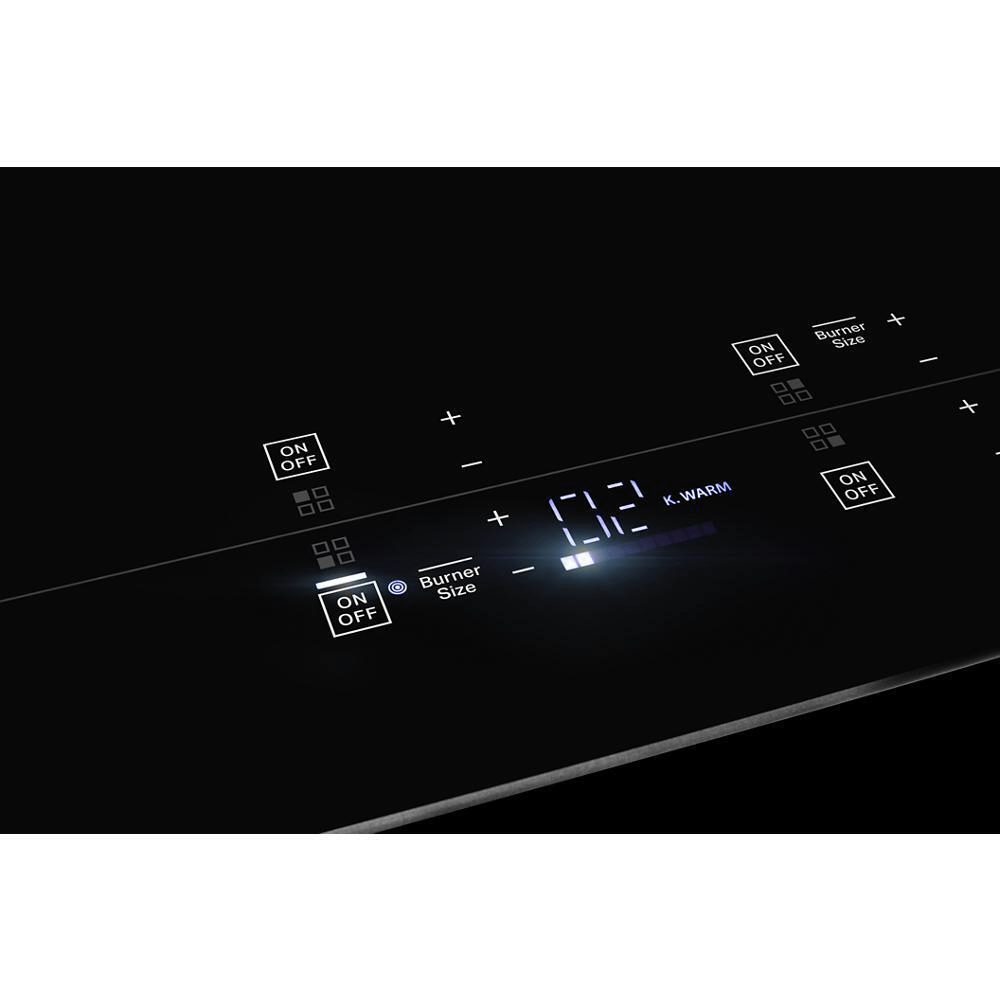

- Keep Warm(TM) Function on All Elements
- Reward anticipation. Low heat at power level 2 keeps tempting dishes at the right temperature until they re ready to be served.
- Kitchen Timer
- The kitchen timer can be set in hours, minutes, and seconds and counts down the set time. Setting a kitchen timer will remind you when it's time to check your food, but will not turn your burner element off.
- Most Powerful Radiant Cooktop In Its Class
- The four-element, 7,300-watt 24" JEC4424H is the most powerful radiant cooktop in its class

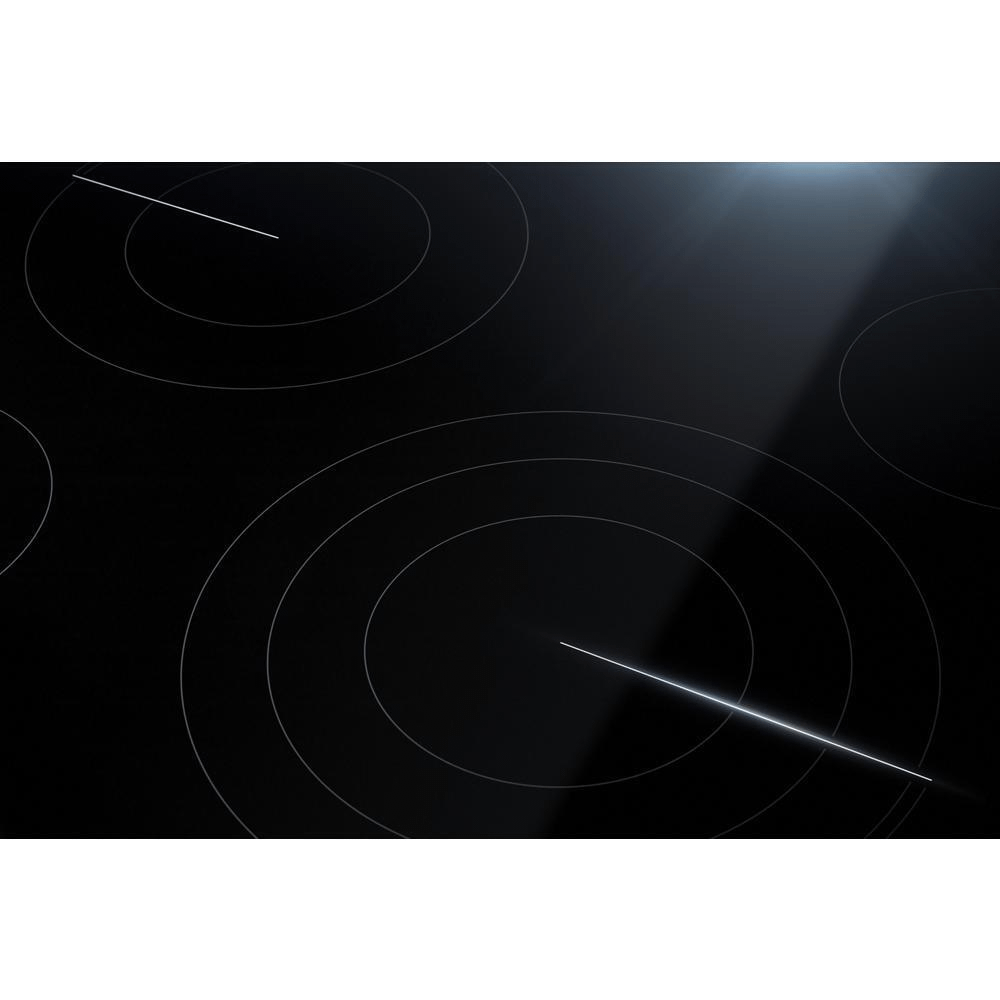

- Oblivion Glass Design
- Sleek black glass that seizes its surroundings. Lose yourself in the depths of infinite possibilities that dare you to explore your limits.
- Power On Indicator Light
- See at a glance that power is on for an electric radiant element.

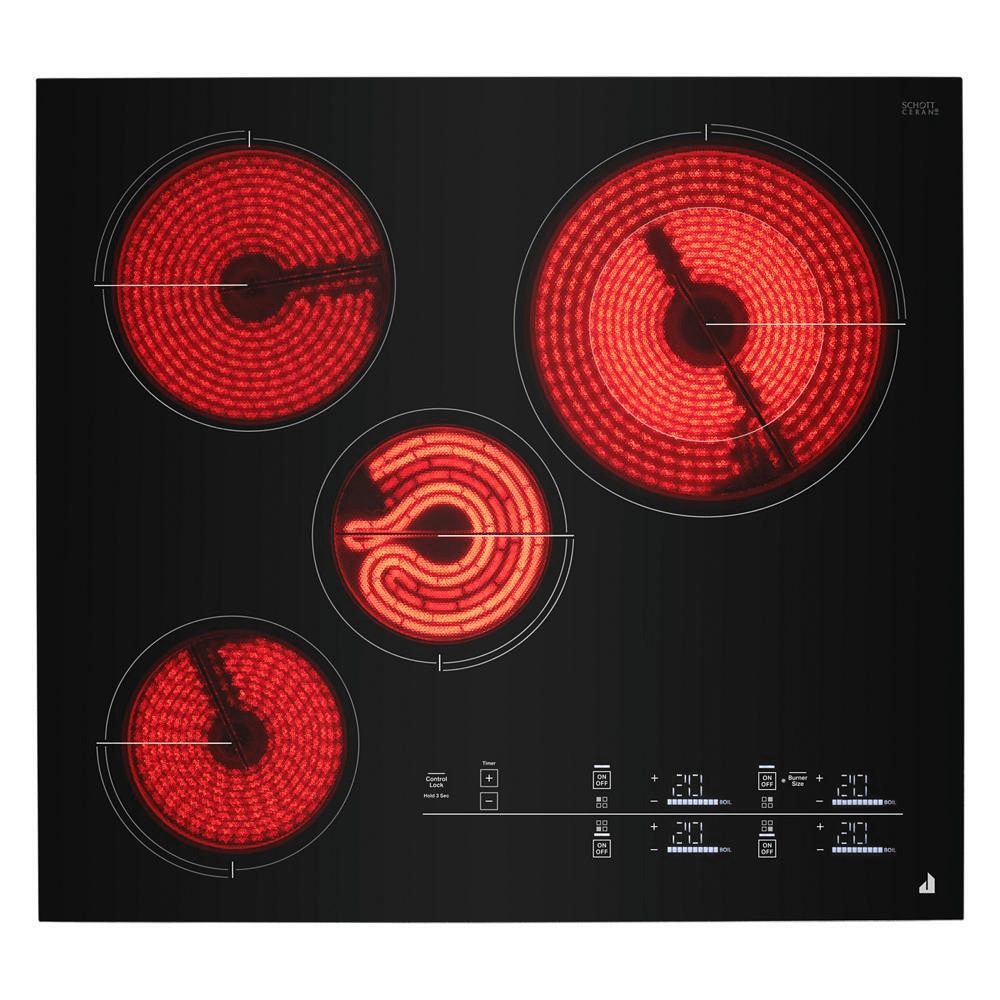

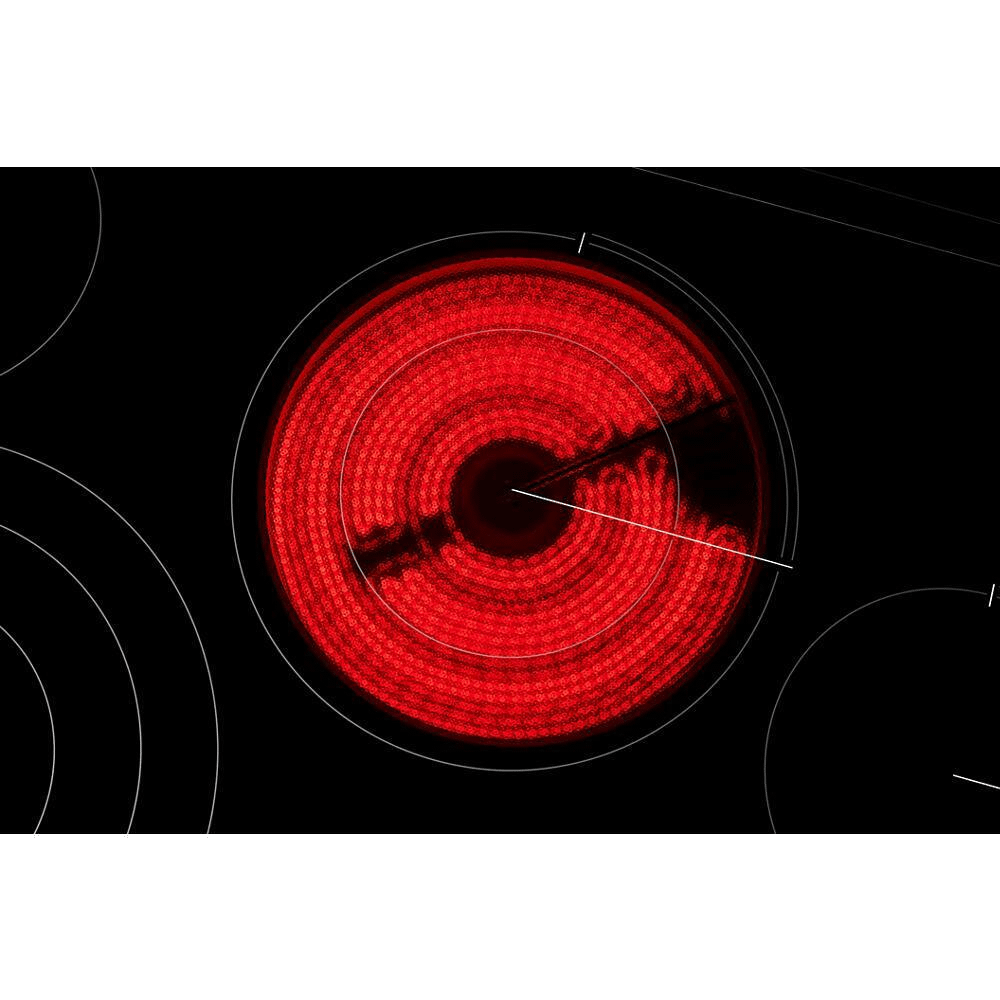

- Radiant Elements
- Beneath the sleek, black cooktop surface, fast-heating elements deliver heat upon command.
- Serviced by a Select Few
- We narrowed down our dedicated network to only the most experienced providers. Armed with extensive access to products and knowledge, their expertise is unmatched.
- Simmer Function on All Elements
- Provides the optimal temperature for gently cooking delicate sauces and foods.

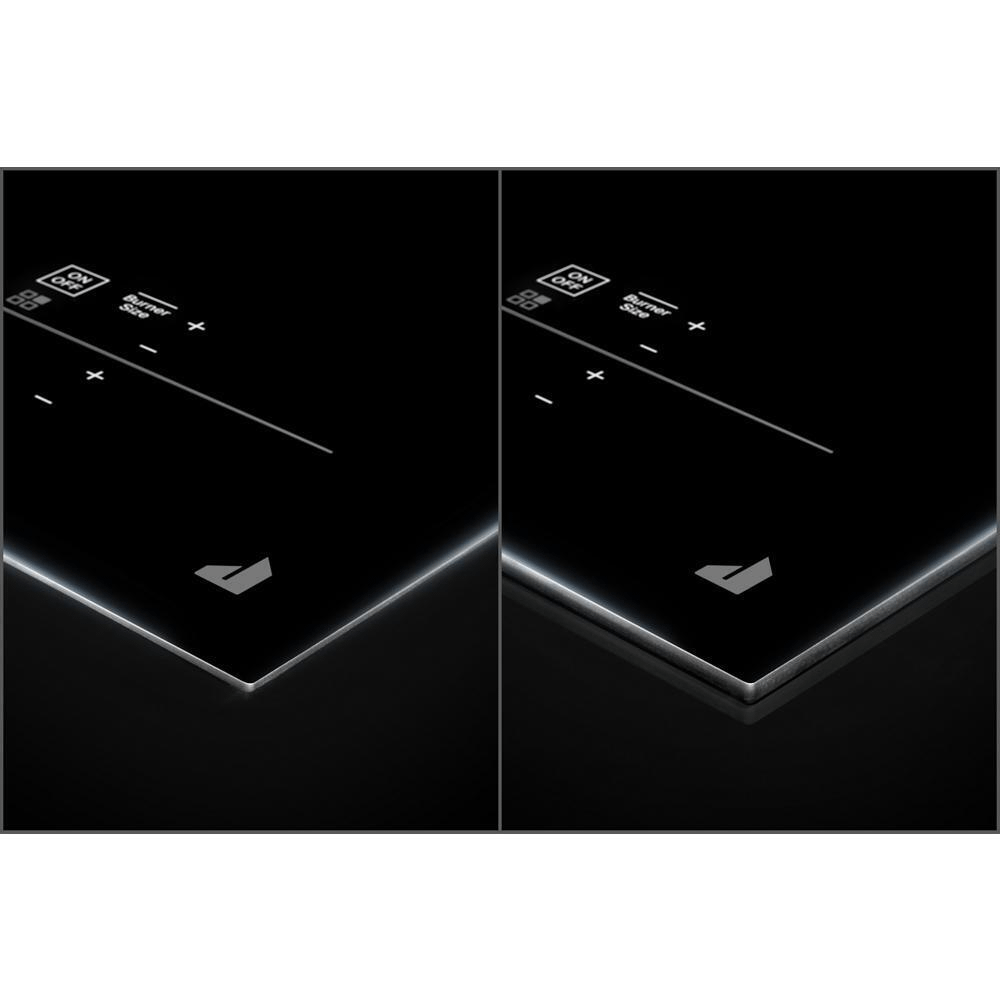

- Versatile Installation
- Install without limits. This JennAir(R) cooktop can be installed true flush or semi-flush at 3mm above any level countertop, including an island or peninsula.
Certifications | |
Ada Compliant | ADA Height and Operation Compliant |
Prop65 | Standard |
Ul | Yes |
Controls | |
Control Location | Front |
Control Type | Electronic Touch |
Infinite Heat Controls | No |
Cooktop Details | |
Cooktop Surface Color | Black |
Cooktop Surface Material | Glass |
Digital Display | Yes |
Griddle Included | N/A |
Heating Element On Indicator Light | Yes |
Hot Surface Indicator Light | Yes |
Number of Open Bays | N/A |
Details | |
Automatic Pan Detection | No |
Combinations With Oven | JJW2424; JJW2427; JJW2430; JJW3430; JJW6024 |
Cooktop Configuration | All Burners |
Design Expression | Oblivian Glass |
Fuel Type | Electric Radiant |
Installs Over Built-in Oven | Yes |
Lp Convertible | No |
Power Outage Compatible | No |
Dimensions | |
Product Height | 5.25 |
Carton Height | 9.25 |
Gross Weight | 46 |
Carton Width | 27.75 |
Product Depth | 21.75 |

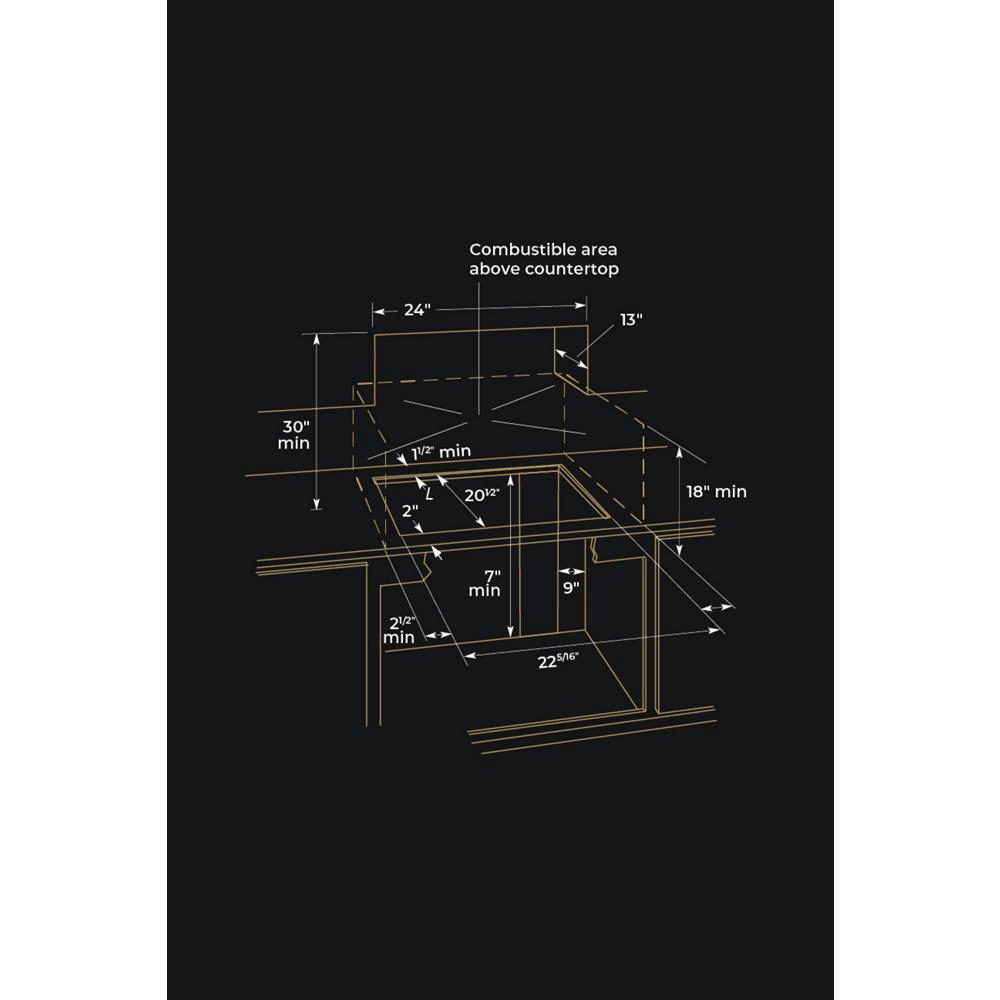

Cutout Depth Max | 20.563 |
Cutout Width Min | 22.063 |
Cutout Depth | 20.375 |
Carton Depth | 25 |
Cutout Width | 22.063 |
Cutout Depth Min | 20.375 |
Cutout Width Max | 22.563 |
Net Weight | 42.29 |
Product Width | 23.8125 |
Electrical | |
208v Compatible | Yes |
Power Cord Included | No |
Element/burner Details | |
Cooktop Element Style | Radiant |
Cooktop Type | Traditional |
Left Front Element-burner Power | 1,200W |
Left Front Element-burner Size | 6in. |
Left Front Element-burner Type | Standard |
Left Rear Element-burner Power | 1,800W |
Left Rear Element-burner Size | 8in. |
Left Rear Element-burner Type | Standard |
Number of Cooking Element-burners | 4 |
Power Boost | No |
Right Front Element-burner Power | 1,300W |
Right Front Element-burner Size | 6in. |
Right Front Element-burner Type | Standard |
Right Rear Element-burner Power | 3000W/1900W |
Right Rear Element-burner Size | 10in./6in. |
Right Rear Element-burner Type | Dual-Stacked Burner |
Ventilation Details | |
Downdraft Vent | No |
