Overview & Specifications
Overview & Specifications
Cook healthier, crispier versions of your favorite foods in less time, thanks to an air fryer right in your oven that doesn't require preheating, a basket or a special tray (WiFi Enabled)

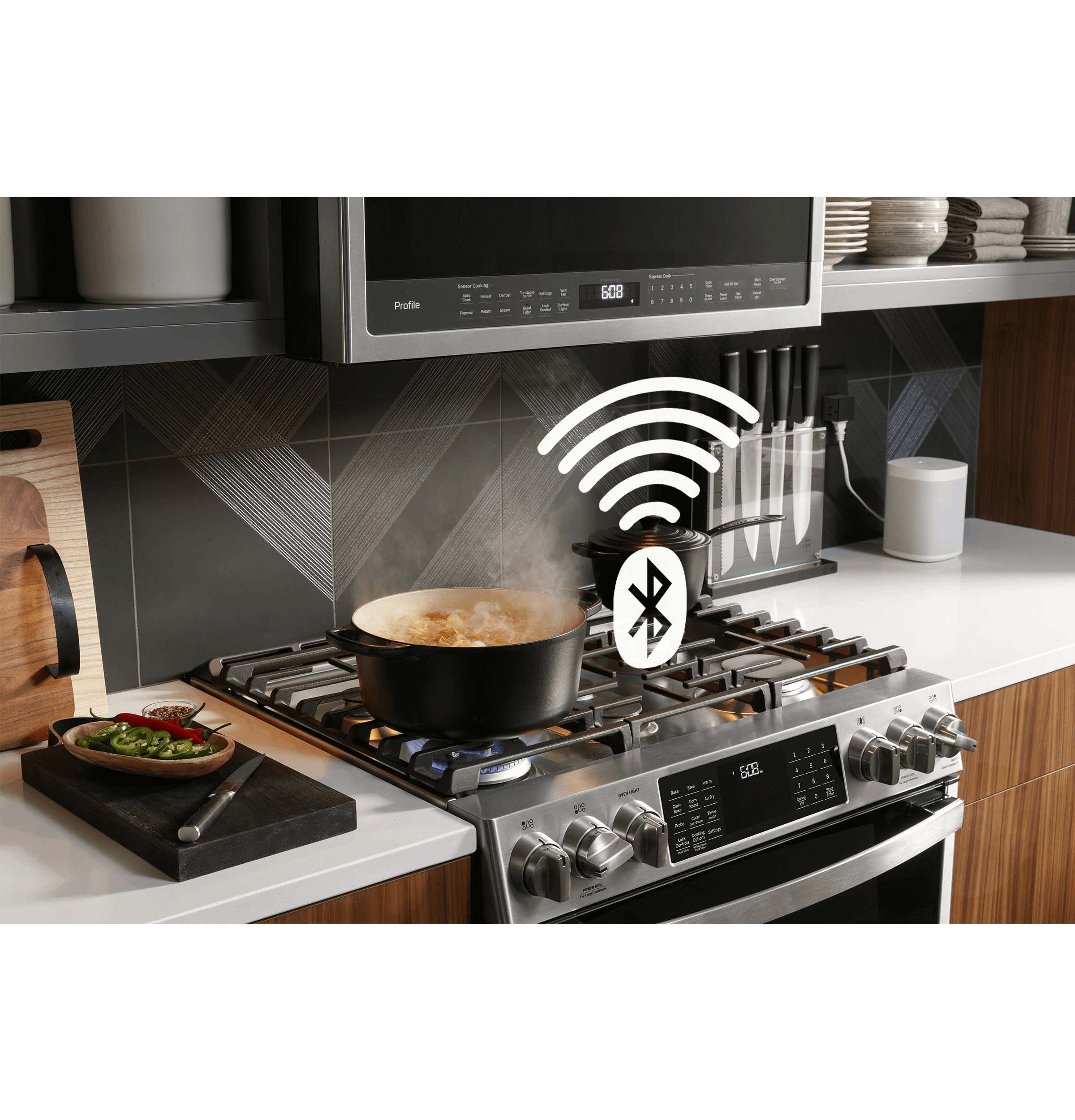

Built-In WiFi, Powered by SmartHQ App
Connect, control and manage your oven from anywhere with your smartphone or tablet (Select features require WiFi Connection) See details
GE Profile Connect +
Ensure your oven always has the latest features, like new Air Fry modes, with downloadable software upgrades
Fingerprint resistant stainless
Easily wipe away smudges and fingerprints for a look that's always sparkling clean
Fit Guarantee
This dual fuel range will fit your existing 30" cut-out, or GE Appliances will help pay for modifications up to $300. https://www.geappliances.com/content/pdfs/GE_Appliances_Fit_Guarantee_2H2023.pdf

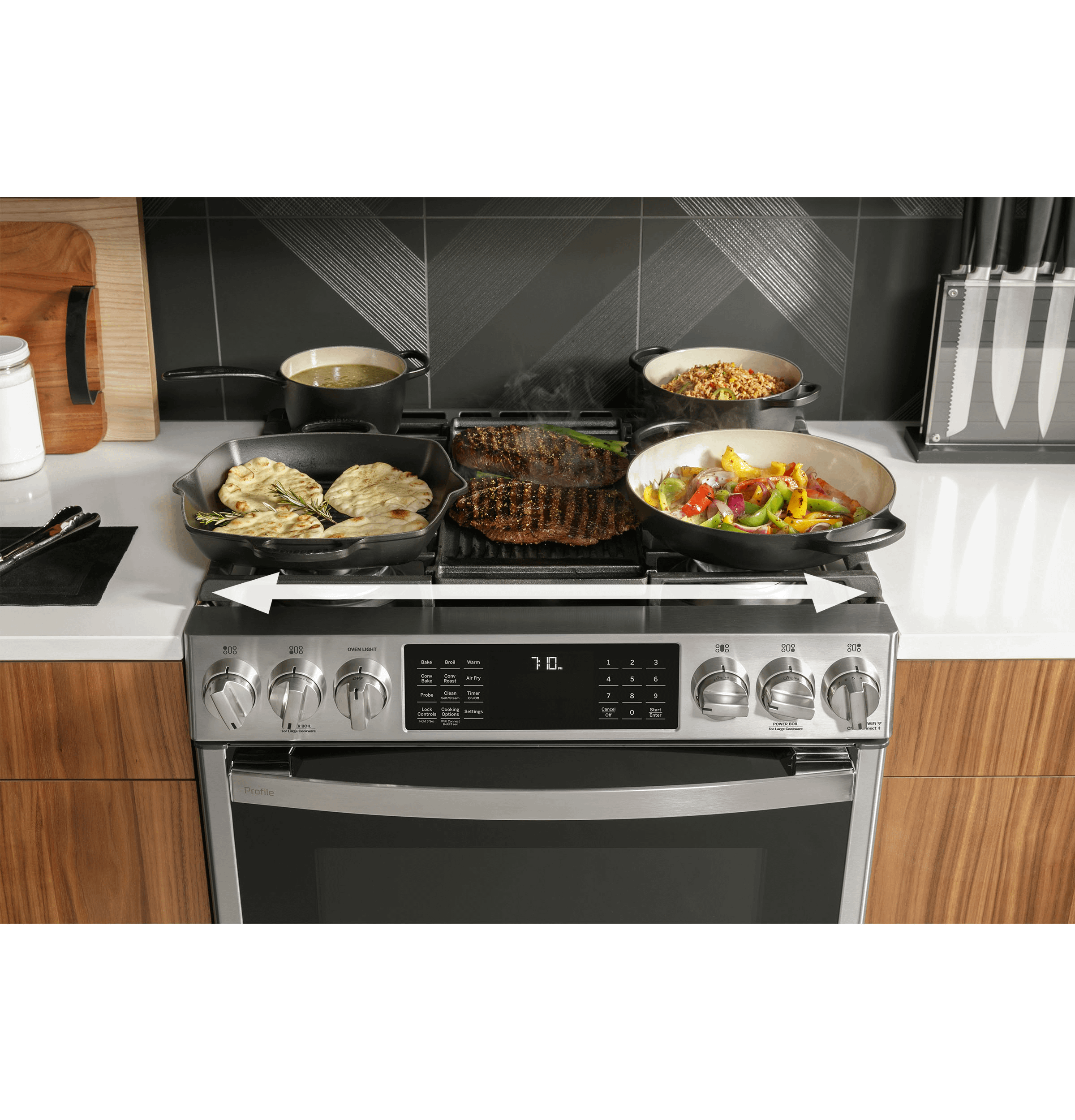

Edge-to-edge cooktop
Continuous, edge-to-edge cooktop give you a large cooking space and can handle any cookware

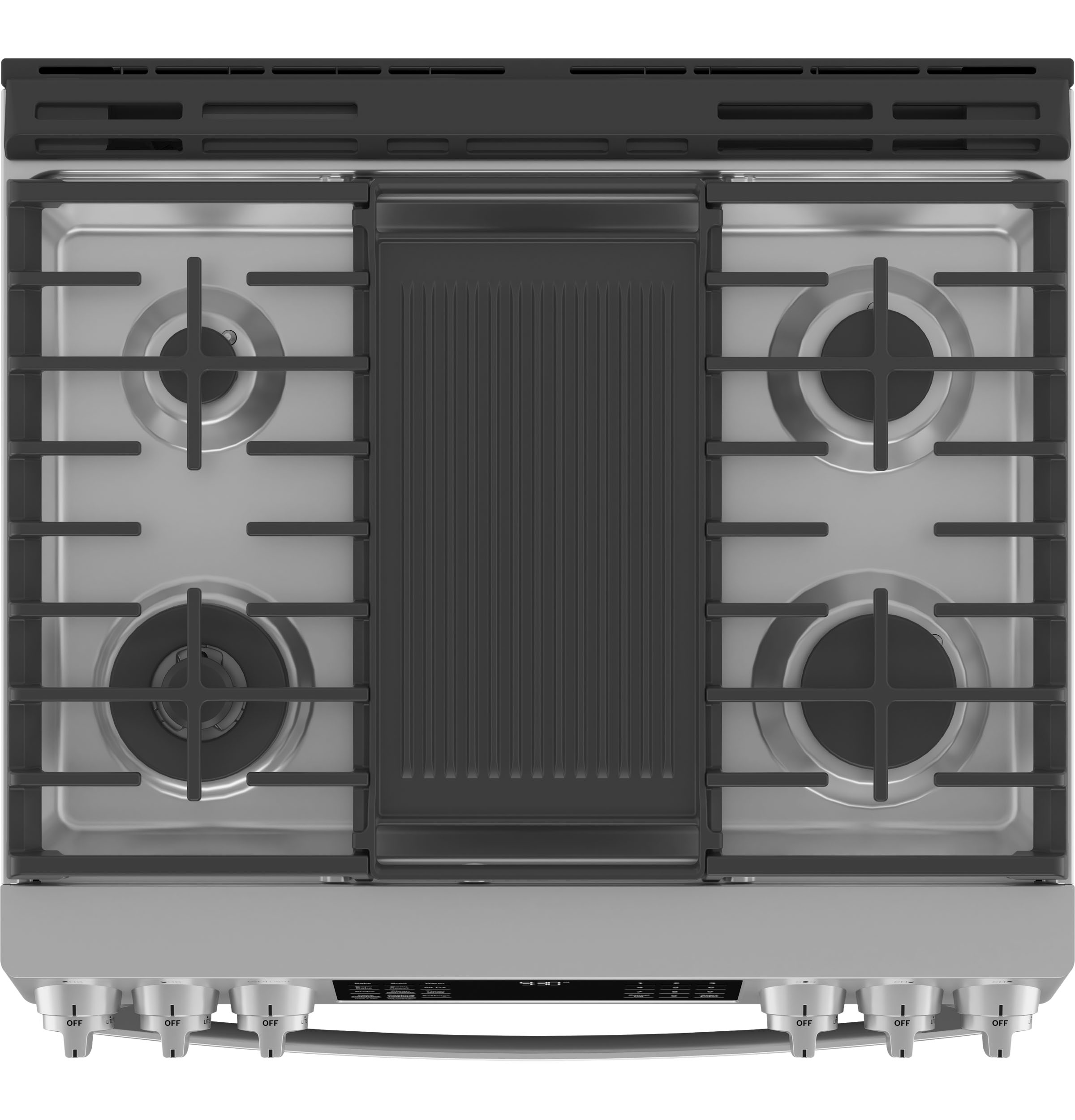

Tri-ring burner
A versatile burner offers three different-sized flame rings on a single burner element, so it's like having three burners in one
Reversible grill and griddle
This extra-large, reversible griddle and grill combination lets you enjoy the best in cooking versatility
Dual purpose center burner
This flexible gas cooktop burner lets you choose between round and oval burner shapes

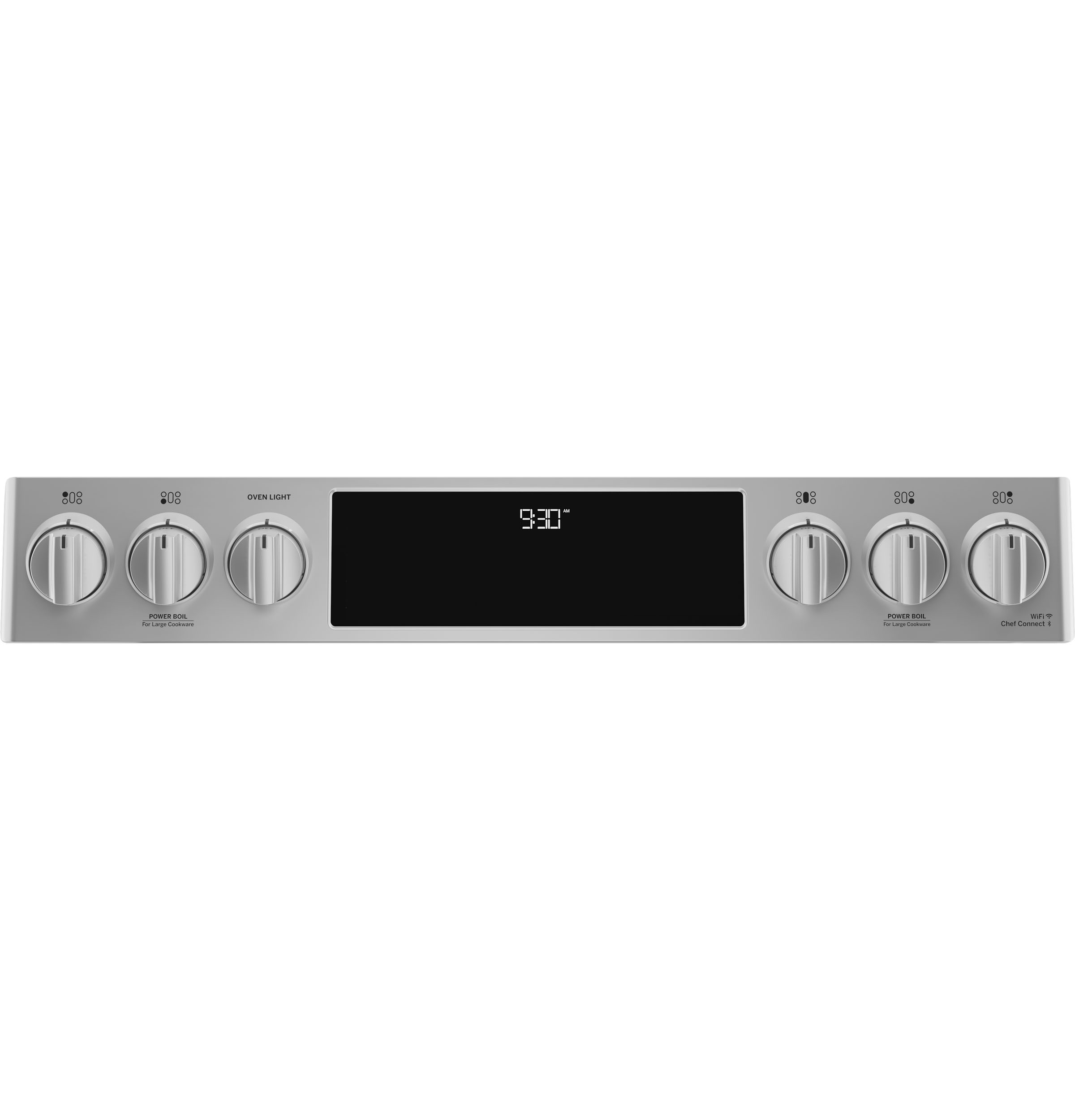

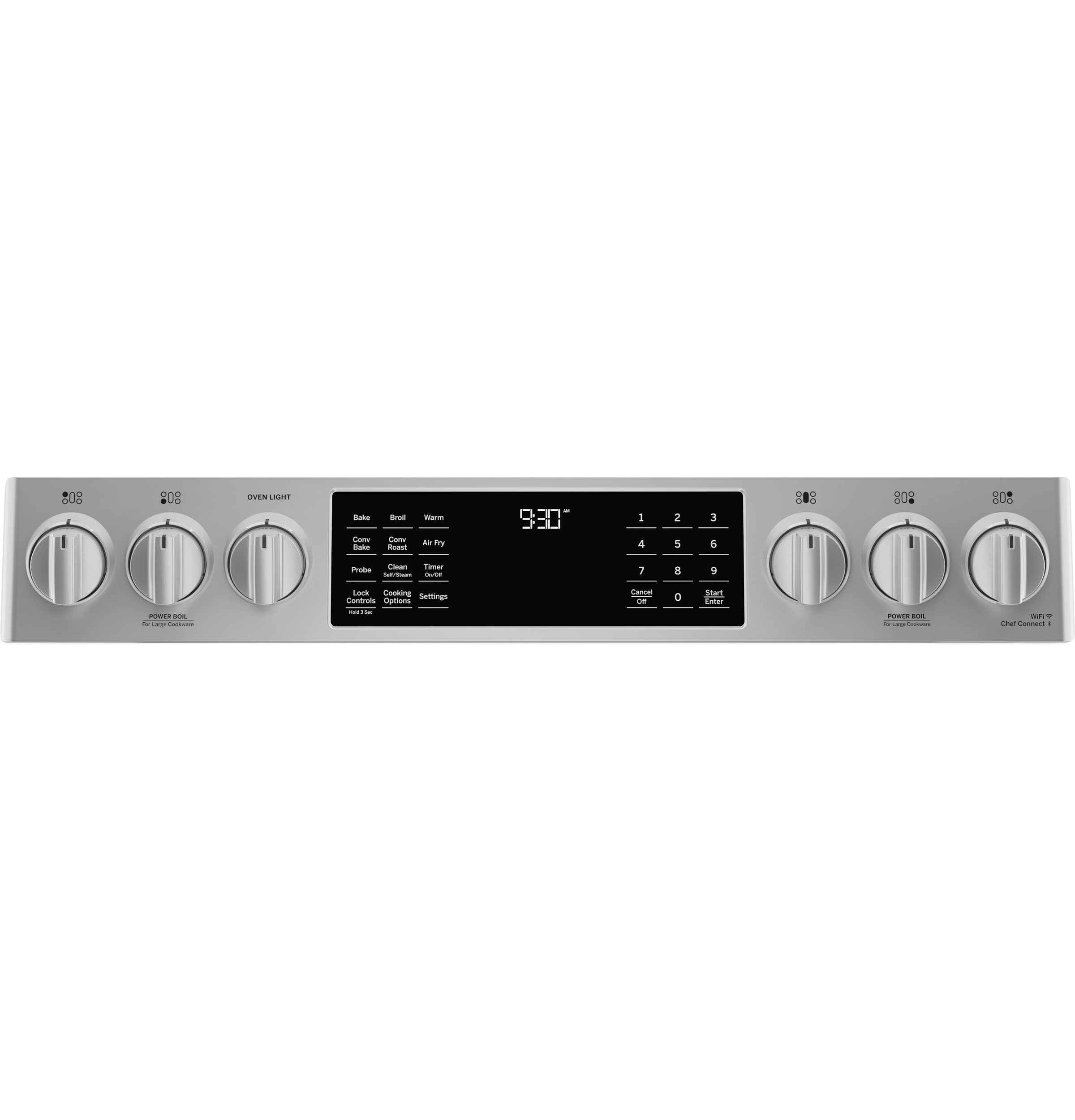

Backlit glass touch controls
Backlit touch controls give this oven a high-tech look with a display that disappears when not in use and reappears when touched

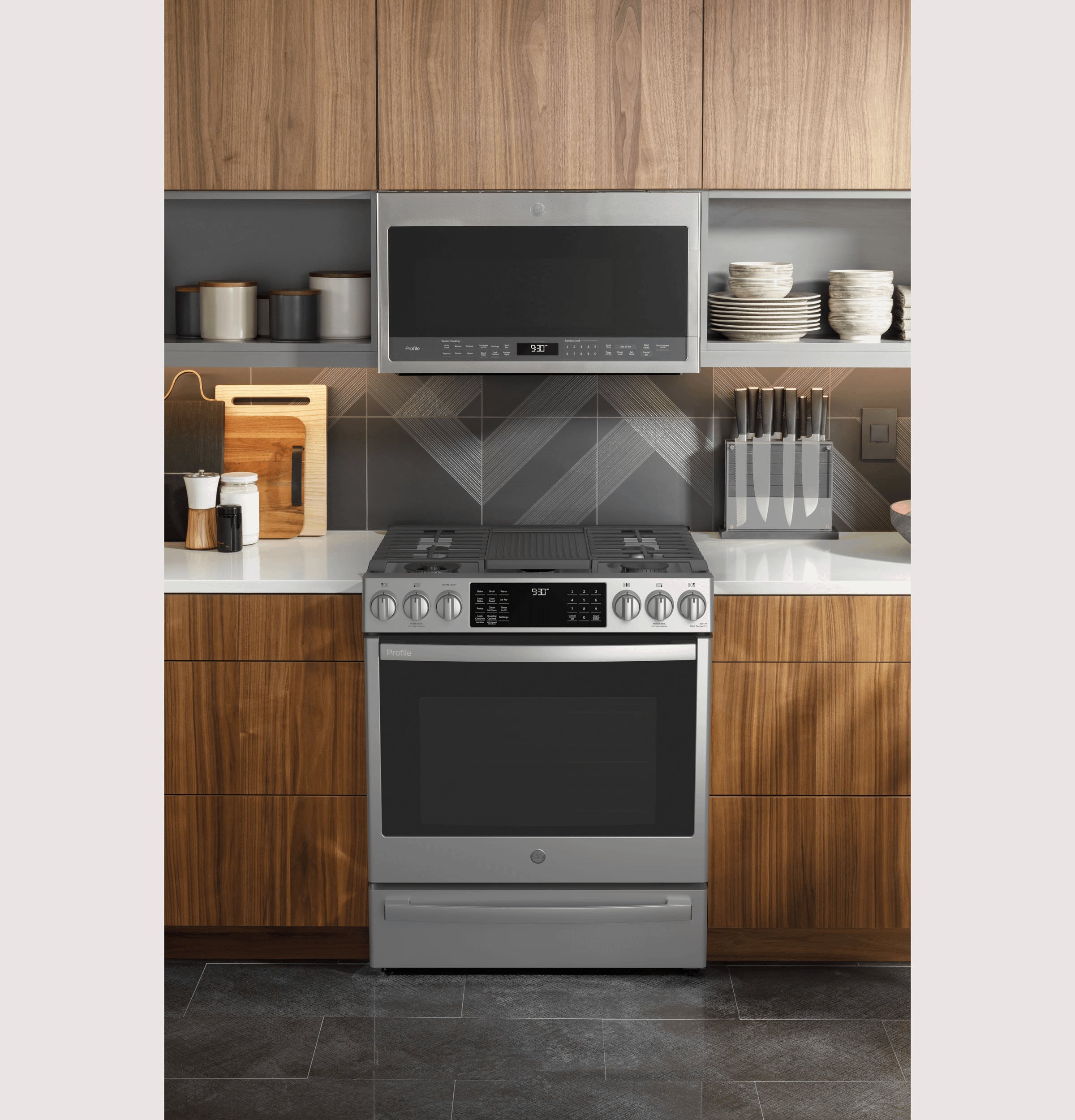

Synchronized clocks and lights
Synchronize your oven and GE Appliances over-the-range microwave so that clocks are always matching and lights automatically come on when a burner is activated with Chef Connect

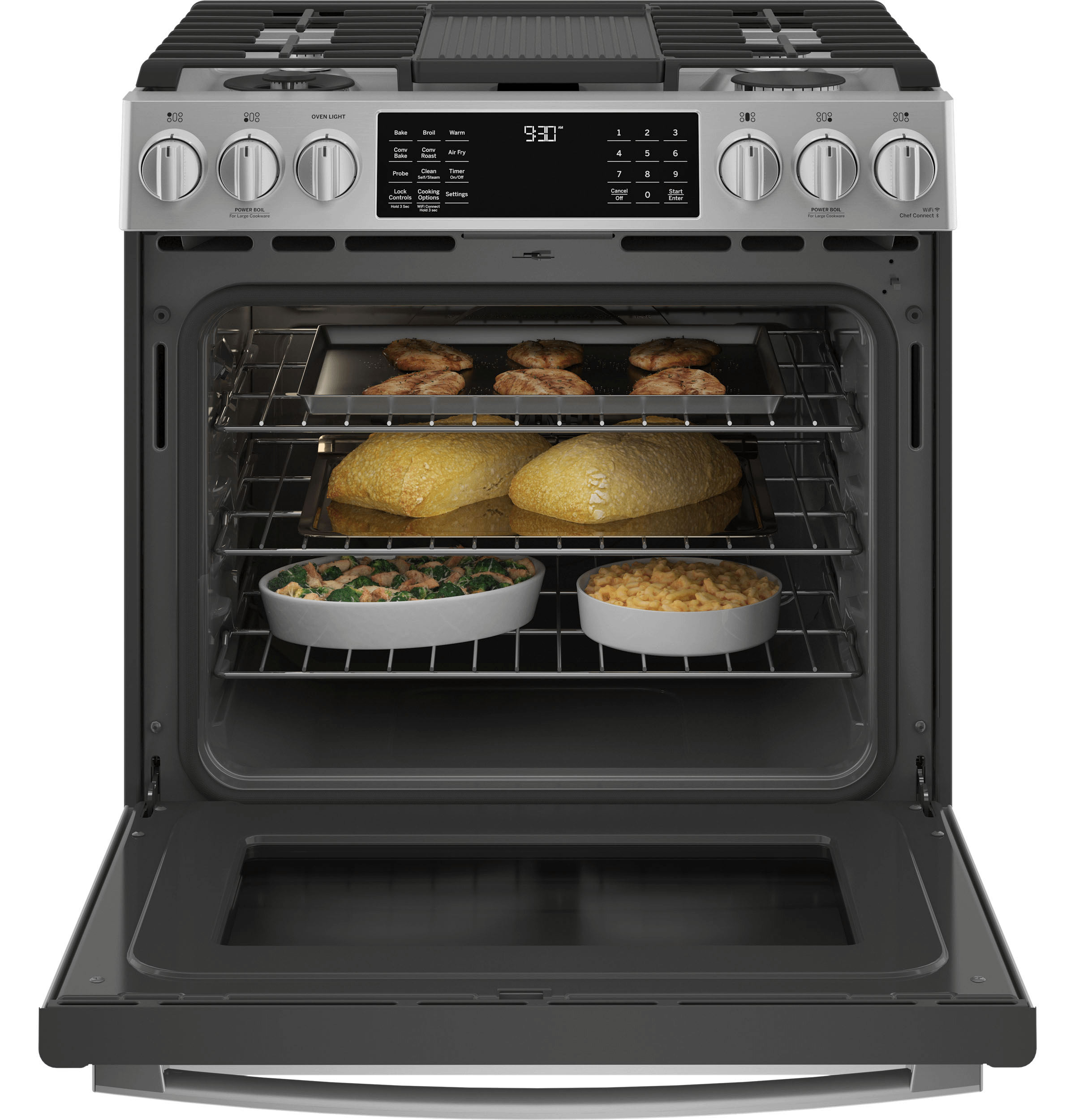

True Convection with Precise Air
This oven features True Convection, an advanced convection system that uses a third heating element and reversing fan for the highest level of heat and air circulation
Never-scrub oven racks
These durable oven racks can be left in the oven during the self-clean cycle so you never have to scrub
Precision temperature probe
An innovative temperature probe that helps you achieve the perfect level of doneness for oven favorites
Self-clean with steam clean
This self-cleaning oven uses optional steam cleaning for light soils to clean the oven cavity with less heat and odor
- No Preheat Air Fry
- Cook healthier, crispier versions of your favorite foods in less time, thanks to an air fryer right in your oven that doesn't require preheating, a basket or a special tray (WiFi Enabled)
- Built-In WiFi, Powered by SmartHQ App
- Connect, control and manage your oven from anywhere with your smartphone or tablet (Select features require WiFi Connection) See details
- GE Profile Connect +
- Ensure your oven always has the latest features, like new Air Fry modes, with downloadable software upgrades
- Fingerprint resistant stainless
- Easily wipe away smudges and fingerprints for a look that's always sparkling clean
- Fit Guarantee
- This dual fuel range will fit your existing 30" cut-out, or GE Appliances will help pay for modifications up to $300. https://www.geappliances.com/content/pdfs/GE_Appliances_Fit_Guarantee_2H2023.pdf
- Edge-to-edge cooktop
- Continuous, edge-to-edge cooktop give you a large cooking space and can handle any cookware
- Tri-ring burner
- A versatile burner offers three different-sized flame rings on a single burner element, so it's like having three burners in one
- Reversible grill and griddle
- This extra-large, reversible griddle and grill combination lets you enjoy the best in cooking versatility
- Dual purpose center burner
- This flexible gas cooktop burner lets you choose between round and oval burner shapes
- Backlit glass touch controls
- Backlit touch controls give this oven a high-tech look with a display that disappears when not in use and reappears when touched
- Synchronized clocks and lights
- Synchronize your oven and GE Appliances over-the-range microwave so that clocks are always matching and lights automatically come on when a burner is activated with Chef Connect
- True Convection with Precise Air
- This oven features True Convection, an advanced convection system that uses a third heating element and reversing fan for the highest level of heat and air circulation

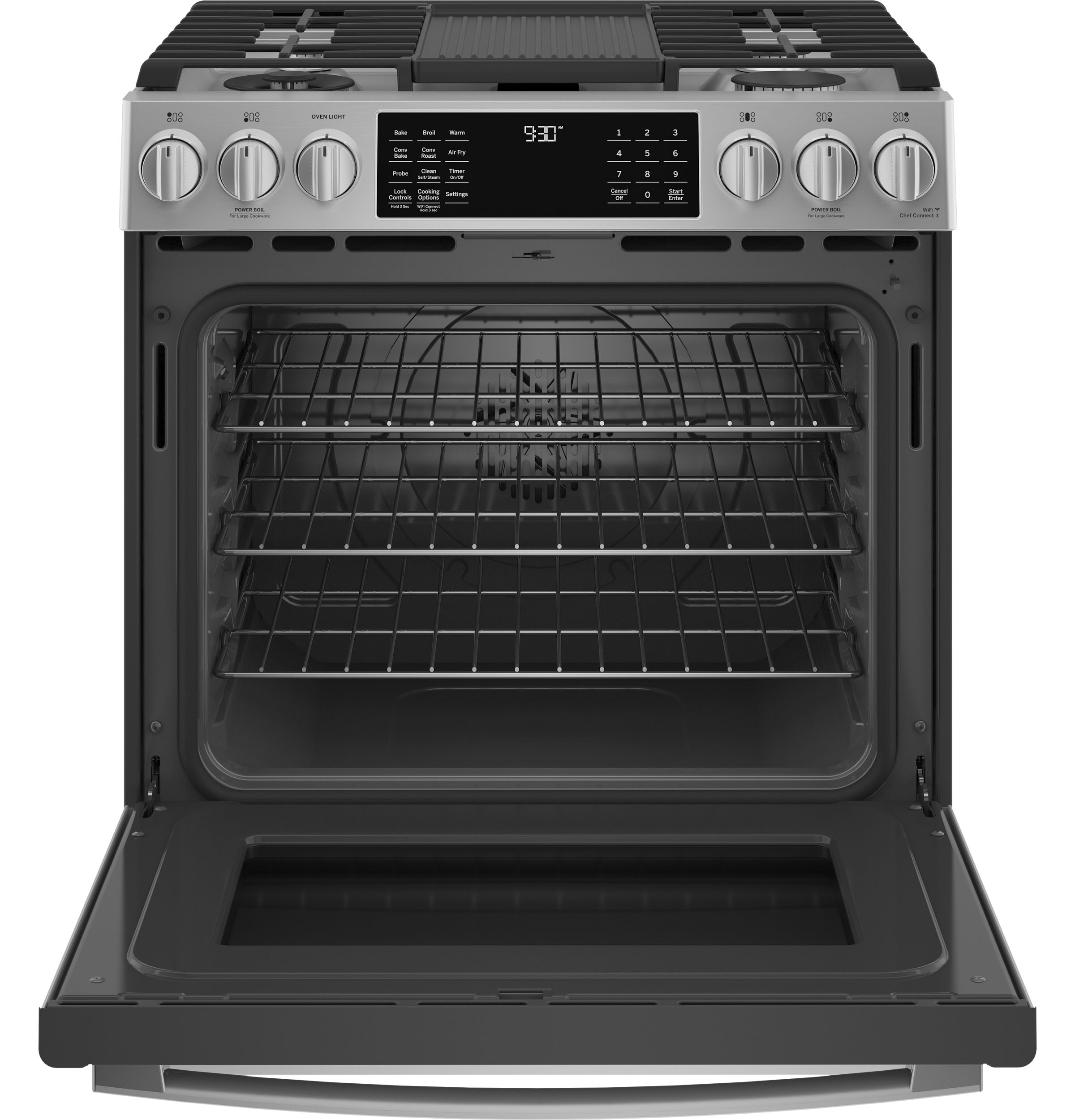

- Never-scrub oven racks
- These durable oven racks can be left in the oven during the self-clean cycle so you never have to scrub
- Precision temperature probe
- An innovative temperature probe that helps you achieve the perfect level of doneness for oven favorites
- Self-clean with steam clean
- This self-cleaning oven uses optional steam cleaning for light soils to clean the oven cavity with less heat and odor
CAPACITY | |
Total Capacity (cubic feet) | 5.7 cu ft |
FILTER | |
App Filter - Cabinet Width | Cooking 30 in. (Standard) |
App Filter - Control Type | Electronic touchpad |
App Filter - Product Type | Ranges Slide-In Single Oven |
App Filter - Fuel Type | Dual Fuel |
App Filter - Cooking Technology | Convection |
App Filter - Tri-Ring Burner | Yes |
App Filter - Convection | Yes |
App Filter - Drawer Type | Storage |
App Filter - Cleaning Type | Steam and Self-Clean |
App Filter - Cooktop Type | Standard Grates |
APPEARANCE | |
Cooktop Burner Grate Color | Matte Black |
Handle | Designer Style |
Installation | Flush Appearance Free-standing cut-out |
Oven Door Features | Big View Oven Window |
Handle Color | Stainless Steel |
Control Knobs | Weighted Stainless Steel Appearance |
Color Appearance | Fingerprint Resistant Stainless |
POWER / RATINGS | |
Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 21.0 (1) 15.0; (1) 9.5/8.0; (1)5.0 |
Volts/Hertz/Amps | 208/240V; 60Hz; 30A |
Top Burner BTU Rating - LP (000's BTU's) | (1) 18.0; (1) 15.0; (1) 9.5/8.0; (1) 5.0 |
Amp Rating at 208V | 30 |
Broiler Wattage | 4000W |
Amp Rating at 240V | 30 |
KW Rating at 240V | 3.6 |
Bake Wattage | 2850W |
KW Rating at 208V | 2.7 |
Power Connection | Power Cord - Not Included |
WARRANTY | |
Parts Warranty | Limited 1-year entire appliance |
Labor Warranty | Limited 1-year entire appliance |
Warranty Notes | See written warranty for full details |
ACCESSORIES | |
Optional Accessories | WB48X20990 Roller Rack |
LP Conversion Kit | Included |
Trim Kit | JXFILLR1SS Optional |

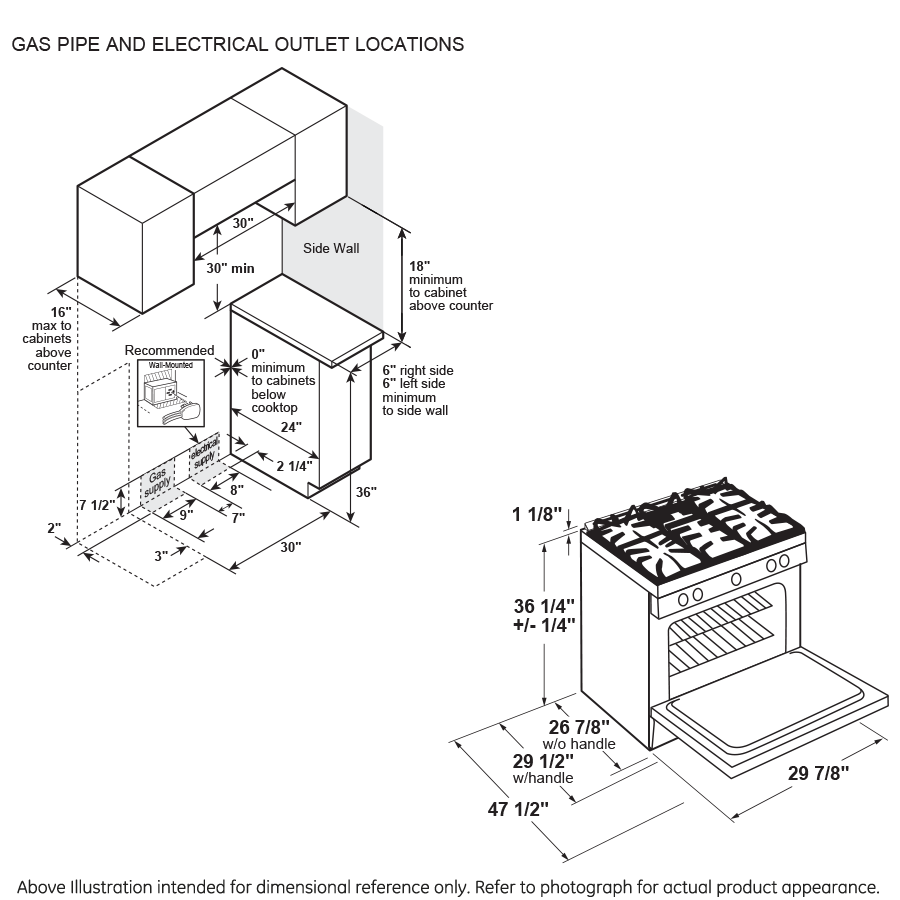

WEIGHTS & DIMENSIONS | |
Net Weight | 236 lb |
Depth Without Handle | 26.875 in |
Height to Cooking Surface (in.) | 36 1/4 +/- 1/4 |
Cabinet Width | 30 in |
Approximate Shipping Weight | 256 lb |
Overall Width | 30 in |
Cabinet Opening | 30 in |
Overall Height | 36.5 in |
Height to Top of Rear Vent Trim | 37.625 in |
Overall Depth | 29.5 in |
Depth with Door Open | 47.5 in |
Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 20-5/8 |
FEATURES | |
Ignition System | Electronic |
Burner - Right Rear | 9,500 BTU |
Oven Interior | 1 Incandescent Light Black |
Oven Control Features | Audible Preheat Signal Auto Recipe Conversion Auto Self Clean Certified Sabbath Mode Control Lock Capability Convection Bake Convection Roast Dual Broil Electronic Clock & Kitchen Timer Front Controls In-Oven Broiling Temperature Probe |
Oven Rack Features | 3 Self-Clean Oven Racks |
Burner - Left Rear | 5,000 BTU Precise Simmer |
Oven Cleaning Type | Self-Clean Steam Clean |
Griddle | Reversible Cast Grill/Griddle |
Connected Capabilities | Amazon Alexa DiGiorno Fresco IFTTT Innit Sonos The Google Assistant |
WiFi Enabled Features | Baked Goods Convection Roast Enhanced Temp Probe Frozen Pizza Multi Rack Frozen Pizza Single Rack Frozen Snacks Multi Rack Frozen Snacks Single Rack No Preheat Air Fry Remote Control Remote Notifications Scan To Cook (Oven) |
Product Type | Slide-In Single Oven |
Cooktop Type | Standard Grates |
Cooktop Burner Grate Material | Heavy Cast Iron |
Fuel Type | Dual Fuel |
Burner - Center | 9,500 BTU Dual Oval |
WiFi Connect | Built-In |
Cooktop Burner Grate Features | Edge-to-Edge Grates |
Control Type | Glass Touch |
Burner - Left Front | 21,000 BTU Tri-ring Burner |
Drawer Type | Storage |
Sabbath Mode | Yes |
Cooking Technology | True European Convection with Precise Air |
Configuration | Range with Smooth Glide Storage Drawer |
OU Certified | No |
Oven Cooking Modes | Bake Broil Convection Bake No Preheat Air Fry Proof Warming |
Cooktop Burner Type | Sealed |
Grill | Included JXGRILL1 |
Burner - Right Front | 15,000 BTU |
Cooktop Surface | Deep Recessed Edge-to-Edge Stainless Steel |
Self-Clean Oven Door Lock | Automatic |
