Overview & Specifications
Overview & Specifications
This gas range will fit your existing 30" cut-out, or GE Appliances will help pay for modifications up to $300 See offer criteria and details

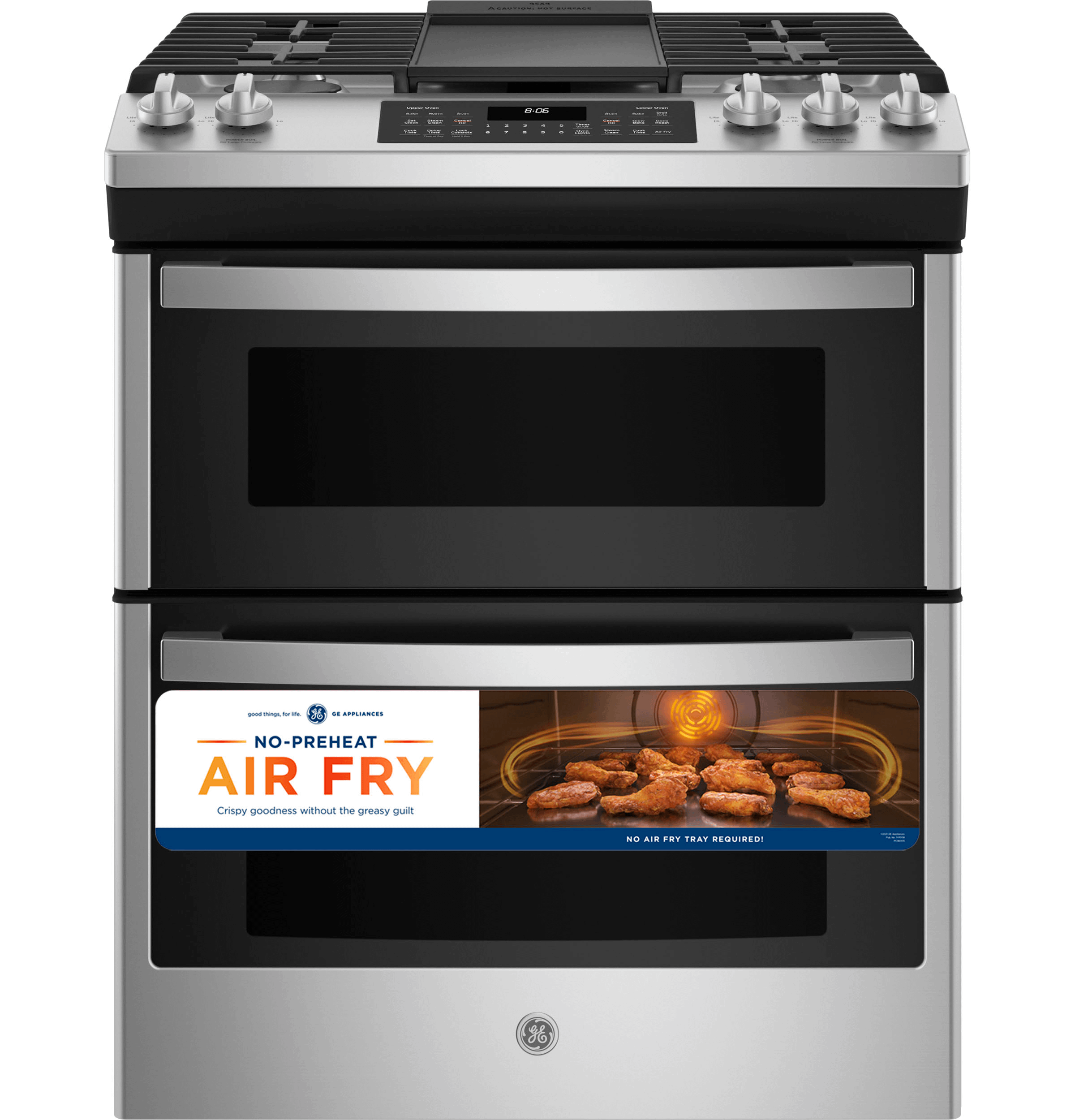

No-Preheat Air Fry
Cook healthier, crispier versions of your favorite foods in less time, thanks to an air fryer right in your oven that doesn't require preheating, a basket or a special tray

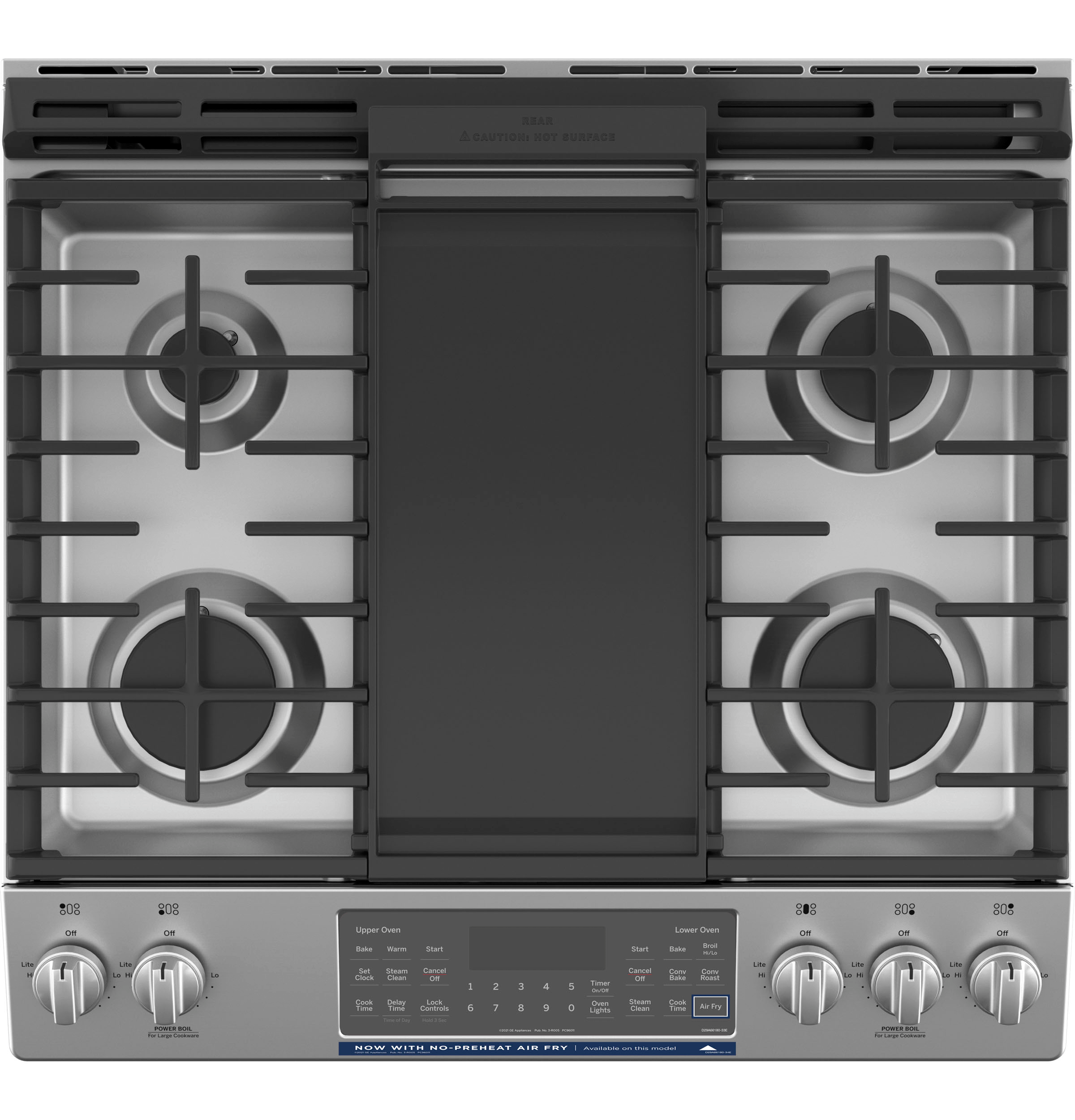

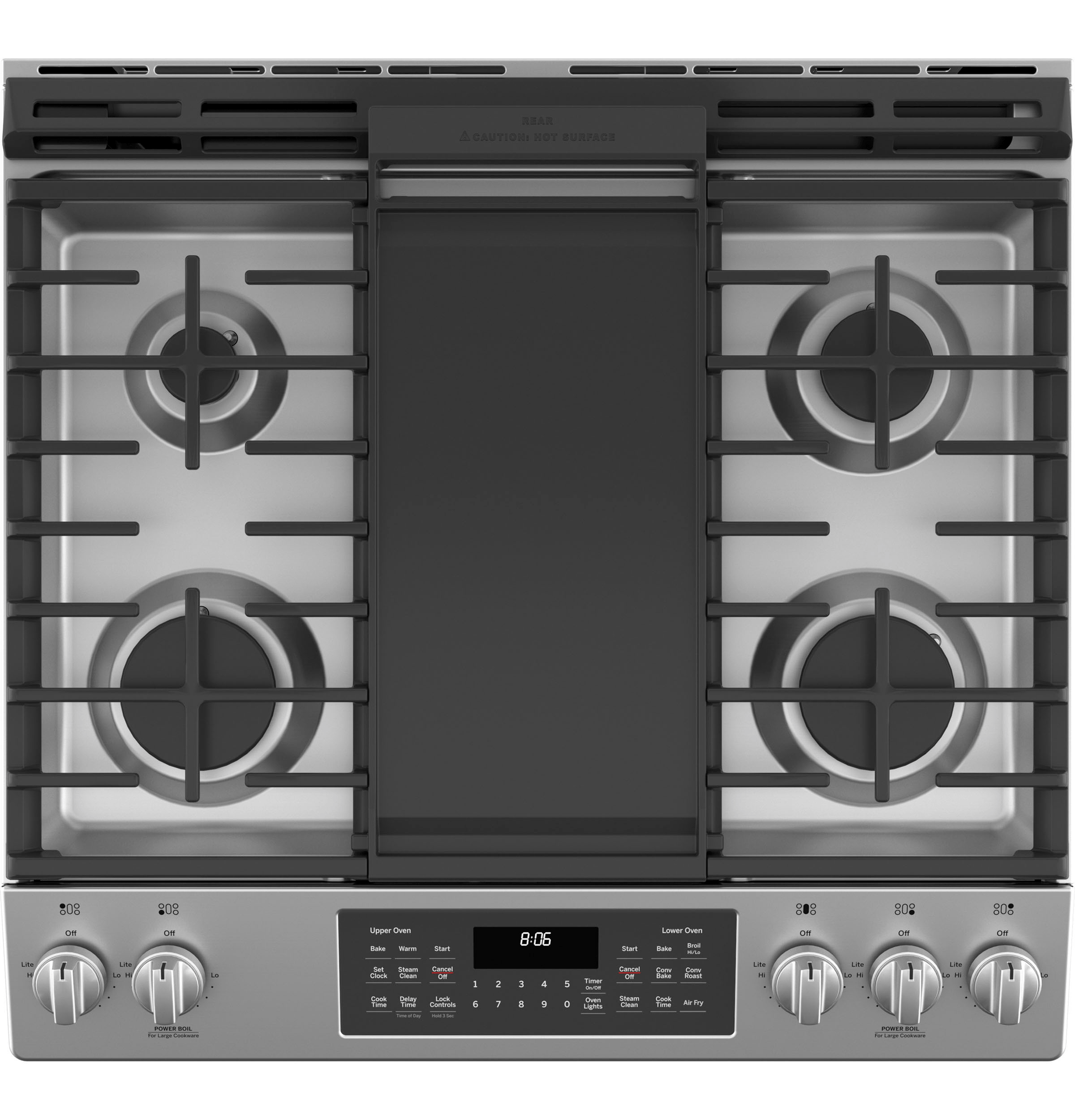

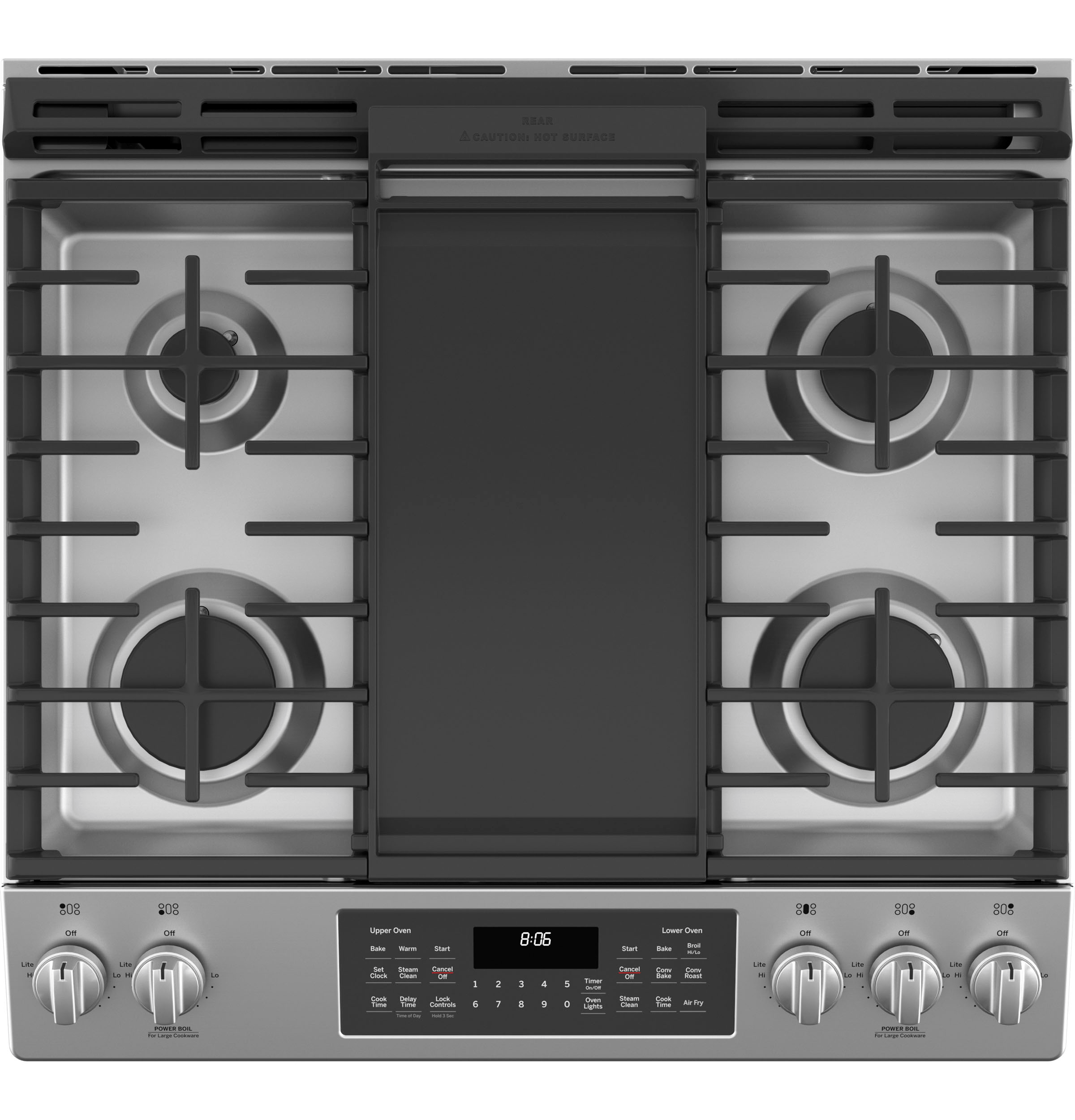

Edge-to-edge cooktop
Continuous, edge-to-edge cooktop give you a large cooking space and can handle any cookware
Powerful burner options
Cook meals of all sizes thanks to one 18,000-BTU burner for larger cookware and one 15,000-BTU burner for medium-sized pots and pans

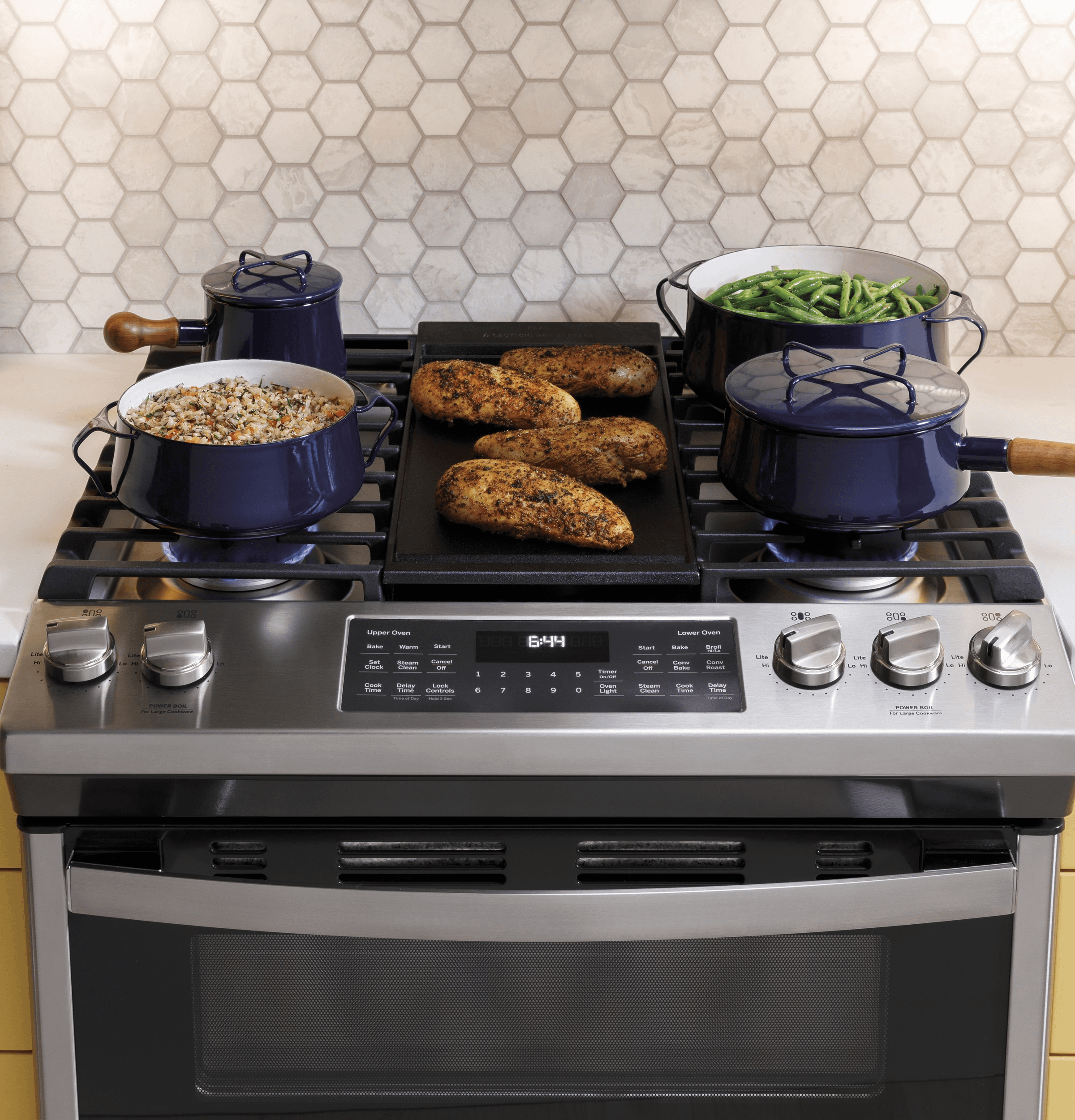

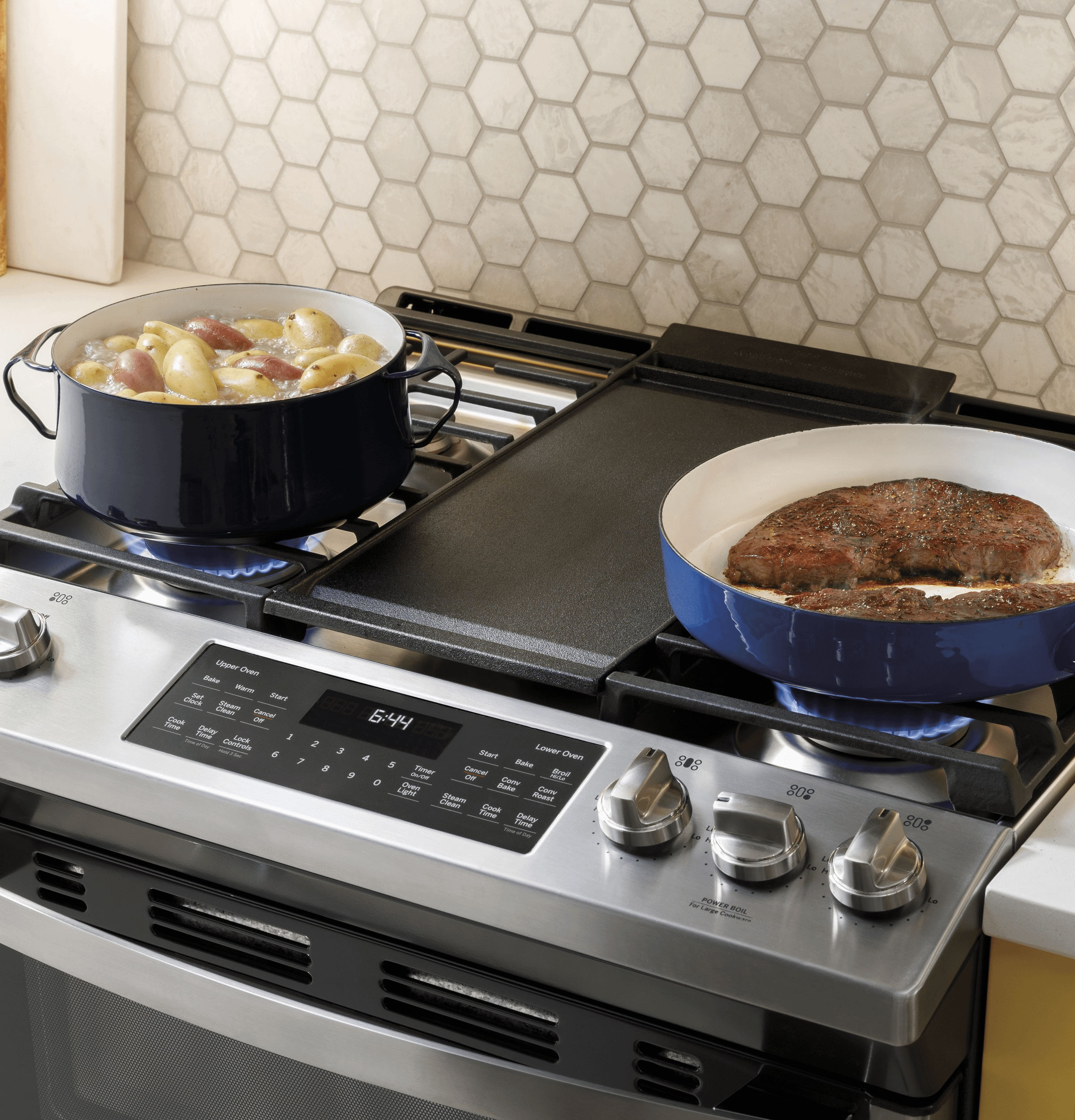

Integrated griddle
This integrated cast iron griddle leads the industry in size and quality, so you can cook a lot of food at once
Center oval burner
This center oval burner gives you a fifth burner and the perfect place to use griddles or odd-size cookware
Steam clean
A steam cleaning option cleans the oven cavity in a 30-minute cycle with less odor and heat
In-oven broil
An in-oven broiler makes broiler cooking hassle-free

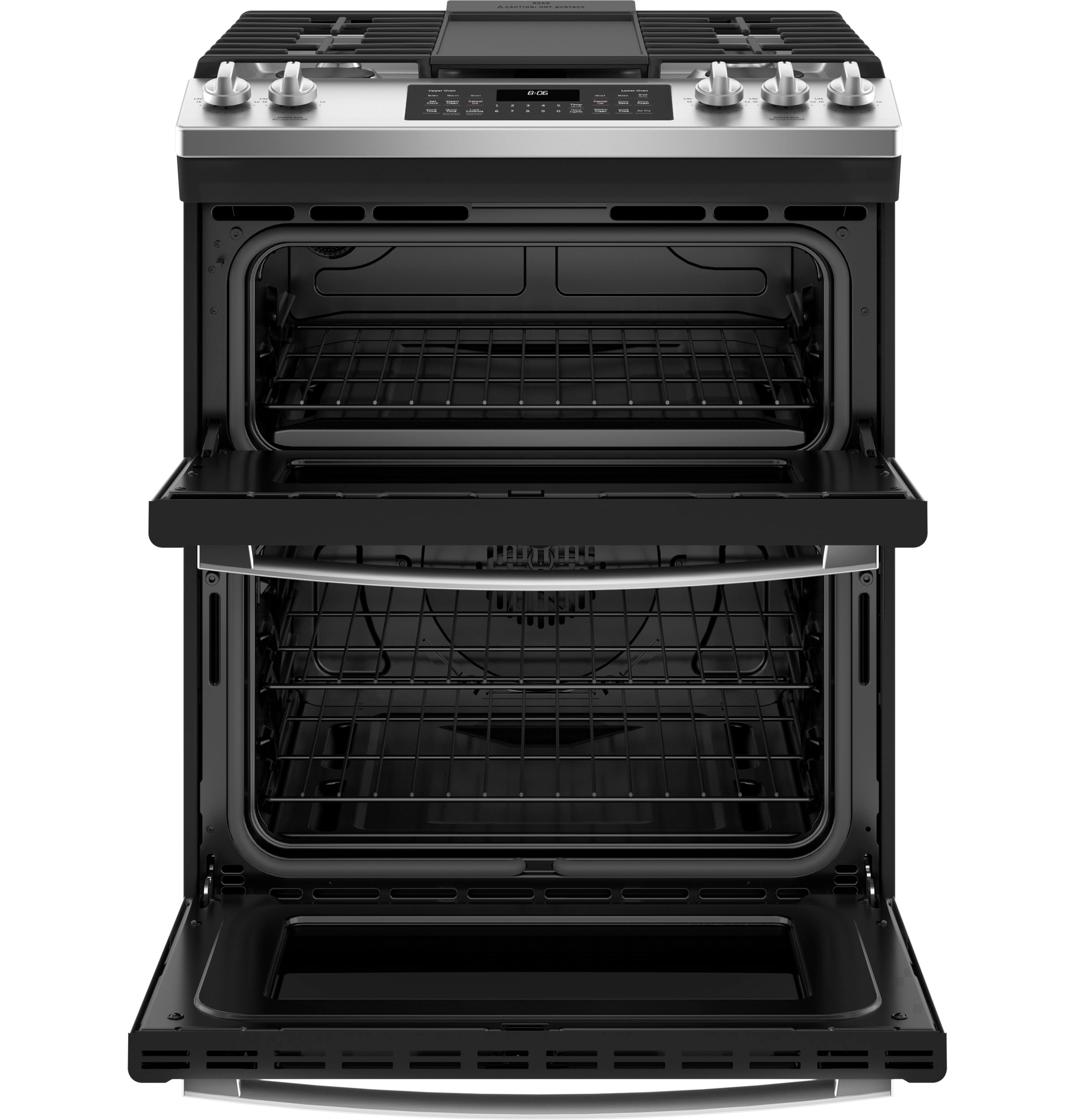

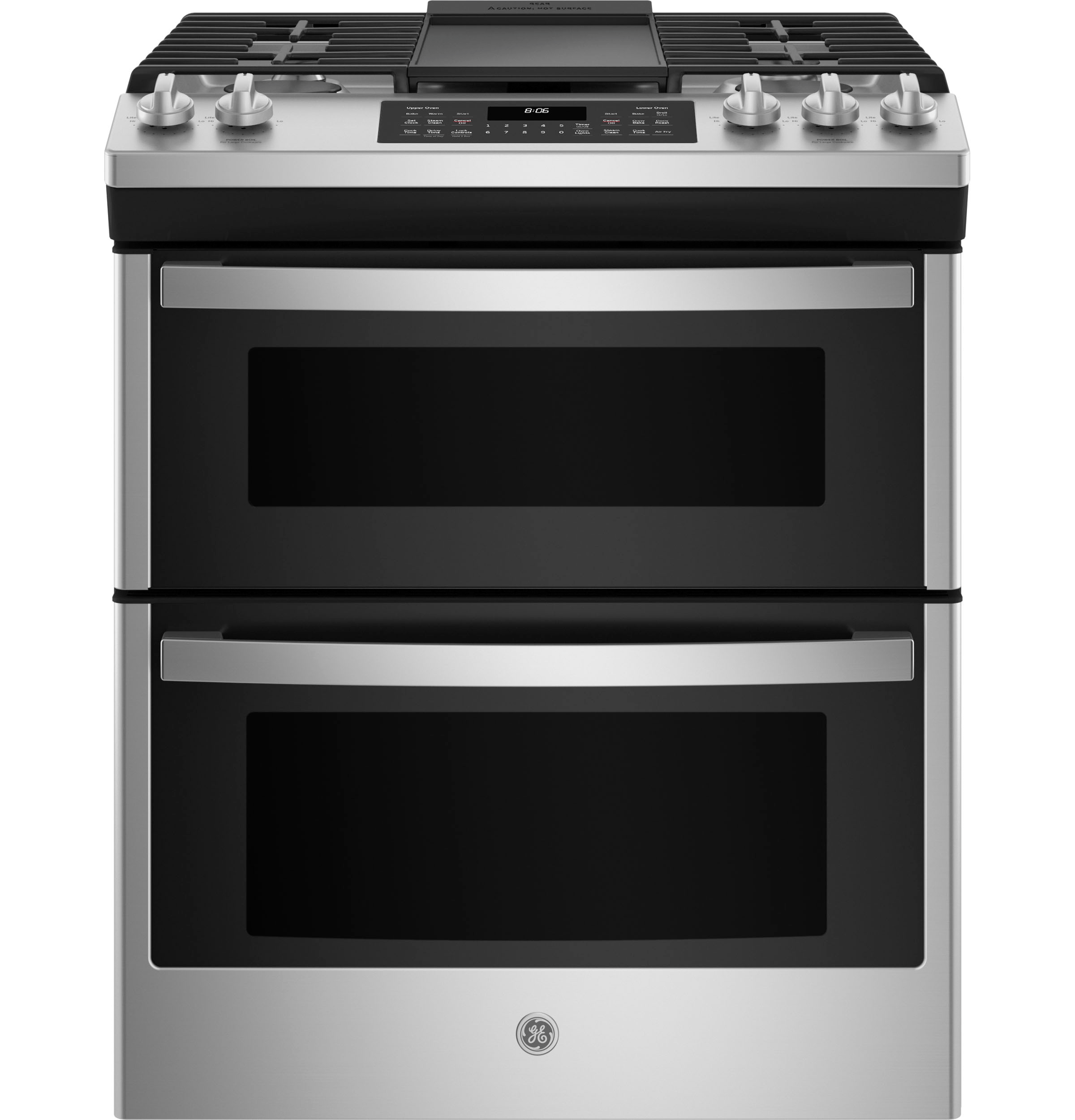

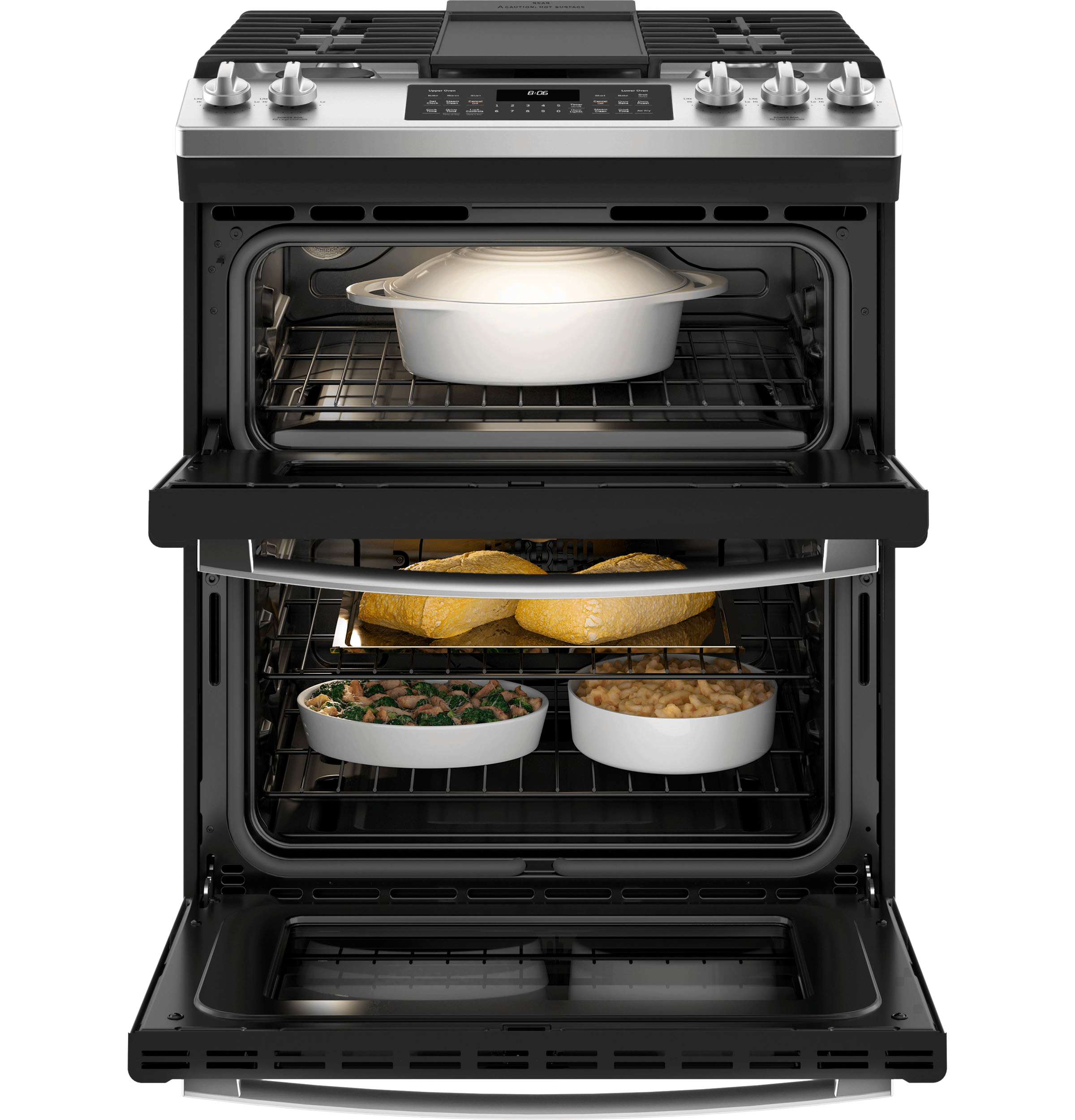

Large capacity double oven
Cook an entire meal at once with a 6.7 cubic foot total capacity double oven which provides enough room for multiple dishes
True Convection
Enjoy consistent baking thanks to an advanced convection system that pairs a third heating element with a rear fan for a high level of precision
- Fit Guarantee
- This gas range will fit your existing 30" cut-out, or GE Appliances will help pay for modifications up to $300 See offer criteria and details
- No-Preheat Air Fry
- Cook healthier, crispier versions of your favorite foods in less time, thanks to an air fryer right in your oven that doesn't require preheating, a basket or a special tray
- Edge-to-edge cooktop
- Continuous, edge-to-edge cooktop give you a large cooking space and can handle any cookware
- Powerful burner options
- Cook meals of all sizes thanks to one 18,000-BTU burner for larger cookware and one 15,000-BTU burner for medium-sized pots and pans
- Integrated griddle
- This integrated cast iron griddle leads the industry in size and quality, so you can cook a lot of food at once
- Center oval burner
- This center oval burner gives you a fifth burner and the perfect place to use griddles or odd-size cookware
- Steam clean
- A steam cleaning option cleans the oven cavity in a 30-minute cycle with less odor and heat
- In-oven broil
- An in-oven broiler makes broiler cooking hassle-free
- Large capacity double oven
- Cook an entire meal at once with a 6.7 cubic foot total capacity double oven which provides enough room for multiple dishes
- True Convection
- Enjoy consistent baking thanks to an advanced convection system that pairs a third heating element with a rear fan for a high level of precision
CAPACITY | |
Total Capacity (cubic feet) | 6.7 cu ft |
Capacity (Cu. Ft.) | 2.4 Upper / 4.3 Lower |
FILTER | |
App Filter - Cabinet Width | Cooking 30 in. (Standard) |
App Filter - Control Type | Electronic touchpad |
App Filter - Product Type | Ranges Slide-In Double Oven |
App Filter - Fuel Type | Gas |
App Filter - Cooking Technology | Traditional |
App Filter - Convection | No |
App Filter - Edge-to-Edge Cooktop | Yes |
App Filter - Cleaning Type | Steam and Manual |
App Filter - Voltage | 120V |
App Filter - Cooktop Type | Continuous Grates |
APPEARANCE | |
Cooktop Burner Grate Color | Matte Black |
Handle | Designer Style |
Installation | Flush Appearance Free-standing cut-out |
Oven Door Features | Big View Oven Window |
Handle Color | Stainless Steel |
Control Knobs | Stainless Steel |
Color Appearance | Stainless Steel |
POWER / RATINGS | |
Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 18.0; (1) 15.0; (1) 9.5; (1) 5.0; (1) 10.0 |
Volts/Hertz/Amps | 120v; 60Hz; 15A |
Top Burner BTU Rating - LP (000's BTU's) | (1) 18.0; (1) 15.0; (1) 8.0; (1) 9.5; (1) 5.0 |
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 7.0 / 120V Bake Assist Element (Upper); 16.5 / 14.0 (Lower) |
Bake/Broiler BTU Rating - LP (000's BTU's) | 7.0 / 120V Bake Assist Element (Upper); 13.5 / 13.5 (Lower) |
WARRANTY | |
Parts Warranty | Limited 1-year entire appliance |
Labor Warranty | Limited 1-year entire appliance |
Warranty Notes | See written warranty for full details |
ACCESSORIES | |
Optional Accessories | WB48X21543 Roller Rack |
Center Grate | Optional - JXGRATE1 |
Griddle Accessory | WB31X28254 (Included) Cast Iron |
LP Conversion Kit | Included |
Trim Kit | JXFILLR1DD Optional |

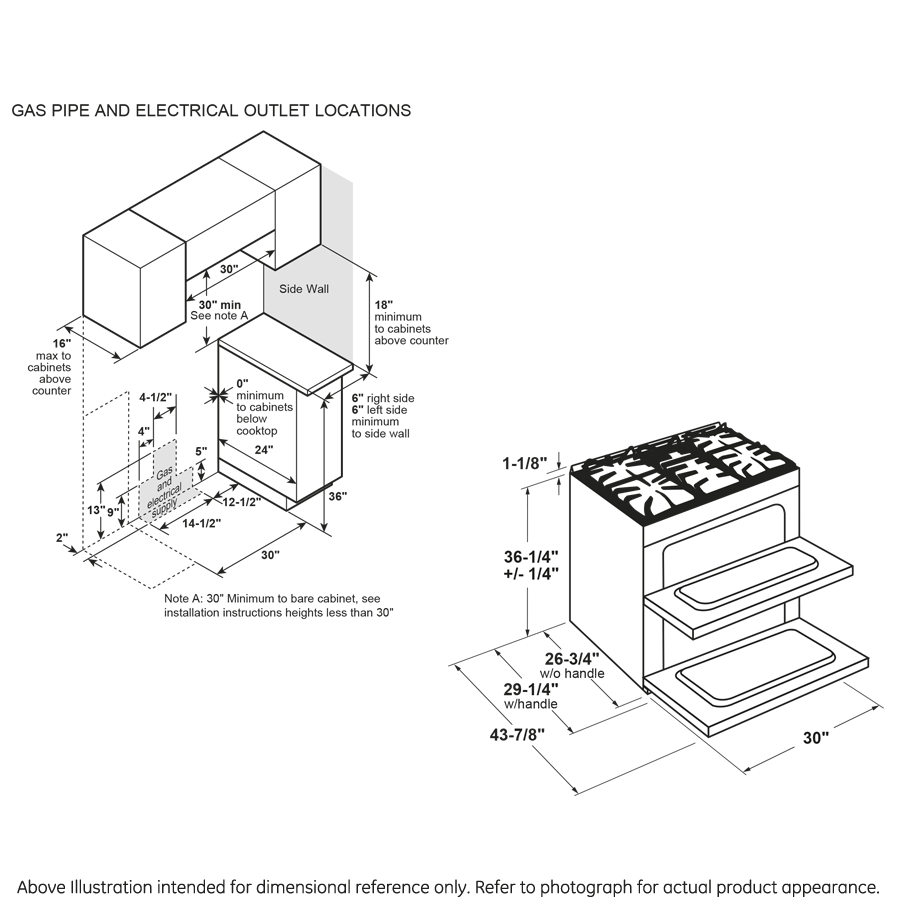

WEIGHTS & DIMENSIONS | |
Net Weight | 271 lb |
Depth Without Handle | 26.75 in |
Height to Cooking Surface (in.) | 36 1/4 +/- 1/4 |
Cabinet Width | 30 in |
Approximate Shipping Weight | 291 lb |
Overall Width | 30 in |
Overall Height | 36.25 in |
Height to Top of Rear Vent Trim | 37.375 in |
Overall Depth | 29.25 in |
Depth with Door Open | 43.875 in |
Oven Interior Dimensions (W x H x D) (in.) | 24 x 9-1/2 x 19-1/8 - Upper; 24 x 15 x 20-5/8 - Lower |
FEATURES | |
Ignition System | Electronic |
Burner - Right Rear | 9,500 BTU |
Oven Interior | 1 Auto Incandescent Light Gray |

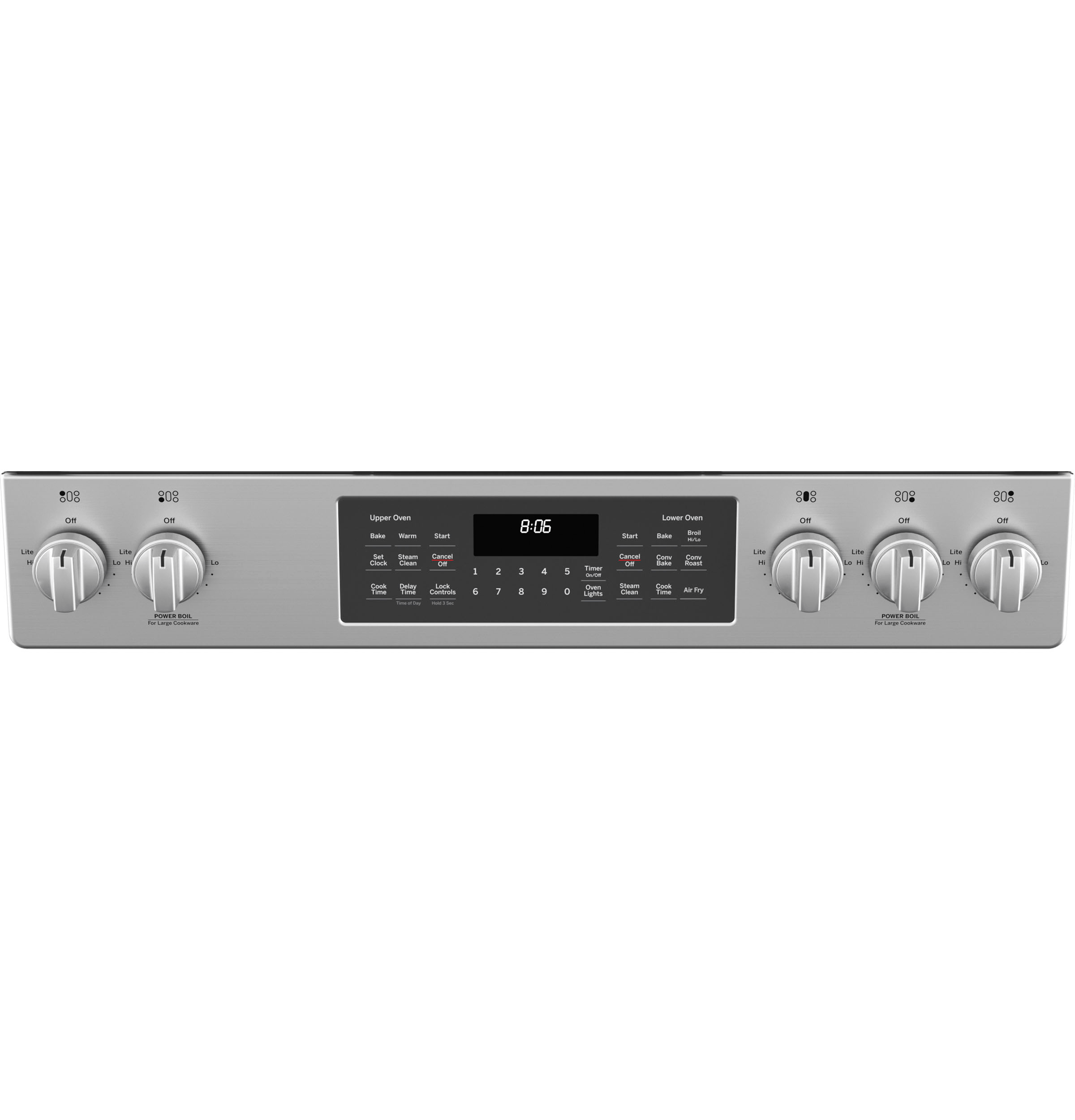

Oven Control Features | Audible Preheat Signal Certified Sabbath Mode Control Lock Capability Electronic Clock & Kitchen Timer Steam Clean |
Oven Rack Features | 3 Oven Racks |
Burner - Left Rear | 5,000 BTU Precise Simmer |
Oven Cleaning Type | Steam Clean |
Griddle | Cast Iron Griddle |
Product Type | Slide-In Double Oven |
Cooktop Type | Continuous Grates |
Cooktop Burner Grate Material | Heavy Cast Iron |
Fuel Type | Natural Gas (factory set) |
Burner - Center | 10,000 BTU Oval |
Control Location | Front |
Cooktop Burner Grate Features | Continuous Grates Dishwasher Safe |
Control Type | Electronic Touch |
Burner - Left Front | 18,000 BTU Power Boil |
Sabbath Mode | Yes |
Cooking Technology | Traditional Upper; Convection Lower |
Configuration | Double Oven Range |
OU Certified | No |
Oven Cooking Modes | No Preheat Air Fry |
Cooktop Burner Type | Sealed |
Grill | JXCGRILL1 Optional |
Burner - Right Front | 15,000 BTU |
Cooktop Surface | Deep Recessed Edge-to-Edge Stainless Steel |
