Overview & Specifications
Overview & Specifications

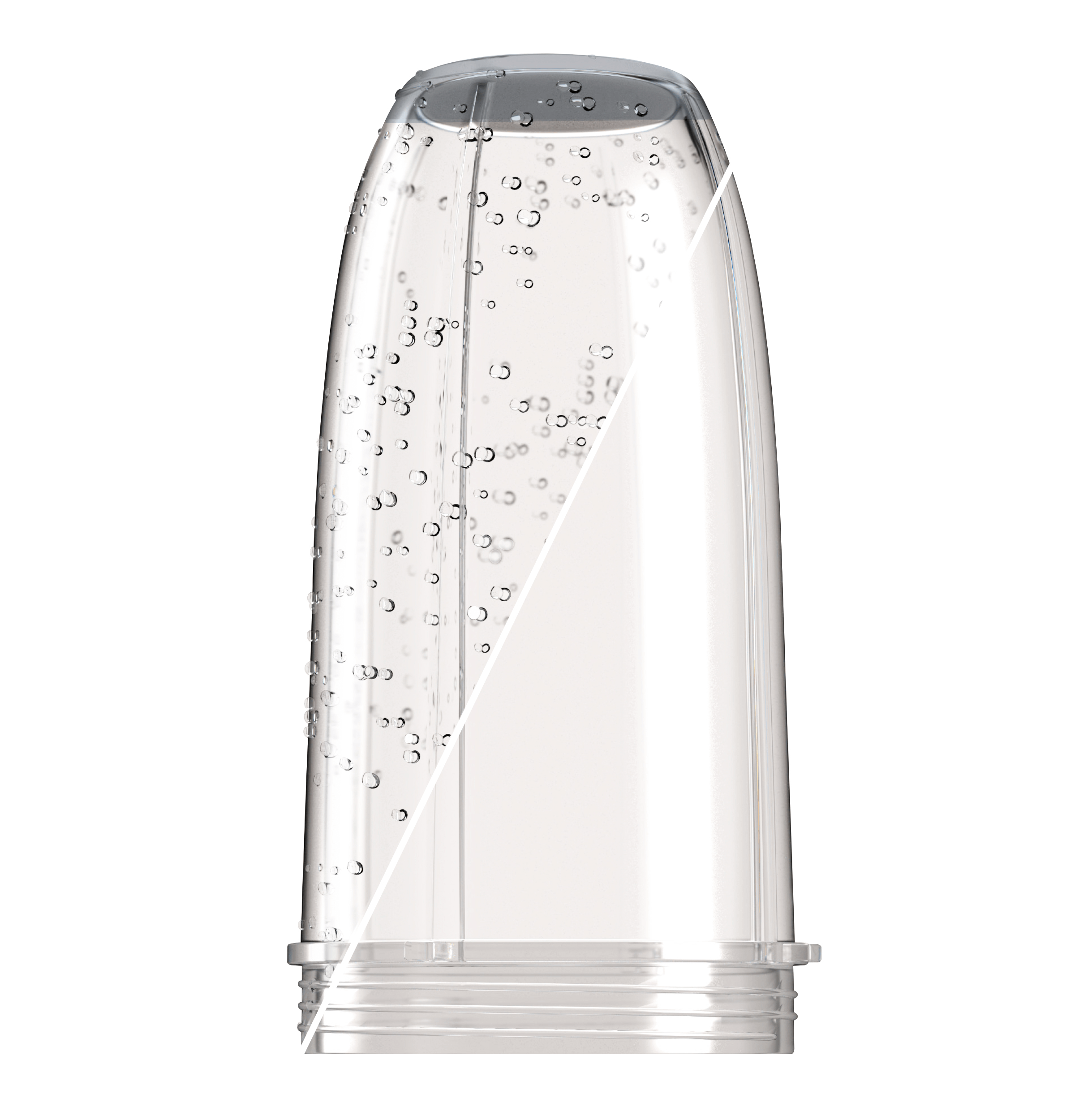

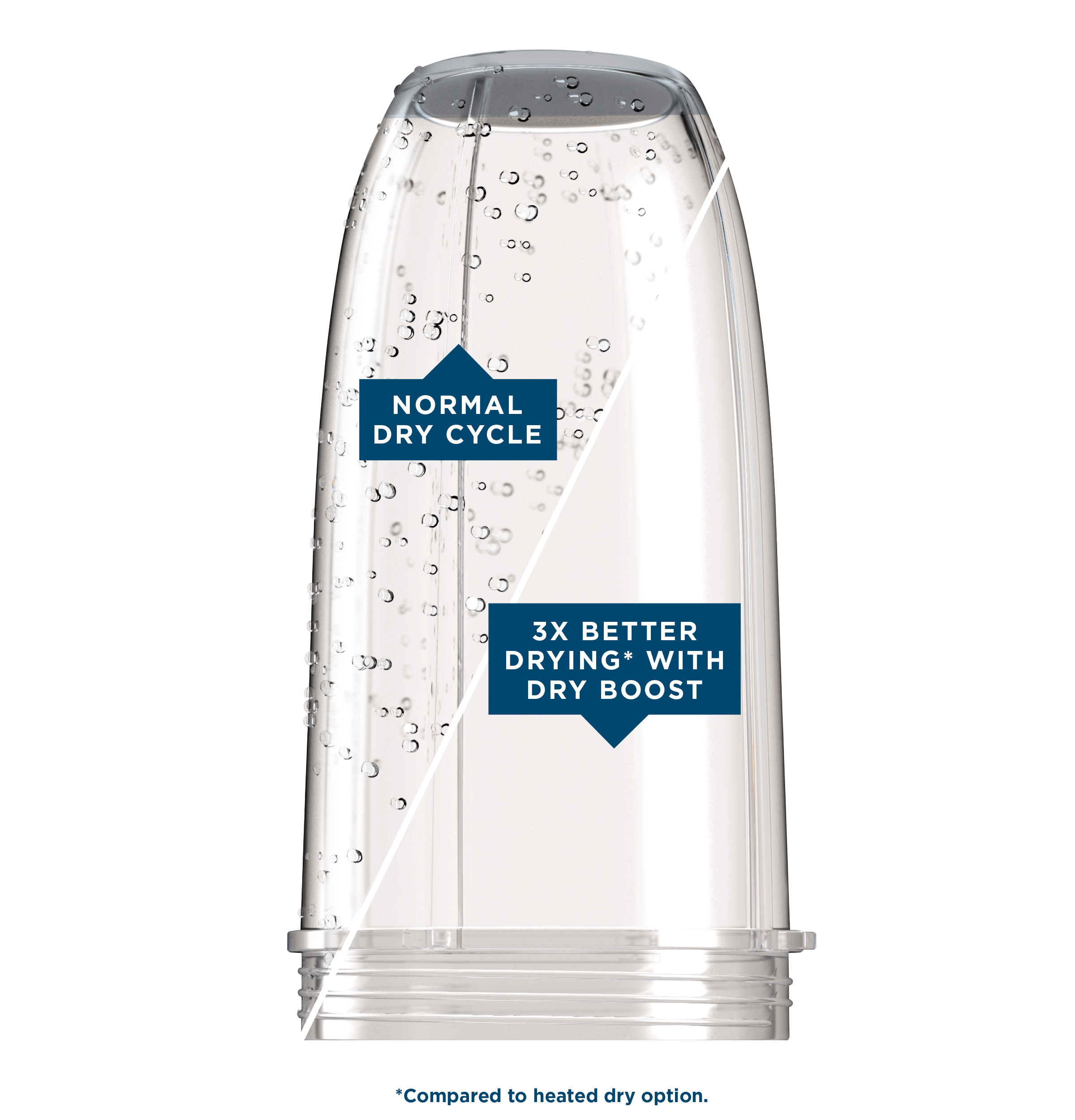

Dry Boost™ Technology outperforms standard heated-dry dishwashers by getting hard-to-dry items like plastics up to 3 times drier when compared to heated dry.

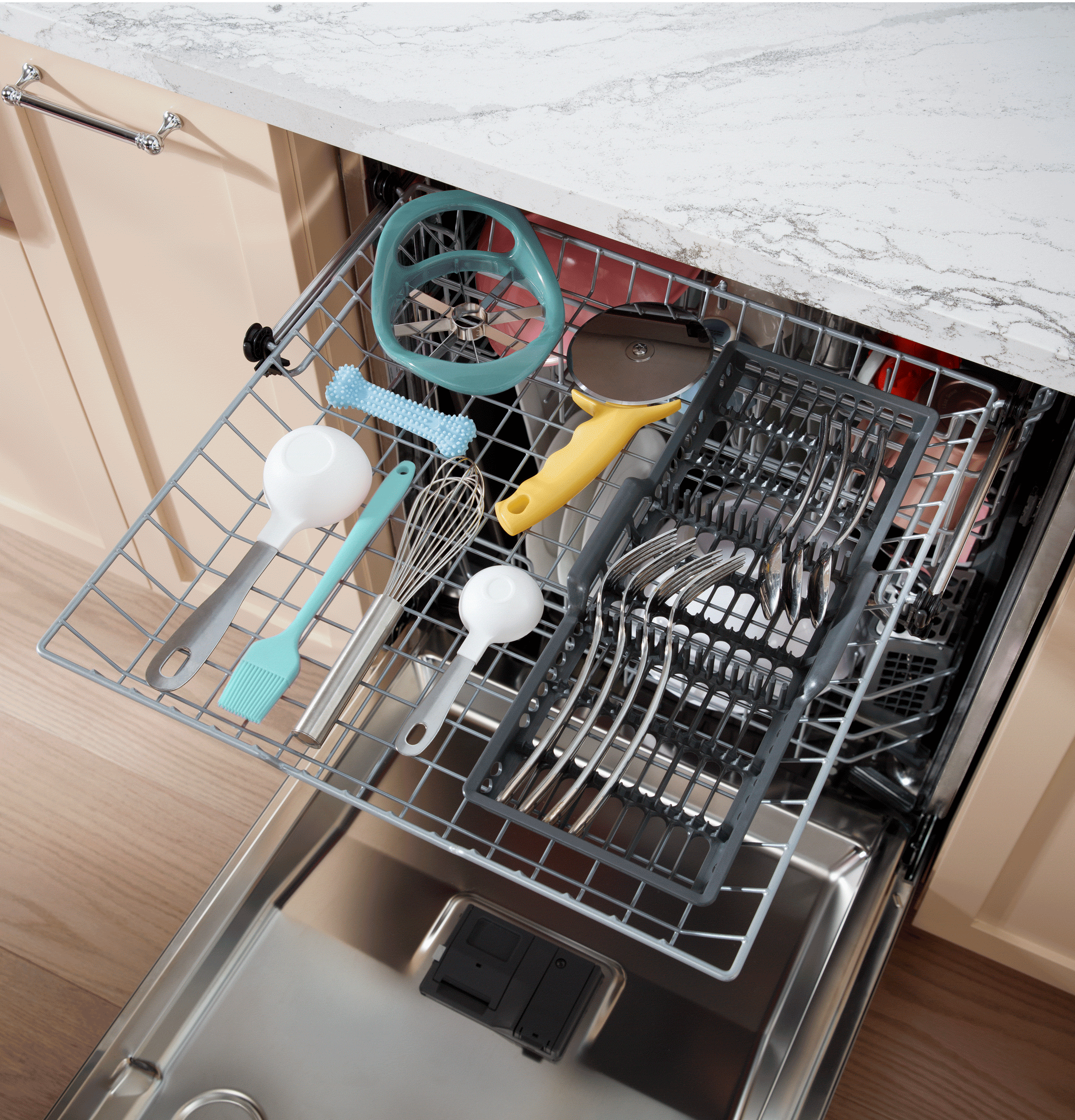

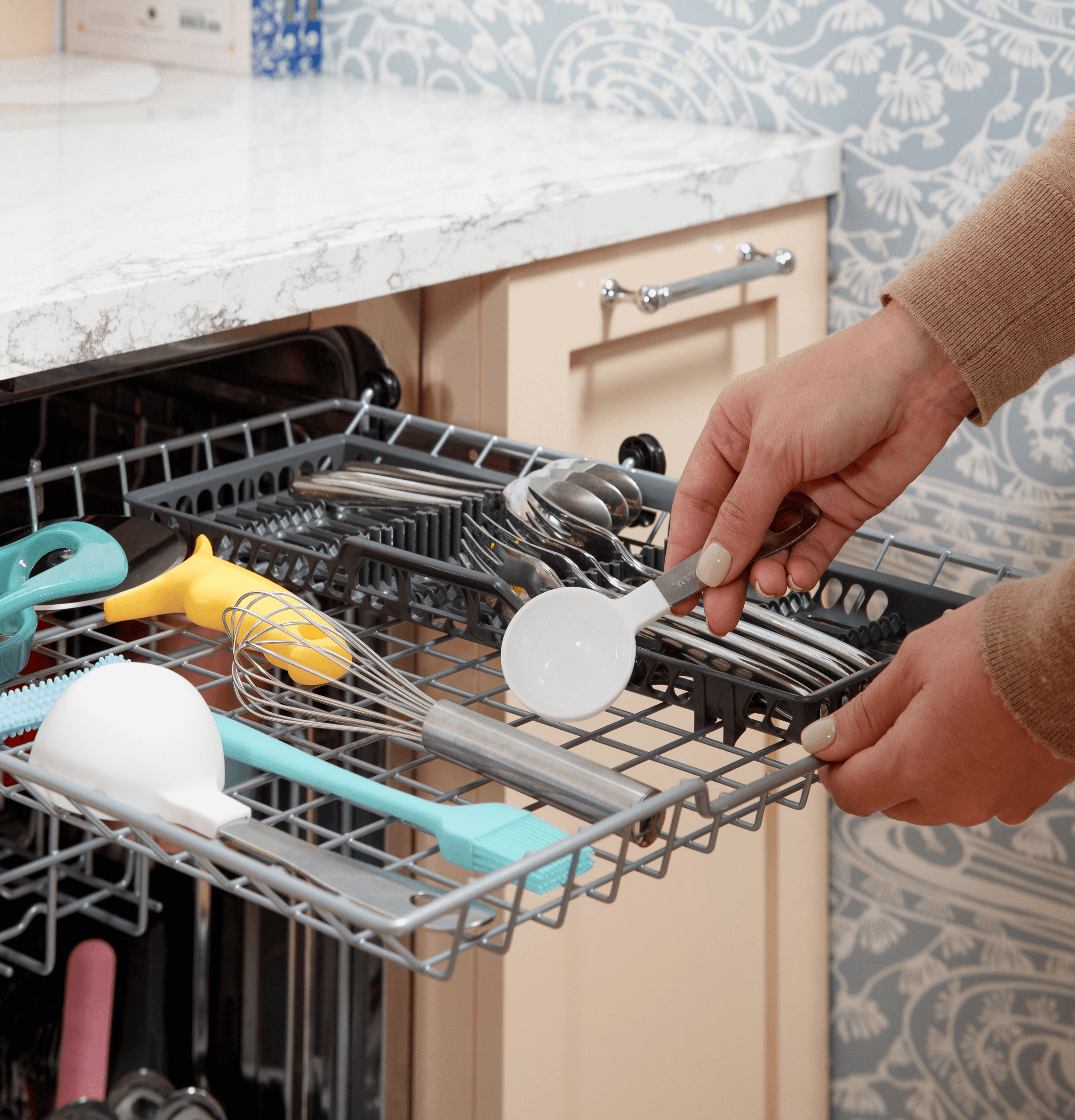

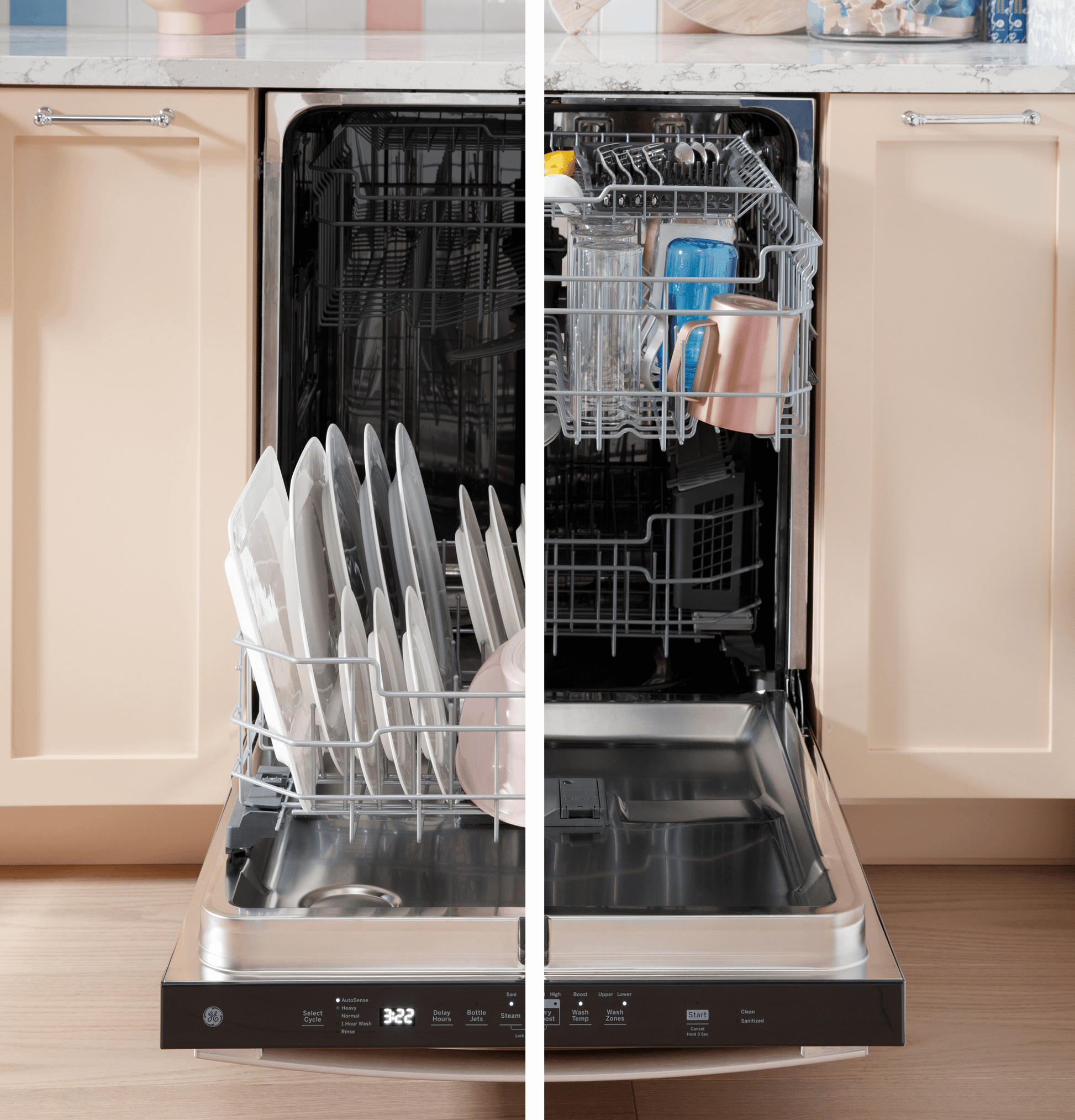

Third Rack with Removable Silverware Caddy
The versatile Third Rack was redesigned to load more than just silverware with additional space for unique items.

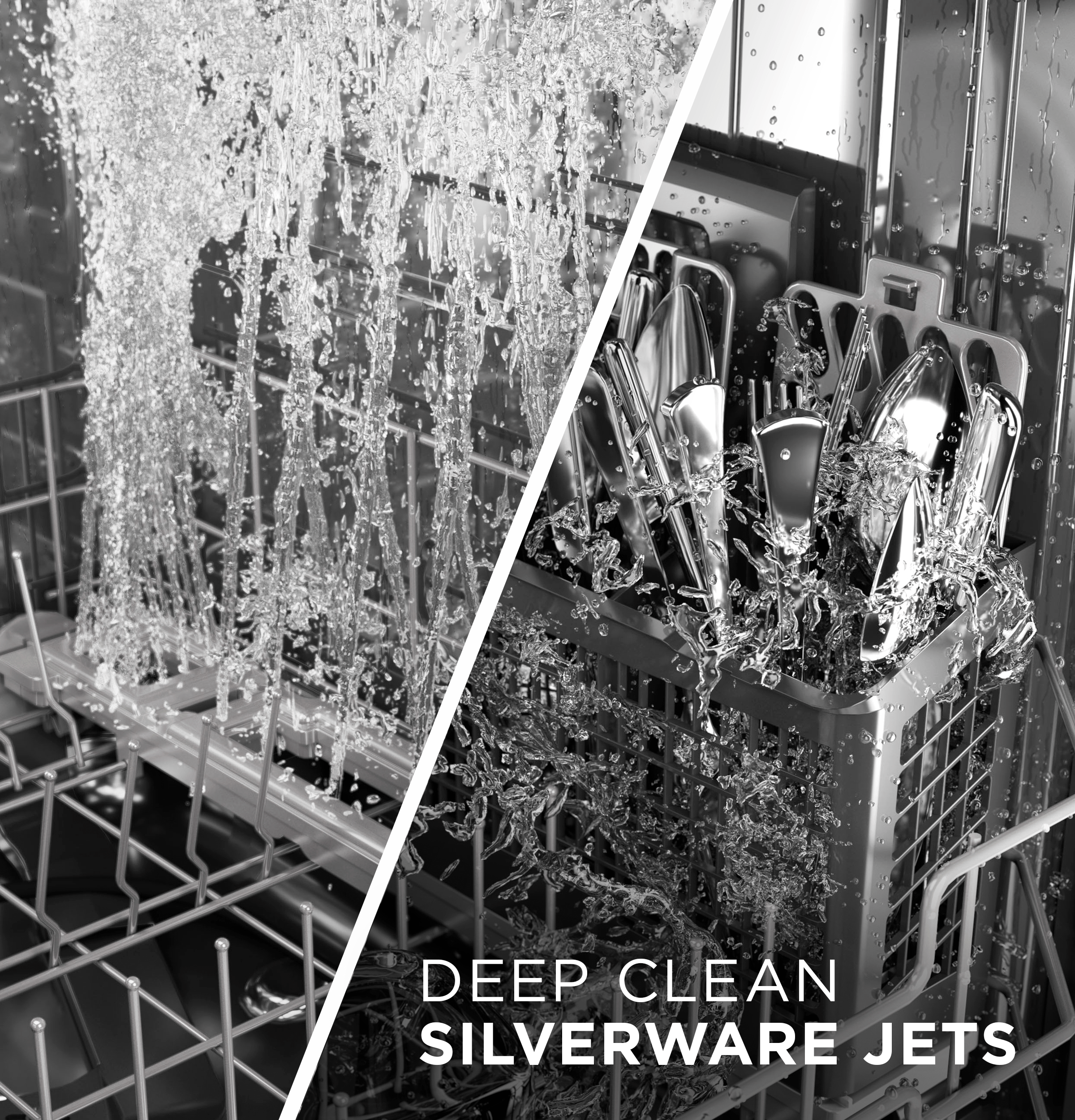

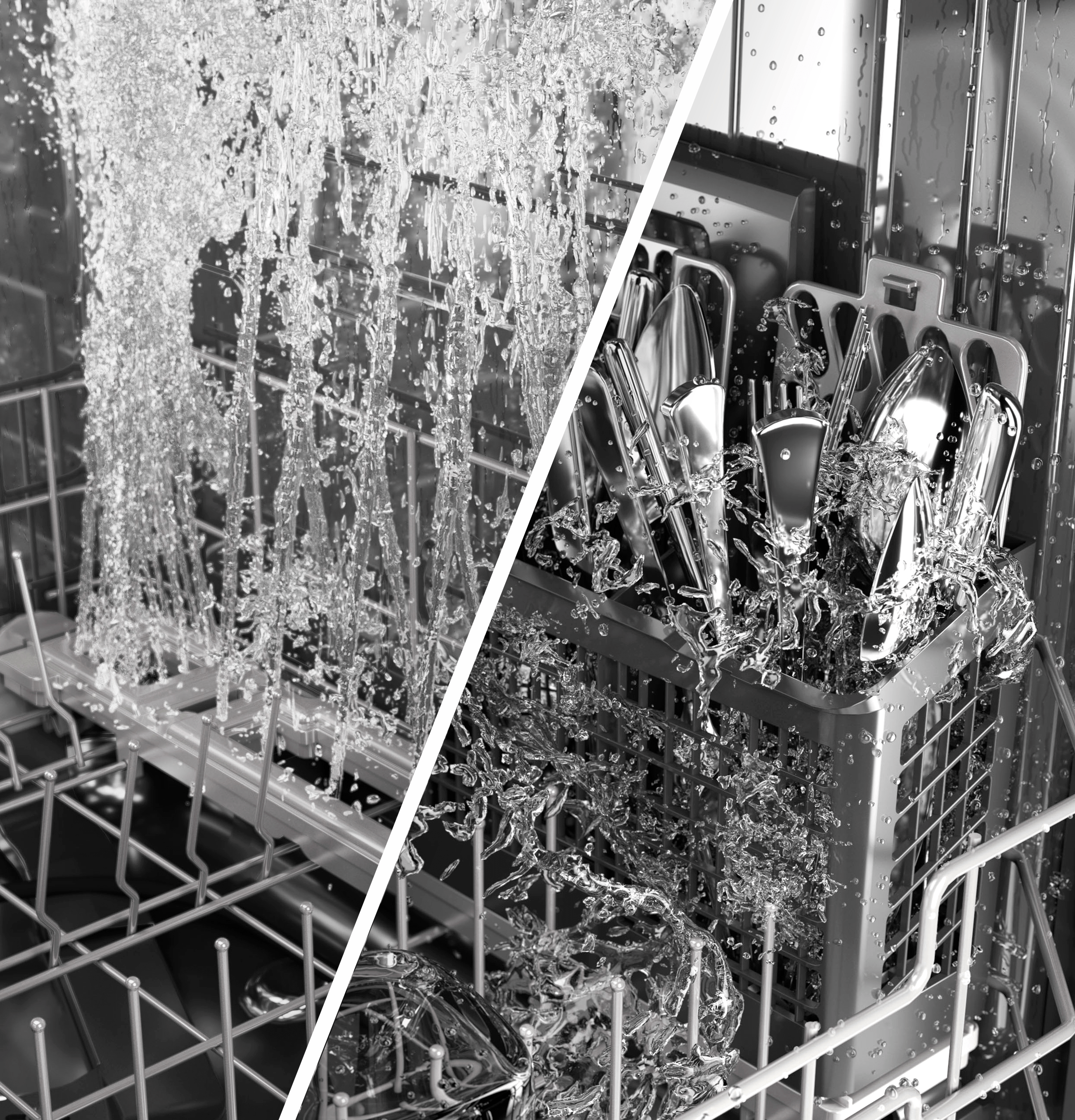

Deep Clean Silverware Jets
A system of 40 deep-cleaning silverware jets blasts the silverware basket from the bottom up, removing all stuck-on food for sparkling results.

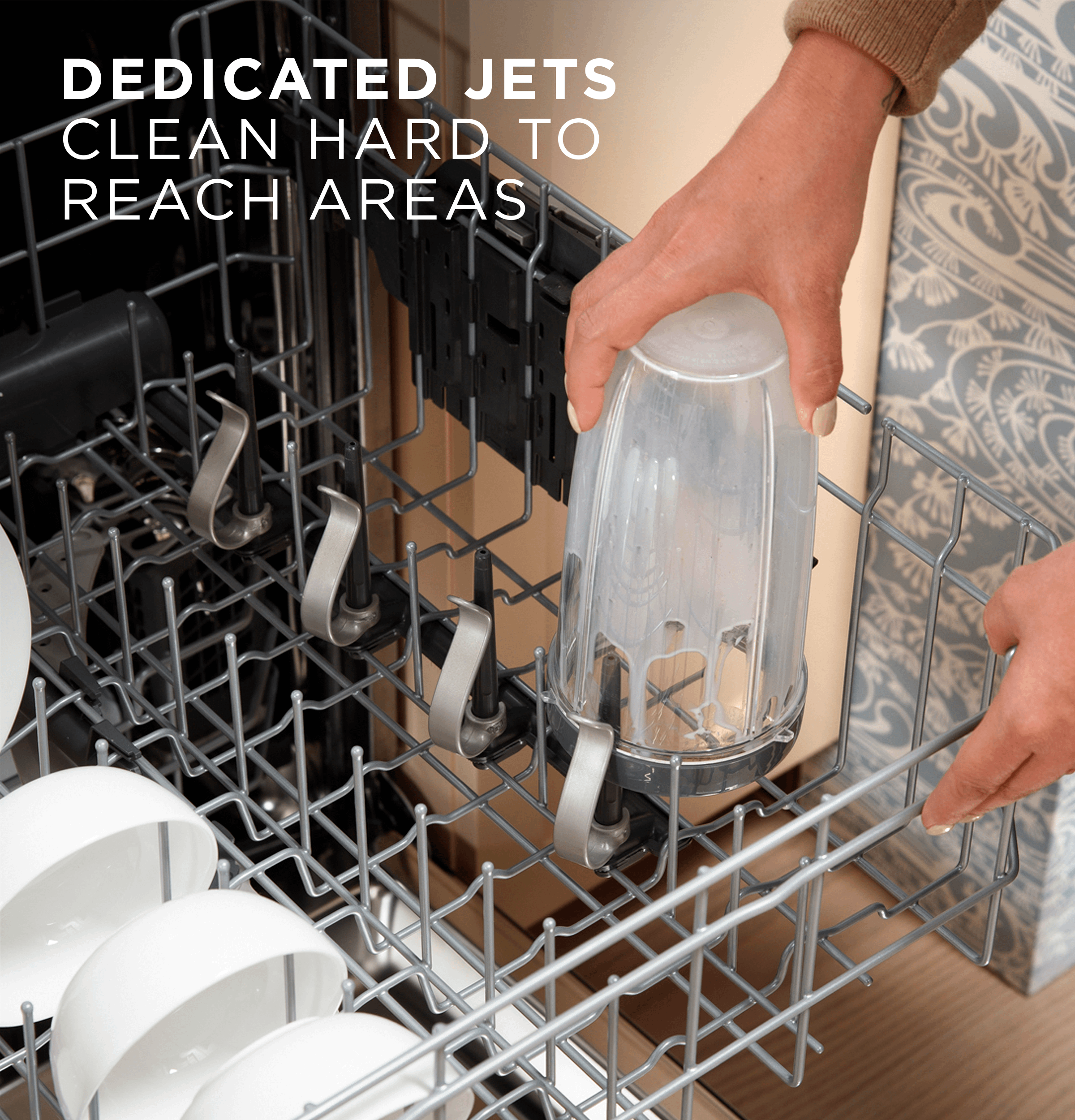

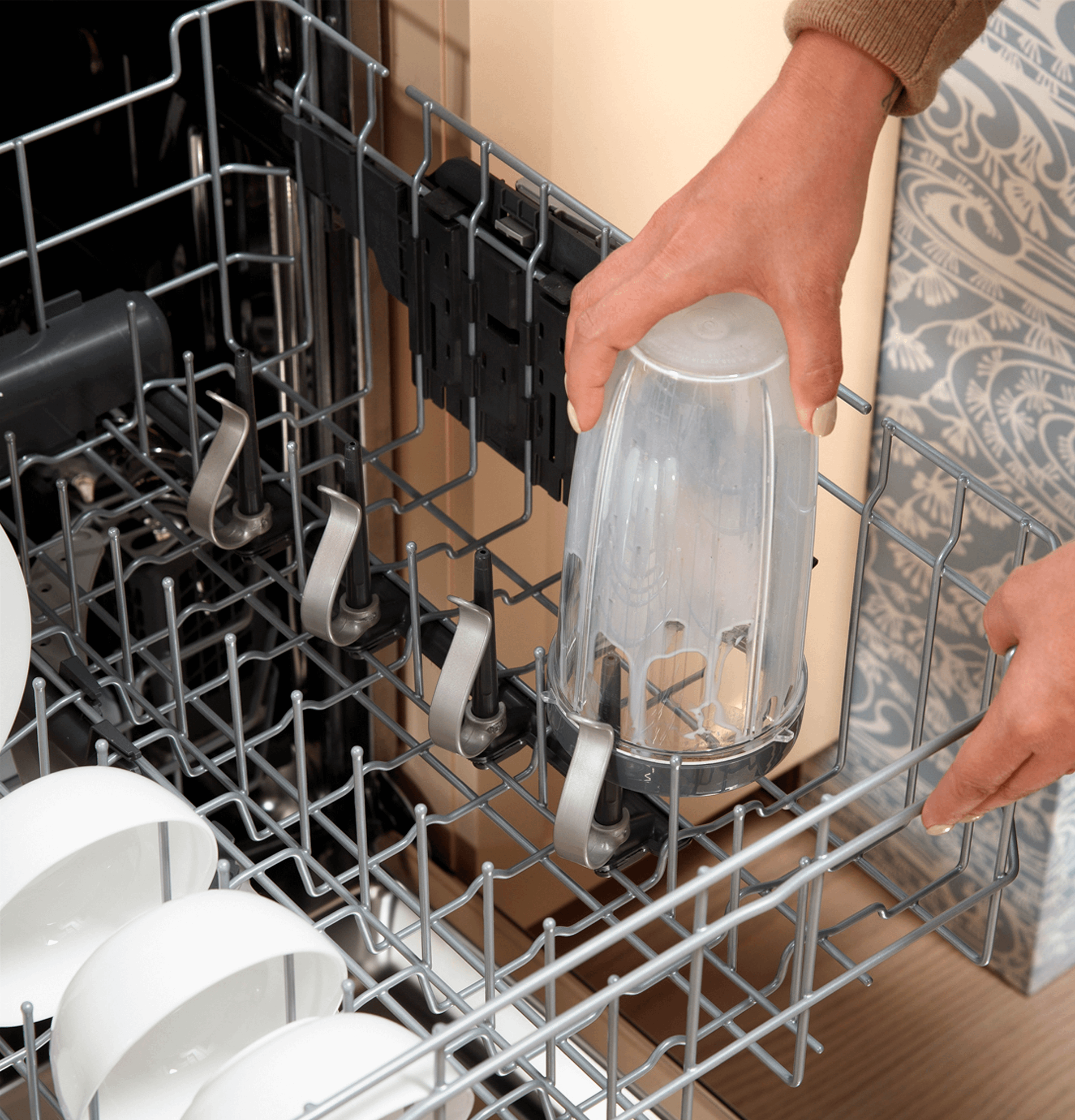

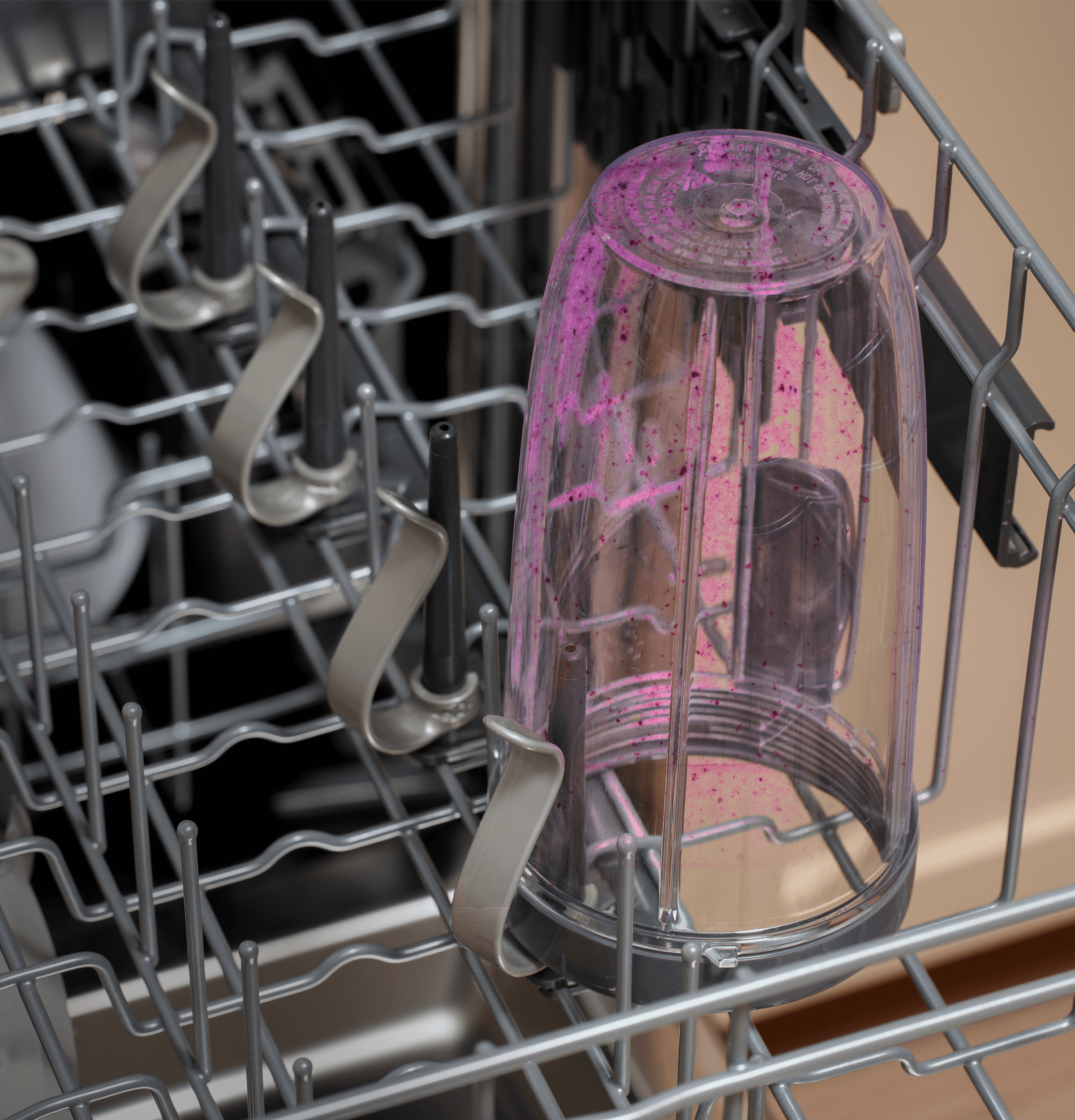

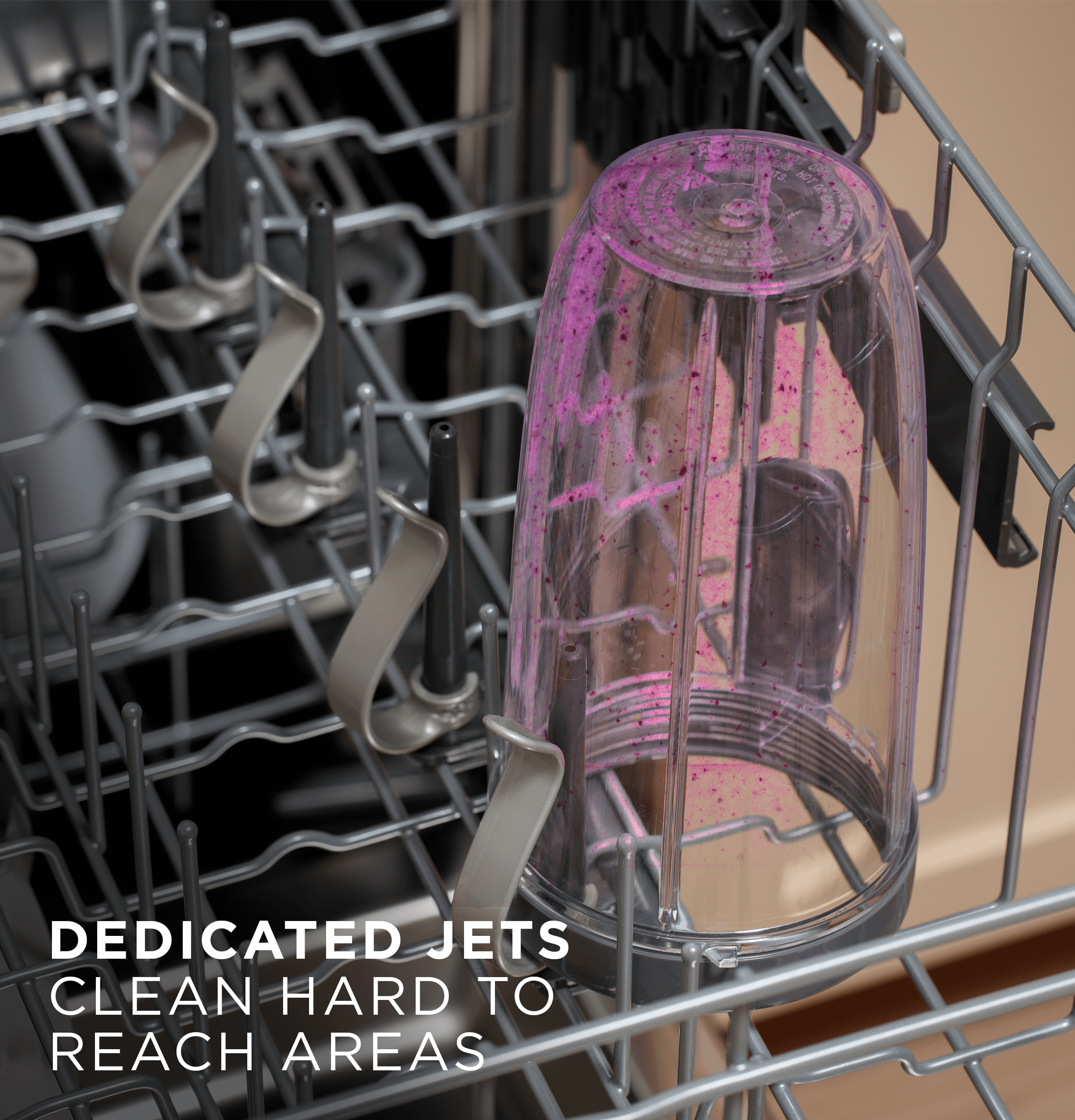

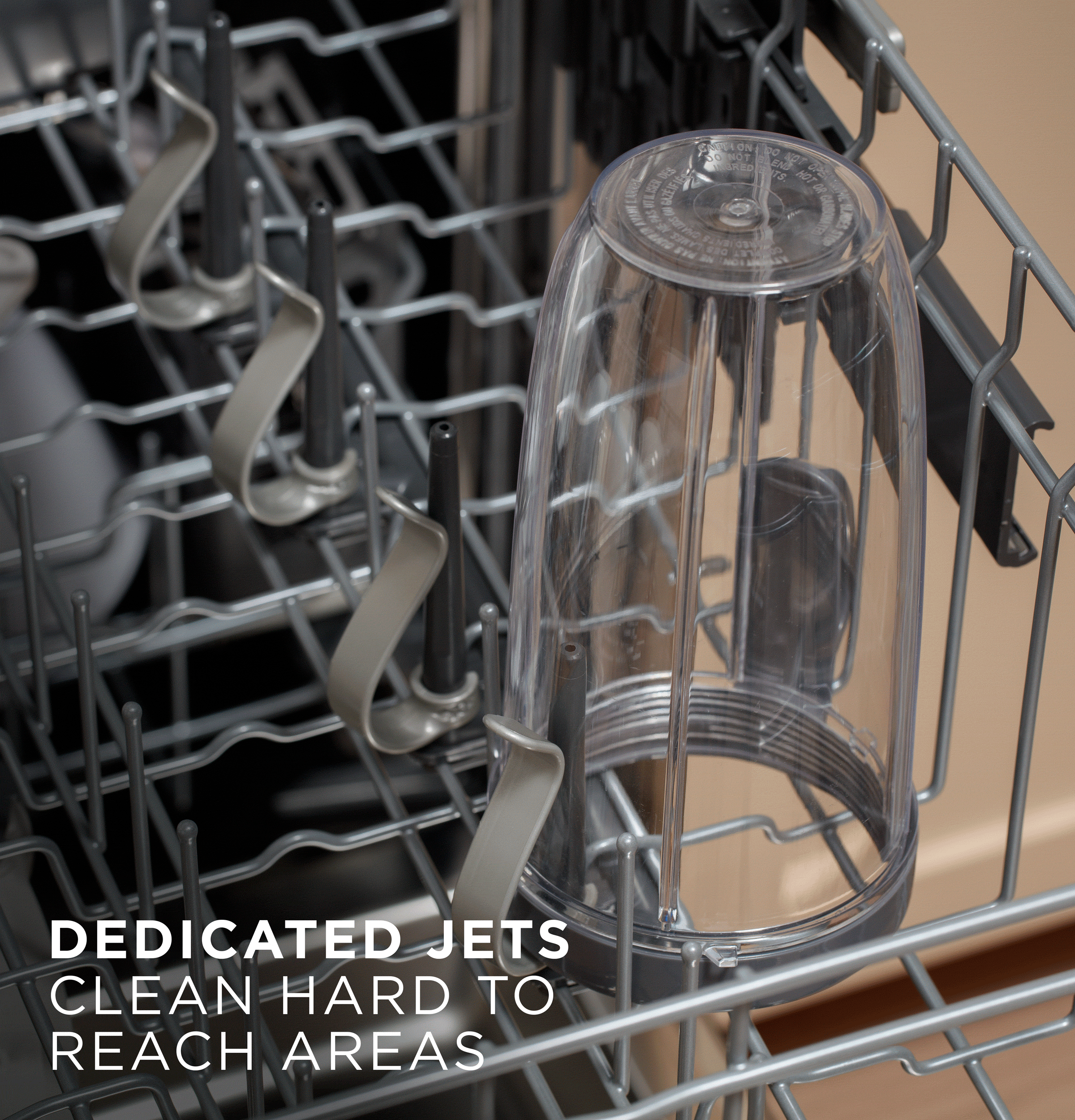

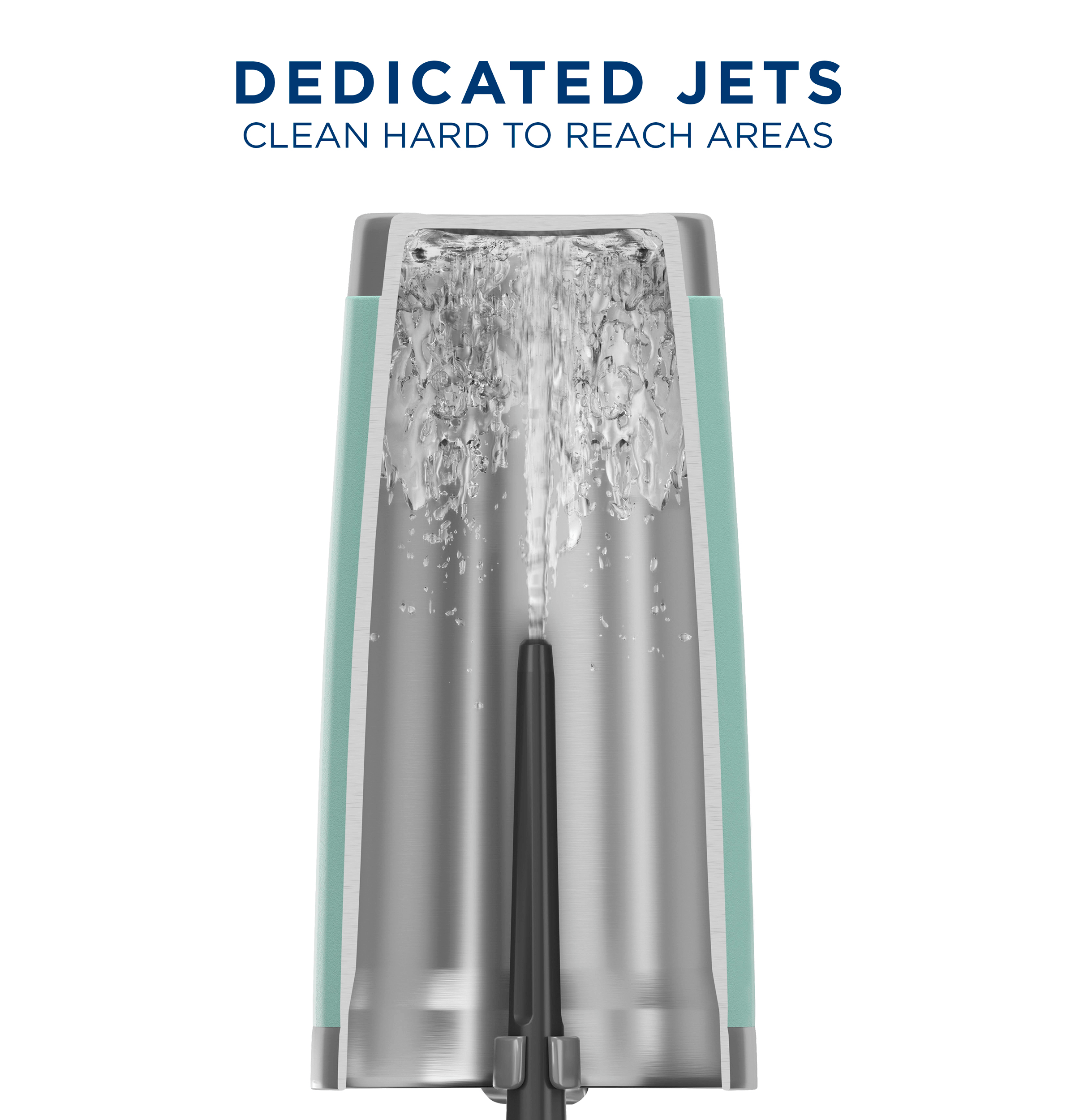

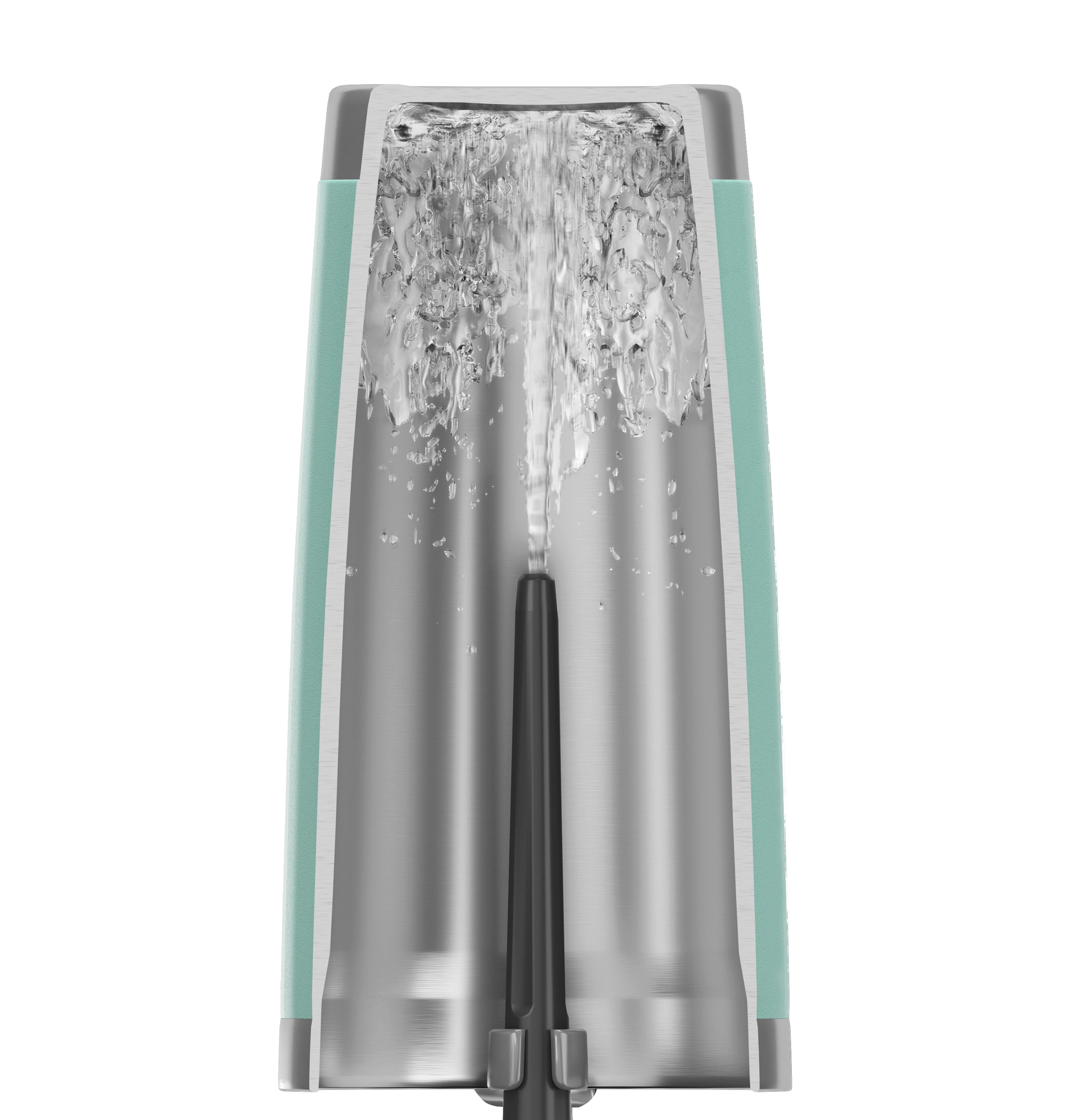

4 Bottle Wash Jets
Ensure a deep clean for tall items, narrow glasses, jars and more thanks to this dishwasher with bottle jets. 4 powerful jets direct water and detergent inside to effectively wash hard-to-reach areas.

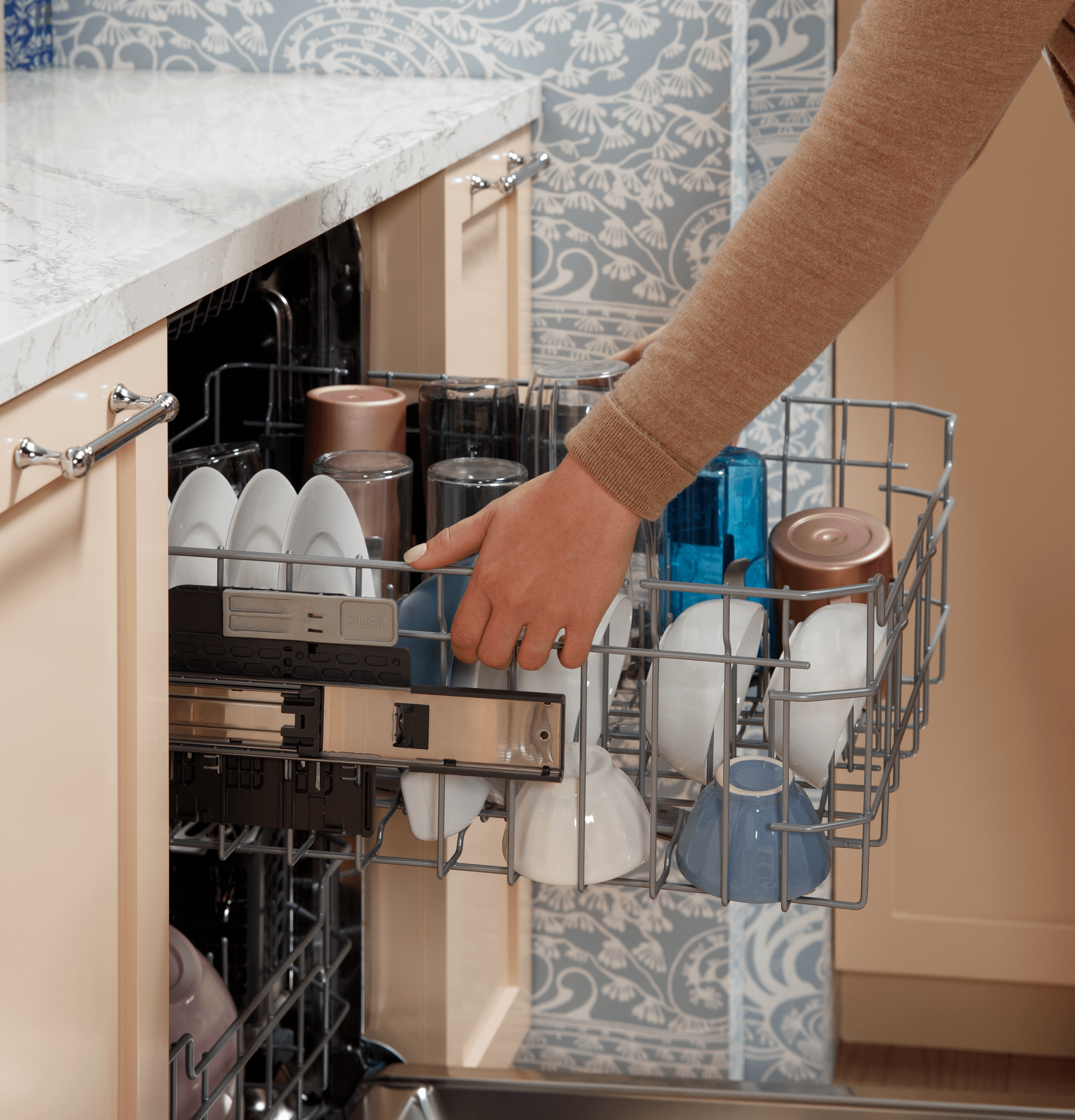

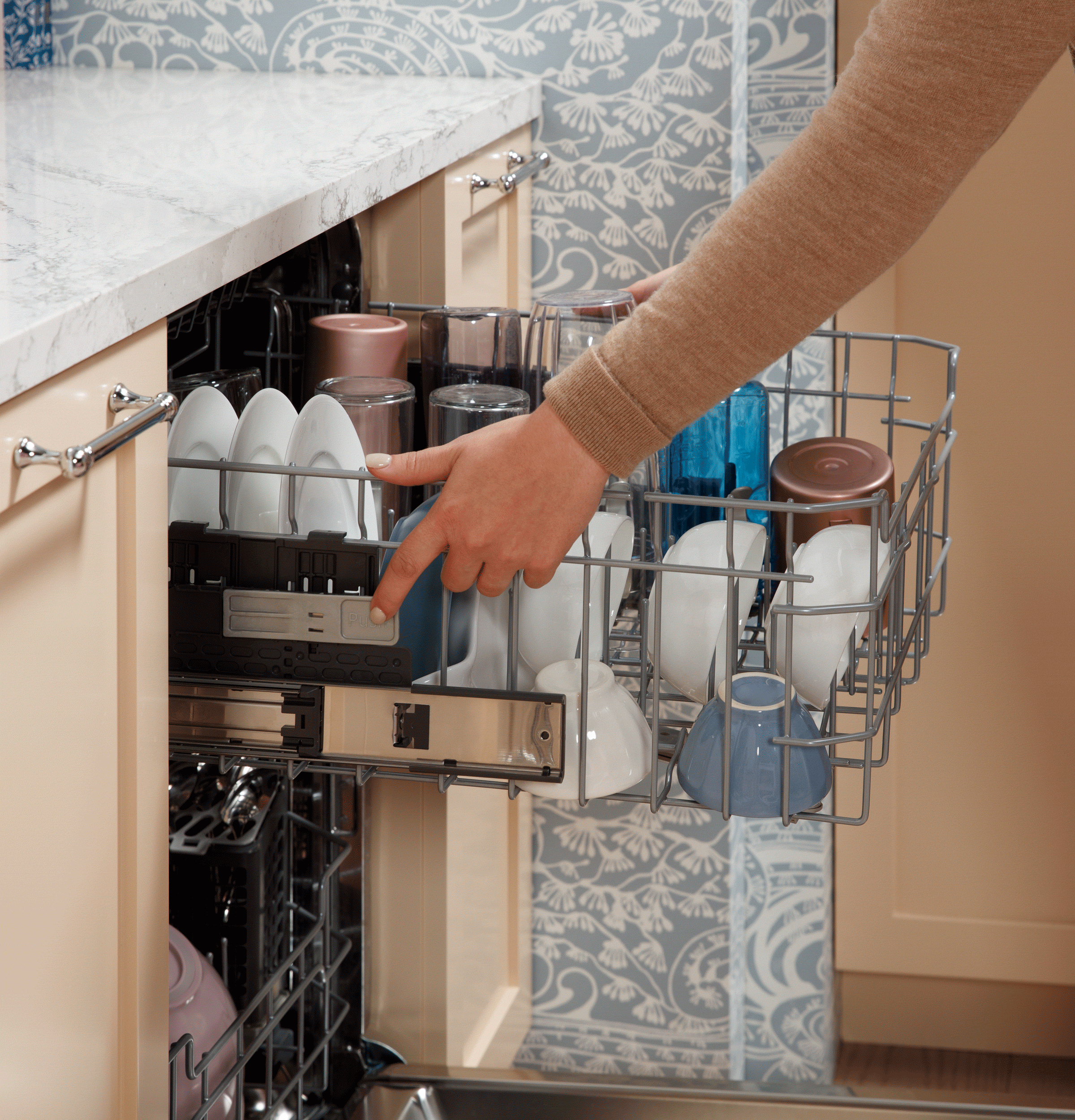

Smooth-Glide Upper Rack
This dishwasher with a smooth-glide rack makes loading and unloading smooth and simple. It easily extends on stainless steel ball bearings, so you can make light work of even the heaviest loads.
Steam + Sani
Save time with a high-temperature cycle that steams and sanitizes. Get a complete wash with no pre-rinsing or soaking necessary and reduce 99.999% of bacteria.

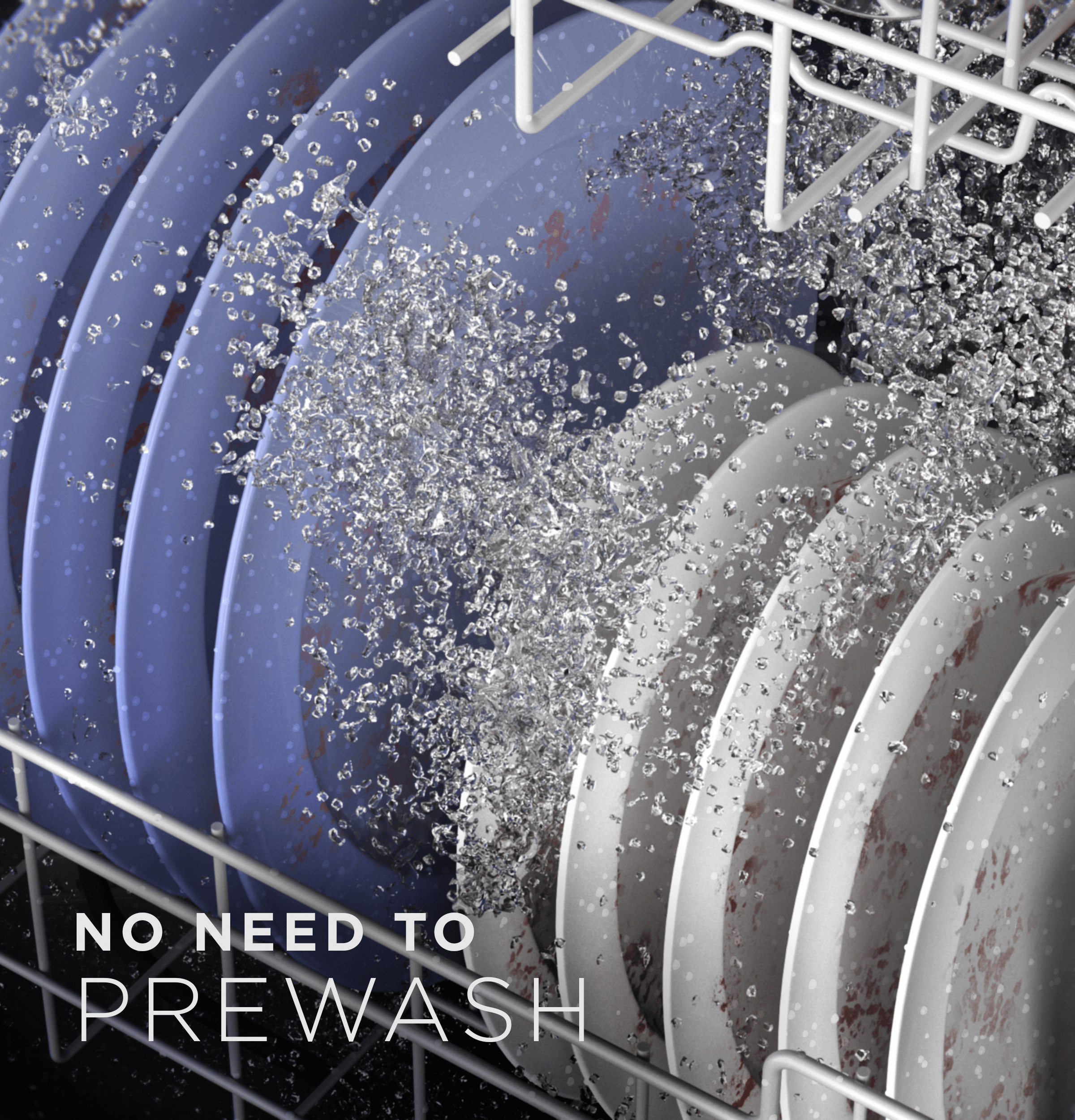

High Wash Performance
Get a complete wash with no pre-rinse thanks to a variety of wash cycles that provides a powerful clean. No matter how many dishes you load or how dirty they are, rest assured you'll get spotless results every time.
Active Flood Protect
This dishwasher features Active Flood Protect, which prevents potential overflows for greater peace of mind. It works by using a water leak detector to sense when water is too high, pumping it out until a safe level is reached.
Reliable Performance
Enjoy trusted performance from a trusted brand with this American-made, dependable dishwasher that provides totally clean and dry dishes with every cycle.
Piranha™ Hard Food Disposer
The Piranha™ Hard Food Disposer lets you use your dishwasher without pre-rinsing. Its stainless steel impellers rotate to pulverize food particles and an anti-jamming design makes sure wash arms stay unclogged.
45 dBA Dishwasher
Enjoy a peaceful kitchen and a powerful wash with this super-silent, 45 dBA dishwasher.

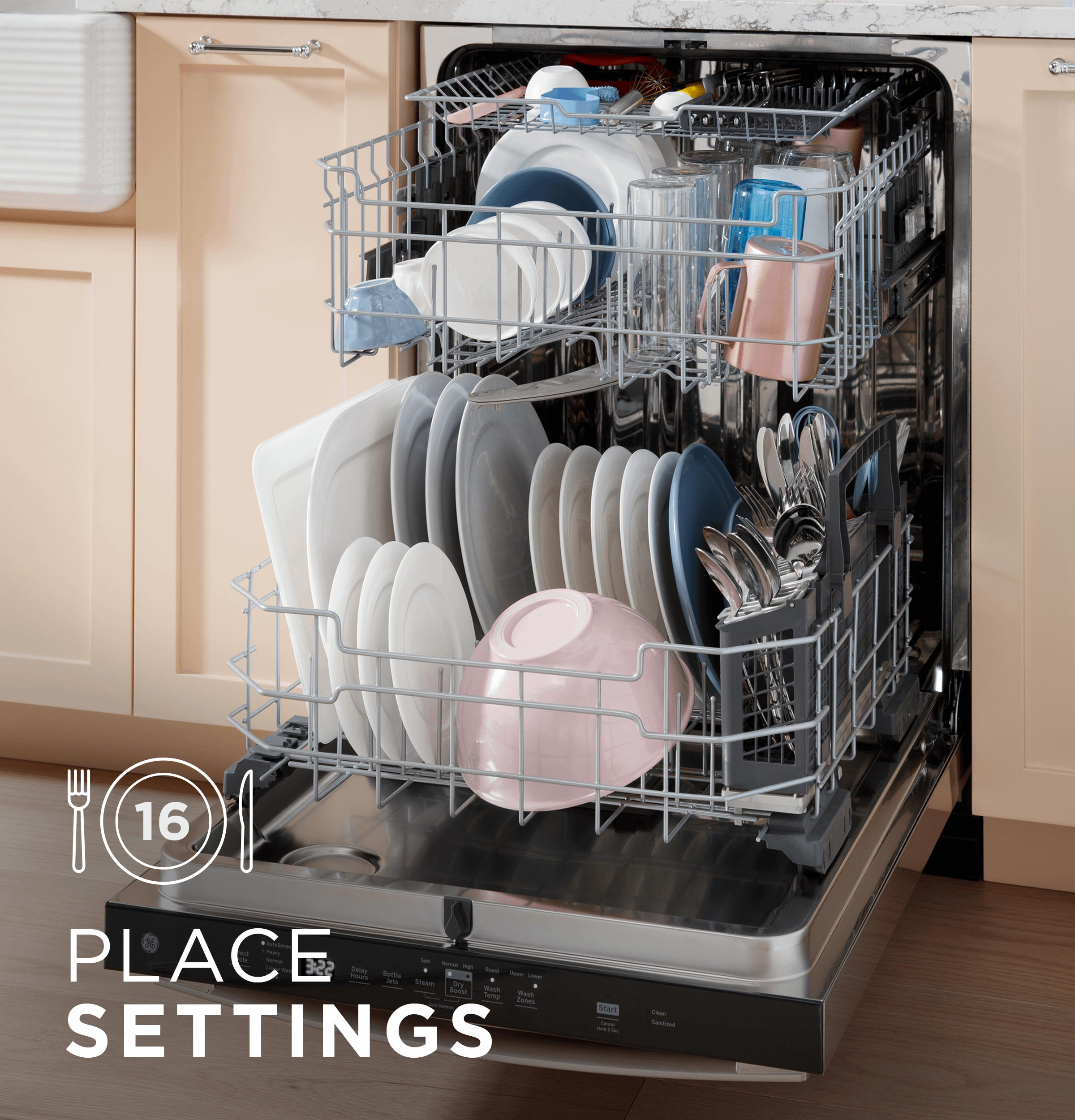

Extra Large Capacity
This extra-large capacity dishwasher has enough space for 16 place settings and large dishware, making cleanup easy after large gatherings.
Optional WiFi
Monitor this dishwasher with a smartphone and a WiFi adapter (sold separately) to enjoy a smart dishwasher experience. Simply attach the adapter and start using the SmartHQ™ app to control and monitor your unit remotely. You can even reorder detergent.
1-Hour Wash Cycle
Unload spotless plates, glasses, pots and pans without waiting hours for the dishwasher to finish with this one-hour dishwasher cycle.
AutoSense Cycle
This energy-saving dishwasher has an AutoSense Cycle that detects soil level and amount of dishes before automatically adjusting the wash setting for the ultimate clean.
- Dry Boost(TM) Technology
- Dry Boost(TM) Technology outperforms standard heated-dry dishwashers by getting hard-to-dry items like plastics up to 3 times drier when compared to heated dry.
- Third Rack with Removable Silverware Caddy
- The versatile Third Rack was redesigned to load more than just silverware with additional space for unique items.
- Deep Clean Silverware Jets
- A system of 40 deep-cleaning silverware jets blasts the silverware basket from the bottom up, removing all stuck-on food for sparkling results.
- 4 Bottle Wash Jets
- Ensure a deep clean for tall items, narrow glasses, jars and more thanks to this dishwasher with bottle jets. 4 powerful jets direct water and detergent inside to effectively wash hard-to-reach areas.
- Smooth-Glide Upper Rack
- This dishwasher with a smooth-glide rack makes loading and unloading smooth and simple. It easily extends on stainless steel ball bearings, so you can make light work of even the heaviest loads.
- Steam + Sani
- Save time with a high-temperature cycle that steams and sanitizes. Get a complete wash with no pre-rinsing or soaking necessary and reduce 99.999% of bacteria.
- High Wash Performance
- Get a complete wash with no pre-rinse thanks to a variety of wash cycles that provides a powerful clean. No matter how many dishes you load or how dirty they are, rest assured you'll get spotless results every time.
- Active Flood Protect
- This dishwasher features Active Flood Protect, which prevents potential overflows for greater peace of mind. It works by using a water leak detector to sense when water is too high, pumping it out until a safe level is reached.
- Reliable Performance
- Enjoy trusted performance from a trusted brand with this American-made, dependable dishwasher that provides totally clean and dry dishes with every cycle.
- Piranha(TM) Hard Food Disposer
- The Piranha(TM) Hard Food Disposer lets you use your dishwasher without pre-rinsing. Its stainless steel impellers rotate to pulverize food particles and an anti-jamming design makes sure wash arms stay unclogged.
- 45 dBA Dishwasher
- Enjoy a peaceful kitchen and a powerful wash with this super-silent, 45 dBA dishwasher.
- Extra Large Capacity
- This extra-large capacity dishwasher has enough space for 16 place settings and large dishware, making cleanup easy after large gatherings.
- Optional WiFi
- Monitor this dishwasher with a smartphone and a WiFi adapter (sold separately) to enjoy a smart dishwasher experience. Simply attach the adapter and start using the SmartHQ(TM) app to control and monitor your unit remotely. You can even reorder detergent.
- 1-Hour Wash Cycle
- Unload spotless plates, glasses, pots and pans without waiting hours for the dishwasher to finish with this one-hour dishwasher cycle.
- AutoSense Cycle
- This energy-saving dishwasher has an AutoSense Cycle that detects soil level and amount of dishes before automatically adjusting the wash setting for the ultimate clean.
APPEARANCE | |
Handle | Pocket Handle |

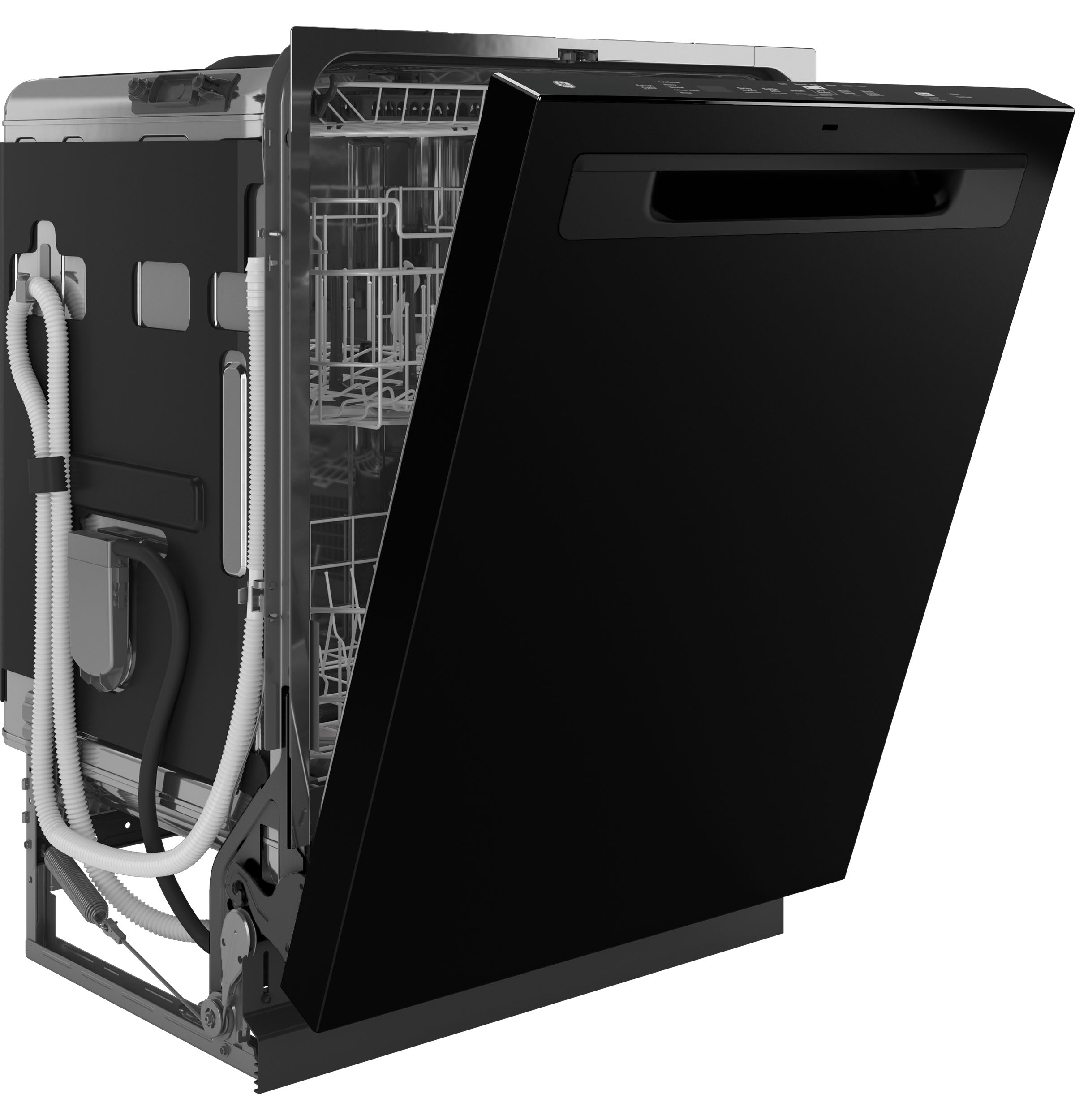

Installation | Built-Up Floor Capable Flush Cabinet Installation Side or Top Mount Install Brackets Included |
Handle Color | Black |
Door Style | Long Door with Top Controls |
Door Appearance | Full-length door |
Color Appearance | Black |
Control Panel Color | Storm Gray |
POWER / RATINGS | |
Power Connection | Optional cord kit (GPFCORD - WX09X70910, WX09X70911) |
Calrod Heater Watts | 800/500 |
Volts/Hertz/Amps | 120V; 60Hz; 6.6A |
WARRANTY | |
Labor Warranty | Limited 1-year entire appliance |
Warranty Notes | See written warranty for full details |
Parts Warranty | Limited 1-year entire appliance |
ECONOMICAL / QUIET | |
Door Insulation | Insulation Mastic |
Quiet Package | 45 dBA |
Outer Wrap | Bitumen Full-wrap Blanket |
Motor Type | Variable Speed |
Quiet Features | Quiet Water Valve Sealed Toe Kick Tub Collar Trim |
ACCESSORIES | |
Optional 12' Drain Hose | Optional hose kit (WD24X10065) |

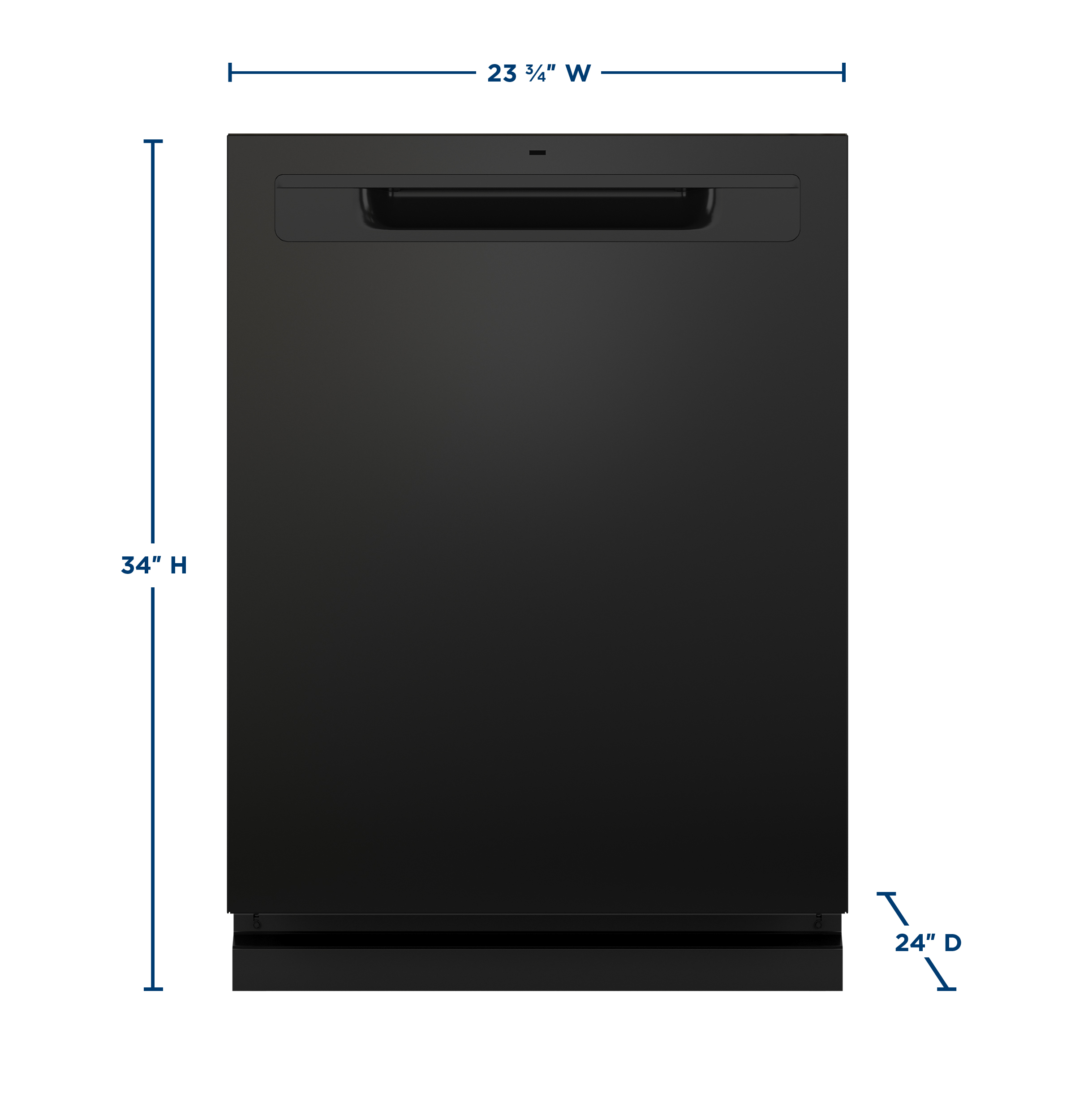

WEIGHTS & DIMENSIONS | |
Height w/ Legs Retracted - Minimum Height | 33.375 in |
Cutout Height (in) | 33 1/2 in |
Cutout Width (in) | 24 in |
Overall Depth | 24 in |
Cabinet Width | 24 in |
Net Weight | 99 lb |
Overall Width | 23.75 in |
Approximate Shipping Weight | 112 lb |
Overall Height | 34 in |
Cutout Depth (in) | 24 in |
Height w/Legs Extended - Maximum Height | 34.625 in |
Depth with Door Open | 27.5 in |
FEATURES | |
Wash System | 3-Level 600 Series |
Sensor | Clean Sensor |
Lower Rack | Ball-Tip Tines |
Tub Type | Tall Tub |
Leveling System | 4 Leveling Legs |
OU Certified | No |
Additional Protection | Active Flood Protect |
Number of Place Settings | 16 |

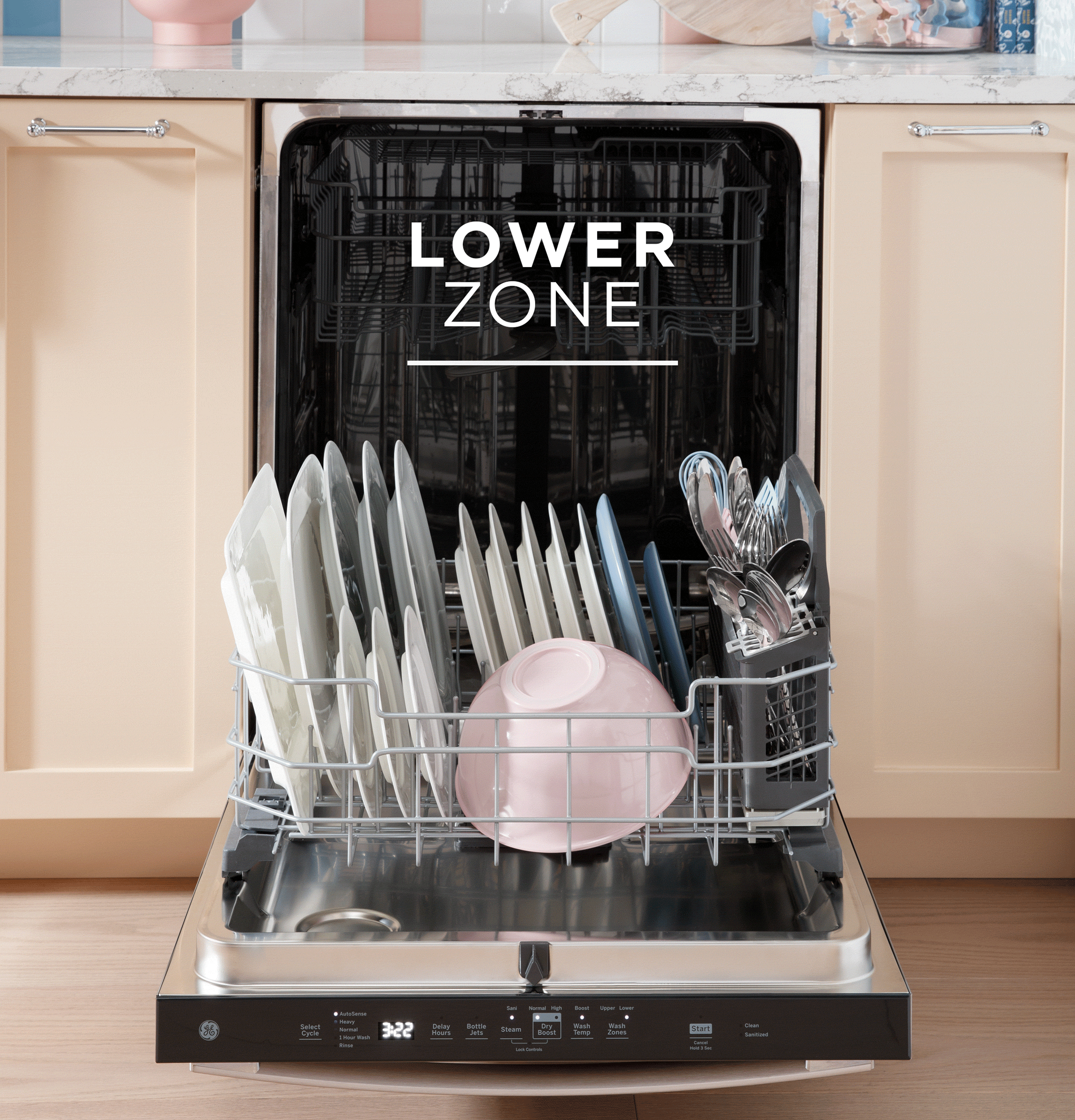

Dishwasher Options | Bottle Jets Child Lock Delay Start 1-12 Hr. Dry Boost™ (High) Dry Boost™ (Normal) Sabbath Mode Start/Cancel Steam + Sani (Certified to NSF Standard 184) Wash TempBoost Wash Zone Lower Only Wash Zone Upper Only |
Latch | Pull with Handle |
Number of Options | 11 |
Style | Built-In Top Control |
Water Filtration System | 100% Filtration with Piranha Hard Food Disposer and Removable Filter |
Rack Features | 1 Piece Silverware Basket with 3 Cell Covers Adjustable Upper Rack Ball-Tipped Tines |
Racking Material | Nylon |
Dishwasher Cycles | 1 Hour Wash AutoSense Heavy Wash Normal Wash Rinse |
Rack Color | Silver |
Dispenser | Rinse Aid with Indicator and Adjustment |
WiFi Connect | Optional (Requires part no. PBX23W00Y0) |

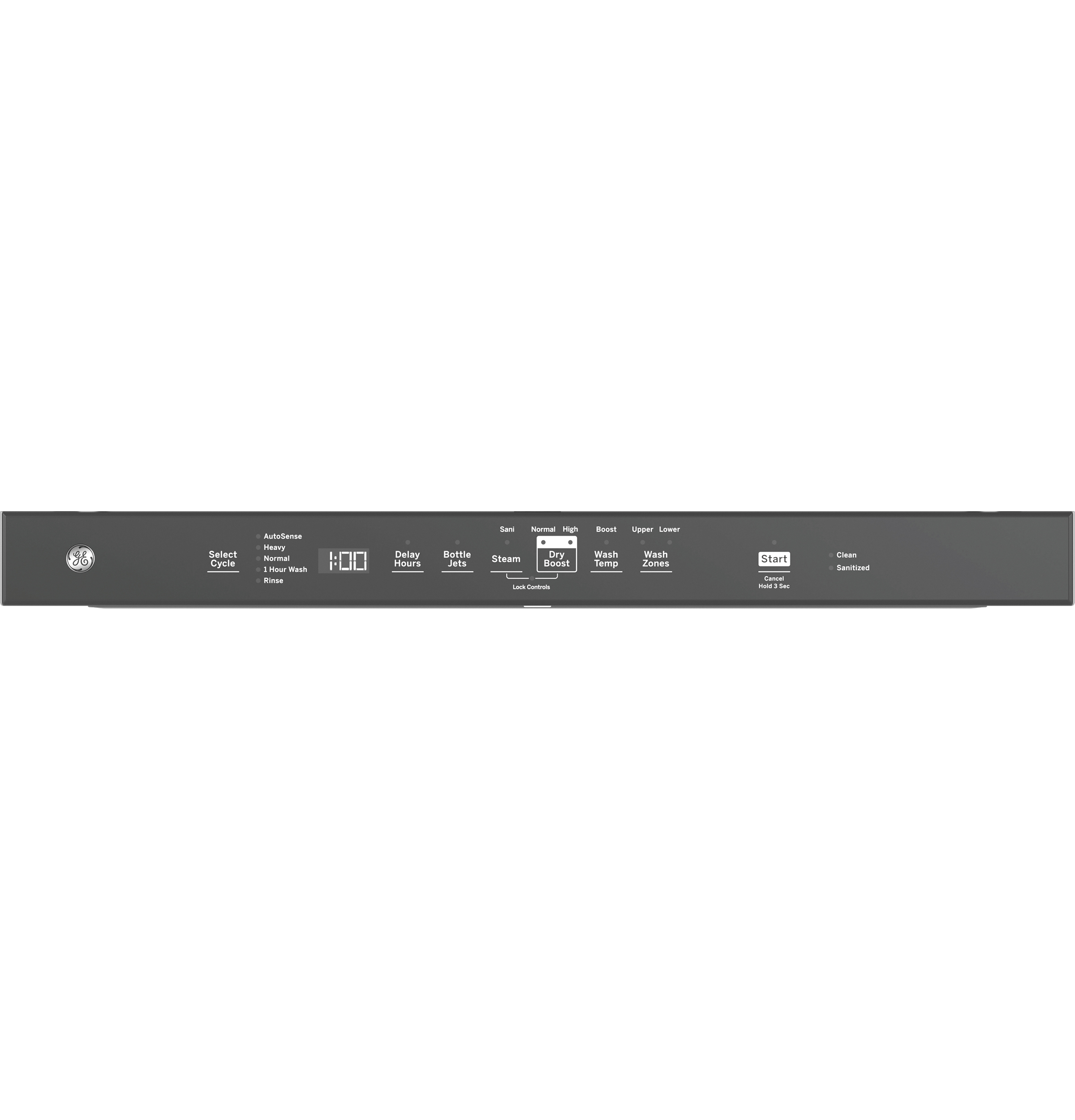

Control Type | 8 Touchpads Cap Touch Controls Top Controls |
Racking System | Full 3rd rack + caddy |
Dishwasher Drying Features | Dry Boost™ Normal, High, Off |
Wash Arms | 3 Wash Levels Bottle Jets Bottle Wash Jets Deep Clean Silverware Jets Lower Middle Upper |
Wash System Features | Automatic HotStart Automatic Temperature Control Bottle Jets (4) Drain Pump Piranha™ Hard Food Disposer with removable filter Variable Speed Dual Pumps and Motors |
Top Rack/3rd Rack | 3rd Rack + Caddy |
Exterior Style | Traditional |

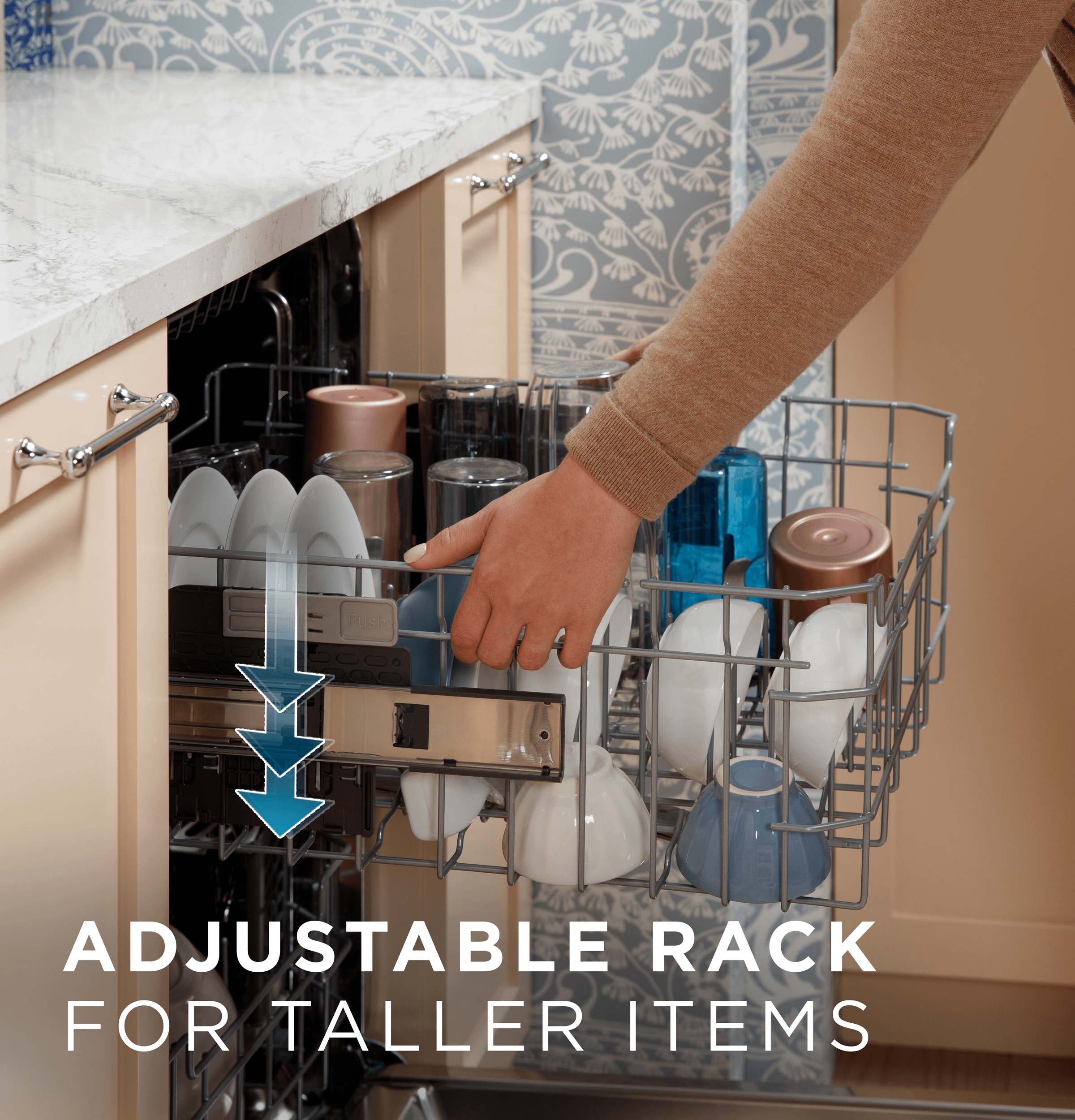

Upper Rack | Ball-Tip Tines Premium Height Adjustable Smooth Glide Upper Rack |
Dishwasher Control Features | 1 "Clean" Light, 1 "Sanitized" Light Cycle Progress Indicators 3 Digit Display Cycle Countdown with Bi-Color LED Status Light on door Audible End-of-Cycle Signal Control Lock with 1 Light Last Cycle Memory |
Number of Cycles | 5 |
Tub and Door Liner | Stainless Steel |
Sabbath Mode | Yes |
Showroom Power Mode | Yes |
