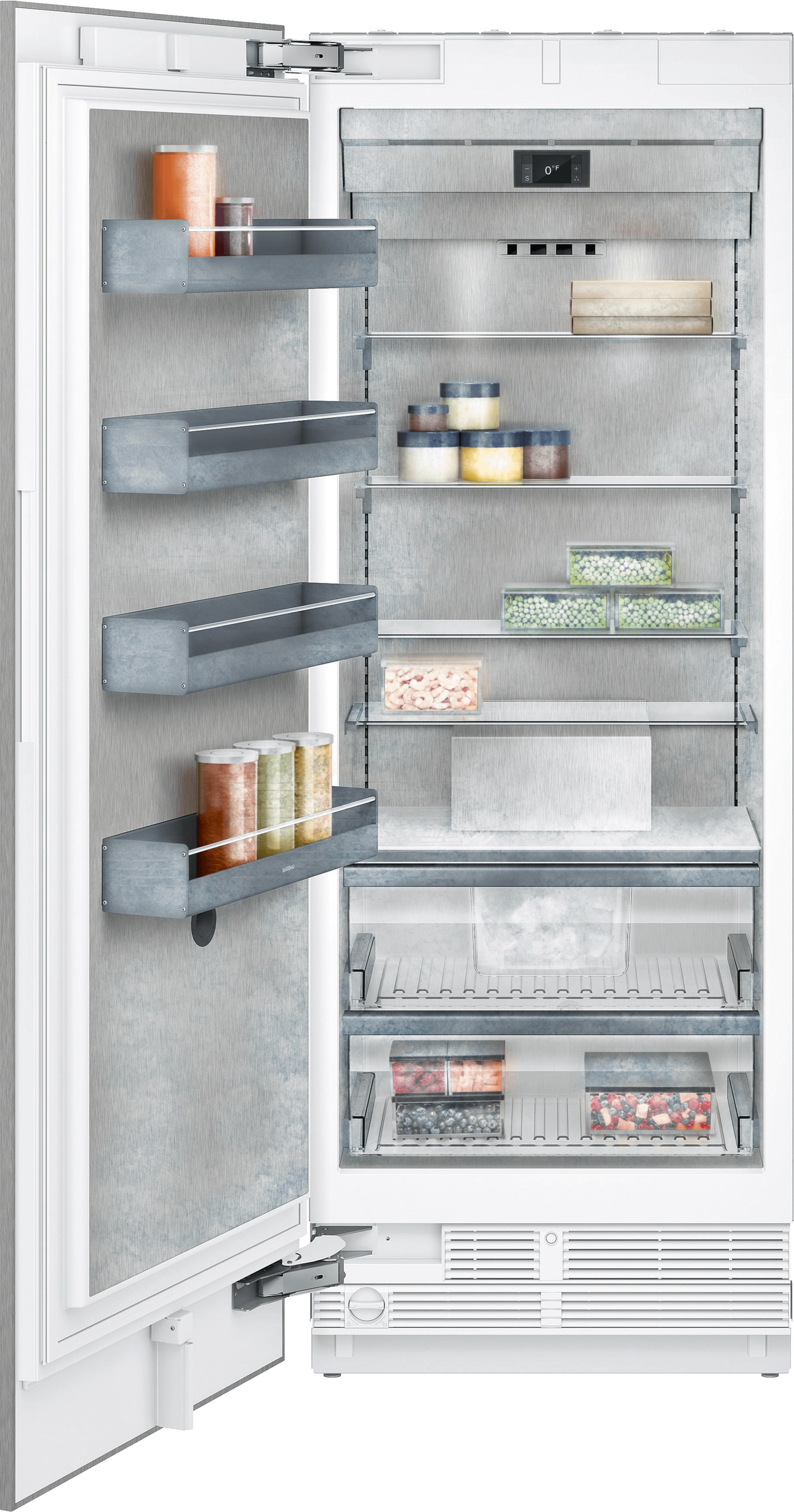

Gaggenau RF471705 400 Series Vario Freezer 30'' Softclose® Flat Hinge
Request a Consultation or Quote
Reach out for a personalized quote or consultation. Our team will get back to you quickly with tailored advice and pricing.
Call us to learn about discounts on display models and Grade A open boxes!
Why Isn't Pricing Shown?
Pricing for these premium products isn't displayed online due to industry policies that require a personalized approach. To ensure you receive the most accurate information and best service, we offer customized quotes and consultations.
For detailed pricing and advice, please contact us directly or visit our showroom. We're here to assist you in making the best choice for your home.
Gaggenau RF471705
Overview & Specifications
Overview & Specifications
Operation
TFT touch display operation.
Clear text display in 44 languages.
Technical Features
Dynamic cold air distribution with Multi-Flow Air System.
Automatic defrosting with defrost
water evaporation.
Cushioned door closing system.
Sabbath mode certified by Star-K.
When rest mode is active, the appliance can only be opened using a handle.
Open-door and malfunction warning system.
Home network integration for digital services (Home Connect) wireless via WiFi.
The use of the Home Connect functionality depends on the Home Connect services, which are not available in every country. For further information please check: home-connect.com.
Freezer compartment
No-frost technology with fast freezing at -22 (degree)F.
Temperature adjustable from 3 (degree)F to -11 (degree)F.
4-star freezer compartment.
4 safety glass shelves, white glass, 3 of which are individually height adjustable.
2 fully extendable drawers with transparent front.
Flat door rail system with fully flexible positioning of door racks.
4 height-adjustable door racks.
Ice dispenser
Integrated automatic ice maker in the freezer compartment, with fixed water connection.
Particle filter for water inlet, integrated in ventilation grille area.
Saturation indicator shown in TFT touch display.
Ice maker can be switched off independently.
Ice cube production approx. 2.9 lb (1.5 kg)/24 h.
Removable ice storage container with approx. 6.6 lbs. (2.5 kg) capacity.
Consumption data
Energy consumption 478.75 kWh/year.
Noise level 42 dB (re 1 pW).
Planning notes
Flat hinge.
Door hinge left, reversible.
Door opening angle of 115(degree), fixable at 90(degree).
For installation with a door opening angle of 90(degree) the ice storage container must be exchanged for the small ice storage container (RA 448220). This must be done prior to fixing the door.
Max. door panel weight 130 lbs. (59 kg).
Shut-off valve for water connection must be planned next to the appliance and always be accessible.
If the water pressure exceeds 116 psi, connect pressure relief valve between water tap and hose set.
Rating
Total rating 1.079 kWh/24 h.
Total Amps: 10 A.
Connecting cable 118" (3.0 m), detachable.
Cold water connection required.
Electrical location 6" above ground in lower left corner of unit.
Supply hose 47,2 INCH (1.2 m) with 1/4" male compression fitting (standard icemaker connector).
Water pressure 29 to 116 psi.
