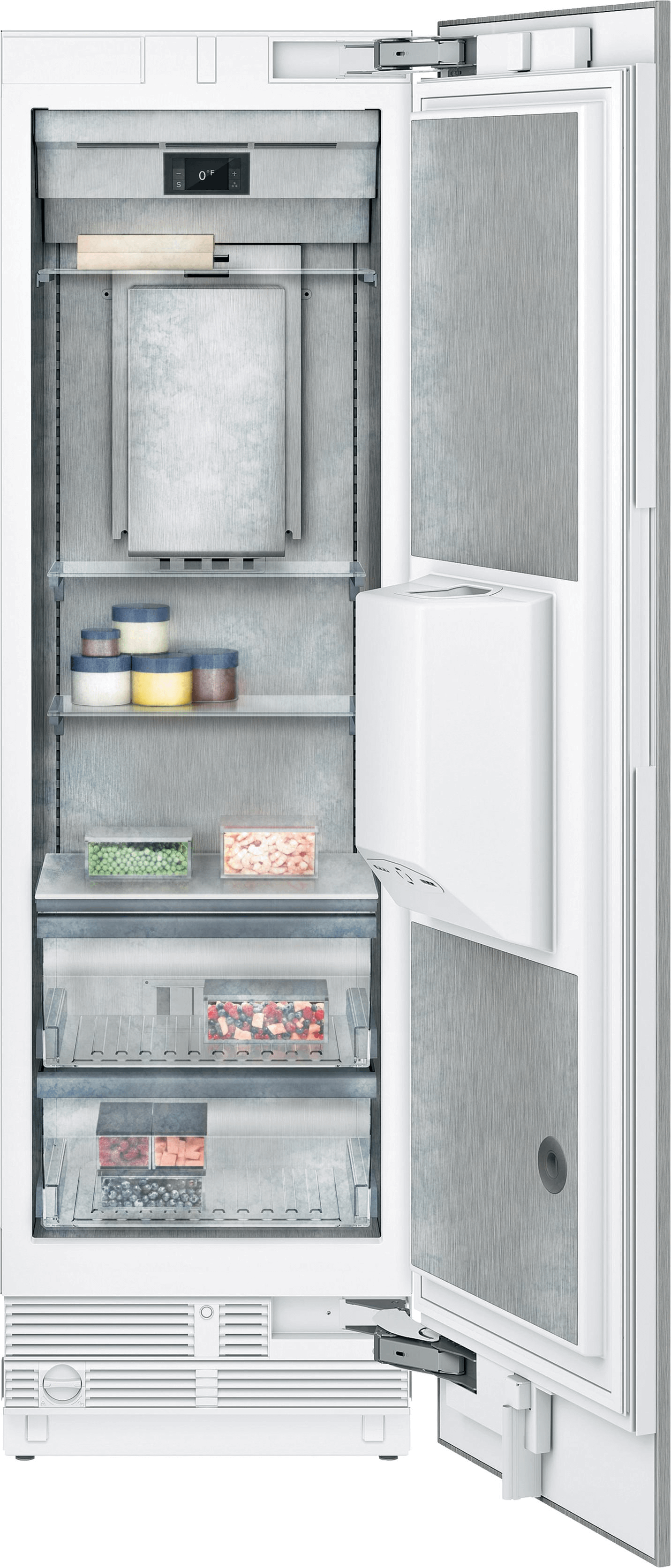

Gaggenau RF463706 400 Series Vario Freezer 24'' Soft Close Flat Hinge
Request a Consultation or Quote
Reach out for a personalized quote or consultation. Our team will get back to you quickly with tailored advice and pricing.
Call us to learn about discounts on display models and Grade A open boxes!
Why Isn't Pricing Shown?
Pricing for these premium products isn't displayed online due to industry policies that require a personalized approach. To ensure you receive the most accurate information and best service, we offer customized quotes and consultations.
For detailed pricing and advice, please contact us directly or visit our showroom. We're here to assist you in making the best choice for your home.
Gaggenau RF463706
Overview & Specifications
Overview & Specifications
Operation
TFT touch display operation.
Clear text display in 44 languages.
Touch key operation for ice and water dispenser.
Technical Features
Dynamic cold air distribution with Multi-Flow Air System.
Automatic defrosting with defrost
water evaporation.
Cushioned door closing system.
Sabbath mode certified by Star-K.
When rest mode is active, the appliance can only be opened using a handle.
Open-door and malfunction warning system.
Home network integration for digital services (Home Connect) wireless via WiFi.
The use of the Home Connect functionality depends on the Home Connect services, which are not available in every country. For further information please check: home-connect.com.
Freezer compartment
No-frost technology with fast freezing at -22 (degree)F.
Temperature adjustable from 3 (degree)F to -11 (degree)F.
4-star freezer compartment.
Freezing capacity 8.7 kg/24 h.
4 safety glass shelves, white glass, 2 of which are individually height adjustable.
2 fully extendable drawers with transparent front.
Ice and water dispenser
Warm white LED lighting.
Proximity sensor for automatic activation of light and touch keys for ice and water dispenser.
Integrated, with fixed inlet water connection.
Particle filter for water inlet, integrated in ventilation grille area.
Saturation indicator shown in TFT touch display.
Ice maker can be switched off independently.
Ice cube production approx. 2.9 lb (1.1 kg)/24 h.
Ice cubes and crushed ice.
Removable ice storage container with approx. 6.6 lbs. (3.2 kg) capacity.
Chilled water supply approx. 1.3 litres.
Consumption data
Energy consumption 453.98 kWh/year.
Noise level 42 dB (re 1 pW).
Planning notes
Flat hinge.
Door opening angle of 115(degree), fixable at 90(degree).
Max. door panel weight 147 lbs. (67kg).
Shut-off valve for water connection must be planned next to the appliance and always be accessible.
If the water pressure exceeds 116 psi, connect pressure relief valve between water tap and hose set.
Rating
Total rating 1.079 kWh/24 h.
Total Amps: 10 A.
Connecting cable 118" (3.0 m), detachable.
Cold water connection required.
Electrical location 6" above ground in lower left corner of unit.
Supply hose 47,2 INCH (1.2 m) with 1/4" male compression fitting (standard icemaker connector).
Water pressure 29 to 116 psi.
