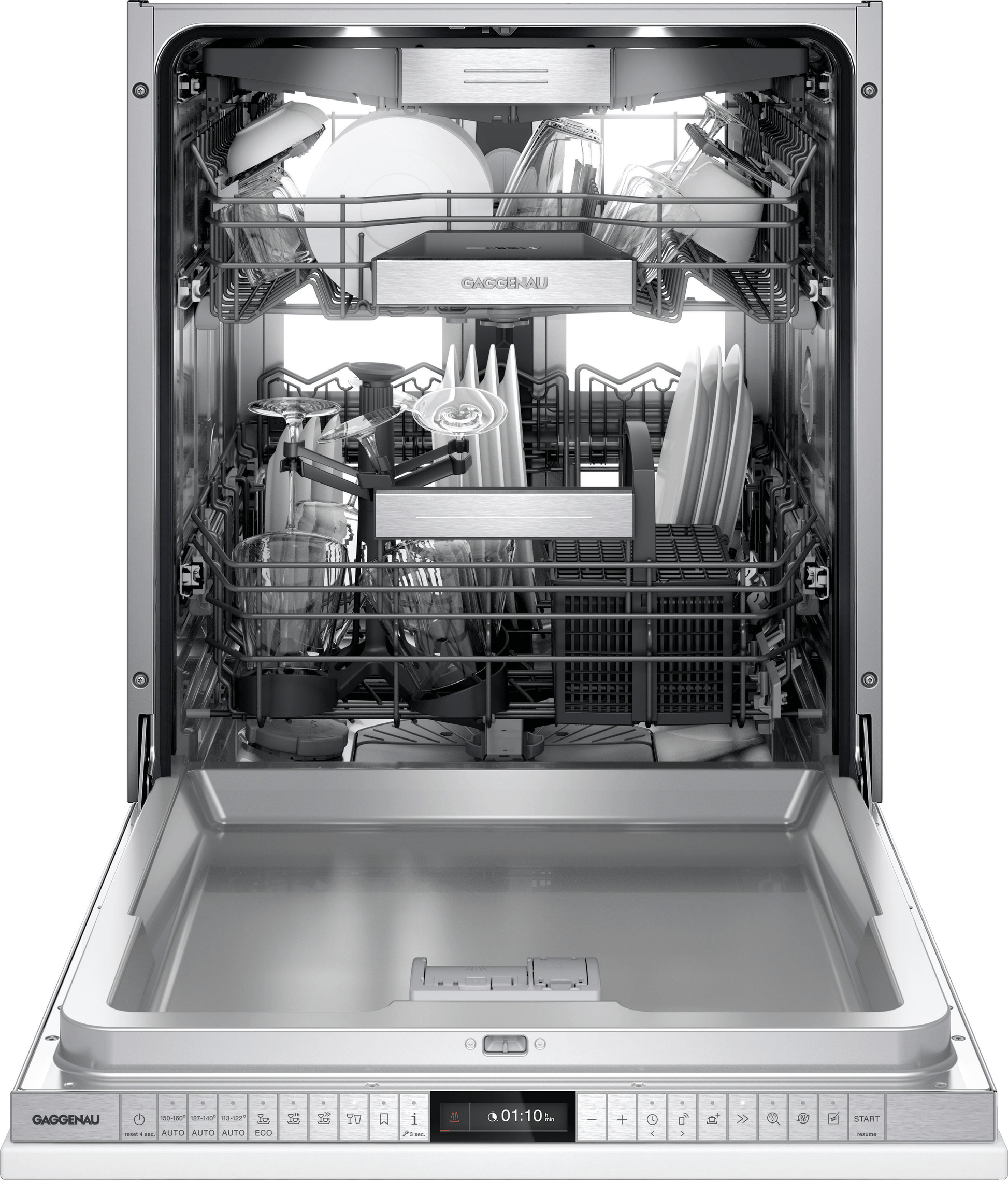

Gaggenau DF480701F 400 Series Dishwasher 24'' Variable Hinge for Special Installation Situations
Request a Consultation or Quote
Reach out for a personalized quote or consultation. Our team will get back to you quickly with tailored advice and pricing.
Call us to learn about discounts on display models and Grade A open boxes!
Why Isn't Pricing Shown?
Pricing for these premium products isn't displayed online due to industry policies that require a personalized approach. To ensure you receive the most accurate information and best service, we offer customized quotes and consultations.
For detailed pricing and advice, please contact us directly or visit our showroom. We're here to assist you in making the best choice for your home.
Gaggenau DF480701F
Overview & Specifications
Overview & Specifications
Operation
TFT display indicating remaining or end time, refill for salt and rinsing agent, inflow of water.
Touch key operation.
Flexible cycle time reduction, even during an active cycle.
Personalization function for storing individual combinations of programs.
Information key with use indicators.
Sanitized indicator in the control panel.
Time delay up to 24 hours.
Visual and acoustic end of program indicator.
Lateral Info-Light.
Technical Features
Perfectly illuminated interior.
Glass protection with zeolite.
Aqua sensor.
Load sensor.
Automatic detergent function.
Regeneration electronics.
Flow-Through Water Heater™
Triple filter system.
Soft lock.
Aqua stop.
Selected digital services (Home Connect)
Program assistant.
Temporary noise reduction (only available with active Home Connect functionality).
Home network integration for digital services (Home Connect) wireless via WiFi.
The use of the Home Connect functionality depends on the Home Connect services, which are not available in every country. For further information please check: home-connect.com.
Programs
8 programs:
Auto 150-160 (degree)F. Auto 127-140 (degree)F. Auto 113-122 (degree)F. Eco 113-136 (degree)F. Wash and Dry 122(degree)F. Quick Wash 113 (degree)F (30 min). Glass Care 122 (degree)F. Personalization function (default setting: Pre-rinse).
4 options:
Intensive Plus. Power. Sanitize. Extra Dry with zeolite.
Machine Care.
Interior
Flexible rack system with smooth running rails on all levels and soft-closing system of the upper and lower rack.
3rd rack for cutlery.
Upper basket:
Over extension. Rackmatic with 3 levels, adjustable in height up to 2" (5 cm). 6 folding spines. 4 folding racks for optimal protection of glass.
Lower basket:
Motorized spray arm. 8 folding spines. 2 folding racks for optimal protection of glass. Dividable glass support.
Cutlery basket.
Holder for long-stemmed glasses.
Maximum dish sizes (upper/lower basket)
8 1/4" / 10 1/4", 9 1/4"/ 11 3/16 or 6 5/16"/12 3/16" respectively.
13 place setting capacity.
Maximum glass loading capacity 23 wine glasses.
Consumption data
Energy Star certified
Total annual energy consumption 240 kWh.
Total annual water consumption 505 gallons.
Noise level 42 dB (re 1 pW).
Planning notes
Height-adjustable feet.
Appliance toe-kick recess 3 15/16" (see drawing).
Rear feet adjustable at front.
Door weight up to 24 lb.
Door panel dimension dependent on toe-kick height of kitchen cabinetry.
Installation and usage also with custom cabinet handle possible. The push-to-open function remains active.
Rating
Total rating: 1440 W.
Connecting cable 47 1/4" with three-prong plug (NEMA 5-15P).
Water connection with 3/4" screw joint.
Connection to hot or cold water possible.
Power consumption standby/network 2.0 W.
Time auto-standby/network 2 min.
Please check the user manual for how to switch off the WiFi module.
