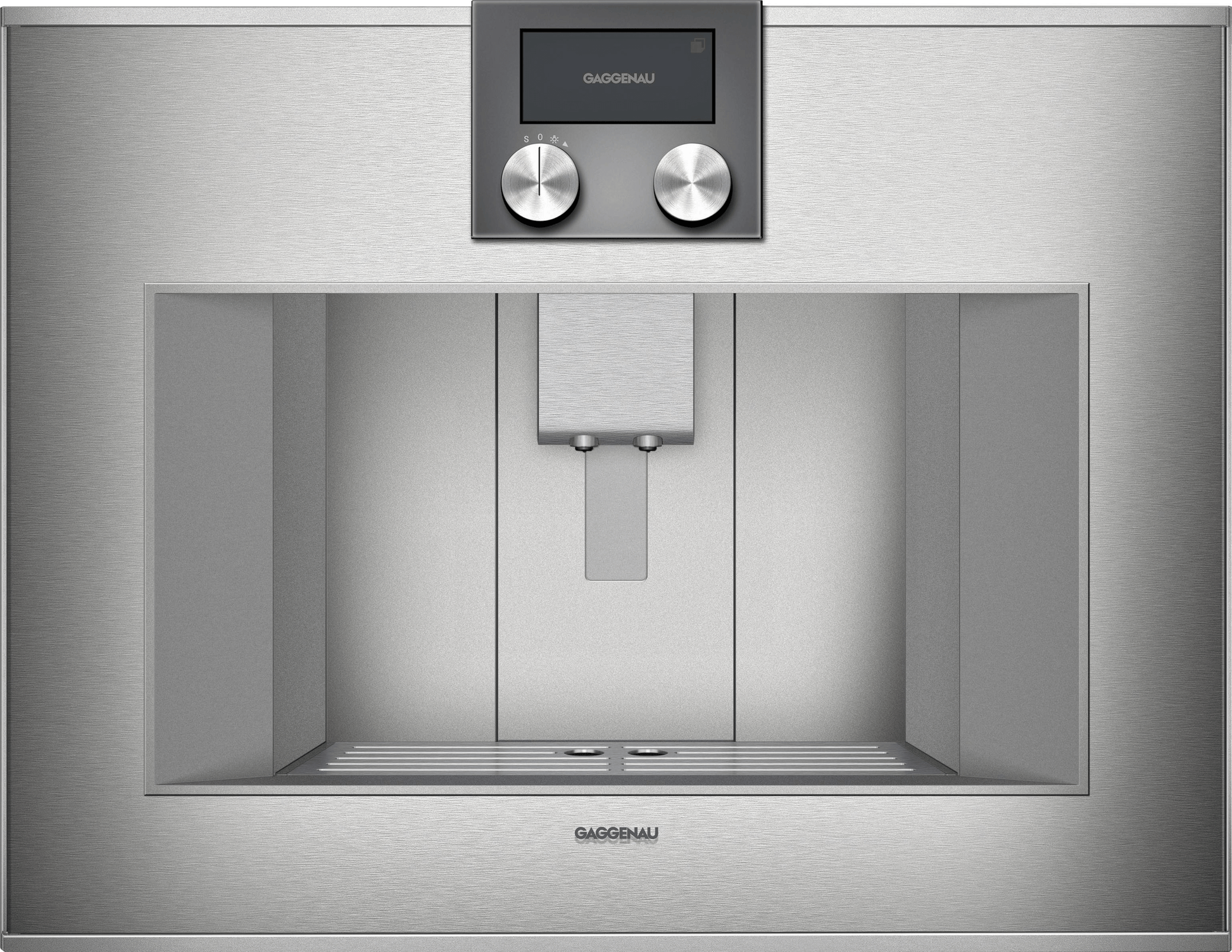

Gaggenau CM470712
Overview & Specifications
Overview & Specifications
Type of beverage
Ristretto / 2 x Ristretto.
Espresso / 2 x Espresso. Espresso Macchiato / 2 x Espresso Macchiato. Coffee / 2 x Coffee. Americano / 2 x Americano. Caffe Latte / 2 x Caffe Latte. Latte Macchiato / 2 x Latte Macchiato. Cappuccino / 2 x Cappuccino. Flat White / 2 x Flat White. Milk froth / 2 x Milk froth. Warm milk / 2 x Warm milk. Hot water / 2 x Hot water.
Operation
One touch control panel and an interactive visual display.
Rotary knob and TFT touch display operation.
Clear text display in 44 languages.
Personalization function, up to 8 beverages can be personalized and memorized.
4 beverage size settings from small to extra large; can be individually adjusted to match the size of the cup.
8 coffee strength levels from very mild to extra strong.
Coffee: 3 grades.
Hot water: 8 grades.
4 coffee-milk ratio levels.
Adjustable grinding level.
Height-adjustable coffee dispenser 2 3/4" - 5 7/8".
Easy access to water tank, milk and coffee bean container behind the door.
Features
Non-wearing grinding unit with ceramic discs.
Separate drawer for second ground coffee type.
Water pump with 275 psi ( 19 bar) pressure.
Double grinding and brewing cycles for two beverages.
For double beverage order, two grinding and brewing cycles.
Beverage dispenser with integrated milk system.
Insulated stainless steel milk container for up to 17 oz. ( 0.5 litres).
Integrated LED lighting.
Removable bean container with aroma protecting lid for 1.1 lbs., allows for an effortless exchange of different types of coffee beans.
Automatic adjustment of ground coffee quantity.
Removable 2.5 quarts (2.4 liter) ( 2.4 litre) water tank.
Electronic water filter exchange indicator.
Electronic fill level control for drip tray and container for coffee residue.
Home network integration for digital services (Home Connect) either via cable connection LAN (recommended) or wireless via WiFi.
The use of the Home Connect functionality depends on the Home Connect services, which are not available in every country. For further information please check: home-connect.com.
Safety
Child lock.
Aqua stop.
Cleaning
Fully automatic rinse program when machine is turned on/off.
Automatic steam cleaning of the milk system after every beverage.
Automatic cleaning and descaling program.
Emptying program to prepare the appliance for holiday or transportation.
Removable brewing unit.
Coffee residue container and drip tray dishwasher-safe.
Beverage dispenser dishwasher-safe.
Planning notes
Door hinge not reversible.
Ideal installation height 3.1 ft - 4.8 ft. (top edge of bottom niche).
The front of the appliance extends 1 7/8" from the furniture cavity.
When installing in a corner a side clearance is required.
Door opening angle appr. 110(degree) (delivery status) - mounting distance to the wall has to be at least 13 3/4".
Door opening angle appr. 155(degree) - mounting distance to the wall has to be at least 25 9/16".
Door opening angle appr. 92(degree) - mounting distance to the wall has to be at least 3 15/16" (spare part No. 00636455).
Installation directly above WS461 (5 3/8" tall) high warming drawer in 23 1/4" standard cut-out niche.
At no point may the outlet hose be positioned higher than the bottom edge of the appliance. The outlet hose must also be at least 6" (150 mm) lower than the appliance outlet (see drawing "drainage connection").
If the appliance is placed too far from the main siphon, the drain system has to be adjusted on-site (building installation).
The water connection (1) for the inlet hose must always be accessible and not located directly behind the appliance.
The connection of the outlet hose to the siphon (2) must not be directly behind the appliance and should be accessible.
Special accessories (order as spare parts):
Part No. 12008246 Water filter Part No. 00636455 Door hinge restrictor (92(degree) opening angle) Part No. 11015223 Bean container with lid
Rating
Total rating 1.6 KW.
Connection cable 39" with plug.
Only cold water connection.
Inlet hose 65" (1.65m) with 3/4 " (26.4 mm) drain connection, extendable.
67" (1.7m) rubber outlet hose 3/4" ( 18 mm) included.
Plan for an ethernet / LAN cable or connect via WiFi.
