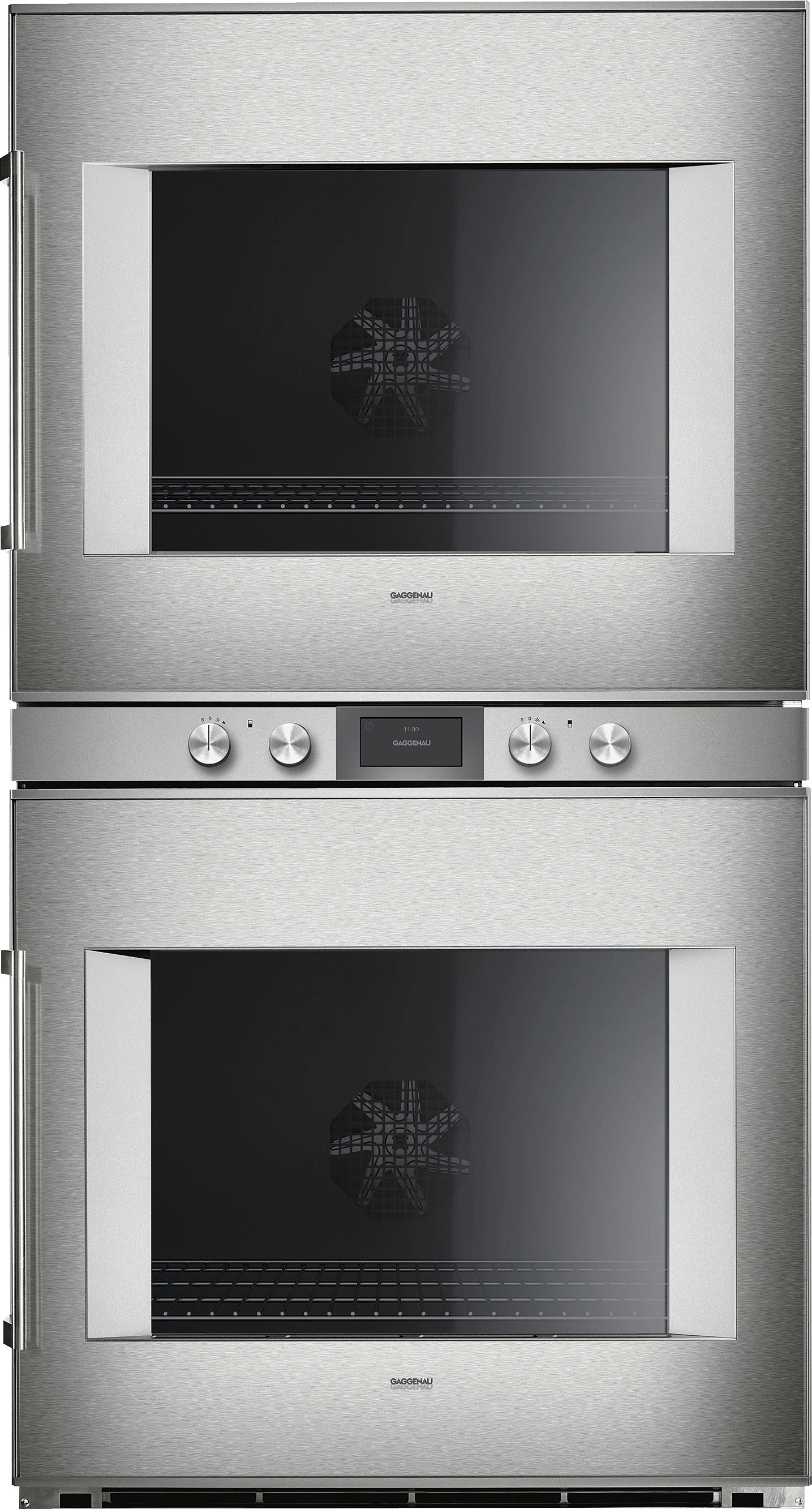

Gaggenau BX480612
Overview & Specifications
Overview & Specifications
General
Are some hobs controls integrated?
No
Color
Stainless steel behind glass
Number of Cooking Modes
17
Cooking Modes
Bake, Baking stone function, Bottom heat, Bottom heating, 1/3 top heat., Convection, Defrost, Half width broil, Hot air and 1/1 bottom heating, Hot air and 1/3 bottom heating, Hot Air-Eco, Keep Warm, Max Broil, Max Convection Broil, Proof, Roast, Roasting function, Top heat
Range of temperature ((degree)C)
30-300 (degree)C
Added steam
No
Cleaning System
Self Clean
Pull-out system
Accessory
Door hinge
Right
Usable volume (of cavity) - NEW (2010/30/EC)
110 l
Usable volume (of cavity) - secondary cavity
110 l
Energy efficiency rating
Not applicable
Energy efficiency class (2010/30/EC) - cavity 2
"blank"
Safety
Childproof Lock, Door Lock Electronical, Safety switch-off func oven
Included Accessories
1 x enamel baking tray,suit. pyrolitic clean, 1 x rotary spit, 1 x grill shelf, 1 x grill tub with grid, 1 x pluggable meat probe
Size and weight
Dimensions
1428 x 752 x 547 mm
Maximum width for installation
724 mm
Depth for installation
550 mm
Net Weight
149.7 kg
Size and weight
Previous Next Previous Next
Technical details
Plug Type
Fixed Connection
Power cord length
180.0 cm
Volts
110-240 V
Watts
9,200 W
Fuse protection
40 A
Included User Manuals
[DE, EN]
Comfort
Fast Pre-Heat
Yes
Pizza Setting
No
Sensors
Meat Probe (Multi-Point)
Hotair
3D (even heat distribution on up to three levels)
Connectivity
Home Connect™
No
Cooking modes
Convection.
Economy convection.. Top + bottom heat. Top + 1/3 bottom heat. Top heat. 1/3 top + bottom heat. Bottom heat. Convection + bottom heat. Convection + 1/3 bottom heat. Convection broiling.. Broiling. Compact grill. Baking stone operation. Roaster function. Dough proofing. Defrosting. Keeping warm.
Operation
Rotary knob and TFT touch display operation.
Clear text display in 44 languages.
Information key with use indicators.
Side-opening door opens up to 180(degree) angle.
Features
Three-point core temperature prove with automatic shut-off and estimation of cooking time.
Rotisserie spit (lower oven).
Baking stone outlet.
Actual temperature display.
Fast heating setting.
60 W halogen light on the top.
10 W halogen light on the side.
Enamelled side shelf supports with 5 tray levels, pyrolysis-safe.
Safety
Thermally insulated door with quadruple glazing.
Child lock.
Safety shut-off.
Cooled housing with temperature protection.
Cleaning
Pyrolytic self-cleaning.
Gaggenau Clean-Enamel.
Heated air cleaning catalyst.
Planning notes
Door hinge not reversible.
The front of the appliance extends 1 7/8" from the cabinet front.
Consider the overhang when planning to open drawers next to the appliance.
When planning a corner solution, pay attention to the 90(degree) door opening angle.
To achieve the 21 5/8" installation depth, the connection cable needs to follow the slanted edge on the lower right hand corner of the housing.
Plan a power outlet outside of the
cut-out niche.
Rating
Total rating 9.2 KW.
Total Amps: 40 A.
110-120 V / 220-240 V / 60 Hz.
Connecting cable 70 7/8" without plug (hardwire required).
