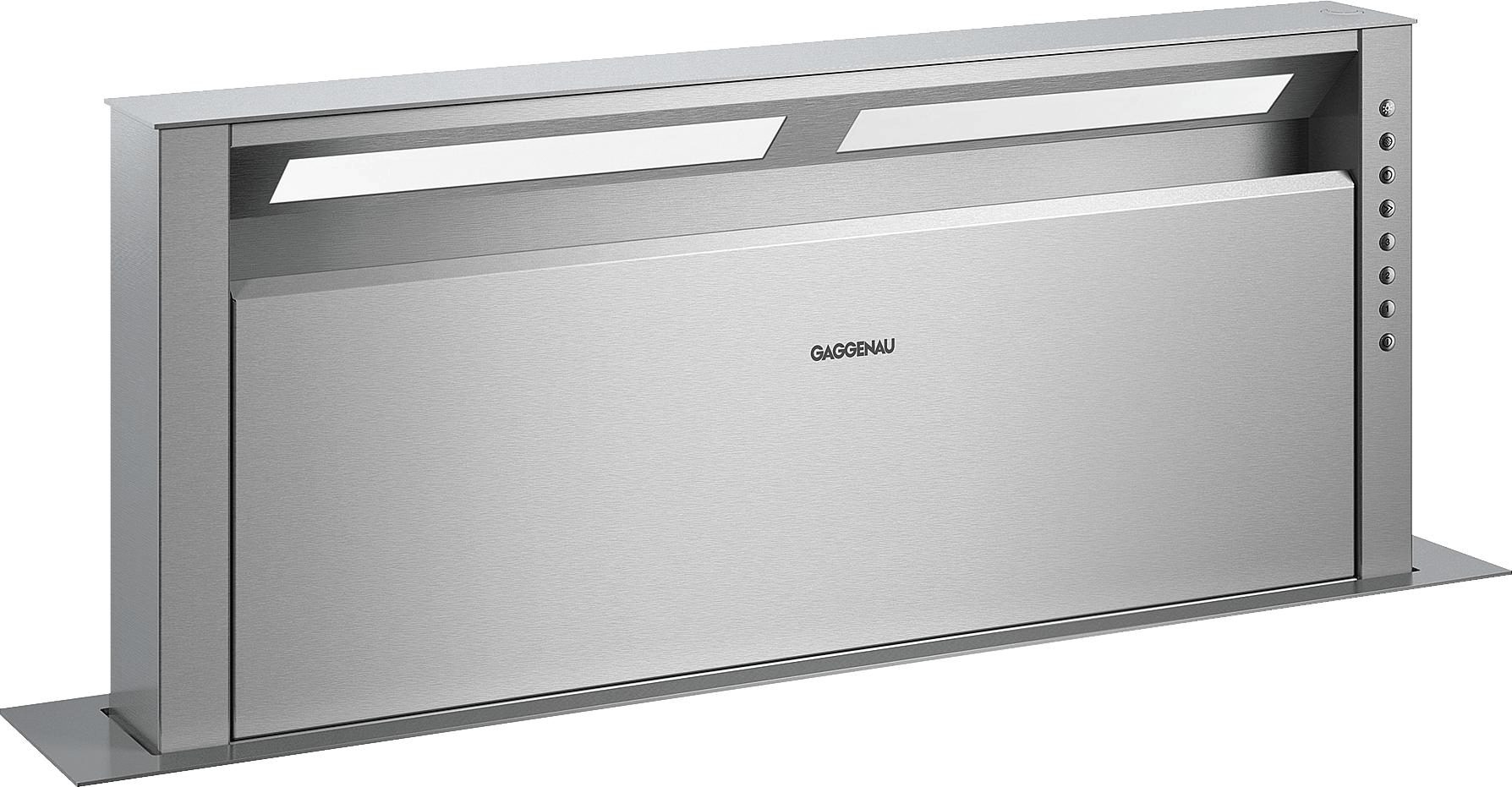

Gaggenau AL400792 400 Series Backsplash Ventilation 36'' Stainless Steel
Request a Consultation or Quote
Reach out for a personalized quote or consultation. Our team will get back to you quickly with tailored advice and pricing.
Call us to learn about discounts on display models and Grade A open boxes!
Why Isn't Pricing Shown?
Pricing for these premium products isn't displayed online due to industry policies that require a personalized approach. To ensure you receive the most accurate information and best service, we offer customized quotes and consultations.
For detailed pricing and advice, please contact us directly or visit our showroom. We're here to assist you in making the best choice for your home.
Gaggenau AL400792
Overview & Specifications
Overview & Specifications
Output
Noise level depends on the built-in situation.
Features
3 electronically controlled power levels and 1 intensive mode.
Interval ventilation, 6 min.
Run-on function, 6 min.
Grease filter saturation indicator.
2 large-scale metal grease filters included, easy to remove and dishwasher-safe.
Grease drip trays, easy to remove and dishwasher-safe.
Neutral white surface LED light (3600 K), continuously dimmable.
Lamp output 4 x LED 6medium power 5W stripe.
Illuminance 200 lx.
Flexible connection options based upon blower selection: at the bottom, at the front or at the back.
In all the options, it is possible to have space for drawers in front of the retractable downdraft.
Consumption data
Consumption data is referred to a configuration with the recirculation blower AR 410 710.
Planning notes
Combinable with all cooktops Vario 400 series, 400 series and 200 series.
Maximum cooktops width: 36" (90 cm).
Depending on the type of installation, the corresponding accessories must be ordered separately.
Air recirculation is not recommended in combination with Vario electric grill.
Operation of Vario cooking appliances only possible without appliance cover.
Max. output of cooktops 60,000 BTU.
The retractable downdraft must have its own countertop cut-out and may not be placed directly against the cooktop(s).
The bearing capacity and stability,
in the case of thin countertops in particular, must be supported using suitable substructures. Take into account the appliance weight and additional loads.
The remaining surface of the worktop (min. 50 mm) between the cut-outs must be reinforced with a support. It is recommended to use furniture support AA 409 401/431.
Additional instructions for flush mounting:
Flush installation is possible in countertops made of stone, synthetics or solid wood. Heat resistance and watertight sealing of the edges must be observed. For other materials, please consult with your countertop manufacturer.
Depending on the type of installation, ovens can be combined with the retractable downdraft.
The electronic control unit for the retractable downdraft should be accessible and be secured to a panel of the cabinet that avoids any risk of flooding.
Rating
Total rating: 65 W.
100 - 120 V / 60 Hz.
Total amps: 10 A.
Connecting cable 60" with plug.
